15.0. Accessories list
14.0. FPV Troubleshooting
INSTRUCTION MANUAL
Aircraft x1 USB charging cable x1
Propeller Ax4
Propeller Bx4
A
B
LiPo battery x1
Remote control x1
Manual x1Screwdriver x1
14.2 Goggle received the image signal quality is poor or
wireless transmission distance near:
1) whether the same frequency of radio transmission
equipment interference, FPV system should choose other
frequencies, to avoid the interference frequency or to
avoid the use of the same site.
2) Whether the goggle antenna is installed.
3) whether the goggle and the aircraft between the
mountains, houses, trees and other obstacles, please
use the FPV system in the open space.
14.1 Goggle display screen No image:
1) Check to see if the power supply of the
goggle and the power supply of the aircraft
is normal, battery power is sufficient.
2) Check whether the goggle receive channel
and transmitter channel is consistent.
3) Check the transmitter and the end of the
goggle N / P standard is consistent.

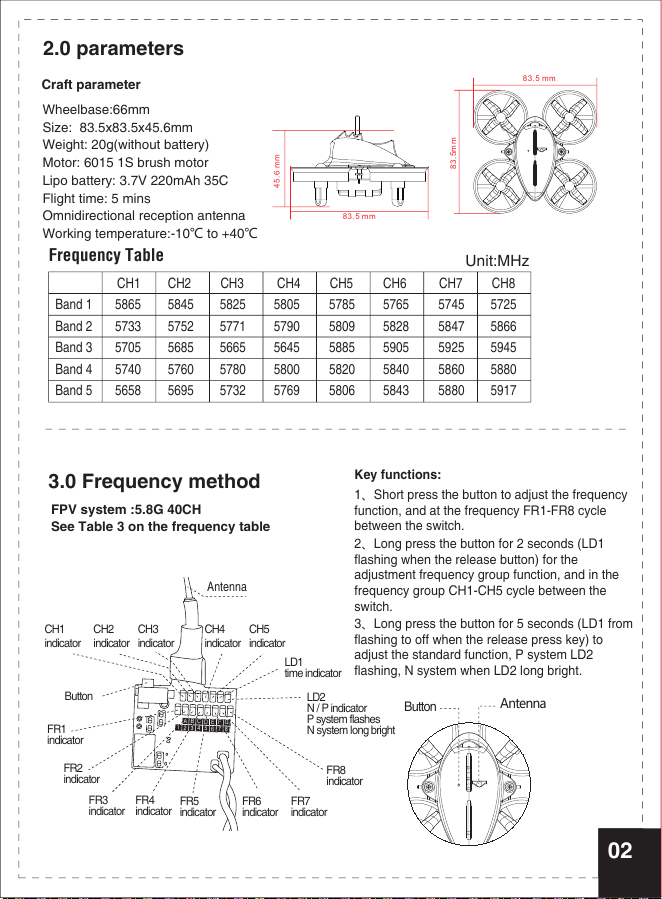

2.0 parameters
Wheelbase:66mm
Size: 83.5x83.5x45.6mm
Weight: 20g(without battery)
Motor: 6015 1S brush motor
Lipo battery: 3.7V 220mAh 35C
Flight time: 5 mins
Omnidirectional reception antenna
Working temperature:-10℃ to +40℃
Craft parameter
83 .5 m m
45 .6 m m
83 .5 m m
83.5mm
Frequency Table
Unit:MHz
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band 1 5865 5845 5825 5805 5785 5765 5745 5725
Band 2 5733 5752 5771 5790 5809 5828 5847 5866
Band 3 5705 5685 5665 5645 5885 5905 5925 5945
Band 4 5740 5760 5780 5800 5820 5840 5860 5880
Band 5 5658 5695 5732 5769 5806 5843 5880 5917
Key functions:
1、Short press the button to adjust the frequency
function, and at the frequency FR1-FR8 cycle
between the switch.
2、Long press the button for 2 seconds (LD1
flashing when the release button) for the
adjustment frequency group function, and in the
frequency group CH1-CH5 cycle between the
switch.
3、Long press the button for 5 seconds (LD1 from
flashing to off when the release press key) to
adjust the standard function, P system LD2
flashing, N system when LD2 long bright.
1
2
3 4
5 6 7 8
A
B
C
D
E
F G
CH1
indicator
FR1
indicator
Button
LD1
time indicator
LD2
N / P indicator
P system flashes
N system long bright
Antenna
3.0 Frequency method
Button
Antenna
CH2
indicator
CH3
indicator
CH4
indicator
CH5
indicator
FR2
indicator
FR3
indicator
FR4
indicator
FR5
indicator
FR6
indicator
FR7
indicator
FR8
indicator
FPV system :5.8G 40CH
See Table 3 on the frequency table

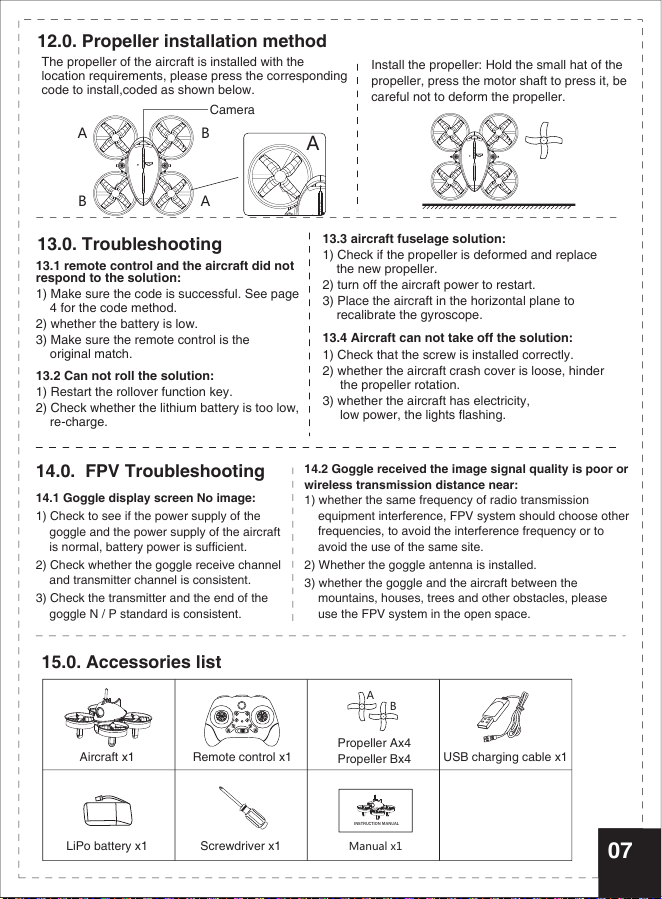

12.0. Propeller installation method
13.0. Troubleshooting
A
A
B
B
Camera
A
13.1 remote control and the aircraft did not
respond to the solution:

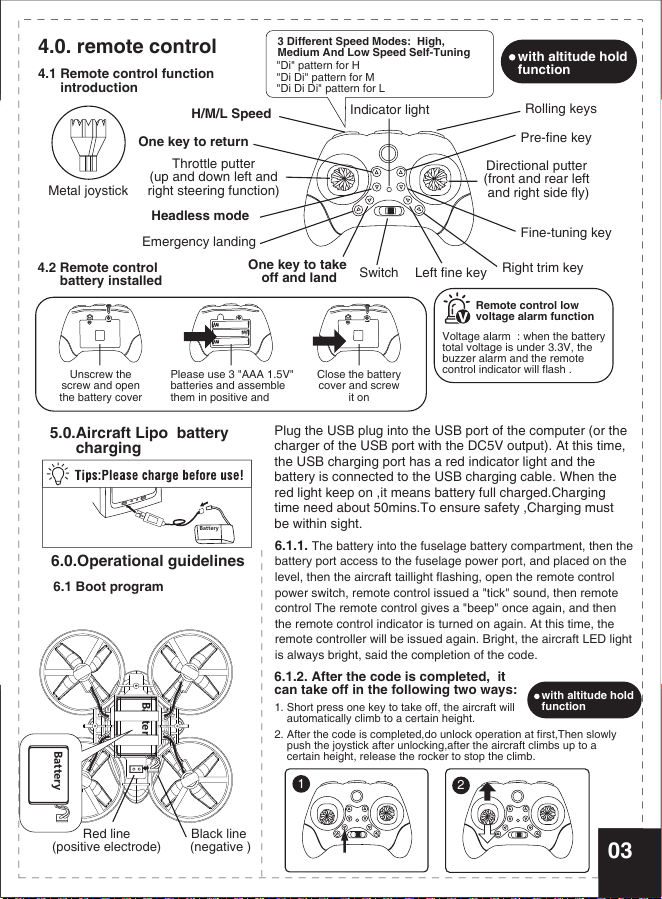

1) Make sure the code is successful. See page
4 for the code method.
2) whether the battery is low.
3) Make sure the remote control is the
original match.

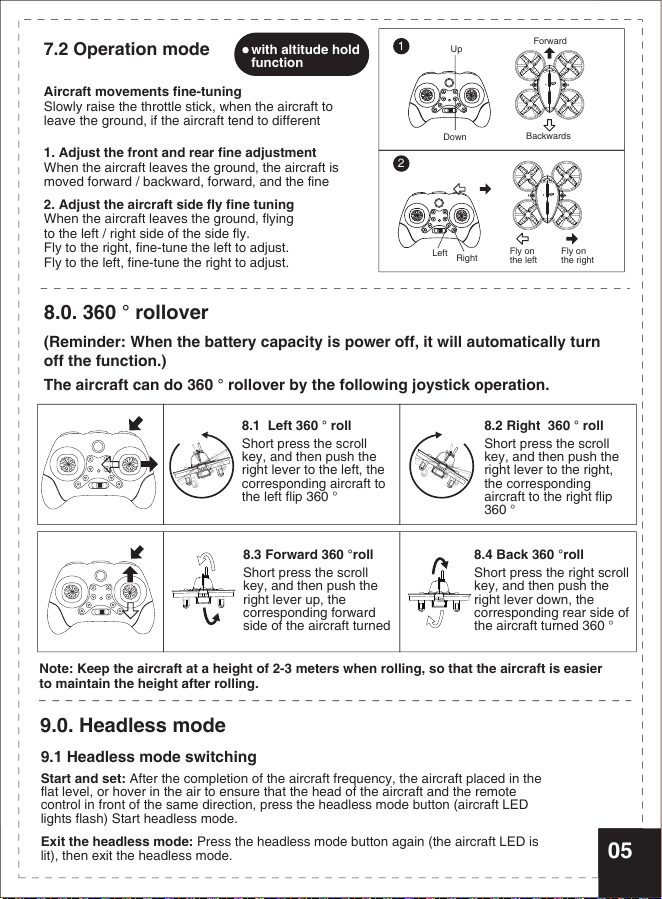

13.2 Can not roll the solution:
1) Restart the rollover function key.
2) Check whether the lithium battery is too low,
re-charge.
13.3 aircraft fuselage solution:
1) Check if the propeller is deformed and replace
the new propeller.
2) turn off the aircraft power to restart.

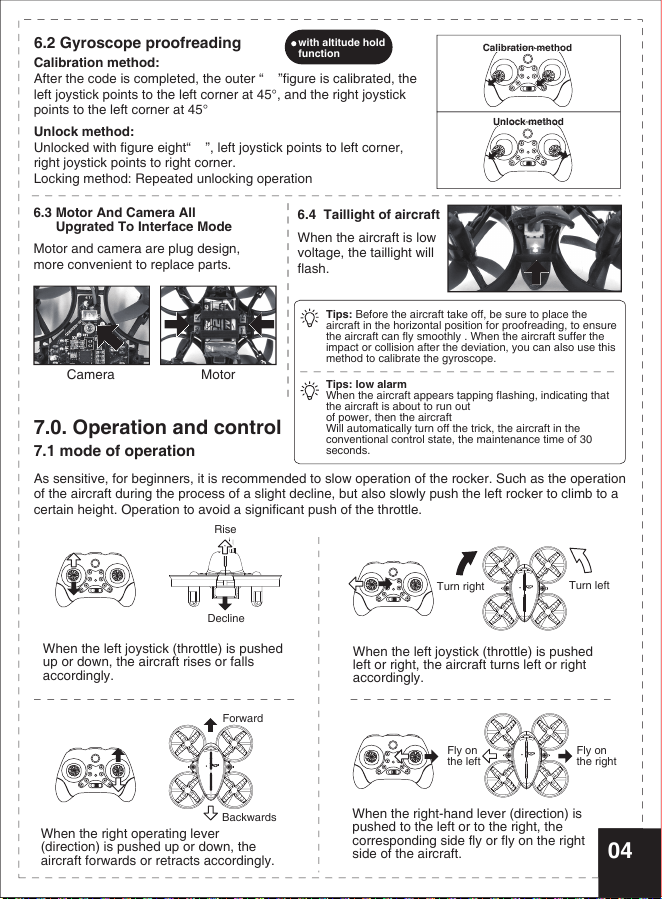

3) Place the aircraft in the horizontal plane to
recalibrate the gyroscope.
13.4 Aircraft can not take off the solution:
1) Check that the screw is installed correctly.
2) whether the aircraft crash cover is loose, hinder
the propeller rotation.
3) whether the aircraft has electricity,
low power, the lights flashing.
Install the propeller: Hold the small hat of the
propeller, press the motor shaft to press it, be
careful not to deform the propeller.
The propeller of the aircraft is installed with the
location requirements, please press the corresponding
code to install,coded as shown below.
01
07
02
The main structure of the ABS material, the new
industrial and modular design, improve product
development, easy installation and maintenance,
replacement upgrades.
Equipped with FPV 5.8G map transmission
real-time transmission system, bring you not the
same visual effects.
1. Aircraft shell
2. Cover the screw hole
3. FPV system
4. EVA pad (fixed camera)
5. Rack
6. Rack cap screw hole
7. Forward rotation propeller
8. Reversing the propeller
9. Propeller guardrail
10. Body battery compartment
11. Battery

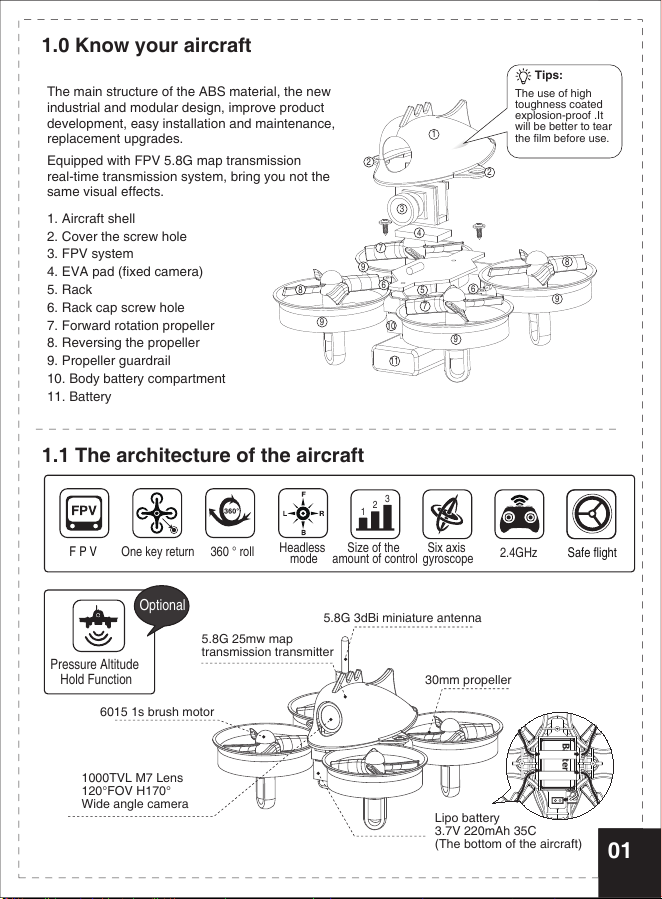

1.0 Know your aircraft
3
2
2
8
8
7
7
4
5
6
6
9
9
9
9
11
10
1
Tips:
The use of high
toughness coated
explosion-proof .It
will be better to tear
the film before use.
1.1 The architecture of the aircraft
5.8G 25mw map
transmission transmitter
6015 1s brush motor
5.8G 3dBi miniature antenna
30mm propeller
Lipo battery
3.7V 220mAh 35C
(The bottom of the aircraft)
1000TVL M7 Lens
120°FOV H170°
Wide angle camera

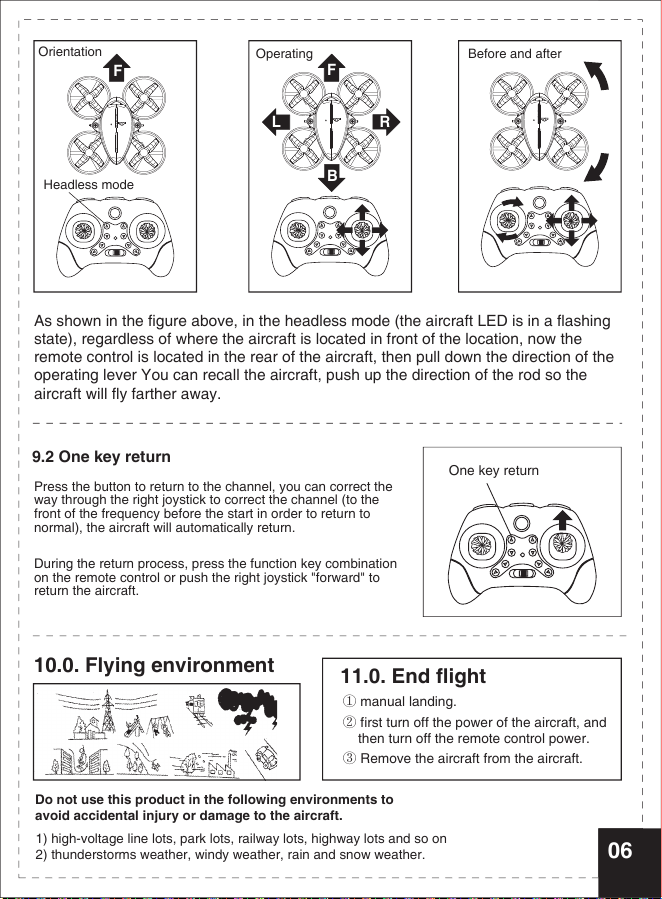

360 ° rollOne key return
Headless
mode
F P V
Size of the
amount of control
1
2
3
2.4GHz
Safe flight
Six axis
gyroscope
Battery
Pressure Altitude
Hold Function
Optional
AGES 14+
FPV six-axis aircraft operating instructions
