54-49-8403
SERVICE PARTS LIST
BULLETIN NO.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
PACKOUT™ Totes & Bags
May 2023
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
48-22-8321 PACKOUT™ Medium 15" Tool Bag Page 1
48-22-8322 PACKOUT™ Large 20" Tool Bag Page 1
48-22-8310 PACKOUT™ Small 10" Storage Tote Page 2
48-22-8315 PACKOUT™ Medium 15" Storage Tote Page 2
48-22-8320 PACKOUT™ Large 20" Storage Tote Page 2
48-22-8300 PACKOUT™ Tech Bag Page 3
48-22-8301 PACKOUT™ Jobsite Backpack Page 3
48-22-8302 PACKOUT™ Jobsite Cooler Page 3
48-22-8311 PACKOUT™ Small 10" Structured Tote Page 4
48-22-8316 PACKOUT™ Medium 15" Structured Tool Bag Page 4
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-56-8300 Shoulder Strap (For both tote models) (1)
2 44-20-8300 Locker Kit (For early versions of 48-22-8321)
See page two. (1)
3 44-20-0305 Locker (For 48-22-8322 and later versions
of 48-22-8321) See page two. (1)
*48-22-8321 15" PACKOUT™ (Medium) Tool Bag
*48-22-8322 20" PACKOUT™ (Large) Tool Bag
SEE PAGE 2 FOR INSTRUCTIONS ON REMOVING
SELECTION AND INSTALLING BOTH LOCKER SYSTEMS
1
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
Locker located in front
Locker located on side
SPECIAL NOTE: There are two locker designs for the 15” model.
An early version of the 48-22-8321 had a different locker system.
The design used in the 20” model was incorporated in later
production of the 15” model.
See page two.
48-22-8321 15" PACKOUT™ (Medium) Tool Bag*
48-22-8322 20" PACKOUT™ (Large) Tool Bag*
SERIAL NO.
2

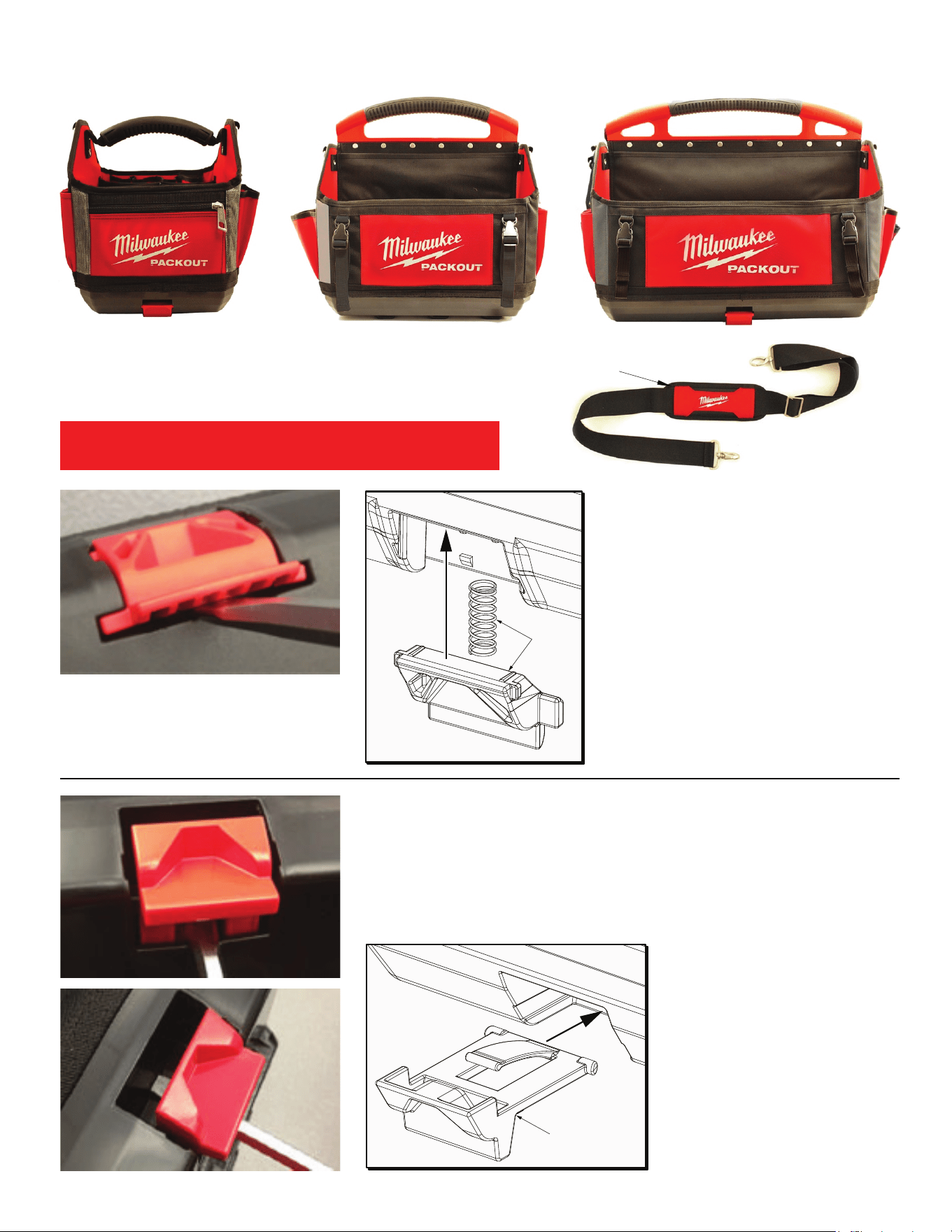

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-56-8300 Shoulder Strap (For all three tote models) (1)
2 44-20-8300 Locker Kit (For all three tote models) (1)
or
3 44-20-0305 Locker Kit (For all three tote models) (1)
2
To install a Locker Kit (2), align spring as shown and
guide the tabs of locking carriage in channels of tote
base. Push locking carriage upward to snap into place.
3
To install a new Locker (3), guide the tabs of
locking carriage in channels of tote base.
Push locking carriage forward to snap into
place.
To remove a damaged locker system, flip tote
upside down and approach tote from the bottom
of base. Insert a large flat blade screwdriver in
middle of locking carriage as shown. Lightly pry
carriage upward out of base opening. Remove
and discard old locking carriage and spring.
To remove a damaged locker system, flip tote over on
the side and approach tote from the bottom of base.
Insert a large flat blade screwdriver in middle of lock-
ing carriage as shown. Lightly pry carriage upward
out of base opening. Remove and discard old locking
carriage.
No. 44-20-8300
Locker Kit
For early production PACKOUT™
Storage Totes
No. 44-20-0305
Locker
For later production PACKOUT™
Storage Totes
1
SEE DIAGRAMS BELOW TO DETERMINE LOCKER
SERVICE PART NEEDED.
48-22-8310 10" PACKOUT™(Small) Storage Tote
48-22-8315 15" PACKOUT™ (Medium) Storage Tote
48-22-8320 20" PACKOUT™ (Large) Storage Tote
2
1
2
SEE PAGE 2 FOR INSTRUCTIONS ON REMOVING AND
INSTALLING BOTH LOCKER SYSTEMS

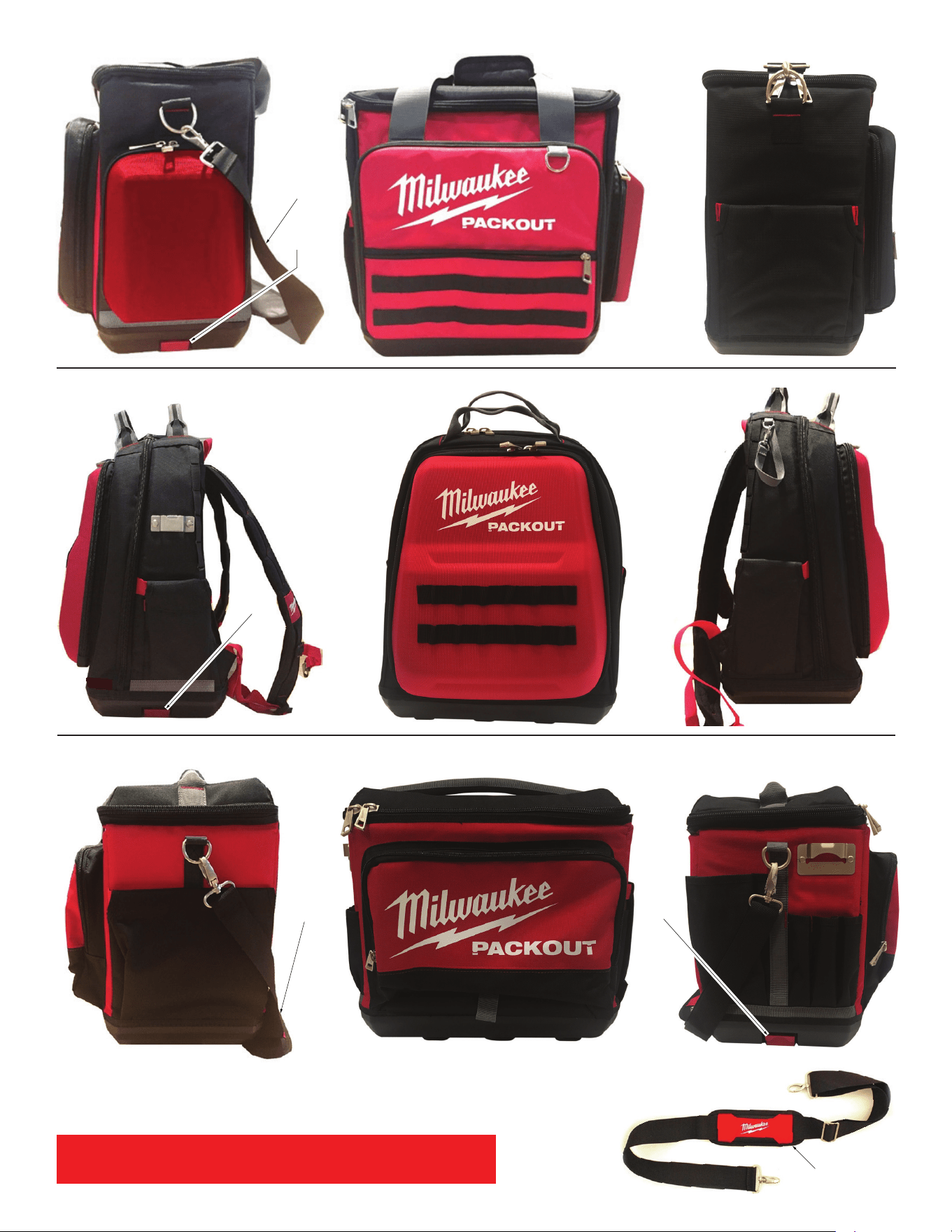

48-22-8300 PACKOUT™ Tech Bag
48-22-8301 PACKOUT™ Jobsite Backpack
3
1
2
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-56-8300 Shoulder Strap (For Cooler & Tech Bag) (1)
2 44-20-0305 Locker System (1)
1
48-22-8302 PACKOUT™ Jobsite Cooler

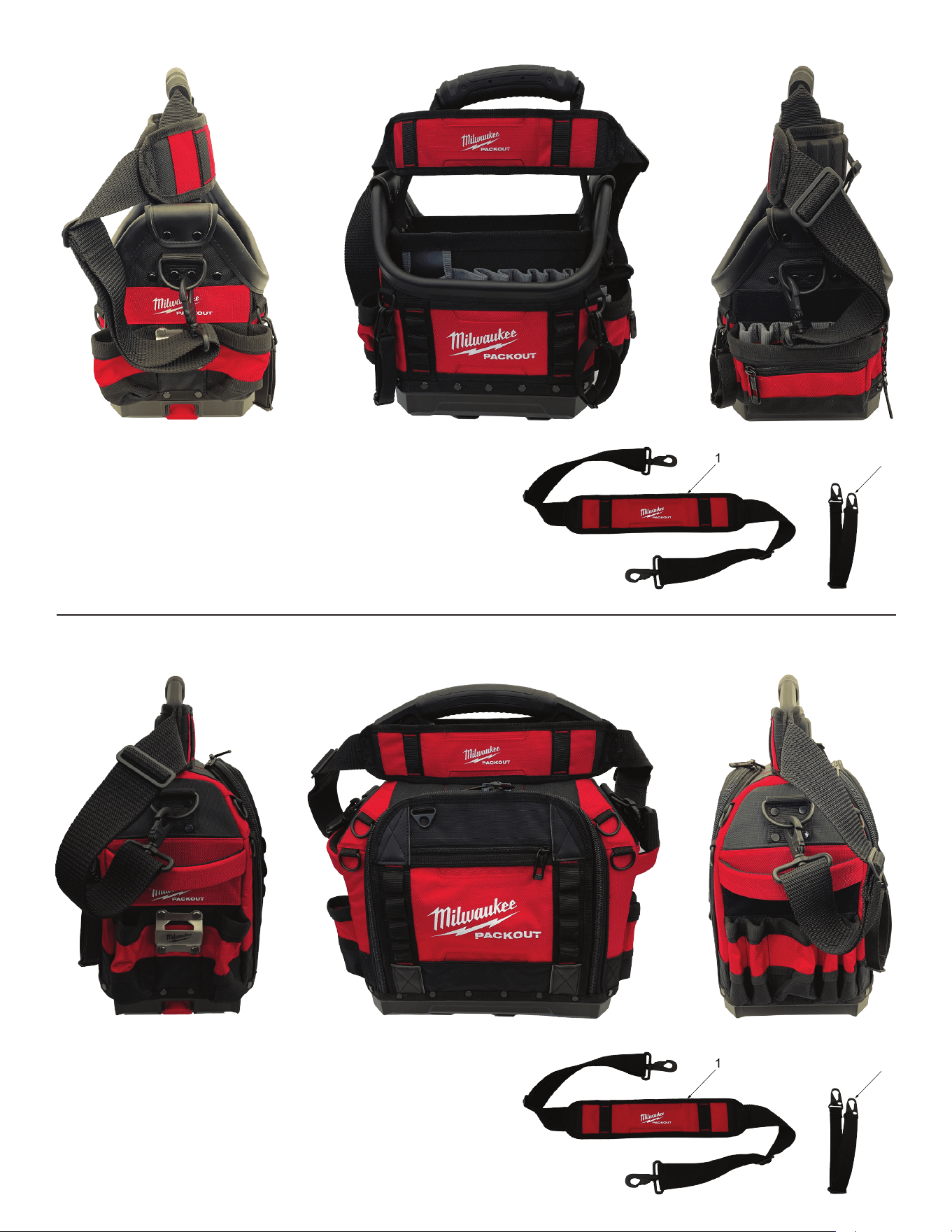

48-22-8311 PACKOUT™ 10" Structured Tote
48-22-8316 PACKOUT™ 15" Structured Tool Bag
4
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-8316 Shoulder Strap (1)
2 14-46-8318 15" Structured Tool Bag Accessory Strap (2)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-46-8316 Shoulder Strap (1)
2 14-46-8317 10" Structured Tote Accessory Strap (2)
1
1
2
2
