REVISED BULLETIN
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.

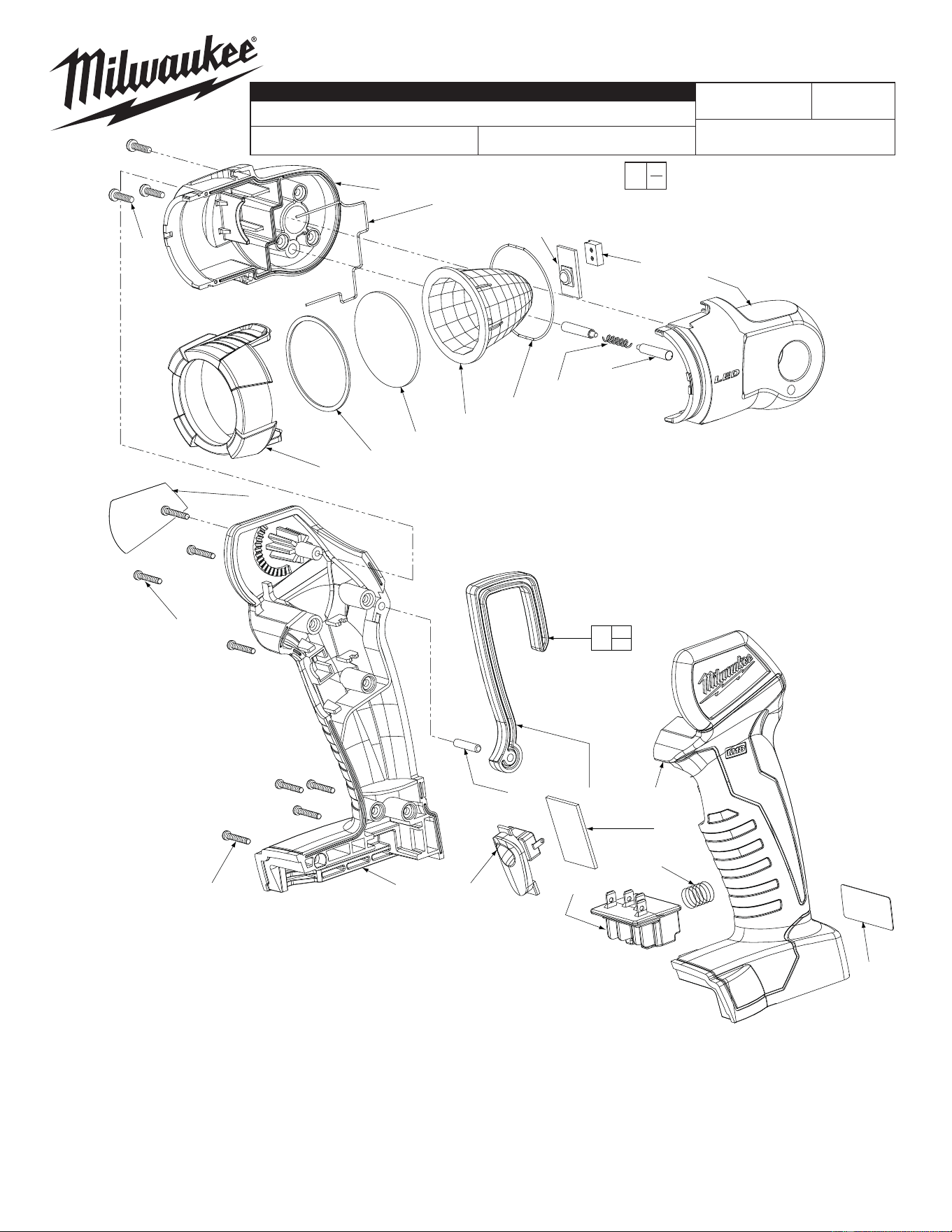

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 10-20-2695 Warning Label (1)
2 --------------- Lens (1)
3 06-82-7225 #4-20 x .5 Pan Head Plastite T-10 Screw (8)
4 --------------- Sealing Ring (1)
5 --------------- Sealing Gasket (1)
6 12-20-2110 Service Nameplate Kit (1)
7 --------------- Circuit Assembly (1)
8 --------------- LED (1)
9 --------------- 18 V Connector Block (1)
10 --------------- Sealing Washer (1)
11 --------------- Gasket (1)
12 --------------- M3 Screw (3)
13 --------------- Detent Pin (2)
14 --------------- Hook (1)
15 --------------- Right Handle Halve (1)
16 --------------- Left Handle Halve (1)
17 --------------- Right Housing (1)
18 --------------- Left Housing (1)
19 --------------- Bezel (1)
54-06-2735
CORDLESS 18 VOLT LED WORKLIGHT
2735-20
C12A
Mar. 2012
0
00
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
19
4
2
22
5
21
13
12
17
11
8
10
18
6
15
3
23
7
9
1
20
14
16
3
14
20
24
25
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
20 --------------- Pivot Pin (1)
21 --------------- Compression Spring (1)
22 --------------- Refl ector (1)
23 --------------- Push Button Switch (1)
24 43-74-0500 Hook and Pivot Pin Assembly (1)
25 40-50-1090 Compression Spring (1)
FIG. NOTES
1,3,15 Top most screw in right handle halve is located under the
nameplate.
1,6 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
