HOUSEHOLD USE ONLY
Read this manual thoroughly before using and save it for future reference

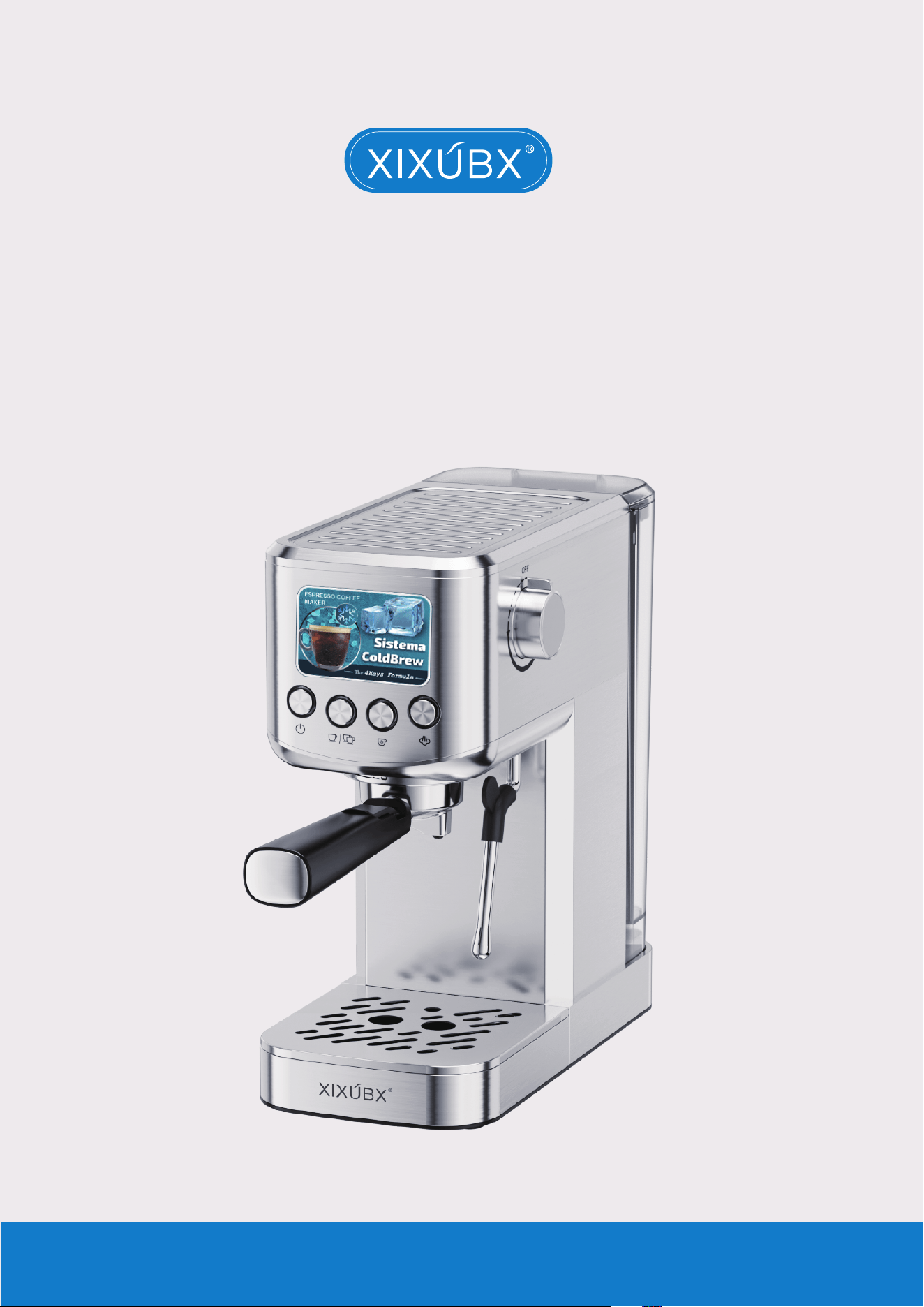

Espresso Coffee Maker
Model: JH-C5119
INSTRUCTION MANUAL
Applicable Scenarios: Home, Office, Outdoor, Party, Leisure
!"#$%&'()%*#+,#-%&'./.,0'-1%2"3./"%,)(+0%#+$%)#4"%(&%3./%3, &,/"%/"3"/"+5"
support@xixubx.com
CONTENTS
I M P O R T A N T S A F E G U A R D S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
SAVE THESE INSTRAUCTION ................................................. 2
SPECIFICATIONS .................................................................. 3
K N O W Y O U R C O F F E E M A K E R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
T H E F I R S T U S E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PRE-HEAT THE BREWING SYSTEM ......................................... 6
U S E R T I P S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
M A K I N G E S P R E S S O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
M A K I N G C O L D / C O O L B R E W C O F F E E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
FROTHING MILK ............................................................ 12-13
ATTENTION：NO WATER IS COMING OUT ............................ 14
C L E A N I N G A N D M A I N T E N A N C E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5 - 1 7
CLEANING THE COFFEE MAKER ................................................... 15
CLEANING THE FILTER BASKETS AND THE PORTAFILTER .................. 15
C L E A N I N G T H E S T E A M W A N D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
C L E A N I N G T H E G R O U P H E A D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
D E S C A L I N G T H E A P P L I A N C E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
T R O U B L E S H O O T I N G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20
W A R R A N T Y I N F O R M A T I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
!"
IMPORTANT SAFEGUARDS
#
$
-1-
Read all instructions and keep them for future reference.
Before using the appliance, check that the voltage of the wall outlet corresponds
to the voltage marked on the rating plate.
To protect against fire, electric shock, and injury, do not immerse the power cord
or plug in water or other liquids.
Remove the plug from the wall outlet before cleaning and when not in use. Allow
the appliance to cool down completely before removing or attaching components,
or before cleaning.
%&'(& )'operate any appliance with a damaged power cord or plug, after the
appliance has malfunctioned, or is dropped or damaged in any way. Take the appli-
ance to the nearest authorized service facility for examination, repairs or adjust-
ments, or contact the dealer.
The use of accessory attachments not recommended by the appliance manufactur-
er may result in fire, electric shock and injury.
Place the appliance on a flat surface or table.
%&'(& ) hang the power cord over
the edge of the table or counter.
Ensure the power cord does not touch the hot surface of the appliance.
%&'(& ) place the coffee maker on a hot surface or next to an open flame.
To disconnect the appliance, turn it off, then remove the plug from the wall outlet.
When removing the plug from the outlet, hold by the plug, never pull on the cord.
%&'(& )'use the appliance other than for the intended use.
Always supervise closely when the appliance is used by or near children.
Be careful when using the appliance, as steam may escape and pose a risk of get-
ting scalded.
%&'(& ) touch any hot surface of the appliance(including the steam wand and the
filter). Only use the handle or knobs.
%&'(& )'operate the coffee maker without water.
!"# $%&#!'()*+!,-)(!.//0).*1#2!/0#.(#!$%00%3!,-#(#!4.()1!/.',)%*(5
#
!
*
+
,
-
$
.
/
#0
##
#!
#*
#+
#,
-2-
!"#$" % remove the portafilter when in use or when steam or hot water escape
from the filter holder.
This appliance is not intended for use by children, or by individuals with reduced
physical, sensory, or mental capabilities, or lack of experience and knowledge,
unless they have been given adequate instruction on how to use the appliance and
are supervised by a responsible adult.
Children must not clean or maintain the appliance without supervision.
This appliance is intended to be used in household and similar applications such
as: staff kitchen areas in shops, offices and other working environments; farm
houses; bed and breakfast type environments.
!"#$" %#place on or near a hot gas or electric burner, or in a heated oven.
&'
&(
&)
&*
+,
SAVE THESE INSTRUCTIONS
Plug Note:
This appliance utilizes a polarized plug (one blade wider than the other). To minimize
the risk of electric shock, the plug is designed to fit into a polarized outlet in one
direction only. If the plug does not fit fully, try reversing it. If it still doesn't fit, con-
tact a qualified electrician. Do not attempt to modify the plug in any way.
Cord Note:
1. A short power supply cord (or detachable cord) is provided to reduce the risk of entang-
lement or tripping over a longer cord.
2. Longer detachable power supply cords or extension cords are available and can be
used with caution.
3. If using a longer detachable cord or extension cord, please note:
a. The cord's electrical rating should be at least as high as the appliance's.
b. Arrange the cord to avoid draping over countertops or tables where children
might pull on it or people could trip over it.
!"#$%& '

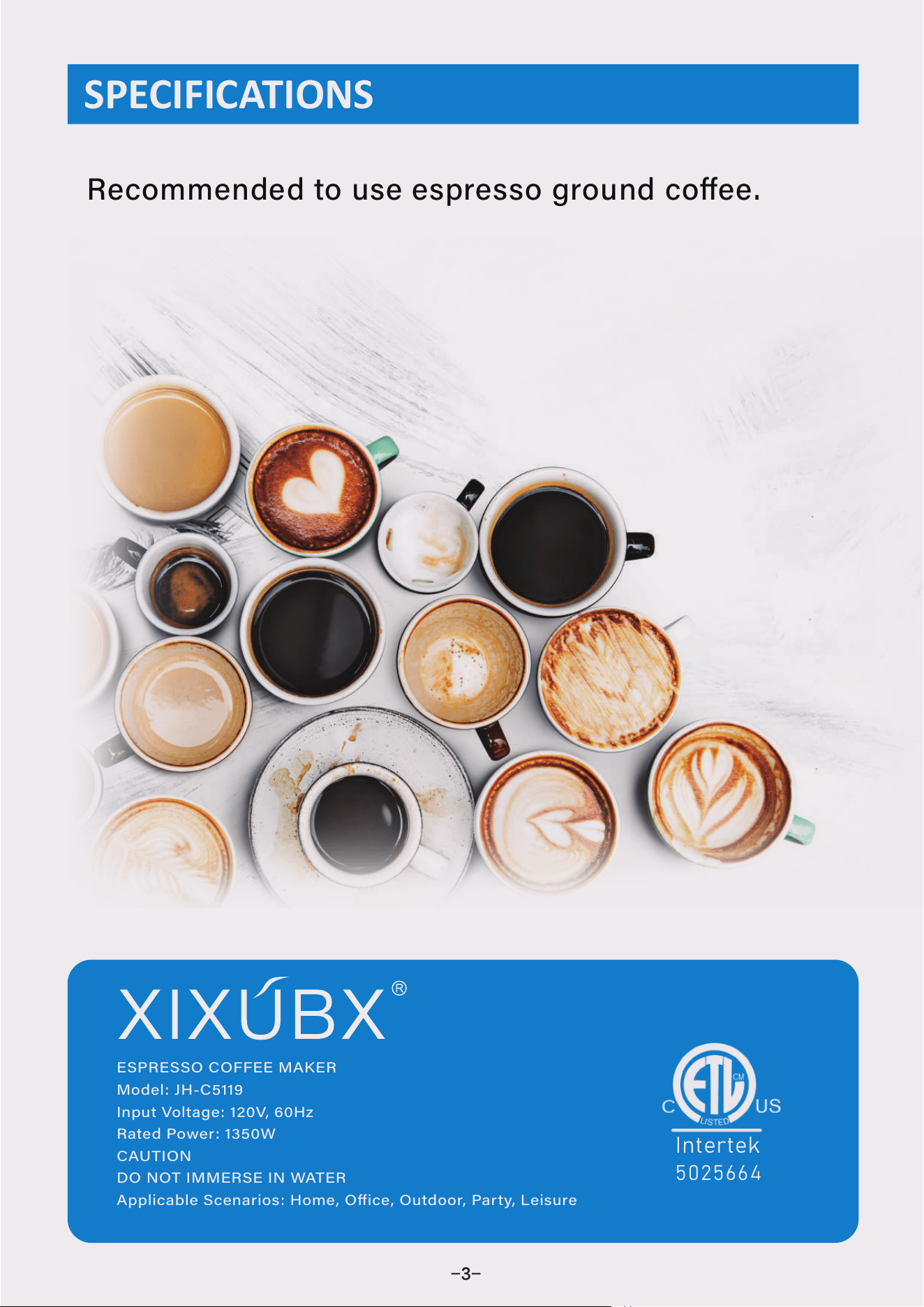

SPECIFICATIONS
!"#$!""%&'%((!!&)*+!$
),-. / 0&123 '4556
789: ; &<,/;= >.0 &5 ? @<A&B @ 2C
$=;.-&#,D.E 0&5F4@G
'*HI7%J
K%&J%I&7))!$"!&7J&G*I!$
*99/LM=N/.&"M.8=EL,O0&2,P.A&%Q LM.A&%:;-,,EA&#=E ;RA&S.LO:E.
Intertek
5025664
-3-

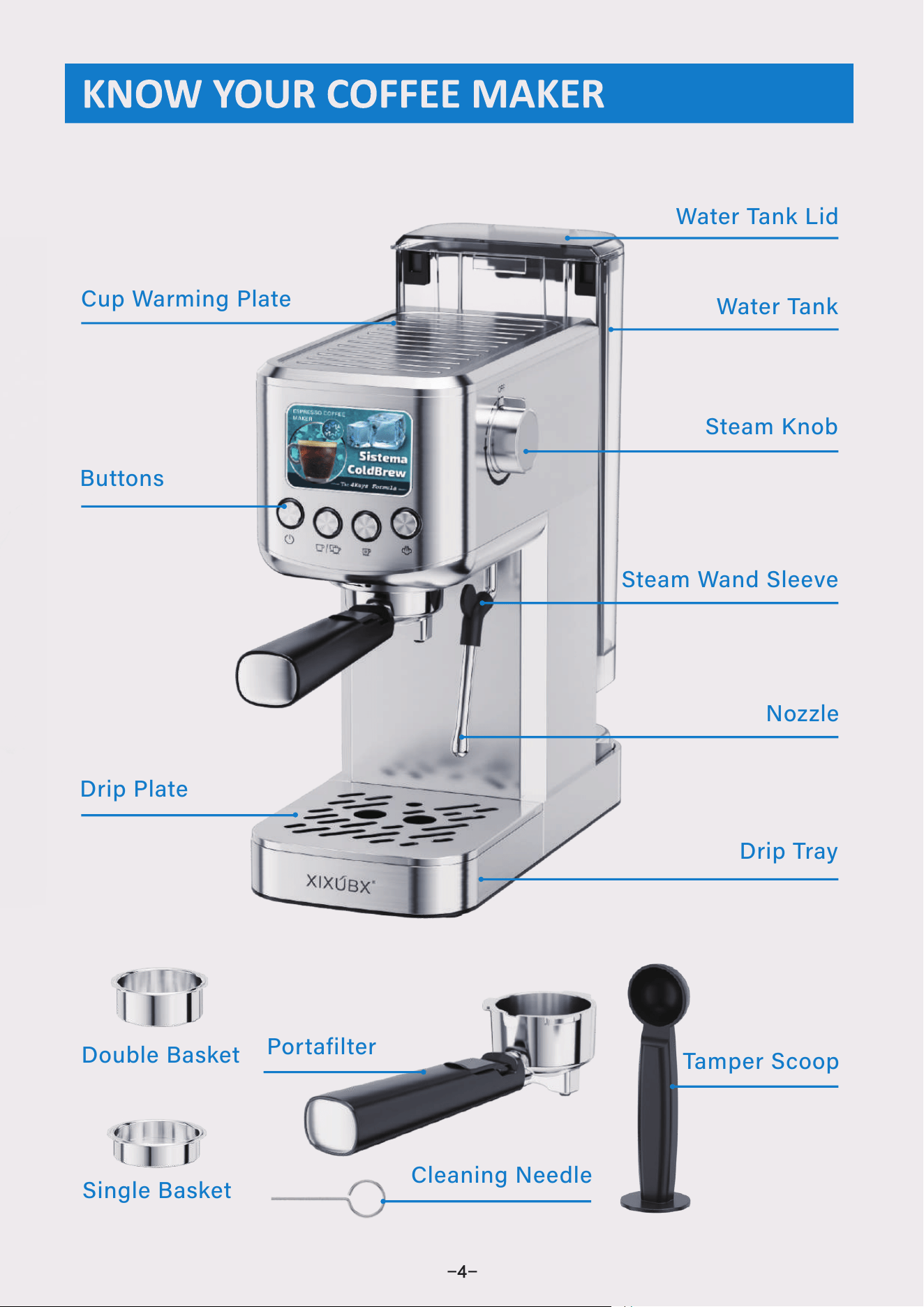

$.M,PP.8-.-&;,&:O.&.O9E.OO,&>E,:8-&M,Q..T
!"#$%&"'(
)*+ +,-
./-'0% 1'23% .,-- 4-
./-'0% 52*6
1'/-"%& '27
1'/-"%& '27%8#3
!"#$%9,'/-
:; //* 2<
=;$ %1'"0 #2> %9,' /-
&'0$-"%.?**$
9* "/'@#,/-"
!*;6,- %:'<7- /
.#2>,-%:'<7-/
=,-'2 #2>%)- -3,-
-4-
1. Fill the water tank,
but not above
the Max line.
2. Plug in the wall
outlet.
3. Ensure the steam
knob is set to the
”!""” position.
4. Press the ” ”
button to turn
on the coffee
maker.
5. Place a cup under
the steam wand.
6. Turn the steam
knob to ” ”
position.
7. Let water spout
out for 15
seconds.
8. Turn th e s team
knob to ”
!""”
position.
There will be a loud noise and some shakes when the coffee maker runs for
the first time, this is normal for a 20 bar pump. The noise will decrease with
further uses.
-5-
15
Sec
9. Insert the empty
filter basket into
the portafilter.
10. Install the porta-
filter and place
a cup under it.
11. Press “ ”
button , the water
comes out.
12. Repeat the steps
2-3 times for op-
timal cleaning.
1. Ensure the steam
knob is set to
the ”!""”
position.
2. Press the “ ”
button to turn
on the coffee
maker.
3. The coffee maker beeps and four lights ill-
uminate together.
4. Insert the empty
filter basket into
the portafilter.
5. Keep it level and
insert it from the
”UNLOCK”
position.
6. Turn th e portaf i l -
ter to the right.
7. The portafilter sh-
ould be in the
”LOCK”
position.
8. Press the “ ”
button to brew.
9. Run hot water th-
rough the machi-
ne to preheat it.
10. The machine is
ready to brew
hot coffee.
A cold filter, filter holder, and cup can reduce the extraction temperature.
For the optimal coffee temperature, preheat the coffee maker at least once before
brewing.
!"#$%&'()%* "+((%$"( ,%-".%'(/01'(%.21,% "3('4.1"-5
-6-
Or
-7-
The flavor of espresso is influenced by the quantity and variety of coffee grounds
utilized.
Various factors contribute to the unique taste of a coffee bean, yet its taste and
aroma are primarily shaped by the roasting procedure. Beans roasted at elevated
temperatures for an extended period exhibit a darker hue and yield richer flavors
compared to lightly roasted ones.
Espresso machines necessitate a finely pulverized coffee grounds. We suggest
opting for a conical burr grinder instead of a blade mill for optimal results.
Choose fresh, high-quality coffee beans to achieve the best flavor extraction.
Store your coffee beans/grounds in an airtight container in a cool, dry place,
away from direct heat sources.
Serve espresso immediately after preparation for optimal taste.
Fine Medium Coarse
French Press
Espresso Coffee Machine
Grind
Setting
Best for
1. Ensure the steam
knob is set to the
”
!""” position.
4. Insert the filter b-
asket into the po-
rtafilter along the
groove.
5. Turn it left or right
until it snaps into
place.
6. Fill the filter bask-
et with ground
coffee.
7. Tam p t h e g r ou n d
coffee evenly and
firmly.
8. Wipe filter basket
edges to remove
residue.
9. Ground coffee
does not exceed
the Max line.
10. Keep it level and
insert it from the
”UNLOCK”
position.
11. Turn th e p ortafi -
lter to the right.
-8-
2. Press the “ ”
button to turn
on the coffee
maker.
3. The coffee maker beeps and four lights ill-
uminate together.
MAX
Pour Over / Drip
11. Ensure the “ Ste-
am Knob” is set
to the “ ”
position.
-9-
!""
12. The portafilter
should be in
the ”LOCK”
position.
13. Press “ ” button to get a single
shot. Press and hold the “ ”
button for 3 seconds to get a double
shot.
14. After preheating,
the machine sta-
rts dispensing
coffee.
15. Wait until all the
coffee has come
out before rem-
oving the cup.
16. Turn th e p ortafi l t e r to t h e left t o unlock a nd rem o v e it.
17. Knock out the
espresso puck.
#$
18. Wash all parts
with warm water.
Do not wash in a
dishwasher.
1. Fill the water tank
with iced water.
2. Plug in the wall
outlet.
3. Ensure the steam
knob is set to the
”
!""” position.
5. The coffee maker beeps and four lights
illuminate together.
6. Insert the filter b-
asket into the po-
rtafilter along the
groove.
7. Turn it left or right
until it snaps into
place.
8. Fill the filter bask-
et with ground
coffee.
9. Tam p t h e g ro u nd
coffee evenly and
firmly.
10. Wipe filter basket
edges to remove
residue.
11. Ground coffee
does not exceed
the Max line.
-10-
MAX
4. Press the “ ”
button to turn
on the coffee
maker.
Pour Over / Drip
16. Remove the espr-
esso puck from
the “Filter Holder”.
-11-
12. Keep it level and
insert it from the
“UNLOCK“
position.
15. Press “ ” but-
ton to get a
single shot.
16. Wait until all the
coffee has come
out before
removing.
17. Turn the portafilter to the left to unlock and remove it.
18. Knock out the
espresso puck.
19. Wash all parts
with warm water.
Do not use a
dishwasher.
13. Turn t h e portafi -
lter to the right.
14. The portafilter
should be in
the ”LOCK”
position.
Cleaning the “Steam Wand”
1. Fill the water tank
with water but
not above the
Max line.
2. Plug in the wall
outlet.
3. Ensure the steam
knob is set to the
”
!""” position.
5. The coffee maker beeps and four lights
illuminate together.
6. Press the “ ”
button to preheat
steam.
7. The button stops
flashing, indicati-
ng the steam is
ready.
8. Fill a pitcher with
cold whole milk
to no more than
half its capacity.
9. Insert the nozzle
about 0.4 inches
into the milk.
-12-
11. Lower the pitcher
slightly to let air
in.
4. Press the “ ”
button to turn
on the coffee
maker.
10. Turn the s t eam
knob to “ ”
position slowly.
12. When the milk ex-
pands，lift the
pitcher to get it
spinning.
13. A hissing sound
may be heard
during frothing.
14. The foam milk is
ready when you
feel a little hot.
15. Ensure the steam
knob is set to the
”!""” position.
16. Remove the pitc-
her with frothed
milk.
18. Purge out any
residual milk.
19.
Ensure the steam
knob is set to the
”!""” position.
20. Wipe the steam
wand with a
damp cloth.
-13-
17. Turn the s t eam
knob to “ ”
position
slowly.
WARNING
Be careful when operating the steam wand, steam
may result in burns or injury.
Cleaning the “Steam Wand”
If the machine is running but does not brew coffee, it is because there's air-block
develops in the water line. This can happen to any new machines, a machine that
had not been used for some time, or the machine had sucked in air by accident.
Use the steam function to spray water out for 10 seconds to solve the problem.
1. Fill the water tank
with water but
not above the
Max line.
2. Plug in the wall
outlet.
3. Ensure the steam
knob is set to the
”
!""” position.
4. Press the “ ”
button to turn
on the coffee
maker.
5. The coffee maker
beeps and four
lights illuminate
together.
6. Turn the steam
knob to “ ”
position slowly.
-14-
7. Let the water sp-
out out for 10
seconds.
8. Ensure the steam
knob is set to the
”
!""” position.
-15-
Cleaning the coffee maker
Cleaning the filter baskets and the portafilter
1. Turn the steam knob to "OFF" position and allow the coffee maker to cool down
completely before cleaning.
The filter baskets should be kept clean to guarantee perfect results.
1. Remove the filter basket from the portafilter and wash them with warm water.
2. If you notice a malfunction when brewing coffee, immerse the filter basket in
boiling water for 10 minutes and then rinse with running water.
2. Regularly clean the casing of the coffee maker with a damp sponge, to clean
the water tank, drip tray and dry them.
3. Clean all the attachments and dry them thoroughly.
NOTE: Do not clean the drip tray until the coffee machine completes pressure
release and it cools down fully.
To avoid burns, the filter basket must only be removed when the portafil-
ter has cooled down completely.
-16-
Cleaning the steam wand
1. After frothing milk, keep the steam function on
for 2–3 seconds to purge any remaining milk
from the nozzle and prevent clogging. Then
wrap the steam wand with a damp cloth and
wipe off any milk residue to avoid buildup.
2. If the steam wand becomes clogged with milk
residue, wait for it to cool down. Then use the
cleaning needle to unclog it, and run the
or “Steam” function to flush it clean.
3. If the steam wand is still blocked, wait for it to cool down completely. Unscrew
the nozzle and place it in a cup of warm water with one espresso machine
cleaning tablet. Soak for a few minutes, then use the cleaning needle again
to unclog it. Finally, run the or “Steam” function to flush thoroughly.
NOTE: Do not clean any of the parts in the dishwasher.
-17-
Cleaning the group head
Regularly remove any residual coffee grounds from the group head with
a brush, and wash with hot water following the steps below.
1. Do not insert the portafilter.
2. Place an empty cup under the group head.
3. Press the “ ” button to start brewing.
4. The appliance will stop automatically once the brewing process is finished.
Do not try to disassemble the group head. It will damage the group head
and lead the leakage.
To make sure your coffee maker operates efficiently, to clean the internal pipes,
and to preserve the flavor of your coffee, the coffee machine needs to be des-
caled, cleaned and maintained periodically. It is recommended to clean the ma-
chine after 500 brewing cycles.
1. Fill the “Water Tank” with water and a descaling agent (4 parts water to 1 par
descaling agent) to the “Max” level.
Please also refer to the instructions on the descaling agent. Please use a househ-
old descaling agent, or you can use citric acid instead of a commercial descaling
agent(in this case use 100 parts of water to 3 parts of citric acid.
2. Place a cup/mug or other suitable receptacle on the “Drip Plate” and press the
“ ” button 3 seconds to start the brewing cycle. Allow the machine
to drip about 100ml/3.4 oz of water into the cup. Then turn off the appliance
and leave the descaling solution in the appliance for 5 minutes.
3. Turn on the appliance again and repeat the previous step 3 more times.
4. Next, repeat the process 2 more times using only DRINKING WATER without
any descaling agent.
-18-
-19-
TROUBLESHOOTING
!"#$ %&' !#(()$%&*+,-(& (#%-.)#/
+0122*3455*607*08*
0659*:50359*;0<2
0=7 >
Coffee is ground too finely.
Ground coffee is tamped too
strongly.
Tam p gr o un d c o ff e e l es s
strongly.
+0122*;0<2:*0=7
?=4;@59>
+0122*72<A28B7=82
4:*50328>
CB728*52B@:*D80<
7E2*F 0770<*0 D
;0122*<B@28>
/0*:72B <*;0<2 :*
0=7 >
.E2*:72B<*; B6607
*D807E>
Coffee is ground too coarsely.
Too little coffee in the filter
aske.
The temperature is too low
and the machine and coffee
cup are not preheated.
The water tank is empty.
The nozzle is clogged.
Steam function has been used
for more than 2 minutes.
The container is too big, or
the shape is not fit.
You used room-temperature
skim milk.
Please use refrigerated whole
milk instead.
Use high and narrow pitcher.
No steam comes out.
Add enough water and unclog
the nozzle.
Stop using steam function at
least 1 minute.
Remove the sleeve and unclog
the steam nozzle with the
cleaning needle.
Fill the water tank with drinking
water.
There is much water in the
drip tray.
The water tank is not installed
correctly.
Remove the water tank and
correctly install it.
Please clean the drip tray.
In a low room temperature
environment, preheat the
brewing system and coffee
cup with water in advance.
Please use espresso-ground
coffee.
Use the correct amount of
coffee(Single-7g/Double-14g).
Ground coffee is not tamped
strong enough.
Tam p gr o un d c o ff e e m or e
strongly.
The filter is clogged up. Clean the filters hole.
Do not use extra-fine coffee
grounds.
-20-
TROUBLESHOOTING
!"#$%&'"() #$(*$)+,
-.)',(+) ()/0
1+$2&,#3$'+ %#*$+ ., 0
455$6.,,+)*$-5&*"7
,"#$%&' "()#$
8+#*)',$2+39 0
!"#$: +3 ,&-(5,#3$(*$
3.*,#8$ &)8$
'+33+8#80
4'(8$(;()#/&3)$,&*,#
#<(*,*$()$#*:3#**+
'+=##0
!"#$'+ =##$,&*,#*
,++ $2#&90
The machine is not turned on
or is unplugged.
The machine voltage is not
compatible.
The steam knob is not in
“OFF” position.
It is because there's air-block
develops in the water line.
Prolonged contact with
coffee residue or coffee
liquid.
Use mild or neutral cleaners —
avoid harsh chemicals.
Don't wash it in dishwasher.
It may be corroded by the
dishwasher.
No clean correctly after clea-
ning mineral deposits.
Refer the section “THE
FIRST USE”.
Use of corrosive cleaning
agents.
Coffee is ground too coarsely.
The ground coffee is stored
in a hot, wet place for a
long time. The ground
coffee turns bad.
Too little coffee in the filter
basket.
Plug in and turn on the machine.
Ensure the voltage is 120V,
60Hz (US standard).
Turn th e s team kn o b to “OF F ”
position.
Run “Steam” function to solve
this problem.
Clean and dry it immediately
after use.
Please use fresh ground coffee,
or store unused ground coffee
in a cool, dry place.
Use the correct amount of
coffee(Single-7g/Double-14g).
Please use espresso-ground
coffee.
The ground coffee are not
fresh and are lightly roasted.
Use fresh medium-dark roast
or dark roast ground coffee..
>?@A BCD >@EEFABC$G4HEC E@BH!F@1
-21-
WARRANTY INFORMATION
The manufacturer provides warranty in accordance withe the legislation of the cus-
tomer’s own country of residence, with a minimum of 12 months, starting from the
date on which the appliance is sold to the end user.
The warranty only covers defects in material or workmanship.
The warranty will not apply in cases of:
- Normal wear and tear.
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories.
- Use of force, damage caused by external influences.
- Damage caused by non-observance of the user manual, e.g. connection to an
unsuitable mains supply or non-compliance with the installation instructions.
- Partially or completely dismantled appliances.
support@xixubx.com www.xixubx.comwww.xixubx.net
E-mail
Warranty
Website
ACTIVATE WARRANTY
Scan& Save
Scan the QR code, register your product,
and get a 12-month Extended Warranty!
