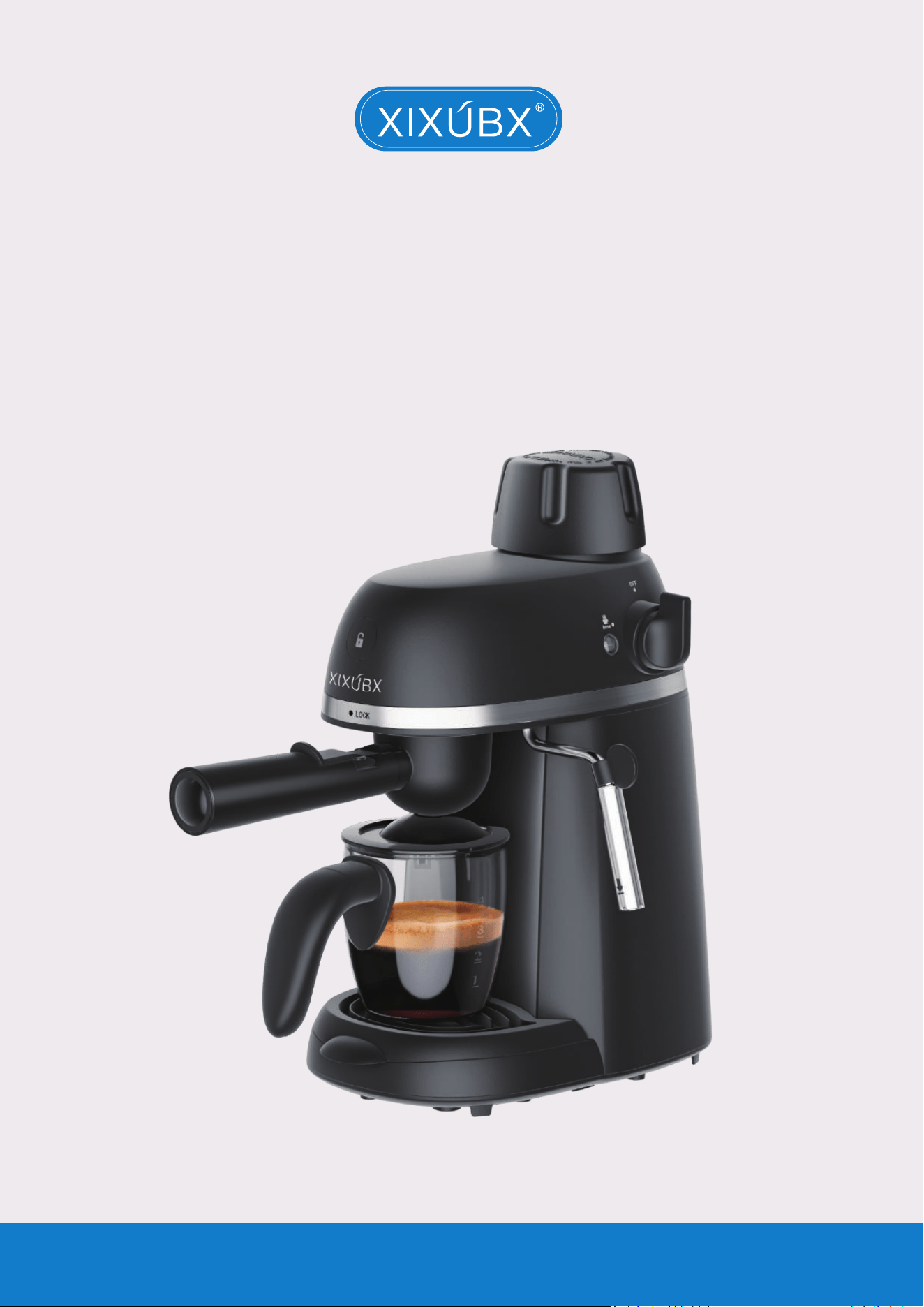

Espresso Coffee Maker
CM5409E-UL
INSTRUCTION MANUAL
Applicable Scenarios: Home, Office, Outdoor, Party, Leisure
!"#$%&'()%*#+,#-%&'./.,0'-1%2"3./"%,)(+0%#+$%)#4"%(&%3./%3,&,/"%/"3"/"+5"
support@xixubx.com
CONTENTS
I M P O R T A N T S A F E G U A R D S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
SAVE THESE INSTRAUCTION ................................................ 2
S P E C I F I C A T I O N S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

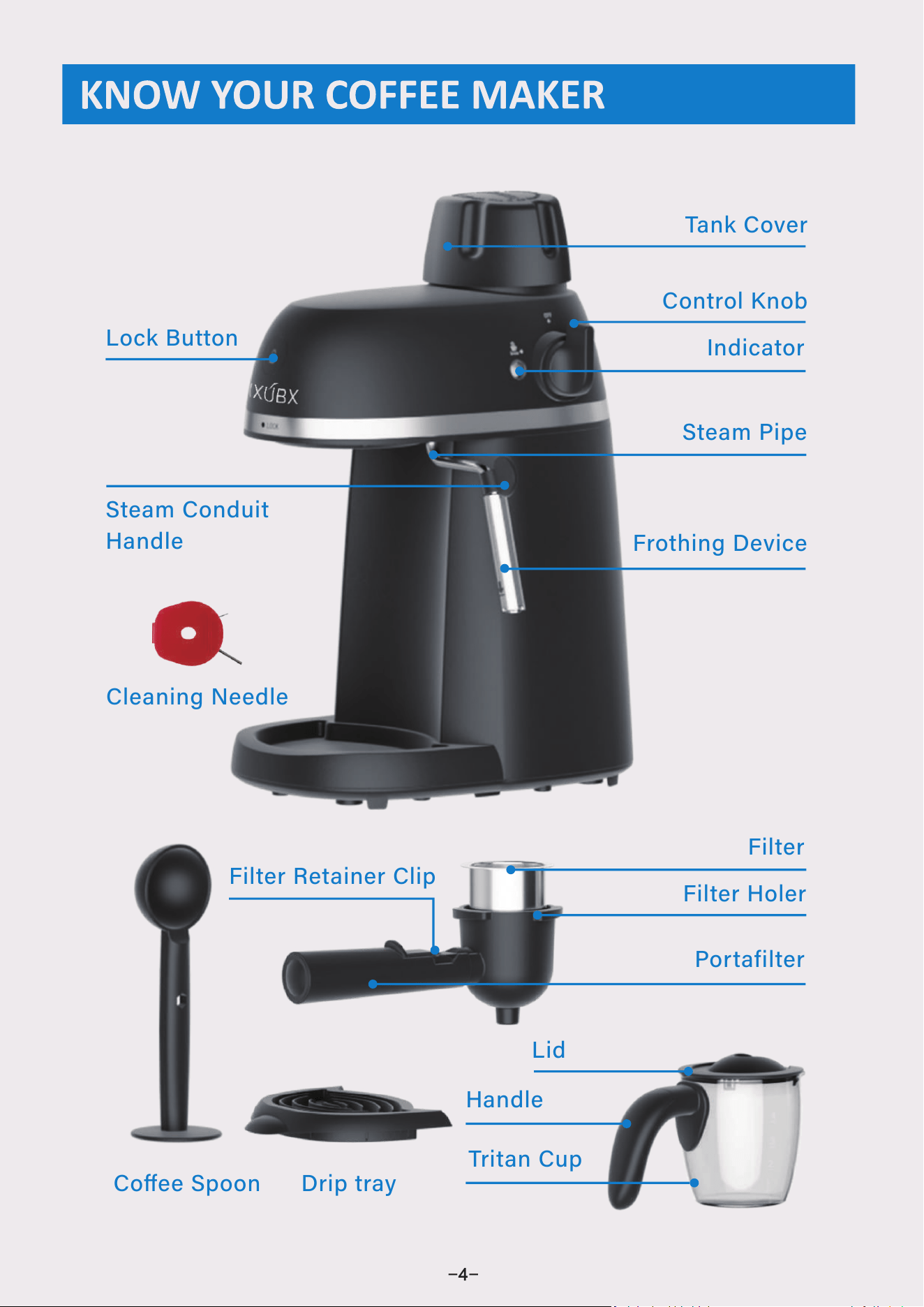

K N O W Y O U R C O F F E E M A K E R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
T H E F I R S T U S E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
USER TIPS .......................................................................... 6

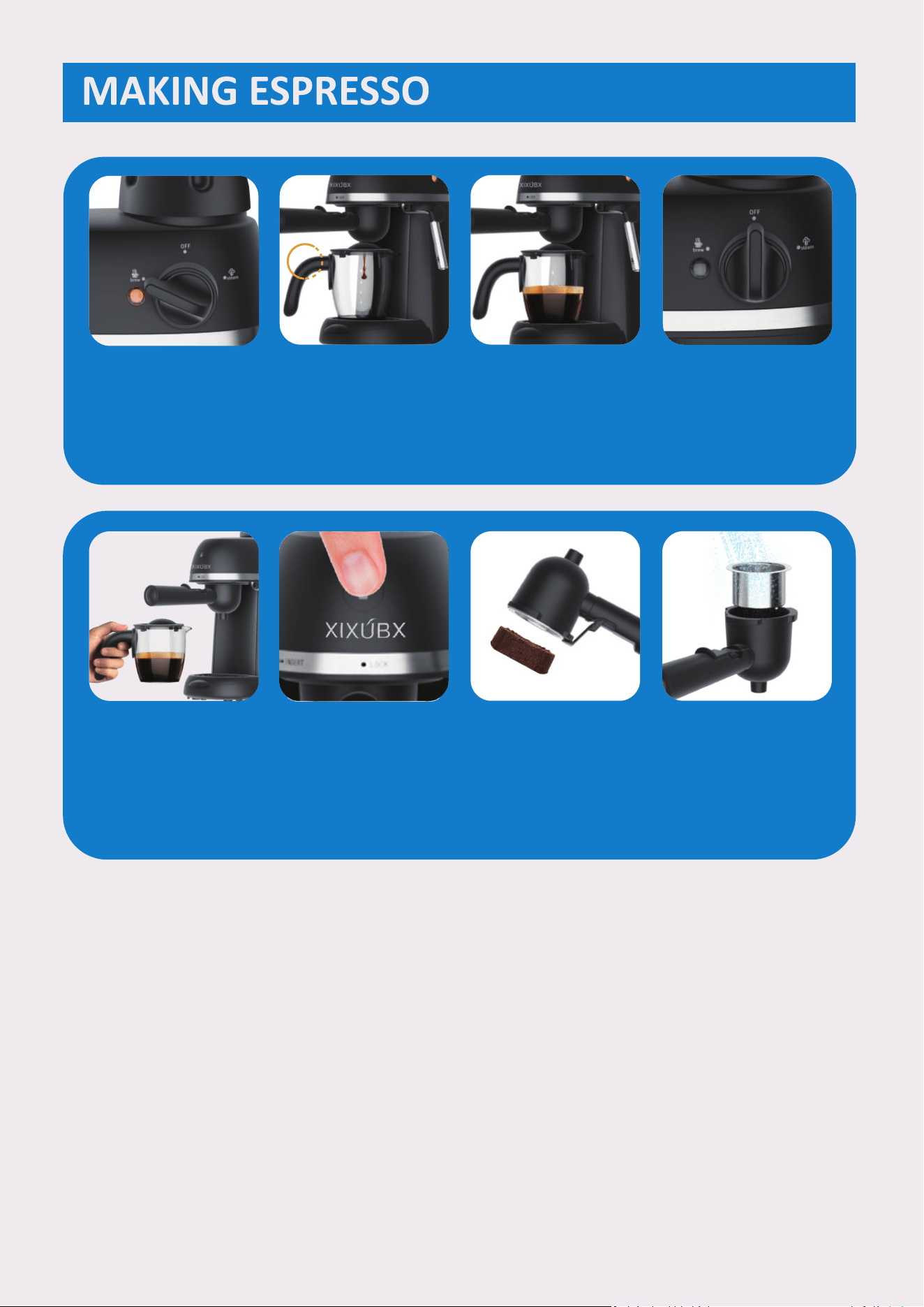

M A K I N G E S P R E S S O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8
F R O T H I N G M I L K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1 0
ANTI-SHEDDING PROTECTION.............................................. 11
C L E A N I N G A N D M A I N T E N A N C E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 - 1 3
CLEANING THE COFFEE MAKER ................................................... 12
CLEANING THE FILTER HOLDER AND THE FILTER ........................... 12
C L E A N I N G T H E S T E A M W A N D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
C L E A N I N G T H E B R E W H E A D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
D E S C A L I N G T H E A P P L I A N C E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
T R O U B L E S H O O T I N G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WARRANTY INFORMATION ................................................. 16
-1-
IMPORTANT SAFEGUARDS
Read all instructions and keep them for future reference.
Before using the appliance, check that the voltage of the wall outlet corresponds
to the voltage marked on the rating plate.
To protect against fire, electric shock, and injury do not immerse the power cord or
plug in water or other liquids.
Remove the plug from the wall outlet before cleaning and when not in use. Allow
the appliance to cool down completely before removing or attaching components,
or before cleaning.
!"#$" %#operate any appliance with a damaged power cord or plug, after the
appliance has malfunctioned, or is dropped or damaged in any way. Take the appli-
ance to the nearest authorized service facility for examination, repairs or adjust-
ments, or contact the dealer.
The use of accessory attachments not recommended by the appliance manufactur-
er may result in fire, electric shock and injury.
Place the appliance on a flat surface or table.
!"#$" % hang the power cord over
the edge of the table or counter.
Ensure the power cord does not touch the hot surface of the appliance.
!"#$" % place the coffee maker on a hot surface or next to an open flame.
To disconnect the appliance, turn it off, then remove the plug from the wall outlet.
When removing the plug from the outlet, hold by the plug, never pull on the cord.
!"#$" %#use the appliance other than for the intended use.
Always supervise closely when the appliance is used by or near children.
Be careful when using the appliance, as steam may escape and pose a risk of get-
ting scalded.
!"#$" % touch any hot surface of the appliance(including the steam wand and the
filter). Only use the handle or knobs.
!"#$" %#operate the coffee maker without water.
!"#$%&#!'()*+!,-)(!.//0).*1#2!/0#.(#!$%00%3!,-#(#!4.()1!/.',)%*(5
&
'
(
)
*
+
,
-
.
&/
&&
&'
&(
&)
&*
-2-
!"#$" % remove the portafilter when in use or when steam or hot water escape
from the filter holder.
This appliance is not intended for use by children or any individuals with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given adequate instruction concerning the use of the appli-
ance and/or are under supervision by a responsible adult.
Cleaning and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such
as: staff kitchen areas in shops, offices and other working environments; farm
houses; bed and breakfast type environments.
!"#$" % use outdoors.
!"#$" %#place on or near a hot gas or electric burner, or in a heated oven.
&'
&(
&)
&*
+,
+&
SAVE THESE INSTRUCTIONS
Plug Note:
This appliance utilizes a polarized plug (one blade wider than the other). To minimize
the risk of electric shock, the plug is designed to fit into a polarized outlet in one
direction only. If the plug does not fit fully, try reversing it. If it still doesn't fit, con-
tact a qualified electrician. Do not attempt to modify the plug in any way.
Cord Note:
1. A short power supply cord (or detachable cord) is provided to reduce the risk of entang-
lement or tripping over a longer cord.
2. Longer detachable power supply cords or extension cords are available and can be
used with caution.
3. If using a longer detachable cord or extension cord, please note:
a. The cord's electrical rating should be at least as high as the appliance's.
b. Arrange the cord to avoid draping over countertops or tables where children
might pull on it or people could trip over it.
-3-

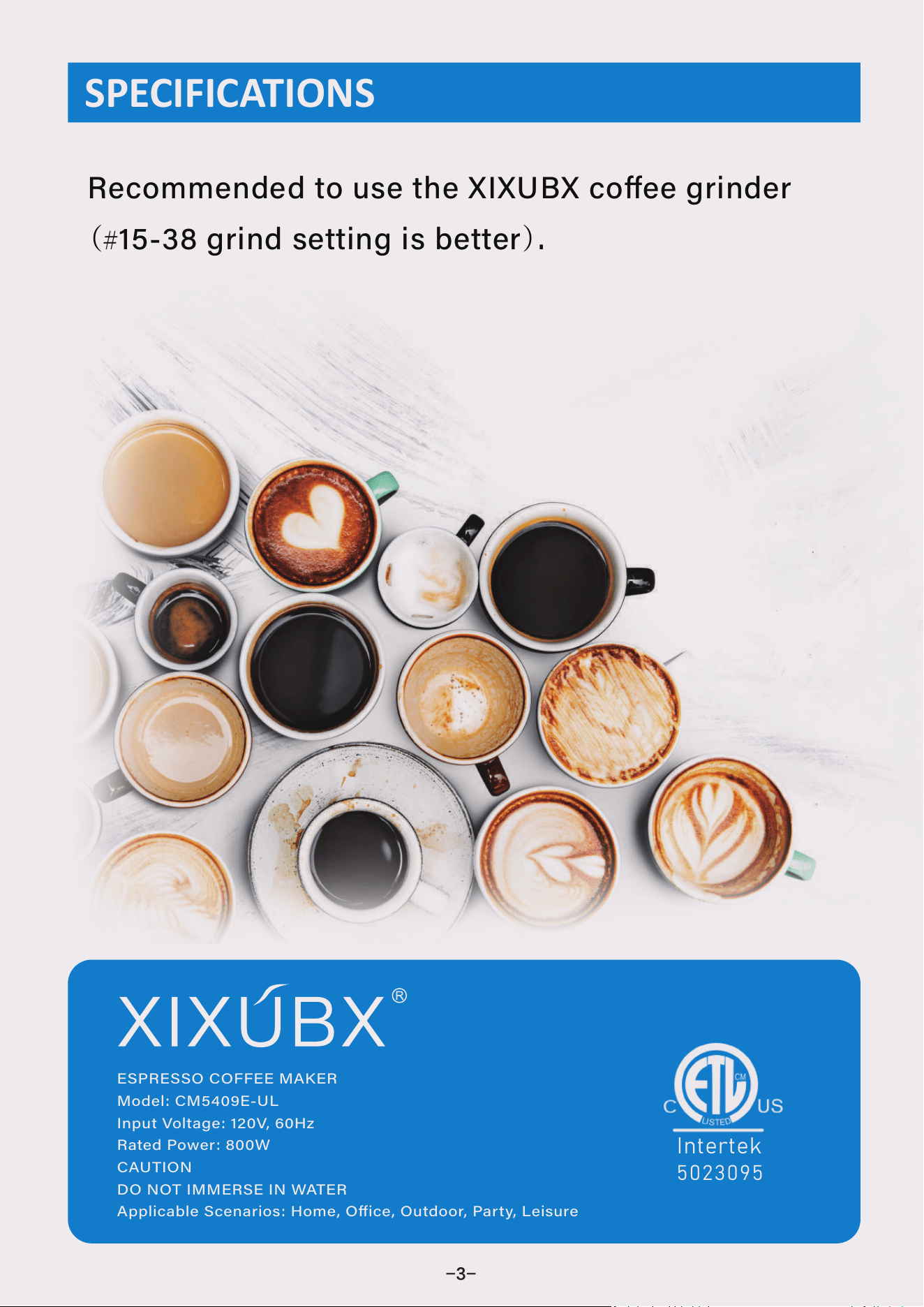

SPECIFICATIONS
!"#$!""%&'%((!!&)*+!$
),-. / 0&') 12 3 4!567
89:; < &=,/<> ?.0 &@ A 3=B &C 3 DE
$><.-&#,F.G 0&H33I
'*6J8%K
L%&K%J&8))!$"!&8K&I*J!$
*::/MN>O/.&"N.9>GM,P 0&D,Q.B&%RMN.B&%;<-,,GB&#>G< SB&7.MP;G.
Intertek
5023095
$.N,QQ.9-.-&<,&;P.&<T.&U8 U6VU&N,R..&?GM9-.G&
(#@15WH&?GM9-&P.<<M9?&MP&O.<<.G)X
-4-
!"#$%&'()*
&'#+*',%-#'.%
/#0 12 "+' *%
3+)"4% 516)
3+)"4% &'#07 1+%
8"# 0 , )
9*'+ :1 #;% <) ( 12 )
&,)"# 1#;%=) )0,)
<*16%+*">
91,+)*
91,+)*%8',)*
91,+)*%?)+"1#)*%&,16
@10
8"# 0 , )
!*1+"#%&76
@'2$%A7++'#
5' *+"B1,+)*
&'C))%36''#
It's norma
-5-
Cleaning the “Steam Wand”

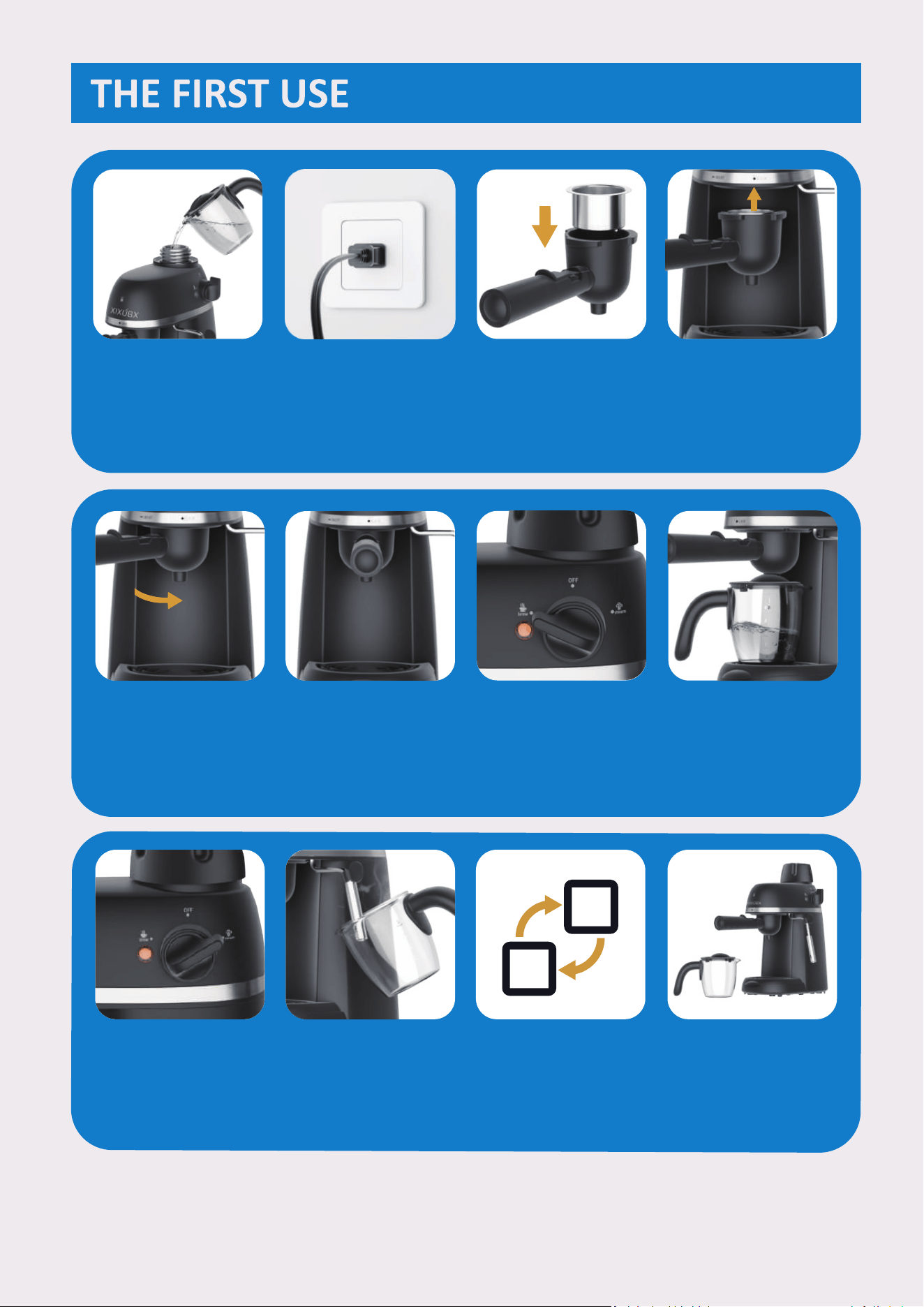

1. Fill the water tank
with 4-cup water.
3. Insert the filter
without any coff-
ee grounds into
the filter holder.
4. Keep the filter
holder flat,insert
it into the brew
head.
5. Turn the portafilt-
er to the right.
6. When you hear a
beep, it means the
portafilter is insta-
lled properly .
7. Rotate the knob
to “Brew”
position.
8. Wait a few minut-
es, the water may
come out of the
filter holder.
9. Rotate the control
knob to “Steam”
position.
10. The steam will
eject from the
frothing device.
11. Please repeat the
steps 2-3 times.
Note:
It’s normal to experience a hissing sound due to the strong steam by frothing milk.
It's normal for a large amount of steam to rise with a rattling sound by brewing.
12. Now your espre-
sso coffee maker
is ready to brew
coffee.
2. Plug in the wall
outlet.
-6-

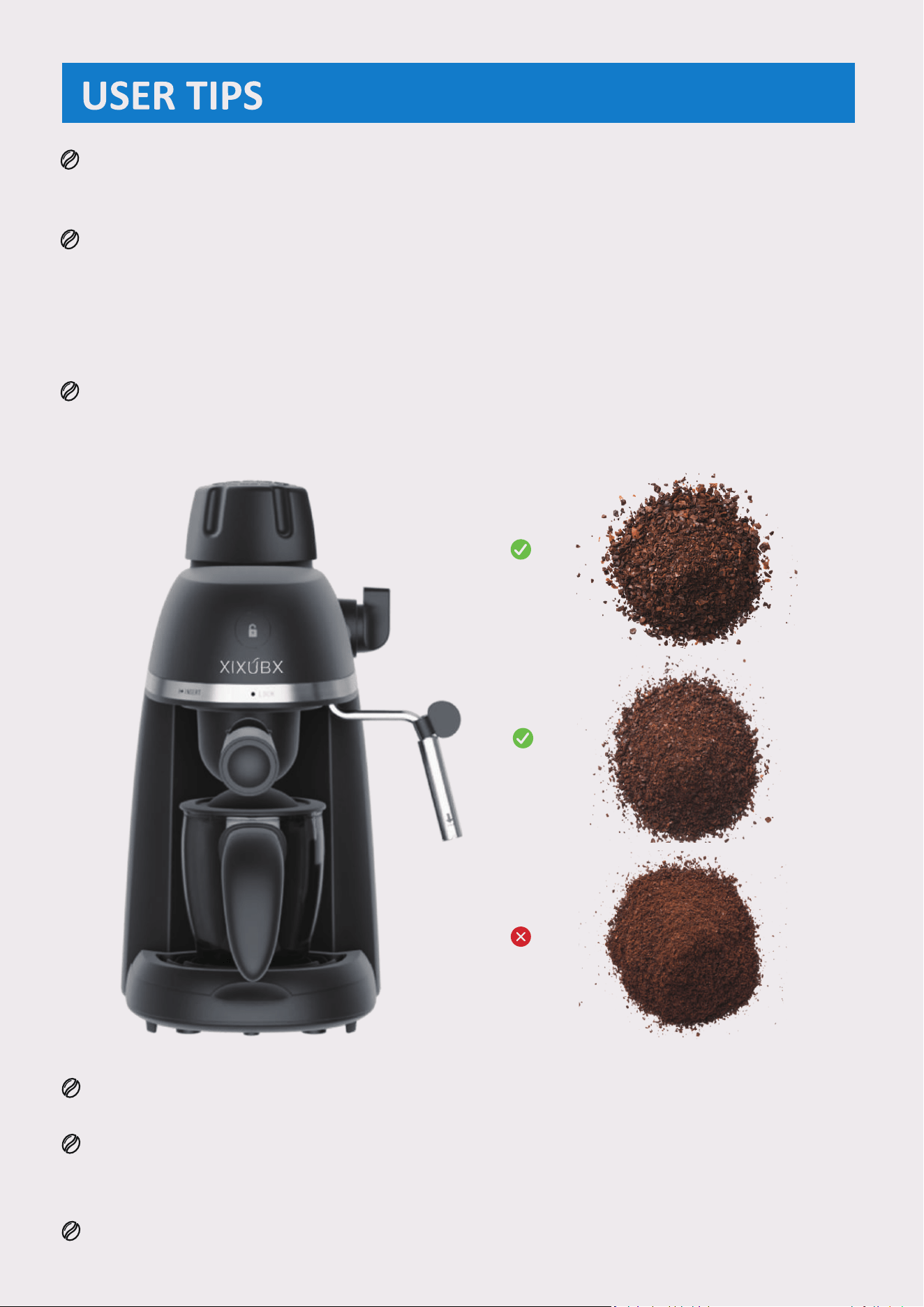

The flavor of espresso is influenced by the quantity and variety of coffee grounds
utilized.
Various factors contribute to the unique taste of a coffee bean, yet its taste and
aroma are primarily shaped by the roasting procedure. Beans roasted at elevated
temperatures for an extended period exhibit a darker hue and yield richer flavors
compared to lightly roasted ones.
We suggest opting for a conical burr grinder instead of a blade mill for optimal
results.For this espresso machine, it is best to use medium or coarse coffee
grounds.
Choose fresh, high-quality coffee beans to achieve the best flavor extraction.
Store your coffee beans/grounds in an airtight container in a cool, dry place,
away from direct heat sources.
Serve espresso immediately after preparation for optimal taste.
Fine
Medium
Coarse
-7-

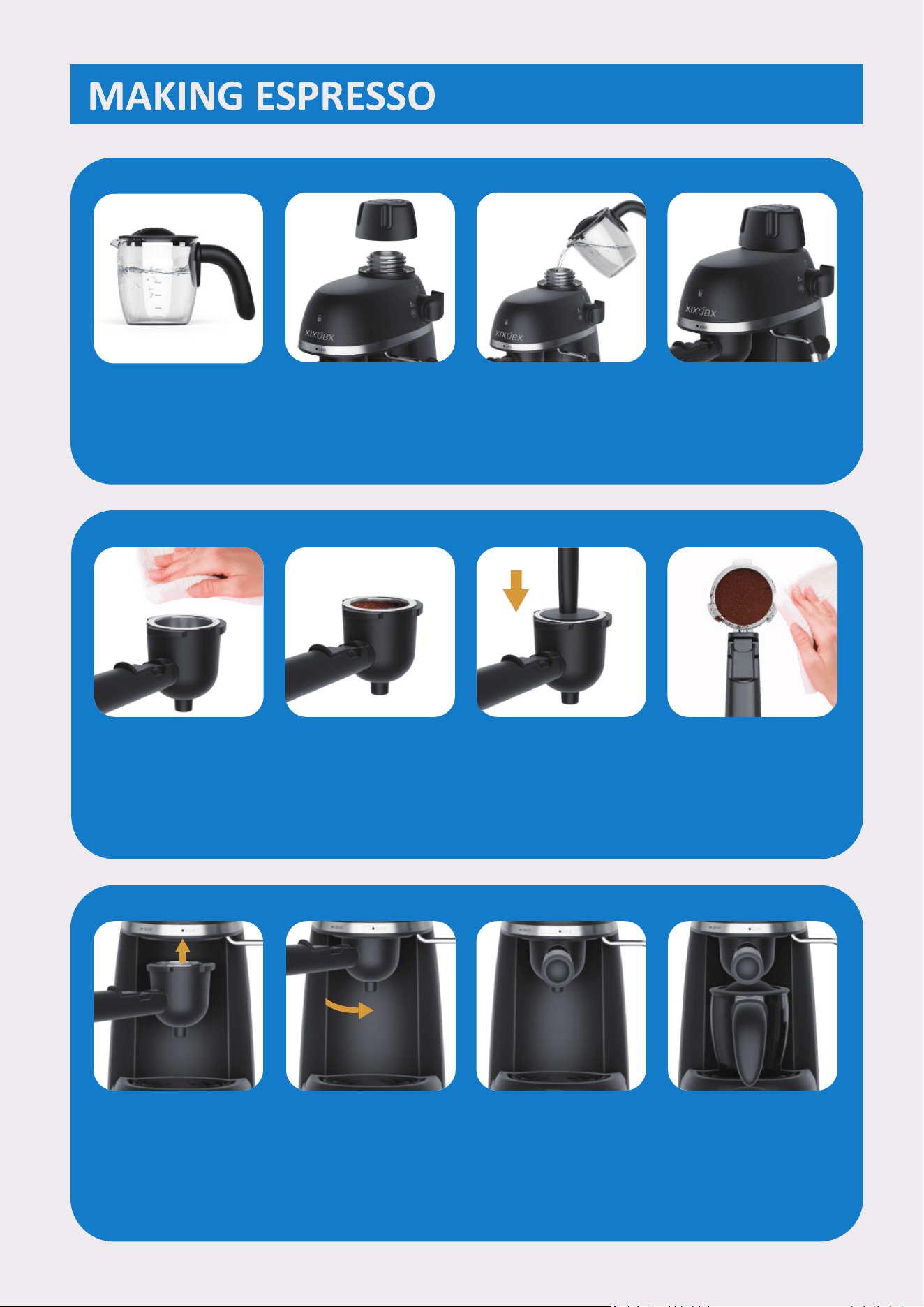

1. Fill cups with wa-
ter to the 4 cups
mark.
2. Remove the tank
cover by turning
it in anti-clockwise.
3. Pour the water
into the water
tank.
4. Tighten the water
tank cover.
5. Wipe the filter
with a dry cloth.
6. Fill the “Filter”
with coffee
grounds.
7. Evenly and firmly
tamp the coffee
grounds.
8. Wipe the edges
of the “Filter”
to remove any
coffee residue.
9. Keep the “Filter
Holder” flat, insert
it into the brew
head.
10. Turn the “Portafi-
lter”to the right.
11. When you hear
a beep, it means
the portafilter is
installed properly.
12. Place the tritan
cup on the drip
tray.
-8-
11. Ensure the “ Ste-
am Knob” is set
to the “ ”
position.
!""
13. Rotate the control
knob to “Brew”
position.
14. Wait a few min-
utes, the coffee
may come out.
18. Press the “Lock
Button”, then turn
the portafilter
to the left and
remove it for.
15. Wait until all the
coffee comes
out before rem-
oving the cup.
19. Pour out the
espresso puck
by using filter
retainer clip.
#$
20. Wash all parts
with warm water.
Do not wash in a
dishwasher.
Note：When using the brewing function, it is normal for a large amount of water to
rise with a rattling sound.
2-3
minutes
16. Rotate the cont-
rol knob to “OFF”
position.
17. Now you could
remove the
coffee cup.
-9-
Cleaning the “Steam Wand”
1. Fill cups with
water to the
4 cups mark.
2. Remove the tank
cover by turning
it in anti-clockwise.
3. Pour the water
into the water
tank.
4. Replace the tank
cover in place by
turning the cover
in clockwise until
it locks in position.
5. Place a cup on the
countertop and
turn theg steam
wand towards
the cup.
6. Rotate the cont-
rol knob to ”St-
eam“ position
and let the resid-
ual water drain.
7. When only steam
comes out,indica-
ting all residual
water has been
expelled.
8. Rotate the con-
trol klnob to
“OFF” position。
9. Fill a pitcher with
cold whole milk to
no more than half
its capacity.
10. Insert the froth-
ing device into
the milk about
0.4 inch.
11. Rotate the con-
trol knob to
”Steam“ position.
NOTE: When using the steamer, the filter holder must be assembled in position.

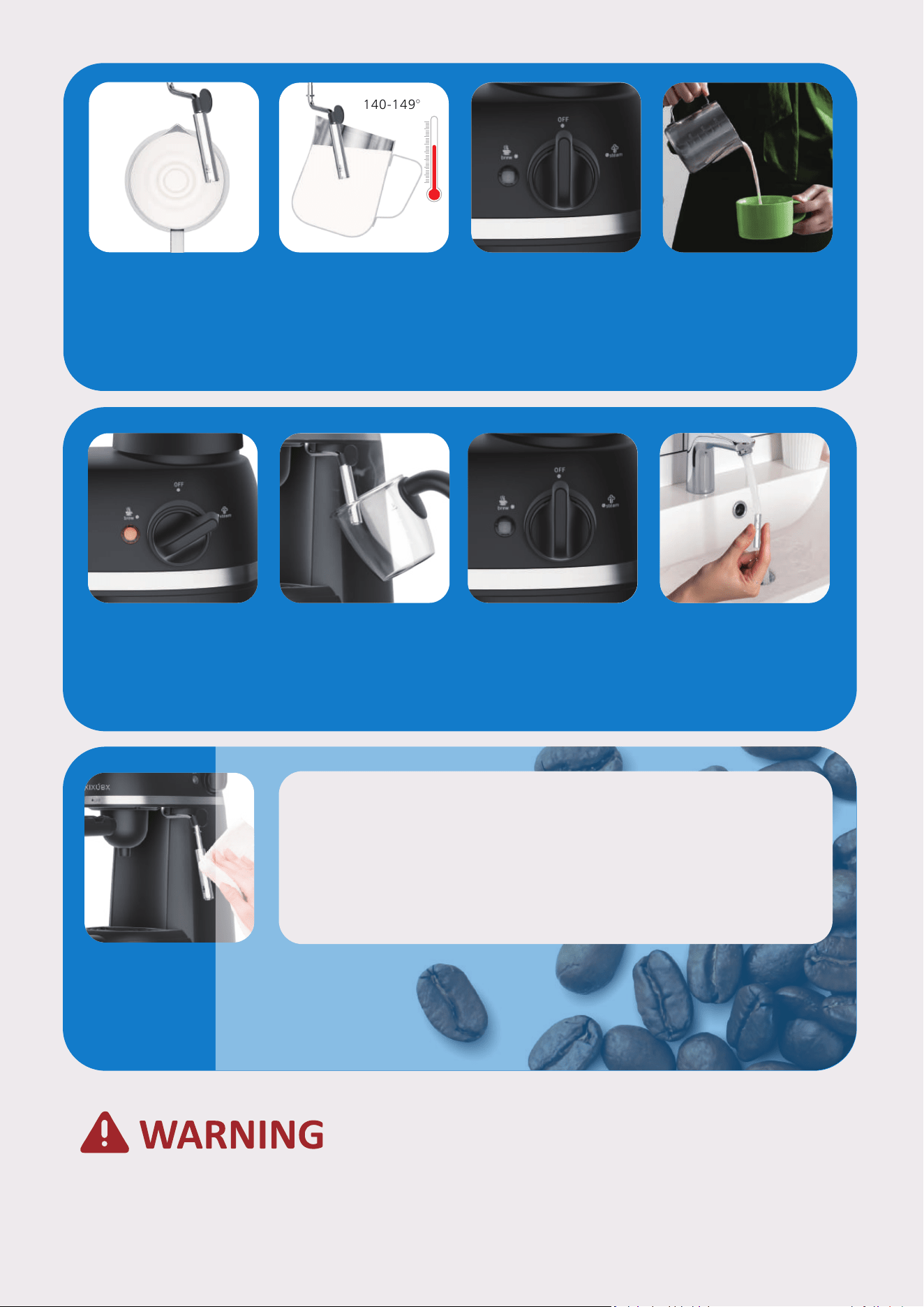

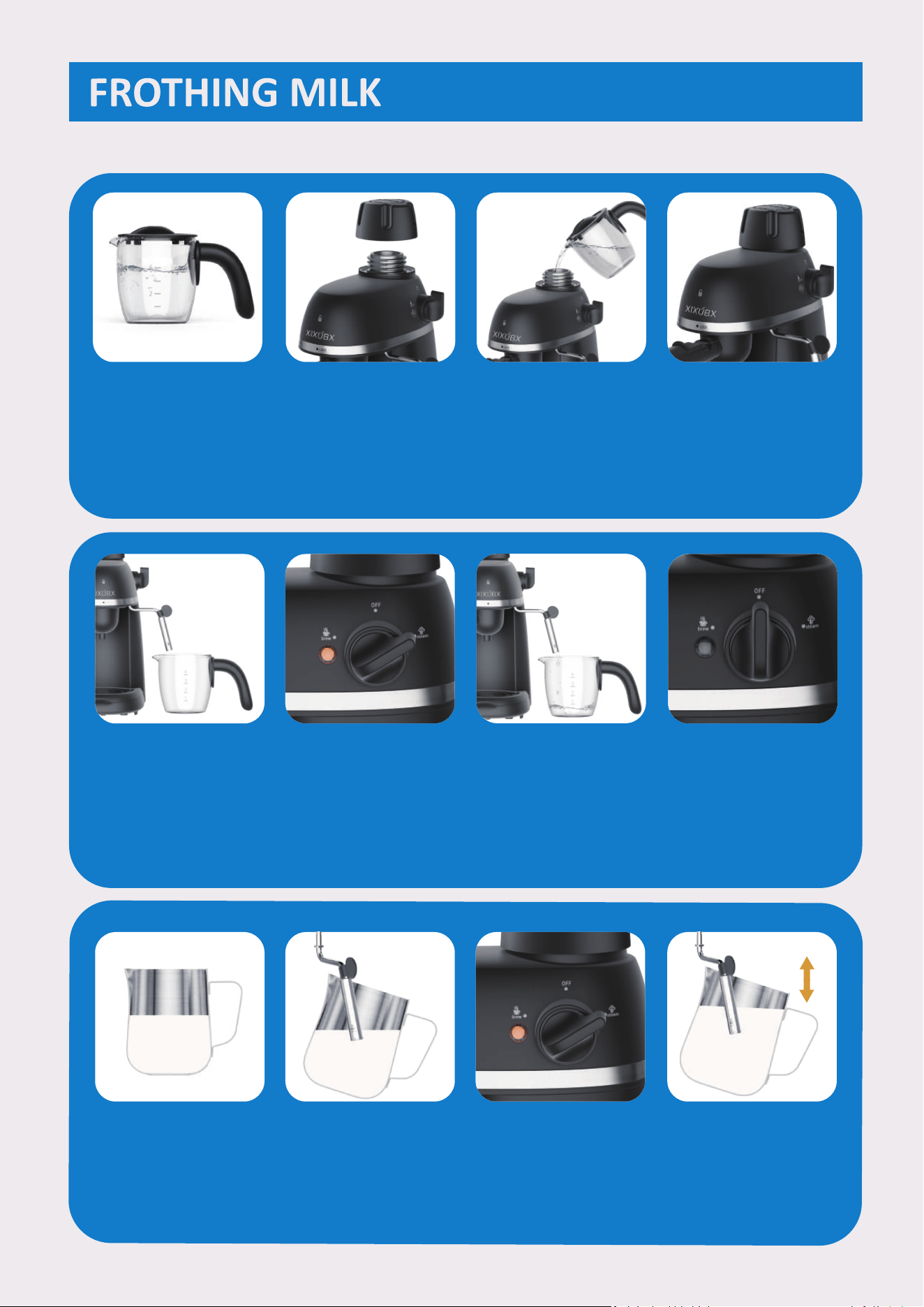

12. Froth milk in the
way moving ves-
sel round from
up to down.
-10-
11. Ensure the “ Ste-
am Knob” is set
to the “ ”
position.
!""
13. Frother makes a
hissing noise.
14. The foam milk
is ready when
you feel a little
hot.
16. Make your own
coffee drinks.
15. Rotate the con-
trol knob to
“OFF” position.
17. Rotate the
control knob
to “Steam”
position.
#$
18. Purge out any
residual milk.
19. Rotate the
control knob
to “OFF”
position.
20. Remove the
frothing device
by damp cloth,
and clean it.
Be careful when operating the steam wand. Steam may result in burns or
injury.
140-149°F
21. Wipe the
steam wand
with a damp
cloth.
Note:
If there is any water left in the tank, dispose of it and
keep the tank clean and clear.
-11-
In order to prevent injuries caused by incorrect installation of the portafilter,
which may result in the portafilter falling off during the brewing process. We
have added an anti-shedding protection to the machine.
When we install the portafilter correctly, we will hear a beep, which means we
can start making coffee. When we remove the portafilter, we could only remove it
by pressing and holding the “Lock Button”.
-12-

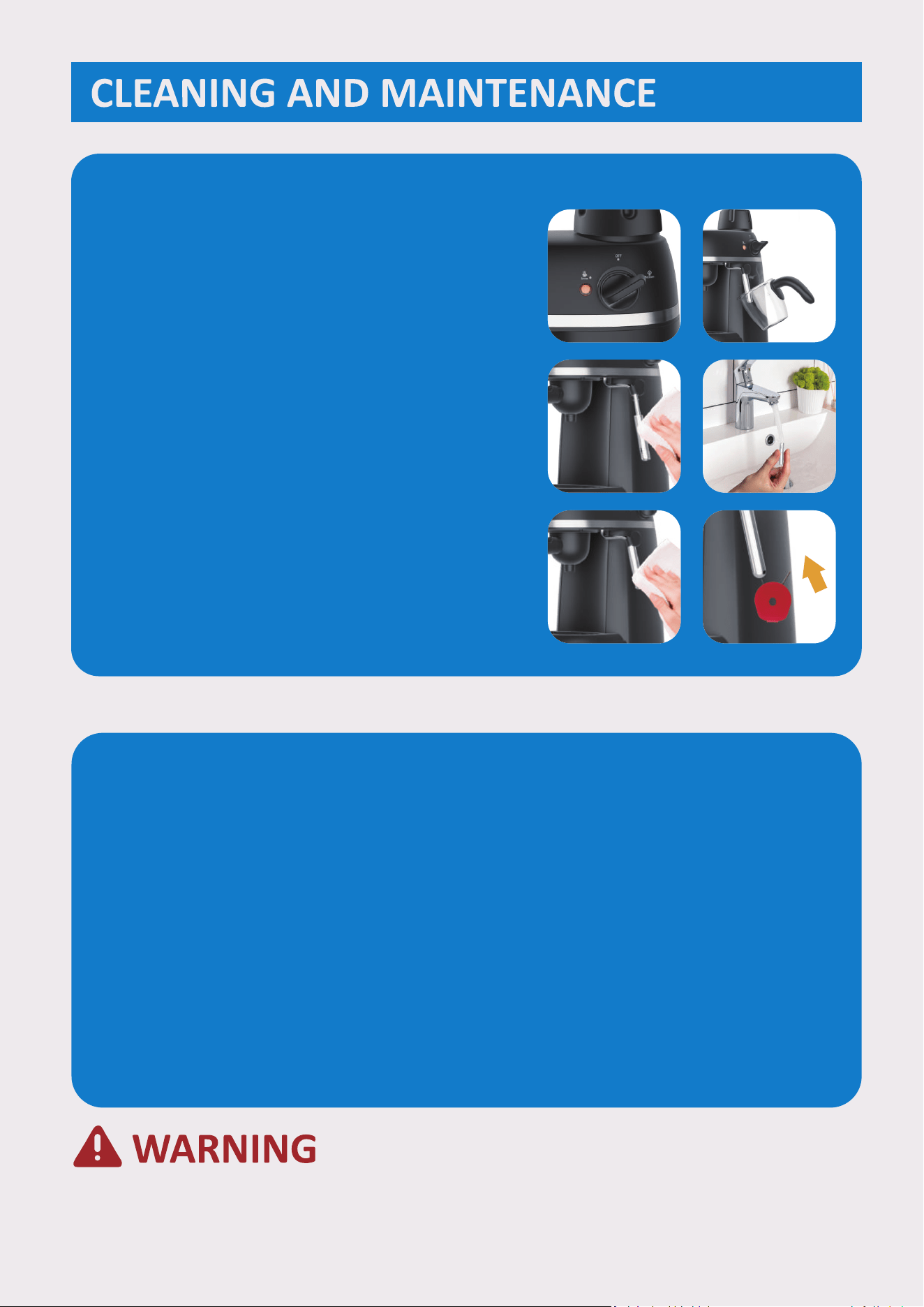

Cleaning the coffee maker
Cleaning the filter holder and the filters
1. Turn the control knob to “OFF” position and allow the coffee maker to cool down
completely before cleaning.
The filters should be kept clean to guarantee perfect results.
1. Remove the filter from the filter holder and wash it with warm water.
2. If you notice a malfunction when brewing coffee, immerse the filter in
boiling water for 10 minutes and then rinse with running water.
2. Regularly clean the casing of the coffee maker with a damp sponge, to clean
the water tank, drip tray and dry them.
3. Clean the filter holder and portafilter with cleaner or warm water.
4. Clean all the attachments and dry them thoroughly.
NOTE: Do not clean with alcohol or solvent cleaner. Never immerse the housing
in water to clean.
To avoid burns, the filter must only be removed when the filter holder has
cooled down completely.
-13-
Cleaning the steam wand
1. After frothing milk, rotate the control knob
to steam position to purge out any residual
milk from the steam wand.
2.Remove the frothing device by damp cloth,
you could clean it or just wash it with
running water.
3. Clean the steam wand with a damp cloth.
If the hole of the steam wand becomes
blocked with milk residue, use the
cleaning needle to clean it.
NOTE: Do not clean any of the parts in the dishwasher.
Cleaning the brew head
Regularly remove any residual coffee grounds from the brew head with
a brush, and wash it by the following steps.
1. Do not insert the filter holder.
2. Place an empty cup under the brew head.
3. Pour water into the tank, and rotate the control knobe to "brew" position.
4. After the brewing process is finished, stop the machine.
5. When the brew head is cool, using the damp cloth to clean it.
Do not try to disassemble the brew head. It will damage the brew head
and lead the leakage.
-14-
To make sure your coffee maker operates efficiently, to clean the internal pipes,
and to preserve the flavor of your coffee, the coffee machine needs to be des-
caled, cleaned and maintained periodically. It is recommended to clean the ma-
chine every 2-3 months.
1. Fill the water tank with water and a descaling agent (4 parts water to 1 par
descaling agent) to the “Max” level.
Please also refer to the instructions on the descaling agent. Please use a house-
hold descaling agent, or you can use citric acid instead of a commercial descaling
agent(in this case use 100 parts of water to 3 parts of citric acid).
2. Place a cup or other container on the drip tray and start the brewing process,
when the water is ready to drip out of the brewing head, stop the brewing
process and leave the descaling solution in the water tank for 5 minutes.
After that, start the brewing process again and drip a half water into the
cup to clean the brewing pipes. Then, start the steam process and let all the
water come out of the steam wand to clean the steam pipes.
3. Turn on the appliance again and repeat the previous steps 3 more times.
4. Next, repeat the process 2 more times using only DRINKING WATER without
any descaling agent.
-15-
TROUBLE SHOOTING
!"#$ %&# '()!* '&++*'%,&-!
'./ 01 234 3 52 063728
9806372801234:09.7
;89<0=./01>?@
%A20<2 7310/38 7:09 ;
7A2073 B40A3C208.:7 @
D372801234:0;89<07A2
E9779<09;0=9F220
<3428@
D372801234:09.709;0
9.7280:>?209;0;>1728@
(=>?0(C>B2538)073:72
2G>:7:0>B02:/82::90
=9F22@
%A20=9 F220<34280
=3BB97069840
3BH<982@
%A20:723<0= 3BB970
;897A@
The cup is not located
properly.
The descaler is not recomme-
nded type. It may corrode the
metal parts in the tank.
There is much water in the
drip tray.
The coffee maker is
malfunction.
There is some coffee powder
on filter edge.
The container is too big, or the
shape is not fit.
You have used skimmed milk. Use whole milk.
Use high and narrow cup.
No clean correctly after
cleaning mineral deposits.
The coffee powder is stored in
a hot, wet place for a long
time. The coffee powder
turns bad.
The power outlet is not
plugged well.
Steam indicator light does not
come on.
Please use fresh coffee powder,
or store unused coffee powder
in a cool, dry place.
Plug the power cord into a wall
outlet correctly, if the appliance
still does not work,please cont-
act us for help.
Make sure the machine is
powered on.
Refer the section "THE FIRST
USE”.
Get rid of them.
Please clean the drip tray.
Use the descaler recommended
by manufacturer.
Please contact us for help.
The level of water in the tank
exceeds the scale of “MAX”.
The water level in the tank sho-
uld not exceed the “MAX”scale.
Align the cup with the spout of
the filter holder.
I90B97 0734203/38 707A203 //1>3B=20E H0H9.8: 21;0> ;07A20=3.:2 09;0;3>1.820>:0
B970;9.B?J0H9.K?0E277280=9B73=70.:0;980A21/@
-16-
WARRANTY INFORMATION
The manufacturer provides warranty in accordance withe the legislation of the cus-
tomer’s own country of residence, with a minimum of 12 months, starting from the
date on which the appliance is sold to the end user.
The warranty only covers defects in material or workmanship.
The warranty will not apply in cases of:
- Normal wear and tear.
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories.
- Use of force, damage caused by external influences.
- Damage caused by non-observance of the user manual, e.g. connection to an
unsuitable mains supply or non-compliance with the installation instructions.
- Partially or completely dismantled appliances.
support@xixubx.com www.xixubx.comwww.xixubx.net
E-mail
Warranty
Website
ACTIVATE WARRANTY
Scan& Save
Scan the QR code, register your product,
and get a 12-month Extended Warranty!
