MAD5508APK
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Air Fryer
INNERCHEF SERIE
MAD5508APK
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Air Fryer
INNERCHEF SERIE
01
CONTENTS
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
0 1
02
06
07
08
13
14
1 5
17
DATA PROTECTION NOTICE
16
DISPOSAL AND RECYCLING
Danger
This symbol indicates that there are dangers to the life and health of
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
Warning
The signal word indicates a hazard with a medium level of risk which, if
Caution
The signal word indicates a hazard with a low degree of risk which, if
Attention
Observe instructions
This symbol indicates that a service technician should only operate and
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance kaging and appliance
on arrival to make sure everything is intact to ensure safe opera y ny
damage, please contact the retailer or dealer t ations or alterations to
the appliance are not allowed for your safety conc tended use may cause
hazards and loss of warr
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY NSTR CT ONS
02
03
heating zone of the induction hotplate is till hot. Never
touch the ceramic surface to avoid burning.
●
Do not immerse any part of the appliance in water or
other liquid.
CAUTION
•
• Check if the voltage indicated on the appliance
corresponds to the local mains voltage before you
connect the appliance.
• Do not use the appliance if the plug, the mains cord or
the appliance itself is damaged.
• If the mains cord is damaged, you must have it
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• Children should be supervised to ensure that they do
not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they
are older than 8 and supervised.
• Keep the appliance and its mains cord out of the reach
of children younger than 8 when the appliance is
switched on or is cooling down.
• Keep the mains cord away from hot surfaces.
• Do not plug in the appliance or operate the control
panel with wet hands.
• Only connect the appliance to an earthed wall socket.
always make sure that the plug is inserted into the wall
socket properly.
• Never connect this appliance to an external timer
switch or separate remote-control system in order to
avoid a hazardous situation.
• Do not place the appliance on or near combustible
materials such as a tablecloth or curtain.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance.
• Do not place the appliance against a wall or against
other appliances. Leave at least 10cm free space on the
back and sides and 10cm free space above the
appliance. Do not place anything on top of the
appliance.
• Do not use the appliance for any other purpose than
described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released through the
air outlet openings. Keep your hands and face at a safe
distance from the steam and from the air outlet
openings. Also be careful of hot steam and air when
you remove the pan from the appliance.
• The accessible surfaces may become hot during use.
• After using the appliance, the metal cover inside is
very hot, avoid to contact the hot metal inside after
cooking.
• Immediately unplug the appliance if you see dark
•
smoke coming out of the appliance. Wait for the
smoke emission to stop before you remove the pan
from the appliance.
This appliance is intended to be used in household and
similar applications such as:
-Staff kitchen areas in shops, office and other working
environments;
-Farmhouses;
-By clientsin hotels, motels and other residential type
environments;
-In bed and breakfast type environments;
04
●
This appliance is for household use only. Do not use out
doors.
●
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
●
Children should be supervised to ensure that they do
not play with the appliance
●
This appliance is intended to be used in household and
similar applications such as:
-Staff kitchen areas in shops, office and other working
environments;
-Farm houses;
-By clients in hotels, motels and other residential type
environments;
-In bed and breakfast type environments;
●
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agentor similarly qualified
persons in order to avoid a hazard.
●
Please turn off and unplug the appliance before
cleaning, maintenance or relocation and whenever it is
not in use.
●
The surfaces are liable to get hot during use.
●
After being used for a long time, the corresponding
05
• Never immerse the housing, which contains electrical
components and the heating elements, in water nor
rinse under the tap.
• Do not let any water or other liquid enter the appliance
to prevent electric shock.
• Always put the ingredients to be fried in the basket, to
prevent it from coming into contact with the heating
elements.
• Do not cover the air inlet and the air outlet openings
while the appliance is operating.
• Do not fill the pan with oil as this may cause a fire
hazard.
• Never touch the inside of the appliance while it is
operating.
• Never immerse the housing, which contains electrical
components and the heating elements, in water nor
rinse under the tap. decreased sufficiently.
• This appliance is for household use only. Do not use
outdoors.
• Please pay attention to scald where there is a
high temperature symbol.
WARNING
MAD5508APKProduct Model
Voltage Frequency
Rated Power
220-240V~ 50/60Hz
1550-1850W
Rated Capacity 5.5L
06
SPECIFICATIONS
PRODUCT OVERVIEW
NOTE
07

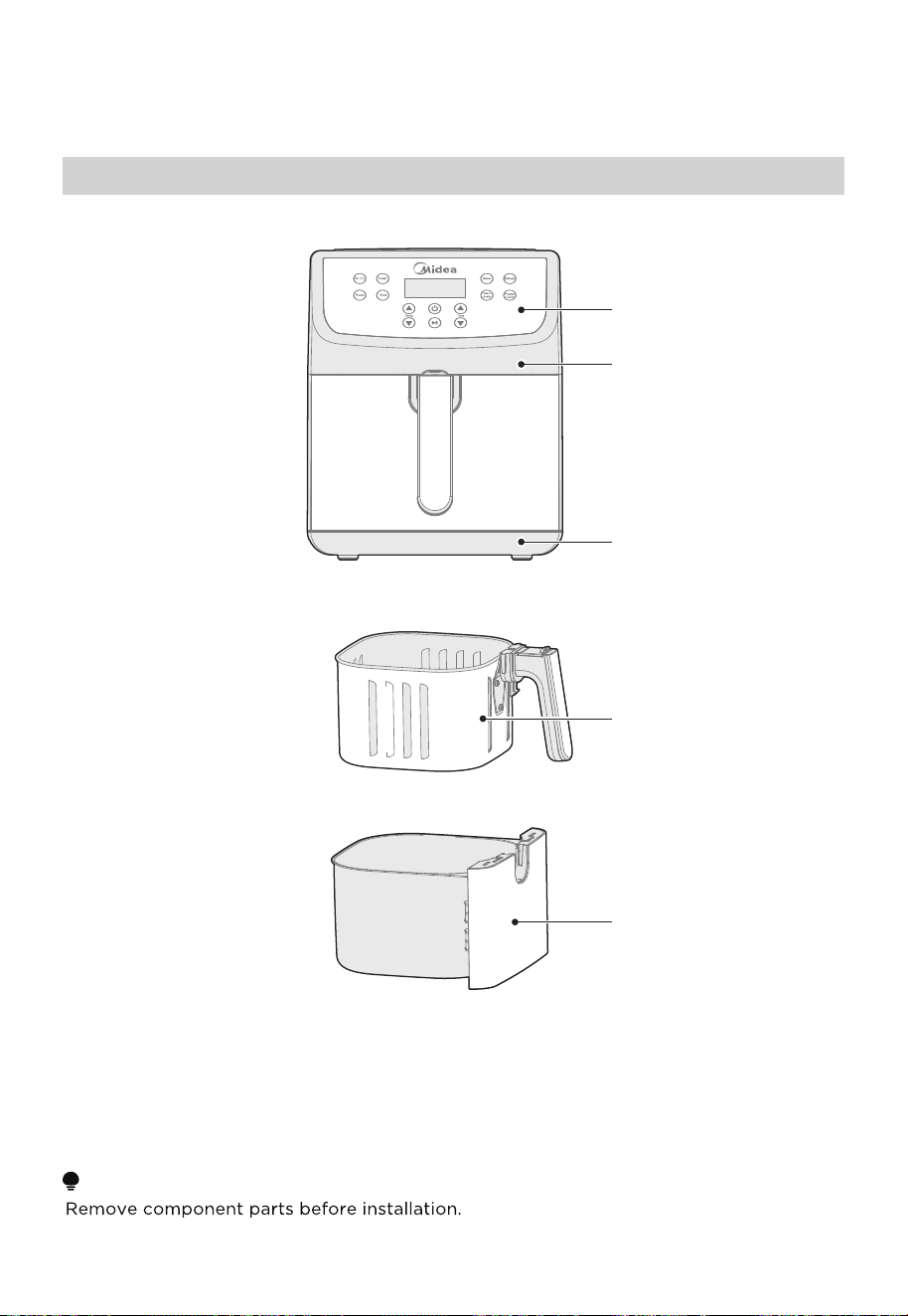

Component
Name
Control panel
Main unit
Bottom housing
Combination of
the frying basket
Combination of
the frying barrel
ENENEN
OPERATION INSTRUCTIONS
08
NOTE
Under the state of function selection, the selected state of default function, the working
state and the state of work suspension, the machine may adjust temperature and time
through the DIY setting function of temperature/time. For the temperature adjustment,
briefly press 5℃ for run-out and long press it to rapidly adjust the temperature; For the
time adjustment, briefly press 1 min for run-out and long press it to rapidly adjust time.
Operation process of the panel
The machine is powered on → touch the power switch (the machine enters the state of
function selection) → select the default menu or DIY setting of temperature/time (the
machine enters the default menu or the DIY setting state of temperature/time) → touch
the key of start/stop (the machine enters the cooking work state) → re-touch the key of
start/stop (the machine enters the state of work suspension)

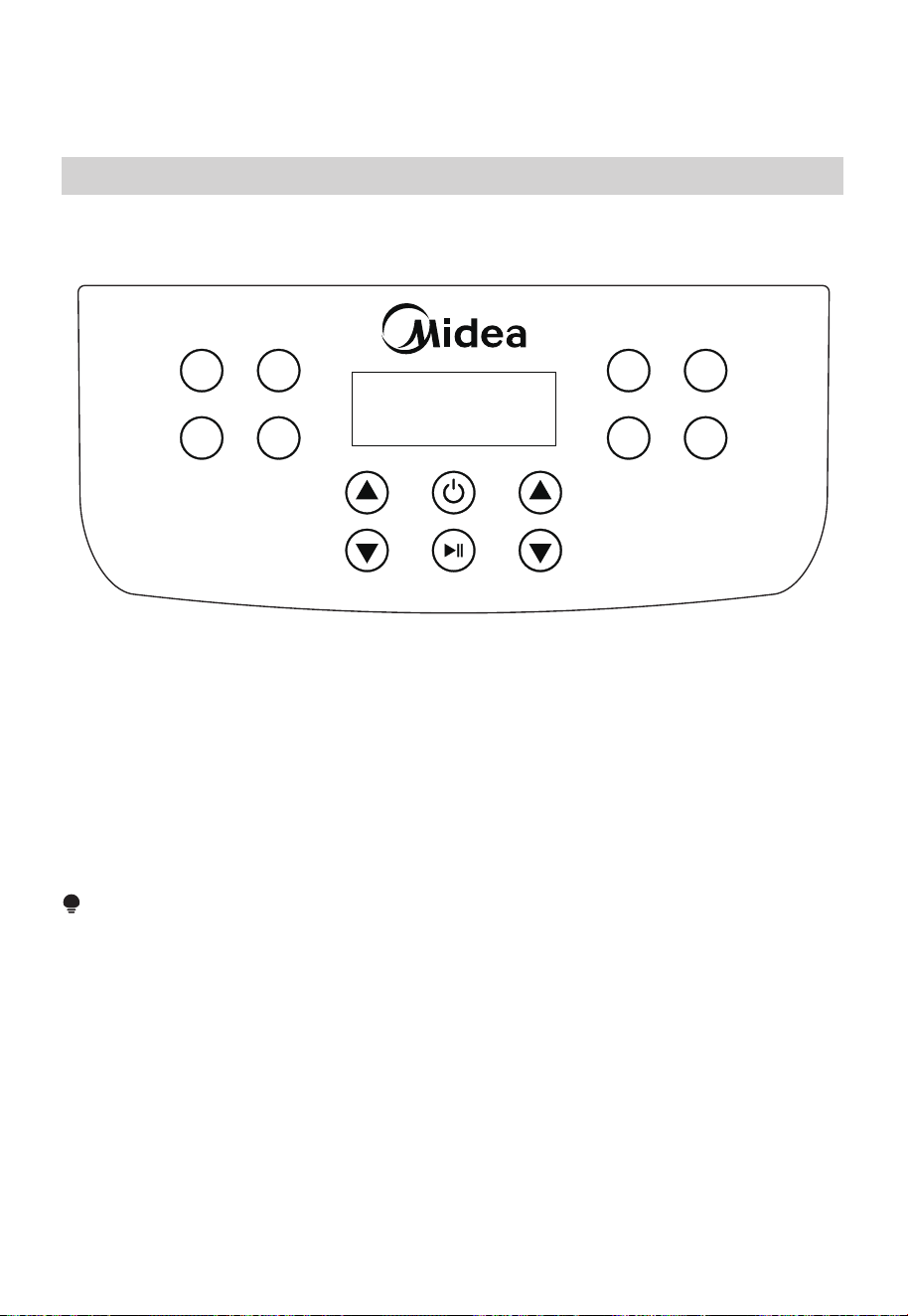

Panel Operation Process
Air Fry
Roast
Temp Time
Toast
Broil
Bake
Dehy
drate
Reheat
Frozen
Food
09
80-200 (170-400)
80-200 (170-400)
80-200 (170-400)
80-200 (170-400)
30-90 (90-200)
80-200 (170-400)
80-200 (170-400)
80-200 (170-400)
200 (400)
200 (380)
200 (400)
200 (400)
52 (120)
180 (360)
200 (400)
115 (240)
15
40
25
10
10:00
15
15
12
1-60
1-60
1-60
1-60
1:00-24:00
1-60
1-60
1-60
Airfry
Roast
Toast
Broil
Dehydrate
Reheat
Bake
Frozen Food
Menus
funciton
Pre-setting Adjustment range
Pre-setting Adjustment range
Temperature (℃ (℉))
Time(min.)
The default menu pre-sets the heating temperature and time:
10
NNNNEEEE
Preparation Work

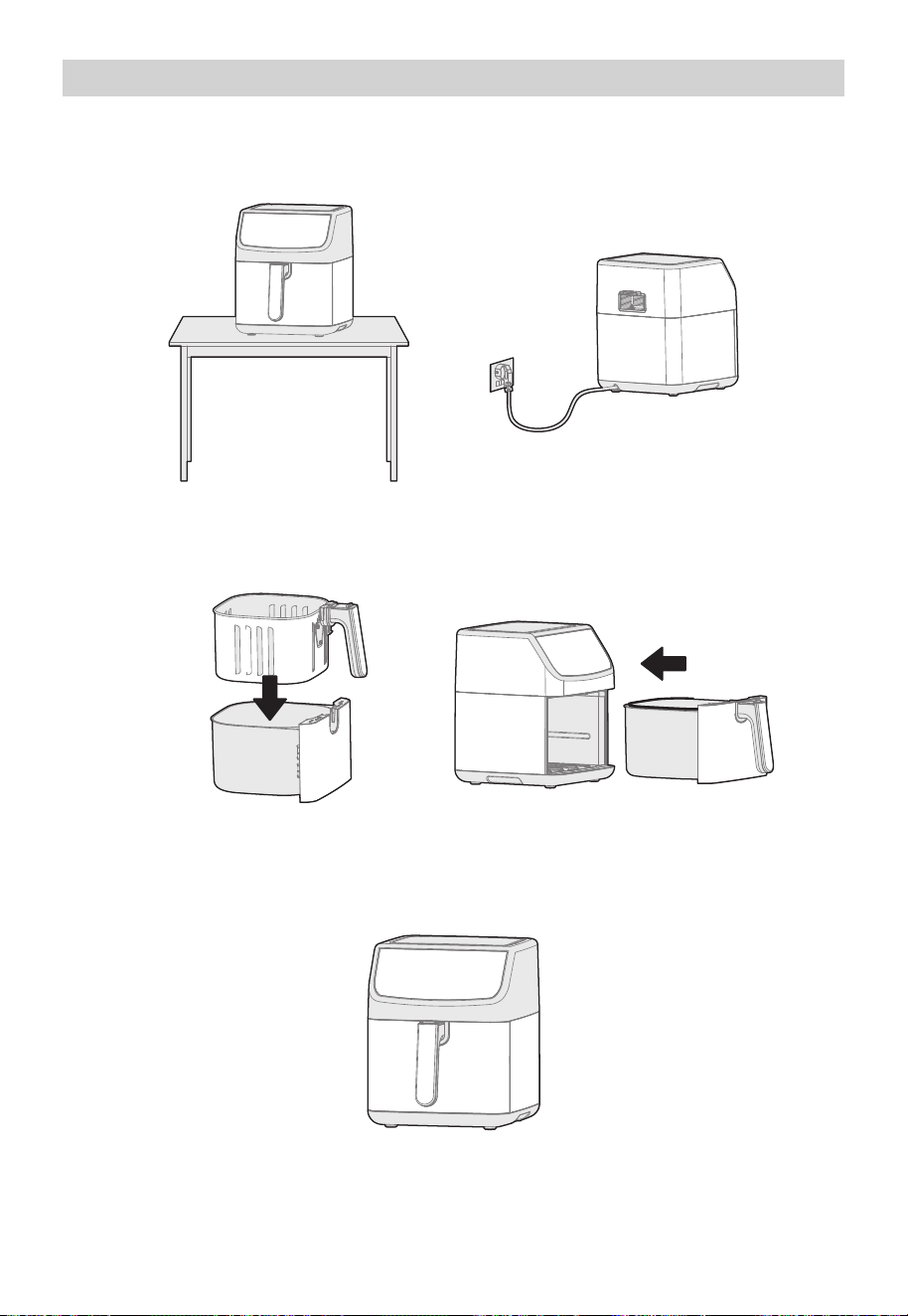

1. The product should be steadily put on the flat desk (Fig. 1), so that the power line is
long enough to plug in the socket (Fig. 2); the surrounding air of the product should
be ventilated and it cannot get close to the flammable substance.
2. Put the frying basket into the frying barrel and fasten it in place (Fig. 3), and then push
it into the main machine (Fig. 4).
3. Before putting the food materials, preheat the machine for 3-6 minutes and the
cooking effect will be better.
Fig. 1 Fig. 2
Fig. 3 Fig. 4
2. Select function through the control
panel, the interface shows the set
temperature and time or DIY through
the control panel to set the according
temperature and time, and then touch
the start key. Then the machine enters
the heating work state, cooks and heats
the food material.
11

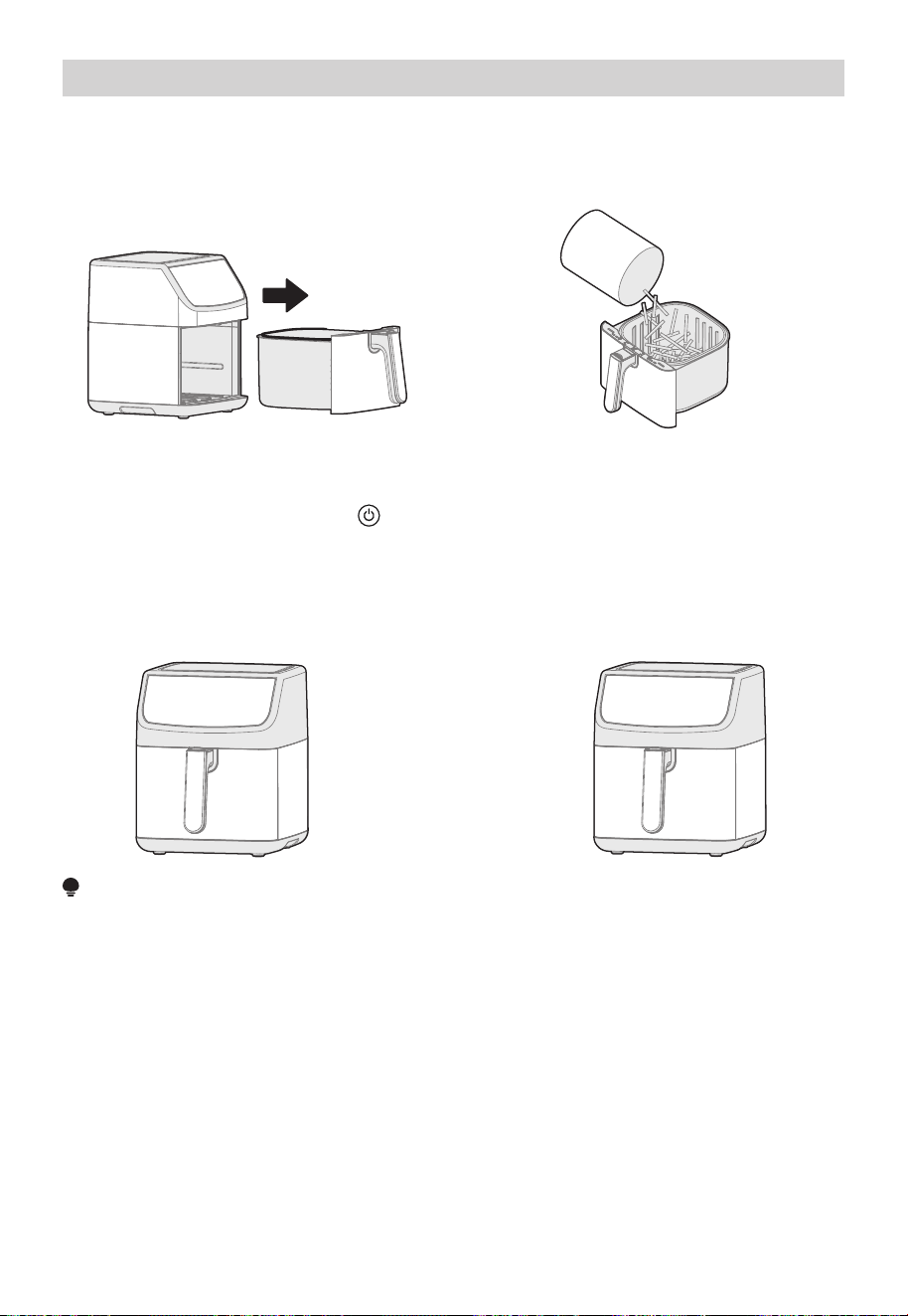

1. Press the top of the machine with one
hand and pull the frying barrel out with
the other hand. The frying barrel needs
to be put on the stable desk.
2. Put the food materials inside the frying
basket of the frying barrel.
Usage
NOTE
When the frying barrel is not totally pushed in, the micro switch is not triggered; the
machine is at the power-off state of getting the barrel and it won't work. At that time,
you only need to totally push the frying barrel into the machine. The machine has the
function of two-hour power off memory. After taking out the frying barrel and stirring
the food in the process of food cooking, fully push the frying barrel into the machine and
the machine restores the working state before the frying barrel is taken out, and
continues to cook and heat the food materials.
1. The product should be steadily put on the flat desk (Fig. 1), so that the power line is
long enough to plug in the socket (Fig. 2); the surrounding air of the product should
be ventilated and it cannot get close to the flammable substance.
2. Put the frying basket into the frying barrel and fasten it in place (Fig. 3), and then push
it into the main machine (Fig. 4).
3. Before putting the food materials, preheat the machine for 3-6 minutes and the
cooking effect will be better.
3. Push the frying barrel into the machine,
after the machine is powered on, the
machine beeps and touch the “ ”
key. Then the machine enters the
working state and the interface shows
the set temperature and time.
5. After reaching half of the set heating time, the machine beeps five times, “shake” light
shows and pull out the barrel, flip sides of the food.
6. The machine beeps after cooked, unplug the power plug. Unplug the socket, put it on
the desk flatwise and take out the cooked food with the auxiliary tool (such sa
chopsticks and clamp).
Please carefully take it out. Do put it on the desk flatwise, so as to avoid being scalded
by steam or toppling over the frying barrel, which may lead to scalding by oil or high
temperature food. In addition, the auxiliary tools (such as chopsticks) are suggested to
be used in the process of taking out food.
1 2
●
Any discrepancy between the picture and the product is subject to the real object.
●
The altitude scope for the appliance to properly function is 0 ~2000 m.
●
For the first use, it should be heated dryly for ten minutes, during which process there
may be a small amount of white smoke or unpleasant odor. It is a normal phenomenon
and don't be panic-stricken.
●
Before the product works, please check whether the frying basket and the frying barrel
are put in place, so as to avoid failure.
●
If the product is found to have any breakdown, please immediately stop using it and
contact the service department of the company.
●
Please put both the frying basket and the frying barrel inside the complete machine for
use, and avoid independent use.
●
Please well keep the instruction manual for future use.
Tips
●
Please clean it when the air fryer is cooled down, so as to avoid scalding.
●
After using it, please timely clean the frying basket and the frying barrel, so as to avoid
the coating damage caused by the erosion of food residue and oil stain.
●
Please do not clean it with highly corrosive cleaning agent, so as to prevent the
machine and your health from damage.
●
Please wipe the air fryer with the soft and clean cloth. Please do not clean the air fryer
with too wet cloth, so as to prevent water from entering inside the air fryer, which may
easily lead to short circuit and fire.
●
Please do not clean the air fryer with other cleaning equipment like the dishwasher.
Otherwise, it may lead to damage and influence the use.
●
Please clean the frying basket and the frying barrel with the neutral cleaning agent or
clean water.
●
Do not clean the frying basket and the frying barrel with hard and sharp objects (such
as the steel wool and blade), and avoid scratching the frying basket and the frying
barrel.
13
CLEANING AND MAINTENANCE

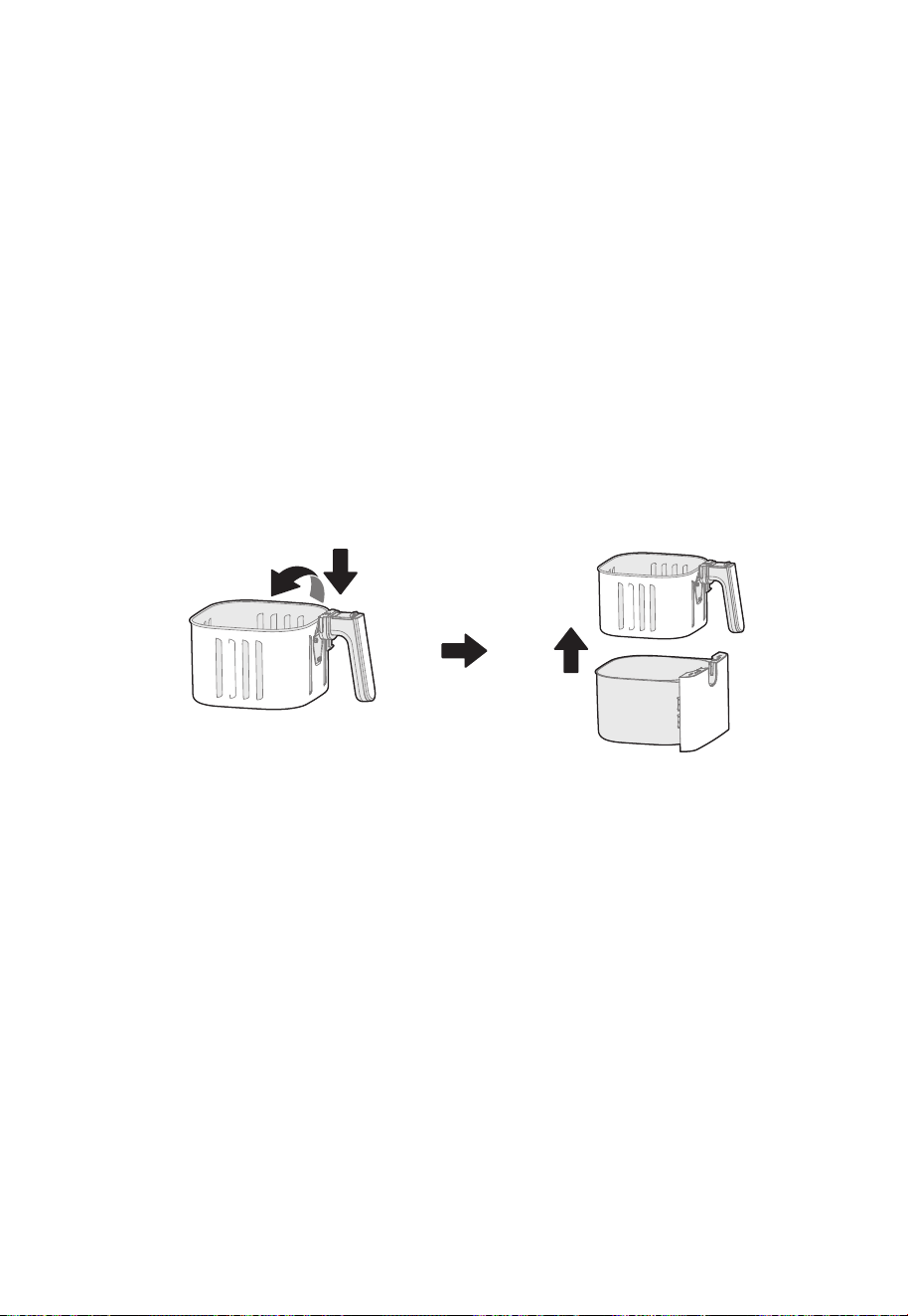

Just raise the "frying basket".
Uncover the "protection cover"
and press the "key".
14
TROUBLESHOOTING
Operation of your appliance can lead to errors and malfunctions. The following tables
contain possible causes and notes for resolving an error message or malfunction. It is
recommended to read the tables carefully below in order to save your time and money
that may cost for calling to the service center.
Cause Troubleshooting MethodFault Symptom
Insert again or to another
socket.
Pull the frying barrel out and
into the machine again to
assemble properly.
Deliver the appliance to the
authorized Maintenance
Department.
Deliver the appliance to the
authorized Maintenance
Department.
Deliver the appliance to the
authorized Maintenance
Department.
After the power is on, if the
motor works and heats up
regularly, you can send
the product to a designated
maintenance service point.
After the power is off, check
if there is foreign matter at
the air inlet and inside the
chamber; if there is still a
fault, send the product to a
designated maintenance
service point.
Check whether the plug
is plugged in place.
●
The frying barrel is not
assembled properly.
●
Thermostat (the protection
device) is disconnected.
●
The display lamp burns out.
●
There is foreign matter
blocking the fan blade or
steam inlet is blocked.
●
NTC abnormal open circuit.
●
NTC abnormal short circuit.
●
Not power on
The motor
doesn't work or
has abnormal
sound
E1 alarm
E2 alarm
15
logo, word marks, trade name, trade dress and all versions there of are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns
purposes without the prior written consent of Midea may constitute trademark
This manual is created by Midea and Midea reserves all copyrights thereof
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written c
All the described functions and instructions were up to date at the time of printing this
owever, the actual product may vary due to improv
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
16
DISPOSAL AND RECYCLING
Important Instructions For Environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
Compliance With Rohs Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Package Information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated
by the local authorities.
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
recycling of electrical electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
17
ATA ROTECT ON NOT CE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
ensured, personal data might be transferred to recipients located outside of the
Officer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
Midea 2022 todos los derechos reservados
