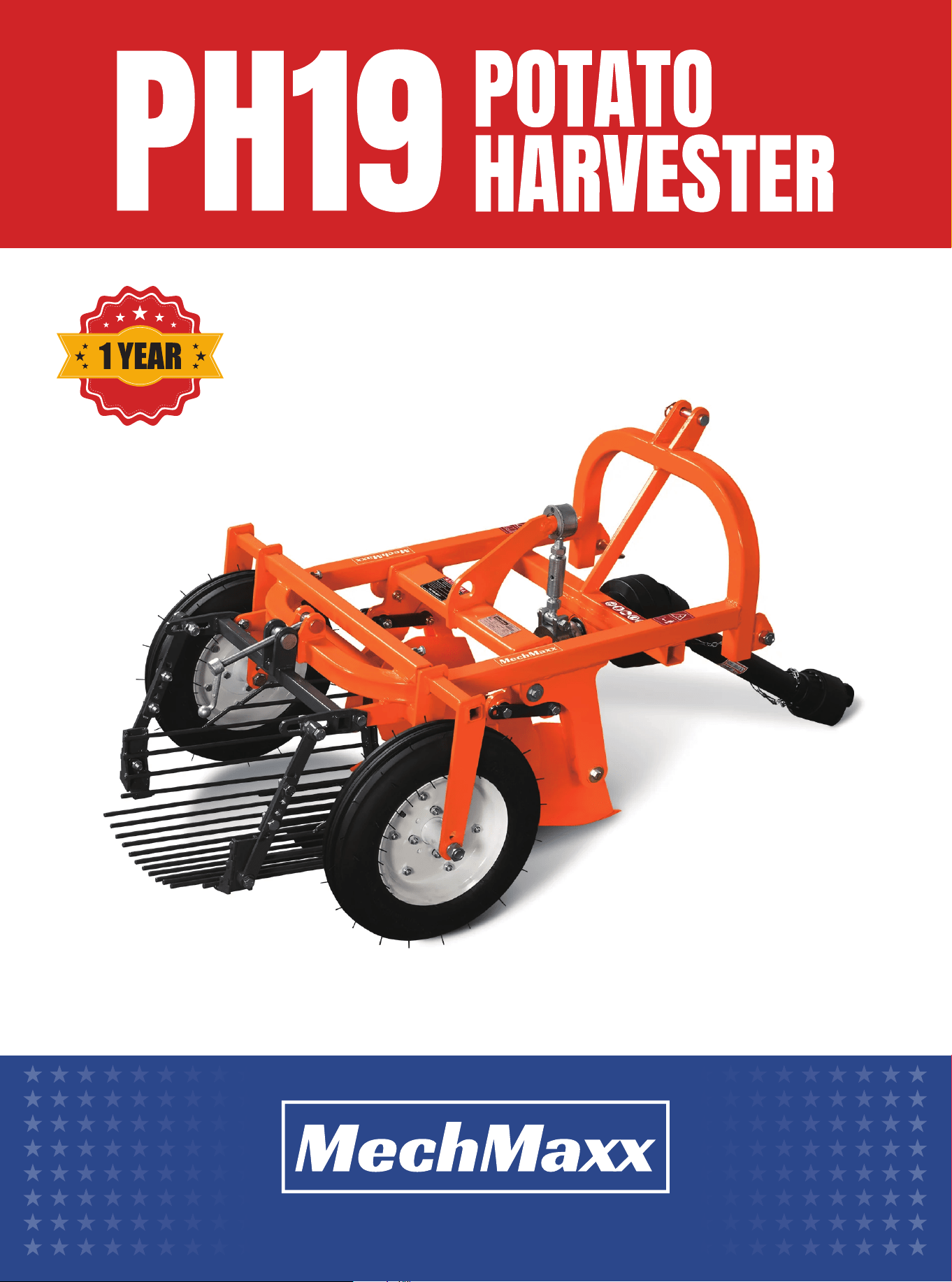

Operator’s Manual
www.mechmaxx.com
WARRANTY
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY SIGNS
SAFETY
1
2
SAFETY RULES
MACHINE
UTILIZATION
4
4
4
GENERALCONDITIONS
4
GUARANTEE
4
EXCLUDED FROM THE GUARANTEE
4
STARTING
5
TRANSMISSION
5
REPLACEMENT OF THE BLADE
5
READ THE RECOMMENDATIONS BEFORE USE
6
7
8
3
4
PARTS DIAGRAM
PARTS LIST
1
www.mechmaxx.com
TABLE OF CONTENTS
SPECIFICATIONS
2
www.mechmaxx.com
SPECIFICATIONS
Working Width
Overall Size
PTO Input
Wheel Size
PTO Shaft (Included)
Linkage Type
Recommend Tractor HP
Hitch Type
Packing
Packing Size (LxWxH)
Weight (N.W/G.W.)
19 in
53 x 43 x 35 in
540 RPM
4.00-10
6 Spline Quick Release Tractor Yoke
3 point mount
20-30hp
Cat I
Plywood case
57 x 29 x 39 in
322/414 lbs
Model PH19
3
www.mechmaxx.com

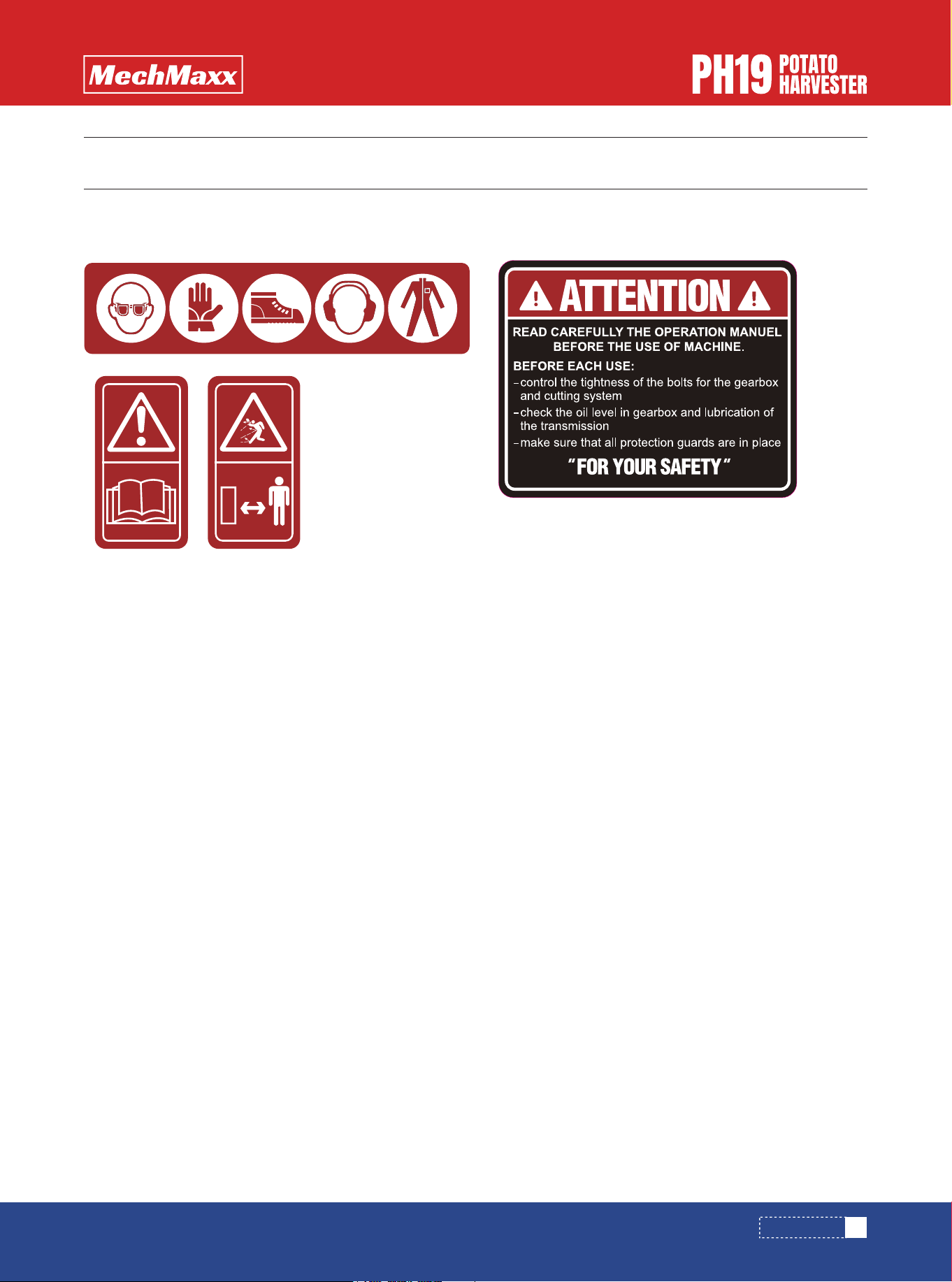

SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
SAFETY SIGNS
4
www.mechmaxx.com
SAFETY
SAFETY
In order to avoid accidents during work, it is necessary to
observe the most elementary rules of prudence:
1.Operator
The operator must not start the machine unless they have
full mental and physical capacity.
• Good eyesight and good hearing
• Read and studied the manual
• Be attentive to its and others’ security
• Be familiar with the use and maintenance of the
machine
• It is strictly forbidden to drink alcohol, ingest drugs and
other substances that might affect the use of the
machine
-Do not wear loose-fitting clothing that could be caught
by moving parts.
-Wear the appropriate security equipment:
• Standardized working gloves
• Safety shoes
• Helmet
• Hearing protection device
• Protective glasses
Prudence is required during the attachment of the
machine to the tractor and during its uncoupling.
Make sure that the PTO of tractor is not engaged or the
hydraulic spool valve of tractor is in the neutral position.
-The maintenance, the cleaning as well as the adjust-
ments must be made only if the engine of the tractor is
turned off and the ignition key is removed.
-Make sure that no one is in the operating area of the
machine.
We decline any responsibility for damage of any nature
caused by non-observance for the use and safety require-
ments.
-The coupling must be done only on the points provided for
this purpose in accordance with safety standards.
-Prohibition of using the machine as means of transport
of people, animals or objects.
-The machine should be in perfect working condition,
maintained with original parts.
-Use the transmission shafts recommended by the manu-
facturer.
-The protectors of transmissions must be in good condi-
tion.
-The machine should be in perfect working condition,
maintained with original parts.
-It is strictly prohibited to make modifications on the
machine without authorization of the manufacturer.
The Buyer contractually agrees with the current condi-
tions for sale and guarantee clearly not to be contrary to
his/her own situation.
For all these goods sent by delivery or mailing, we will
invoice you for the price of the courier or mail.
Delivery period is only for reference.
A delay for the appointed time to the goods could not, in
any case, cause the claims for damages in any way.
Our goods still take a risk in the process of delivery to the
destination, even if the machine is sold at freight prepaid.
Our new equipment is warranted against defects in mate-
rials and construction defect for one year from the date of
delivery. At the end of that period, the guarantee legally
ceases.
Deterioration or damages resulting from an insufficiency
(misuse of care or maintenance) accident, misuse or
abuse or due to normal wear and tear.
The equipment transformed, modified, repaired or disas-
sembled even only partly outside.
SAFETY RULES
UTILIZATION
GENERALCONDITIONS
GUARANTEE
EXCLUDED FROM THE GUARANTEE
MACHINE
5
www.mechmaxx.com
SAFETY
The guarantee is limited to the exchange of the recog-
nized defective by our technical department. The parts
supposed defective will have to be refunded freely to our
establishment accompanied by a request for guarantee.
We don’t take part in the expenses of plough caused by
disassembling and the reassembly in any manner, nor in
the expenses and consequences of the immobilization of
the material.
To invoke the benefit of the guarantee, the customer
must notify us within three days and in writing, of the
defects attributed to the equipment and provide all
justifications. The guarantee does not apply if the materi-
al is not refunded in the state where it is broken down, or
if it is dismounted, repaired, modified beforehand either by
a third or by user or the customer.
The parts will always be invoiced and will submit an
expense account only after acceptance of the guarantee
by our engineering department.
Our responsibility is expressly limited to the defined
guarantee above. She couldn’t be committed to reason of
accident caused by persons and things in any case, even
by the result of a fault or a vice of the equipment sold.
Reserve property: by convention, we reserve the owner-
ship of goods supplied until the last day of full payment.
CONTESATIONS: In case of contestation，only the high
court shall have jurisdiction.
Traits and acceptances of regulation shall neither make
neither novation, nor exceptions to the clauses of the
jurisdiction.

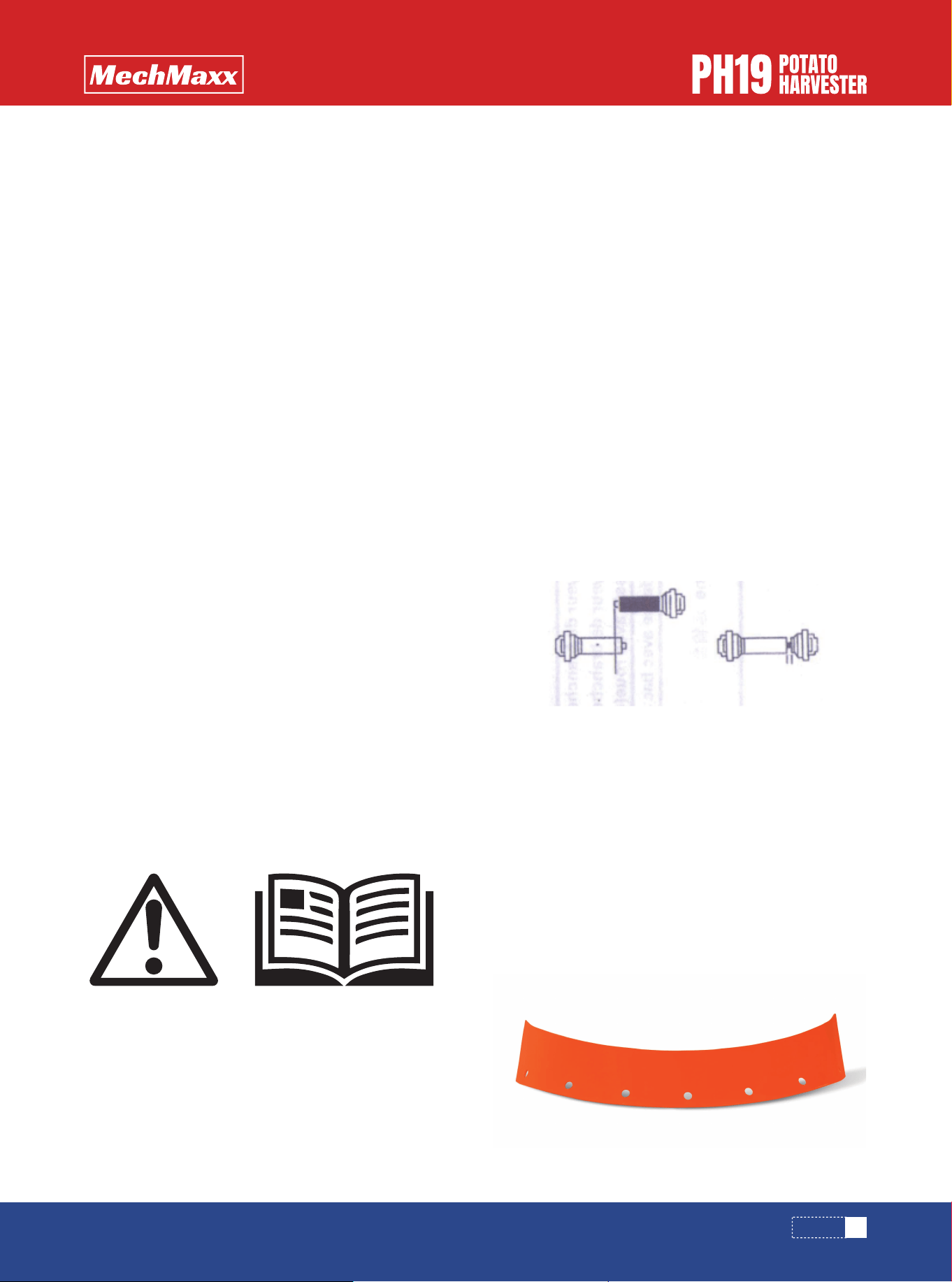

When the machine is fixed on a tractor, check the cardan
length. If it is too long, we can’t cut the outer protection,
and then take good care to file it in the work position, the
tube must go into each other at least 150mm (below),
check when the tool is mounted on the tractor.
Check the condition and installation of the transmission
(cardan) by a specialized worker. Always change any
damaged protection, and attach the 2 channels of the
protector, it should never turn to work.
When you attach the machine to the tractor, always put
the pins to the axes of coupling, and change them if they
are in poor condition.
When attaching the cardan, make sure it is blocked at
both ends by locks when you hook the machine to the
tractor. The protections of the cardan must be in perfect
condition and immobile during rotation, use the chain
provided by security, when the protections are damaged,
replace them quickly.
When the machine is stopped, unhooked from the tractor,
use the chain of additional universal joint so that it does
not rest on the ground. When fixing the universal joint,
ensure that it is blocked.
Before all interventions on the machine, stop the engine,
disconnect the PTO shaft after all moving parts have
stopped.
Install the machine on a place, well flat and work as
described below.
Unscrew the screws completely (1). Replace worn or
damaged blade, pay attention to the assembly. Tighten
the screws (1) washer and nut used in (2), (3).
Use only blades of origin for the correct operation of the
machine.
Make sure the PTO speed of the tractor is 540 r/m to
avoid damaging the machine before use.
The recommended work speed of use is from 1.2 to 1.5
Km/h.
Adjust the working depth.
Always turn off the engine of the tractor, as well as the
parts in movement.
Read this entire manual before using the machine,
sideways with EP80W90 oil and lubricating the rotor.
STARTING
TRANSMISSION
REPLACEMENT OF THE BLADE
6
www.mechmaxx.com
SAFETY
PTO speed 540r/min
Attention to the throwing of stones
Always keep protections on the parts moving
Never intervene on the machine when the PTO is in action
and always keep distance.
READ THE RECOMMENDATIONS BEFORE USE
7
www.mechmaxx.com

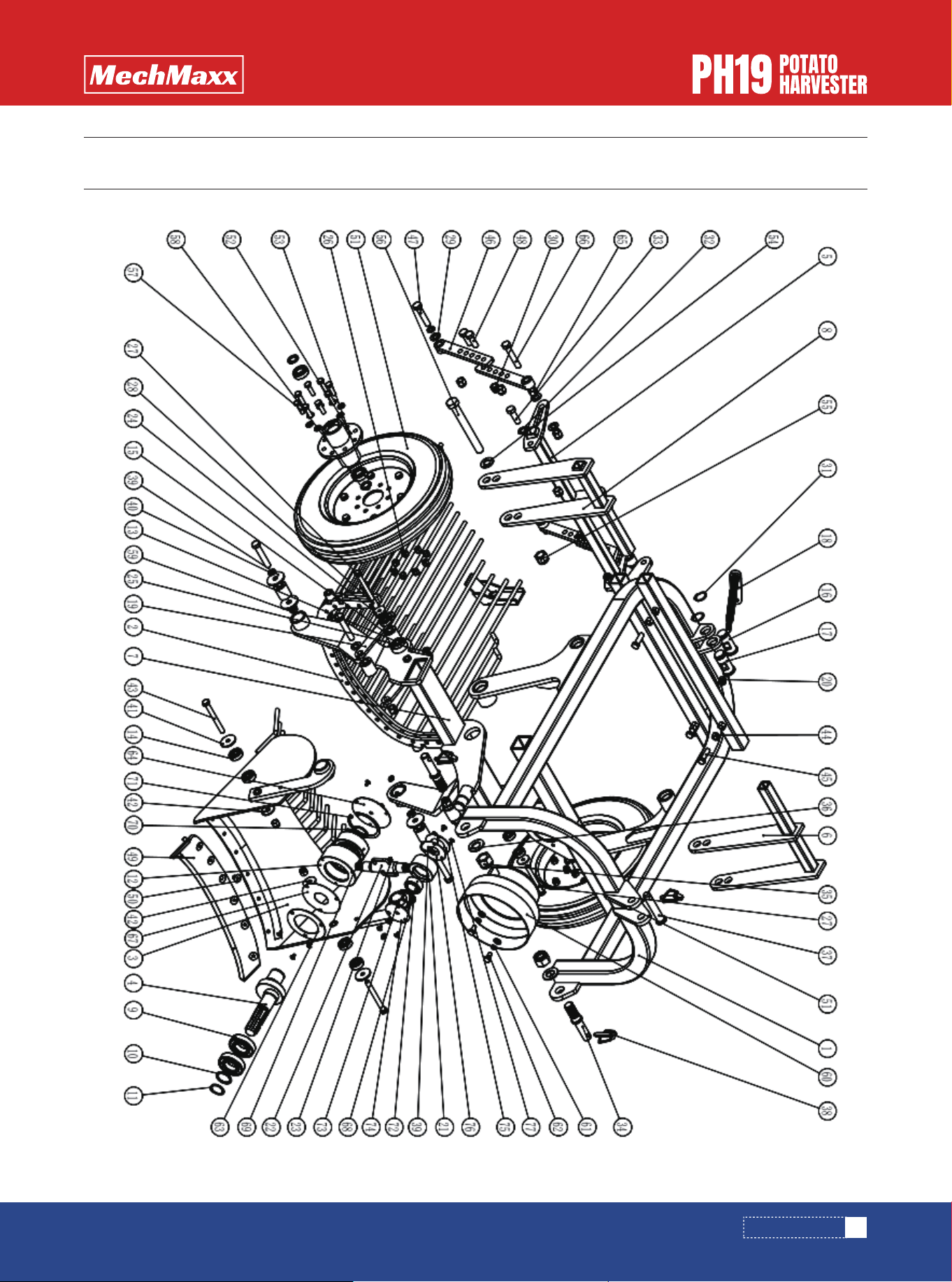

PARTS DIAGRAM
PARTS DIAGRAM
8
www.mechmaxx.com
PARTS LIST
PARTS LIST
REF DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Main welding assembly
Reciprocating sifting
Scraper welding assembly
Input shaft
Adjust stand
Right wheel stand
Sway stand
Left wheel stand
Bearing(6207-2RZ)
Lining ring
Circlip for shaft(35)
Bearing seat
Bearing(6201-2Z)
Bearing(6301-2Z)
Lining
Pin 1
Pin 2
Adjusting screw rod
Connecting plate
Lock nuts(M12)
Bearing seat
Adjusting tube
Oil cup(10)
The most plain washer(10)
Plain washer(10)
Lock nuts(M10)
Bolts(M10×100)
Bolts(M14×80)
Plain washer(14)
1
1
1
1
1
1
1
1
2
1
1
1
4
4
6
1
1
1
4
3
1
1
3
2
20
18
2
6
10
REF DESCRIPTION QTY
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Lock nuts(M14)
Cir clip for shaft(30)
Plain washer(14)
Bolts(M14×45)
Inf. suspension pin
Lock nuts(M24)
Plain washer(24)
Sup. suspension pin
Lock pin(10)
The most plain washer(14)
Spring washer(14)
The most plain washer(12)
Big plain washer(12)
Bolts(M12×110)
Nuts(M12)
Bolts(M12×40)
Connecting rod
Bolts(M14×70)
Bolts(M14×40)
Scraper
Screw(M10×16)
Tyre
Tyre flange
Bearing(6004-2Z)
Plain washer(20)
Lock nuts(M20)
Bolts(M20×180)
Bolts(M10×35)
Flange gasket
14
2
2
2
2
2
2
1
3
2
4
2
2
2
4
4
4
2
4
1
7
2
2
4
2
2
2
16
4
9
www.mechmaxx.com
PARTS LIST
REF DESCRIPTION QTY
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
Thin nuts(M14)
Plastic cover
Spring washer(10)
Bolts(M10×20)
Back shroud
Front shroud
Nuts(M14)
Bolts(M14×80)
Dust pad
Knuckle bearing(GE30C)
Bearing 22308 C
Circlip for shaft(40)
Circlip for hole(90)
Circlip for hole(47)
Circlip for shaft(30)
Front shroud
Back shroud
Dust pad
Screw(M6×12)
2
1
2
2
1
1
2
2
1
1
1
1
1
1
1
1
1
1
12
