1.3HP GARDEN PUMP WITH TANK
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 71040
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury. Save all warnings and instructions
for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover
all possible conditions and situations that may occur. It must be understood by the operator
that common sense and caution are factors which cannot be built into this product, but must
be supplied by the operator. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
1
The semi-stationary and static form of the equipment is designed to be transferred to the house
and garden: Spray water and make watering.
The equipment shall be used within its performance range. Please don’t use the equipment
which has abnormal switch.
The equipment is prohibited to be used for providing water or conveying food.
Please don’t use the equipment in the room which contains the inammable and combustible
liquid or gas.
When the components which fail to be tested and recognized by manufacturers are improperly
used, the equipment is likely to suffer from the unforeseen damage.
Any application which deviates from the intended purpose as specied in the instructions will
be considered as the unautho rized application, as a result, the generated problems are inde-
pendent of the manufacturers.
The equipment shall be connected to the socket which has correct installation and grounding.
The fuse wire shall serve as the current circuit breaker when the residual current exceeds 30mA.
Please ensure that the power supply can satisfy the connec tion regulations before the equipment
connection.
Check the plug and power cable before application. When the power cable has been damaged,
please disconnect the plug immediately. Please don’t use the equipment which has damaged
When the equipment is idle, please ensure that the plug has been pulled out. Meanwhile, the
equipment has been closed, then, unplug the power supply.
As for the xed application, please apply four screws to tighten the equipment on the foundation
support rmly.
When the equipment is used for the pound and swimming pool in the garden, the equipment
shall be subject to the special setup to avoid the overow and falling.
The equipment shall be installed in the well-ventilated places to avoid the weather effect. In case
of indoor operation, please ensure that the oor is equipped with drainage ditch or leak age-proof
mechanism.
Please check the suction hose and guarantee its airtightness before startup. When the air foam
is absorbed in the hose, the equipment is likely to be out of order because the leakage exists
possibly.
IMPORTANT SAFETY INFORMATION
2
All interfaces which are connected to the suction pipeline shall be sealed by hemp and thick slurry
or sealing tape. The leak age will reduce the air exhaust.
The interface of metal pipe thread shall be sealed by sealing tape.
All components of suction pipeline shall be installed by profes sionals.
The inner diameter of suction pipe shall be 25mm at least; The suction pipe shall be kinking
resistant and suitable for the vacuum environment.
Considering that the increasing pipe length will reduce the transmission capacity, the suction
pipeline shall be as short as possible.
The suction pipeline shall uplift the pump steadily to avoid any bubble.
Please ensure that the suction pipeline has enough water supply; The terminal of suction hose
shall be submerged in water all the time.
All components of pressure pipeline shall be compressive.
The equipment can be rmly connected to the pipeline system (such as, internal water supply in
families). In such case, the equipment shall apply the highly exible hose to connect to the pipeline
system to avoid the vibration.
RISK OF INJURY: When the components are unable to withstand the compression or the
installation is incorrect, Danerl the pressure pipeline is likely to burst during the operation. Risk
of liquid ejection!
Attention: The equipment is only used for industrial water supply, such as,toilet and washing
machine shall not be used for the drinking water supply.
The equipment shall be operated only in the following conditions:
1.The equipment is only connected to the socket which has protective contacts, moreover, which
shall be installed, grounded and checked by professional electricians.
2.The power voltage and fuse protection shall satisfy the technical data.
3.The equipment shall be equipped with the protective device for less than 30mA residual
current when the equipment is oper ated in the swimming pool, garden and similar places.
4.ln case of outdoor operation, the electrical connection shall be splash-proof; The equipment
shall not be operated in water.
5.The extension wire shall have enough conductor cross section; The cable drum shall be
unfolded completely.
RISK OF EQUIPMENT DAMAGE: The pump shall be lled with water when the new equipment
is connected. It is unnecessary to make The dry running of equipment is likely to damage the
equipment during the unmanned supervision.
SAVE THESE WARNINGS
3
OPERATION / MAINTENANCE / TROUBLESHOOTING
FILLING AND SUCTION: Please ll in the pressure again when the pump is only started after
draining the water as time goes on.
1.Disconnect the power plug.
2.Open the pressure pipe to drain water completely.
3. Unscrew the plastic valve in the front of pump head; The air control valve is located in the rear of
plastic valve.
4. Connect the compressor hose to the air control valve.
5. The lling pressure will reach up to the parameters data.
6. Connect to the devices again, check its function and increase the precharge pressure.
MAINTENANCE
1. Please disconnect the power supply before any operation of maintenance.
2. The equipment will only fulll the maintenance and trouble removal tasks as specied in the
instructions. Other faults shall be removed by experts.
3. Please apply the original components. Only these replaceable components are specically
designed and produced for the equipment. When other components are replaced, the warranty will
be invalid and you and your environment are likely to be endangered.

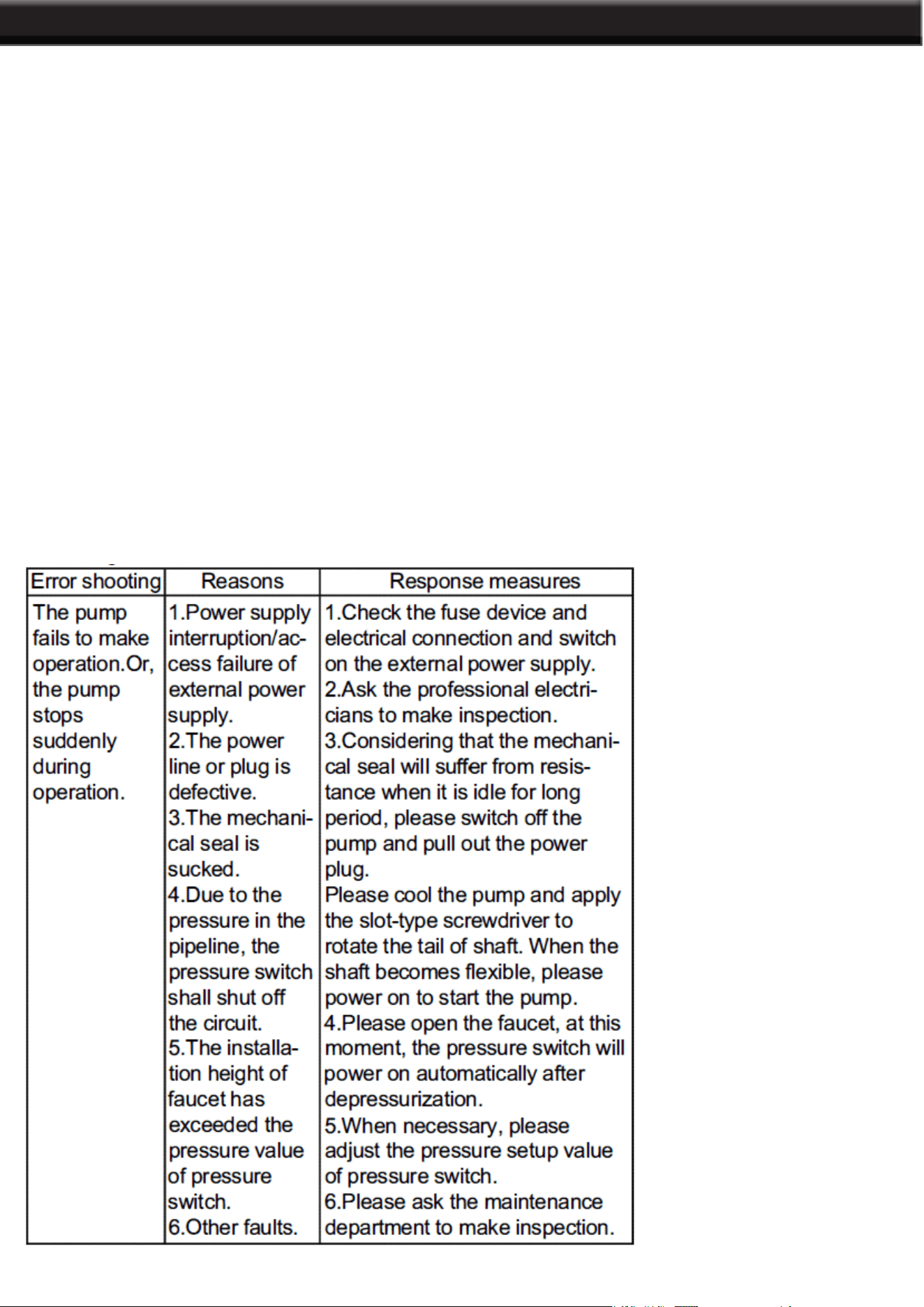

TROUBLESHOOTING
4

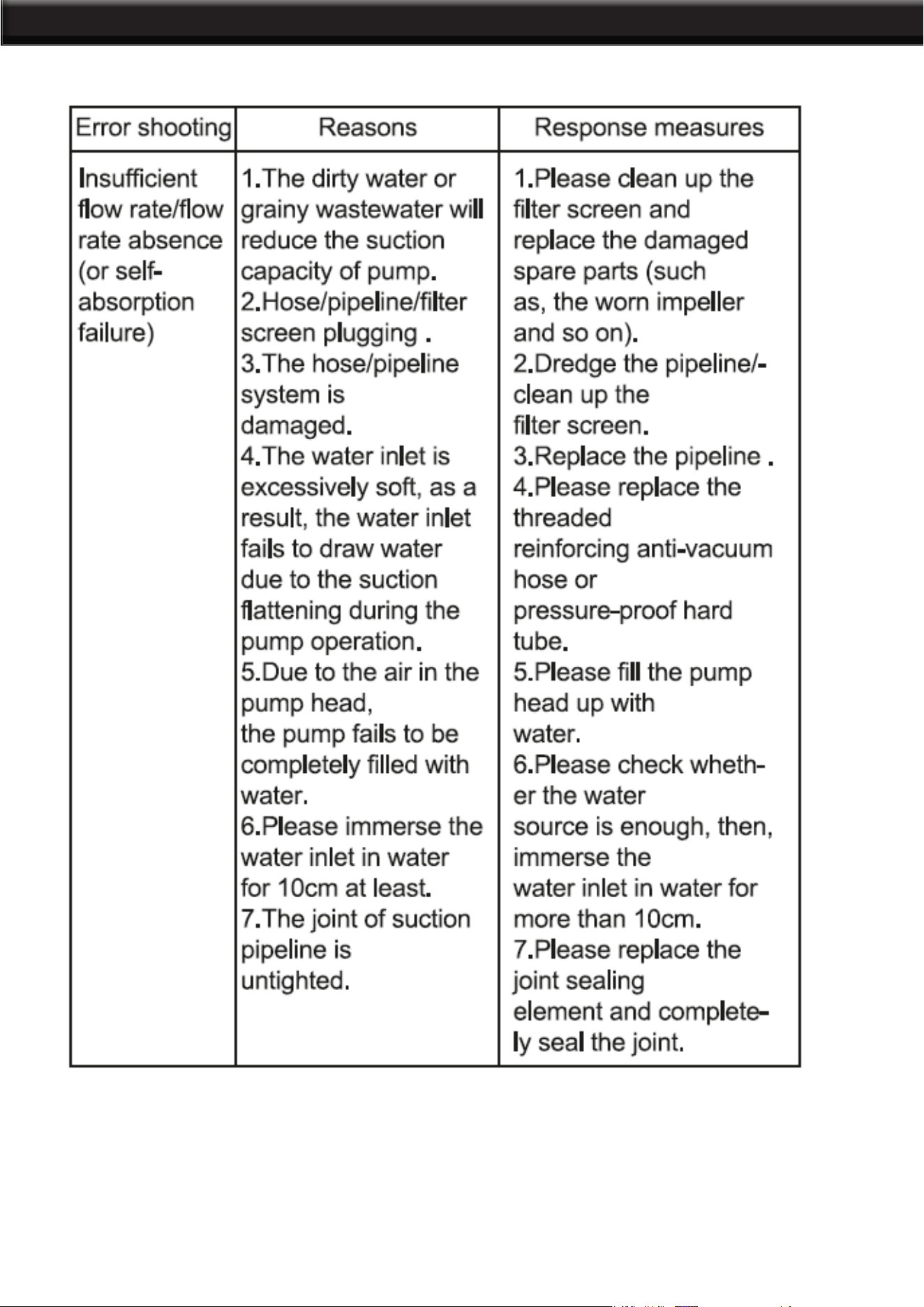

TROUBLESHOOTING
5

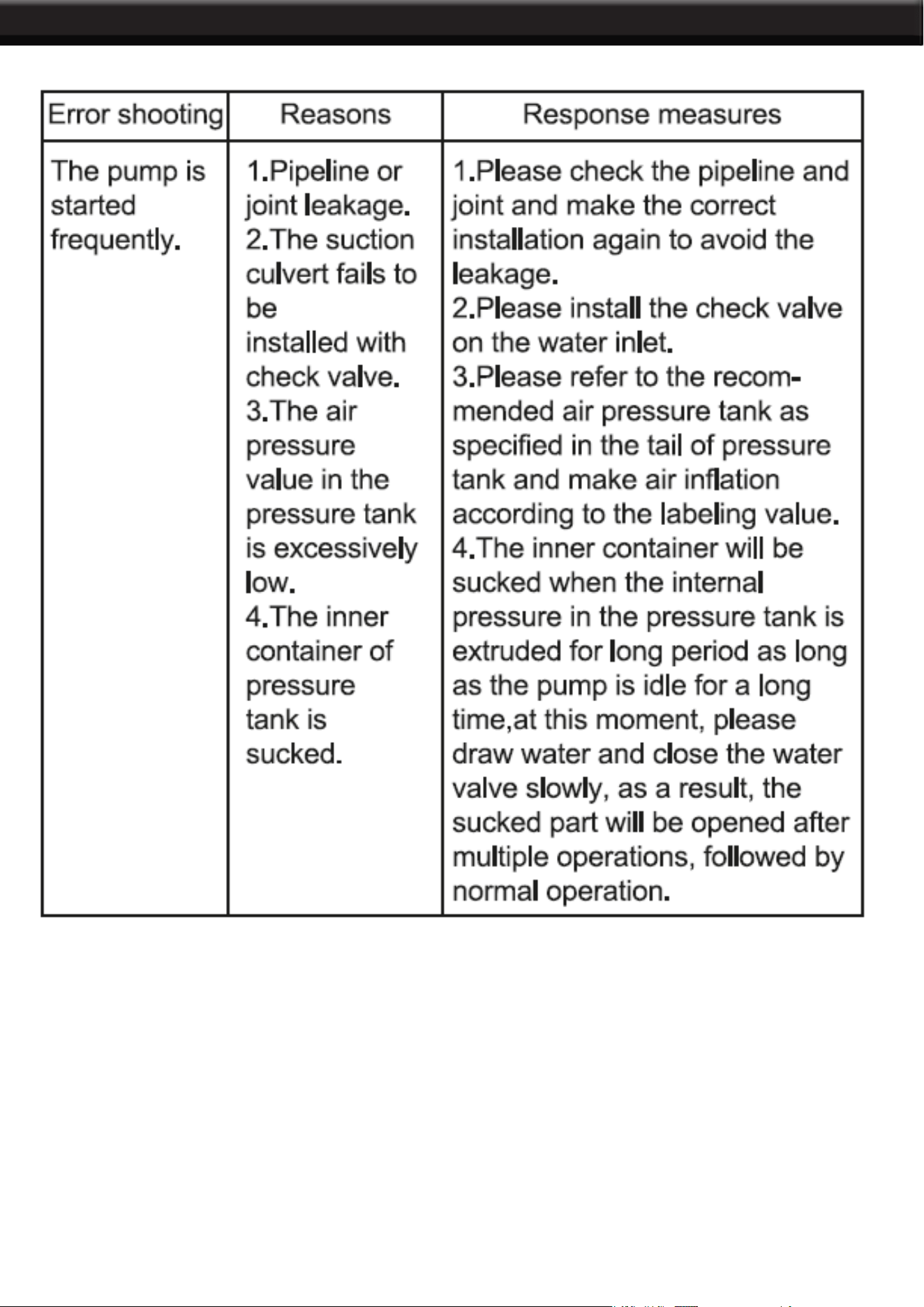

TROUBLESHOOTING
OF NOTE
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
PRODUCT MADE IN CHINA
