ASSEMBLY AND USER’S GUIDE
IMPORTANT:
This Pump Has Been Evaluated for Use With Water Only
WARNING -“Risk of electric shock - This pump is supplied with a grounding
conductor and grounding type attachment plug. To reduce the risk of electric shock,
be certain that it is connected only to properly grounded, grounding-type receptacle”.
SKU: 71043
GARDEN IRRIGATION SHALLOW WELL PUMP
1320 GPH 1.6 HP W/ PRESSURE TANK
71043
1
TABLE OF CONTENTS
1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
OVERVIEW (PRODUCT INFORMATION)
PRODUCT OVERVIEW
SPECIFICATIONS
INSTALLATION & OPERATION

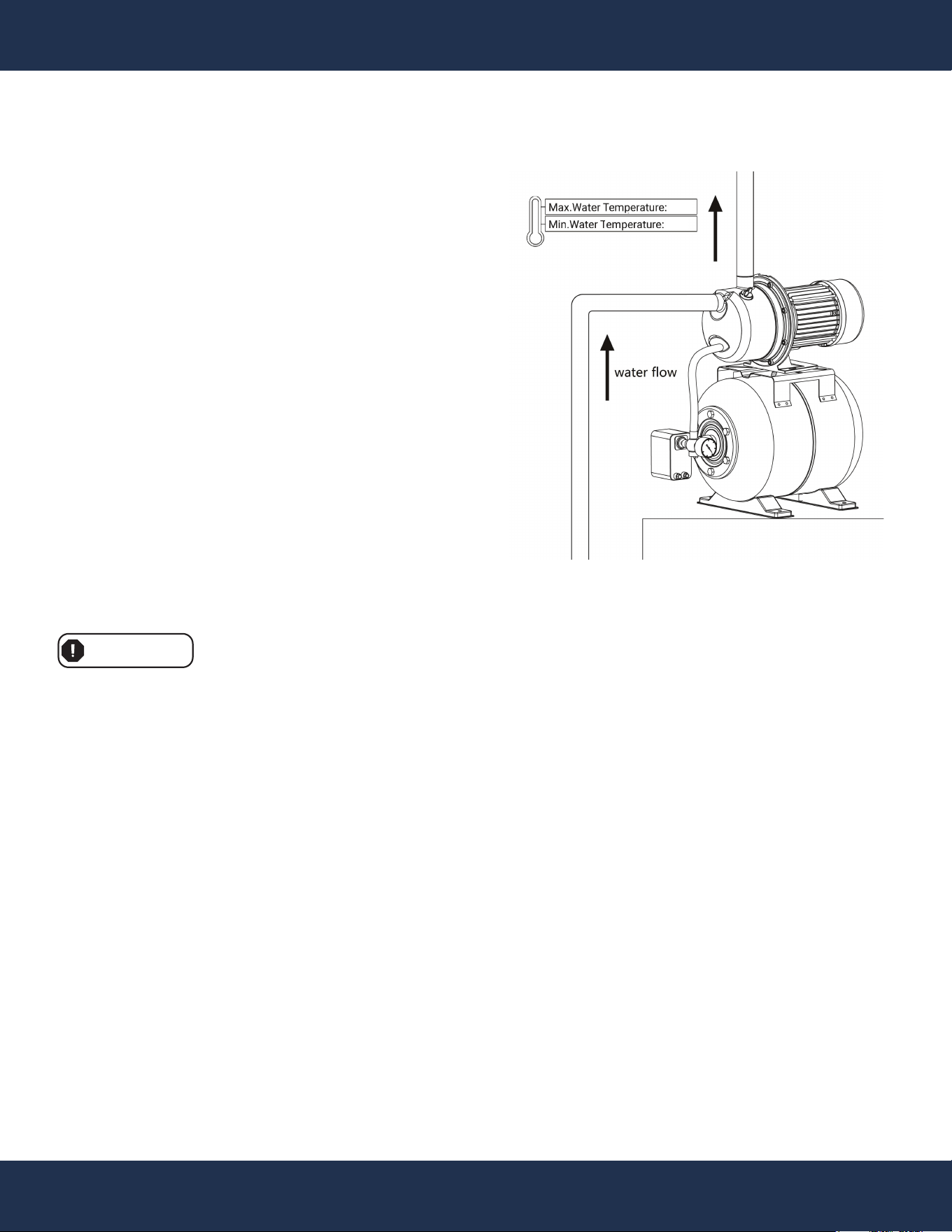

PIPING
BEFORE OPERATION
PRIMING
OPERATING
TROUBLESHOOTING
MAINTENANCE
ADDITIONAL TIPS
DISPOSAL
ENVIRONMENTALLY RESPONSIBLE DISPOSAL
REPLACEMENT PARTS
8
11
12
12
13
Disclainmer
Legends and Symbols
DISCLAIMER 14
1
14
2
2
4
5
6
5
6
6
7
7
10
MOTOR PROTECTION
WEARABLE PARTS
CLEANING
10
10
10
STORAGE
10

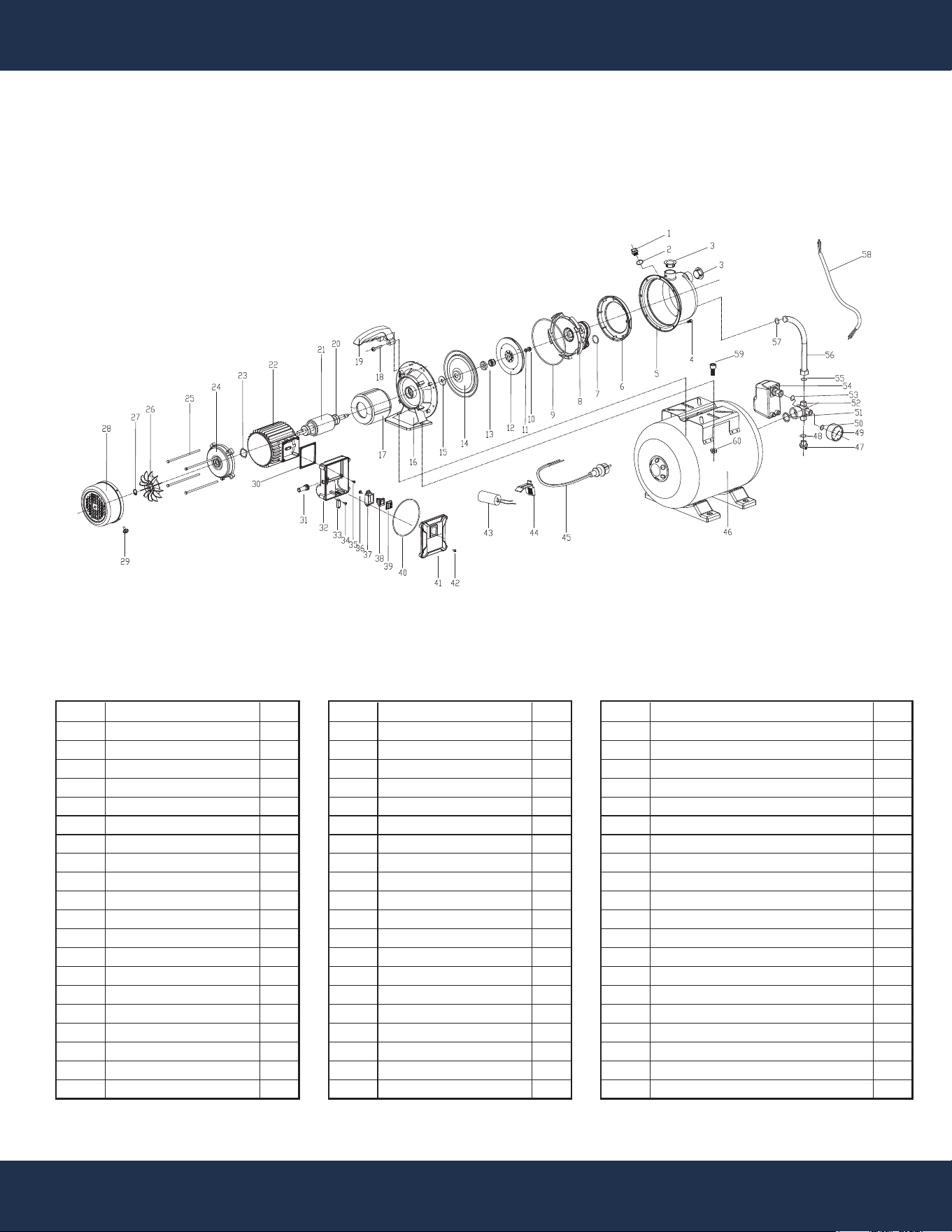

PARTS DIAGRAM
13
Customer Service and Technical Support
14
PRODUCT INTRODUCTION
4
1
IMPORTANT SAFETY INSTRUCTIONS
2
For safety reasons, children should not be allowed to use this product.
Packing materials and plastic bags are not toys. Keep them away from children to prevent the risk of
suffocation.
Failure to comply with all instructions and warnings may lead to severe bodily injury
or even death. This pump must be installed and serviced exclusively by a qualified service
professional. Prior to using this pump, installers, operators, and owners must carefully review these
warnings and all instructions provided in the owner's manual. It is essential to leave these warnings
and the owner's manual with the owner for their reference and safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation, operation,
and safe use of this pump. It is essential to provide this manual to the end user of the product. Failure
to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or
significant property damage.
WARNING: Indicates potential hazards that can result in severe personal injury,
death, or significant property damage. Ignoring these warnings presents a real
danger.
CAUTION: Indicates potential hazards that can result in minor or moderate
personal injury, property damage, or actions that are unpredictable and unsafe.
Ignoring these cautions presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly
related to hazards.
This guide provides instructions for installing and using the pump. If you have any questions about the
equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After
installation, make sure to share this information with the owner/operator or leave it with them for their
reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention to
the following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
WARNING
CAUTION
NOTE
DANGER
1
IMPORTANT SAFETY INSTRUCTIONS
3
WARNING
Electrical Safet:
• Wiring and electrical connections must be performed by a licensed electrician.
• Install the pump and electrical components above the water level for indoor use to reduce the risk
of electrical shock.
• Keep the motor area as dry as possible and avoid washing or immersing the motor.
• Connect the pump directly to a grounded GFCI outlet.
• To reduce the risk of electrical shock, ensure the motor is grounded, and the terminal cover is
securely bolted in place.
• Do not ground the pump to a gas line.
• Always disconnect power before servicing.
• Please note that this pump is not suitable for use in swimming pool areas.
Grounding:
• The pump must be grounded during operation to protect against electrical shock. It comes with an
electric cord featuring an equipment-grounding conductor and grounding plug.
WARNING
NOTE
Usage Guidelines:
• This water pump is not equipped with water-sprinkling protection and should only be used in a dry
environment. Do not use it in rainy or humid conditions.
• Do not use this water pump with flammable or harmful liquids.
• Avoid idle operation of the water pump.
• This water pump is designed for clean water applications, including garden irrigation, household
water supply, and garden or farmland sprinkling.
• Do not expose the pump to impurities like sand, stones, or sticky substances, as these may
damage the pump. Never use this pump for conveying drinking water.
• To prevent dry suction and potential pump damage, the machine includes an automatic shutdown
feature in case of insufficient water supply.
Safety:
• This electrical garden pump with press control is suitable for outdoor use, such as in the garden.
• This pump is exclusively designed for residential use and is not intended for professional or
commercial purposes.
WARNING
1
OVERVIEW (PRODUCT INFORMATION)
4
OVERVIEW (PRODUCT INFORMATION)
PRODUCT INTRODUCTION
This versatile shallow well jet pump is ideal for a range of freshwater supply needs, including rural
homes, cabins, farms, and more. It's designed for installations where the vertical distance from the
pump to the water level doesn't exceed 26 FT. The pump features a 1 INCH NPT discharge and 1
INCH NPT suction, and it should not be used with saltwater, brine, or liquids containing caustic
chemicals or foreign materials.
Common Applications:
• Watering and irrigating green areas, vegetable beds, and gardens.
• Operating lawn sprinklers.
• Utilizing a pre-filter (not included) to draw water from ponds, streams, rainwater barrels, rainwater
cisterns, and wells.
NOTE
This pump is equipped with essential components such as a pressure tank, pressure switch, and
more, enabling automatic operation.
Key Features of the Automatic Pump:
• The pump operates automatically when the power is on, and you open a water tap.
• When you turn off the water tap, the pump stops automatically.
• It initiates automatic start at 21.7 PSI (1.5 BAR) and automatic stop at 43.5 PSI (3.0 BAR).
Benefits of Using a Pressure Tank:
The pressure tank serves multiple purposes, enhancing the efficiency of your water supply system:
• Maintains controlled water pressure, reducing the pump's switching frequency during low water
consumption or in case of leakage.
• Enhances system comfort by compensating for pressure drops when a tap is opened.
• Minimizes issues related to water hammer in the pipework.

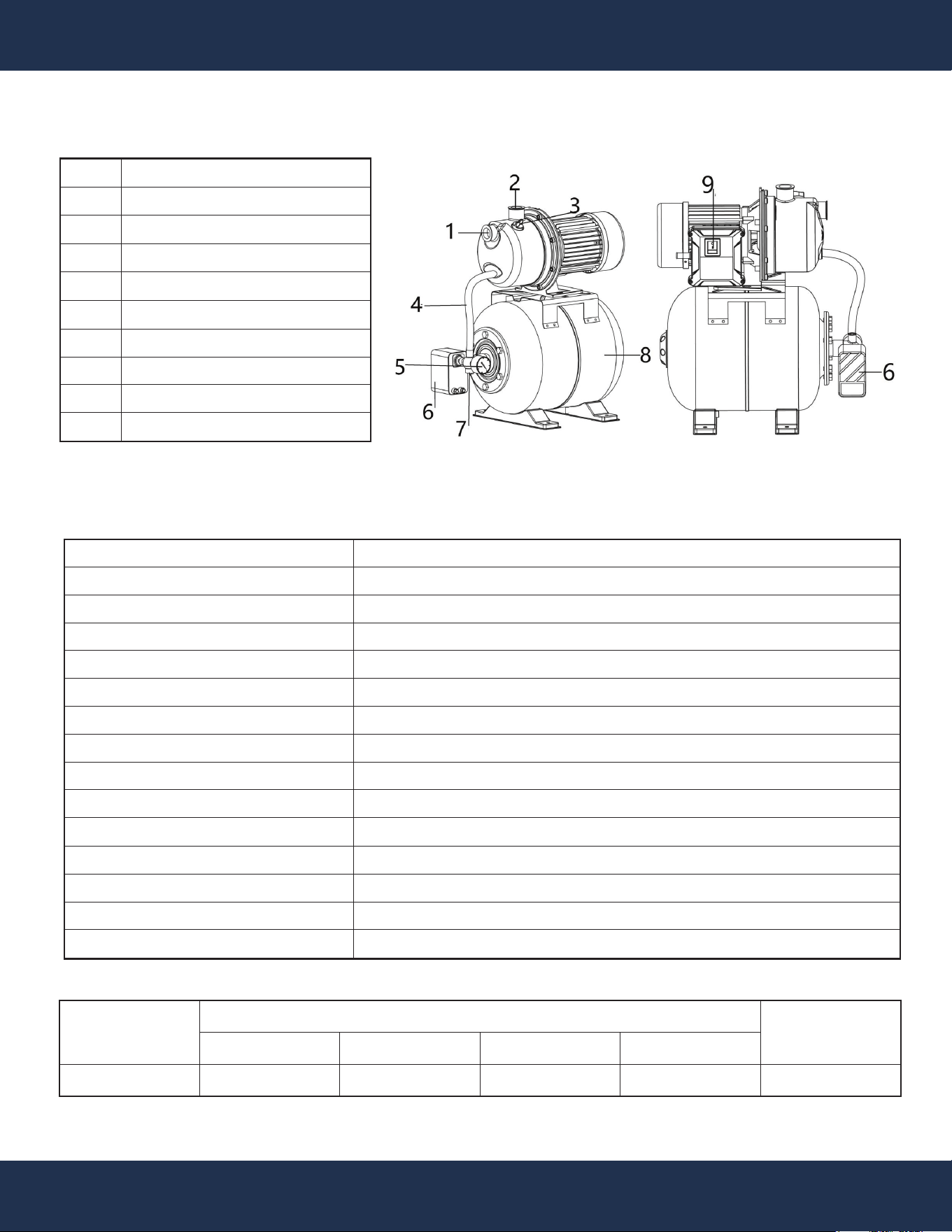

PRODUCT OVERVIEW
Item
1
2
3
4
5
6
7
8
9
Description
Suction Inlet 1 INCH NPT
Discharge 1 INCH NPT
Prime Cap Screw
Pressure Hose
Pressure Gauge
Automatic Pressure Switch
Drain Cap Screw
Pressure Tank
Power Switch
1
OVERVIEW (PRODUCT INFORMATION)
5
SPECIFICATIONS
Model
Voltage
Power
Amps
Max. Lift
Max. Suction Height
Max. Flow
Max Pressure
Pressure Switch
Pressure Tank Capacity
Pressure Tank Material
Inlet Size
Discharge Size
Max. Water Temperature
Waterproof Class
71043
115 V ~ 60 HZ
1.6 HP
10 A
157 FT
26 FT
1320 GPH
5.0 BAR (72.5 PSI)
3.0 BAR (43.5 PSI) Auto-Off, 1.5 BAR (21.7 (PSI) Auto-On
5 GAL
Carbon Steel
1 INCH NPT
1 INCH NPT
95 °F
IPX 4
Max.
Head FT
157 FT
Discharge
NPT (INCH)
1 INCH NPT
0 FT
1320
GPH of Water @ Total FT Of Head
50 FT
1020
0 FT
1320
100 FT
600
150 FT
154
INSTALLATION & OPERATION
6
INSTALLATION & OPERATION
• Place the pump on a sturdy, level platform
above the water level for support.
• Keep the inlet pipeline short with minimal
bends. For outdoor installations, provide
weatherproof protection.
• Install a check valve on the INLET PIPE to
maintain stable pressure.
• Attach a screen or filter (not included) to the
intake and discharge ports to prevent debris
from damaging the pump.
PIPING
BEFORE OPERATION
• Place the pump on a sturdy, level platform above the water level for support.
• Keep the inlet pipeline short with minimal bends. For outdoor installations, provide weatherproof
protection.
• Install a check valve on the INLET PIPE to maintain stable pressure.
• Attach a screen or filter (not included) to the intake and discharge ports to prevent debris from
damaging the pump.
WARNING
95 °F
39 °F
7

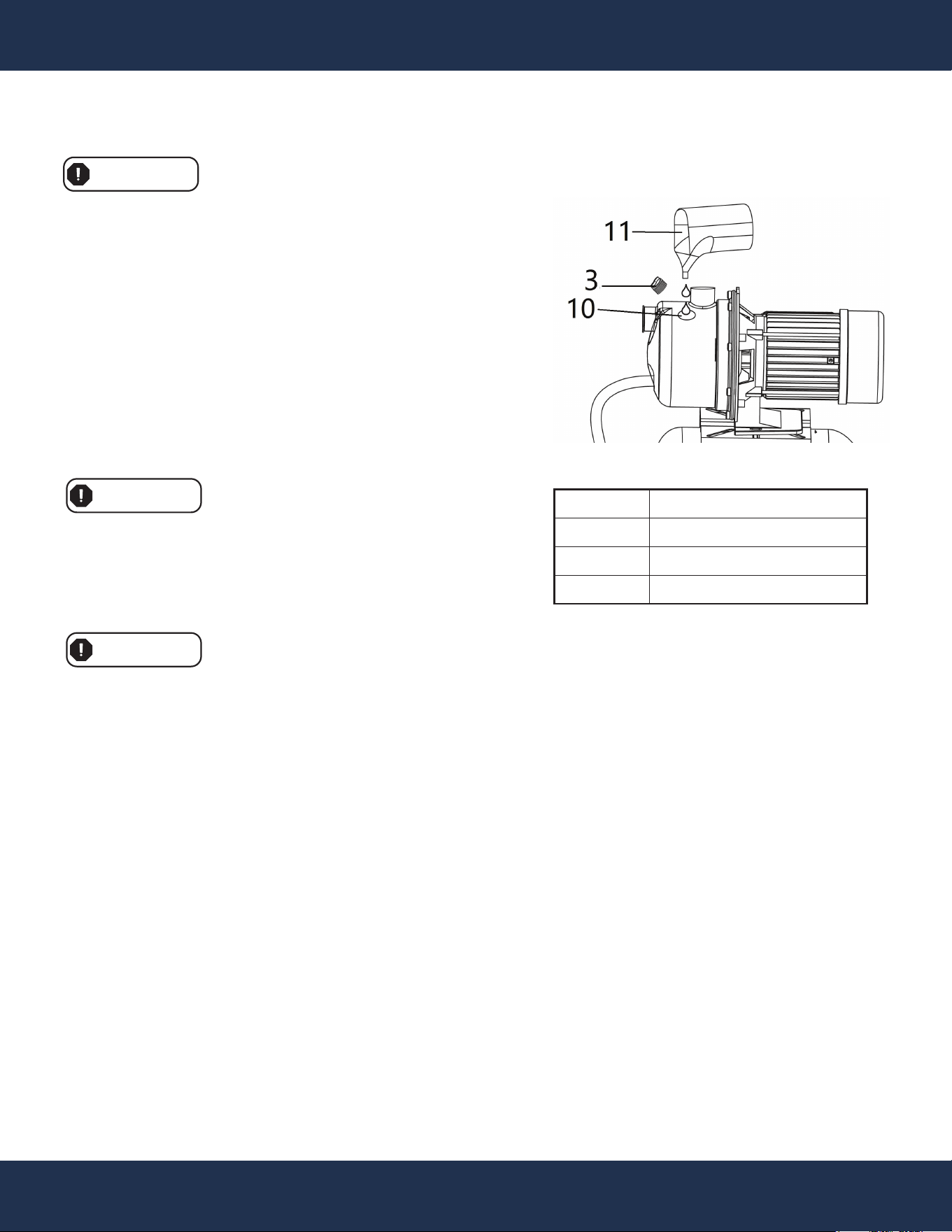

PRIMING
The pump must be filled with water before operation.
Running the pump dry will cause damage to the shaft
seal and void the warranty.
WARNING
• Ensure the suction line is properly connected to
prevent water from escaping the suction inlet (3).
• If a service line is present, open the discharge
(drain) valve. If not, open a tap to allow air in the
suction line to escape freely.
• Remove the priming valve inlet's cap screw.
• Fill the pump with water through the priming plug's
opening until water begins to flow out.
If water leaks from the drain valve beneath the pump,
close it securely and refill the unit.
WARNING
• Reattach and tighten the cap screw on the priming
valve inlet.
Upon restart, the pump will immediately function as water remains in the pump housing and hose.
If no non-return valve is installed or the valve-to-hose seal is faulty (check hose clip), the unit may
run dry, requiring a refill for proper operation.
WARNING
Item
3
10
11
Description
Prime Cap Screw
Priming Valve Inlet
Clear Water
OPERATING
After filling the priming water, plug the power cord into a GFCI-protected electrical outlet and switch
the power to the ON position.
• Start the pump and let it run for 1.5 - 2 minutes. It should continuously pump water. If not,
repeat the “PRIMING” steps above.
• During initial startup, you may need to repeat the priming procedure multiple times to ensure
there's no air in the pump and suction lines. The number of cycles depends on the suction line
length, typically ranging from 3 to 6 times.
• If the unit still doesn't pump water after 6 priming cycles, turn it off and inspect the system for
leaks.
INSTALLATION & OPERATION
TROUBLE SHOOTING
8
ISSUE
The electric motor runs,
but the pump doesn't
draw water.
Motor Fails to Run.
CASE
The pump is not fully
filled with water after
starting.
During suction, the
water level decreases
due to the opening of
the water discharge
port on the pressure
side.
Suction pipe not
tightly secured.
Blockage of the filter
screen at the bottom
valve on the suction
port.
Air remains trapped in
the pressure pipe due
to the closure of the
water discharge port.
Failure to deliver
within the expected
timeframe.
Excessive suction
height (Over 26 FT).
Bottom valve fails to
draw liquid.
Power supply not
connected.
Impeller seized by fan
guard.
Impeller seized.
CORRECTIVE ACTION
Ensure the pump is completely filled with
water.
When restarting the pump, raise the
pressure side pipe to 3 FT vertically from
the pump and maintain this distance until
the pump begins to draw in water.
Check pump fittings, including the suction
pipe connector, high-pressure pipe
connector, clamping ring, suction pipeline,
and seals made of PTFE or hemp fiber.
Proper suction only occurs under vacuum
conditions.
Clean the filter screen and bottom valve at
the suction port.
During pump suction, open the water
discharge port (tap or nozzle).
Ensure the entire suction pipeline is filled
with water or recheck after a minimum of 7
minutes from pump start.
Reduce the suction height (maximum 26
FT).
Check the water level in the well or pond, or
consider extending the suction pipeline if
feasible.
Check voltage supply.
Unplug power, remove fan guard with a
screwdriver, replace the guard, and gently
rotate the impeller to ensure free
movement.
Unplug power, remove fan guard, and
manually rotate the motor shaft to drive the
impeller. If the shaft is seized, send the
pump to an after-sales center for inspection.
TROUBLE SHOOTING
9
ISSUE
Insufficient Water
Delivery.
Closing of Pump Due to
Thermal Switch.
Frequent On/Off
Switching of Pump (In
WW and Automatic
State).
Frequent Pump Cycling
in Household
Water-Supply System.
CASE
Suction height
exceeds 8m.
Blockage of filter
screen on the bottom
valve.
Water level for suction
is too low.
Pump efficiency
affected by foreign
material.
Motor overload
caused by friction
from foreign matter.
No non-return valve
fixed in the suction
pipeline.
Damage to the rubber
bag in the oil tank.
Lack of compressed
air in the container.
CORRECTIVE ACTION
Verify suction height.
Clean the filter screen.
Submerge the bottom valve in deeper water.
Clean the pump's spiral case, suction pipe,
and outlet pressure pipe with pressurized
water or send the pump to an after-sales
service center for inspection (consider
adding a pre-filter).
Clean the spiral case with pressurized water
or send the pump to an after-sales service
center for inspection.
Check for the presence of a bottom valve
and intermediate valve in the suction
pipeline.
Replace the damaged rubber bag or
container.
Add compressed air to the container using
the appropriate valve until reaching an air
pressure of 1.5 BAR (21.7 PSI).
10
MAINTENANCE
MOTOR PROTECTION
MAINTENANCE
• Prevent water from entering the motor.
• Avoid spraying or cleaning the product with running water to prevent electric shock and damage.
WARNING
WEARABLE PARTS
NOTE
• The seals, pre-filter, flow sensor wheel, and non-return valve are subject to natural wear.
• Some wearable parts may not be included in the package.
CLEANING
• Periodically clean the product with a damp cloth and mild soap.
• Avoid using cleaning products or solvents as they can harm plastic components.
WARNING
STORAGE
• Store the pump in a dry place to prevent flooding and excess moisture.
WARNING

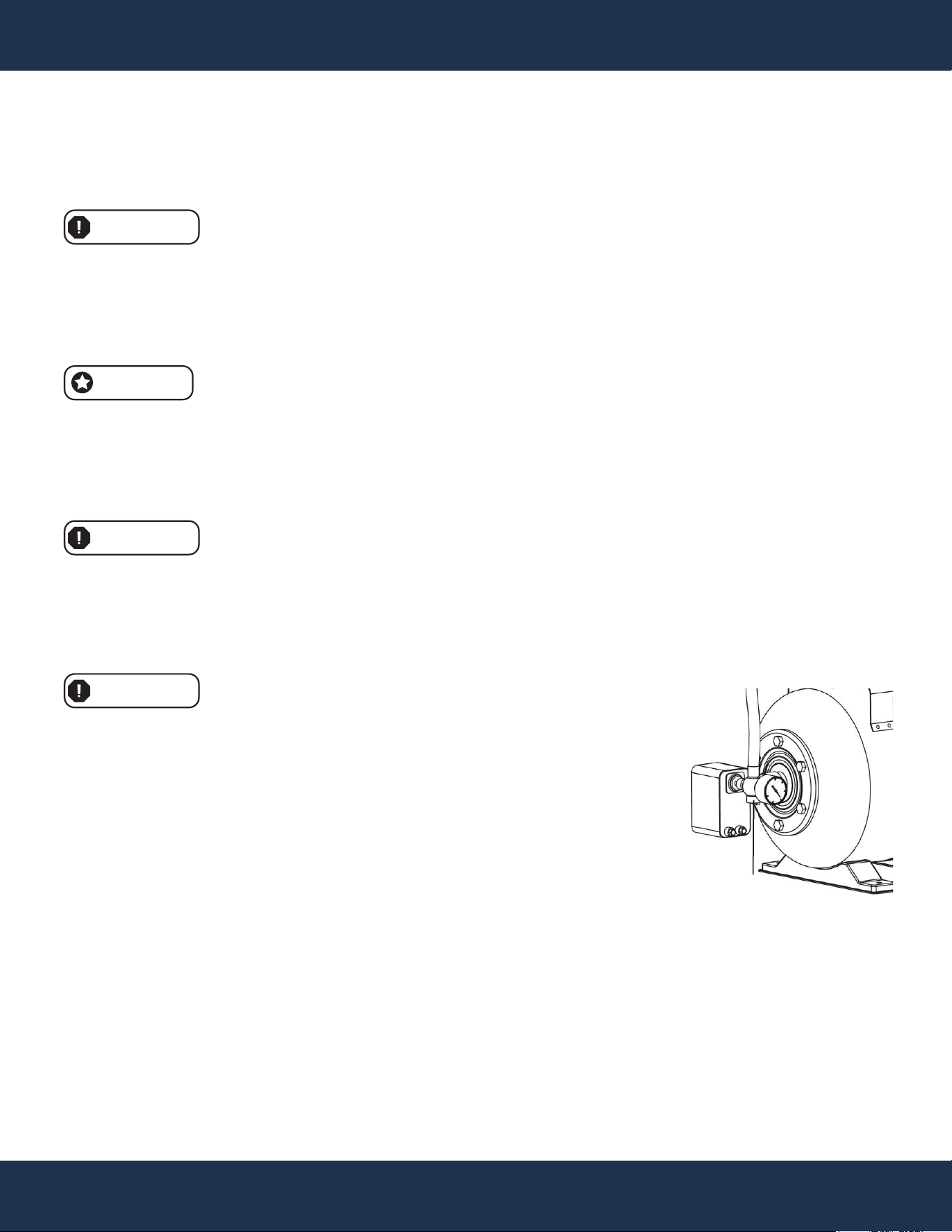

Winter Draining:
• Disconnect suction and discharge lines.
• Remove the water drain cap screw (7) from the pump, allowing
time for drainage before reinstallation.
• Drain piping below the frost line or store it indoors.
• Store the pump indoors.
• Always disconnect the power plug before any equipment work.
7
9
11
ADDITIONAL TIPS
• Avoid exposing the pump to rain, humidity, dirt, or freezing conditions.
• Prevent freezing, idling, or blockage by impurities.
• In case of power cable damage, seek professional replacement, as short-circuit damage is not
covered by the warranty.
• For pump issues, consult an authorized maintenance center.
• Do not use solvents like petrol, alcohol, or ammonia water, as they can damage plastic parts.
WARNING
MAINTENANCE
12
DISPOSAL
NOTE
• When replacing your appliance, don't discard it with household waste. Dispose of it in an
environmentally safe manner. Electrical waste requires special handling and recycling, not
standard disposal. Use recycling facilities where available, or consult your Local Authority or
retailer for guidance.
• For power tools and packaging, prioritize environmentally-friendly recycling. Never dispose of
power tools as regular household waste. Utilize designated collection points for recycling.
Contact your local authority for recycling information.
ENVIRONMENTALLY RESPONSIBLE DISPOSAL
DISPOSAL
REPLACEMENT PARTS
13
REPLACEMENT PARTS
PARTS DIAGRAM
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Description
Screw Cover
O-Ring
Plastic Cover
Screw
Pump Head-Ss
Plastic Cover Ring
O-Ring
Diffuser
O-Ring
Screw Nut
Gasket
Impeller
Mechanical Seal
SS-Flange
Swing Ring
Bracket
Stator
Handle Screw
Handle
Bearing
Qty
1
1
2
8
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
Item
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Description
Rotor
Main Body
Wave Gasket
Motor Back Cover
Body Screw
Fan
Clamp Spring
Fan Cover
Screw
Rubber Seal
Cable Bracket
Switch Box-Basic
Cable Buckle
Screw
Screw
Screw& Gasket
Switch Buckle
Switch
Switch-Cover
O-Ring
Qty
1
1
1
1
4
1
1
1
4
1
1
1
1
2
4
2
1
1
1
1
Item
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Description
Switch Box-Cover
Screw
Capacitance
Capacitance Buckle
Cable
Tank
Plastic Cover
O-Ring
Pressure Gauge
O-Ring
Rubber Seal
Five Trues
Rubber Seal
Mechanical Pressure Switch
Rubber Seal
High-Pressure Hose
O-Ring
Cable
Screw
Screw Nut
Qty
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
14
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual
for reference purposes only. They do not make any representation or warranty to the buyer that they
are qualified to make repairs to the product or replace any parts of the product. In fact, the
manufacturer and/or distributor expressly state that all repairs and parts replacements should be
undertaken by certified and licensed technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement
parts or arising from their installation of replacement parts. It is strongly advised that qualified
professionals handle any repairs or replacements to ensure safety and proper functioning of the
product. Improper installation and operation may result in injury, property damage, or voiding of
warranty. The manufacturer and/or distributor shall not be held responsible for any accidents,
damages, or malfunctions resulting from the buyer's installation and operation of the product. It is
essential to follow all safety guidelines and recommendations provided in this manual and to seek
professional assistance if unsure about the installation or operation procedures.
DISCLAIMER
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or pool products,
please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
