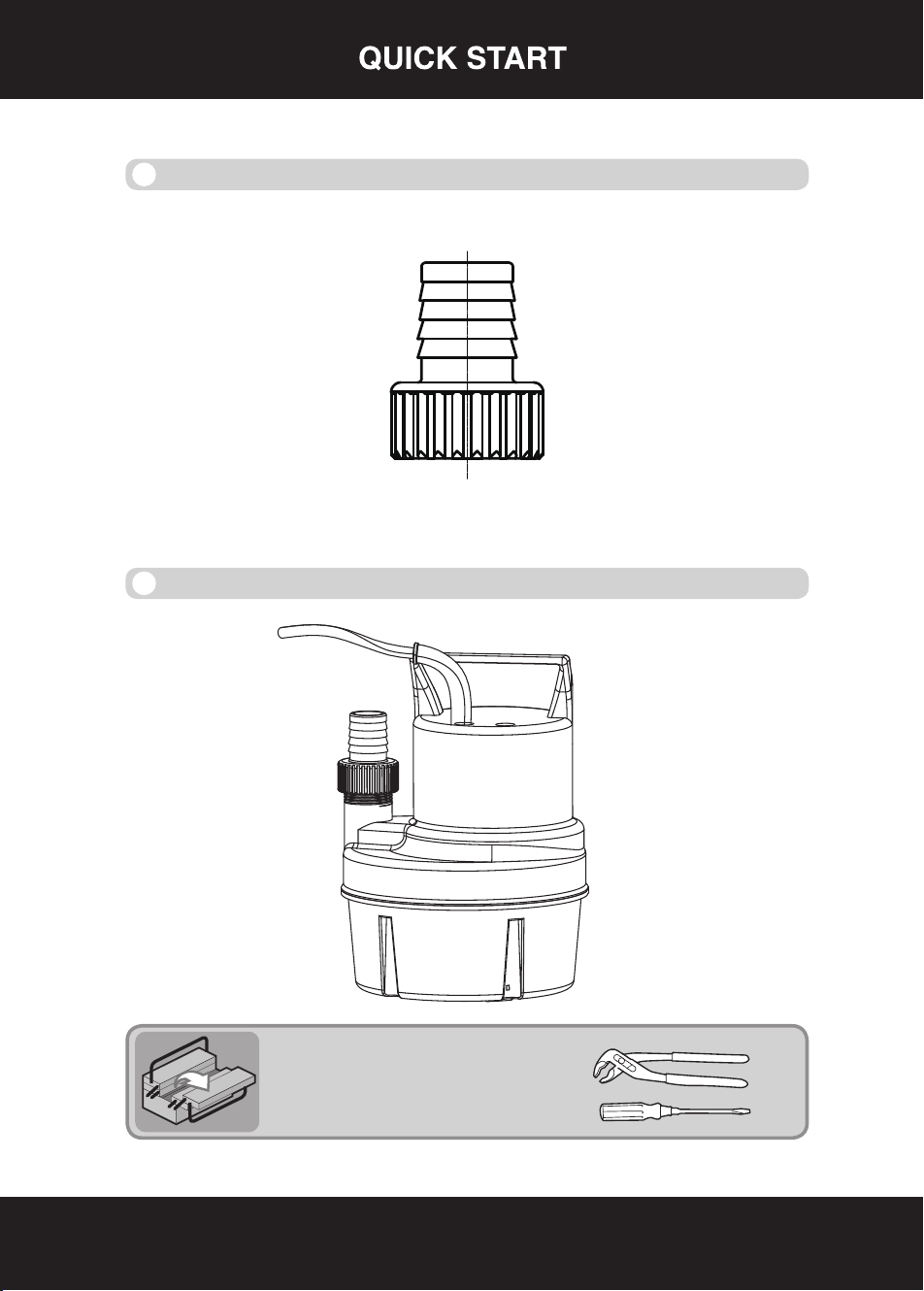

ASSEMBLY
SKU: 76048
76048
1
1
2
7
9
10
11
12
14
15
16
17
CUSTOMER SERVICE
17

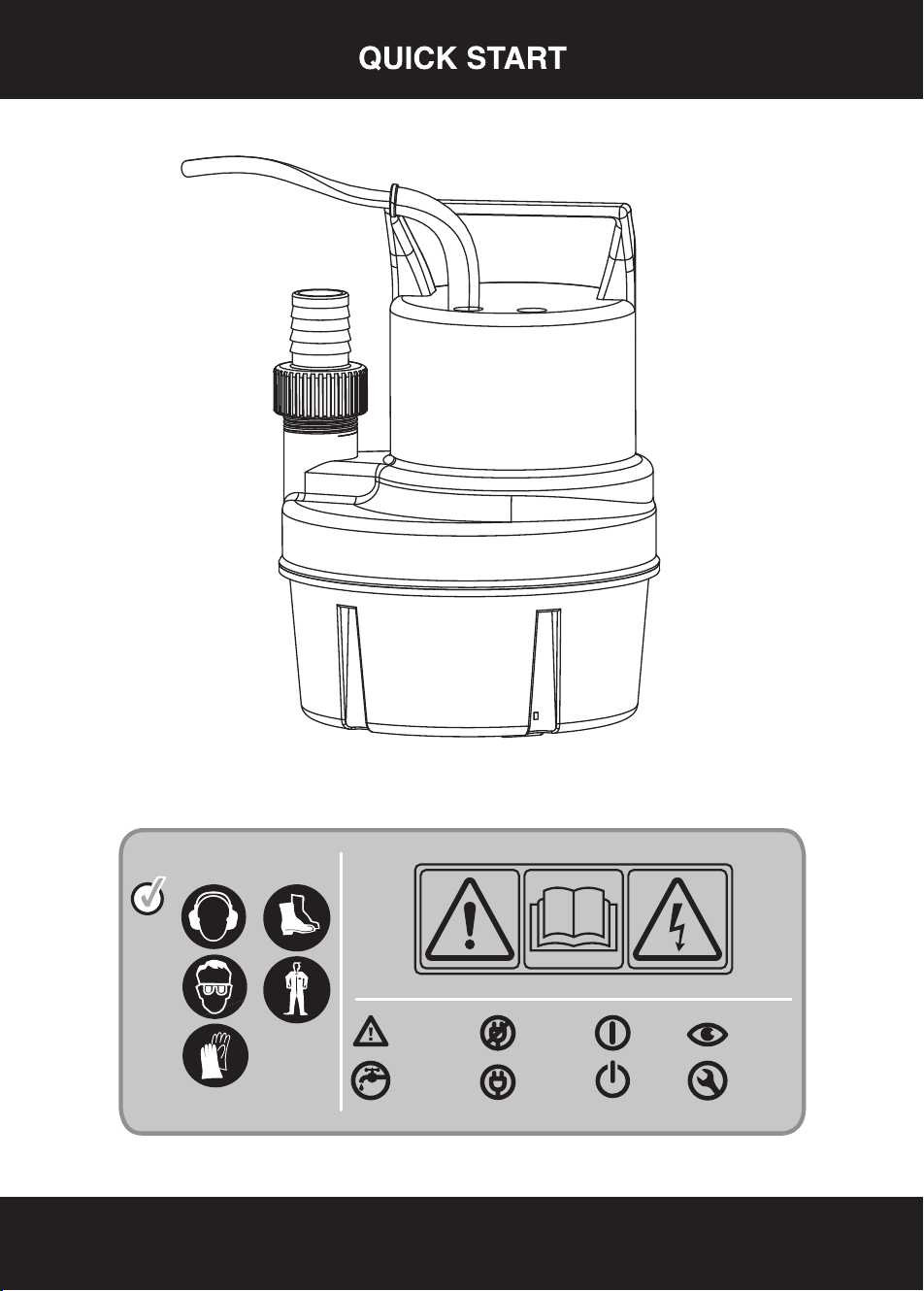

2
IN
X1
30’
OUT
G1”
3
1
2
4
Attention danger
Observez
Not connected
Connected
Power up
Stop
Clean Water
Environment
Maintenance
5
2
Max.
submersion
>
>
1
NO
6
A
B
43
5
OFF
Grain size
Grain size
ON
A
The water level is lower
than the sensor head after
3 minute
2
7
Thank you for purchasing this product.Please read these
instructions, and keep them for future reference.
This tool is an electric pump. It is used for pumping water and
other similar water applications.

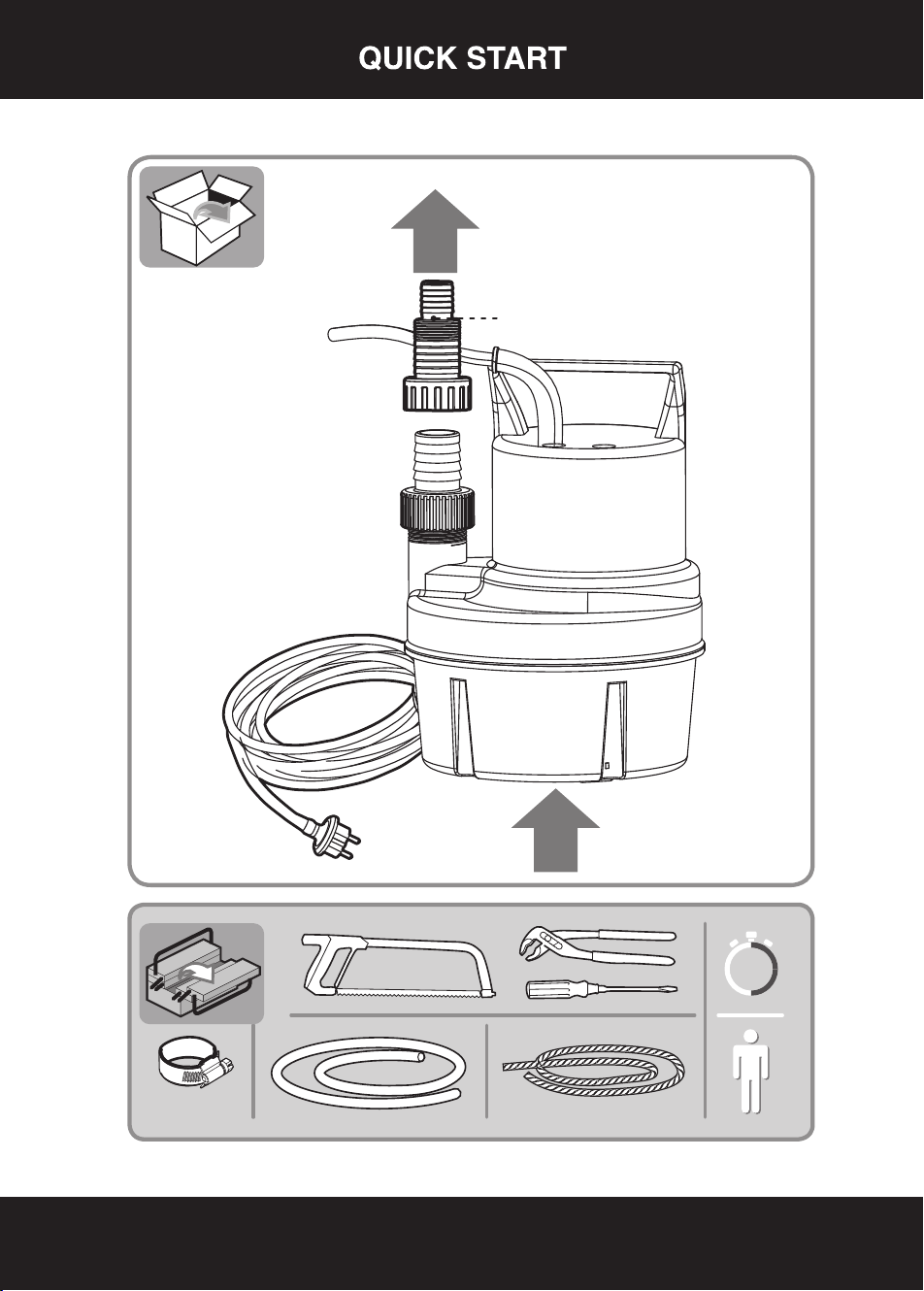

After opening the package, please ensure that the products are
complete (if any).
If the products are damaged or there is something missing,
please do not use it and bring it back to your dealer.
If you give this tool to another person, please give him this
instruction manual.
Safety Instruction
1.All electrical sockets must be earthed.
2.No power cord should be used for transporting or fixing the
equipment.
3.Don't pull the power cord on the sharp edge and don't press
the power cord.
4.The power supply voltage must be the same as the voltage
given on the model board.
5.To avoid hazards, all installation and replacement of compo-
nents can only be carried out by authorized customer service
personnel.
6.Electrical connections can only be performed by electrical
professionals, and please comply with state regulations for this.
7.The pump must be connected with a current type leakage
current breaker which carry a rated leakage current of no more
than 30 MA.
8.Check the connection of the plug before running. If the wire is
damaged, it must be replaced by the manufacturer, the agent or
the relevant technical personnel to avoid any danger.
9.The device is suitable for children at eight or older. People
with sensory or physical disabilities or deficiencies are required
to use under supervision or knowledge of safety, use and
danger.
3
8
Children are not allowed to wash or maintain equipment without
supervision.
10.Liquid contamination may be caused by leakage of lubricat-
ing oil.
11.The water pump can be connected with a shock proof plug
installed in accordance with the regulations.
12.Do not use pumps when there is someone in the water.
13.When cleaning and maintaining, please disconnect the water
pump from the main power supply.
14.Please contact technical staff .
15.Connectors for power plugs and extension cables must be
made sure that they are watertight and must not be placed in
the water. Furthermore, connectors cannot be placed on
the ground. It is recommended to ensure that the outlet is at
least 60 mm from the ground.
Attention!
Danger!
None follow of the safety tips will have the life risk
brought by the current!
Danger type and source:
None follow of the safety tips will have the life risk
brought by the current!
Do not repair the power cord if there is any external
damage to the power cord or plug.
4
9
Long enough and strong ropes should be attached to thehandle
before the first use. When the pump is immersed into the liquid,
the rope along with a handle can be used to balance the pump.

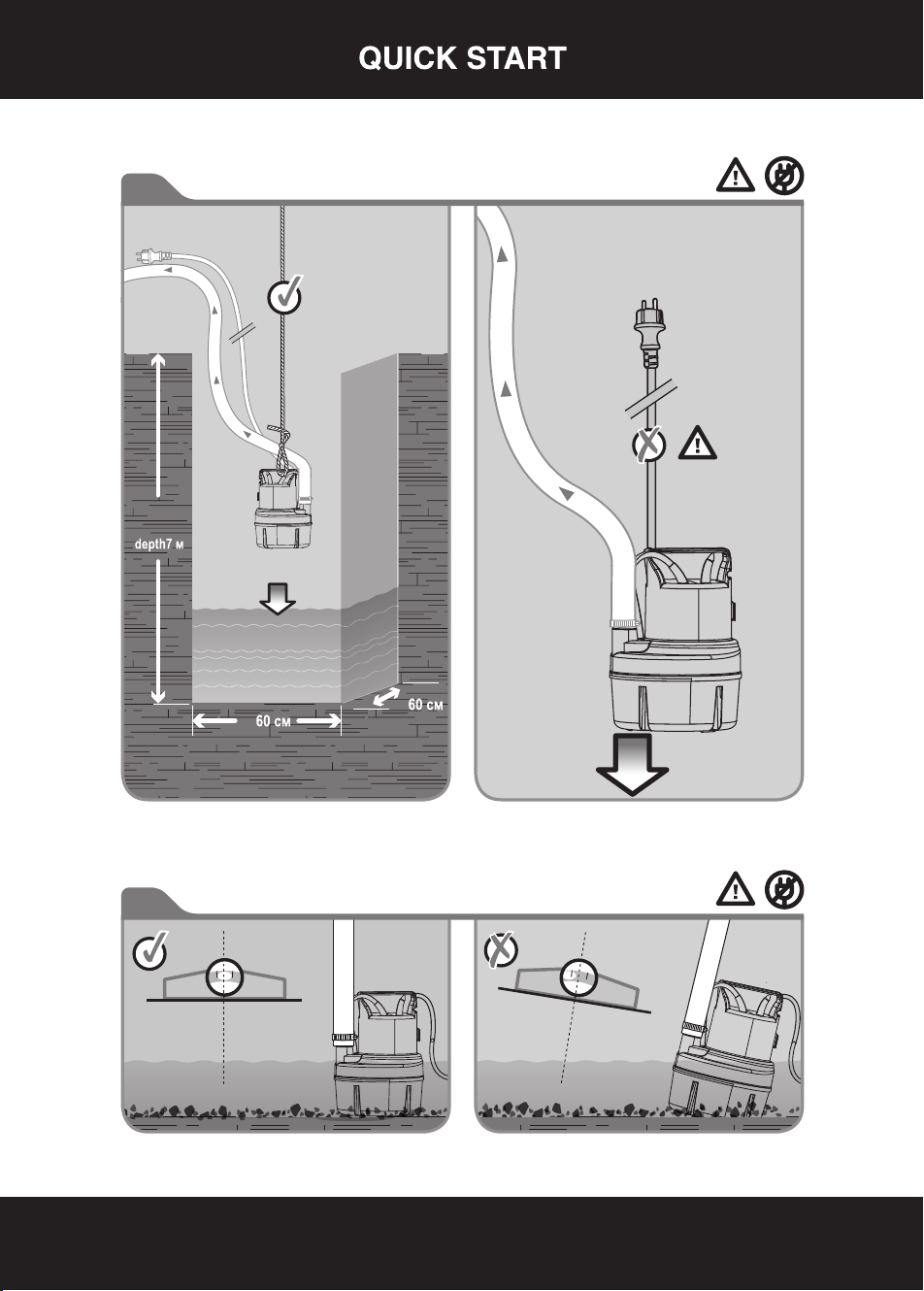

Installation
The equipment requires an area of at least 60x60cm.
Depth of equipment immersed in technical parameters.
When installing the equipment, make sure the open will not the
suction opening will not be blocked by foreign objects to keep
the equipment stable.
Attention:
For rope handling: Do not operate the pump without
the pressure hose to prevent the pump from twist-
ing around its longitudinal axis. In continuous use
of a pump with a rope, the condition of the rope
must be checked periodically, as it may break with
increasing use time.
5
10
Connecting pressure pipe
- screw the pressure pipe onto the pressure connector. All joint
connections must be sealed with a threaded sealing stripe.
-When using the hose, screw the right hose adapter into the
pressure connector.
-Secure the hose firmly to the hose adapter and secure it with a
hose clamp.
If it is used occasionally, please use a suitable pipe. A rigid pipe
with a check valve is recommended for use in a fixed position.
This can be done at the close of the machine to prevent liquid
backflow.

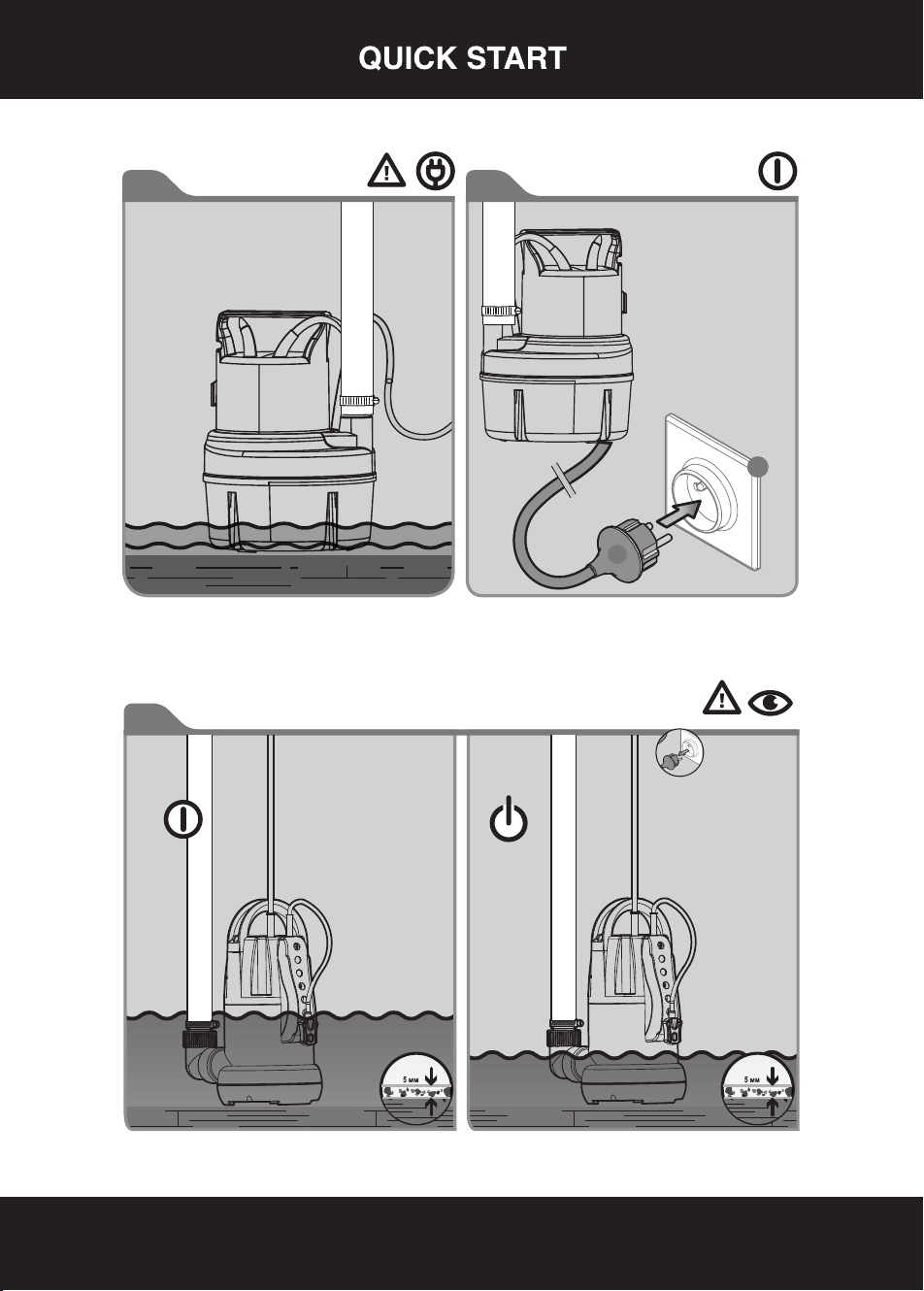

Use a strong rope to connect the handle of the pump and dip it
into the liquid to be conveyed at a certain angle, so that the
lower side of the device has no bubble formation to prevent the
bubbles from being sucked in. Put the equipment down slowly,
and once the pump is submerged, it can be adjusted again. The
pump is arranged at the bottom of a liquid container, Fasten the
end of the rope after lowering so that the pump can also be
handled when hanging on the rope. The pump can work after
the device is connected to the main power source.
The pump is not allowed to transport corrosive
substances, flammable and explosive substances
(such as gasoline, petroleum, nitro diluent), grease,
oil, brine and toilet equipment sewage, as well as
low mobility mud sewage. The temperature of the
liquid cannot exceed 95 °F.
6
11
Error
The pump
cannot
start
No water
Too small
flow rate
1.Unconnected power.
1.Inlet obstruction.
2.The pressure hose
is bent .
1.Inlet obstruction.
2.Debris and particles
cause the wear of a
critical part of the
pump which reduces
the flow of the pump.
1.Check power supply.
1.Clean the inlet .
2.Adjusting hose .
1.Clean the inlet.
2.Clean the pump and
replace worn parts.
Reasons Errorshooting
In most cases, you will be able to troubleshoot problems easily
by yourself. Before you contact us, please refer to the following
table for technical support. This will help you save a lot of work
and possible expenses.
1.If the water is too
dirty, the pump may
stall, and the heat
protector will cut off
the water pump motor
power supply .
2.If the water tempera-
ture is too high, the
heat protector will cut
off the water pump
motor power supply .
Close the
pump
after a
short
period
of time
1.Disconnect the main
power supply and clean
the water pump .
2.Ensure that the maxi-
mum water temperature is
not exceeded 95 °F.
7
12

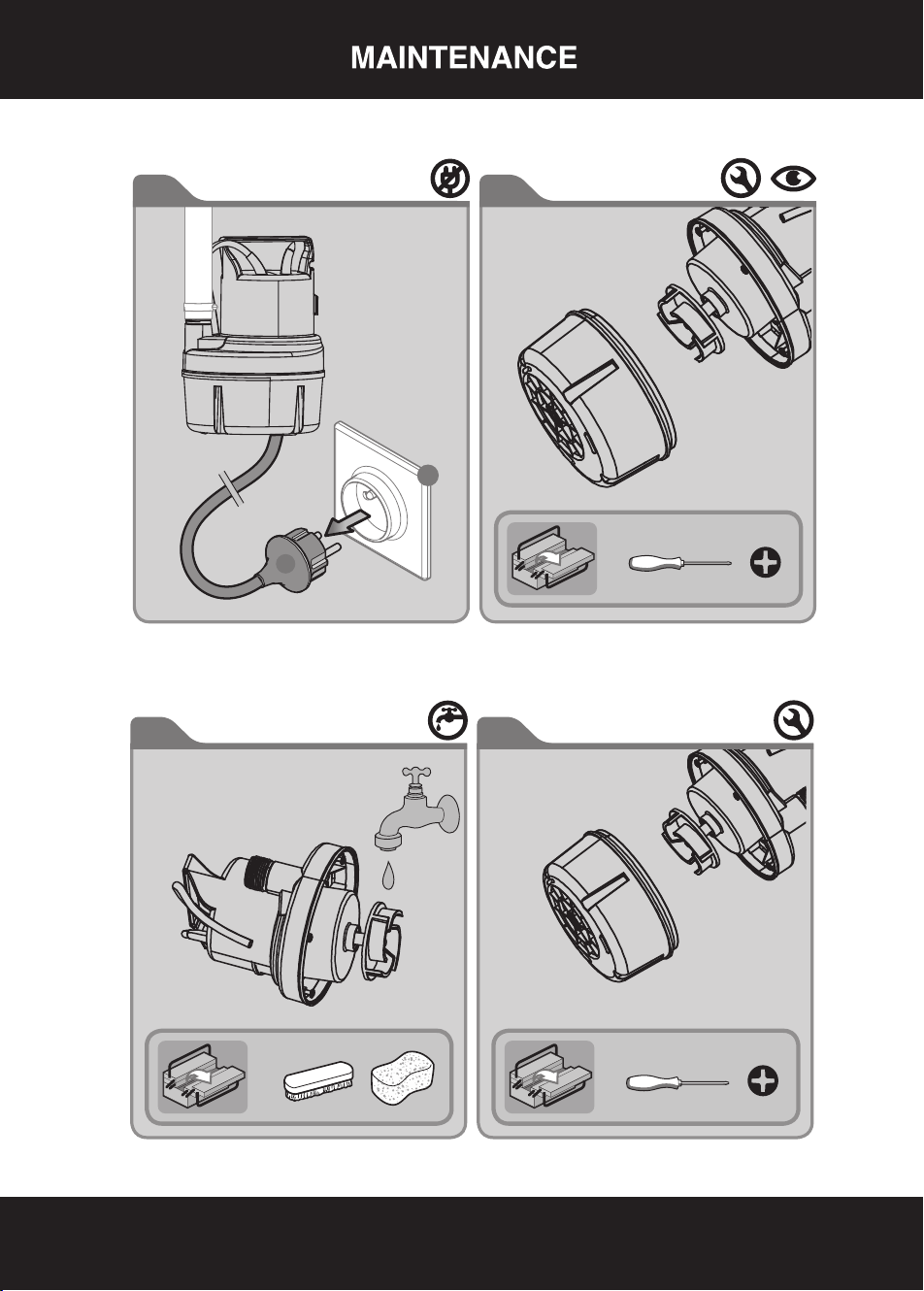

Clean the equipment from the outside.
Flush with clean water. Use brush and detergent to remove
stubborn pollution. Immerse the pump into a container with
clean water, open it for running a while, and flush it in the pump.
Storage
If there is a risk of frost, remove equipment and accessories,
and clean and store it a place protected from frost.
Using scope
The pump is mainly used in a basement. When installed at the
bottom of the shaft, the pump prevents seeper in the basement.
It can also be used for water supply and drainage, such as
household, agriculture, gardening, pipelines and other suitable
occasions.
Process equipment
Products marked with adjacent symbols shall not be treated as
domestic rubbish. You must deal with these old electrical and
electronic equipment separately.
Please contact local authorities to see if they can be handled
properly. Make the old equipment available for recycling,pro-
cessing, or other forms of second use by separate handling.
You can avoid polluting the environment by doing so.
Disposal packaging
The packing is made of cardboard and corresponding marking
plastic. These materials can be recycled.
Attention:
Before using the pump again, first "clean" to pre-
vent any possible dirt residue which could affect
the equipment operation.
Attention!
Risk for equipment damage!
Frost will destroy electrical appliances and
accessories, because they always contain water.
7
13
B
A
1
4
2
3
8
14
Model
Nominal Voltage
Nominal Output
Protection Type
Max Pump Rate
Max. Submersion Depth
Max. Grain Size
Max. Supply Height
76048
115 V / 60 Hz
1/6 HP
IPX 8
16.5 FT
1100 GPH
16.5 FT
1/5 INCH
Attention!
Risk for equipment damage!
The particle size mentioned cannot be used for
simple gravel or stone, but suitable for soft, vari-
ability of particles or similar things which cannot
put into the water pump.
Dia. Of Pipe
Outlet
Connector
G1
G1
G1
15
16

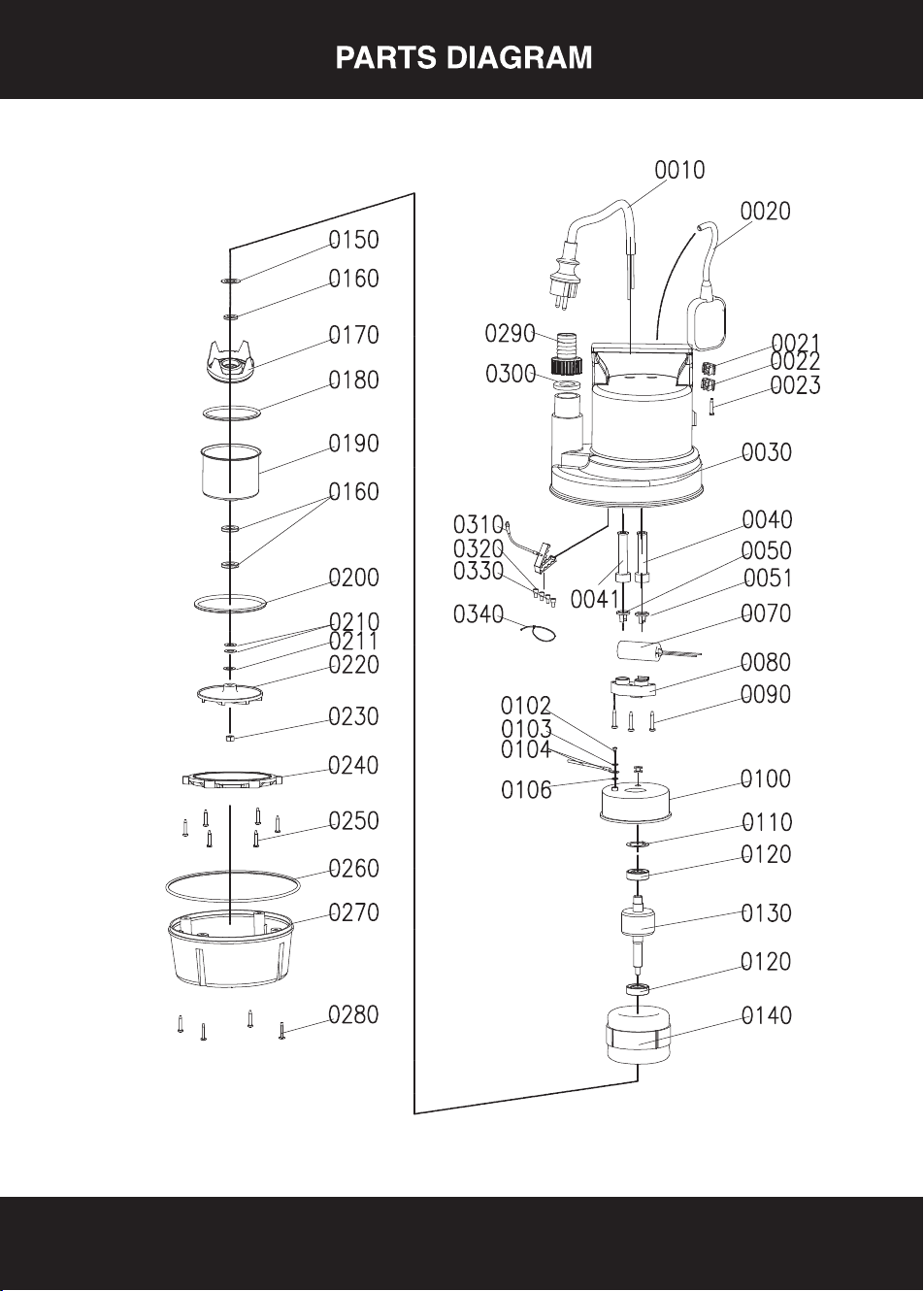

0010
0020
0021 0022
0023
0030
0040
0041
0050
0051
0070
0080
0090
0100
0102
0103
0104
0106
0110
0120
0130
0140
0150
0160
0170
0180
0190
0200
0210
0211
0220
0230
0240
0250
0270
0260
0280
0290
0300
0320
0330
0340
0350
0310
0360
253000849
250000007
201005375
207000060
201006695
208000226
208000227
201001510
201004095
209000660
201001452
206000151
203000285
207000027
207000503
299000022
207000478
204000090
207000540
252000190
251000095
204000100
208000600
203000263
208000317
203000130
208000290
204000095
204000127
201002252
207000336
201000587
207000065
201000344
208000185
206000142
201003520
208000029
209000100
209000101
201001722
212000024
209000127
215000003
Power cord
Floating switch
Wire clip component
Tapping screw
Main pump housing
Cable sheath
Cable sheath
Cable retainer
Cable retainer
Capacitor
Cable briquetting
Customization tapping screw
Metal plate rear cover component
Cross head tapping screw
External serrated lock washer
Economic grounding lead unit
Spring washer
Corrugated gasket
Bearing
Rotor
Stator
Gasket
Skeleton seal ring
Front bushing
O-ring
Front cover
O-ring
Adjusting gasket
Adjusting gasket
Impeller
Nut
Clamping ring
Cross head tapping screw
Pump base
Foam sealing strip
Customization tapping screw
Output connector
Seal gasket
Nylon secure line pressing cap
Nylon secure line pressing cap
Tie
White vaseline
Rack earth welding component
Grounding marker
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
2
1
1
1
3
1
1
1
1
2
1
1
1
1
6
1
1.64
4
1
1
2
3
1
0.41
1
1
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
FT
PCS
PCS
PCS
PCS
PCS
PCS
FLOZ
PCS
PCS
17
If you have any questions about ordering our outdoor furnitures and replacement parts or other furniture
products, please feel free to contact us using the following contact information:
Customer Service and Technical Support
(909) 628-0880
Monday – Friday, 9AM – 4PM (CST)
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for
reference purposes only. They do not make any representation or warranty to the buyer that they are qualified
to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor
expressly state that all repairs and parts replacements should be undertaken by certified and licensed
technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement parts
or arising from their installation of replacement parts. It is strongly advised that qualified professionals handle
any repairs or replacements to ensure safety and proper functioning of the product. Improper installation and
operation may result in injury, property damage, or voiding of warranty. The manufacturer and/or distributor
shall not be held responsible for any accidents, damages, or malfunctions resulting from the buyer's
installation and operation of the product. It is essential to follow all safety guidelines and recommendations
provided in this manual and to seek professional assistance if unsure about the installation or operation
procedures.
