Operator’s Manual
www.mechmaxx.com
WARRANTY
MANUAL PNEUMATIC
LOW-TEMPERATURE
LAMINATING MACHINE
MAIN TECHNICAL PARAMETERS
1
www.mechmaxx.com
This Manual Pneumatic Low-Temperature Cold Lamination Machine is a specialized device designed for laminating cold
lamination films onto various materials (e.g., prints, photographs, documents) under room temperature conditions. It
utilizes pneumatic pressure to ensure uniform adhesion, providing water resistance, UV protection, and enhanced durabil-
ity without the need for heat. This machine is widely used in advertising, photography, and artwork preservation indus-
tries.
PRODUCT OVERVIEW
EQUIPMENT INTRODUCTION
Combine the flexibility of manual operation with the stability of pneumatic assistance to ensure the laminating quality.
The pressure is adjustable to adapt to materials of different thicknesses and materials.
Use high - quality components, with a long service life and convenient maintenance.
MAIN FEATURES
Maximum Laminating Thickness
Maximum Laminating Width
Lifting Method
Max Air Pressure
Film Mulching Method
Max Temperature
Heating Mode
Net Weight/Gross Weight
Packaging Size
0.98 in/30 mm
59.84 in/1520 mm
Pneumatic Lift
116 PSI/0.8 MPa
Manual
176 ℉(80 ℃)
Infrared Internal Heating
308.65 lbs (140 kg)/352.74 lbs (160 kg)
78.74*22.83*20.87 in/2000*580*530 mm
Model 1600-C2
2
www.mechmaxx.com
Packed by environmental wooden case
Size: 78.74*22.83*20.87 in/2000*580*530 mm
Tools for unpacking: hammer.
Straight screwdriver, Cross screwdriver
INSTALLATION AND OPERATION

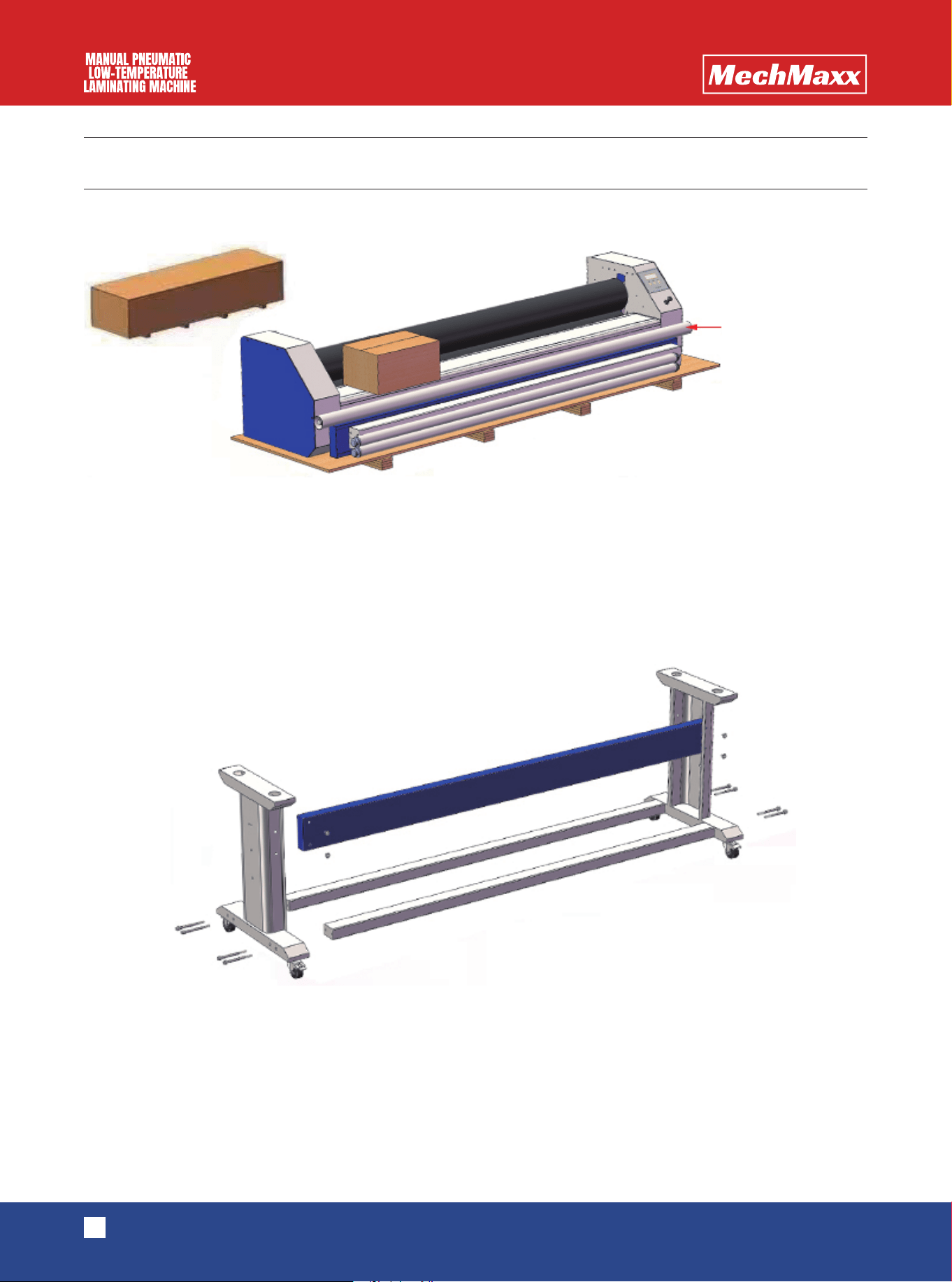

OPENING PACKAGE
INSTALLATION OF BRACKET
PE protective pipe
Here heating tube
inside Please handle
with care!
M8x100 inner hexagon screw
M6X20 inner hexagon screw
3
www.mechmaxx.com
General gas successfully supplied as follows

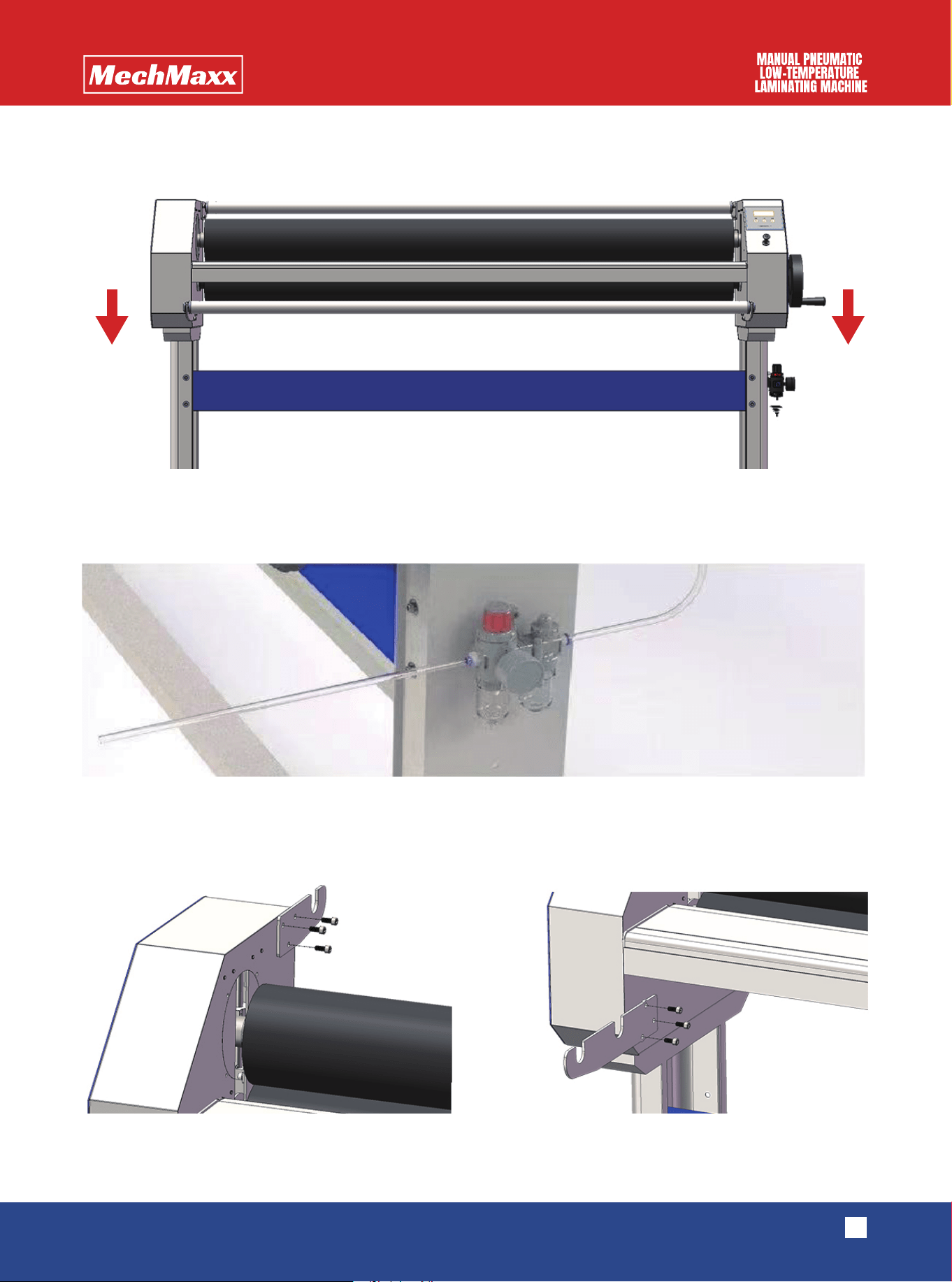

Removing the screws first, then lift the left and right brackets separately.Make sure to fit together perfectly.Keep at the
same level with the roller.
LIFT THE MAIN PART OF THE MACHINE ON THE LEGS,PAY ATTENTION TO THE
ALIGNMENT HOLE.
INSTALLATION OF I THE OIL-WATER SEPARATOR
INSTALLATION OF THE PAINTING BRACKET
4
www.mechmaxx.com
Function is introduced

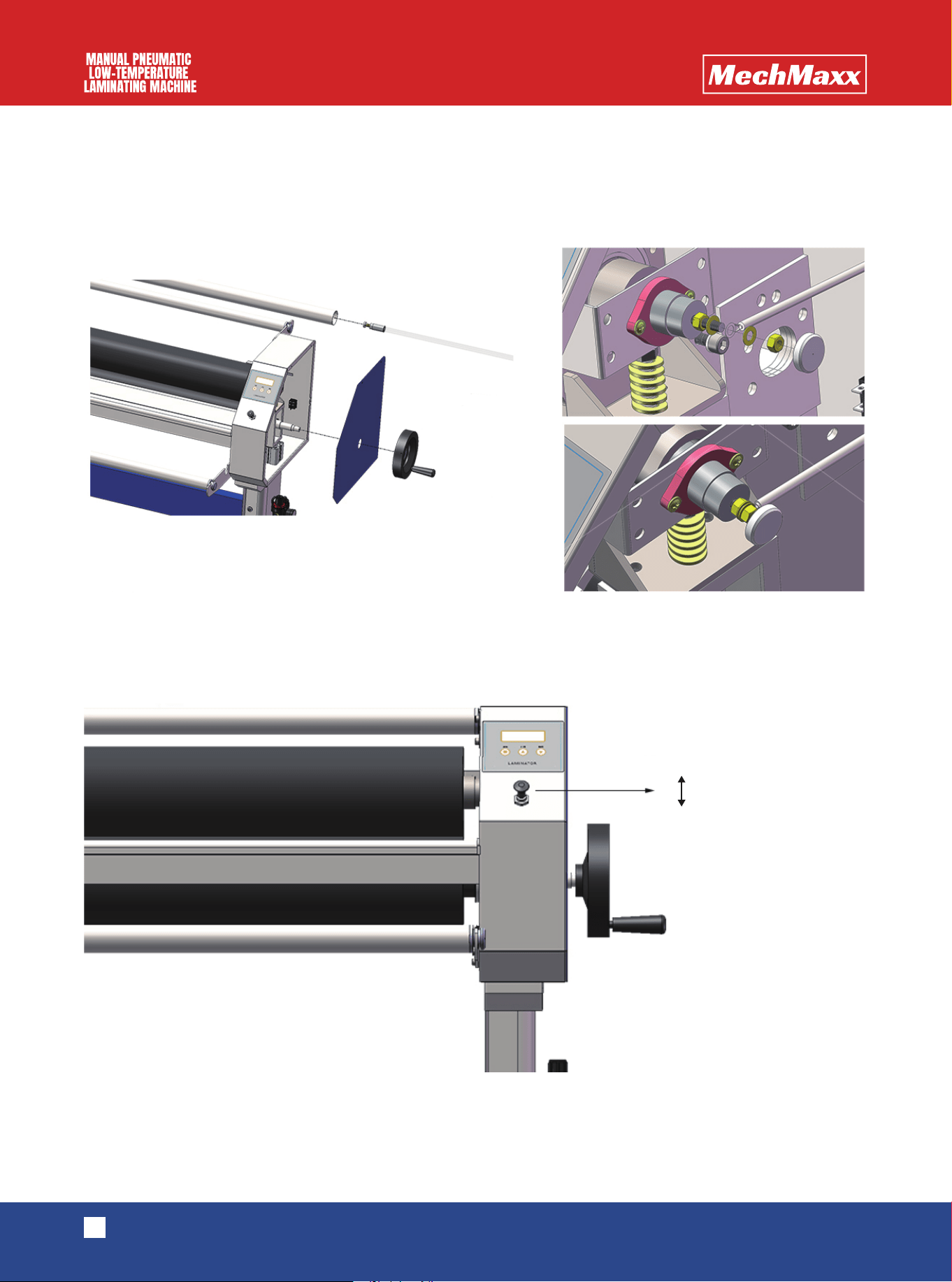

Remove the handwheel and both side covers. Take out the heating tube from the PE protective pipe (included in the pack-
aging accessories), Then Pass the heating tube through the center of the upper roller, and secure the two white high-tem-
perature resistant wires on both sides as shown in the diagram.
OPERATION
INSTALLATION OF THE HEATING TUBE
PE protective pipe
Heating tube
Cover plate
Hand wheel
Rising
Falling
Hand wheel
5
www.mechmaxx.com
EQUIPMENT STRUCTURE
PRE- OPERATION SAFETY INSPECTION
Frame: It supports the main structure of the whole equipment to ensure the stability of the equipment.
Workbench: A platform for placing the materials to be laminated, with a flat and smooth surface.
Laminating Roller: Used to evenly cover the film on the material surface, and the pressure and temperature (some
models) can be adjusted.
Check whether the air source connection is firm, whether there is air leakage, and whether the air pressure is within the
specified range.
Check whether all components of the equipment are installed in place, whether the screws are loose, and whether the
rotating parts are flexible.
Clean up the sundries on the equipment workbench to ensure a clean working environment.

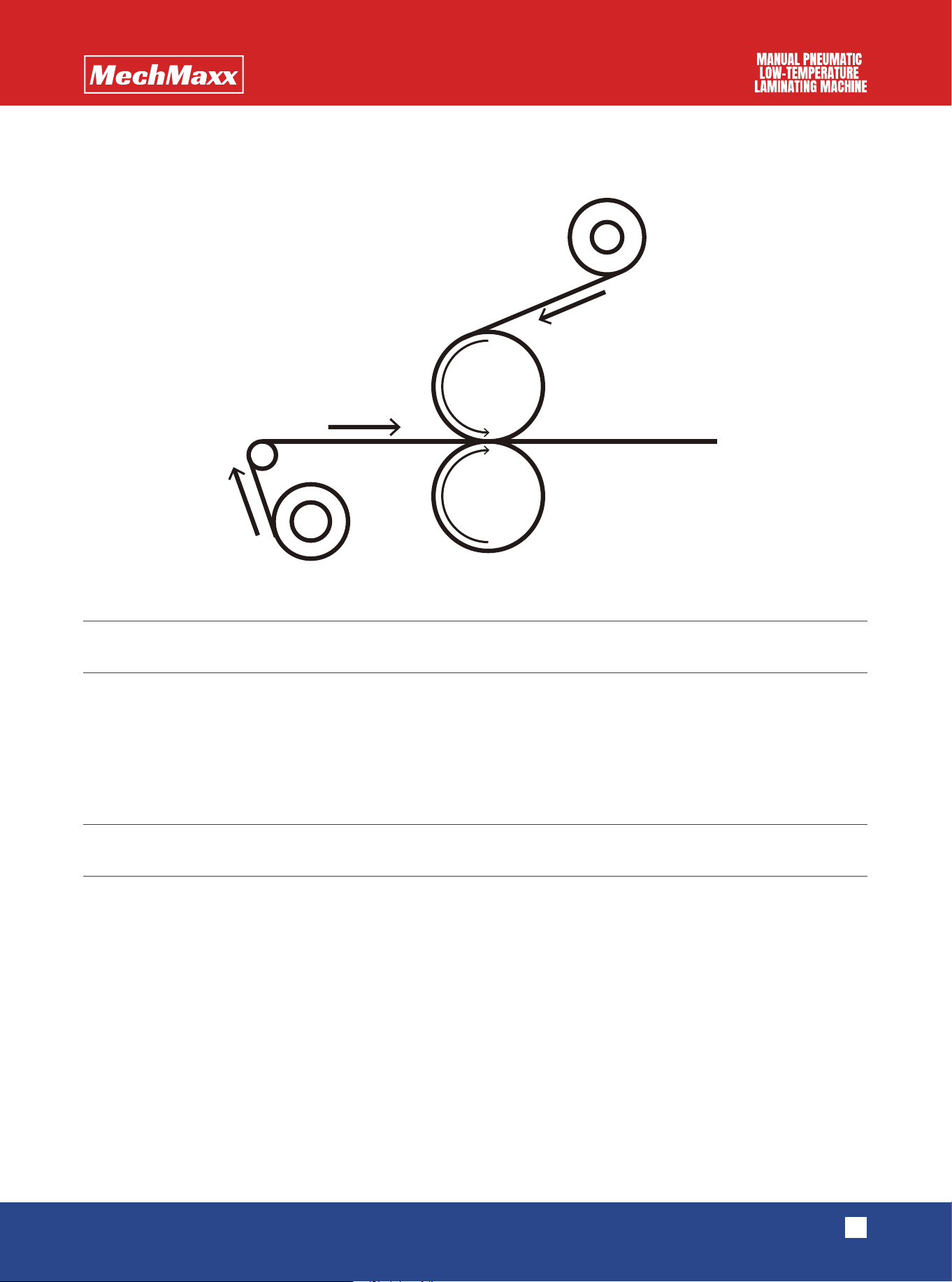

Working sketch map
OPERATION INSTRUCTIONS
Film
Prints
Take-up shaft
6
www.mechmaxx.com
MAINTAINCE
FEEDBACK ON PROBLEMS
Rollers can not be hurt by hard object such as blade.
Rollers should be regularly maintained, wipe with a soft cloth dipped in medical alcohol or non-toxic alcohol.
The friction plates need to be replaced regularly.
Bubbles in Lamination
1. There is air between the film and the material.
2. Laminating pressure or temperature is insufficient.
3. Film tension is uneven.
Method :
1. Realign the material and the film to remove the air.
2. Increase the laminating pressure or temperature.
3. Adjust the film tension.
Wrinkles in Lamination
1. Film tension is too large or too small.
2. Laminating roller is not parallel.
3. Material is not placed flat.
Method :
1. Adjust the film tension to the appropriate range.
2. Adjust the parallelism of the laminating roller.
3. Re-place the material to ensure it is flat.
