Operator’s Manual
www.mechmaxx.com
WARRANTY

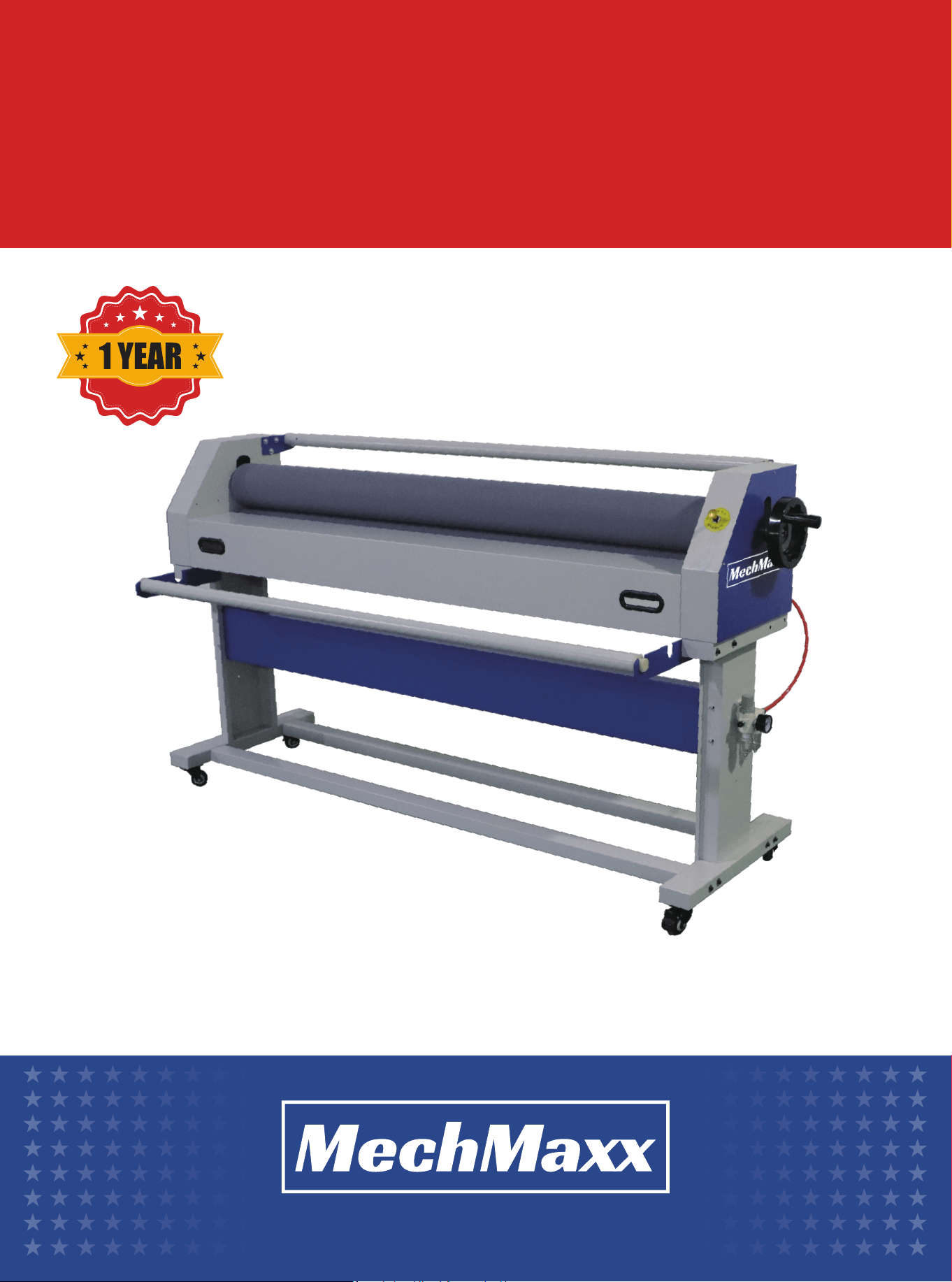

MANUAL PNEUMATIC
LAMINATING MACHINE
MAIN TECHNICAL PARAMETERS
PRE - OPERATION SAFETY INSPECTION
1
www.mechmaxx.com
This manual pneumatic laminating machine is a laminating equipment that combines manual operation and pneumatic -
assisted functions. It is suitable for the surface lamination of various materials such as plates and papers, which can
effectively improve the wear - resistance, corrosion - resistance and aesthetics of the material surface. The equipment
is designed with human - machine engineering, featuring simple operation, and is widely used in advertising production,
printing and packaging, decoration and other industries.
To ensure the printed image on the screen adheres to a special protective film or serves as a moisture-proof layer, this
equipment is required. For more details, please refer to the schematic diagram.
Check whether the air source connection is firm, whether there is air leakage, and whether the air pressure is within the
specified range.
Check whether all components of the equipment are installed in place, whether the screws are loose, and whether the
rotating parts are flexible.
Clean up the sundries on the equipment workbench to ensure a clean working environment.
PRODUCT OVERVIEW
EQUIPMENT INTRODUCTION
Combine the flexibility of manual operation with the stability of pneumatic assistance to ensure the laminating quality.
The laminating pressure is adjustable to adapt to materials of different thicknesses and materials.
The equipment has a compact structure, small floor space, and is easy to install and move.
Use high - quality components, with a long service life and convenient maintenance.
MAIN FEATURES
Maximum Laminating Thickness
Maximum Laminating Width
Lifting Method
Max.Air Pressure
Film Mulching Method
Net Weight/Gross Weight
Packaging Size
0.79 in/20 mm
59.84 in/1520 mm
Pneumatic Lift
116 PSl/0.8 MPa
Manual
253.53 lbs (115 kg) / 286.6 lbs (130 kg)
78.74*22.83*18.5 in /2000*580*470 mm
Model 1600-C1
2
www.mechmaxx.com
EQUIPMENT STRUCTURE
Packed by environmental wooden case
Size: 78.74*22.83*18.5 in /2000*580*470 mm
Tools for unpacking: hammer.
Straight screwdriver, Cross screwdriver
Frame: It supports the main structure of the whole equipment to ensure the stability of the equipment.
Workbench: A platform for placing the materials to be laminated, with a flat and smooth surface.
Laminating Roller: Used to evenly cover the film on the material surface, and the pressure and temperature (some
models) can be adjusted.
INSTALLATION AND OPERATION

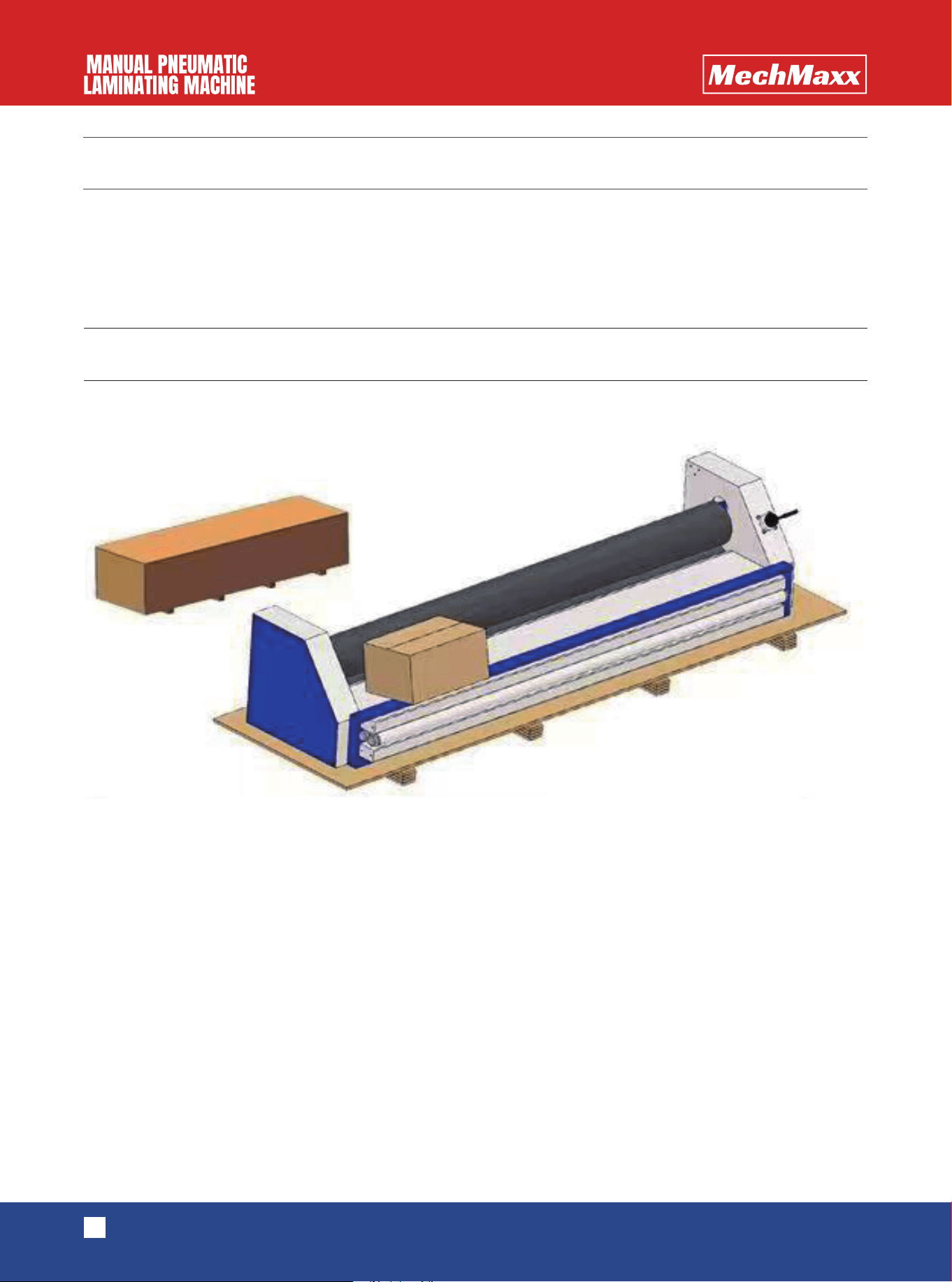

OPENING PACKAGE
3
www.mechmaxx.com
M8x100 inner hexagon screw
M6X20 inner hexagon screw

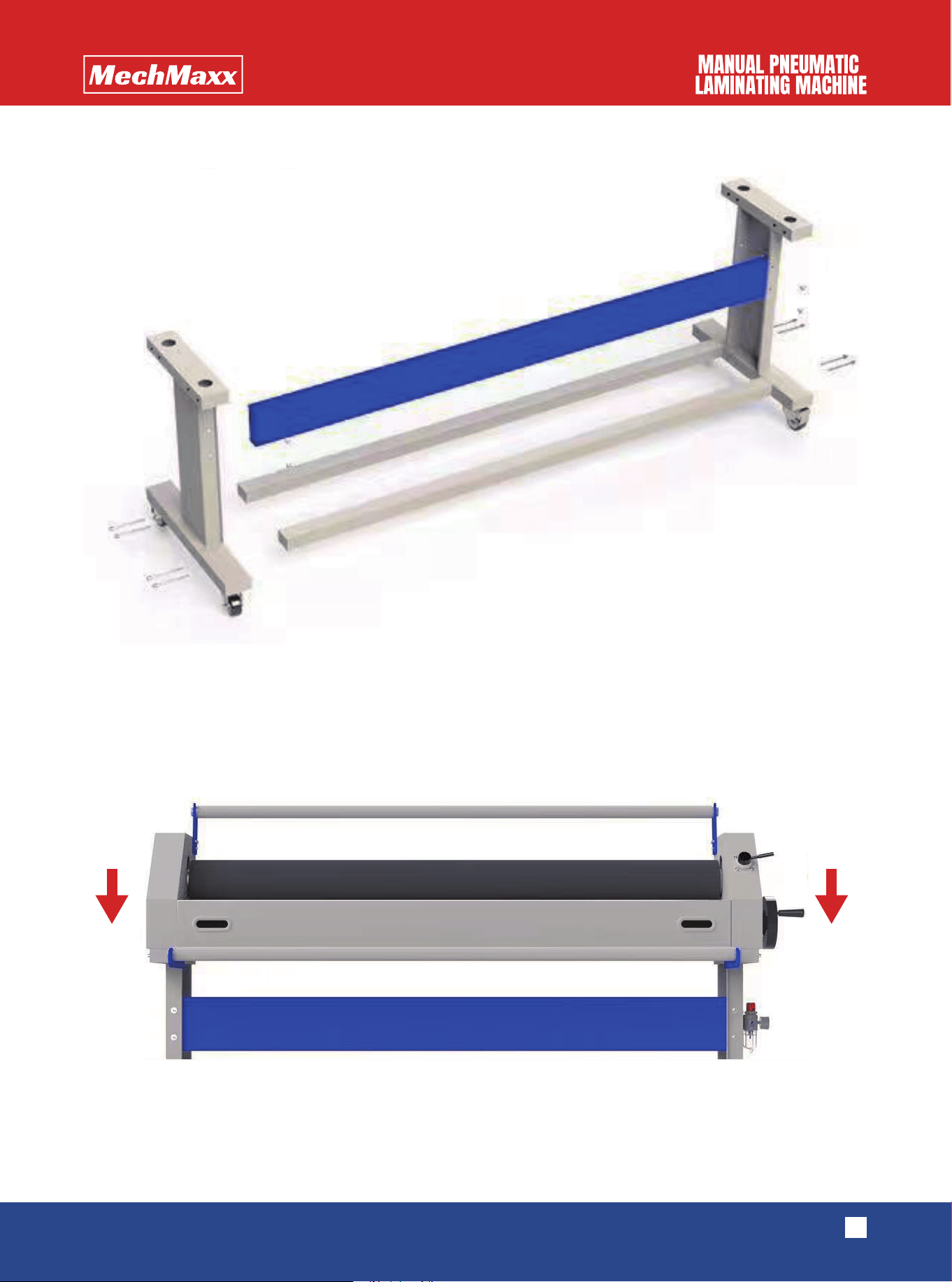

INSTALLATION OF BRACKET
LIFT THE MAIN PART OF THE MACHINE ON THE LEGS,PAY ATTENTION TO THE
ALIGNMENT HOLE.
4
www.mechmaxx.com
General gas successfully supplied as follows
Removing the screws first, then lift the left and right brackets separately.Make sure to fit together perfectly.Keep at the
same level with the roller.
Function is introduced

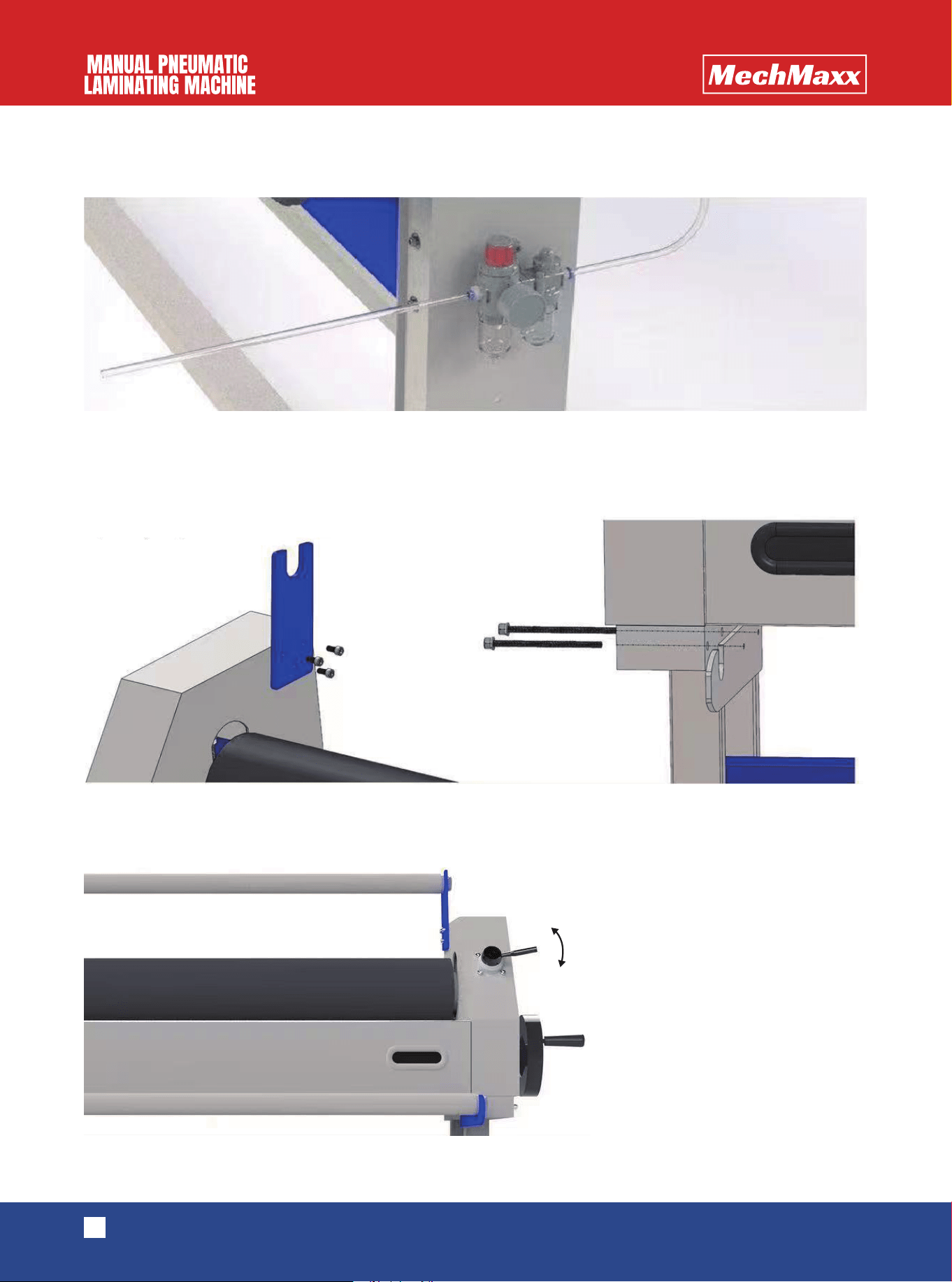

INSTALLATION OF I THE OIL-WATER SEPARATOR
INSTALLATION OF THE PAINTING BRACKET
OPERATION
Rising
Falling
Hand wheel
5
www.mechmaxx.com

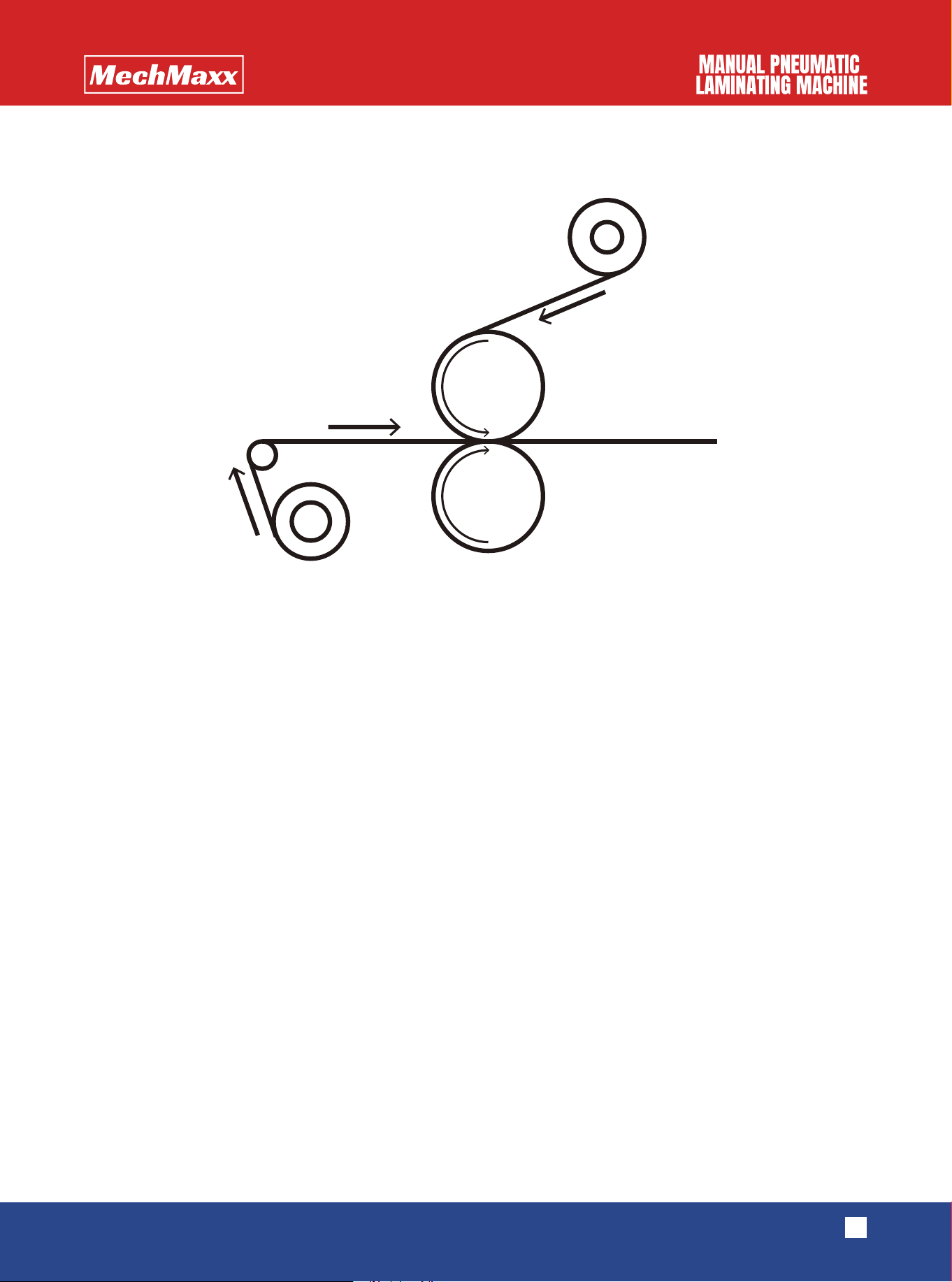

Working sketch map
OPERATION INSTRUCTIONS
Film
Prints
Take-up shaft
6
www.mechmaxx.com
MAINTAINCE
FEEDBACK ON PROBLEMS
Rollers can not be hurt by hard object such as blade.
Rollers should be regularly maintained, wipe with a soft cloth dipped in medical alcohol or non-toxic alcohol.
The friction plates need to be replaced regularly.
Bubbles in Lamination
1. There is air between the film and the material.
2. Laminating pressure is insufficient.
3. Film tension is uneven.
Method :
1. Realign the material and the film to remove the air.
2. Increase the laminating pressure.
3. Adjust the film tension.
Wrinkles in Lamination
1. Film tension is too large or too small.
2. Laminating roller is not parallel.
3. Material is not placed flat.
Method :
1. Adjust the film tension to the appropriate range.
2. Adjust the parallelism of the laminating roller.
3. Re - place the material to ensure it is flat.
