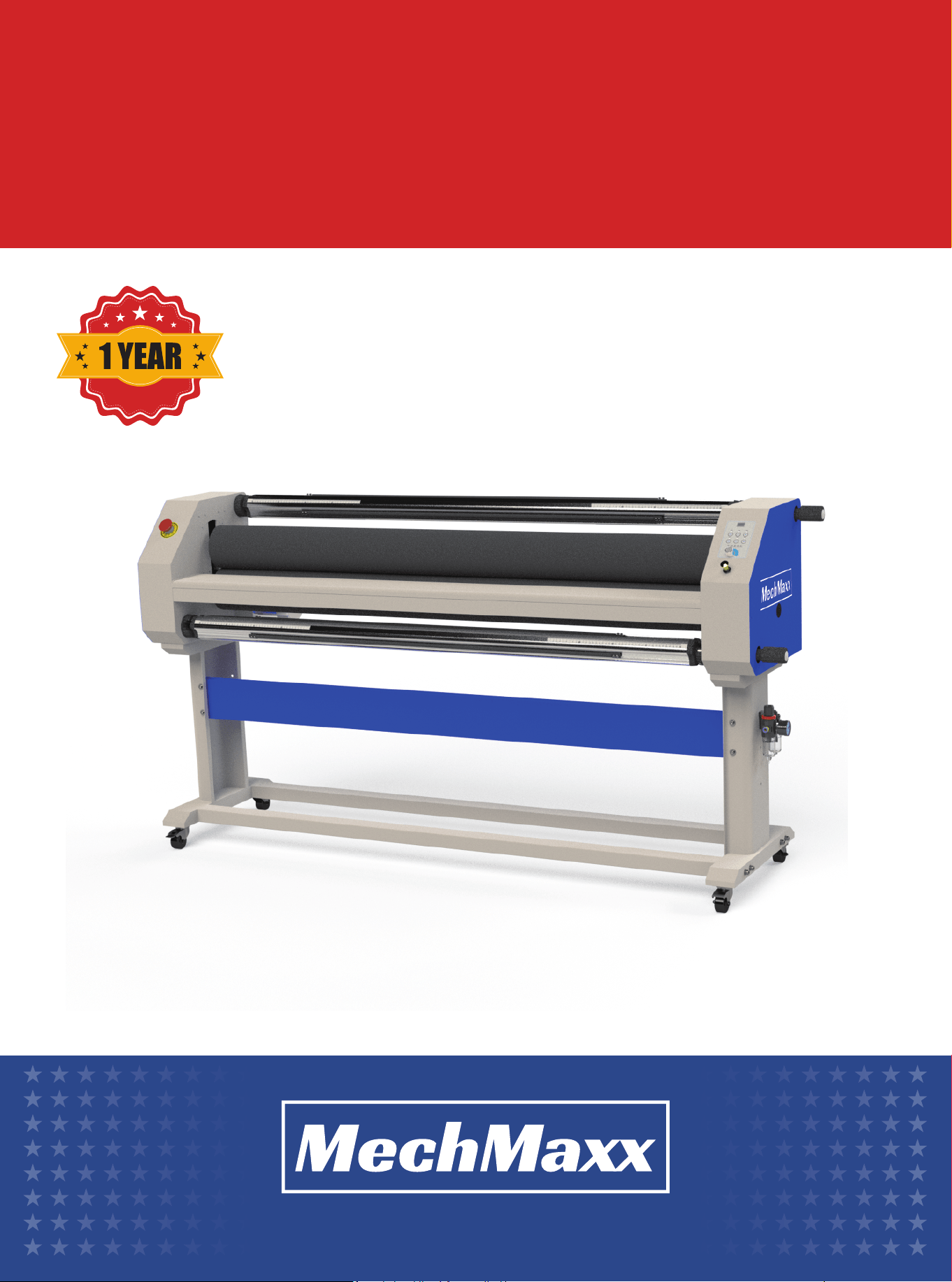

Operator’s Manual
www.mechmaxx.com
WARRANTY
PNEUMATIC-ELECTRIC
LAMINATING MACHINE
TABLE OF CONTENTS
1
www.mechmaxx.com
This Pneumatic-Electric laminating machine with dual aluminum rods is a specialized device designed for bonding
various materials (e.g., paperboard, foam board, KT board, MDF) using a combination of pneumatic pressure control and
electric drive systems. The dual aluminum rod structure ensures uniform pressure distribution and stable operation
during lamination. This machine is widely used in packaging, advertising, and gift box manufacturing industries.
Combine manual and electric operation with the stability of pneumatic assistance to ensure the laminating quality. The
pressure is adjustable to adapt to materials of different thicknesses and materials, offering high efficiency and accuracy
for board mounting applications.
PRODUCT OVERVIEW
EQUIPMENT INTRODUCTION
MAIN FEATURES
Maximum Laminating Thickness
Maximum Laminating Width
Lifting Method
Max.Air Pressure
Film Mulching Method
Net Weight/Gross Weight
Packaging Size
0.98 in/25 mm
59.84 in/1520 mm
Pneumatic Lift
116 PSI/0.8 MPa
Manual/Electric
286.6 lbs(130 kg)/330.69 lbs(150 kg)
82.68*22.83*20.87 in/2100*580*530 mm
Model 1600-C3pro
2
www.mechmaxx.com
Packed by environmental wooden case
Size: 82.6x22.8x20.8 in
Tools for unpacking: hammer.
Straight screwdriver, Cross screwdriver
M8x100 inner hexagon screw
M6X20 inner hexagon screw
INSTALLATION AND OPERATION

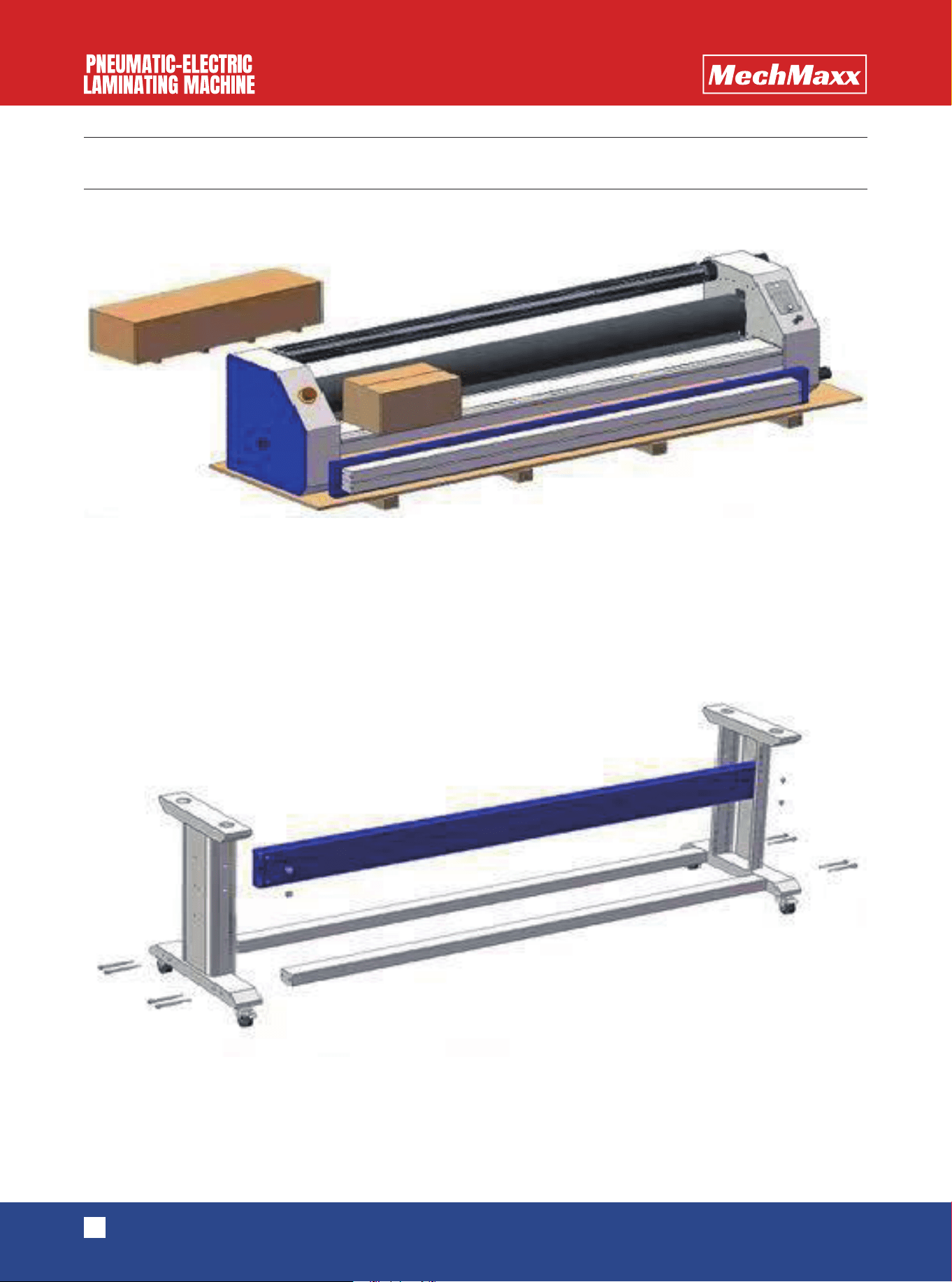

OPENING PACKAGE
INSTALLATION OF BRACKET
3
www.mechmaxx.com
General gas successfully supplied as follows
Function is introduced

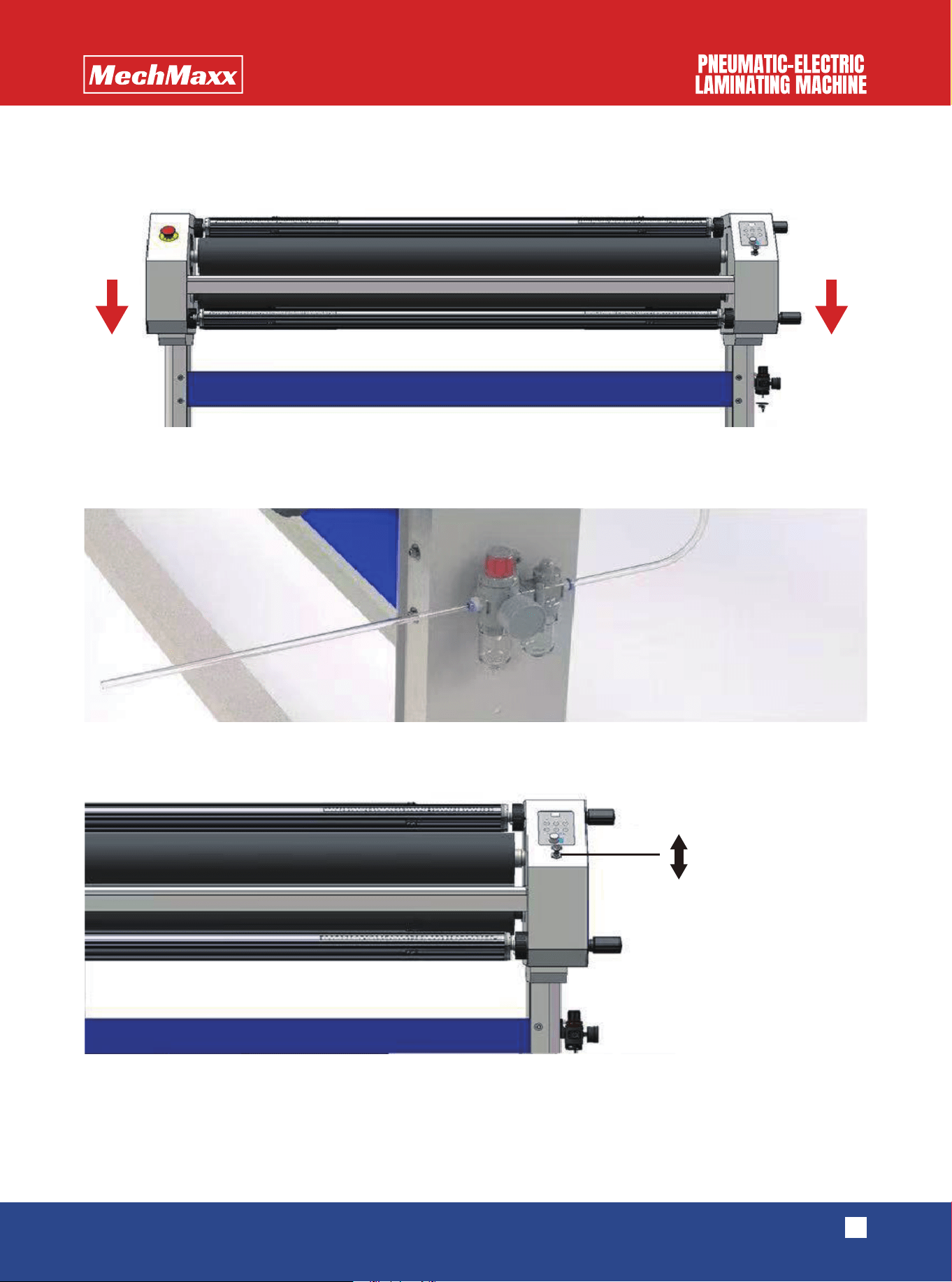

LIFT THE MAIN PART OF THE MACHINE ON THE LEGS,PAY ATTENTION TO THE
ALIGNMENT HOLE.
INSTALLATION OF I THE OIL-WATER SEPARATOR
OPERATION
Rising
Falling
4
www.mechmaxx.com

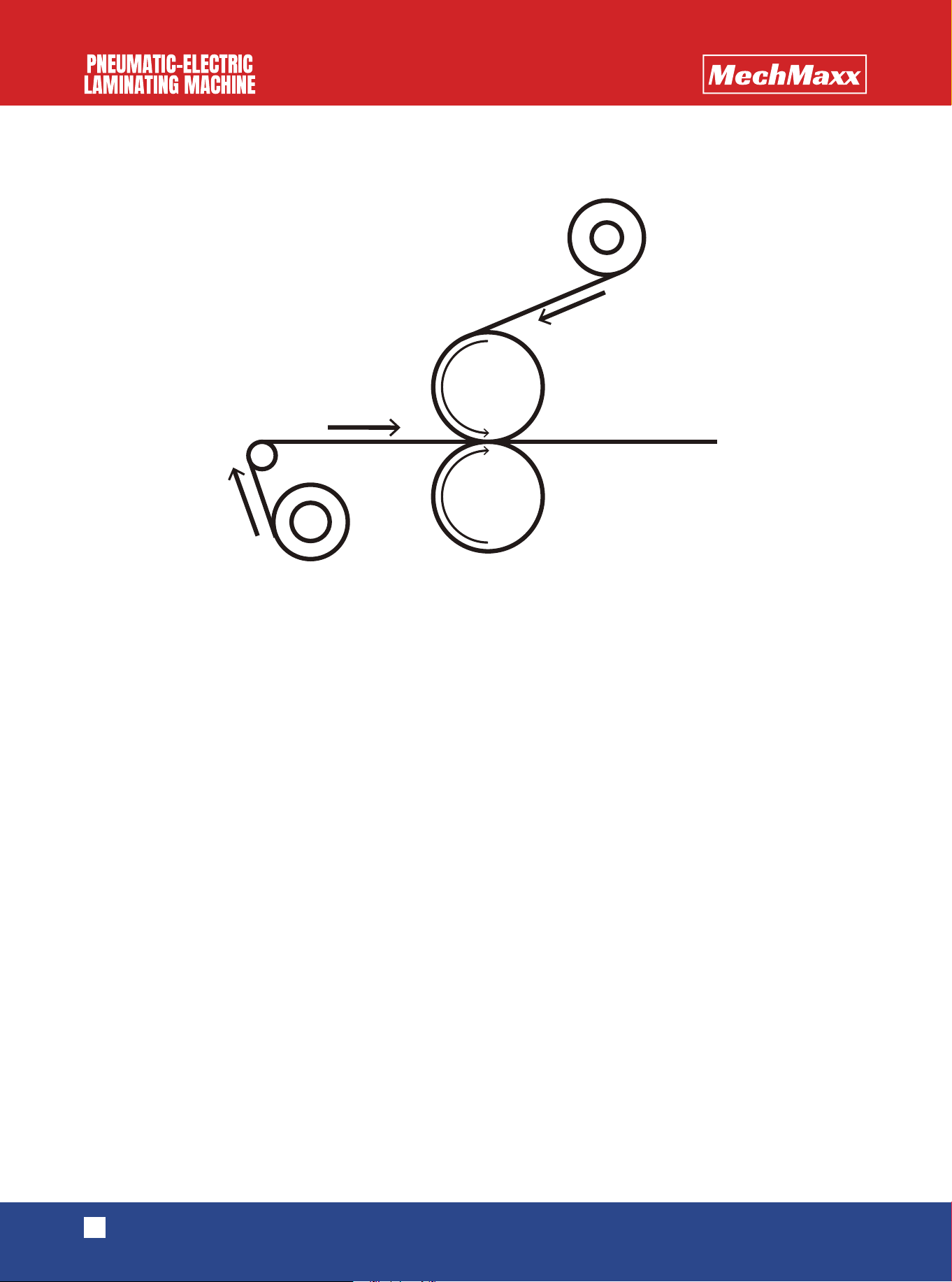

Working sketch map
OPERATION INSTRUCTIONS
Film
Prints
Take-up shaft
5
www.mechmaxx.com
EQUIPMENT STRUCTURE
PRE - OPERATION SAFETY INSPECTION
FEEDBACK ON PROBLEMS
Frame: It supports the main structure of the whole equipment to ensure the stability of the equipment.
Dual Aluminum Rods: Provide superior stability and alignment.
Workbench: A platform for placing the materials to be laminated, with a flat and smooth surface.
Laminating Roller: Used to evenly cover the film on the material surface, and the pressure and temperature (some
models) can be adjusted.
Bubbles in Lamination
1. There is air between the film and the material.
2. Laminating pressure or temperature is insufficient.
3. Film tension is uneven.
Method :
1. Realign the material and the film to remove the air.
2. Increase the laminating pressure or temperature.
3. Adjust the film tension.
Wrinkles in Lamination
1. Film tension is too large or too small.
2. Laminating roller is not parallel.
3. Material is not placed flat.
Method :
1. Adjust the film tension to the appropriate range.
2. Adjust the parallelism of the laminating roller.
3. Re - place the material to ensure it is flat.
Check whether the air source connection is firm, whether there is air leakage, and whether the air pressure is within the
specified range.
Check whether all components of the equipment are installed in place, whether the screws are loose, and whether the
rotating parts are flexible.
Clean up the sundries on the equipment workbench to ensure a clean environment.
Check whether the power is connected.
6
www.mechmaxx.com
MAINTENANCE
Rollers can not be hurt by hard object such as blade.
Rollers should be regularly maintained, wipe with a soft cloth dipped in medical alcohol or non-toxic alcohol.
The friction plates need to be replaced regularly.
