ASSEMBLY AND USER’S GUIDE
SKU: 22049
ADJUSTABLE TRAILER DOLLY
22049
LOAD CAPACITY: 1500 LBS
TABLE OF CONTENTS
1
7REPLACEMENT PARTS
INTRODUCTION
5ASSEMBLY INSTRUCTIONS
4
4OVERVIEW
4PRODUCT INFORMATION
2
Legends and Symbols
2IMPORTANT SAFETY INSTRUCTIONS
1TABLE OF CONTENTS
8PARTS LIST
7PARTS DIAGRAM
5STEP 2
5STEP 1
6STEP 4
5STEP 3
GENERAL SAFETY INFORMATION 3
SPECIFICAITON 4
9DISCLAIMER
9Customer Service
9Disclaimer
IMPORTANT SAFETY INSTRUCTIONS
2
For safety reasons, children should not be allowed to use this product.
Packing materials and plastic bags are not toys. Keep them away from children to prevent the risk
of suffocation.
Failure to comply with all instructions and warnings may lead to severe bodily
injury or even death. For optimal safety and functionality, it is advisable to have the product installed
and serviced by a certified service professional. Prior to using this product, installers, operators, and
owners must carefully review these warnings and all instructions provided in the owner's manual. It
is essential to leave these warnings and the owner's manual with the owner for their reference and
safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation,
operation, and safe use of this product. It is essential to provide this manual to the end user of the
product. Failure to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or
significant property damage.
WARNING: Indicates potential hazards that can result in severe personal injury,
death, or significant property damage. Ignoring these warnings presents a real
danger.
CAUTION: Indicates potential hazards that can result in minor or moderate
personal injury, property damage, or actions that are unpredictable and unsafe.
Ignoring these cautions presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly
related to hazards.
This guide provides instructions for installing and using the Adjustable Trailer Dolly. If you have any
questions about the equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After
installation, make sure to share this information with the owner/operator or leave it with them for
their reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention
to the following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
WARNING
CAUTION
NOTE
DANGER
IMPORTANT SAFETY INSTRUCTIONS
3
GENERAL SAFETY INFORMATION
DANGER
• Overload Risk: Do not exceed the maximum load capacity of 420 lbs. Overloading may
result in serious injury or product failure.
WARNING
CAUTION
NOTE
• Assembly Requirements:
▪ Follow the provided assembly instructions to prevent hazards.
▪ Wear ANSI-approved safety goggles and heavy-duty gloves during assembly.
▪ Keep the assembly area clean, well-lit, and free of bystanders.
▪ Do not assemble when tired or under the influence of alcohol, drugs, or medication.
• Use Limitations:
▪ Do not sit, stand, or climb on the item to prevent tipping.
▪ This is not a toy—keep it away from children.
▪ Use the supplied handle only for pushing or pulling to prevent tipping.
▪ Inspect the product before each use; do not use if parts are loose or damaged.
▪ Dry the product after use to prevent rust, which could affect future performance.
• Assembly Surface: Always assemble the product on a flat, level, hard, and smooth surface
capable of safely supporting a fully loaded boat trailer dolly.
• Special Attention: Ensure the small wheel is straight before use. The accessories may bend
if forced when not aligned properly.
• SAVE THESE INSTRUCTIONS for reference to ensure safe and proper use of the product.
• General Use: Failure to adhere to all instructions may result in serious injury.
• Tire Pressure: Always check that the tire has sufficient air. Inflate before use if necessary.
• Check for Loose Parts: Ensure all screws are securely tightened before use to avoid mis-
haps.
4
XtremepowerUS Adjustable Trailer Dolly with a 1500 lbs capacity, designed for easy and
efficient handling of various trailers.
This robust dolly features durable construction and a heavy-duty wheel assembly, ensuring
smooth operation across different surfaces. With an ergonomic handle and adjustable hitch
height, it simplifies the maneuvering and positioning of boat trailers, utility trailers, and more.
Ideal for both personal and commercial use, this trailer dolly is an essential tool for effortless
trailer management.
INTRODUCTION
PRODUCT INFORMATION
OVERVIEW
PRODUCT INFORMATION
HANDLE
TIRE
HITCH BALL
SWIVEL CASTER
SPECIFICAITON
LOAD CAPACITY
DIMENSIONS (L” X W” X H”)
MATERIAL
CASTER
TIRE
ADJUSTABLE HEIGHT
HITCH BALL SIZE
1500 LBS
50" X 42.9" X 35.4"
STEEL, RUBBER, PLASTIC
UNIVERSAL, 8"
PNEUMATIC,16" X 4.00-8
23.6" ~ 35.4"
2"
5
PARTS # 1
PARTS # 4
PARTS # 9
PARTS # 6
PARTS # 7
PARTS # 7
PARTS # 2
PARTS # 13
PARTS # 12
PARTS # 5
PARTS # 18
PARTS # 20
PARTS # 21
PARTS # 19
PARTS # 11
PARTS # 10
PARTS # 11
PARTS # 10
PARTS # 3

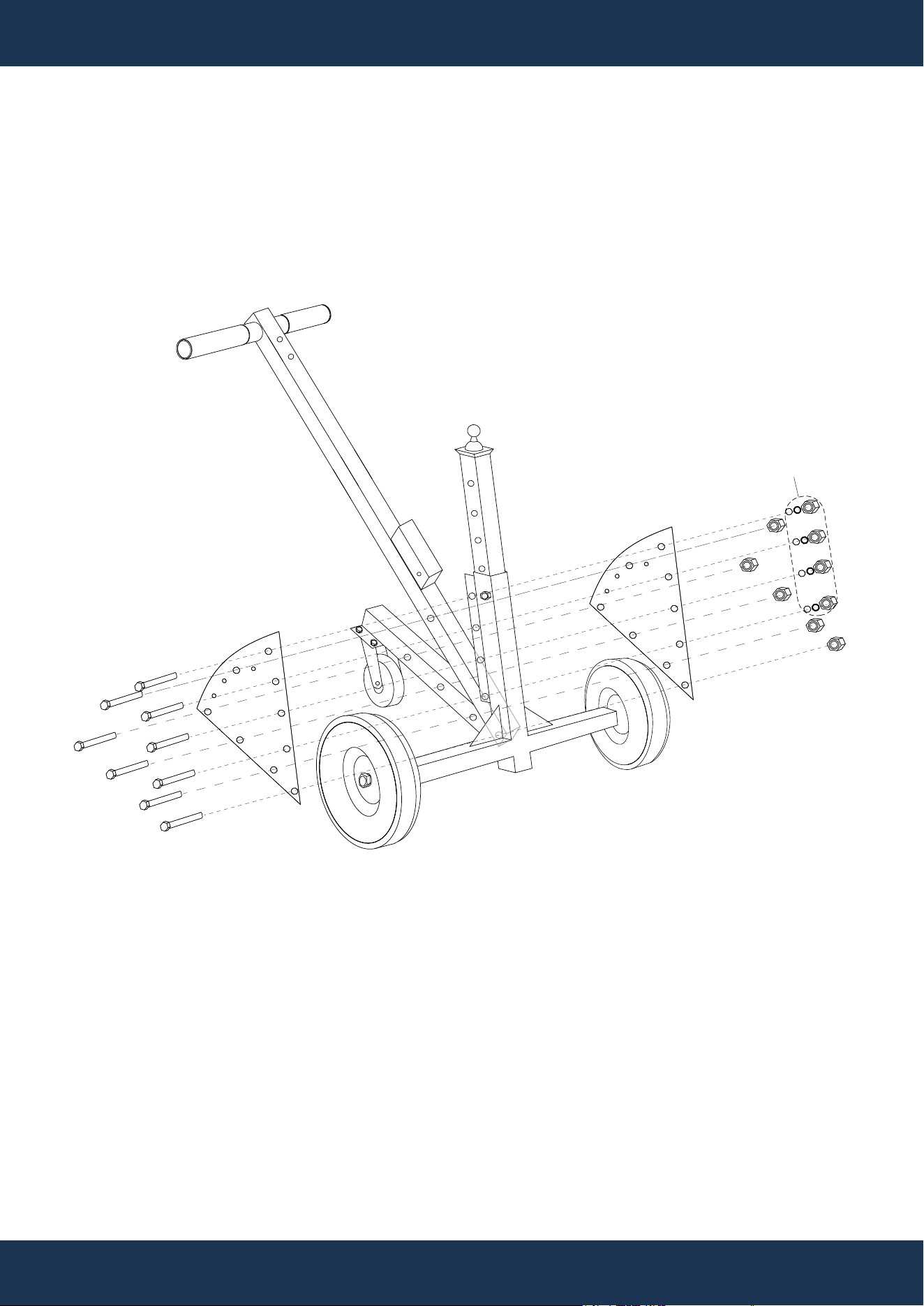

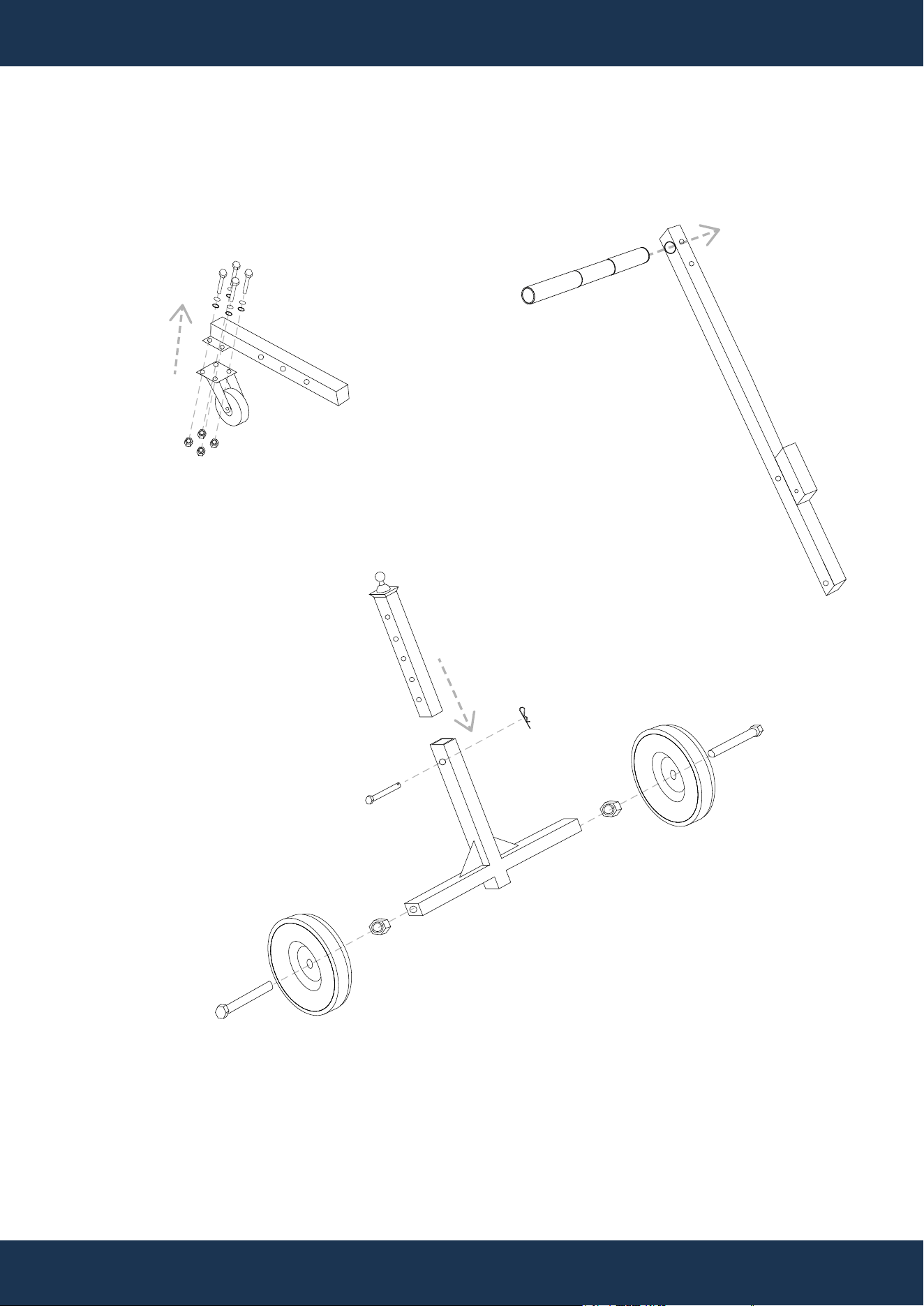

ASSEMBLY
ASSEMBLY INSTRUCTION
STEP 1 STEP 2
STEP 3
6
STEP 4
PARTS # 14
PARTS # 8
PARTS # 8
PARTS # 17 16 15
PARTS # 15
PARTS # 14
PARTS # 8
PARTS # 8
PARTS # 17 16 15
PARTS # 15
ASSEMBLY
7
REPLACEMENT PARTS
REPLACEMENT PARTS

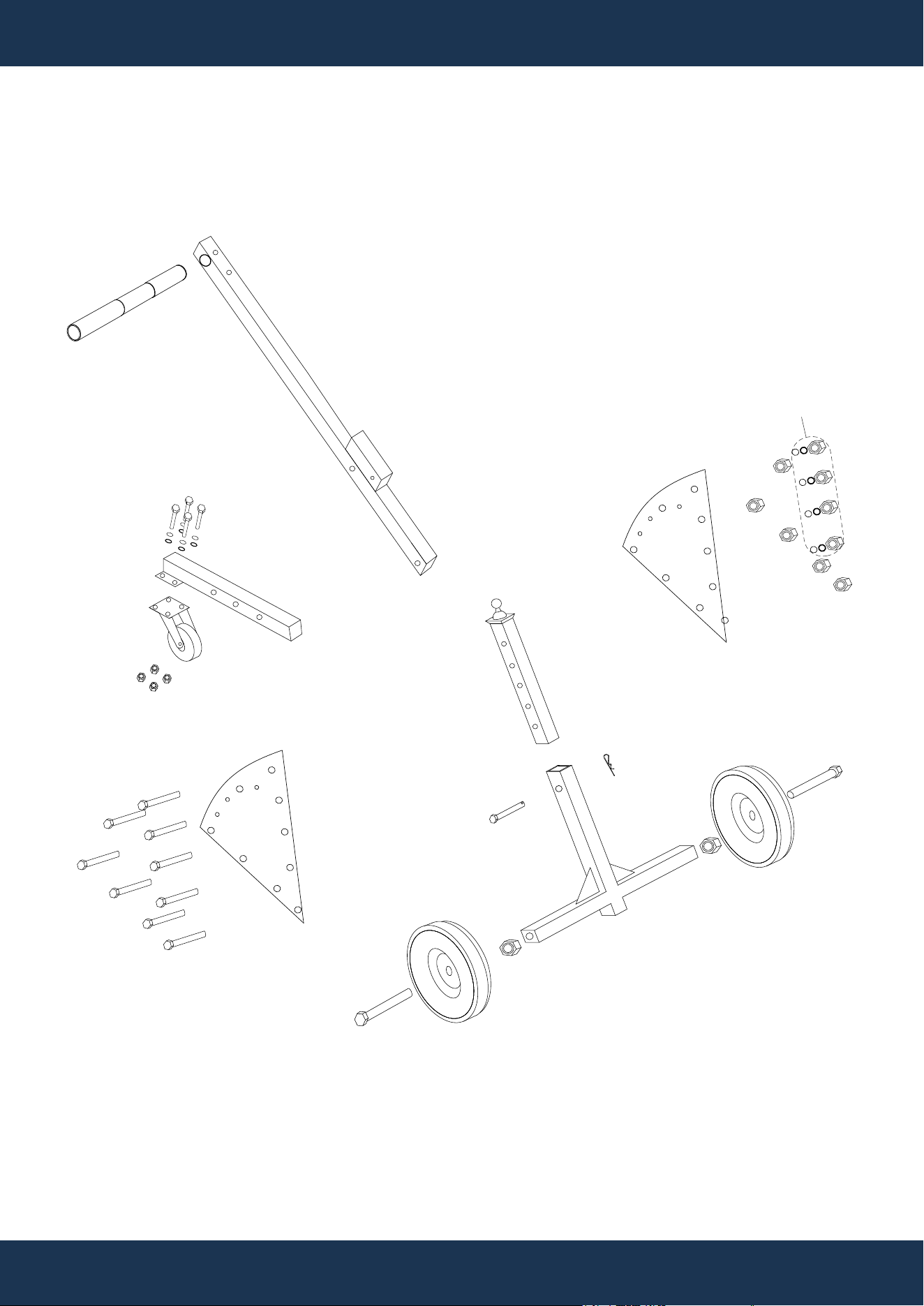

PARTS DIAGRAM
PARTS # 1
PARTS # 4
PARTS # 9
PARTS # 6
PARTS # 7
PARTS # 7
PARTS # 2
PARTS # 13
PARTS # 12
PARTS # 5
PARTS # 18
PARTS # 20
PARTS # 21
PARTS # 19
PARTS # 11
PARTS # 10
PARTS # 11
PARTS # 10
PARTS # 3
PARTS # 14
PARTS # 8
PARTS # 8
PARTS # 17 16 15
PARTS # 15
8
REPLACEMENT PARTS
PARTS LIST
PARTS#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
DESCRIPTION
HANDLE BAR
HANDLE
LIFT RAM
DOLLY BEAM
REAR WHEEL BEAM
SWIVEL CASTER 8"
PNEUMATIC TIRE 16"
ADJUSTMENT PLATE
HITCH BALL 2"
NUT M16
SCREW M16X250
LOCK PIN
WAVE PIN
SCREW M10X70
NUT M10
WASHER
RING
SCREW M8X20
QTY
1
1
1
1
1
1
2
2
1
2
2
1
1
8
8
4
4
4
9
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this
manual for reference purposes only. They do not make any representation or warranty to the buyer
that they are qualified to make repairs to the product or replace any parts of the product. In fact, the
manufacturer and/or distributor expressly state that all repairs and parts replacements should be
undertaken by certified and licensed technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or
replacement parts or arising from their installation of replacement parts. It is strongly advised that
qualified professionals handle any repairs or replacements to ensure safety and proper functioning
of the product. Improper installation and operation may result in injury, property damage, or voiding
of warranty. The manufacturer and/or distributor shall not be held responsible for any accidents,
damages, or malfunctions resulting from the buyer's installation and operation of the product. It is
essential to follow all safety guidelines and recommendations provided in this manual and to seek
professional assistance if unsure about the installation or operation procedures.
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or pool products,
please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
DISCLAIMER
