FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-50-2576 Trapsnake™ Driver w/ Housing Clip (1)
2 --------------- Trapsnake™ Driver (1)
3 42-70-0058 Housing Clip (1)
4 --------------- Cable Anchor Washer (1)
5 34-40-1010 O-ring (1)
6 06-82-0128 M4 x 22mm Taptite Screw (4)
7 --------------- Cable Anchor Screw (1)
10 --------------- Coupler Spring (1)
11 --------------- Coupler (1)
12 --------------- Front Drum Half (1)
15 --------------- Autofeed Lock (1)
17 --------------- Grip Bottom (1)
18 --------------- M4 x 16mm Taptite Screw (3)
19 --------------- Ball Bearing (3)
20 --------------- Grip Top (1)
22 --------------- M10 x 1.5mm Square Nut (1)
23 --------------- Autofeed Grip (1)
24 --------------- Cable Lock Screw (1)
25 --------------- M3 Set Screw (1)
26 --------------- Crank Arm (1)
27 48-53-2579 Replacement Cable (1)
31 14-46-2503 Cable Anchor Service Kit (1)
32 14-46-2504 Autofeed Bearing and Screw Kit (1)
33 12-20-2573 Service Nameplate (not shown) (1)
34 10-20-1939 Warning Label (not shown) (1)
35 12-20-2508 Driver Service Nameplate (not shown) (1)
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

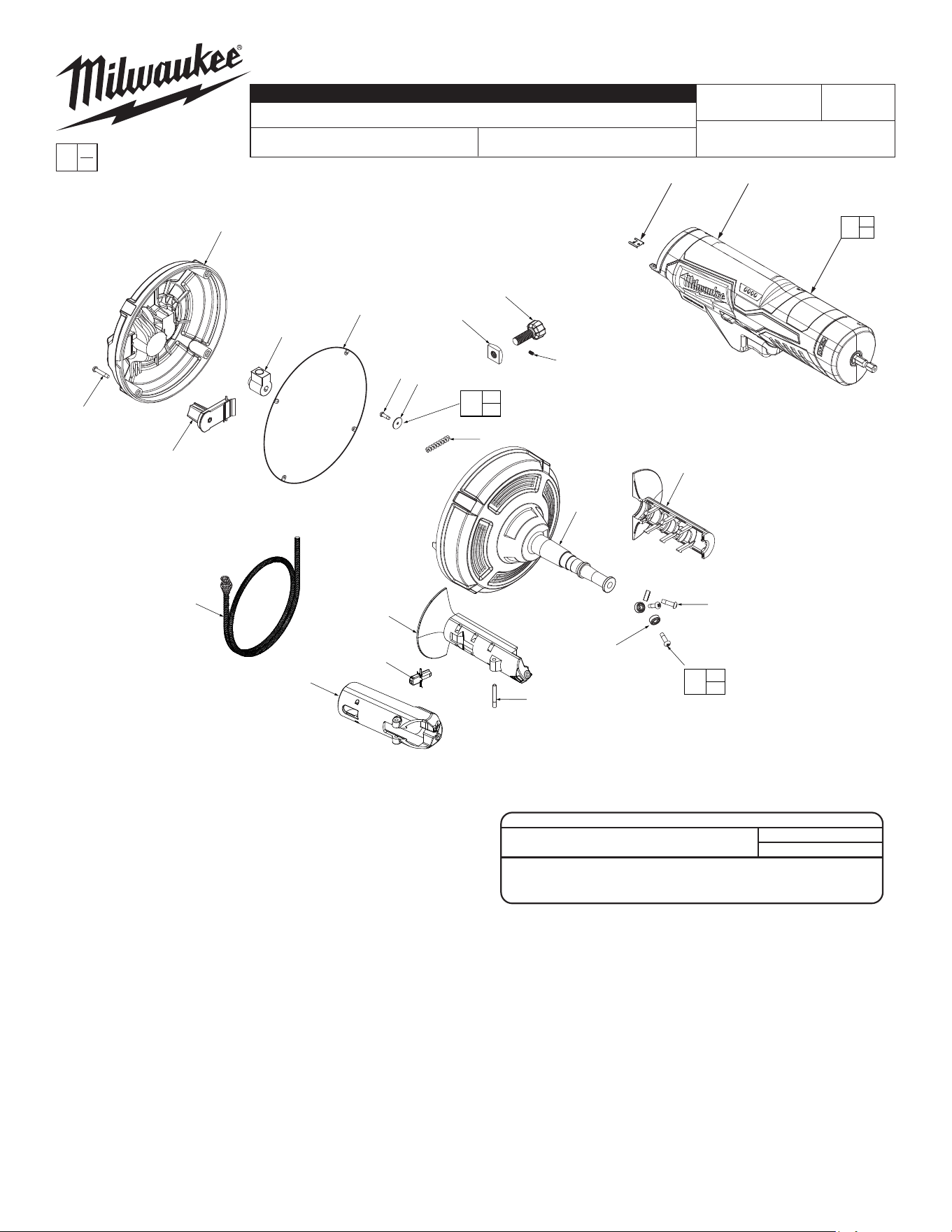

Drwg. 1
BULLETIN NO.
54-05-2570
SERVICE PARTS LIST
CATALOG NO. 49-16-2573
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
TRAPSNAKE™ 25’ Auger w/ CABLE DRIVE™
STARTING
SERIAL NO.
DATE
Sept. 2022
WIRING INSTRUCTION
M62A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (KG/CM) (IN/LBS)
6 06-82-0128 Drum Screw 10-12 9-10
7 --------------- Cable Anchor Screw 4-6 3-5
18 --------------- Autofeed Screw 10-12 9-10
FIG. NOTES
33,34 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or name
plate.
4
7
4
7
31
5
11
24
24
22
20
12
10
26
6
(4x)
17
10
15
23
18
(3x)
19
(3x)
18
19
32
25
27
1
2
3
3 2
Trapsnake™ Driver
