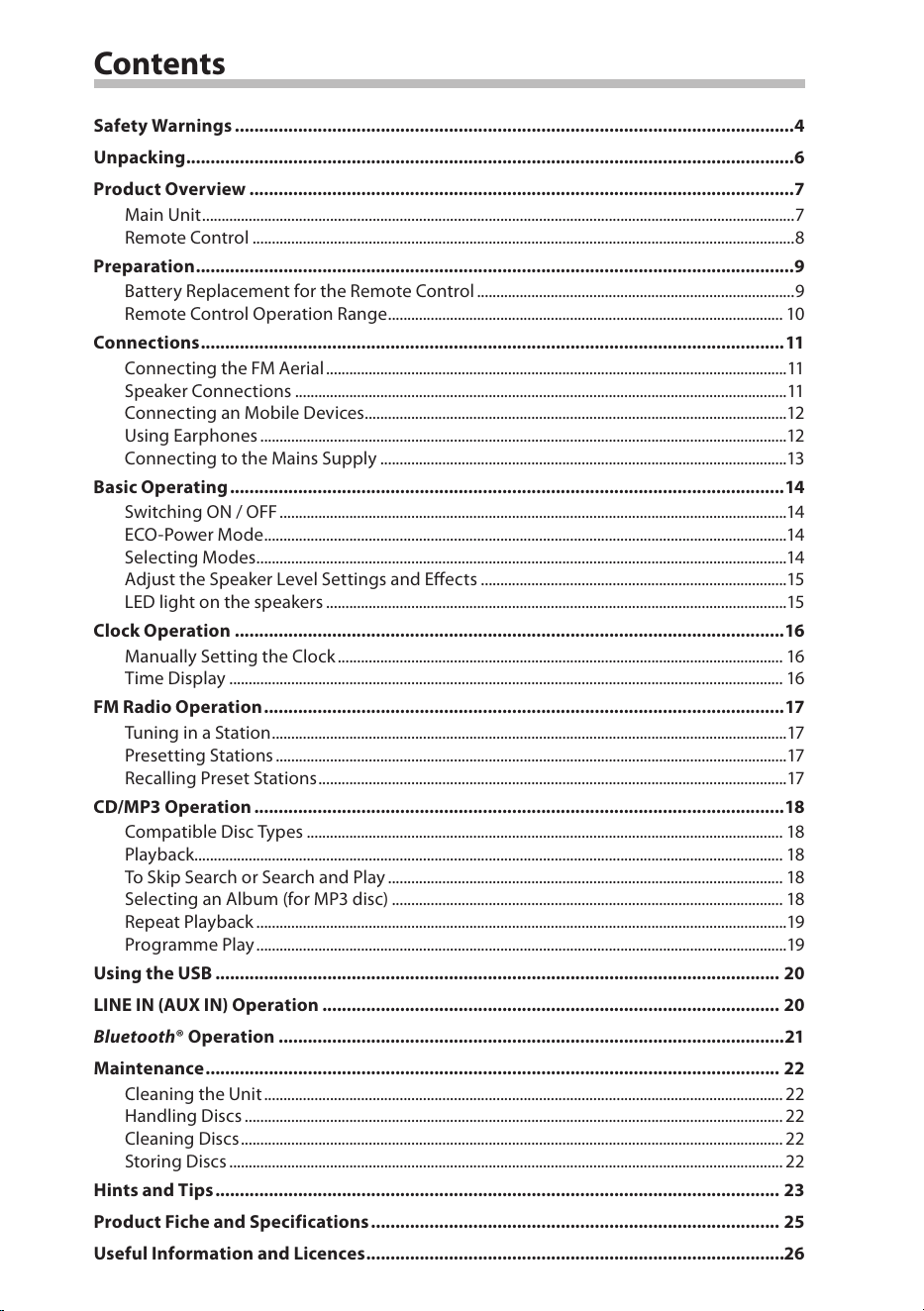

Contents
Safety Warnings ...................................................................................................................4
Unpacking .............................................................................................................................6
Product Overview ................................................................................................................7
Main Unit ......................................................................................................................................................... 7
Remote Control ............................................................................................................................................8
Preparation ...........................................................................................................................9

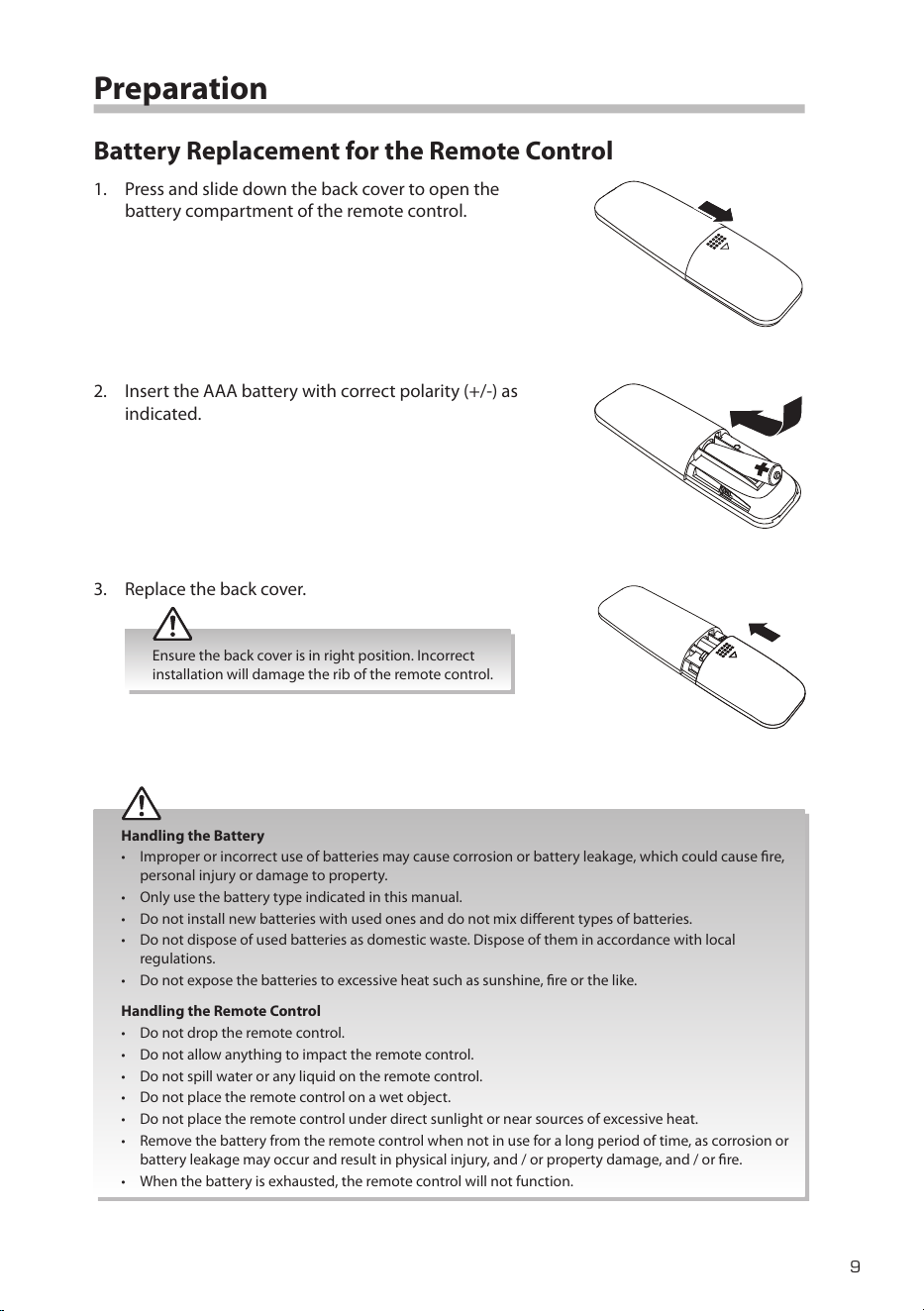

Battery Replacement for the Remote Control ..................................................................................9

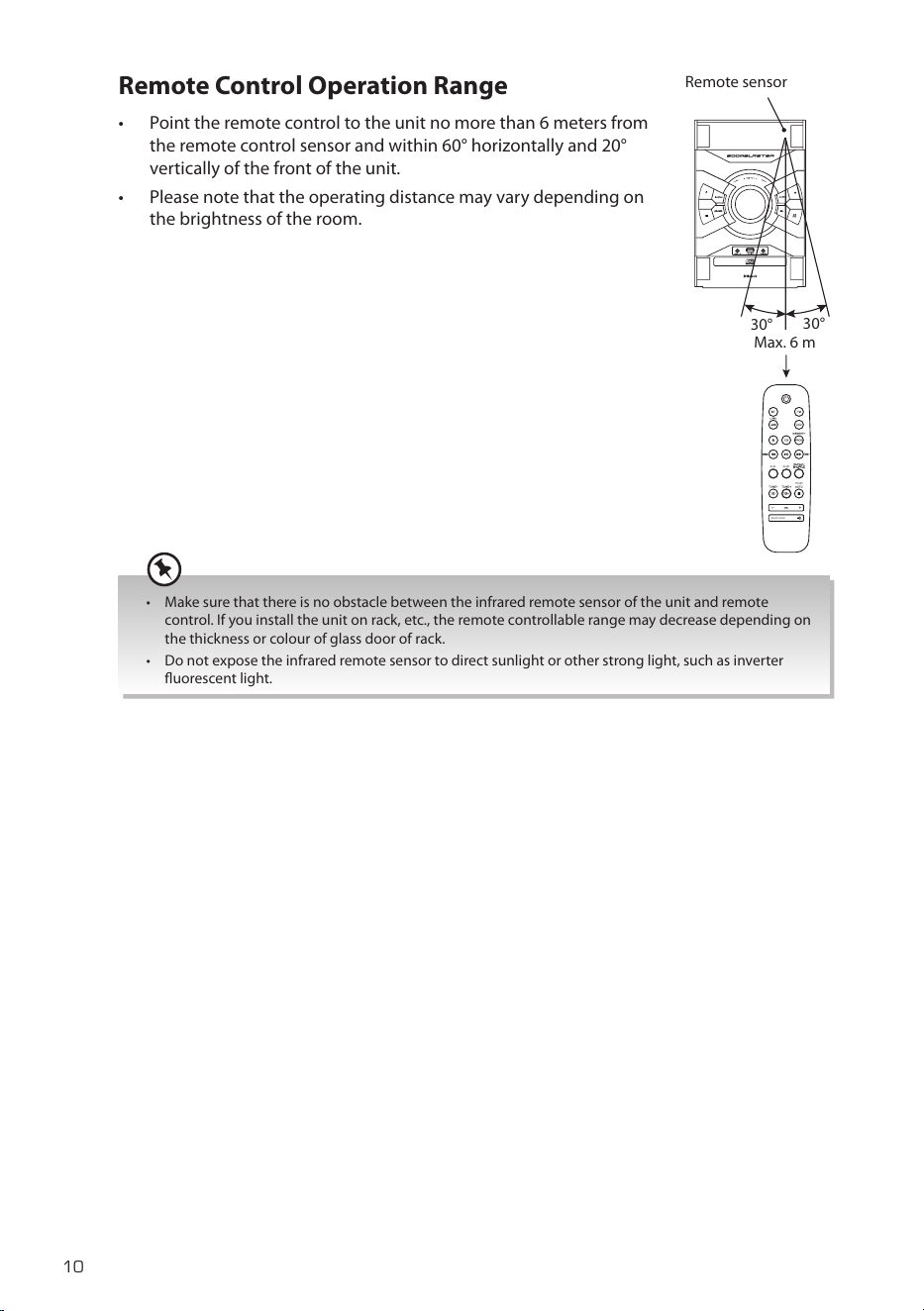

Remote Control Operation Range ...................................................................................................... 10
Connections ........................................................................................................................ 11

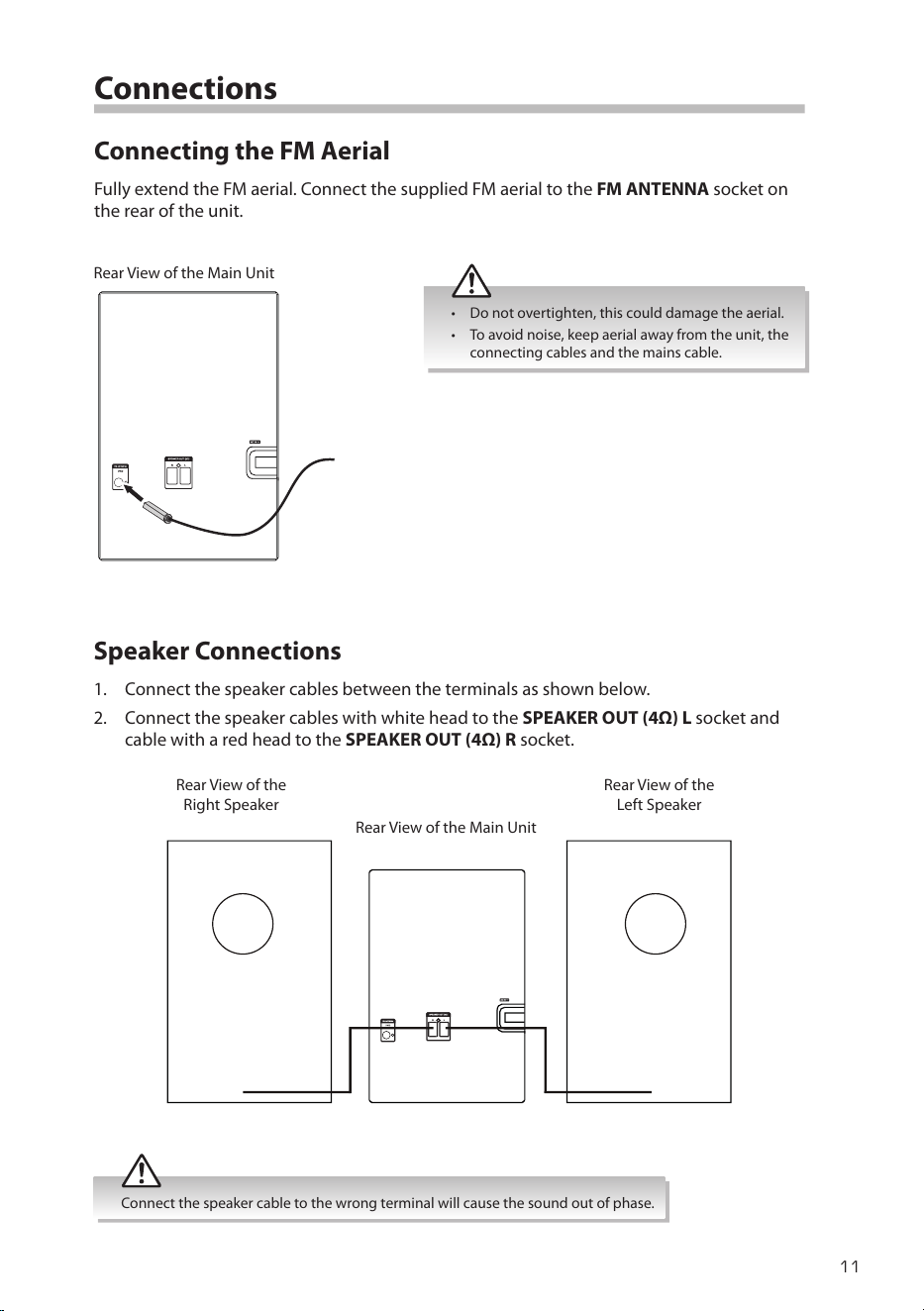

Connecting the FM Aerial .......................................................................................................................11
Speaker Connections ...............................................................................................................................11

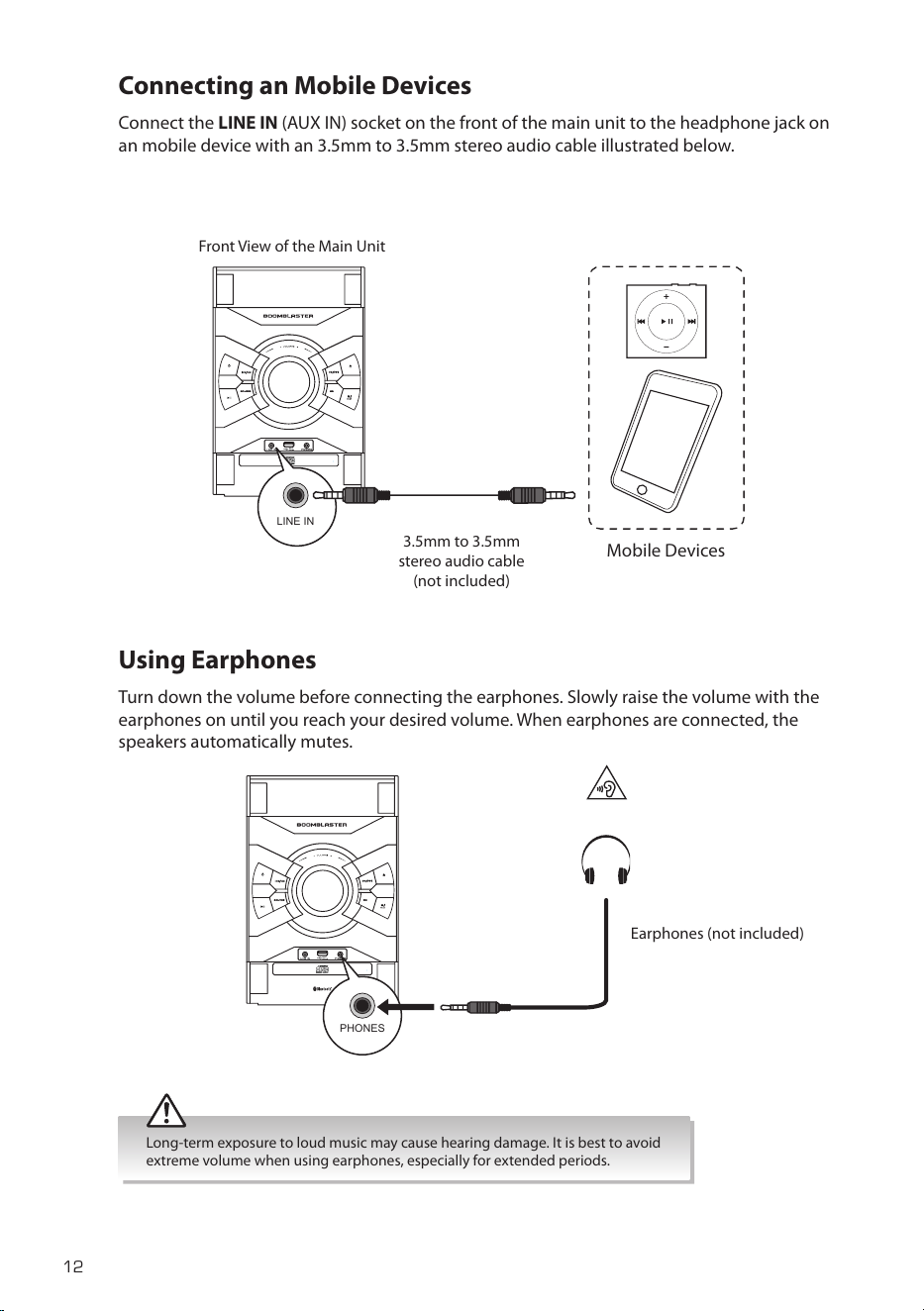

Connecting an Mobile Devices .............................................................................................................12
Using Earphones ........................................................................................................................................12

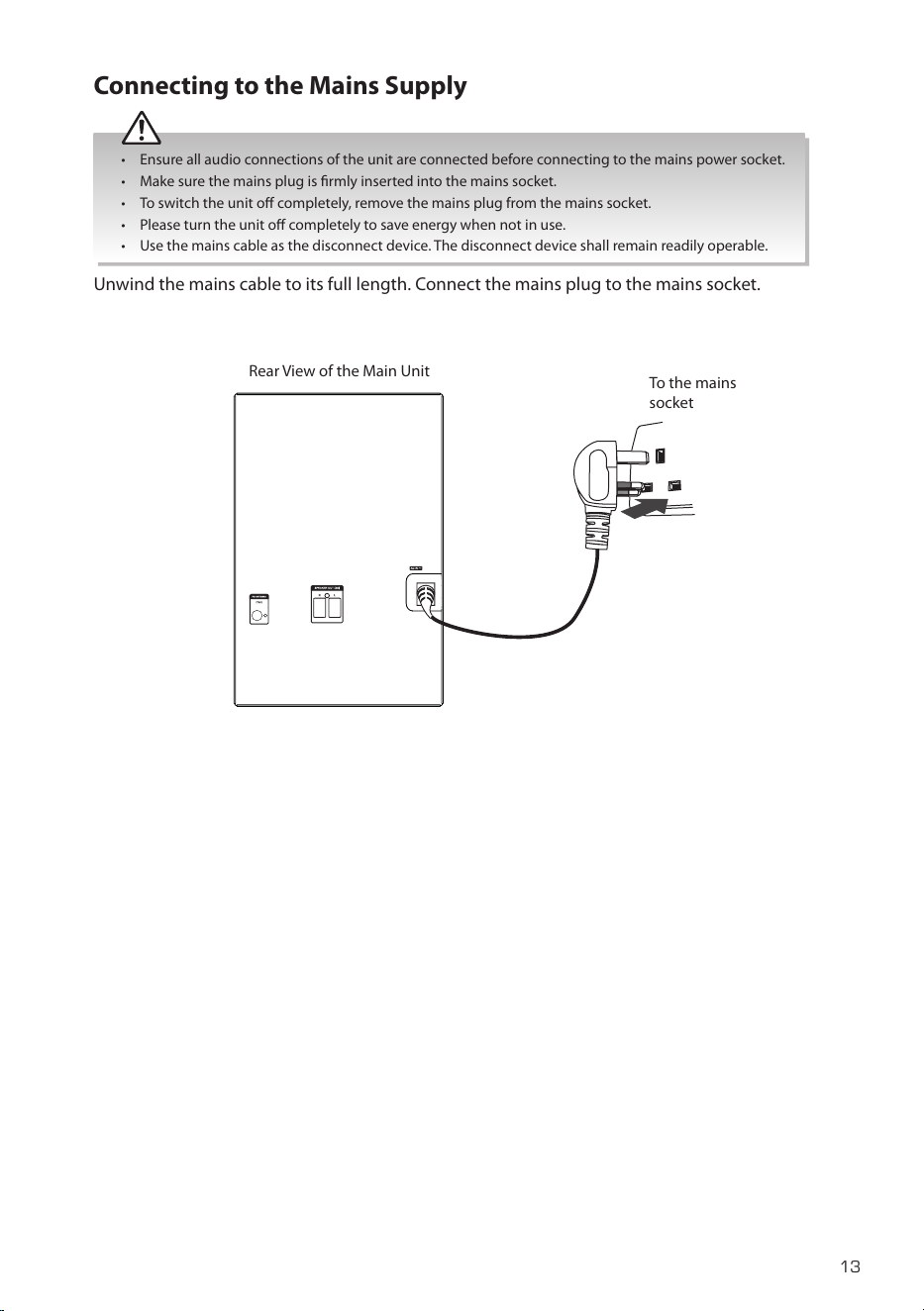

Connecting to the Mains Supply .........................................................................................................13

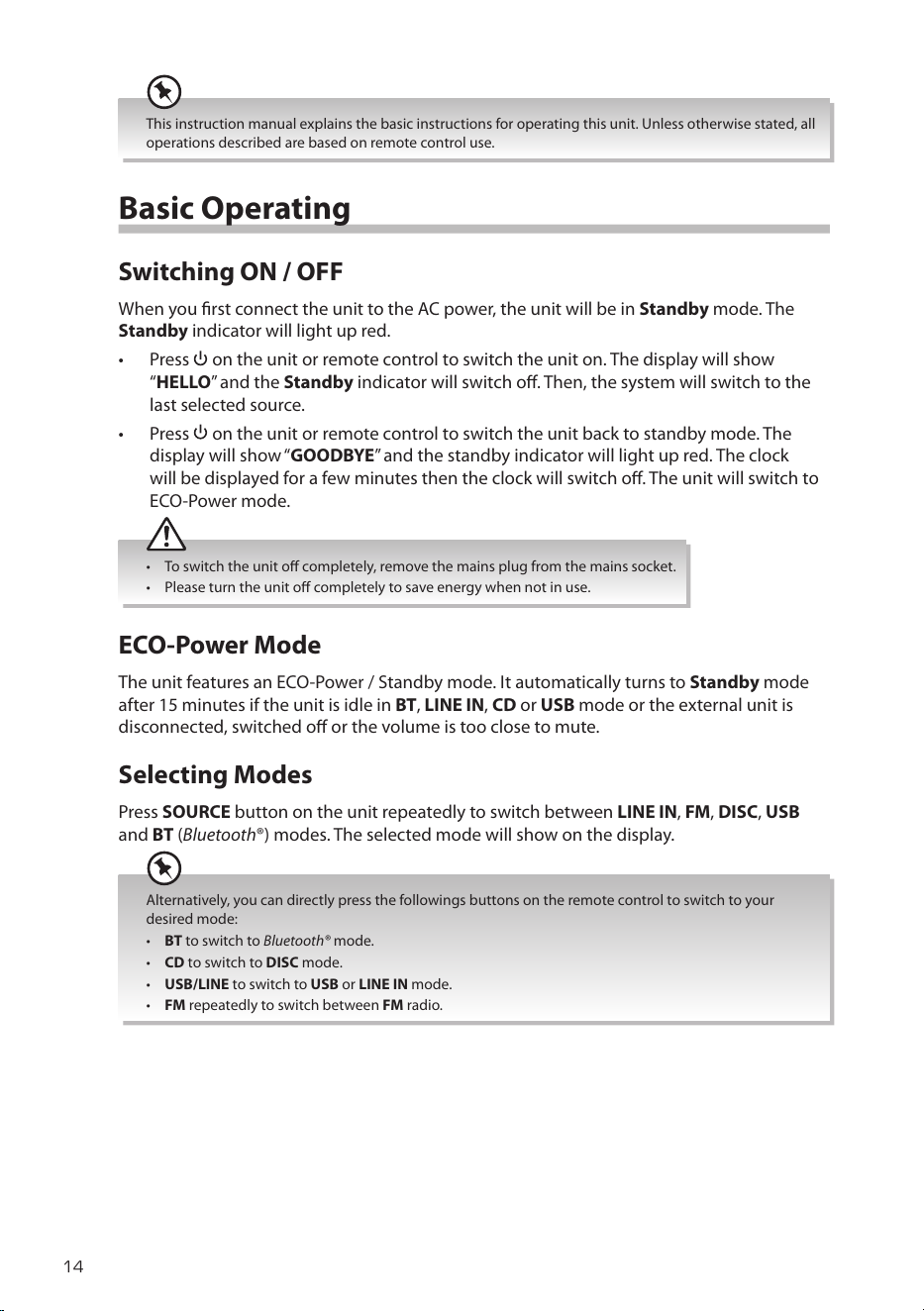

Basic Operating ..................................................................................................................14
Switching ON / OFF ...................................................................................................................................14
ECO-Power Mode .......................................................................................................................................14
Selecting Modes .........................................................................................................................................14

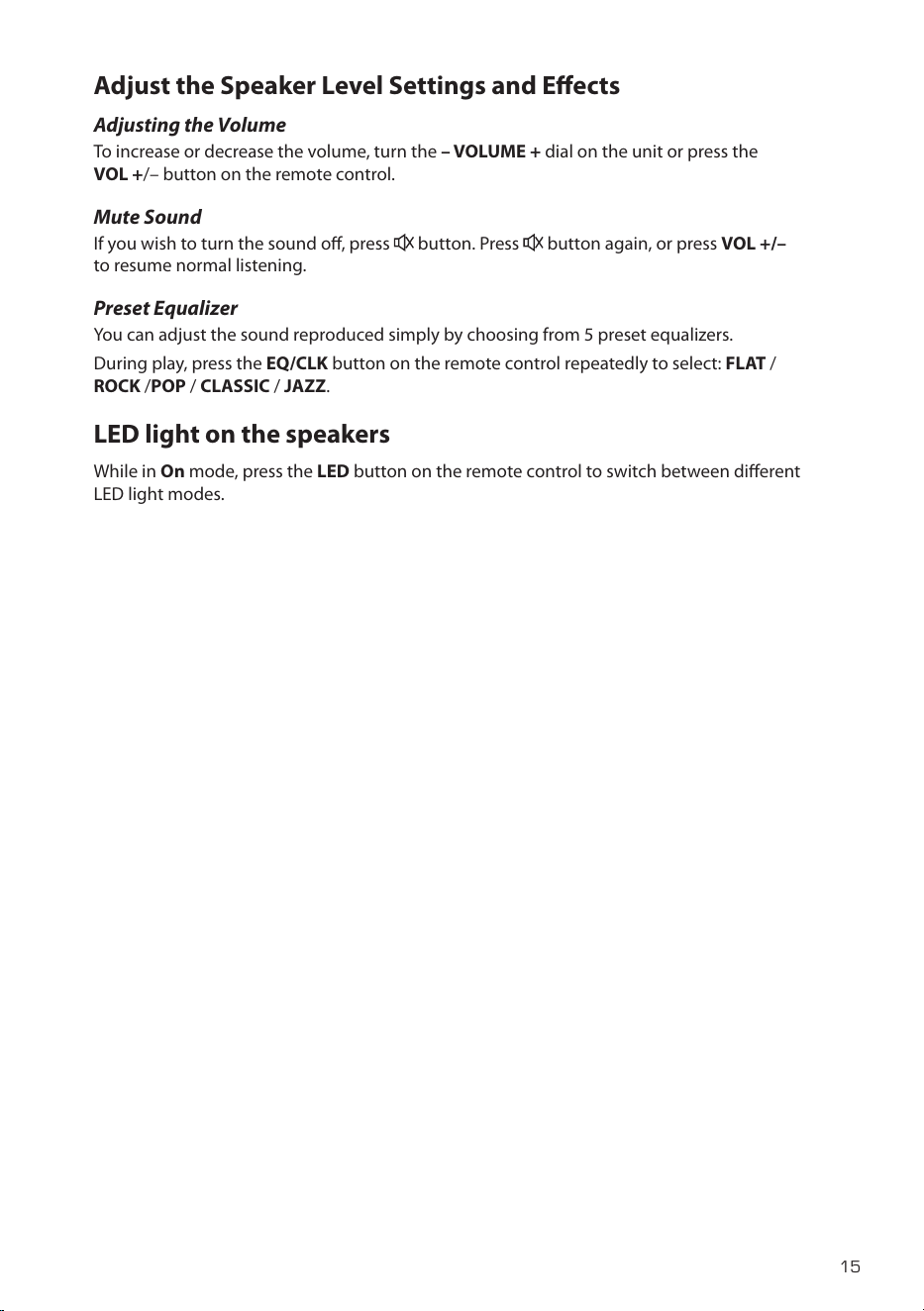

Adjust the Speaker Level Settings and Eects ...............................................................................15
LED light on the speakers .......................................................................................................................15

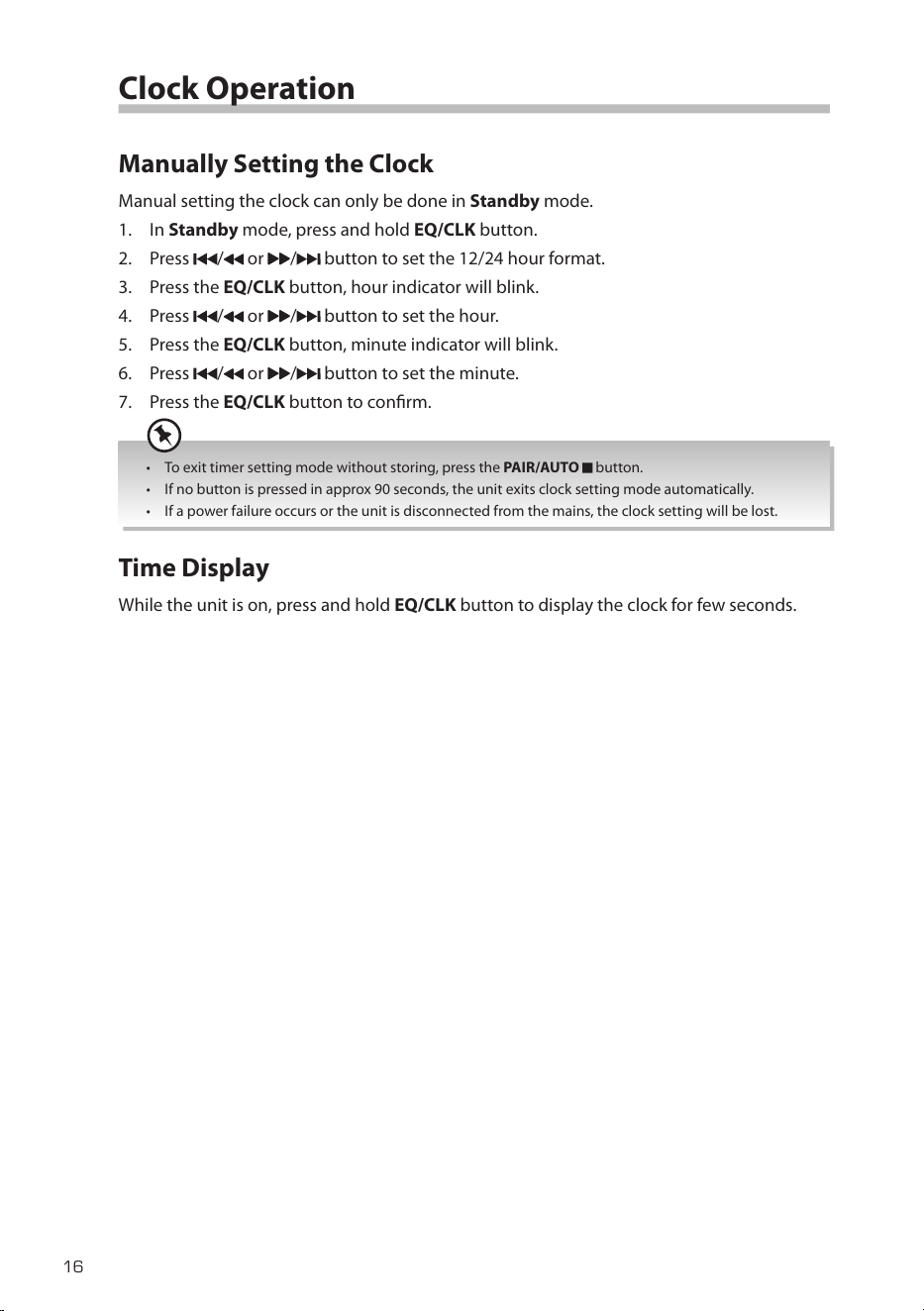

Clock Operation .................................................................................................................16
Manually Setting the Clock ................................................................................................................... 16
Time Display ............................................................................................................................................... 16

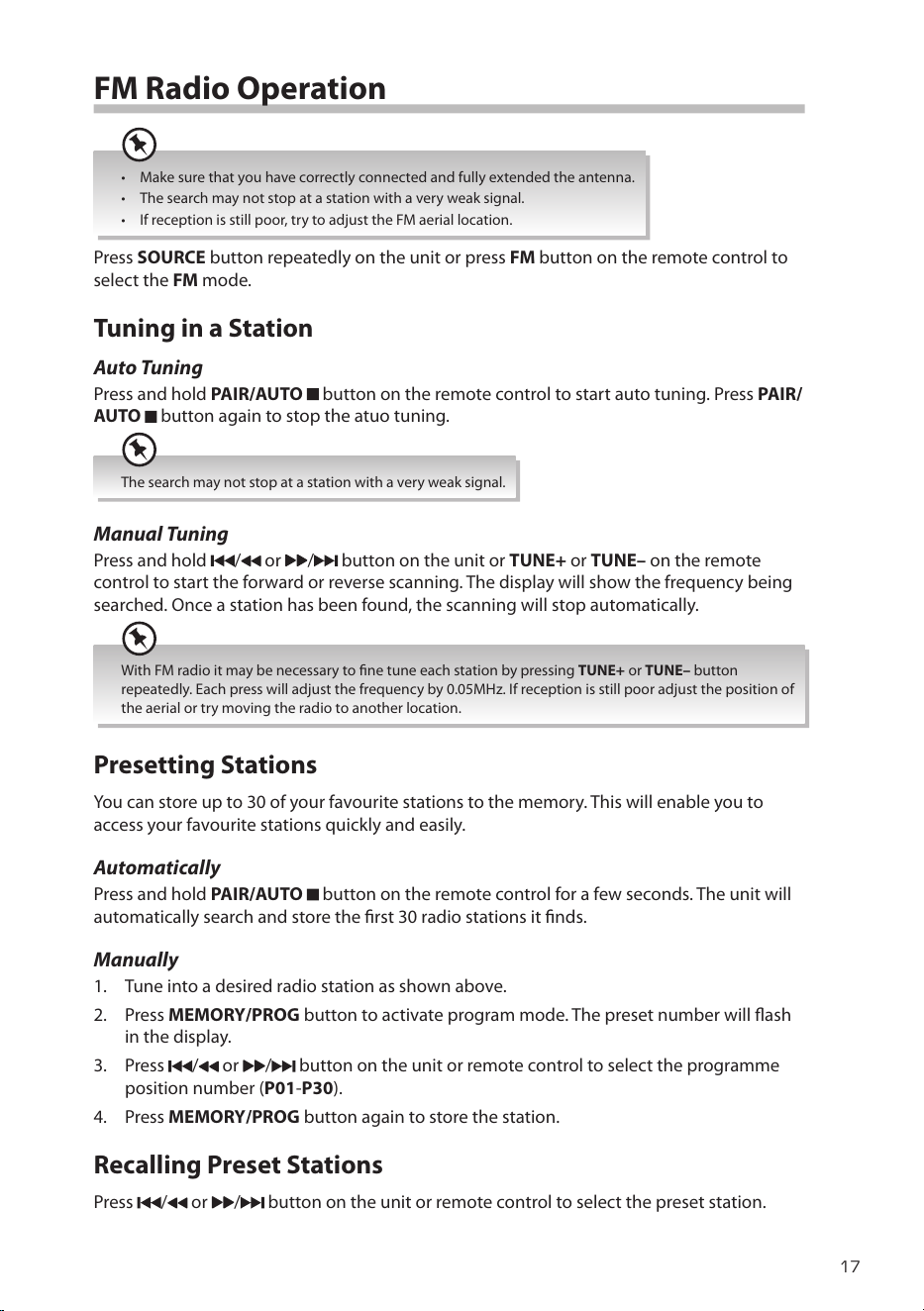

FM Radio Operation ...........................................................................................................17
Tuning in a Station ..................................................................................................................................... 17
Presetting Stations ....................................................................................................................................17
Recalling Preset Stations .........................................................................................................................17

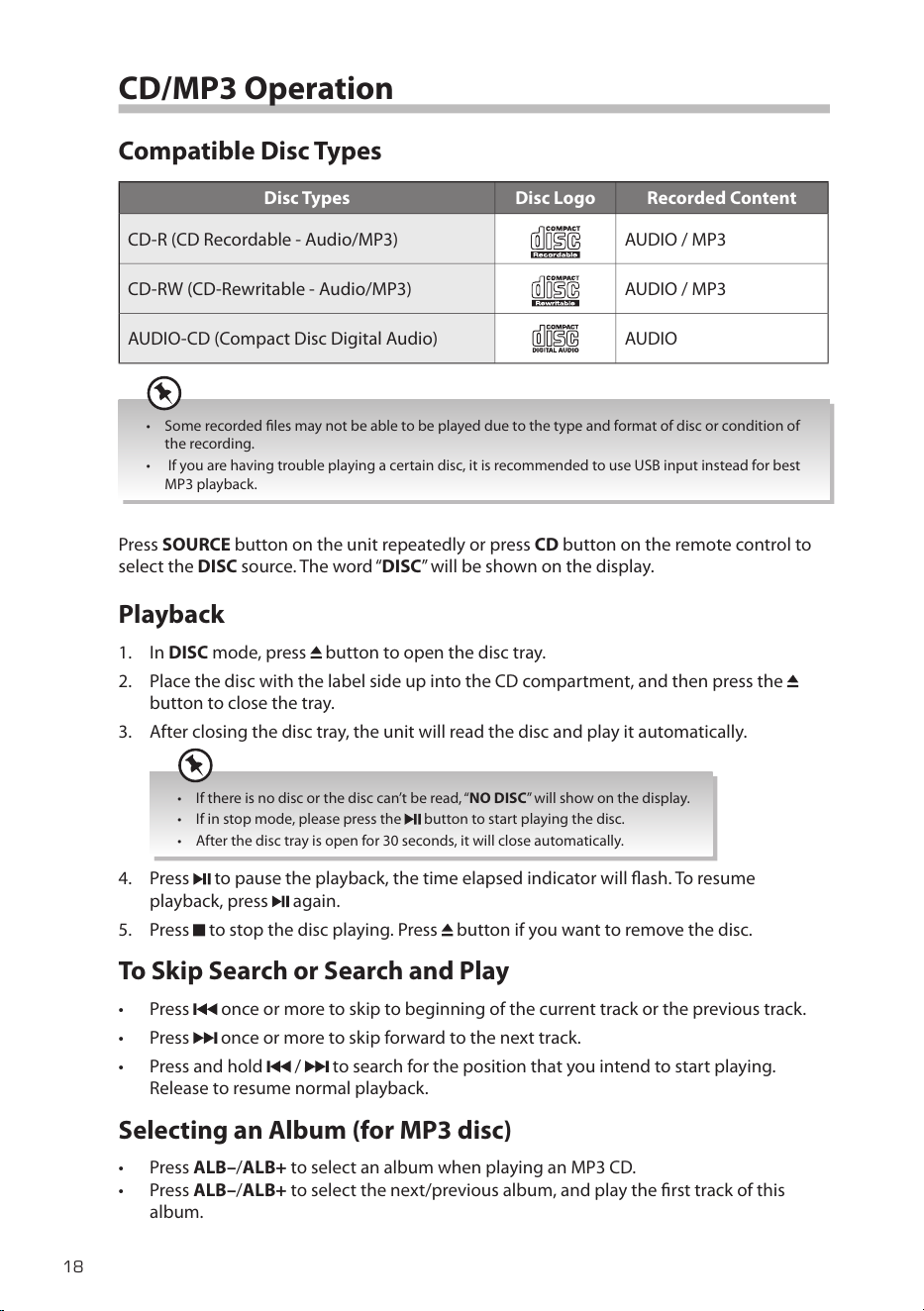

CD/MP3 Operation .............................................................................................................18
Compatible Disc Types ........................................................................................................................... 18
Playback ........................................................................................................................................................ 18
To Skip Search or Search and Play ...................................................................................................... 18
Selecting an Album (for MP3 disc) ..................................................................................................... 18

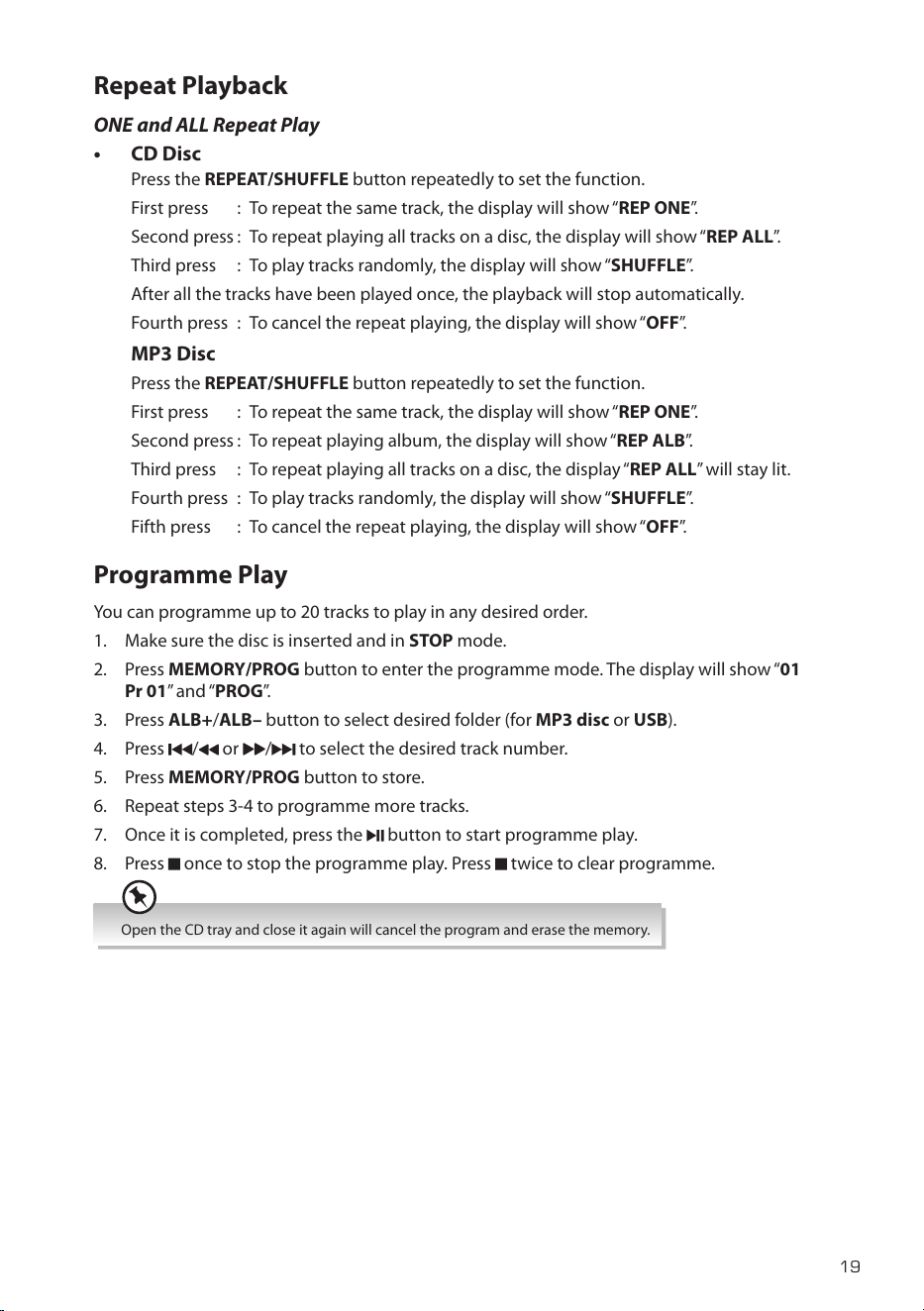

Repeat Playback .........................................................................................................................................19
Programme Play .........................................................................................................................................19

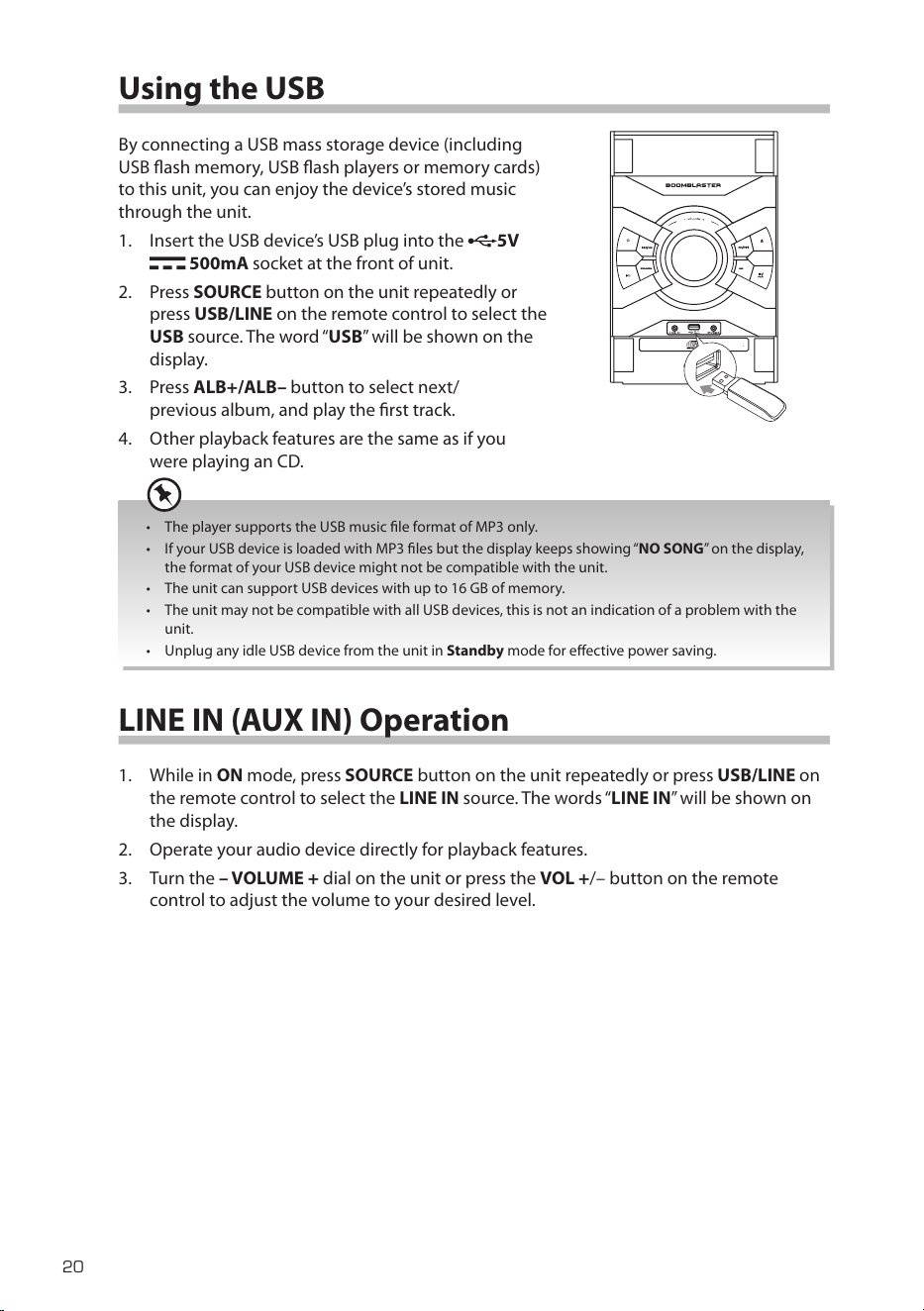

Using the USB .................................................................................................................... 20
LINE IN (AUX IN) Operation .............................................................................................. 20

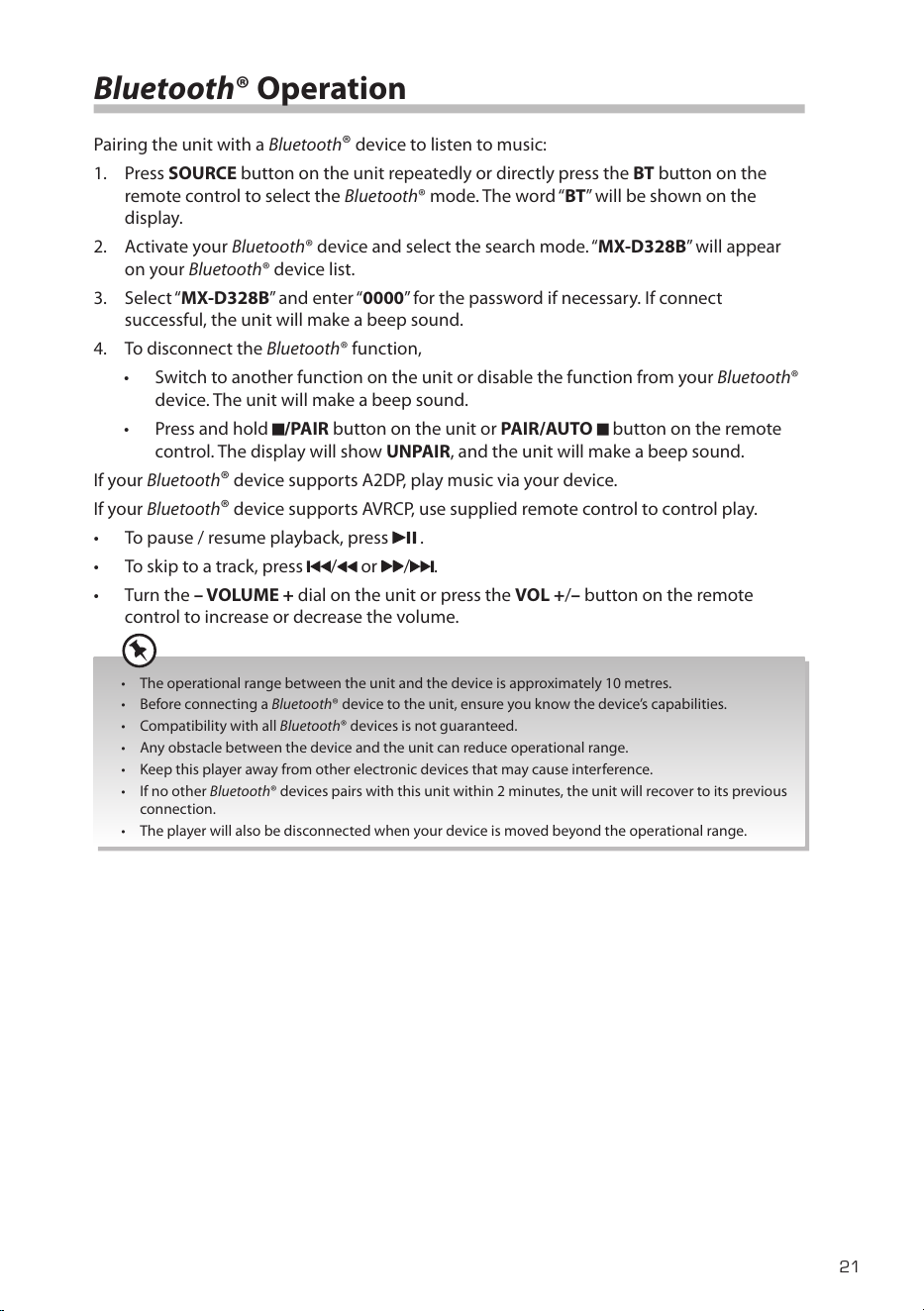

Bluetooth® Operation ........................................................................................................21

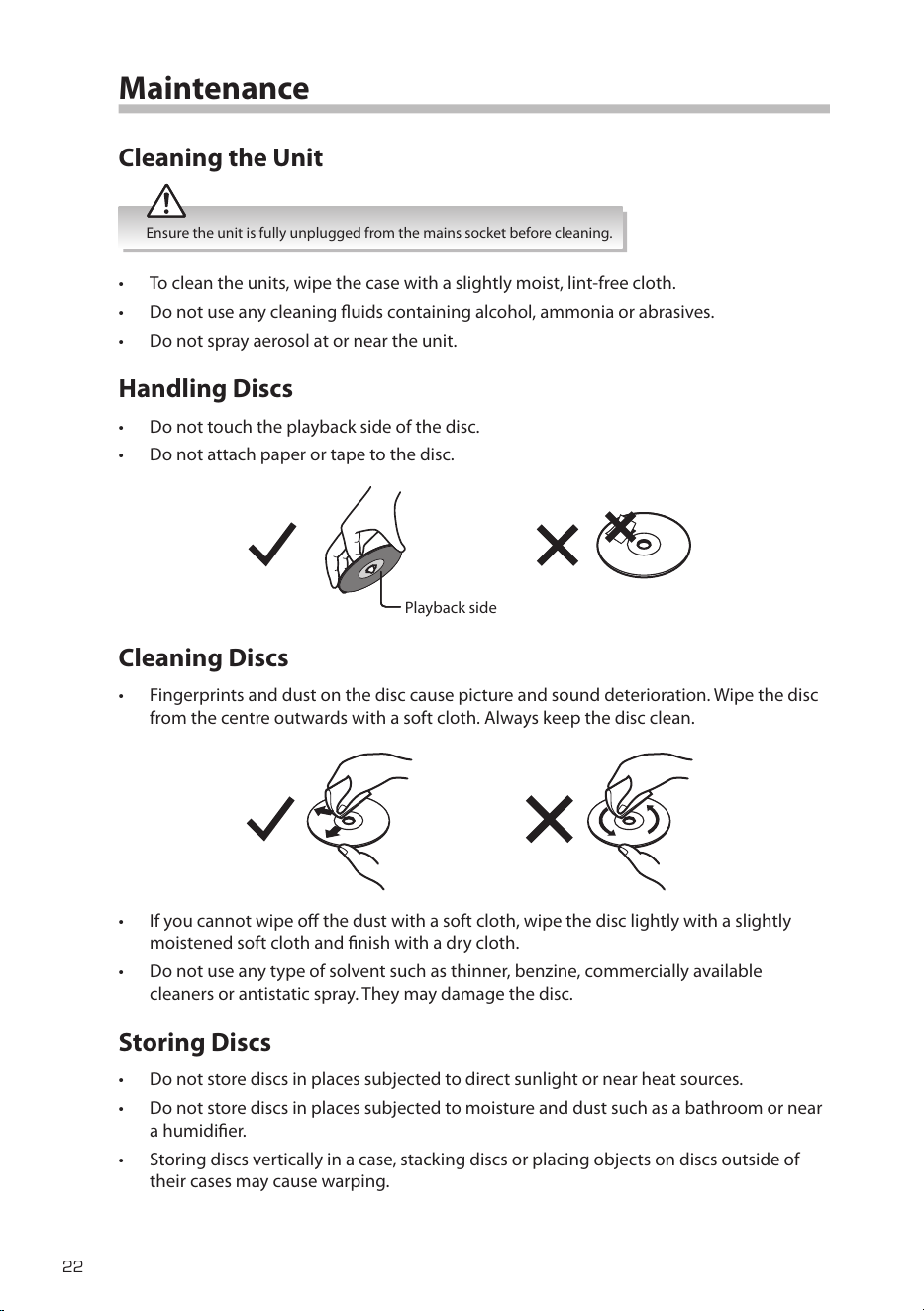

Maintenance ...................................................................................................................... 22
Cleaning the Unit ...................................................................................................................................... 22
Handling Discs ........................................................................................................................................... 22
Cleaning Discs ............................................................................................................................................ 22
Storing Discs ............................................................................................................................................... 22

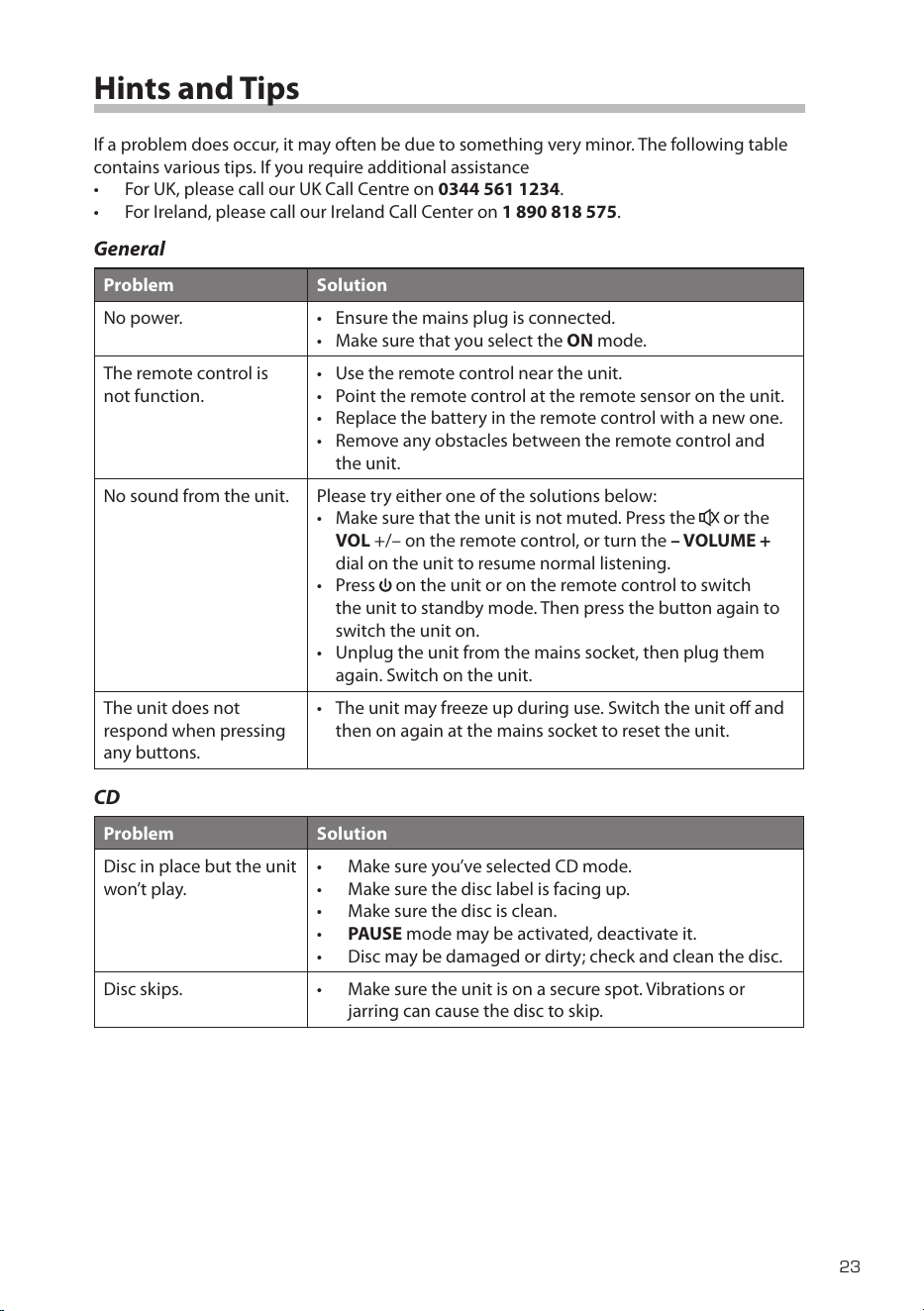

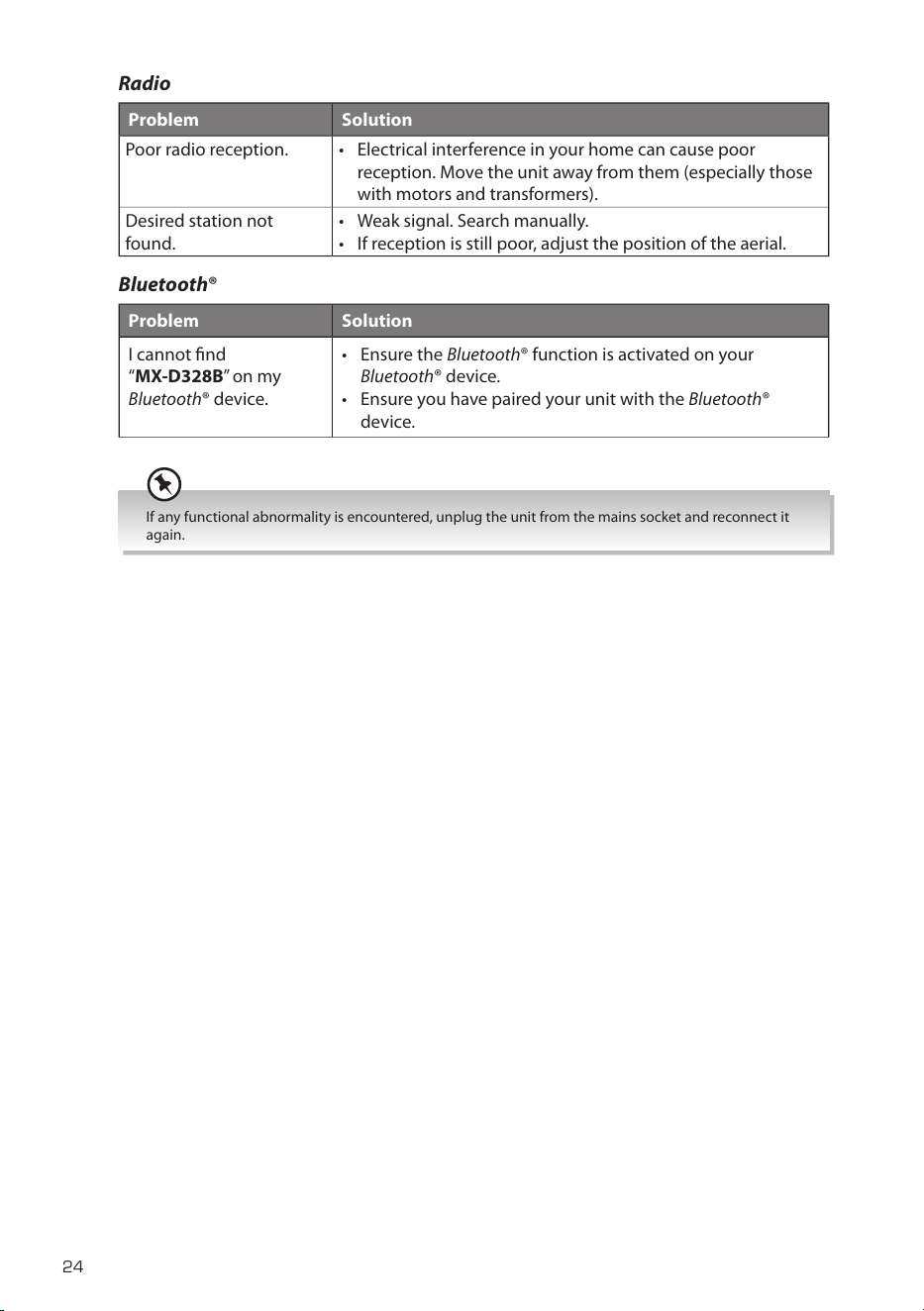

Hints and Tips .................................................................................................................... 23

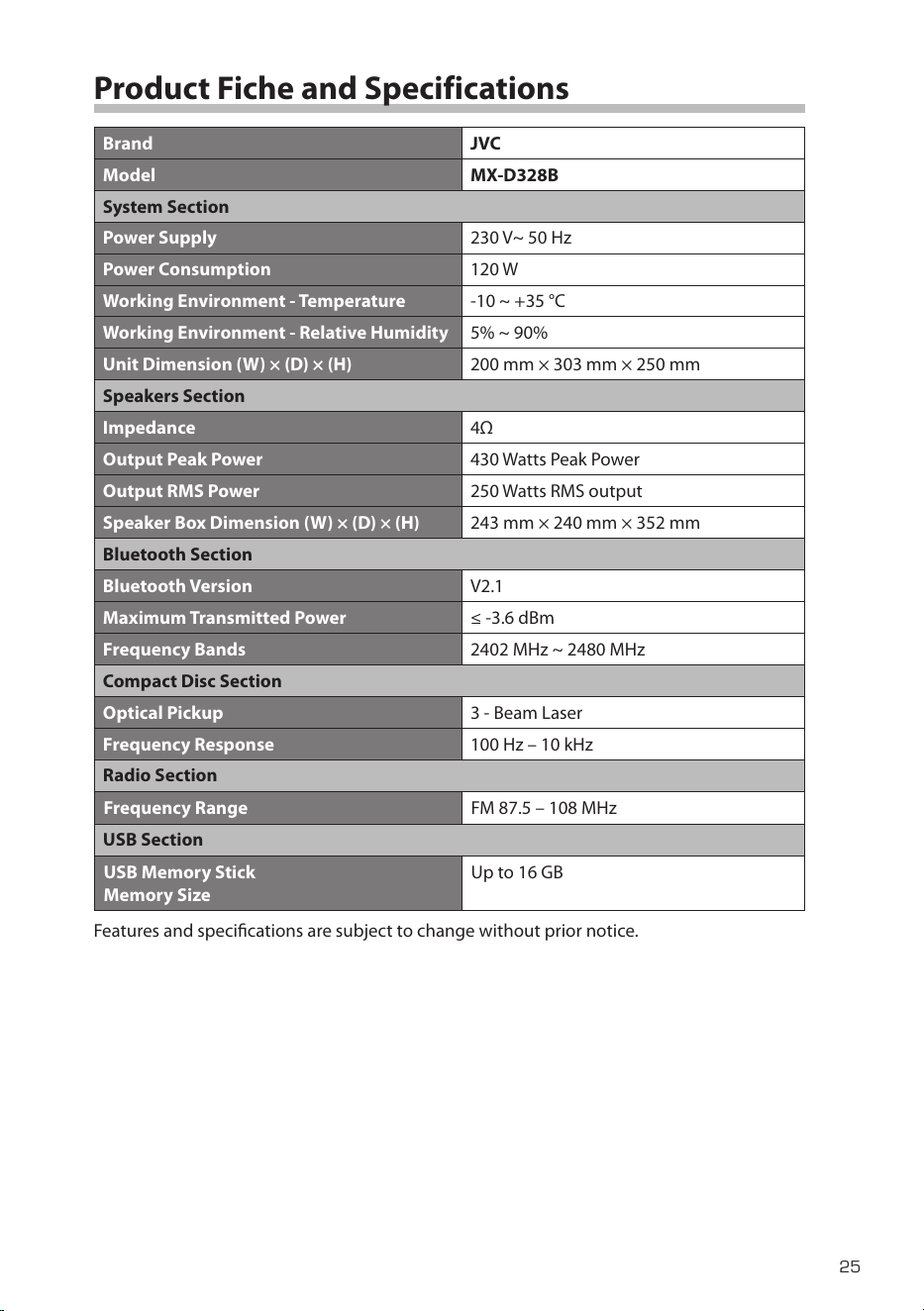

Product Fiche and Specifications .................................................................................... 25

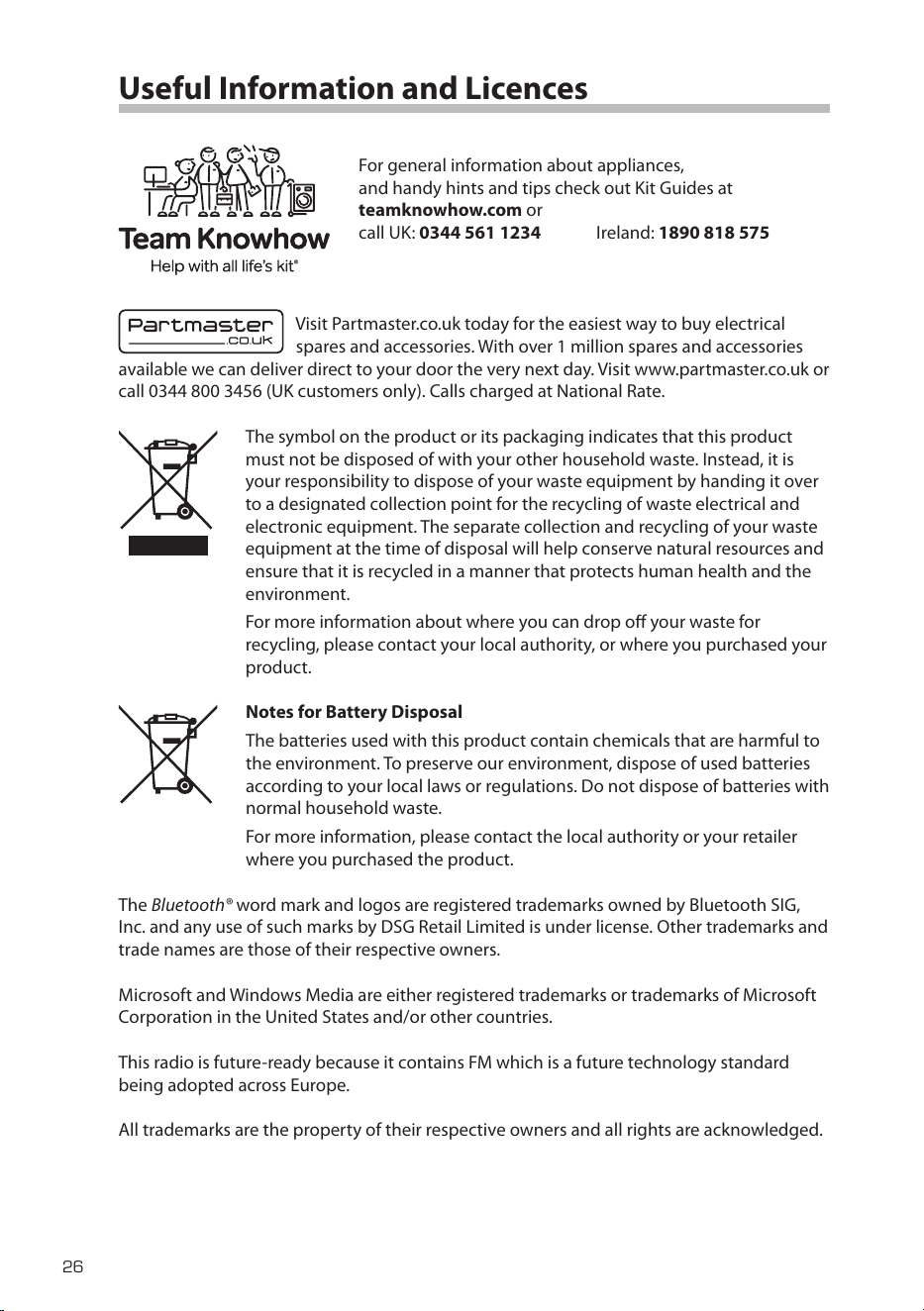

Useful Information and Licences ......................................................................................26
MX-D328B_IB_180427_grace.indd 3 27/4/18 5:44 pm
4

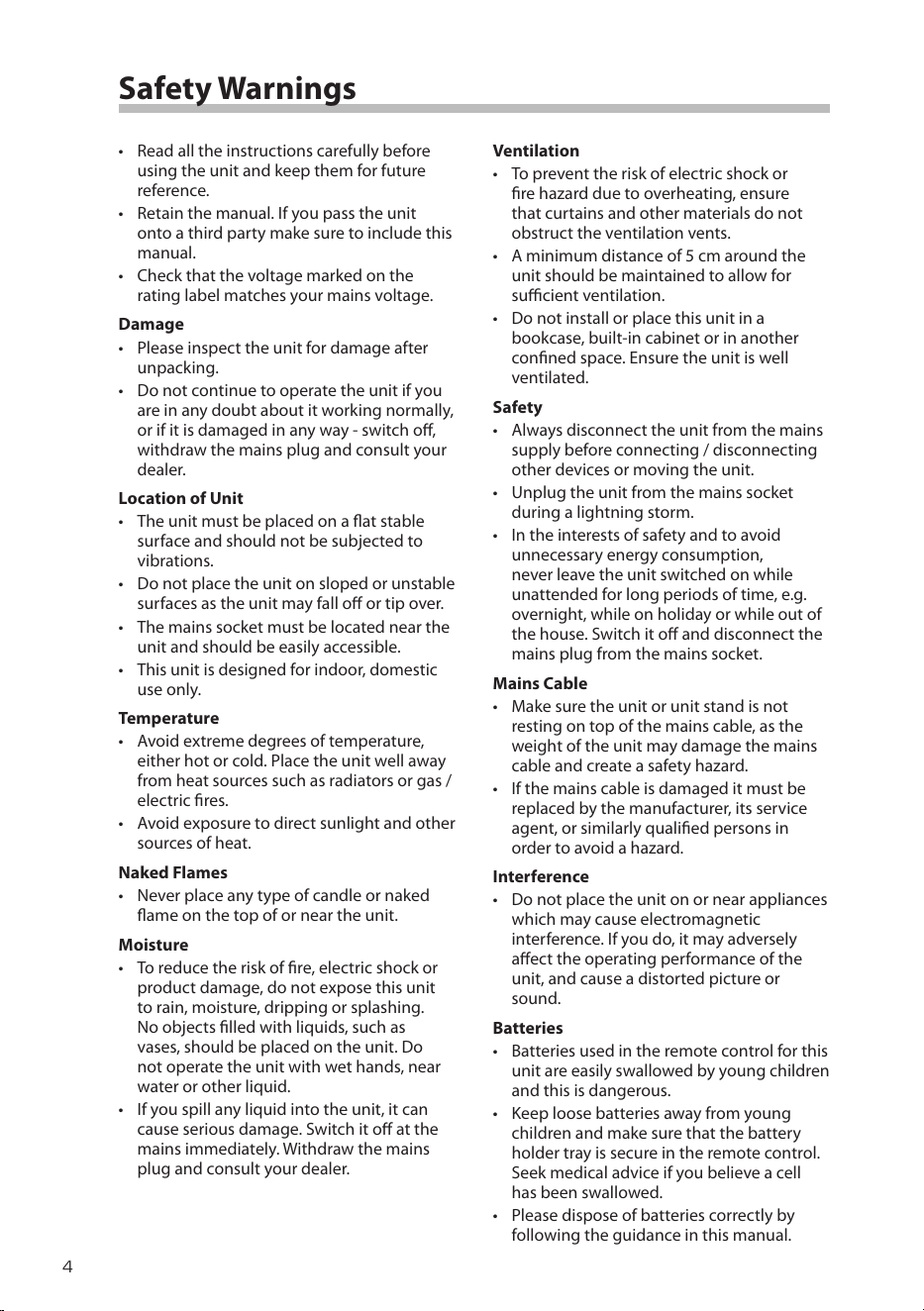

Safety Warnings
Ventilation
• To prevent the risk of electric shock or
re hazard due to overheating, ensure
that curtains and other materials do not
obstruct the ventilation vents.
• A minimum distance of 5 cm around the
unit should be maintained to allow for
sucient ventilation.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting / disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it o and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not
resting on top of the mains cable, as the
weight of the unit may damage the mains
cable and create a safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
aect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the remote control for this
unit are easily swallowed by young children
and this is dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the remote control.
Seek medical advice if you believe a cell
has been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch o,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a at stable
surface and should not be subjected to
vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor, domestic
use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas /
electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
Naked Flames
• Never place any type of candle or naked
ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing.
No objects lled with liquids, such as
vases, should be placed on the unit. Do
not operate the unit with wet hands, near
water or other liquid.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it o at the
mains immediately. Withdraw the mains
plug and consult your dealer.
MX-D328B_IB_180427_grace.indd 4 27/4/18 5:44 pm
5

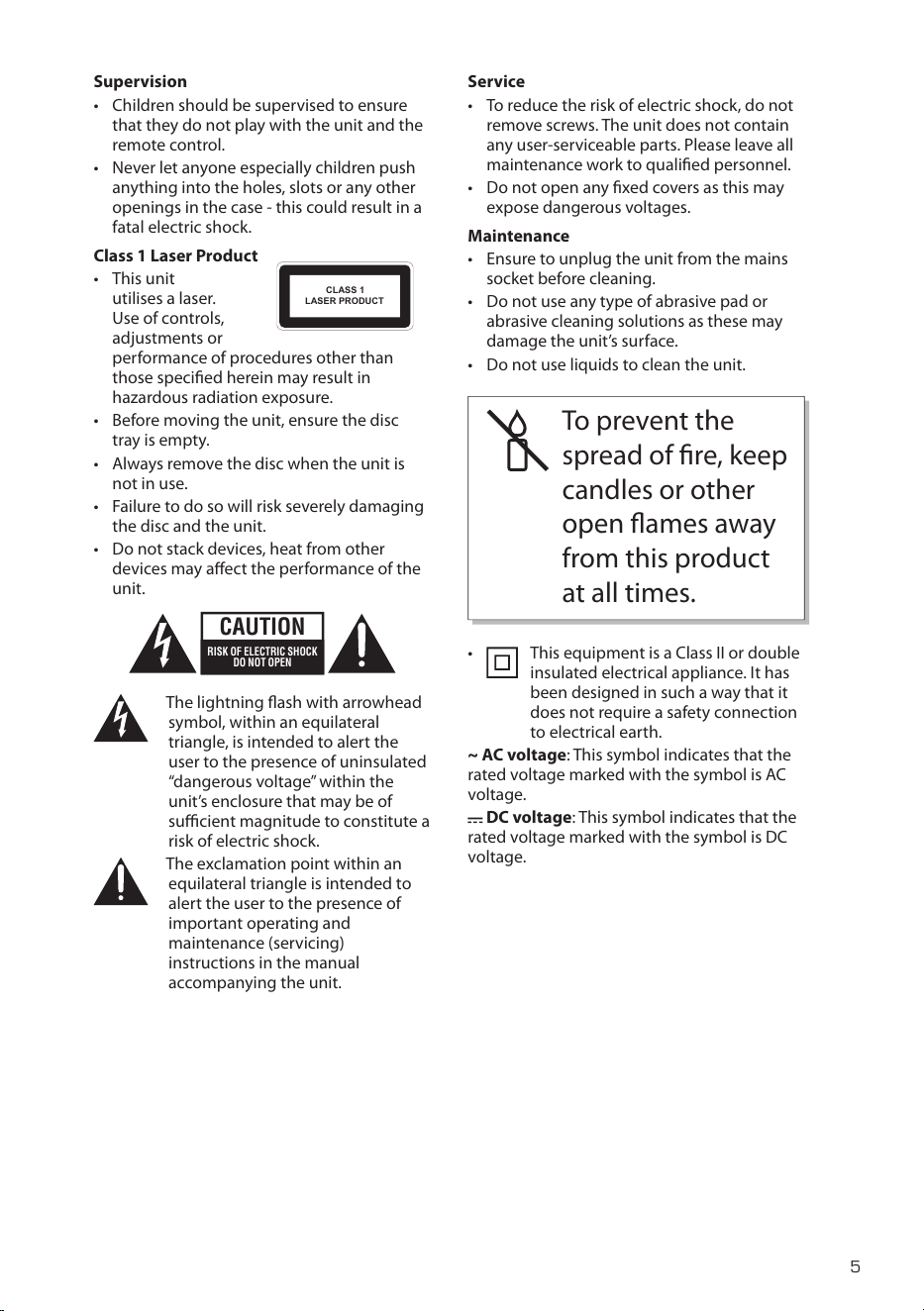

Supervision
• Children should be supervised to ensure
that they do not play with the unit and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
Class 1 Laser Product
CLASS 1
LASER PRODUCT
• This unit
utilises a laser.
Use of controls,
adjustments or
performance of procedures other than
those specied herein may result in
hazardous radiation exposure.
• Before moving the unit, ensure the disc
tray is empty.
• Always remove the disc when the unit is
not in use.
• Failure to do so will risk severely damaging
the disc and the unit.
• Do not stack devices, heat from other
devices may aect the performance of the
unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
unit’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or
abrasive cleaning solutions as these may
damage the unit’s surface.
• Do not use liquids to clean the unit.
To prevent the
spread of re, keep
candles or other
open ames away
from this product
at all times.
• This equipment is a Class II or double
insulated electrical appliance. It has
been designed in such a way that it
does not require a safety connection
to electrical earth.
~ AC voltage: This symbol indicates that the
rated voltage marked with the symbol is AC
voltage.
DC voltage: This symbol indicates that the
rated voltage marked with the symbol is DC
voltage.
MX-D328B_IB_180427_grace.indd 5 27/4/18 5:44 pm
6

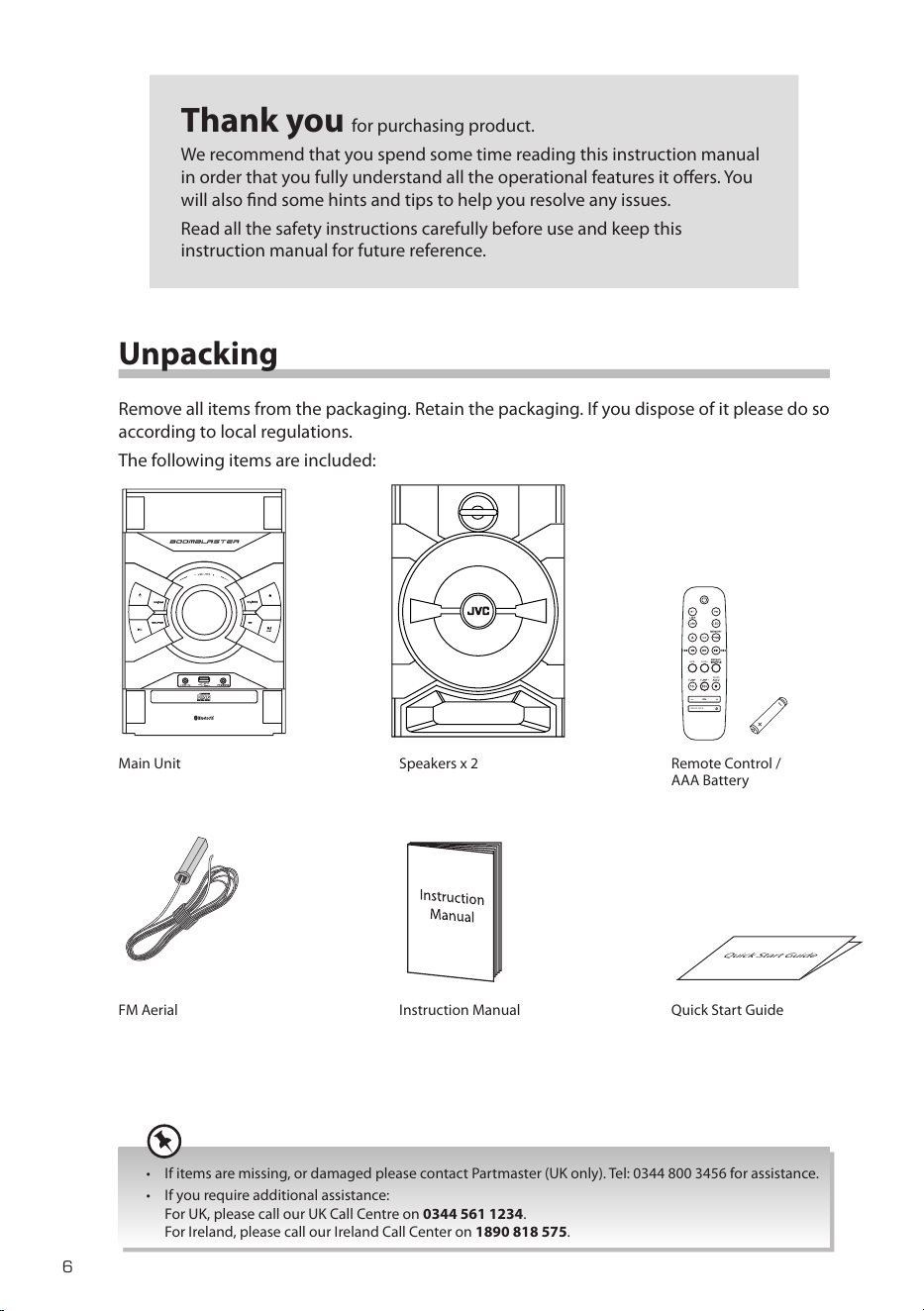

Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing product.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it oers. You
will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
Speakers x 2Main Unit
Instruction ManualFM Aerial Quick Start Guide
Remote Control /
AAA Battery
RM-S M XD32 8
PAIR/
ALB- ALB+
EQ/CL OCK
Quick Start Guide
• If items are missing, or damaged please contact Partmaster (UK only). Tel: 0344 800 3456 for assistance.
• If you require additional assistance:
For UK, please call our UK Call Centre on 0344 561 1234.
For Ireland, please call our Ireland Call Center on 1890 818 575.
MX-D328B_IB_180427_grace.indd 6 27/4/18 5:44 pm
7

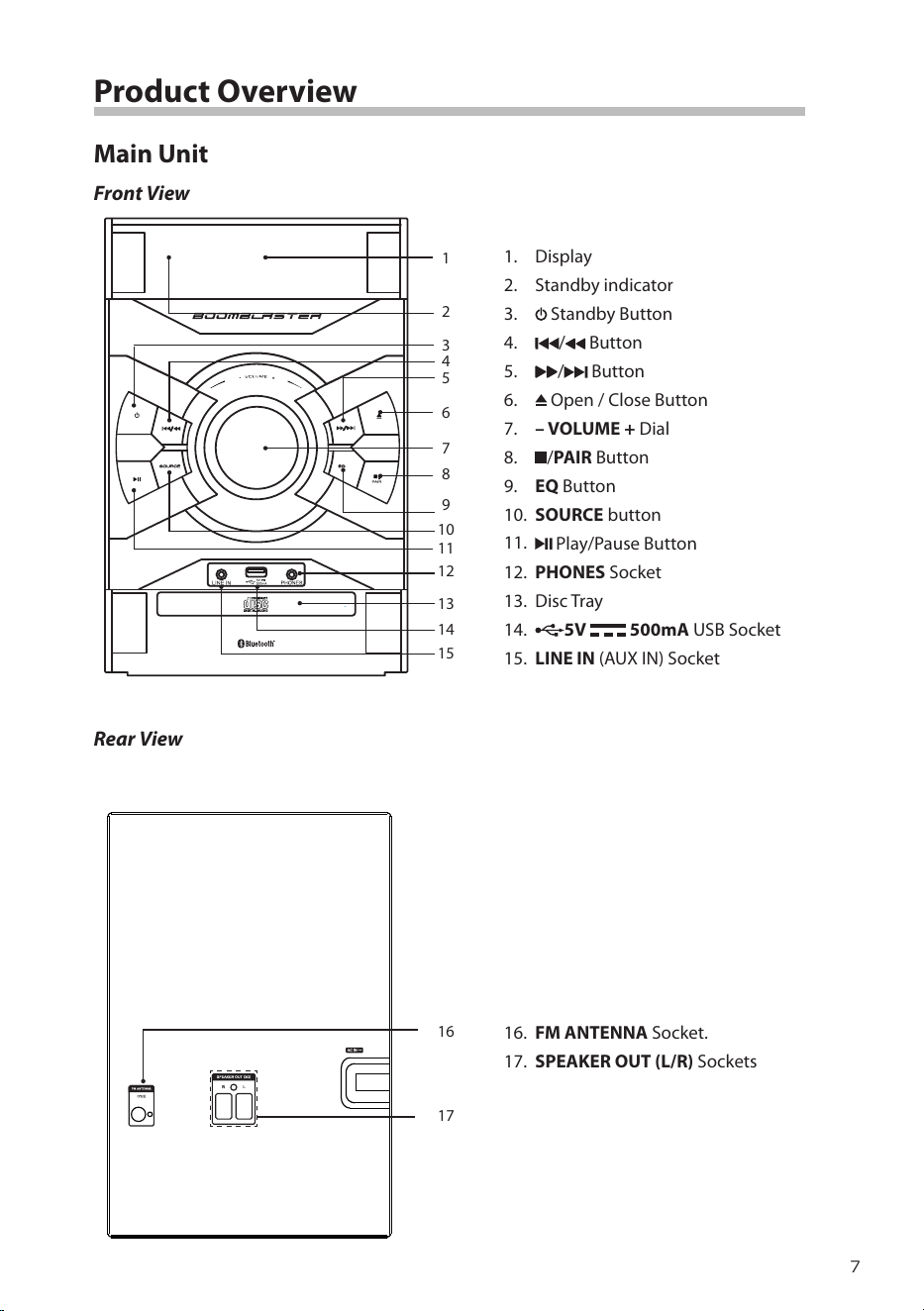

Product Overview
Main Unit
Front View
Rear View
1. Display
2. Standby indicator
3.
Standby Button
4.
/ Button
5.
/
Button
6.
Open / Close Button
7. – VOLUME + Dial
8.
/PAIR Button
9. EQ Button
10. SOURCE button
11.
Play/Pause Button
12. PHONES Socket
13. Disc Tray
14.
5V 500mA USB Socket
15. LINE IN (AUX IN) Socket
16. FM ANTENNA Socket.
17. SPEAKER OUT (L/R) Sockets
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MX-D328B_IB_180427_grace.indd 7 27/4/18 5:44 pm
8

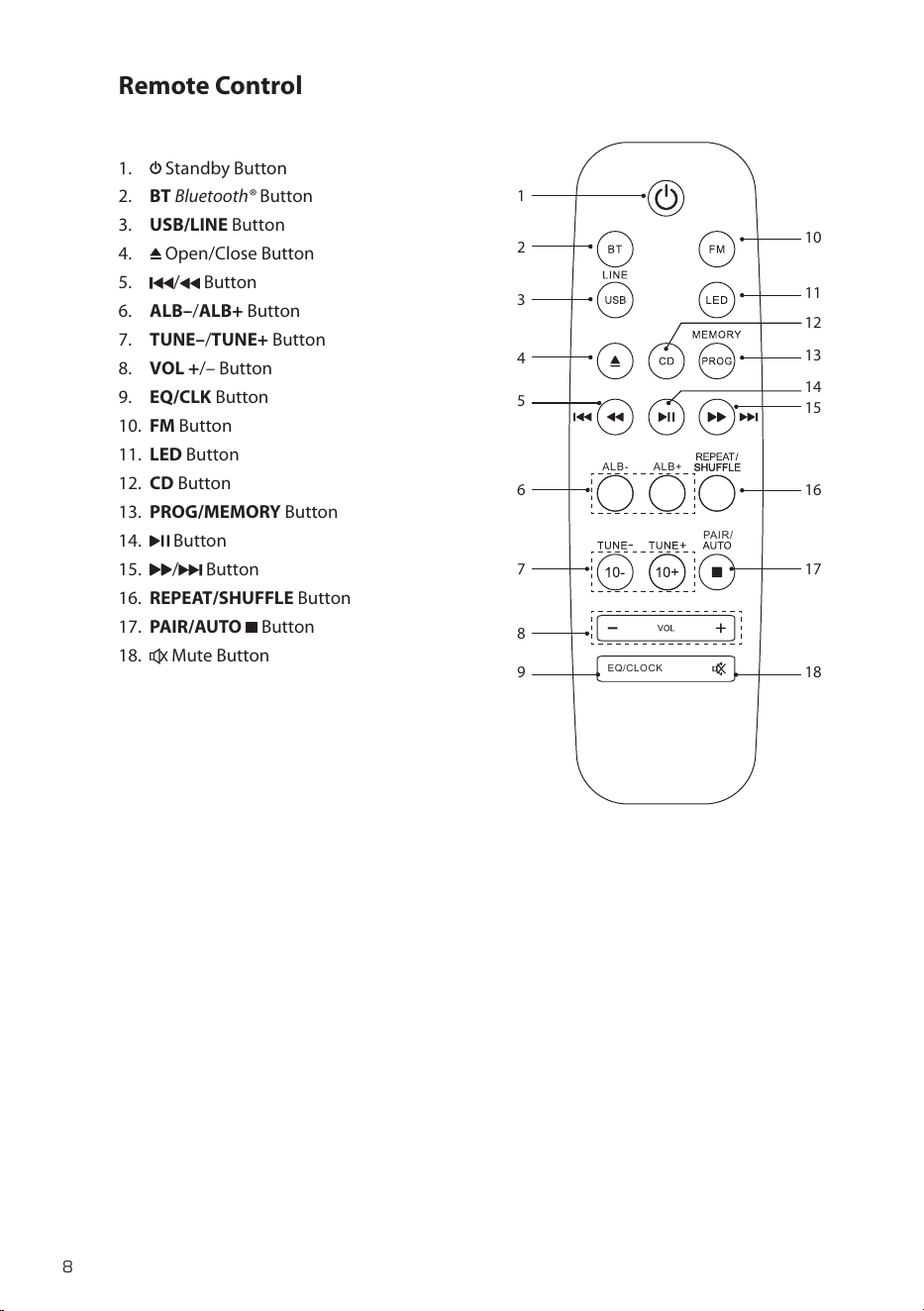

Remote Control
1. Standby Button
2. BT Bluetooth® Button
3. USB/LINE Button
4.
Open/Close Button
5.
/ Button
6. ALB–/ALB+ Button
7. TUNE–/TUNE+ Button
8. VOL +/– Button
9. EQ/CLK Button
10. FM Button
11. LED Button
12. CD Button
13. PROG/MEMORY Button
14.
Button
15.
/ Button
16. REPEAT/SHUFFLE Button
17. PAIR/AUTO
Button
18.
Mute Button
RM- SMXD328
PAIR/
ALB - ALB+
E Q /CLOC K
1
2
3
10
16
17
18
11
13
15
14
4
5
6
7
12
8
9
MX-D328B_IB_180427_grace.indd 8 27/4/18 5:44 pm
9
2. Insert the AAA battery with correct polarity (+/-) as
indicated.
Preparation
Battery Replacement for the Remote Control
1. Press and slide down the back cover to open the
battery compartment of the remote control.
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause re,
personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not install new batteries with used ones and do not mix dierent types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local
regulations.
• Do not expose the batteries to excessive heat such as sunshine, re or the like.
Handling the Remote Control
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or
battery leakage may occur and result in physical injury, and / or property damage, and / or re.
• When the battery is exhausted, the remote control will not function.
3. Replace the back cover.
Ensure the back cover is in right position. Incorrect
installation will damage the rib of the remote control.
MX-D328B_IB_180427_grace.indd 9 27/4/18 5:44 pm
10
Remote Control Operation Range
• Point the remote control to the unit no more than 6 meters from
the remote control sensor and within 60° horizontally and 20°
vertically of the front of the unit.
• Please note that the operating distance may vary depending on
the brightness of the room.
Remote sensor
• Make sure that there is no obstacle between the infrared remote sensor of the unit and remote
control. If you install the unit on rack, etc., the remote controllable range may decrease depending on
the thickness or colour of glass door of rack.
• Do not expose the infrared remote sensor to direct sunlight or other strong light, such as inverter
uorescent light.
30°
30°
Max. 6 m
RM-S MXD32 8
PAIR/
ALB- ALB+
EQ/C LOCK
MX-D328B_IB_180427_grace.indd 10 27/4/18 5:44 pm
11
Connections
Connecting the FM Aerial
Fully extend the FM aerial. Connect the supplied FM aerial to the FM ANTENNA socket on
the rear of the unit.
Speaker Connections
1. Connect the speaker cables between the terminals as shown below.
2. Connect the speaker cables with white head to the SPEAKER OUT (4Ω) L socket and
cable with a red head to the SPEAKER OUT (4Ω) R socket.
• Do not overtighten, this could damage the aerial.
• To avoid noise, keep aerial away from the unit, the
connecting cables and the mains cable.
Rear View of the Main Unit
Rear View of the Main Unit
Rear View of the
Right Speaker
Rear View of the
Left Speaker
Connect the speaker cable to the wrong terminal will cause the sound out of phase.
MX-D328B_IB_180427_grace.indd 11 27/4/18 5:44 pm
12
Connecting an Mobile Devices
Connect the LINE IN (AUX IN) socket on the front of the main unit to the headphone jack on
an mobile device with an 3.5mm to 3.5mm stereo audio cable illustrated below.
Using Earphones
Turn down the volume before connecting the earphones. Slowly raise the volume with the
earphones on until you reach your desired volume. When earphones are connected, the
speakers automatically mutes.
LINE IN
3.5mm to 3.5mm
stereo audio cable
(not included)
Front View of the Main Unit
Long-term exposure to loud music may cause hearing damage. It is best to avoid
extreme volume when using earphones, especially for extended periods.
PHONES
Earphones (not included)
Mobile Devices
MX-D328B_IB_180427_grace.indd 12 27/4/18 5:44 pm
13
To the mains
socket
Rear View of the Main Unit
Connecting to the Mains Supply
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
• Make sure the mains plug is rmly inserted into the mains socket.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
• Use the mains cable as the disconnect device. The disconnect device shall remain readily operable.
Unwind the mains cable to its full length. Connect the mains plug to the mains socket.
MX-D328B_IB_180427_grace.indd 13 27/4/18 5:44 pm
14
Basic Operating
Switching ON / OFF
When you rst connect the unit to the AC power, the unit will be in Standby mode. The
Standby indicator will light up red.
• Press
on the unit or remote control to switch the unit on. The display will show
“HELLO” and the Standby indicator will switch o. Then, the system will switch to the
last selected source.
• Press
on the unit or remote control to switch the unit back to standby mode. The
display will show “GOODBYE” and the standby indicator will light up red. The clock
will be displayed for a few minutes then the clock will switch o. The unit will switch to
ECO-Power mode.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
ECO-Power Mode
The unit features an ECO-Power / Standby mode. It automatically turns to Standby mode
after 15 minutes if the unit is idle in BT, LINE IN, CD or USB mode or the external unit is
disconnected, switched o or the volume is too close to mute.
Selecting Modes
Press SOURCE button on the unit repeatedly to switch between LINE IN, FM, DISC, USB
and BT (Bluetooth®) modes. The selected mode will show on the display.
Alternatively, you can directly press the followings buttons on the remote control to switch to your
desired mode:
• BT to switch to Bluetooth® mode.
• CD to switch to DISC mode.
• USB/LINE to switch to USB or LINE IN mode.
• FM repeatedly to switch between FM radio.
This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all
operations described are based on remote control use.
MX-D328B_IB_180427_grace.indd 14 27/4/18 5:44 pm
15
Adjust the Speaker Level Settings and Eects
Adjusting the Volume
To increase or decrease the volume, turn the – VOLUME + dial on the unit or press the
VOL +/– button on the remote control.
Mute Sound
If you wish to turn the sound o, press button. Press button again, or press VOL +/–
to resume normal listening.
Preset Equalizer
You can adjust the sound reproduced simply by choosing from 5 preset equalizers.
During play, press the EQ/CLK button on the remote control repeatedly to select: FLAT /
ROCK /POP / CLASSIC / JAZZ.
LED light on the speakers
While in On mode, press the LED button on the remote control to switch between dierent
LED light modes.
MX-D328B_IB_180427_grace.indd 15 27/4/18 5:44 pm
16
Clock Operation
Manually Setting the Clock
Manual setting the clock can only be done in Standby mode.
1. In Standby mode, press and hold EQ/CLK button.
2. Press
/ or /
button to set the 12/24 hour format.
3. Press the EQ/CLK button, hour indicator will blink.
4. Press
/ or /
button
to set the hour.
5. Press the EQ/CLK button, minute indicator will blink.
6. Press
/ or /
button to set the minute.
7. Press the EQ/CLK button to conrm.
• To exit timer setting mode without storing, press the PAIR/AUTO button.
• If no button is pressed in approx 90 seconds, the unit exits clock setting mode automatically.
• If a power failure occurs or the unit is disconnected from the mains, the clock setting will be lost.
Time Display
While the unit is on, press and hold EQ/CLK button to display the clock for few seconds.
MX-D328B_IB_180427_grace.indd 16 27/4/18 5:44 pm
17
FM Radio Operation
• Make sure that you have correctly connected and fully extended the antenna.
• The search may not stop at a station with a very weak signal.
• If reception is still poor, try to adjust the FM aerial location.
Press SOURCE button repeatedly on the unit or press FM button on the remote control to
select the FM mode.
Tuning in a Station
Auto Tuning
Press and hold PAIR/AUTO button on the remote control to start auto tuning. Press PAIR/
AUTO button again to stop the atuo tuning.
The search may not stop at a station with a very weak signal.
Manual Tuning
Press and hold / or /
button on the unit or TUNE+ or TUNE– on the remote
control to start the forward or reverse scanning. The display will show the frequency being
searched. Once a station has been found, the scanning will stop automatically.
With FM radio it may be necessary to ne tune each station by pressing TUNE+ or TUNE– button
repeatedly. Each press will adjust the frequency by 0.05MHz. If reception is still poor adjust the position of
the aerial or try moving the radio to another location.
Presetting Stations
You can store up to 30 of your favourite stations to the memory. This will enable you to
access your favourite stations quickly and easily.
Automatically
Press and hold PAIR/AUTO button on the remote control for a few seconds. The unit will
automatically search and store the rst 30 radio stations it nds.
Manually
1. Tune into a desired radio station as shown above.
2. Press MEMORY/PROG button to activate program mode. The preset number will ash
in the display.
3. Press
/ or / button on the unit or remote control to select the programme
position number (P01-P30).
4. Press MEMORY/PROG button again to store the station.
Recalling Preset Stations
Press / or / button on the unit or remote control to select the preset station.
MX-D328B_IB_180427_grace.indd 17 27/4/18 5:44 pm
18
CD/MP3 Operation
Compatible Disc Types
Disc Types Disc Logo Recorded Content
CD-R (CD Recordable - Audio/MP3)
AUDIO / MP3
CD-RW (CD-Rewritable - Audio/MP3)
AUDIO / MP3
AUDIO-CD (Compact Disc Digital Audio)
AUDIO
• Some recorded les may not be able to be played due to the type and format of disc or condition of
the recording.
• If you are having trouble playing a certain disc, it is recommended to use USB input instead for best
MP3 playback.
Press SOURCE button on the unit repeatedly or press CD button on the remote control to
select the DISC source. The word “DISC” will be shown on the display.
Playback
1. In DISC mode, press button to open the disc tray.
2. Place the disc with the label side up into the CD compartment, and then press the
button to close the tray.
3. After closing the disc tray, the unit will read the disc and play it automatically.
• If there is no disc or the disc can’t be read, “NO DISC” will show on the display.
• If in stop mode, please press the
button to start playing the disc.
• After the disc tray is open for 30 seconds, it will close automatically.
4. Press to pause the playback, the time elapsed indicator will ash. To resume
playback, press again.
5. Press
to stop the disc playing. Press button if you want to remove the disc.
To Skip Search or Search and Play
• Press once or more to skip to beginning of the current track or the previous track.
• Press
once or more to skip forward to the next track.
• Press and hold
/ to search for the position that you intend to start playing.
Release to resume normal playback.
Selecting an Album (for MP3 disc)
• Press ALB–/ALB+ to select an album when playing an MP3 CD.
• Press ALB–/ALB+ to select the next/previous album, and play the rst track of this
album.
MX-D328B_IB_180427_grace.indd 18 27/4/18 5:44 pm
19
Repeat Playback
ONE and ALL Repeat Play
• CD Disc
Press the REPEAT/SHUFFLE button repeatedly to set the function.
First press : To repeat the same track, the display will show “REP ONE”.
Second press : To repeat playing all tracks on a disc, the display will show “REP ALL”.
Third press : To play tracks randomly, the display will show “SHUFFLE”.
After all the tracks have been played once, the playback will stop automatically.
Fourth press : To cancel the repeat playing, the display will show “OFF”.
MP3 Disc
Press the REPEAT/SHUFFLE button repeatedly to set the function.
First press : To repeat the same track, the display will show “REP ONE”.
Second press : To repeat playing album, the display will show “REP ALB”.
Third press : To repeat playing all tracks on a disc, the display “REP ALL” will stay lit.
Fourth press : To play tracks randomly, the display will show “SHUFFLE”.
Fifth press : To cancel the repeat playing, the display will show “OFF”.
Programme Play
You can programme up to 20 tracks to play in any desired order.
1. Make sure the disc is inserted and in STOP mode.
2. Press MEMORY/PROG button to enter the programme mode. The display will show “01
Pr 01” and “PROG”.
3. Press ALB+/ALB– button to select desired folder (for MP3 disc or USB).
4. Press
/ or /
to select the desired track number.
5. Press MEMORY/PROG button to store.
6. Repeat steps 3-4 to programme more tracks.
7. Once it is completed, press the
button to start programme play.
8. Press
once to stop the programme play. Press twice to clear programme.
Open the CD tray and close it again will cancel the program and erase the memory.
MX-D328B_IB_180427_grace.indd 19 27/4/18 5:44 pm
20
Using the USB
By connecting a USB mass storage device (including
USB ash memory, USB ash players or memory cards)
to this unit, you can enjoy the device’s stored music
through the unit.
1. Insert the USB device’s USB plug into the
5V
500mA socket at the front of unit.
2. Press SOURCE button on the unit repeatedly or
press USB/LINE on the remote control to select the
USB source. The word “USB” will be shown on the
display.
3. Press ALB+/ALB– button to select next/
previous album, and play the rst track.
4. Other playback features are the same as if you
were playing an CD.
• The player supports the USB music le format of MP3 only.
• If your USB device is loaded with MP3 les but the display keeps showing “NO SONG” on the display,
the format of your USB device might not be compatible with the unit.
• The unit can support USB devices with up to 16 GB of memory.
• The unit may not be compatible with all USB devices, this is not an indication of a problem with the
unit.
• Unplug any idle USB device from the unit in Standby mode for eective power saving.
LINE IN (AUX IN) Operation
1. While in ON mode, press SOURCE button on the unit repeatedly or press USB/LINE on
the remote control to select the LINE IN source. The words “LINE IN” will be shown on
the display.
2. Operate your audio device directly for playback features.
3. Turn the – VOLUME + dial on the unit or press the VOL +/– button on the remote
control to adjust the volume to your desired level.
MX-D328B_IB_180427_grace.indd 20 27/4/18 5:44 pm
21
Bluetooth® Operation
Pairing the unit with a Bluetooth® device to listen to music:
1. Press SOURCE button on the unit repeatedly or directly press the BT button on the
remote control to select the Bluetooth® mode. The word “BT” will be shown on the
display.
2. Activate your Bluetooth® device and select the search mode. “MX-D328B” will appear
on your Bluetooth® device list.
3. Select “MX-D328B” and enter “0000” for the password if necessary. If connect
successful, the unit will make a beep sound.
4. To disconnect the Bluetooth® function,
• Switch to another function on the unit or disable the function from your Bluetooth®
device. The unit will make a beep sound.
• Press and hold
/PAIR button on the unit or PAIR/AUTO button on the remote
control. The display will show UNPAIR, and the unit will make a beep sound.
If your Bluetooth
® device supports A2DP, play music via your device.
If your Bluetooth
® device supports AVRCP, use supplied remote control to control play.
• To pause / resume playback, press
.
• To skip to a track, press
/ or / .
• Turn the – VOLUME + dial on the unit or press the VOL +/– button on the remote
control to increase or decrease the volume.
• The operational range between the unit and the device is approximately 10 metres.
• Before connecting a Bluetooth® device to the unit, ensure you know the device’s capabilities.
• Compatibility with all Bluetooth® devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
• Keep this player away from other electronic devices that may cause interference.
• If no other Bluetooth® devices pairs with this unit within 2 minutes, the unit will recover to its previous
connection.
• The player will also be disconnected when your device is moved beyond the operational range.
MX-D328B_IB_180427_grace.indd 21 27/4/18 5:44 pm
22
Maintenance
Cleaning the Unit
Ensure the unit is fully unplugged from the mains socket before cleaning.
• To clean the units, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.
Handling Discs
• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.
Playback side
Cleaning Discs
• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc
from the centre outwards with a soft cloth. Always keep the disc clean.
• If you cannot wipe o the dust with a soft cloth, wipe the disc lightly with a slightly
moistened soft cloth and nish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available
cleaners or antistatic spray. They may damage the disc.
Storing Discs
• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near
a humidier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of
their cases may cause warping.
MX-D328B_IB_180427_grace.indd 22 27/4/18 5:44 pm
23
Hints and Tips
If a problem does occur, it may often be due to something very minor. The following table
contains various tips. If you require additional assistance
• For UK, please call our UK Call Centre on 0344 561 1234.
• For Ireland, please call our Ireland Call Center on 1 890 818 575.
General
Problem Solution
No power. • Ensure the mains plug is connected.
• Make sure that you select the ON mode.
The remote control is
not function.
• Use the remote control near the unit.
• Point the remote control at the remote sensor on the unit.
• Replace the battery in the remote control with a new one.
• Remove any obstacles between the remote control and
the unit.
No sound from the unit. Please try either one of the solutions below:
• Make sure that the unit is not muted. Press the
or the
VOL +/– on the remote control, or turn the – VOLUME +
dial on the unit to resume normal listening.
• Press on the unit or on the remote control to switch
the unit to standby mode. Then press the button again to
switch the unit on.
• Unplug the unit from the mains socket, then plug them
again. Switch on the unit.
The unit does not
respond when pressing
any buttons.
• The unit may freeze up during use. Switch the unit o and
then on again at the mains socket to reset the unit.
CD
Problem Solution
Disc in place but the unit
won’t play.
• Make sure you’ve selected CD mode.
• Make sure the disc label is facing up.
• Make sure the disc is clean.
• PAUSE mode may be activated, deactivate it.
• Disc may be damaged or dirty; check and clean the disc.
Disc skips. • Make sure the unit is on a secure spot. Vibrations or
jarring can cause the disc to skip.
MX-D328B_IB_180427_grace.indd 23 27/4/18 5:44 pm
24
Radio
Problem Solution
Poor radio reception. • Electrical interference in your home can cause poor
reception. Move the unit away from them (especially those
with motors and transformers).
Desired station not
found.
• Weak signal. Search manually.
• If reception is still poor, adjust the position of the aerial.
Bluetooth®
Problem Solution
I cannot nd
“MX-D328B” on my
Bluetooth® device.
• Ensure the Bluetooth® function is activated on your
Bluetooth® device.
• Ensure you have paired your unit with the Bluetooth®
device.
If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it
again.
MX-D328B_IB_180427_grace.indd 24 27/4/18 5:44 pm
25
Product Fiche and Specifications
Brand JVC
Model MX-D328B
System Section
Power Supply 230 V~ 50 Hz
Power Consumption 120 W
Working Environment - Temperature -10 ~ +35 °C
Working Environment - Relative Humidity 5% ~ 90%
Unit Dimension (W) × (D) × (H) 200 mm × 303 mm × 250 mm
Speakers Section
Impedance 4Ω
Output Peak Power 430 Watts Peak Power
Output RMS Power 250 Watts RMS output
Speaker Box Dimension (W) × (D) × (H) 243 mm × 240 mm × 352 mm
Bluetooth Section
Bluetooth Version V2.1
Maximum Transmitted Power ≤ -3.6 dBm
Frequency Bands 2402 MHz ~ 2480 MHz
Compact Disc Section
Optical Pickup 3 - Beam Laser
Frequency Response 100 Hz – 10 kHz
Radio Section
Frequency Range FM 87.5 – 108 MHz
USB Section
USB Memory Stick
Memory Size
Up to 16 GB
Features and specications are subject to change without prior notice.
MX-D328B_IB_180427_grace.indd 25 27/4/18 5:44 pm
26
All trademarks are the property of their respective owners and all rights are acknowledged.
Useful Information and Licences
Visit Partmaster.co.uk today for the easiest way to buy electrical
spares and accessories. With over 1 million spares and accessories
available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or
call 0344 800 3456 (UK customers only). Calls charged at National Rate.
The symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is
your responsibility to dispose of your waste equipment by handing it over
to a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help conserve natural resources and
ensure that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop o your waste for
recycling, please contact your local authority, or where you purchased your
product.
Notes for Battery Disposal
The batteries used with this product contain chemicals that are harmful to
the environment. To preserve our environment, dispose of used batteries
according to your local laws or regulations. Do not dispose of batteries with
normal household waste.
For more information, please contact the local authority or your retailer
where you purchased the product.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of s uch marks by DSG Retail Limited is under license. Other trademarks and
trade names are those of their respective owners.
Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
This radio is future-ready because it contains FM which is a future technology standard
being adopted across Europe.
For general information about appliances,
and handy hints and tips check out Kit Guides at
teamknowhow.com or
call UK: 0344 561 1234 Ireland: 1890 818 575
MX-D328B_IB_180427_grace.indd 26 27/4/18 5:44 pm
MX-D328B_IB_180427_grace.indd 27 27/4/18 5:44 pm

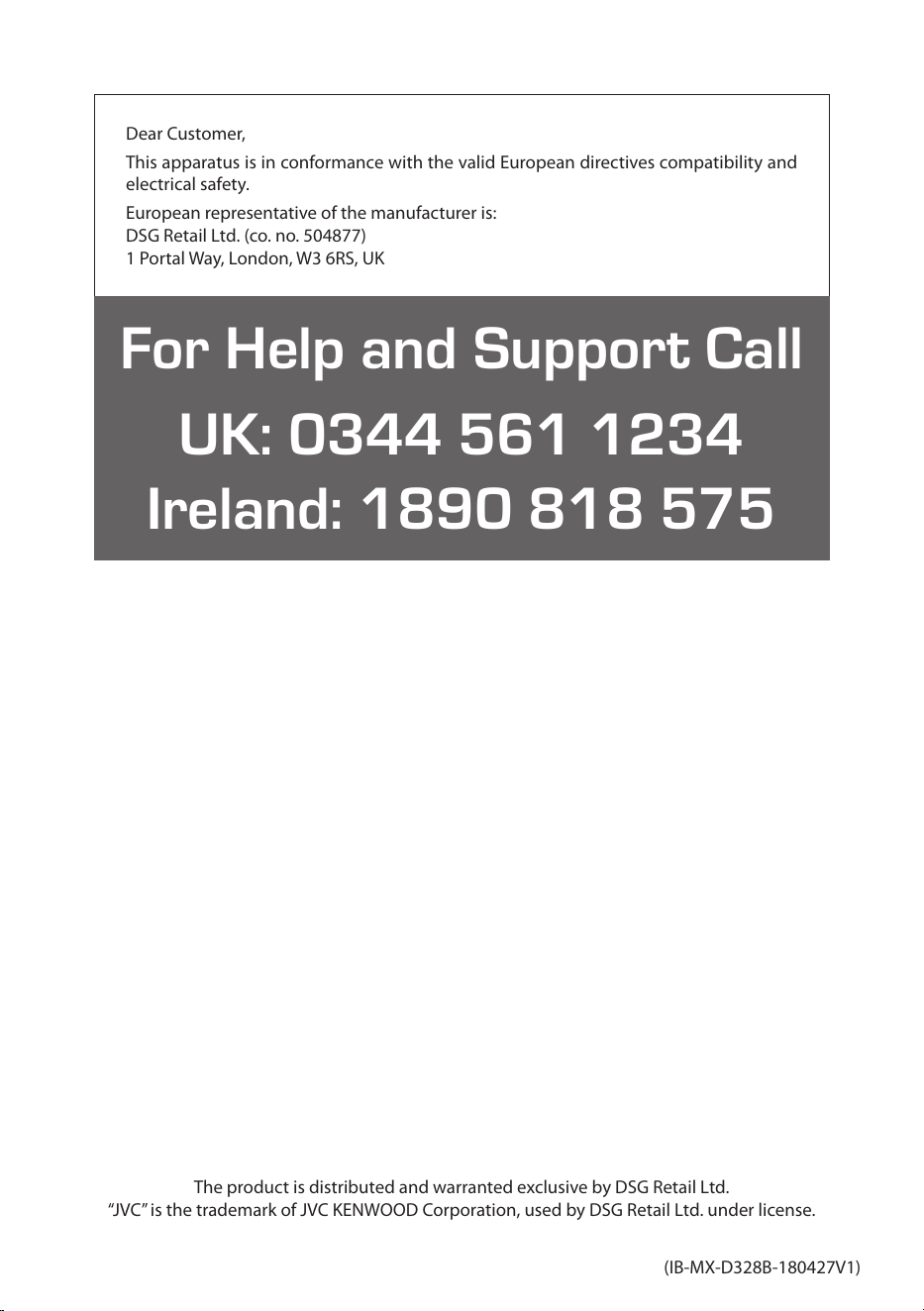

The product is distributed and warranted exclusive by DSG Retail Ltd.
“JVC” is the trademark of JVC KENWOOD Corporation, used by DSG Retail Ltd. under license.
(IB-MX-D328B-180427V1)
Dear Customer,
This apparatus is in conformance with the valid European directives compatibility and
electrical safety.
European representative of the manufacturer is:
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
For Help and Support Call
UK: 0344 561 1234
Ireland: 1890 818 575
MX-D328B_IB_180427_grace.indd 28 27/4/18 5:44 pm
