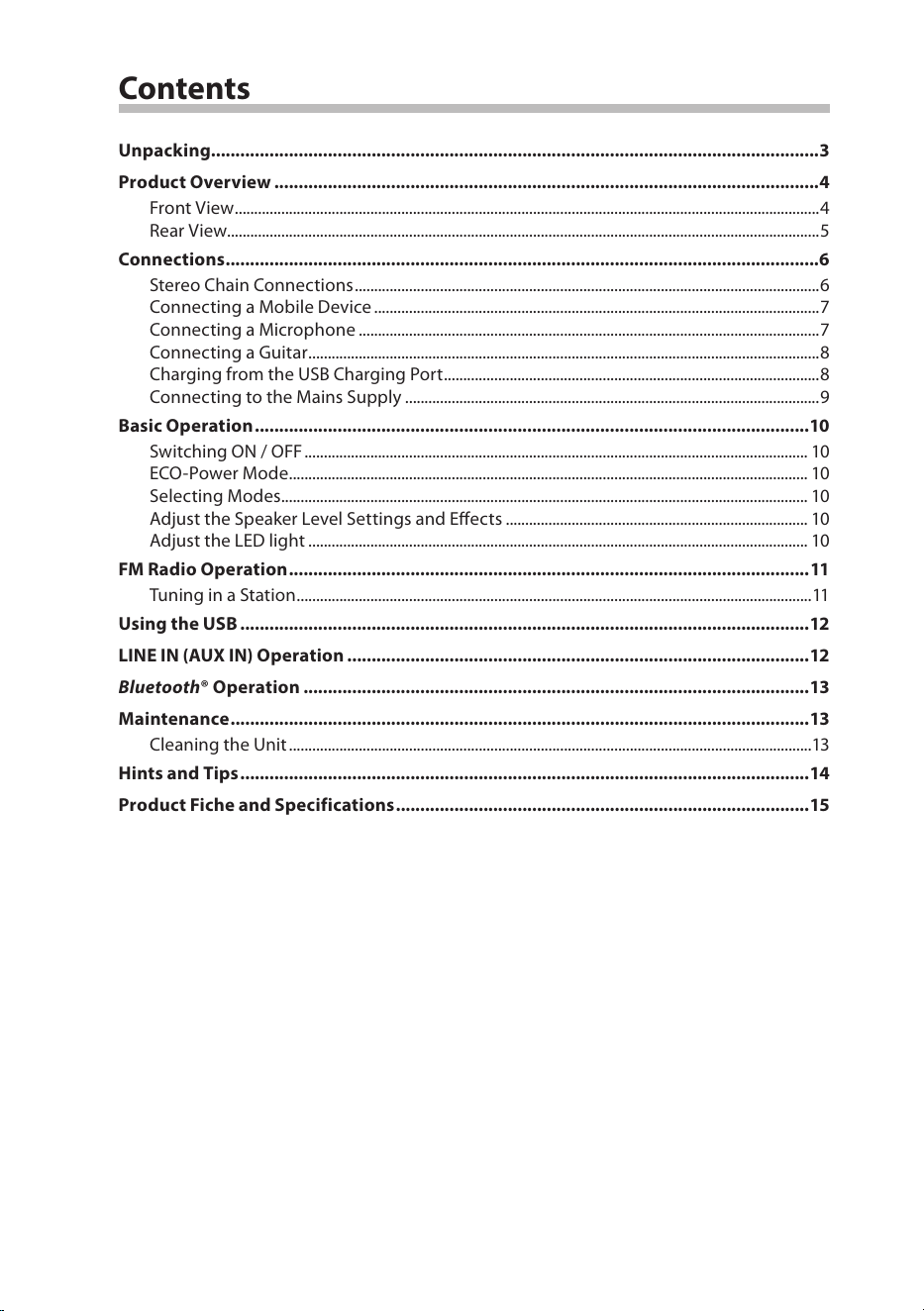

Contents
Unpacking .............................................................................................................................3
Product Overview ................................................................................................................4
Front View .......................................................................................................................................................4
Rear View.........................................................................................................................................................5
Connections ..........................................................................................................................6
Stereo Chain Connections ........................................................................................................................6
Connecting a Mobile Device ...................................................................................................................7
Connecting a Microphone .......................................................................................................................7
Connecting a Guitar ....................................................................................................................................8
Charging from the USB Charging Port .................................................................................................8
Connecting to the Mains Supply ...........................................................................................................9
Basic Operation ..................................................................................................................10
Switching ON / OFF .................................................................................................................................. 10
ECO-Power Mode ...................................................................................................................................... 10
Selecting Modes ........................................................................................................................................ 10
Adjust the Speaker Level Settings and Eects .............................................................................. 10
Adjust the LED light ................................................................................................................................. 10
FM Radio Operation ...........................................................................................................11
Tuning in a Station .....................................................................................................................................11
Using the USB .....................................................................................................................12
LINE IN (AUX IN) Operation ...............................................................................................12

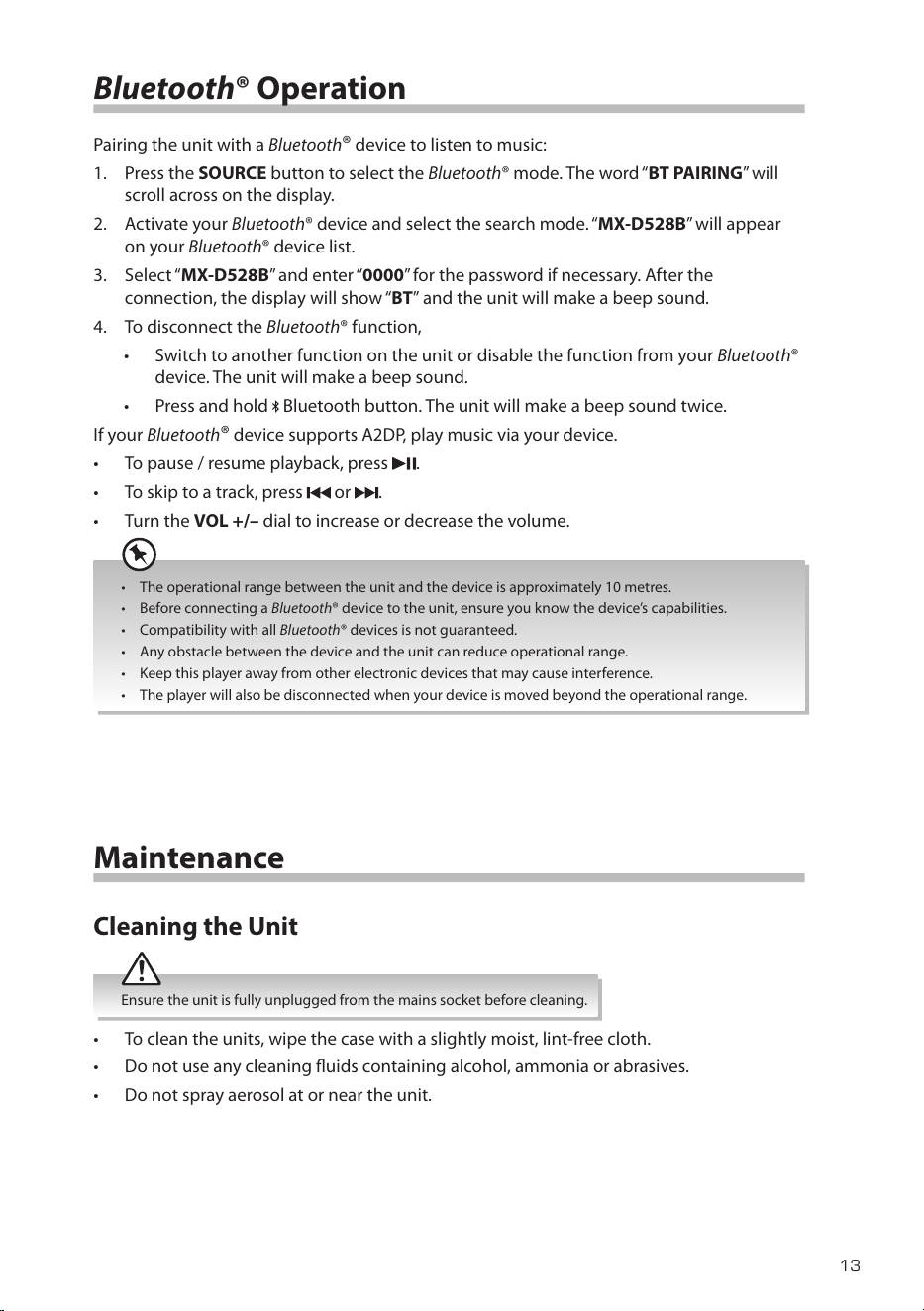

Bluetooth® Operation ........................................................................................................13
Maintenance .......................................................................................................................13
Cleaning the Unit .......................................................................................................................................13
Hints and Tips .....................................................................................................................14

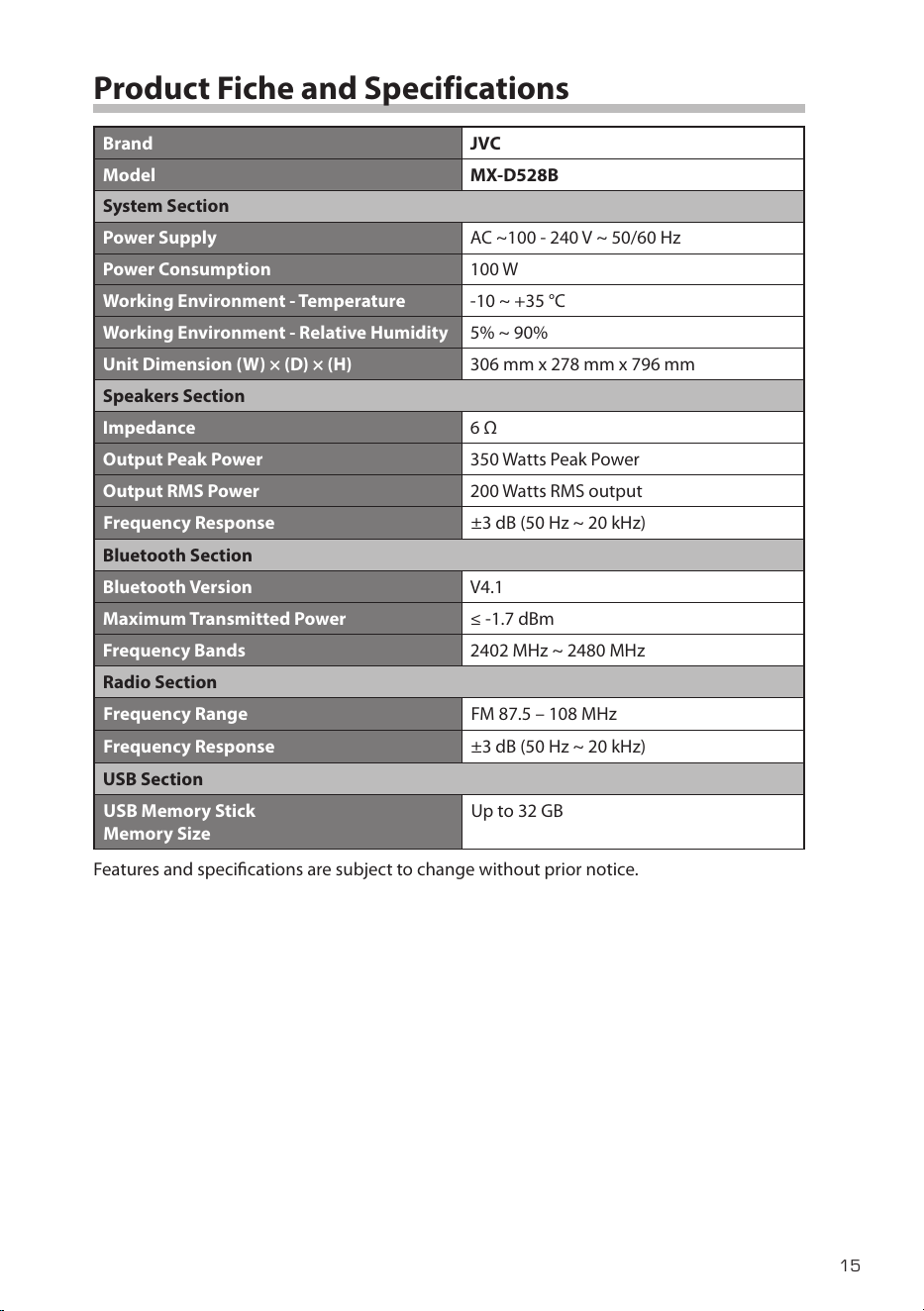

Product Fiche and Specifications .....................................................................................15
MX-D528B_IB_Final2000616V4.indd 2 17/06/2020 17:01
3

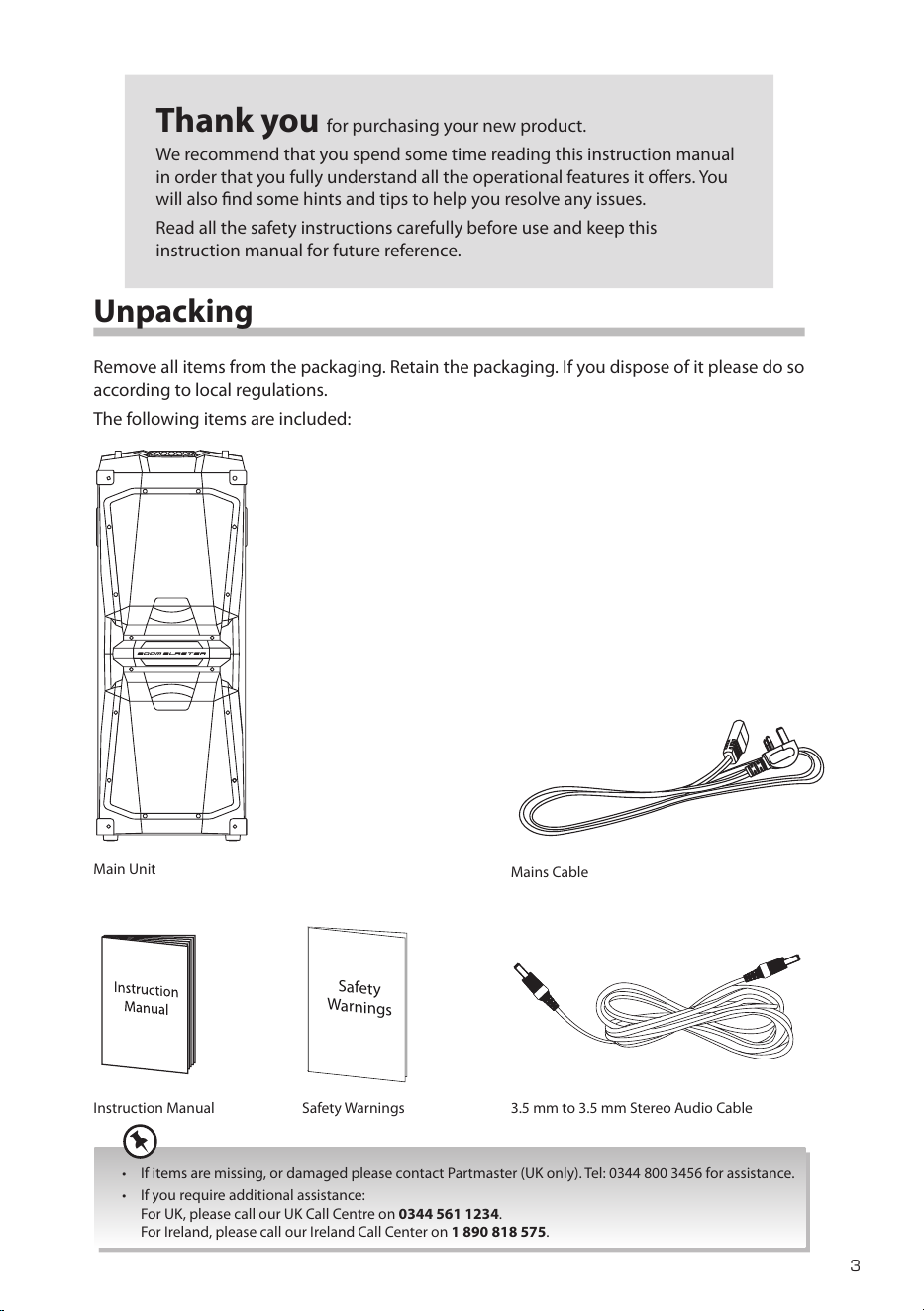

Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it oers. You
will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
• If items are missing, or damaged please contact Partmaster (UK only). Tel: 0344 800 3456 for assistance.
• If you require additional assistance:
For UK, please call our UK Call Centre on 0344 561 1234.
For Ireland, please call our Ireland Call Center on 1 890 818 575.
Main Unit
Instruction Manual Safety Warnings 3.5 mm to 3.5 mm Stereo Audio Cable
Mains Cable
Safety
Warnings
MX-D528B_IB_Final2000616V4.indd 3 17/06/2020 17:01
4
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
B OOS TE R
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+

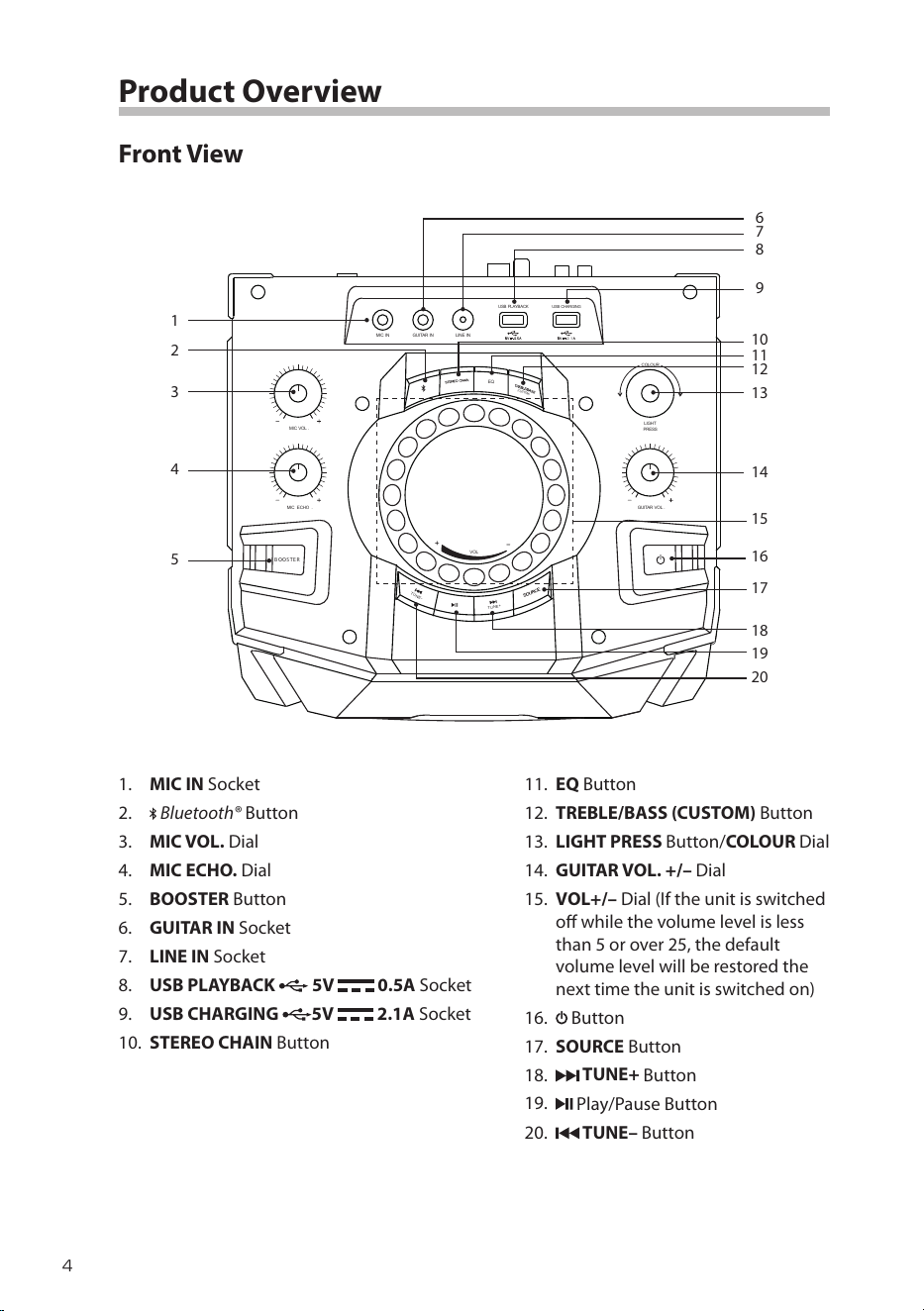

Product Overview
Front View
1. MIC IN Socket
2.
Bluetooth® Button
3. MIC VOL. Dial
4. MIC ECHO. Dial
5. BOOSTER Button
6. GUITAR IN Socket
7. LINE IN Socket
8. USB PLAYBACK
5V 0.5A Socket
9. USB CHARGING
5V 2.1A Socket
10. STEREO CHAIN Button
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
11. EQ Button
12. TREBLE/BASS (CUSTOM) Button
13. LIGHT PRESS Button/COLOUR Dial
14. GUITAR VOL. +/– Dial
15. VOL+/– Dial (If the unit is switched
o while the volume level is less
than 5 or over 25, the default
volume level will be restored the
next time the unit is switched on)
16.
Button
17. SOURCE Button
18.
TUNE+
Button
19.
Play/Pause Button
20.
TUNE– Button
MX-D528B_IB_Final2000616V4.indd 4 17/06/2020 17:01
5
AUDIO
OUT IN
L
R
L
R

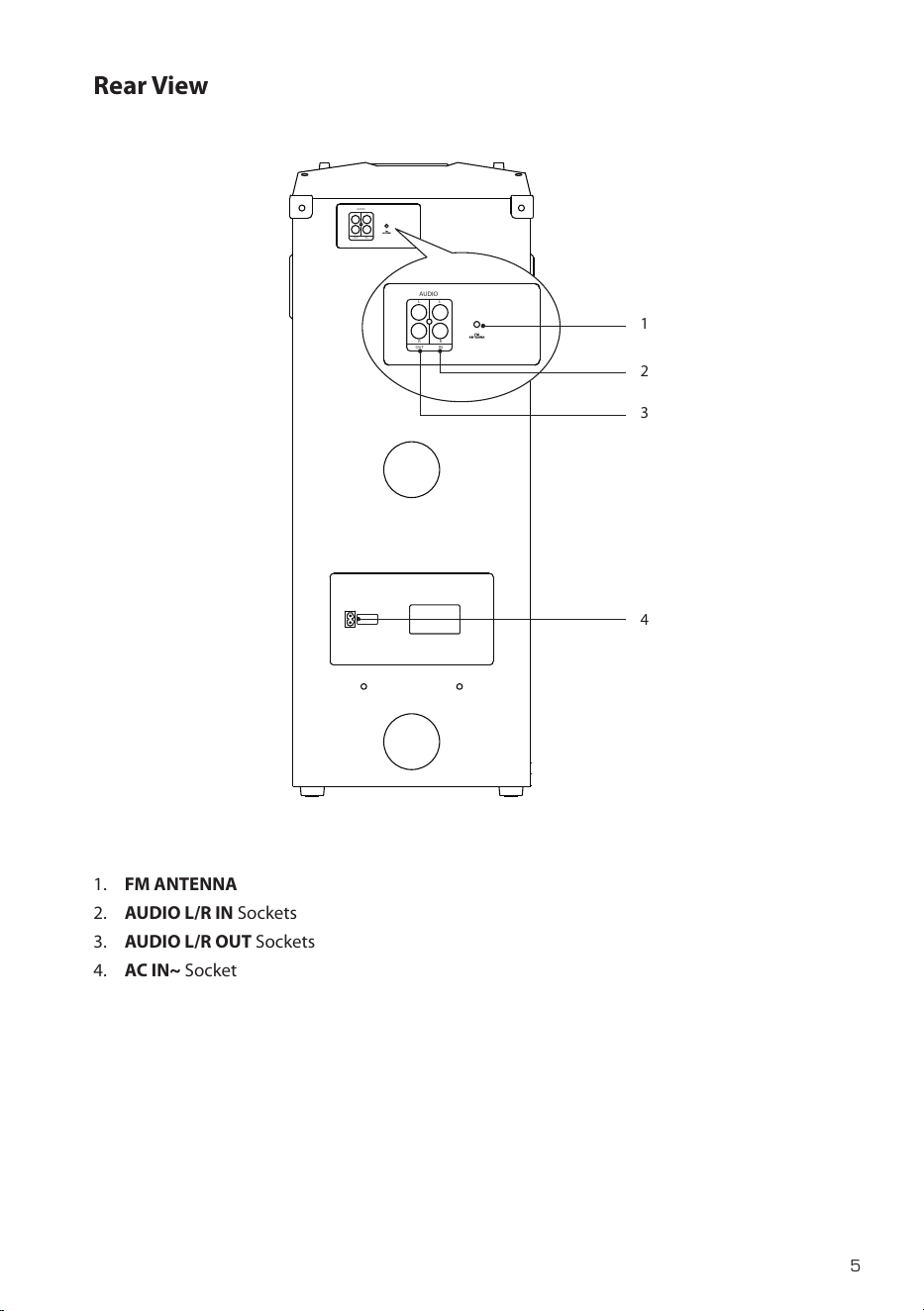

Rear View
1. FM ANTENNA
2. AUDIO L/R IN Sockets
3. AUDIO L/R OUT Sockets
4. AC IN~ Socket
1
2
3
4
OUT IN
L L
RR
AUDIO
MX-D528B_IB_Final2000616V4.indd 5 17/06/2020 17:01
6
AUDIO
OUT IN
L
R
L
R
AUDIO
OUT IN
L
R
L
R

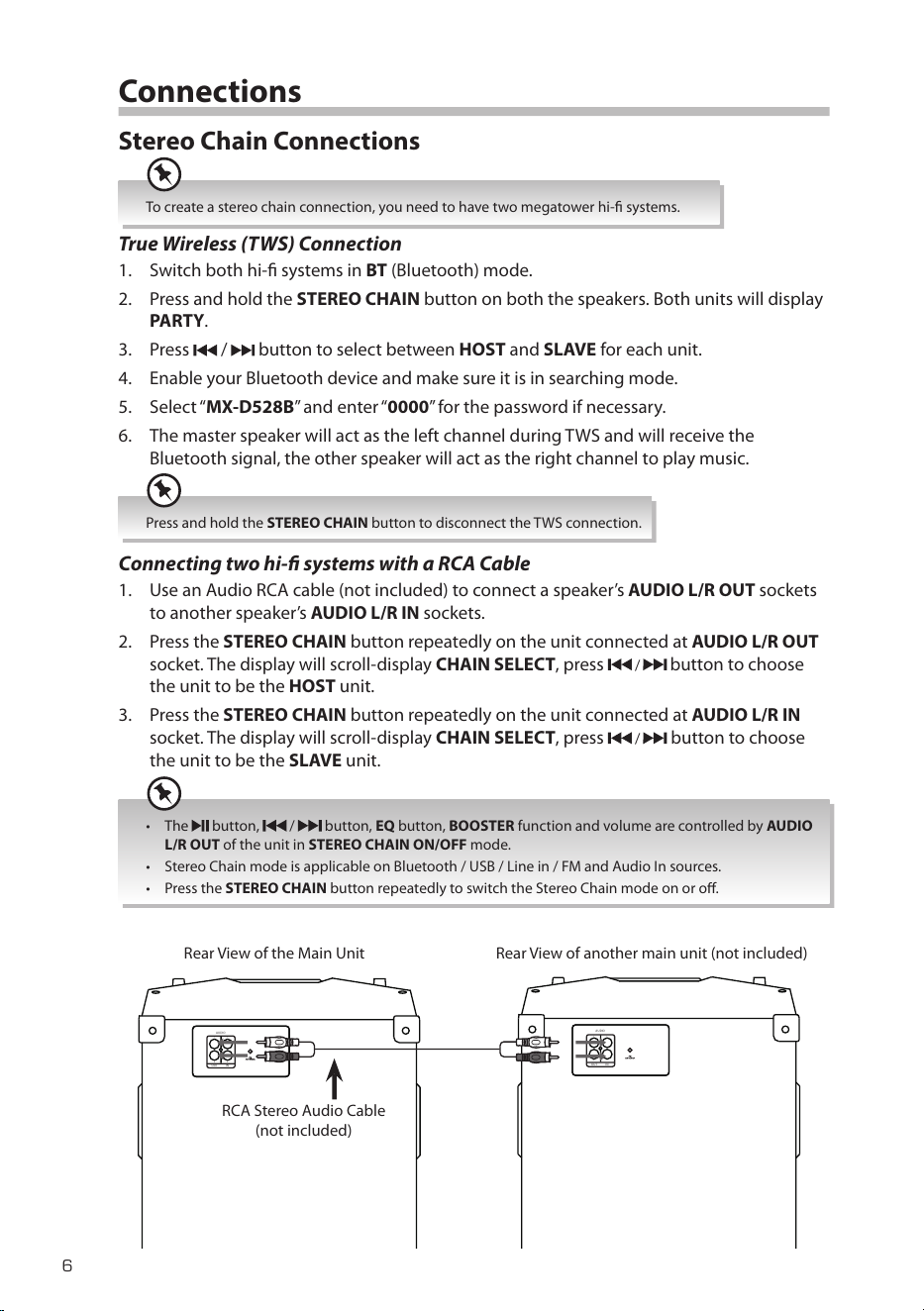

Connections
Stereo Chain Connections
True Wireless (TWS) Connection
1. Switch both hi- systems in BT (Bluetooth) mode.
2. Press and hold the STEREO CHAIN button on both the speakers. Both units will display
PARTY.
3. Press
/
button to select between HOST and SLAVE for each unit.
4. Enable your Bluetooth device and make sure it is in searching mode.
5. Select “MX-D528B” and enter “0000” for the password if necessary.
6. The master speaker will act as the left channel during TWS and will receive the
Bluetooth signal, the other speaker will act as the right channel to play music.
Connecting two hi- systems with a RCA Cable
1. Use an Audio RCA cable (not included) to connect a speaker’s AUDIO L/R OUT sockets
to another speaker’s AUDIO L/R IN sockets.
2. Press the STEREO CHAIN button repeatedly on the unit connected at AUDIO L/R OUT
socket. The display will scroll-display CHAIN SELECT, press
/ button to choose
the unit to be the HOST unit.
3. Press the STEREO CHAIN button repeatedly on the unit connected at AUDIO L/R IN
socket. The display will scroll-display CHAIN SELECT, press
/ button to choose
the unit to be the SLAVE unit.
Rear View of the Main Unit Rear View of another main unit (not included)
RCA Stereo Audio Cable
(not included)
• The button, / button, EQ button, BOOSTER function and volume are controlled by AUDIO
L/R OUT of the unit in STEREO CHAIN ON/OFF mode.
• Stereo Chain mode is applicable on Bluetooth / USB / Line in / FM and Audio In sources.
• Press the STEREO CHAIN button repeatedly to switch the Stereo Chain mode on or o.
To create a stereo chain connection, you need to have two megatower hi- systems.
Press and hold the STEREO CHAIN button to disconnect the TWS connection.
MX-D528B_IB_Final2000616V4.indd 6 17/06/2020 17:01
7

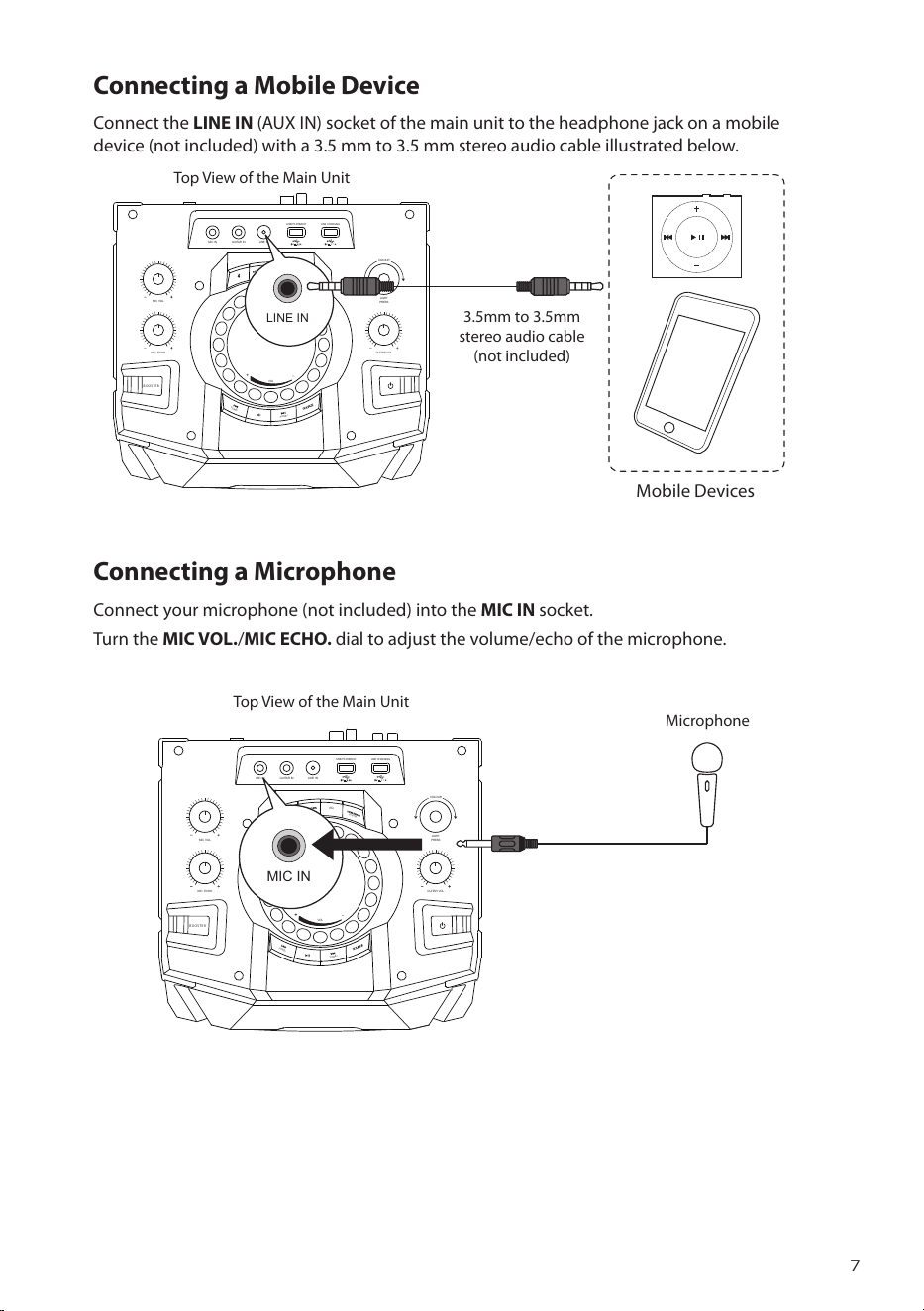

Connecting a Mobile Device
Connect the LINE IN (AUX IN) socket of the main unit to the headphone jack on a mobile
device (not included) with a 3.5 mm to 3.5 mm stereo audio cable illustrated below.
Connecting a Microphone
Connect your microphone (not included) into the MIC IN socket.
Turn the MIC VOL./MIC ECHO. dial to adjust the volume/echo of the microphone.
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
BO OS T E R
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+
LINE IN
3.5mm to 3.5mm
stereo audio cable
(not included)
Top View of the Main Unit
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
BO OS TE R
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+
MIC IN
Mobile Devices
Top View of the Main Unit
Microphone
MX-D528B_IB_Final2000616V4.indd 7 17/06/2020 17:01
8

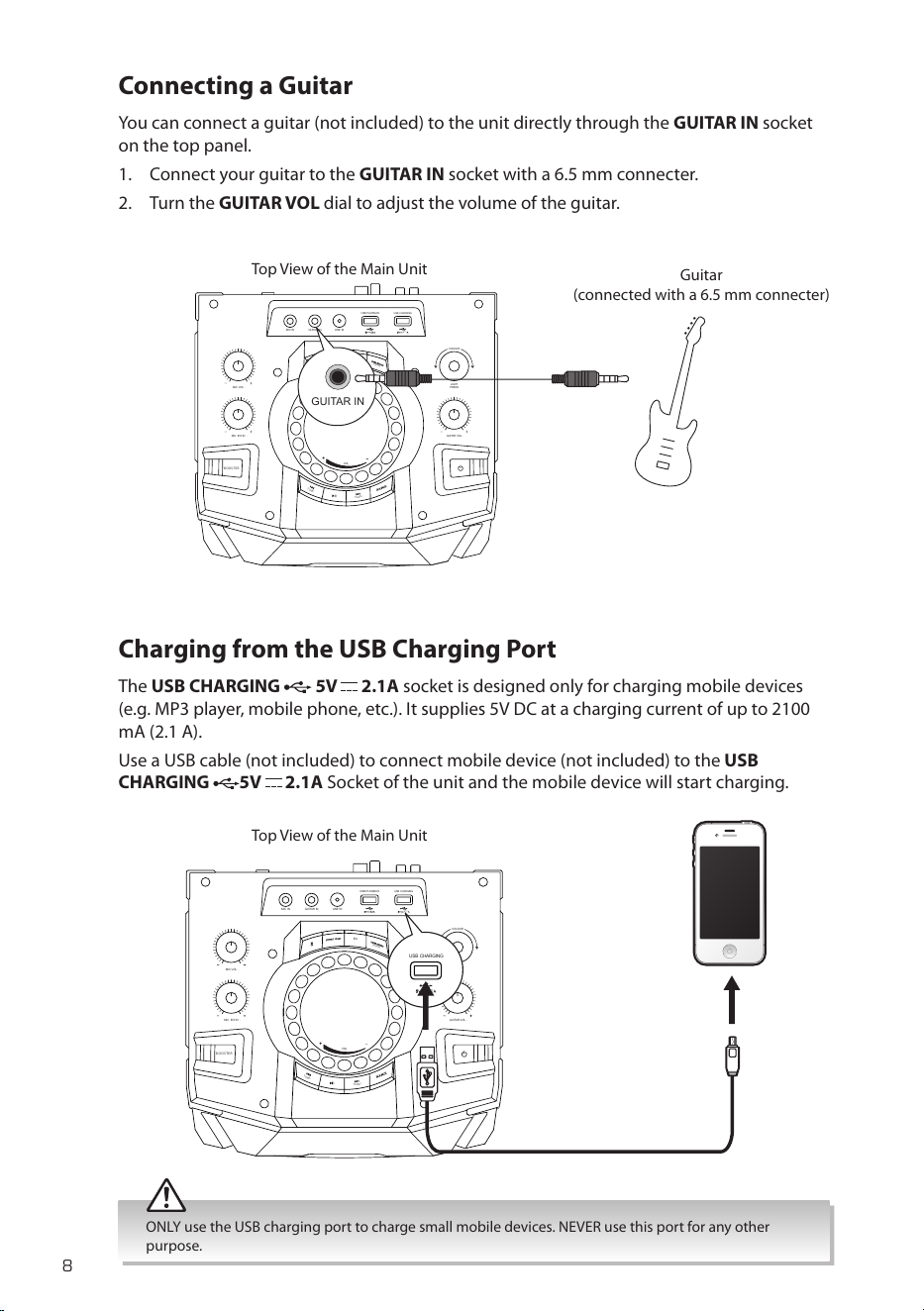

Connecting a Guitar
You can connect a guitar (not included) to the unit directly through the GUITAR IN socket
on the top panel.
1. Connect your guitar to the GUITAR IN socket with a 6.5 mm connecter.
2. Turn the GUITAR VOL dial to adjust the volume of the guitar.
Charging from the USB Charging Port
The USB CHARGING 5V 2.1A socket is designed only for charging mobile devices
(e.g. MP3 player, mobile phone, etc.). It supplies 5V DC at a charging current of up to 2100
mA (2.1 A).
Use a USB cable (not included) to connect mobile device (not included) to the USB
CHARGING
5V 2.1A Socket of the unit and the mobile device will start charging.
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
BO OST ER
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+
GUITAR IN
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
BO OS T E R
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+
2.1
USB CHARGING
Top View of the Main Unit
Top View of the Main Unit
Guitar
(connected with a 6.5 mm connecter)
ONLY use the USB charging port to charge small mobile devices. NEVER use this port for any other
purpose.
MX-D528B_IB_Final2000616V4.indd 8 17/06/2020 17:01
9
AUDIO
OUT IN
L
R
L
R
To the mains
socket
Rear View of the Main Unit

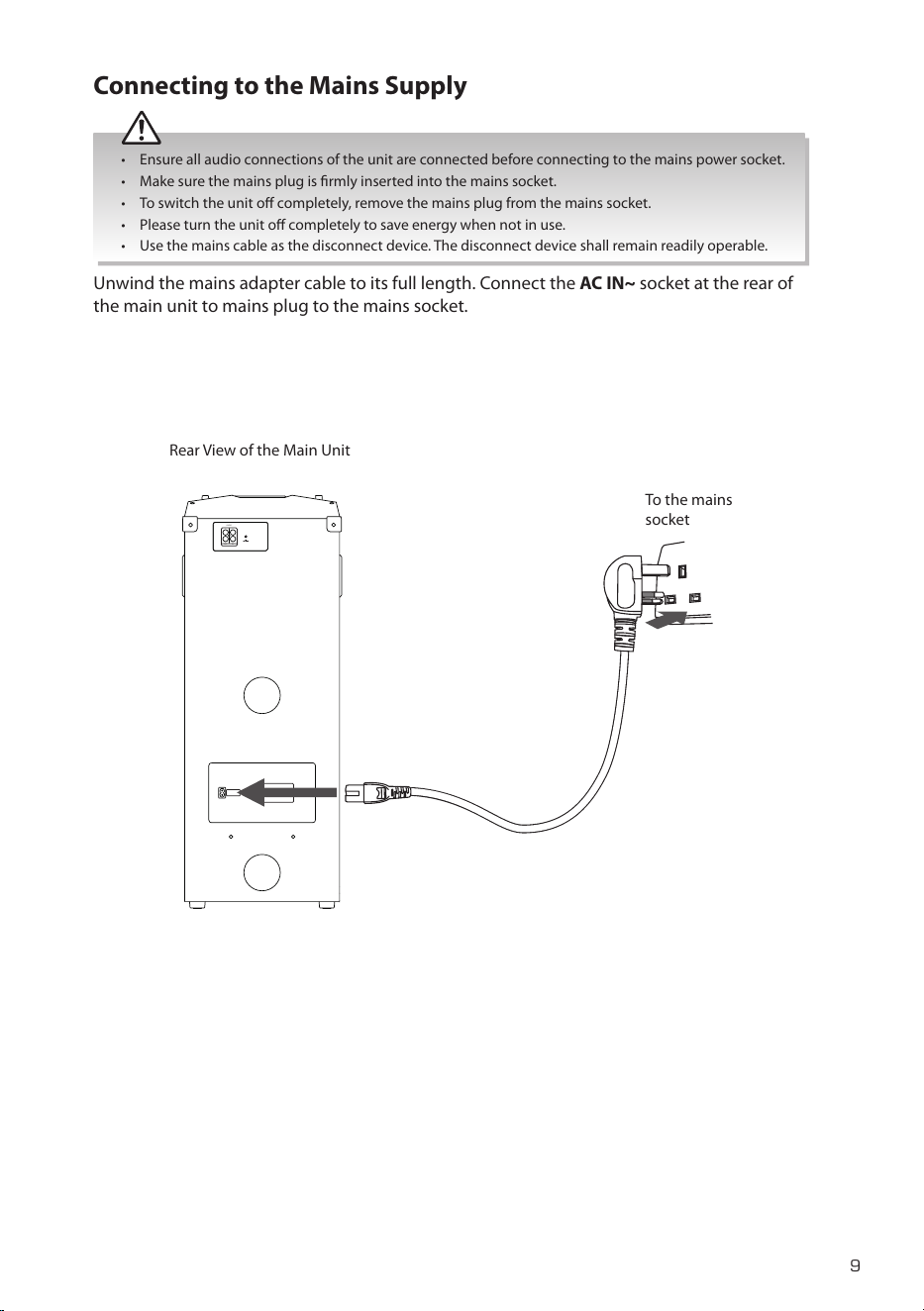

Connecting to the Mains Supply
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
• Make sure the mains plug is rmly inserted into the mains socket.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
• Use the mains cable as the disconnect device. The disconnect device shall remain readily operable.
Unwind the mains adapter cable to its full length. Connect the AC IN~ socket at the rear of
the main unit to mains plug to the mains socket.
MX-D528B_IB_Final2000616V4.indd 9 17/06/2020 17:01
10

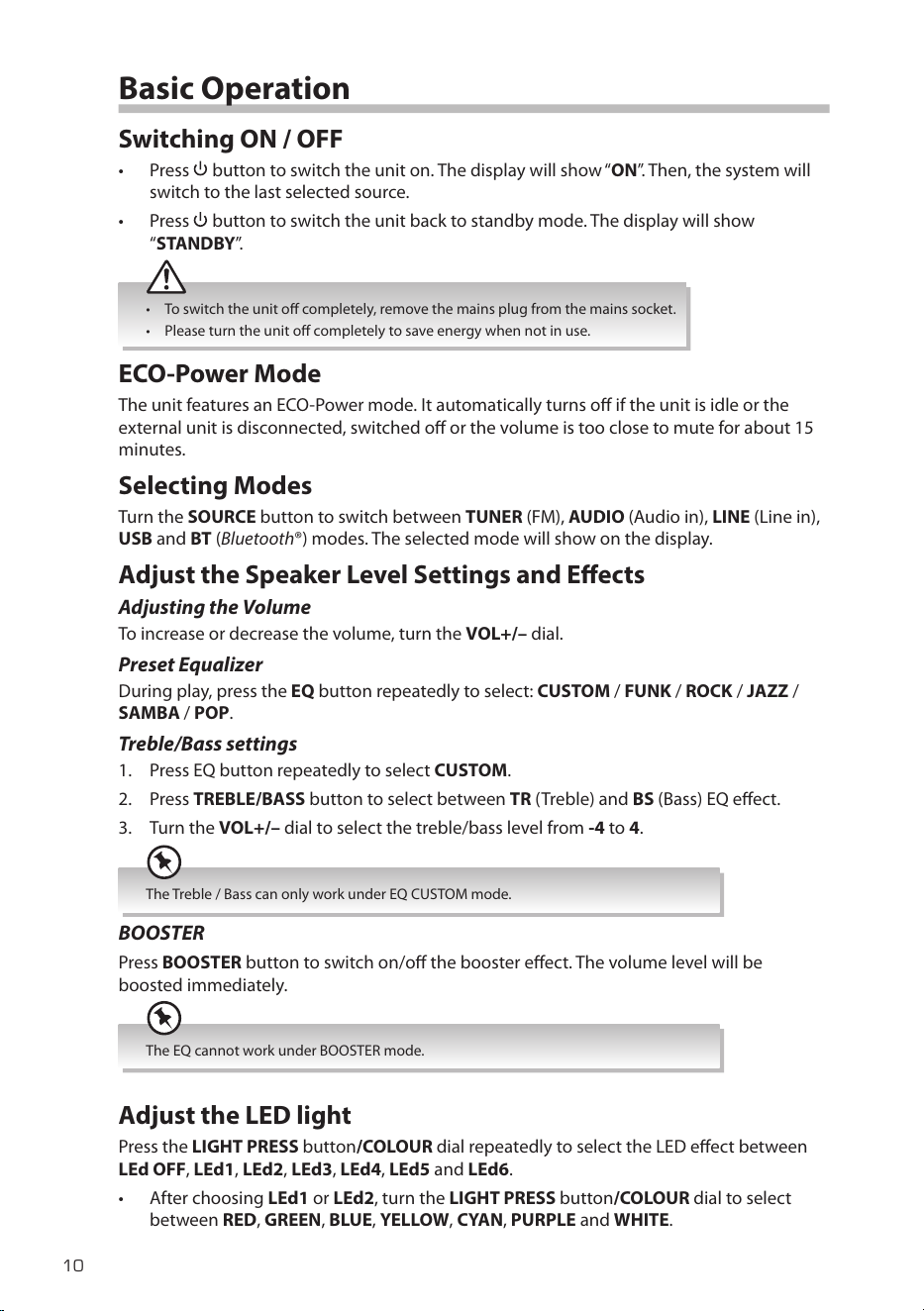

Basic Operation
Switching ON / OFF
• Press button to switch the unit on. The display will show “ON”. Then, the system will
switch to the last selected source.
• Press
button to switch the unit back to standby mode. The display will show
“STANDBY”.
ECO-Power Mode
The unit features an ECO-Power mode. It automatically turns o if the unit is idle or the
external unit is disconnected, switched o or the volume is too close to mute for about 15
minutes.
Selecting Modes
Turn the SOURCE button to switch between TUNER (FM), AUDIO (Audio in), LINE (Line in),
USB and BT (Bluetooth®) modes. The selected mode will show on the display.
Adjust the Speaker Level Settings and Eects
Adjusting the Volume
To increase or decrease the volume, turn the VOL+/– dial.
Preset Equalizer
During play, press the EQ button repeatedly to select: CUSTOM / FUNK / ROCK / JAZZ /
SAMBA / POP.
Treble/Bass settings
1. Press EQ button repeatedly to select CUSTOM.
2. Press TREBLE/BASS button to select between TR (Treble) and BS (Bass) EQ eect.
3. Turn the VOL+/– dial to select the treble/bass level from -4 to 4.
BOOSTER
Press BOOSTER button to switch on/o the booster eect. The volume level will be
boosted immediately.
Adjust the LED light
Press the LIGHT PRESS button/COLOUR dial repeatedly to select the LED eect between
LEd OFF, LEd1, LEd2, LEd3, LEd4, LEd5 and LEd6.
• After choosing LEd1 or LEd2, turn the LIGHT PRESS button/COLOUR dial to select
between RED, GREEN, BLUE, YELLOW, CYAN, PURPLE and WHITE.
The Treble / Bass can only work under EQ CUSTOM mode.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
The EQ cannot work under BOOSTER mode.
MX-D528B_IB_Final2000616V4.indd 10 17/06/2020 17:01
11

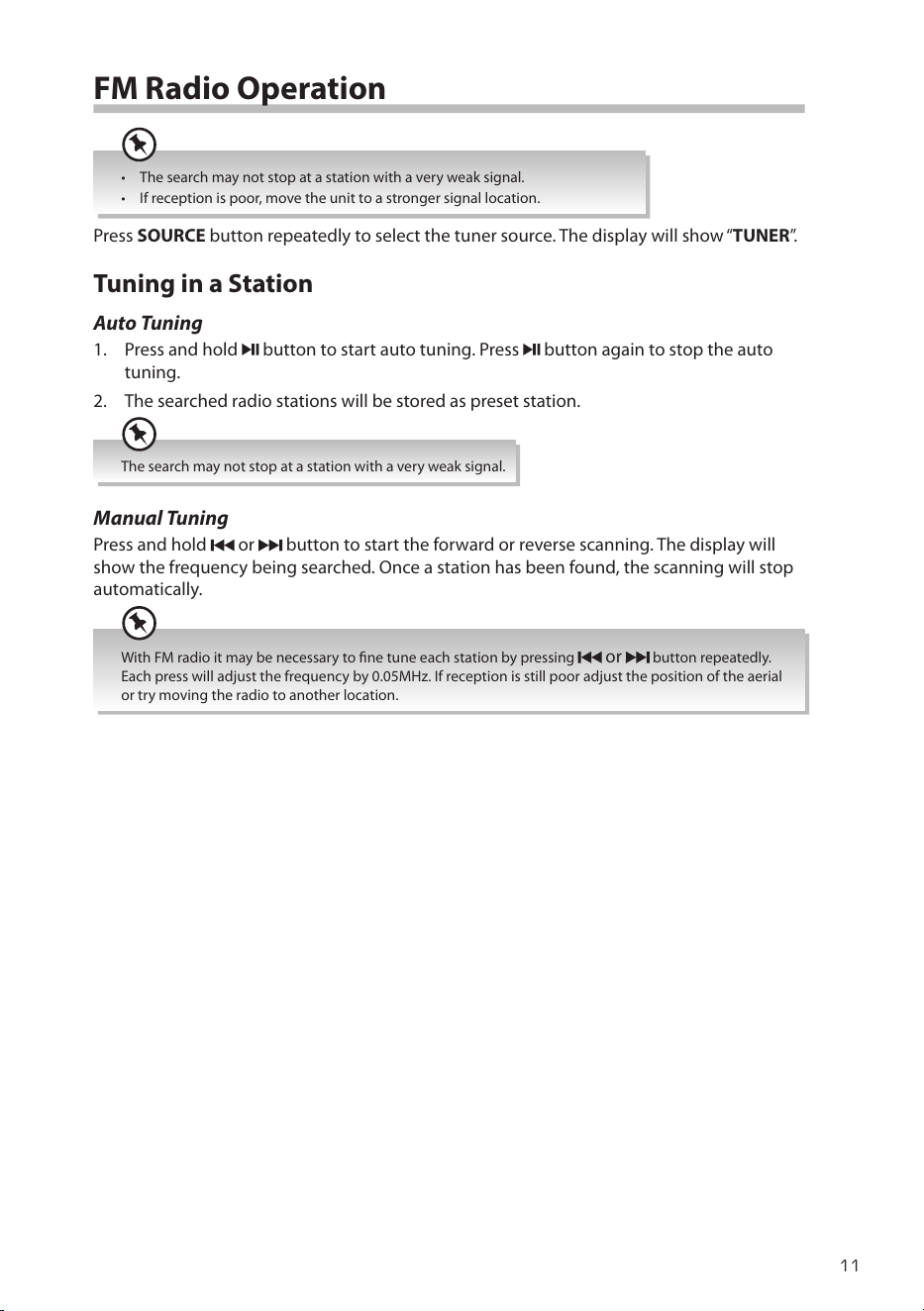

FM Radio Operation
• The search may not stop at a station with a very weak signal.
• If reception is poor, move the unit to a stronger signal location.
Press SOURCE button repeatedly to select the tuner source. The display will show “TUNER”.
Tuning in a Station
Auto Tuning
1. Press and hold
button to start auto tuning. Press
button again to stop the auto
tuning.
2. The searched radio stations will be stored as preset station.
The search may not stop at a station with a very weak signal.
Manual Tuning
Press and hold or
button to start the forward or reverse scanning. The display will
show the frequency being searched. Once a station has been found, the scanning will stop
automatically.
With FM radio it may be necessary to ne tune each station by pressing or button repeatedly.
Each press will adjust the frequency by 0.05MHz. If reception is still poor adjust the position of the aerial
or try moving the radio to another location.
MX-D528B_IB_Final2000616V4.indd 11 17/06/2020 17:01
12

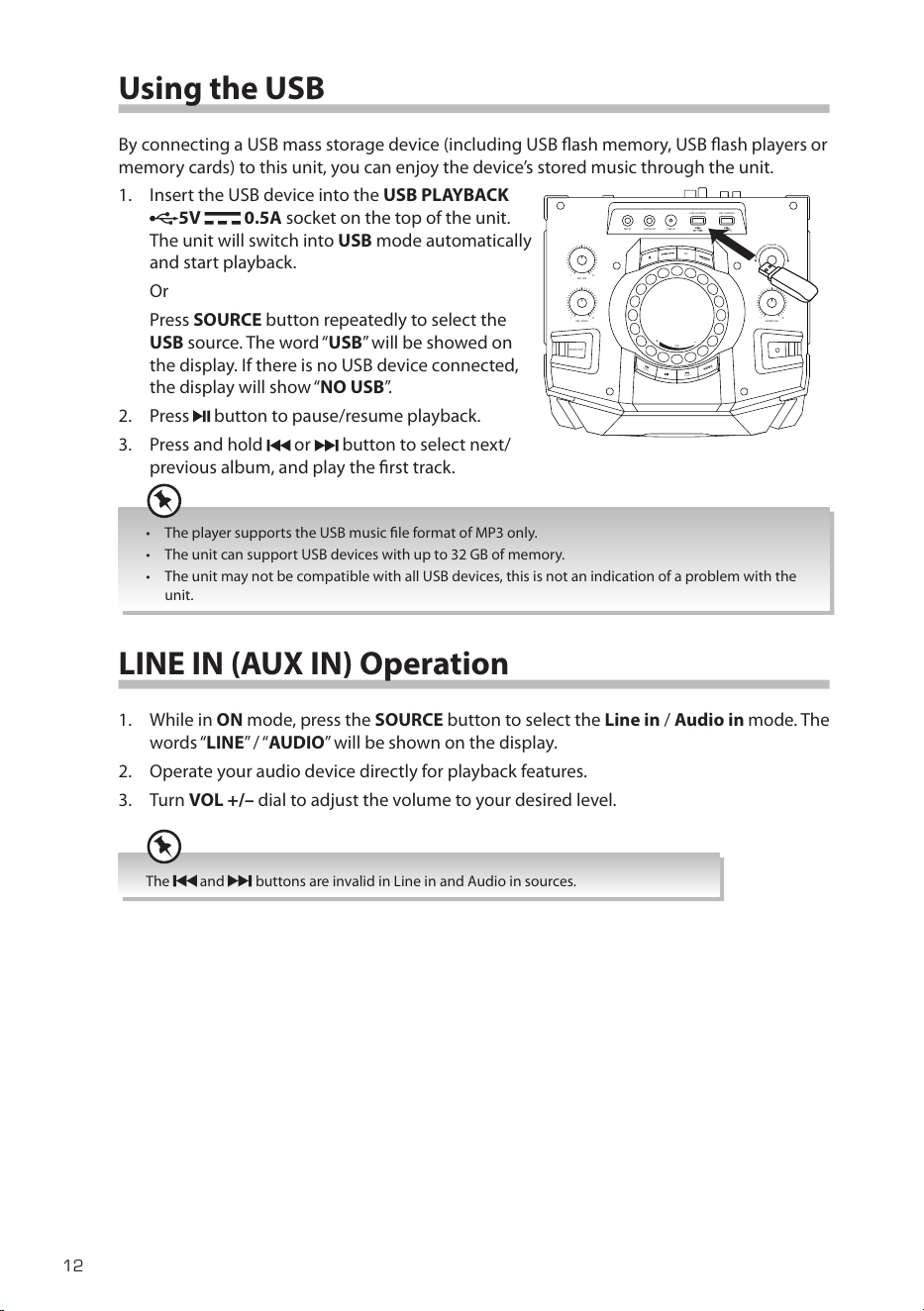

Using the USB
By connecting a USB mass storage device (including USB ash memory, USB ash players or
memory cards) to this unit, you can enjoy the device’s stored music through the unit.
1. Insert the USB device into the USB PLAYBACK
5V 0.5A socket on the top of the unit.
The unit will switch into USB mode automatically
and start playback.
Or
Press SOURCE button repeatedly to select the
USB source. The word “USB” will be showed on
the display. If there is no USB device connected,
the display will show “NO USB”.
2. Press
button to pause/resume playback.
3. Press and hold
or button to select next/
previous album, and play the rst track.
• The player supports the USB music le format of MP3 only.
• The unit can support USB devices with up to 32 GB of memory.
• The unit may not be compatible with all USB devices, this is not an indication of a problem with the
unit.
LINE IN (AUX IN) Operation
1. While in ON mode, press the SOURCE button to select the Line in / Audio in mode. The
words “LINE” / “AUDIO” will be shown on the display.
2. Operate your audio device directly for playback features.
3. Turn VOL +/– dial to adjust the volume to your desired level.
2.1
MIC IN GUITAR IN LINE IN
EQ
VOL
BOO STE R
USB PLAYBACK
USB CHARGING
(
C
U
S
T
O
M
)
LIGHT
PRESS
COLOUR
GUITAR VOL .
MIC ECHO .
MIC VOL .
T
U
N
E
-
T
U
N
E
+
The and buttons are invalid in Line in and Audio in sources.
MX-D528B_IB_Final2000616V4.indd 12 17/06/2020 17:01
13
Bluetooth® Operation
Pairing the unit with a Bluetooth® device to listen to music:
1. Press the SOURCE button to select the Bluetooth® mode. The word “BT PAIRING” will
scroll across on the display.
2. Activate your Bluetooth® device and select the search mode. “MX-D528B” will appear
on your Bluetooth® device list.
3. Select “MX-D528B” and enter “0000” for the password if necessary. After the
connection, the display will show “BT” and the unit will make a beep sound.
4. To disconnect the Bluetooth® function,
• Switch to another function on the unit or disable the function from your Bluetooth®
device. The unit will make a beep sound.
• Press and hold
Bluetooth button. The unit will make a beep sound twice.
If your Bluetooth
® device supports A2DP, play music via your device.
• To pause / resume playback, press
.
• To skip to a track, press
or .
• Turn the VOL +/– dial to increase or decrease the volume.
• The operational range between the unit and the device is approximately 10 metres.
• Before connecting a Bluetooth® device to the unit, ensure you know the device’s capabilities.
• Compatibility with all Bluetooth® devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
• Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.
Maintenance
Cleaning the Unit
Ensure the unit is fully unplugged from the mains socket before cleaning.
• To clean the units, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.
MX-D528B_IB_Final2000616V4.indd 13 17/06/2020 17:01
14

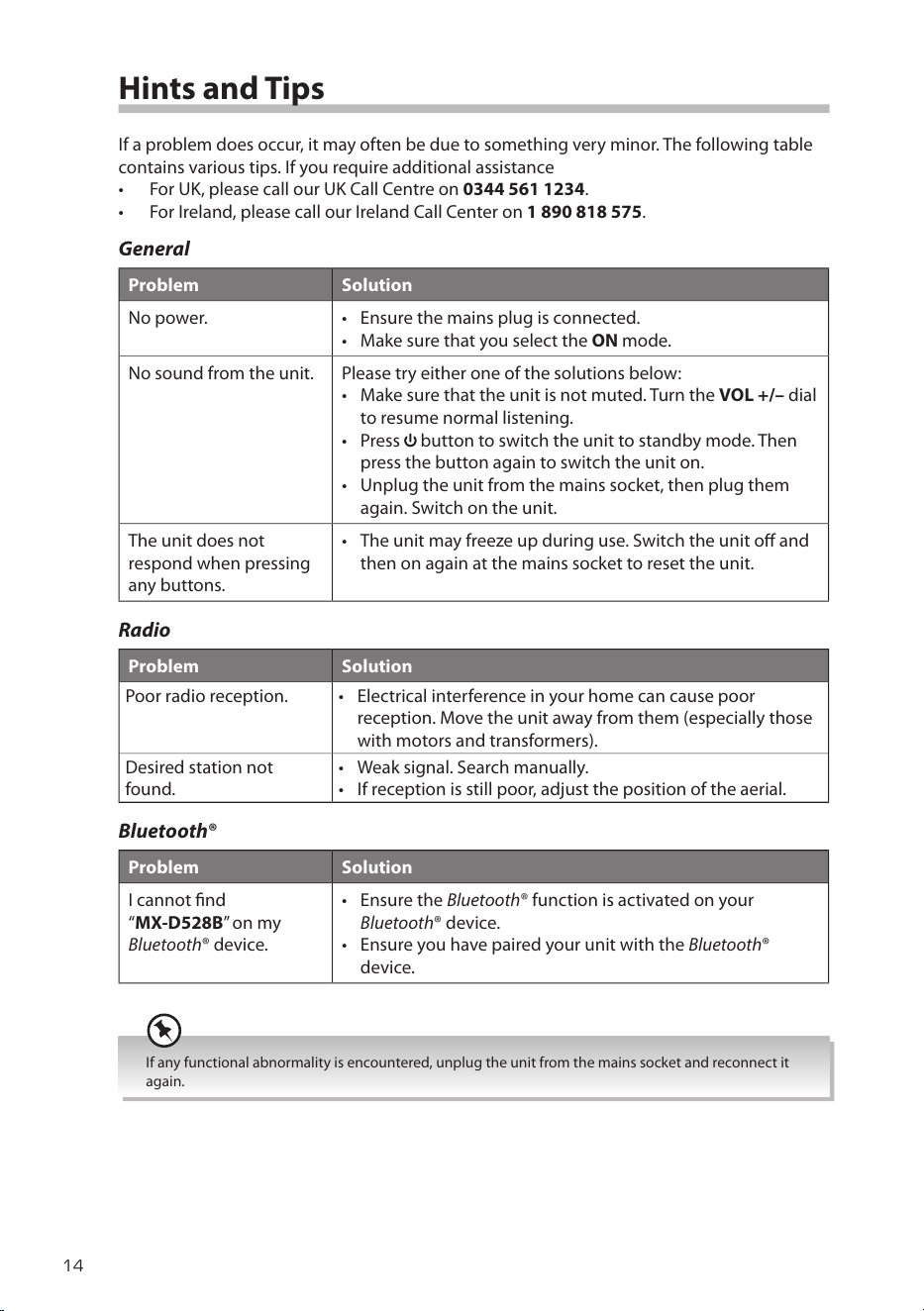

Hints and Tips
If a problem does occur, it may often be due to something very minor. The following table
contains various tips. If you require additional assistance
• For UK, please call our UK Call Centre on 0344 561 1234.
• For Ireland, please call our Ireland Call Center on 1 890 818 575.
General
Problem Solution
No power. • Ensure the mains plug is connected.
• Make sure that you select the ON mode.
No sound from the unit. Please try either one of the solutions below:
• Make sure that the unit is not muted. Turn the VOL +/– dial
to resume normal listening.
• Press
button to switch the unit to standby mode. Then
press the button again to switch the unit on.
• Unplug the unit from the mains socket, then plug them
again. Switch on the unit.
The unit does not
respond when pressing
any buttons.
• The unit may freeze up during use. Switch the unit o and
then on again at the mains socket to reset the unit.
Radio
Problem Solution
Poor radio reception. • Electrical interference in your home can cause poor
reception. Move the unit away from them (especially those
with motors and transformers).
Desired station not
found.
• Weak signal. Search manually.
• If reception is still poor, adjust the position of the aerial.
Bluetooth®
Problem Solution
I cannot nd
“MX-D528B” on my
Bluetooth® device.
• Ensure the Bluetooth® function is activated on your
Bluetooth® device.
• Ensure you have paired your unit with the Bluetooth®
device.
If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it
again.
MX-D528B_IB_Final2000616V4.indd 14 17/06/2020 17:01
15
Product Fiche and Specifications
Brand JVC
Model MX-D528B
System Section
Power Supply AC ~100 - 240 V ~ 50/60 Hz
Power Consumption 100 W
Working Environment - Temperature -10 ~ +35 °C
Working Environment - Relative Humidity 5% ~ 90%
Unit Dimension (W) × (D) × (H) 306 mm x 278 mm x 796 mm
Speakers Section
Impedance 6 Ω
Output Peak Power 350 Watts Peak Power
Output RMS Power 200 Watts RMS output
Frequency Response ±3 dB (50 Hz ~ 20 kHz)
Bluetooth Section
Bluetooth Version V4.1
Maximum Transmitted Power ≤ -1.7 dBm
Frequency Bands 2402 MHz ~ 2480 MHz
Radio Section
Frequency Range FM 87.5 – 108 MHz
Frequency Response ±3 dB (50 Hz ~ 20 kHz)
USB Section
USB Memory Stick
Memory Size
Up to 32 GB
Features and specications are subject to change without prior notice.
MX-D528B_IB_Final2000616V4.indd 15 17/06/2020 17:01

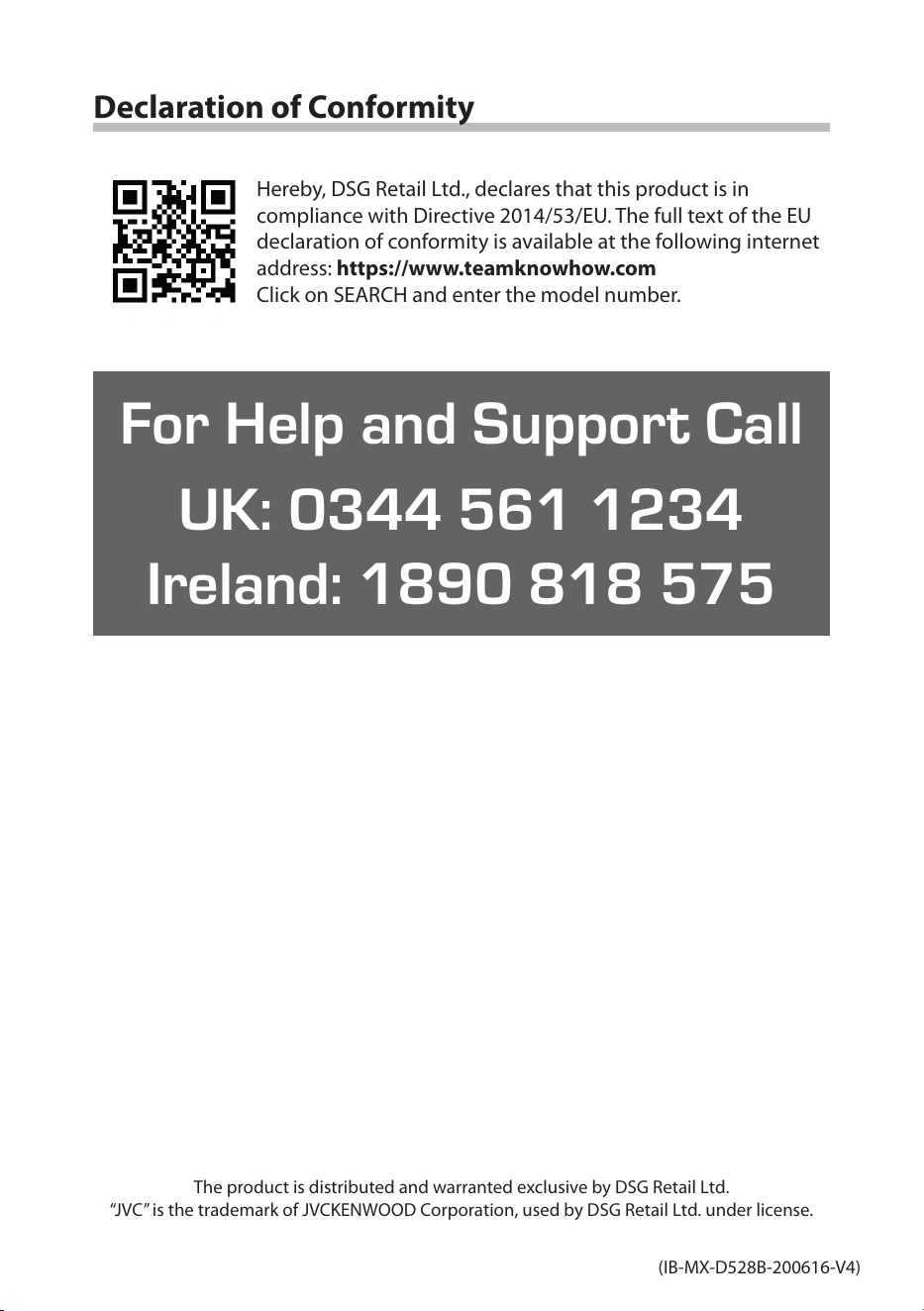

The product is distributed and warranted exclusive by DSG Retail Ltd.
“JVC” is the trademark of JVCKENWOOD Corporation, used by DSG Retail Ltd. under license.
(IB-MX-D528B-200616-V4)
For Help and Support Call
UK: 0344 561 1234
Ireland: 1890 818 575
Hereby, DSG Retail Ltd., declares that this product is in
compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet
address: https://www.teamknowhow.com
Click on SEARCH and enter the model number.
Declaration of Conformity
MX-D528B_IB_Final2000616V4.indd 16 17/06/2020 17:01
