ABOUT THIS USER’S MANUAL

This symbol represents a warning. To ensure safe use, always adhere to the instructions

described in this documentation.

This symbol is followed by a user’s tip.

PRECAUTIONS

- Keeping and reading the “User manual” is highly recommended. The manufacturer and supplier

cannot accept any responsibility for any incorrect readings, export data lost and any consequences

that occur should an inaccurate reading take place.

- Images shown in this manual may differ from the actual display.

- The contents of this manual may not be reproduced without the permission of the manufacturer.

- Technical specifications and user manual contents for this product are subject to change without

notice.

- This product is not to be used for medical purposes or for public information

- Do not subject the unit to excessive force, shock, dust, temperature or humidity.

- Do not cover the ventilation holes with any items such as newspapers, curtains etc.

- Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.

- Do not clean the unit with abrasive or corrosive materials.

- Do not tamper with the unit’s internal components. This invalidates the warranty.

- Placement of this product on certain types of wood may result in damage to its finishing for which

manufacturer will not be responsible. Consult the furniture manufacturer’s care instructions for

information.

- Only use attachments / accessories specified by the manufacturer.

- This product is not a toy. Keep out of the reach of children.

- The console is intended to be used only indoors.

- Place the console at least 20cm from nearby persons.

- Consoleworkingtemperature:-5˚C~50˚C

Warning

- Do not ingest the battery. Chemical Burn Hazard.

- This product contains a coin/key cell battery. If the coin/key cell battery is swallowed, it can cause

severe internal burns in just 2 hours and can lead to death.

- Keep new and used batteries apart. If battery door does not close securely, stop using the product

and keep it away from children.

- If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

- Anapplianceisonlysuitableformountingatheight≤2m.(Equipmentmass≤1kg)

- This product is intended for use only with the adaptor provided:

Manufacturer: Dong Guan Shi Jie Hua Xu Electronics Factory Model: HX075-0501000-AG-001

- When disposing of this product, ensure it is collected separately for special treatment.

- The AC/DC adaptor is used as disconnect device.

- The AC/DC adaptor of apparatus should not be obstructed OR should be easily accessed during

intended used.

- To be completely disconnect the power input, the AC/DC adaptor of apparatus shall be disconnected

from the mains.

EN – 4

Caution

- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

- Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude

during use, storage or transportation.

- Replacement of a battery with an incorrect type can result in an explosion or the leakage of

ammableliquidorgas.

- Disposalofabatteryintoreorahotoven,ormechanicallycrushingorcuttingofabattery,canresult

in an explosion.

- Leaving a battery in an extremely high temperature surrounding environment can result in an

explosionortheleakageofammableliquidorgas.

- A battery subjected to extremely low air pressure may result in an explosion or the leakage of

ammableliquidorgas.

1. INTRODUCTION

Thank you for selecting WI-FI weather station with 7-in-1 professional sensor. This system gathers and

automatically uploads accurate and detailed weather data to Weather Underground, Weathercloud

website and 3rd partly weather platform which you can access and upload your weather data freely. This

producto󰀨ersprofessionalweatherobserversandwithexclusiveappforeasysetup.Youwillgetyour

own local forecast, high / low, totals and averages for virtually all weather variables without using a PC /

Mac. This Weather Station which transmits wireless sensor array’s temperature, humidity, wind, rain UV

and light intensity data to the console. This sensor array is fully assembled and calibrated for your easy

installation. It can send data at a low power radio frequency to the console from up to 150m / 450 feet

away (line of sight).

In the console, a high-speed processor is embedded to analyze the received weather data and these real

time data can be published to the weather platforms through your home WI-FI router.

The console can also synchronize with Internet time server to keep the time and weather data time stamp

of high precision. The color background LCD display shows informative weather readings with advanced

features,suchashigh/lowalertalarm,di󰀨erentweatherindex,andMAX/MINrecords.Withcalibration

and moon phase feature, this system is truly a remarkably personal yet professional weather station for

your own backyard.

EN – 5

1.1 Quick start guide

The following Quick Start Guide provides the necessary steps to install and operate the weather station,

and upload to the Internet, along with references to the pertinent sections.

Step Description Section

1 Power up the 7-in-1 wireless sensor array 3.2.1

2 Power up the display console and pair with sensor array 3.4

3 Manually set date and time (This part is unnecessary if the weather station is

connected to internet and time synchronize function is on)

4.4.1

4 Reset the rain to zero 4.3.7.3

5 Create account and register weather station at WUnderground and/or

Weathercloud

6 Connect weather station to WI-FI 5.1 to 5.5

2. PRE INSTALLATION

2.1 Checkout

Before permanently install your weather station, we recommend the user to operate the weather station at

a location which is easy to access to. This will allow you to get familiar with the weather station functions

and calibration procedures, to ensure proper operation before installing it permanently.

2.2 Site selection

Before installing the sensor array, please consider the followings;

1. Rain gauge must be clean every few months

2. Batteries must be changed every 2 to 2.5 years

3. Avoidradiantheatreectedfromanyadjacentbuildingsandstructures.Ideally,thesensorarray

should be installed at 1.5m (5’) from any building, structure, ground or roof top.

4. Choose an area of open space in direct sunlight without any obstruction of rain, wind, and sunlight.

5. Transmission range between sensor array and display console could reach a distance of 150m (or

450 feet) at line of sight, providing there are no interfering obstacles in between or nearby such as

trees, towers, or high voltage line. Check the reception signal quality to ensure good reception.

6. Household appliance such as fridge, lighting, dimmers may pose Electro-magnetic interference (EMI),

while Radio Frequency Interference (RFI) from devices operating in the same frequency range may

cause signal intermittent. Choose a location at least 1-2 meter (3-5 feet) away from these interference

sources to ensure best reception.

EN – 6

3. GETTING STARTED

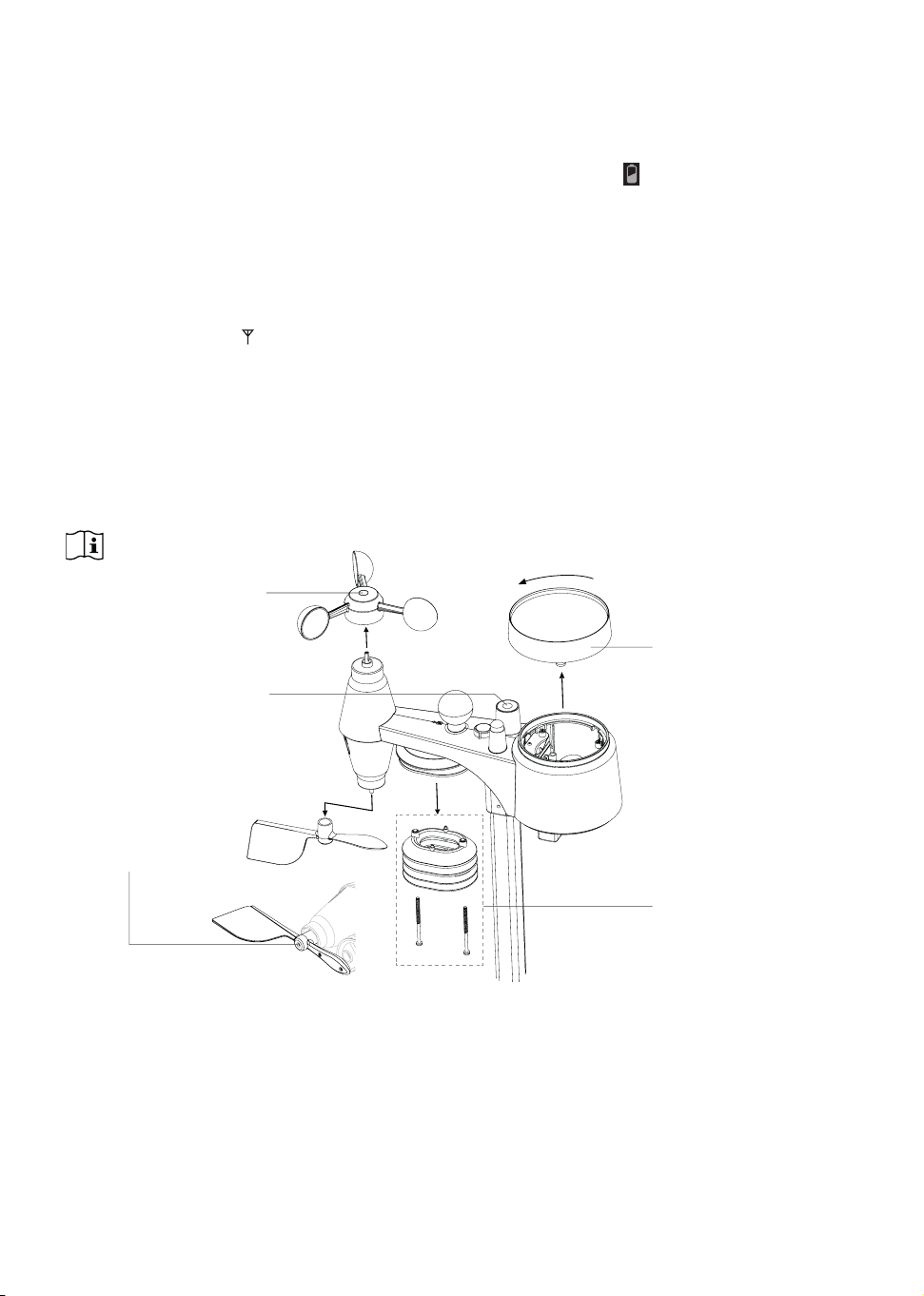

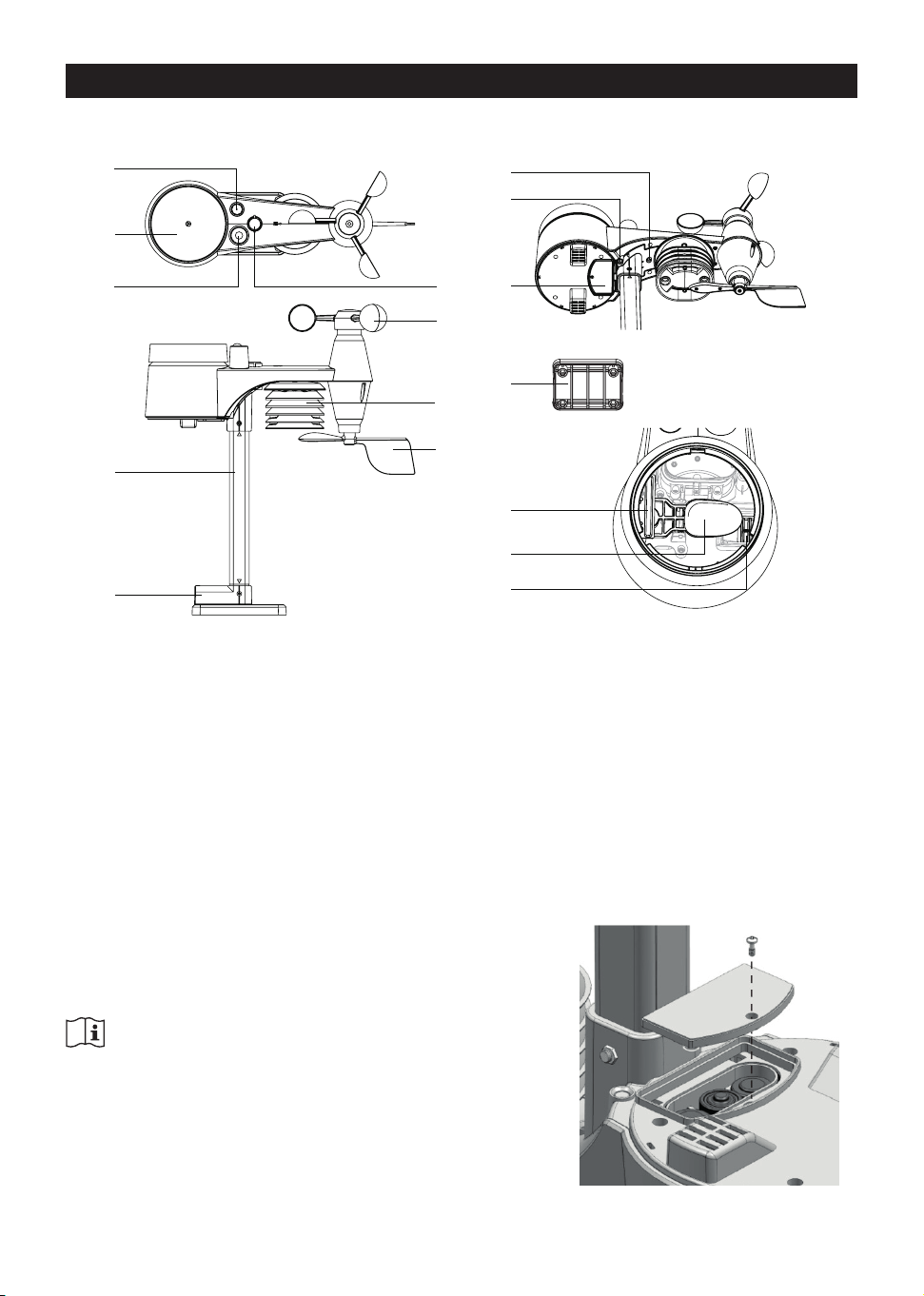

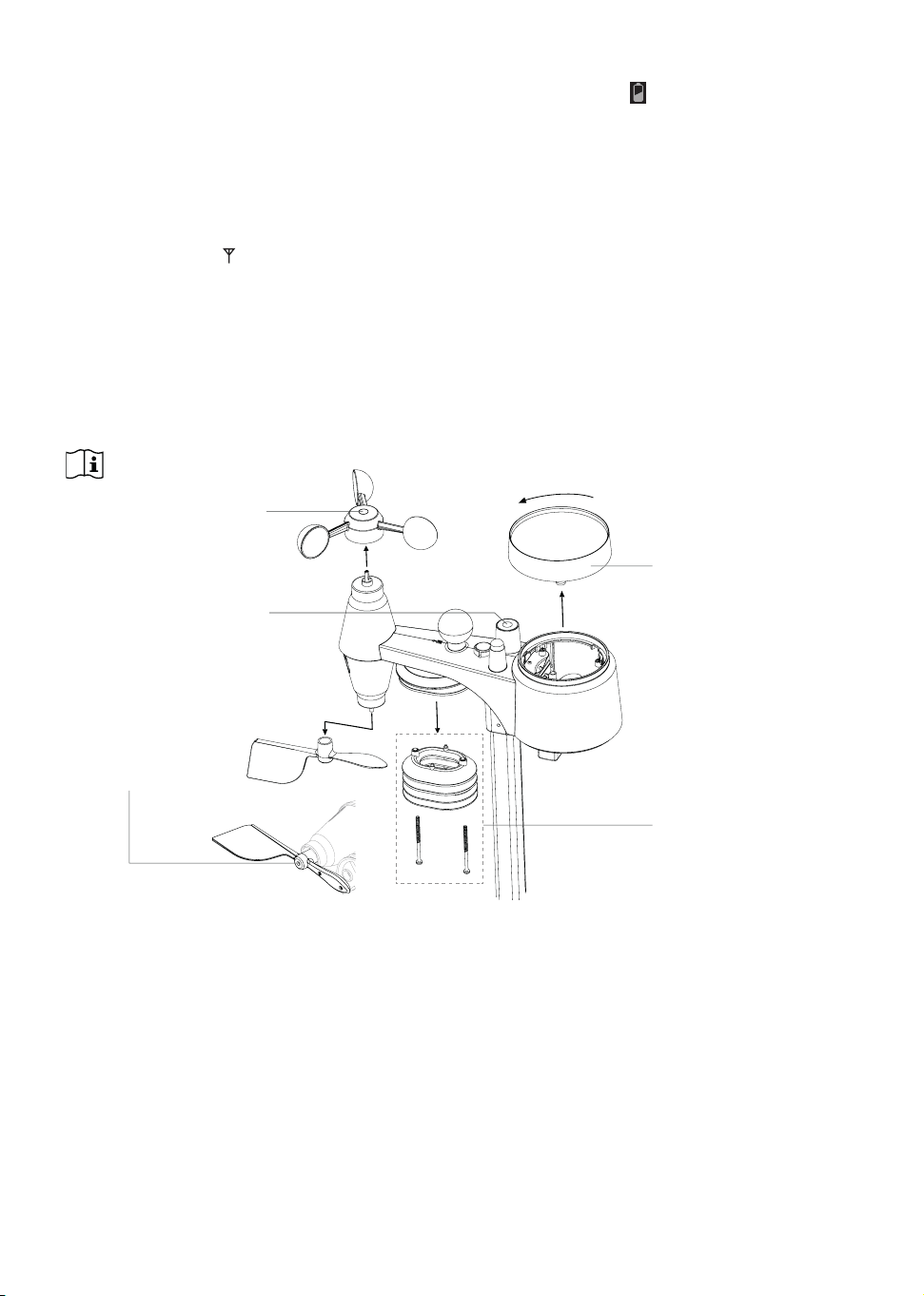

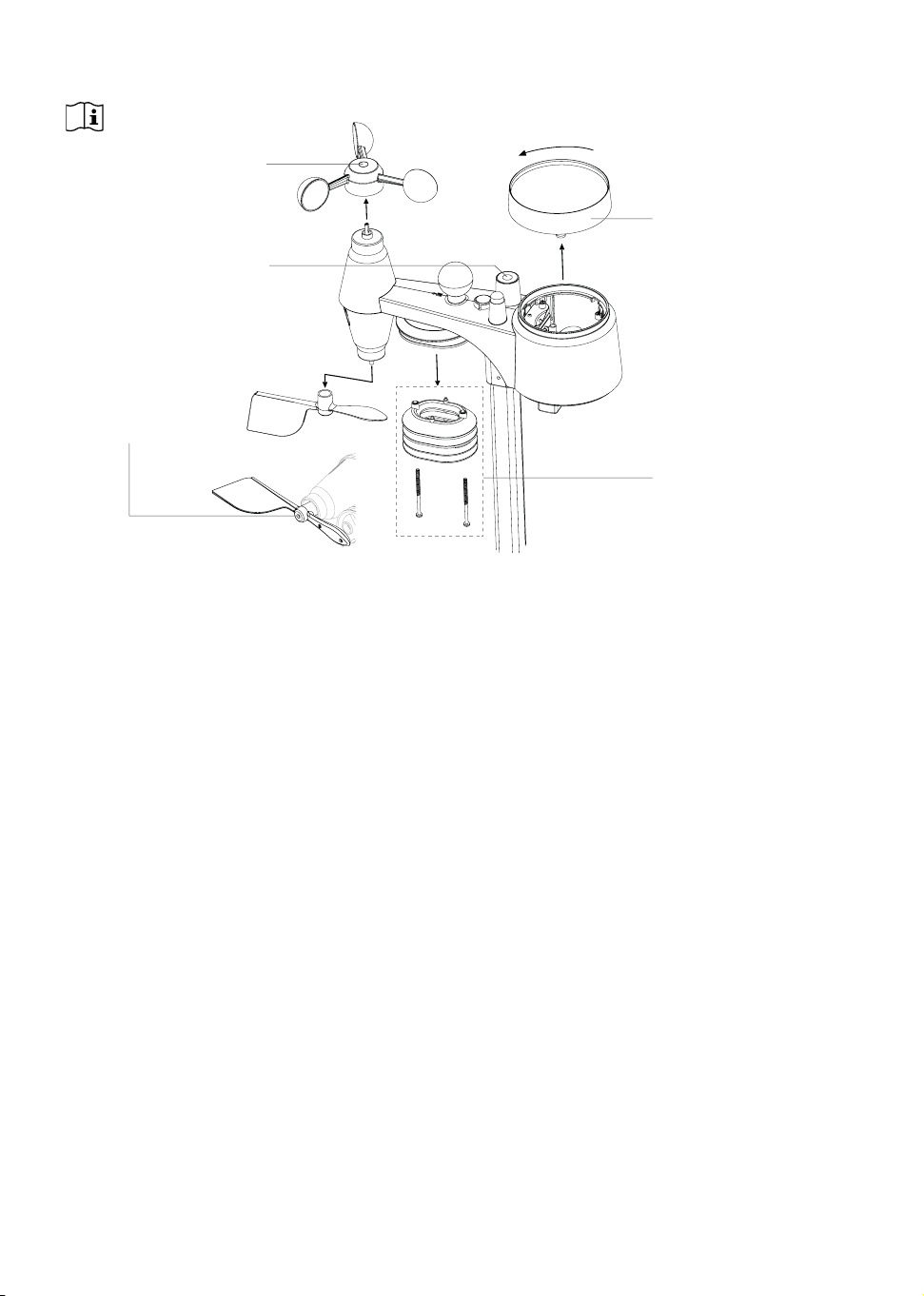

3.1 Wireless 7-in-1 sensor

3 6

1. Antenna

2. Rain collector

3. UVI / light sensor

4. Mounting pole

5. Mounting base

6. Balance indicator

7. Wind cups

8. Radiation shield

9. Wind vane

10. Red LED indicator

11. [ RESET ] key

12. Battery door

13. Mounting clamp

14. Rain sensor

15. Tipping bucket

16. Drain holes

3.2 Install Wireless 7-IN-1 sensor

Yourwireless7-IN-1sensormeasureswindspeed,winddirection,rainfall,UVindex,lightintensity,

temperature and humidity for you. It’s fully assembled and calibrated for your easy installation.

3.2.1 Battery and installation

Unscrew the battery door at bottom of unit and insert the

batteries according to the +/- polarity indicated.

Screw the battery door compartment on tightly.

Note:

- Ensure the water tight O-ring is properly aligned in place

to ensure water resistant.

- TheredLEDwillbeginashingevery12seconds.

3 6

EN – 7

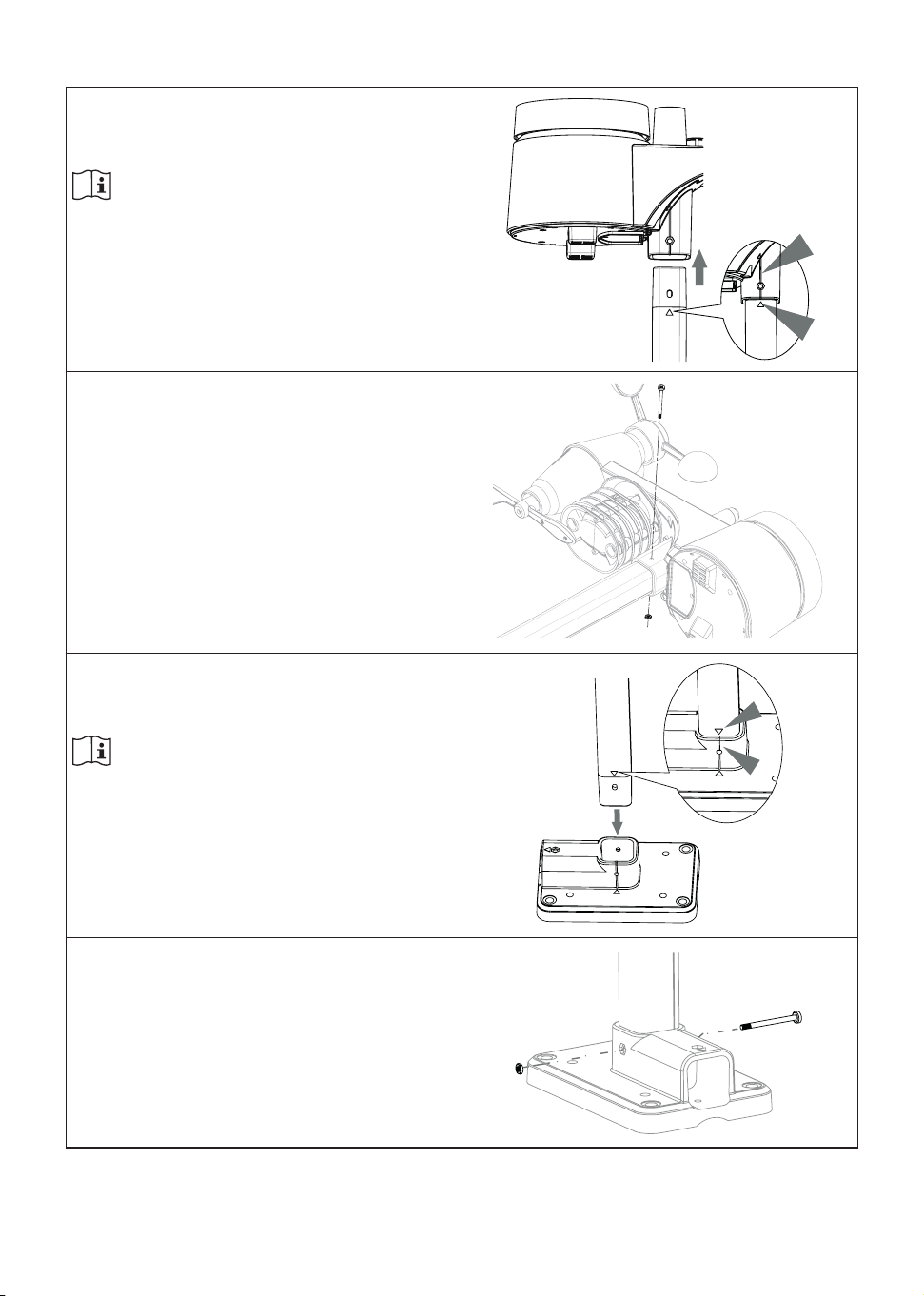

3.2.2 Assembly the stand and pole

Step 1

Insert the top side of the pole to the square hole of

the weather sensor.

Note:

Ensure the pole and sensor’s indicator align.

Step 2

Place the nut in the hexagon hole on the sensor,

then insert the screw in other side and tighten it by

the screw driver.

Step 3

Insert the other side of the pole to the square hole

of the plastic stand.

Note:

Ensure the pole and stand’s indicator align.

Step 4

Place the nut in the hexagon hole of the stand,

then insert the screw in other side and then tighten

it by the screw driver.

EN – 8

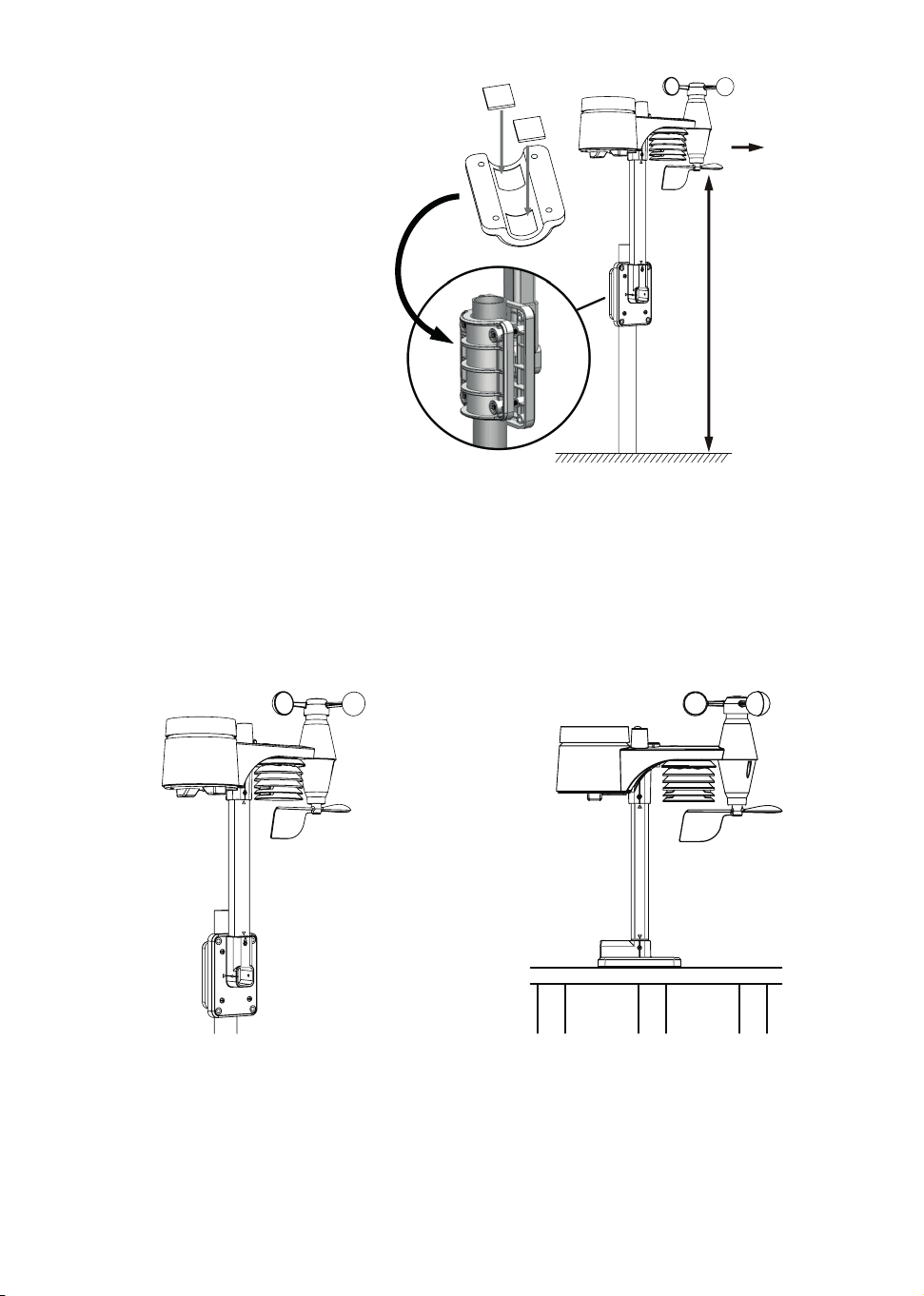

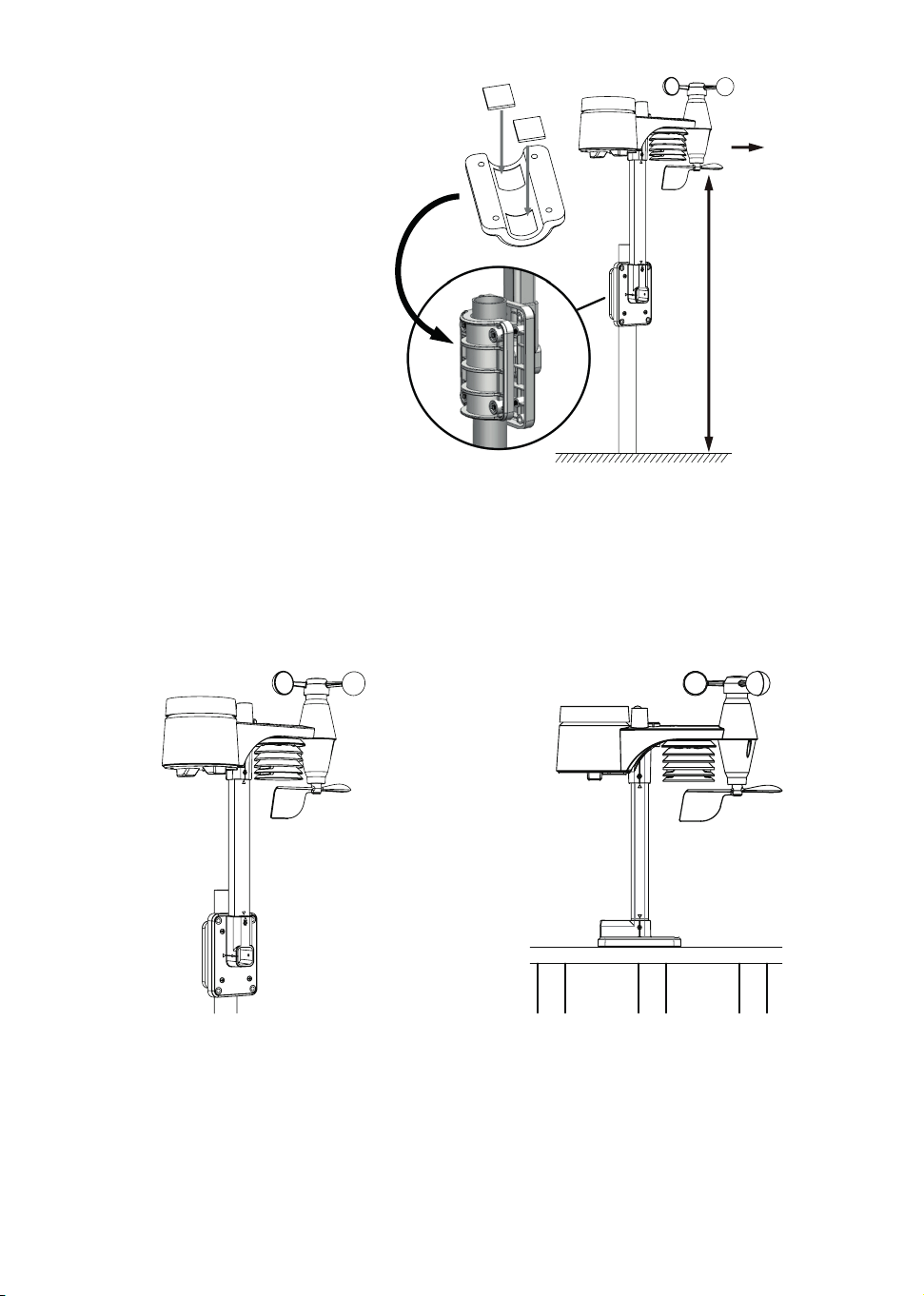

Install the wireless 7-IN-1 sensor in an

open location with no obstructions above

and around the sensor for accurate rain

and wind measurement.

Install the sensor with the smaller end

facing the North to properly orient the

wind direction vane.

Secure the mounting stand and clamps

(included) to a post or pole, and allow

minimum1.5mo󰀨theground.

Add rubber

pads before

mount on

the pole

Point to

NORTH

1.5metero󰀨

the ground

3.2.3 Mounting guidelines

1. Installthewireless7-IN-1sensoratleast1.5mo󰀨thegroundforbetterandmoreaccuratewind

measurements.

2. Choose an open area within 150 meters from the LCD console.

3. Install the wireless 7-IN-1 sensor as level as possible to achieve accurate rain and wind

measurements.

4. Mount the wireless 7-IN-1 sensor with the wind meter end pointing to the North to correctly orient

direction of the wind vane

A.Mountingonpole(PoleDiameter1”~1.3”)

(25~33mm)

B. Mounting on the railing

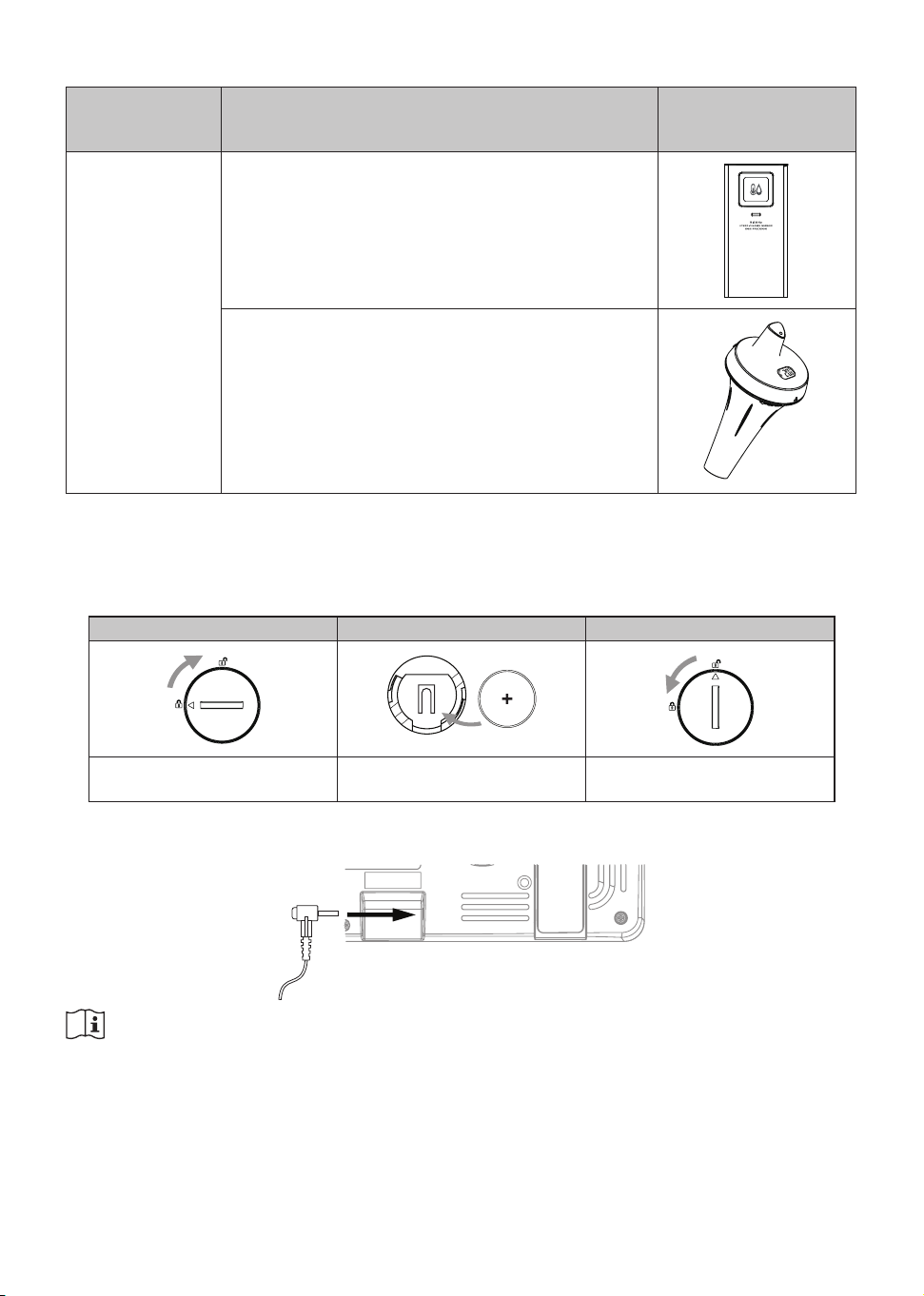

3.3 Synchronizing additional sensor(s) (optional)

The console can support up to 3 optional wireless thermo-hygro sensors. Please contact your local

retailerfordetailsofdi󰀨erentsensors.

EN – 9

3.3.1 Thermo-hygro sensors

No. of sensor

supported

Description Image

Up to 7 sensors

High Precision Thermo-Hygro sensor

Sensor data:

CH7~1temperatureandhumidity

868MHz

SOIL SENSOR

Pool Sensor

Sensor data:

CH7~1watertemperature

868MHz

SOIL SENSOR

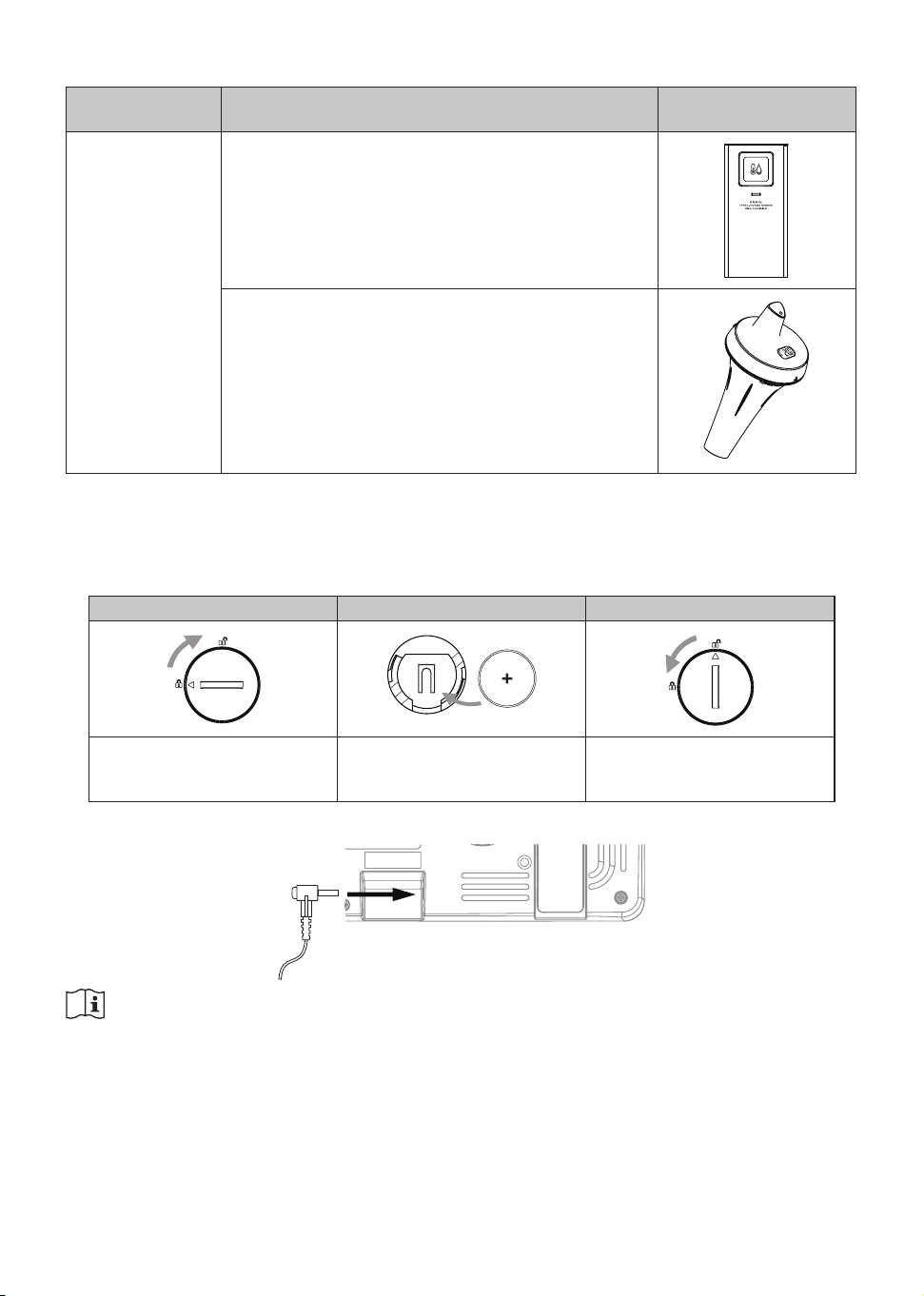

3.4 Setup the Console

Follow the procedure to setup the console connection with wireless sensor array and WI-FI.

3.4.1 Power up the display console

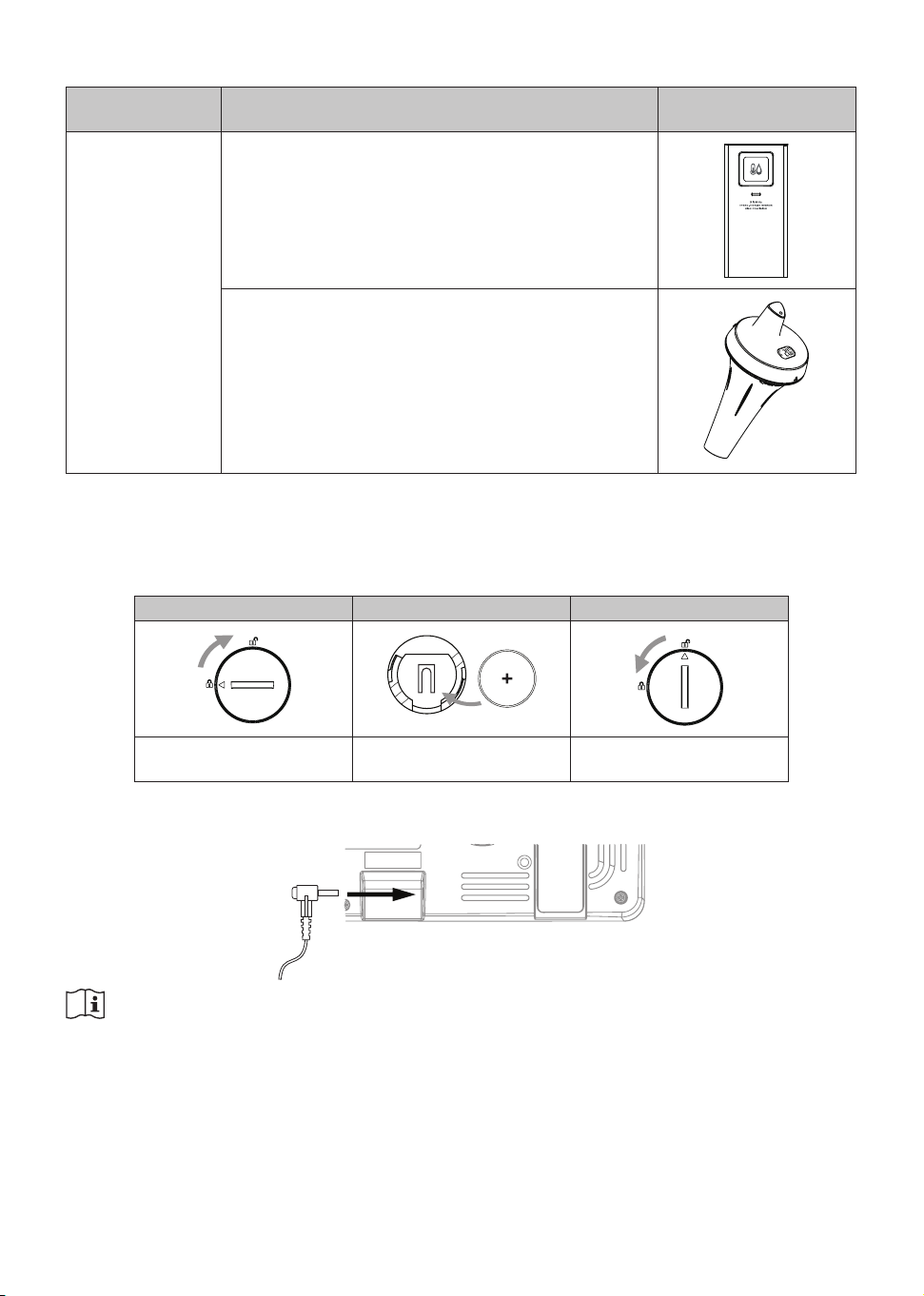

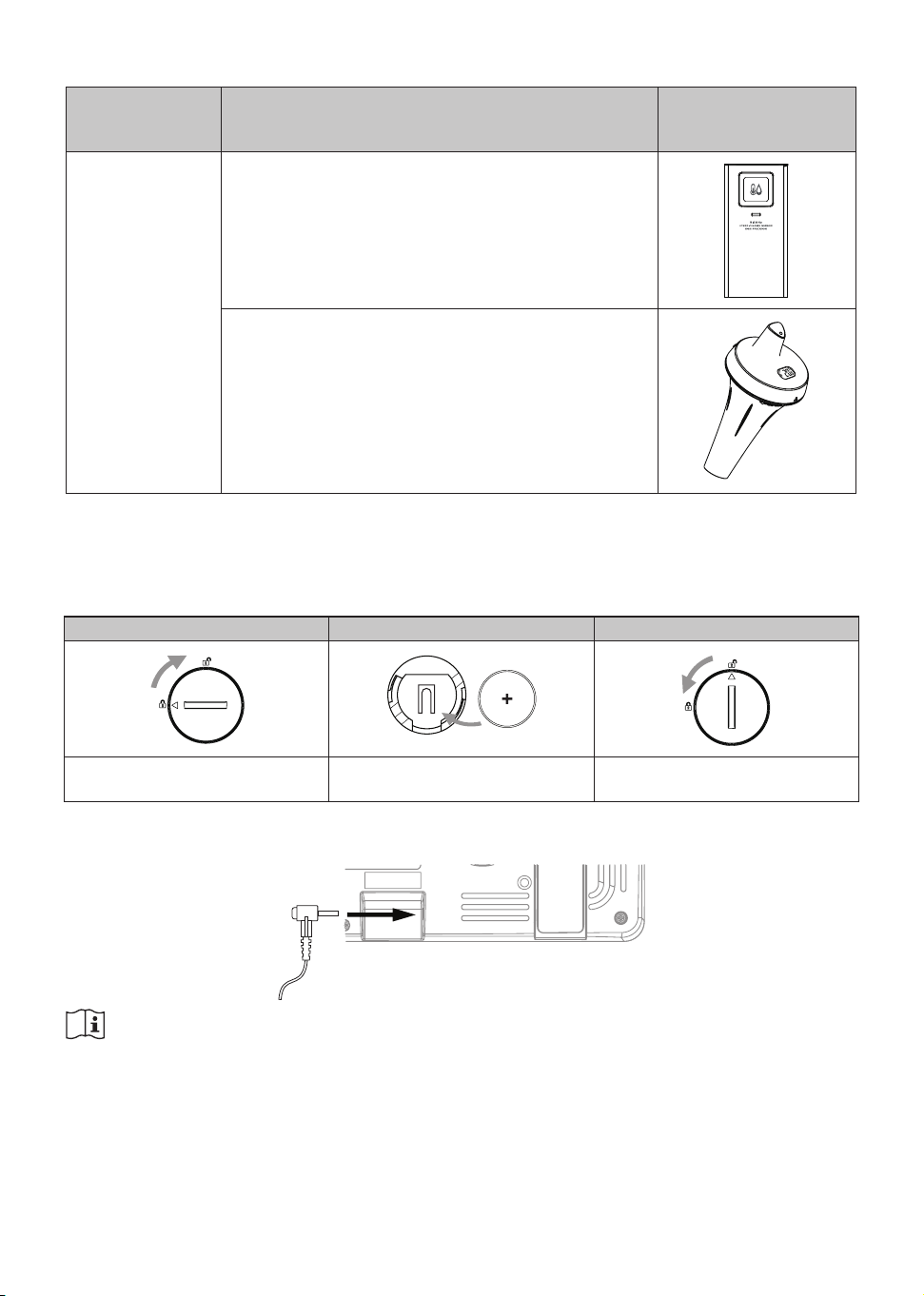

1. Install the back-up CR2032 battery

Step 1 Step 2 Step 3

Remove the console

battery door with coin

Insert a new CR2032

button cell battery

Replace the battery door.

2. Connect the display console power jack to AC power with the adaptor included.

Note:

- The backup battery can backup: Time & Date & Max/Min weather records, rainfall records and Alert

setting values / status.

- The built-in memory can backup: WI-FI setting, Hemisphere setting, Calibration values, and Sensor

ID.

- Please always remove the back-up battery if the device is not going to be used for a while. Please

keep in mind that even when the device is not in use, certain settings, such as the clock, alert settings

and records in its memory, will still drain the back-up battery.

EN – 10

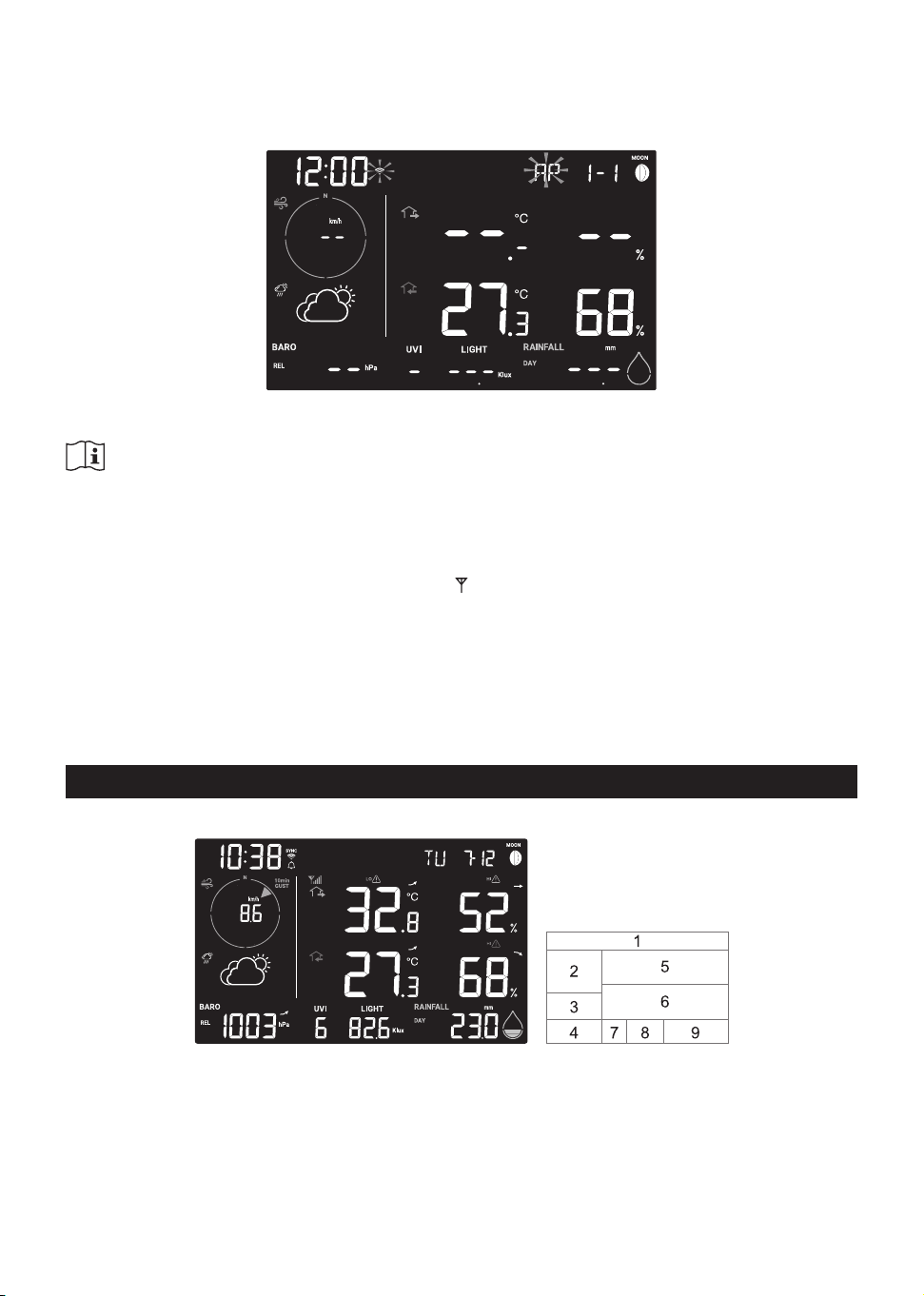

3.4.2 Setup display console

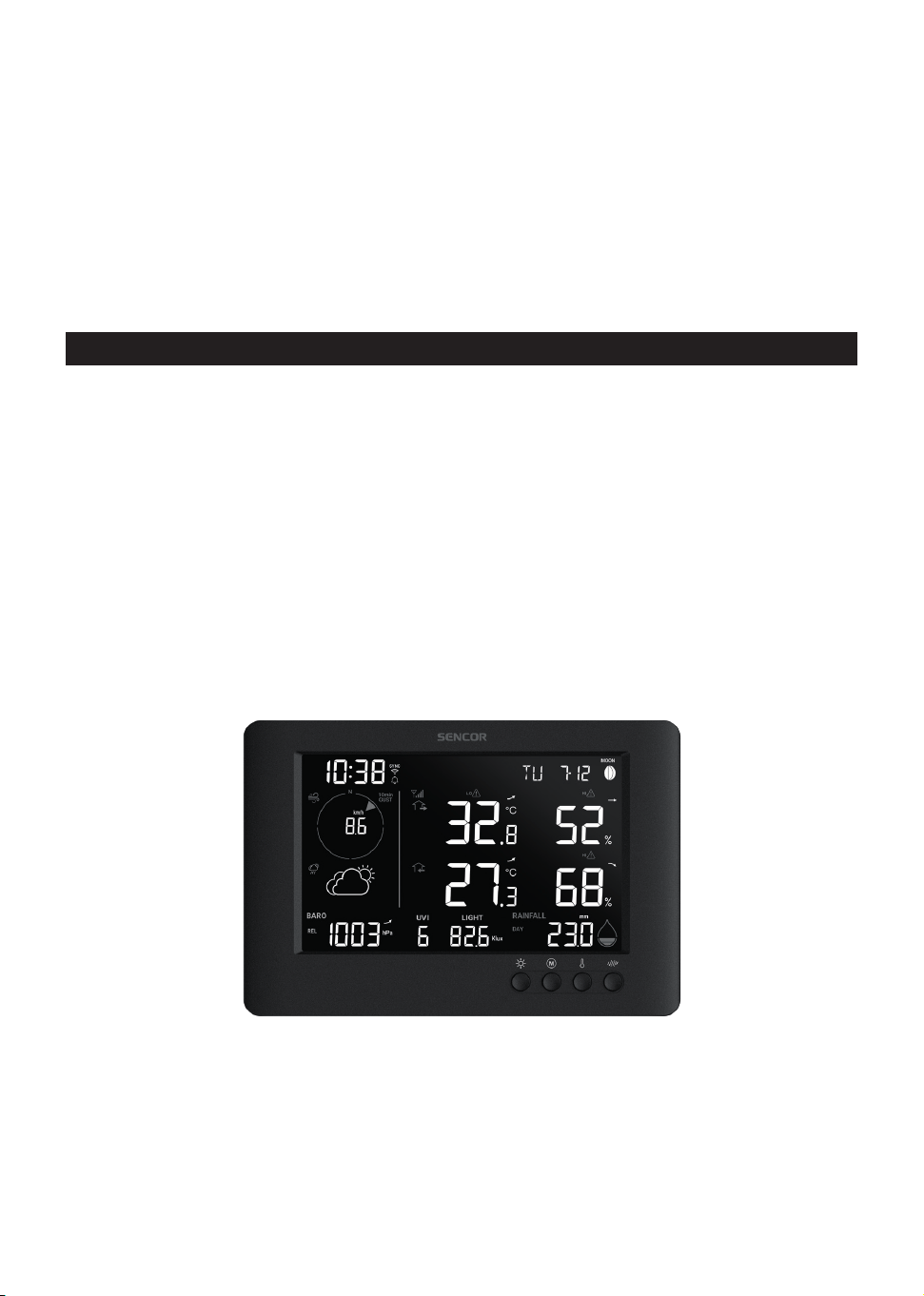

1. Once the console power up, all the segments of the LCD will be shown.

2. The console will automatically start AP mode and show the “AP” icon on the screen, you can follow

the Section 5 to setup the WI-FI connection.

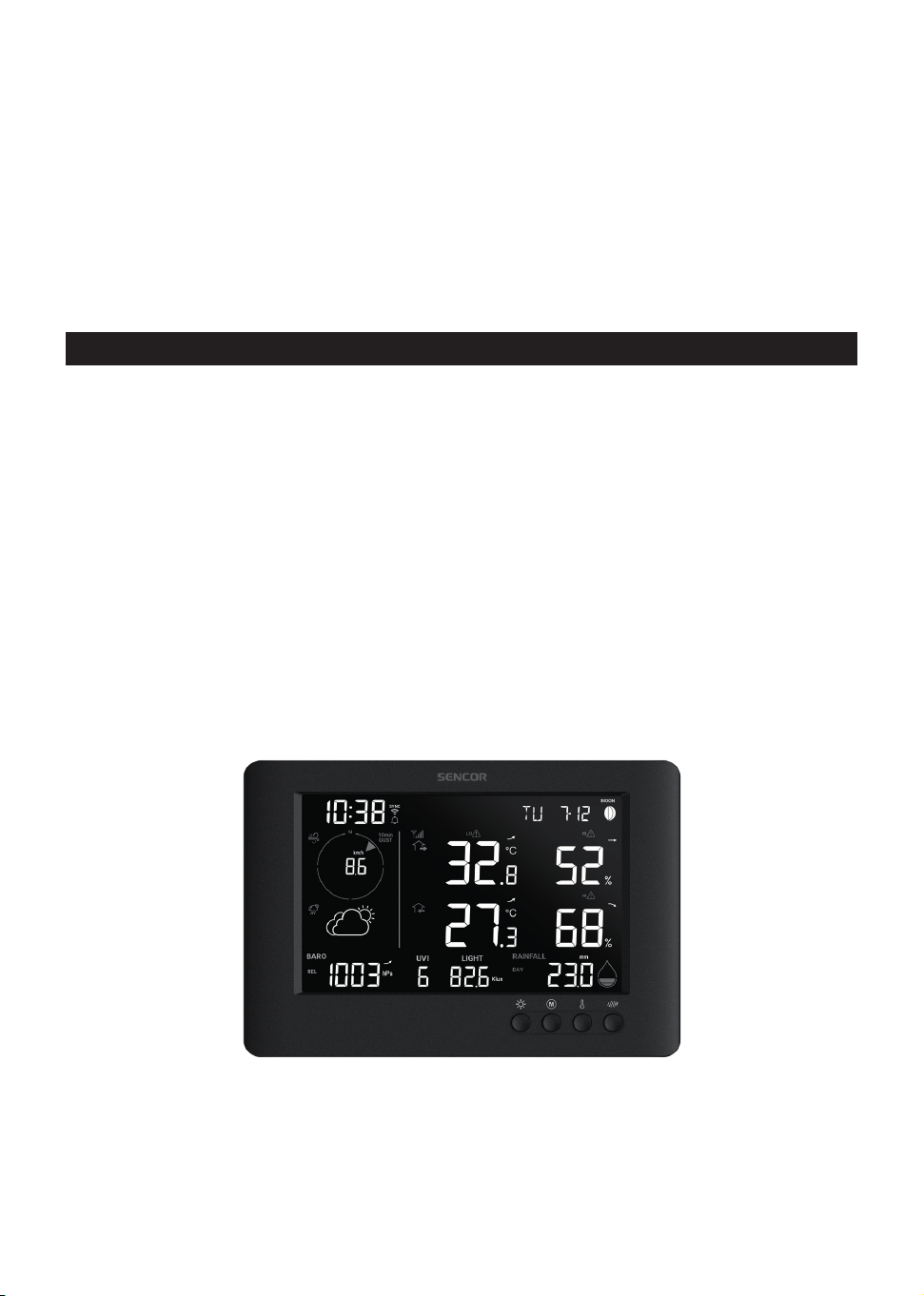

Start up screen (with 7-in-1 sensor connected)

Note:

If no display appears when power up the console, you can press [ RESET ] key by using a pointed object.

If this process still not work, you can remove the backup battery and unplug the adapter then re-power up

the console again.

3.4.3 Synchronizing wireless 7-in-1 sensor array

Immediately after power up the console, while still in synchronization mode, the 7-in-1 sensor can be

pairedtotheconsoleautomatically(asindicatedbytheashingantenna ). User may also manually

restart the synchronization mode by pressing the [ SENSOR / WI-FI ] key. Once they are paired up, the

sensor signal strength indicator and weather reading will appear on your console display.

3.4.4 Data clearing

During installation of the wireless 7-in-1 sensor, the sensors were likely to be triggered, resulting in

erroneous rainfall and wind measurements. After the installation, user may clear out all the erroneous

data from the display console. Simply press the [ RESET ] key once to re-start the console.

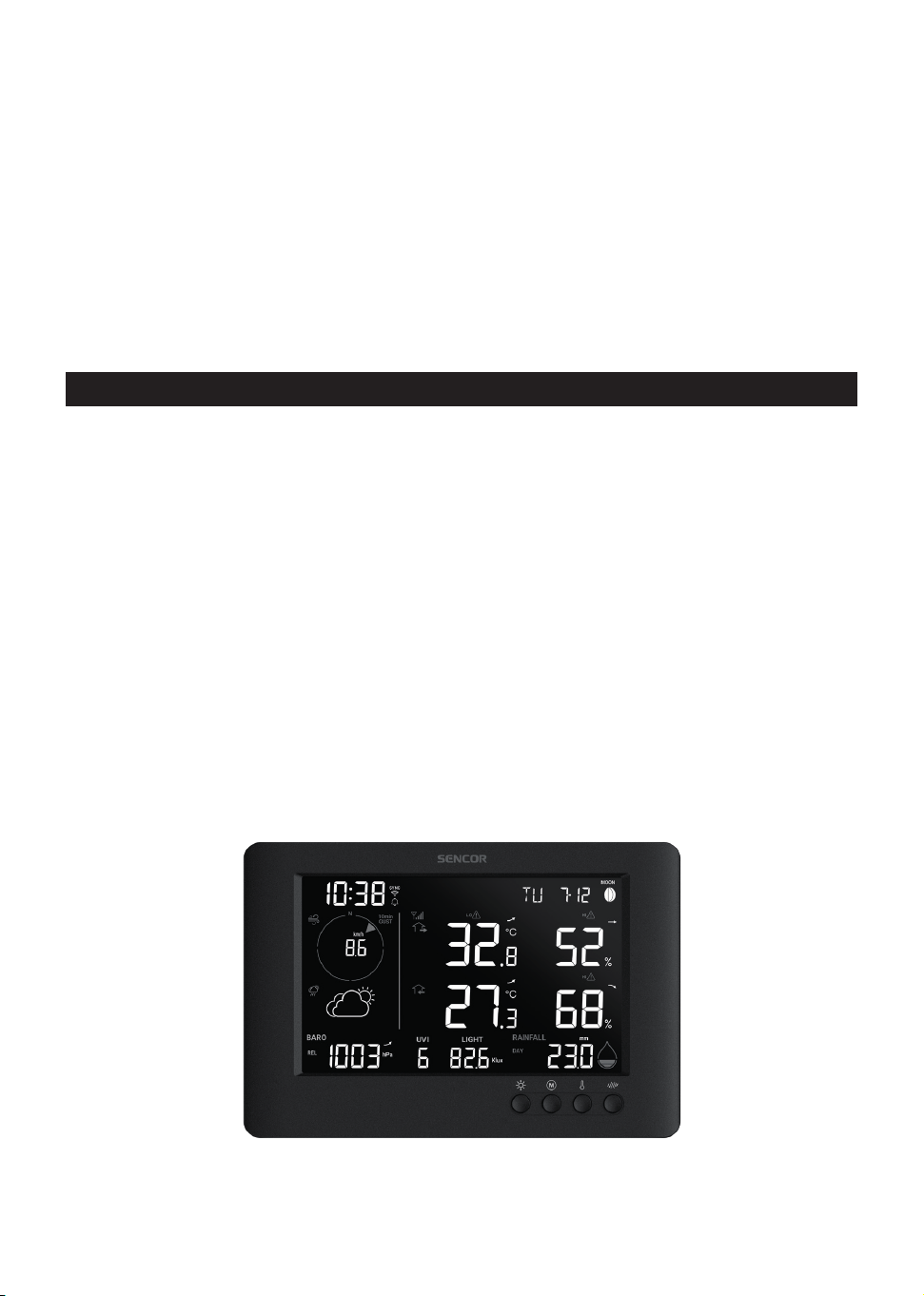

4. DISPLAY CONSOLE FUNCTIONS AND OPERATION

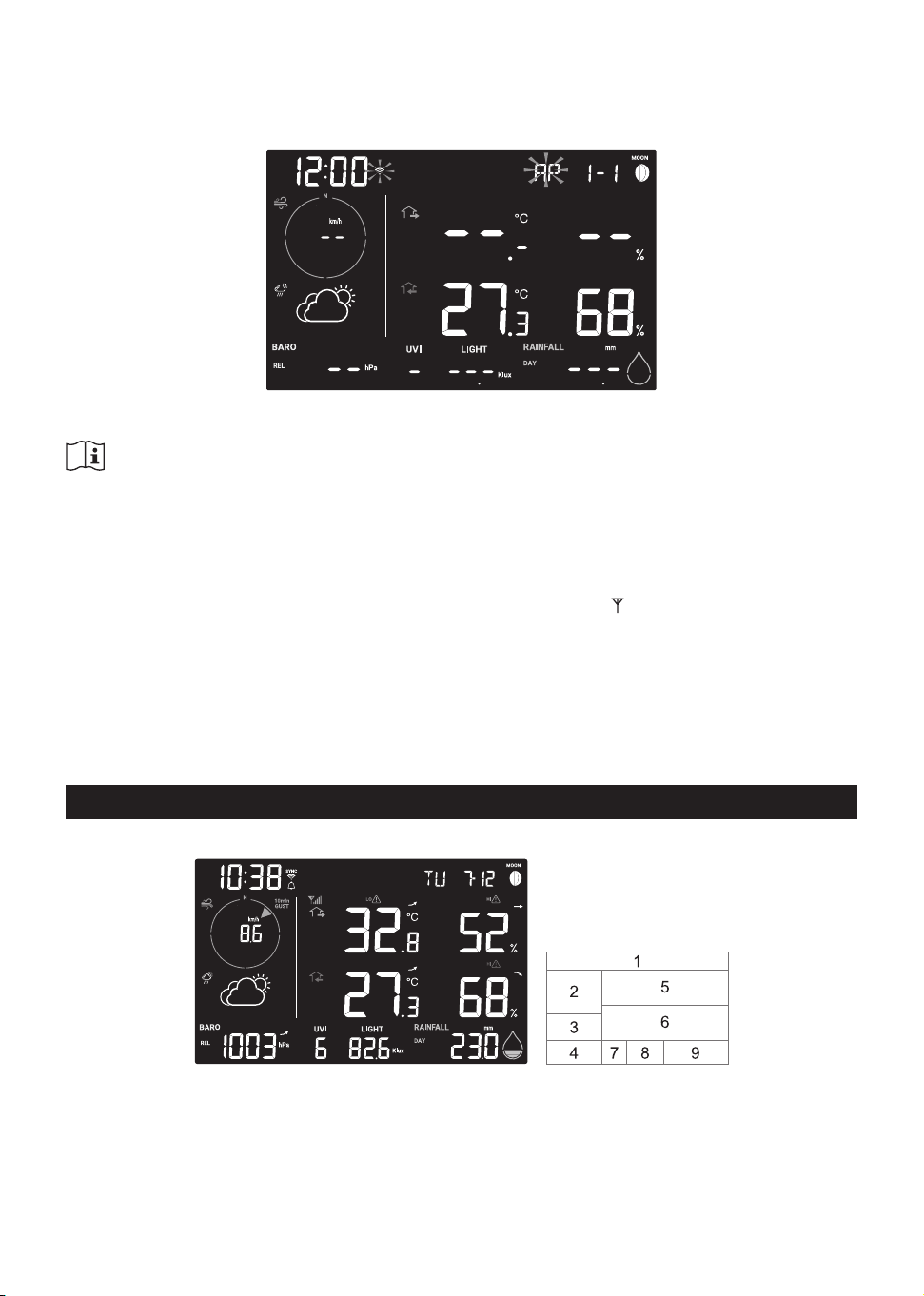

4.1 Screen Display

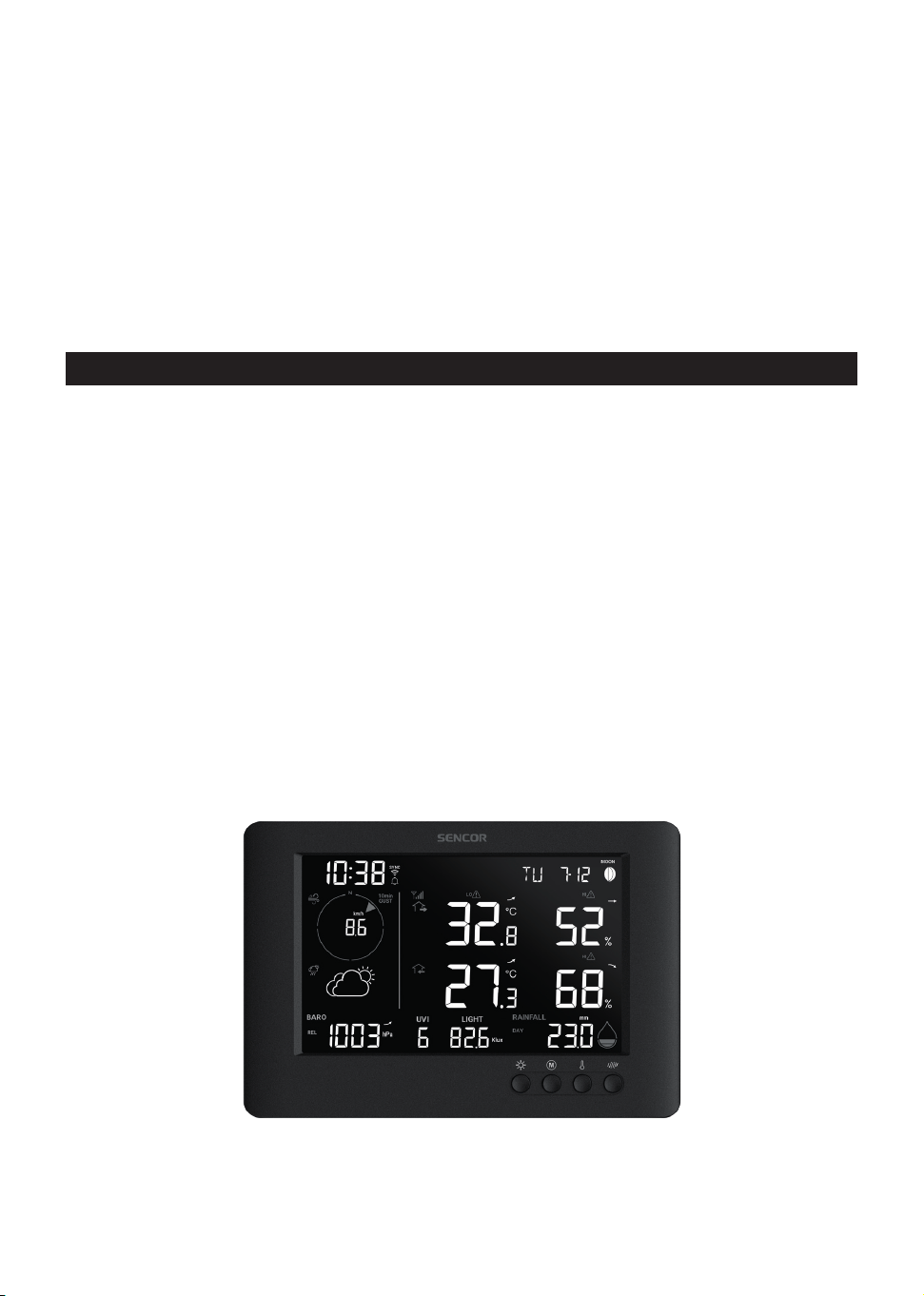

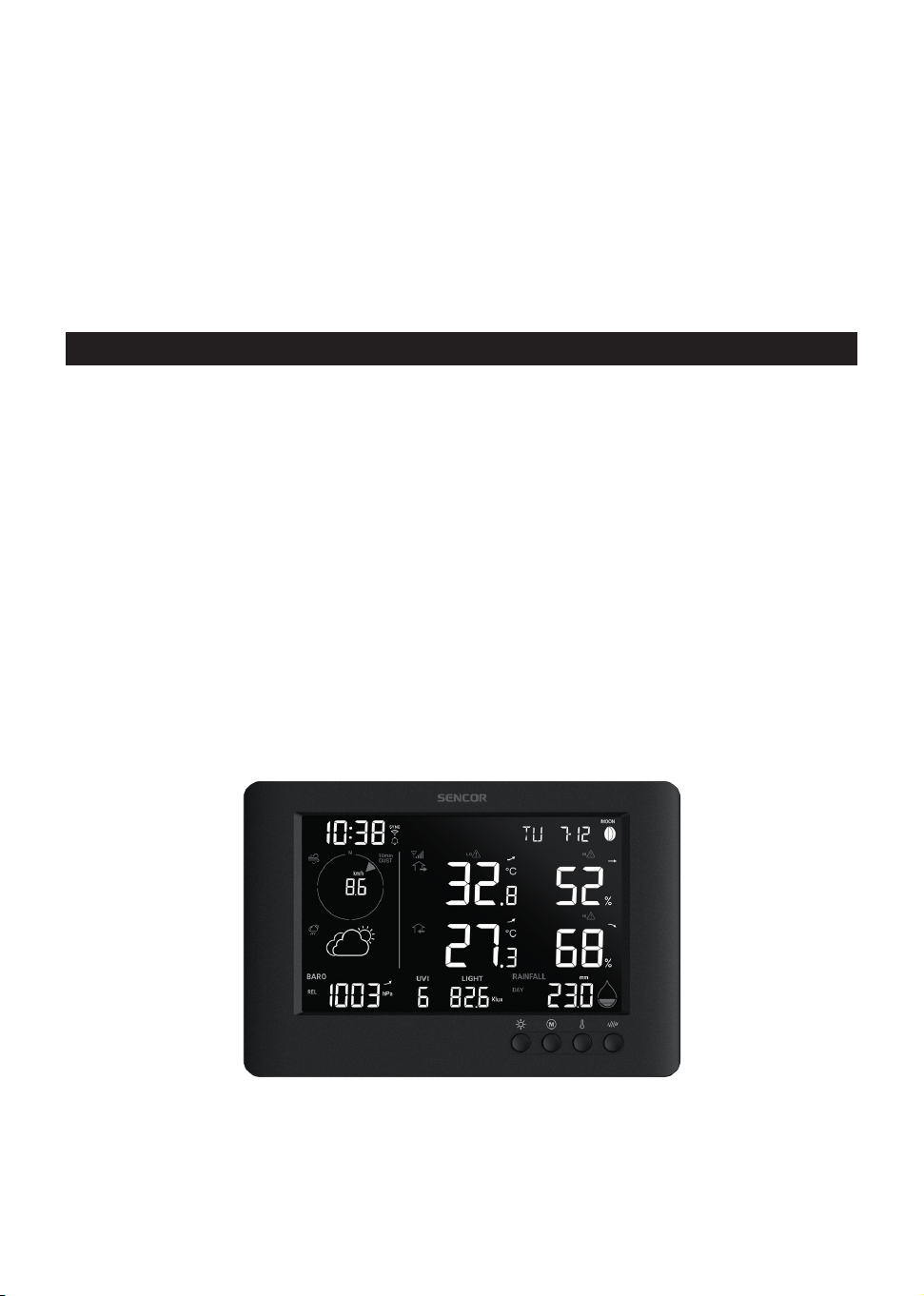

1. Moon phase, time & date

2. Wind speed & direction

3. Weather forecast

4. Baro pressure

5. Outdoor temperature & humidity

6. Indoor and CH temperature & humidity

7. UV index

8. Light intensity

9. Rain rate & rainfall

EN – 11

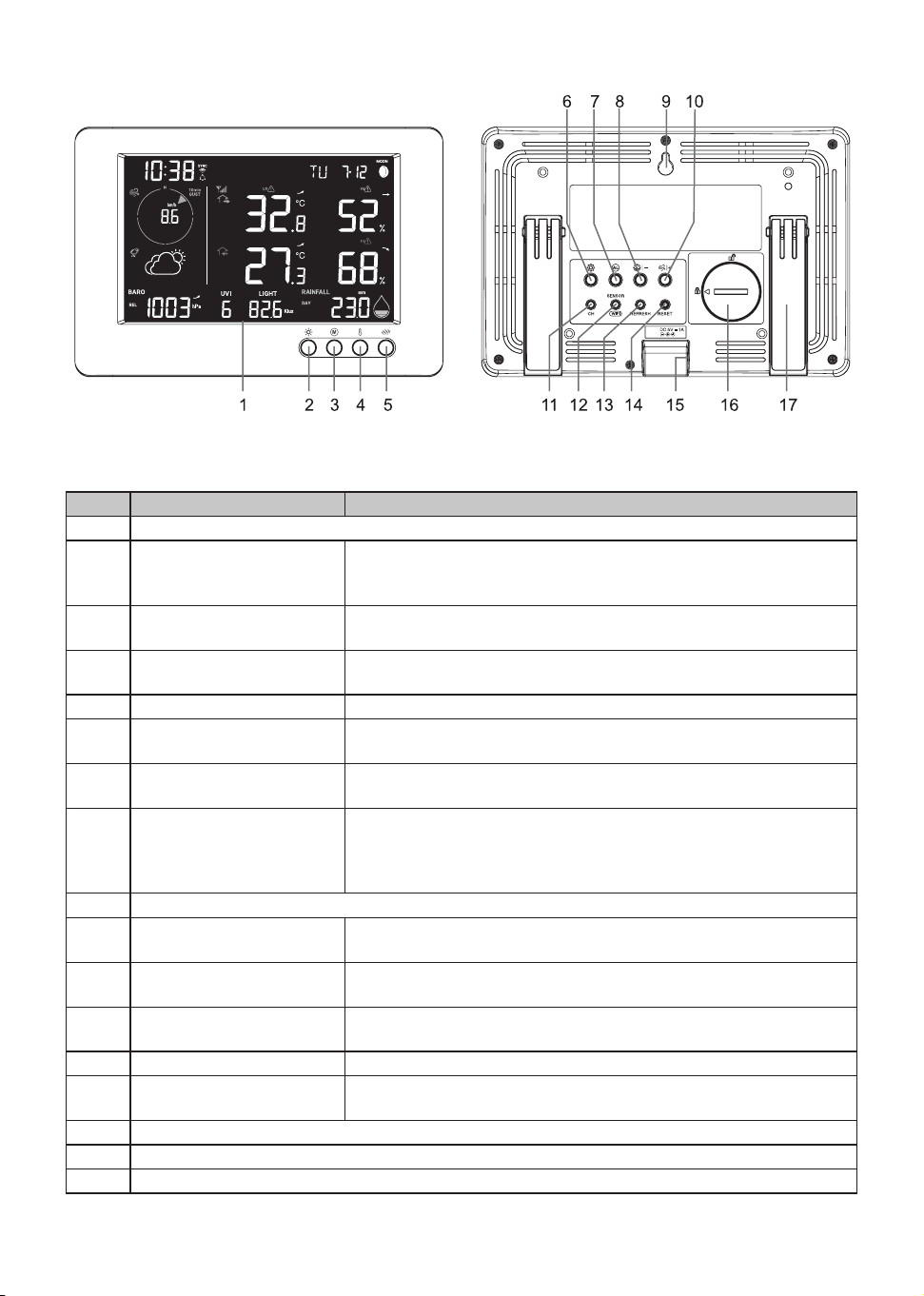

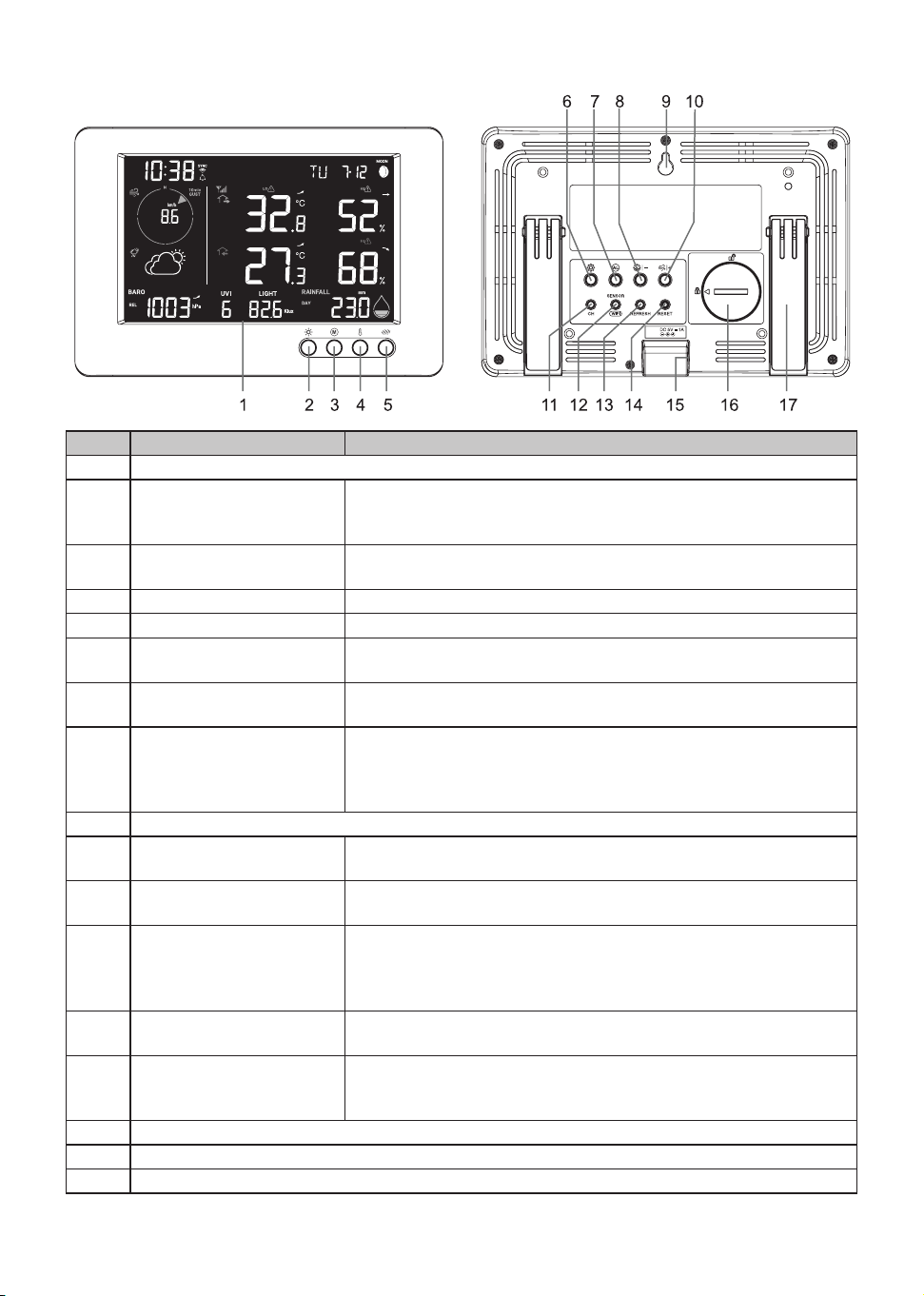

4.2 Display console keys

No. Key / Part Name Description

1 Display screen

2 BACK LIGHT /

SNOOZE

Press to change the back light level or stop alarm sound

3 MEMORY Press to switch between maximum and minimum values since last reset

4 INDEX To switch between outdoor temperature, feels like and dew point reading

5 RAIN Press to switch between rain rate and rainfall

6 SET Hold 2 seconds to enter time, date and other setting

7 ALARM During alarm, press to stop the alarm, press and hold for 2 seconds to stop

current snooze

8 - / BARO Press to switch current, past 3, 6, 12, 24 hour average air pressure reading

Hold 2 seconds to switch between relative and absolute air pressure

reading

9 Wall mount hole

10 + / WIND Press to switch between average wind speed, gust and beaufort scale

11 CHANNEL PresstoswitchbetweenindoorandCh1~3temperatureandhumidity

reading

12 SENSOR / WI-FI Press to start sensor synchronization (paring)

Hold 6 seconds to enter ap mode, vice versa

13 REFRESH Press to update the upload data and time synchronization

14 RESET Press to reset the console

Hold 6 seconds to factory reset the console

15 Power jack

16 Battery compartment

17 Table stand

EN – 12

4.3 Console features

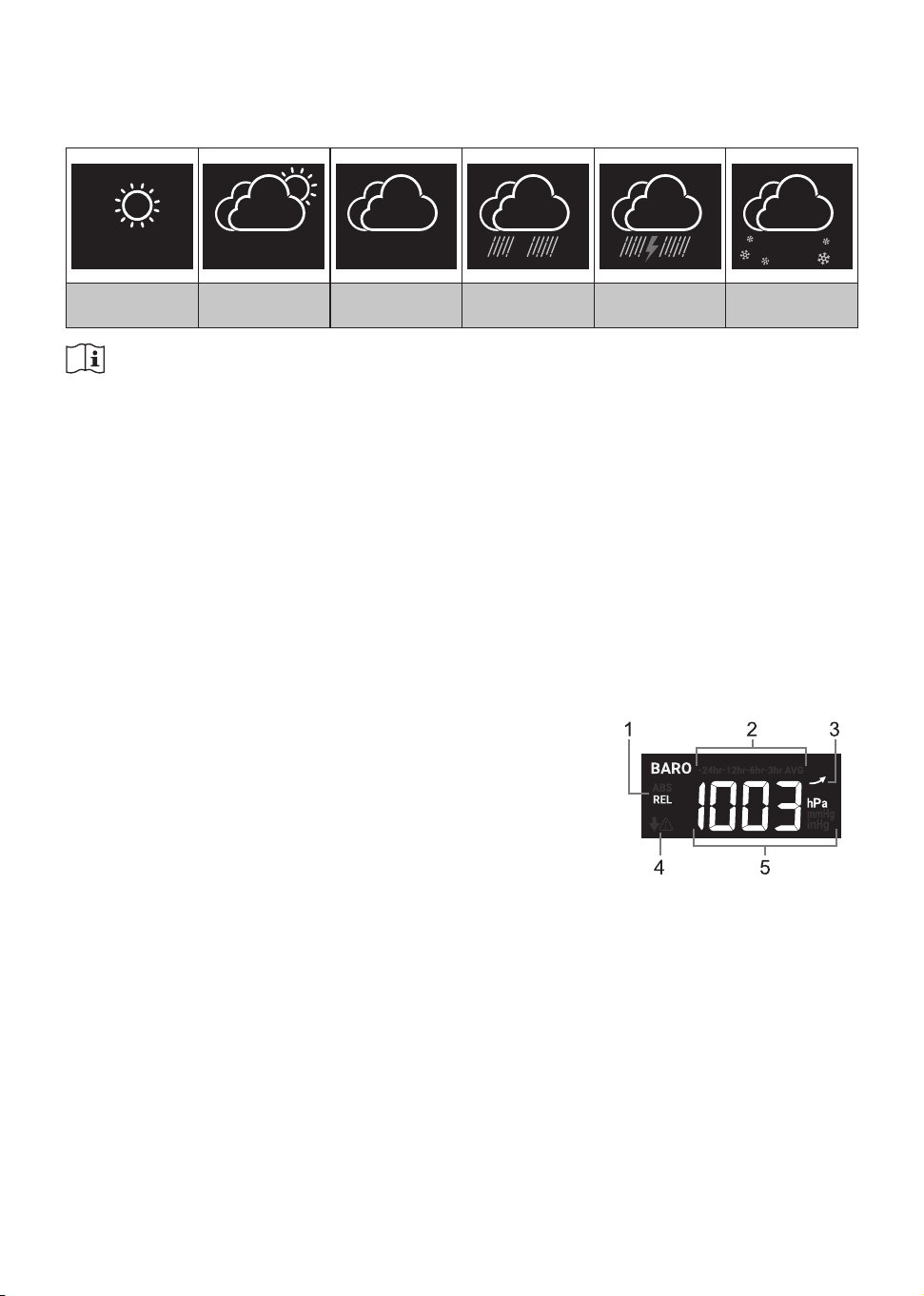

4.3.1 Weather forecast

The built-in barometer continually monitor atmosphere pressure. Based on the data collected, it can

predicttheweatherconditionsintheforthcoming12~24hourswithina30~50km(19~31miles)radius.

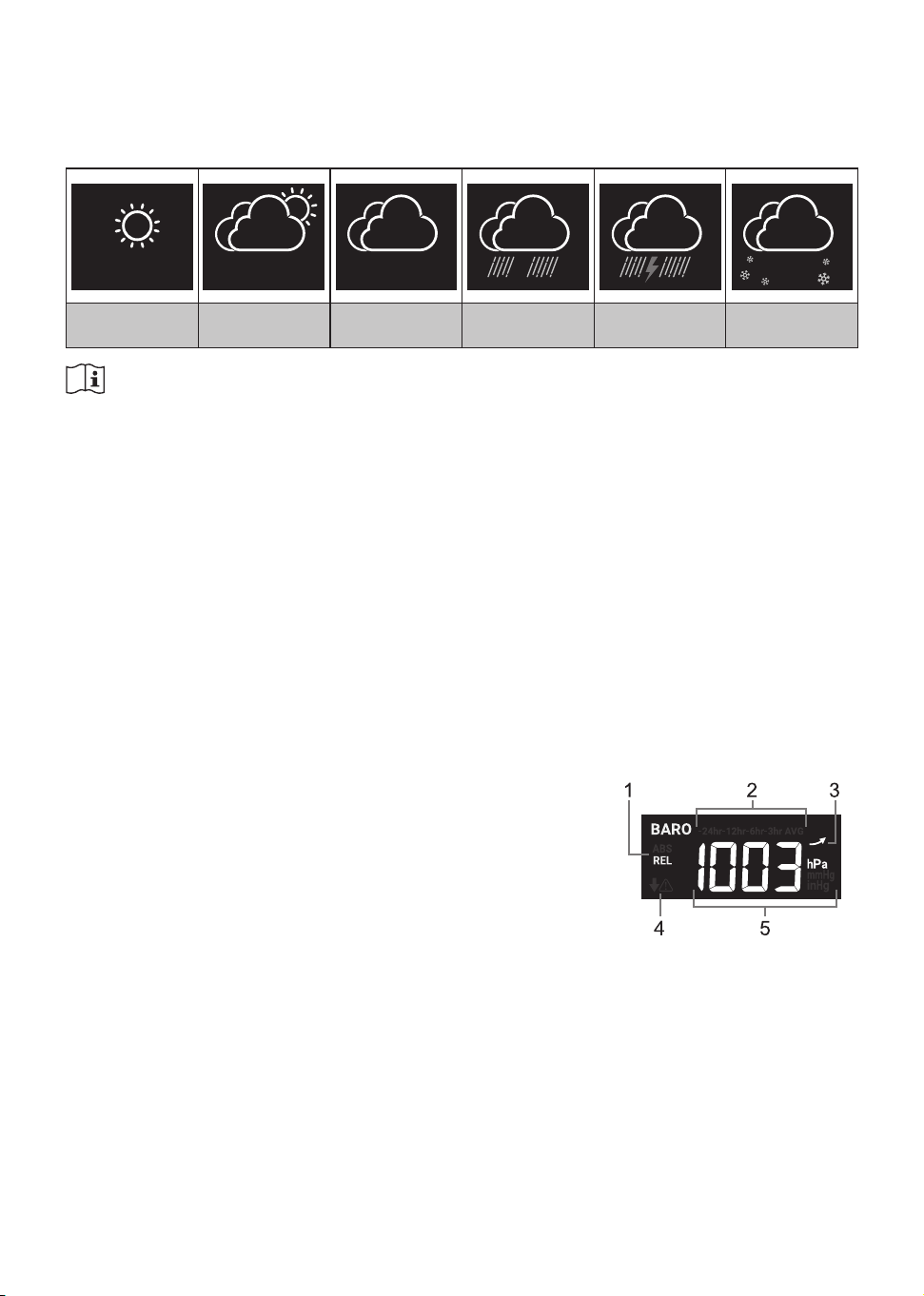

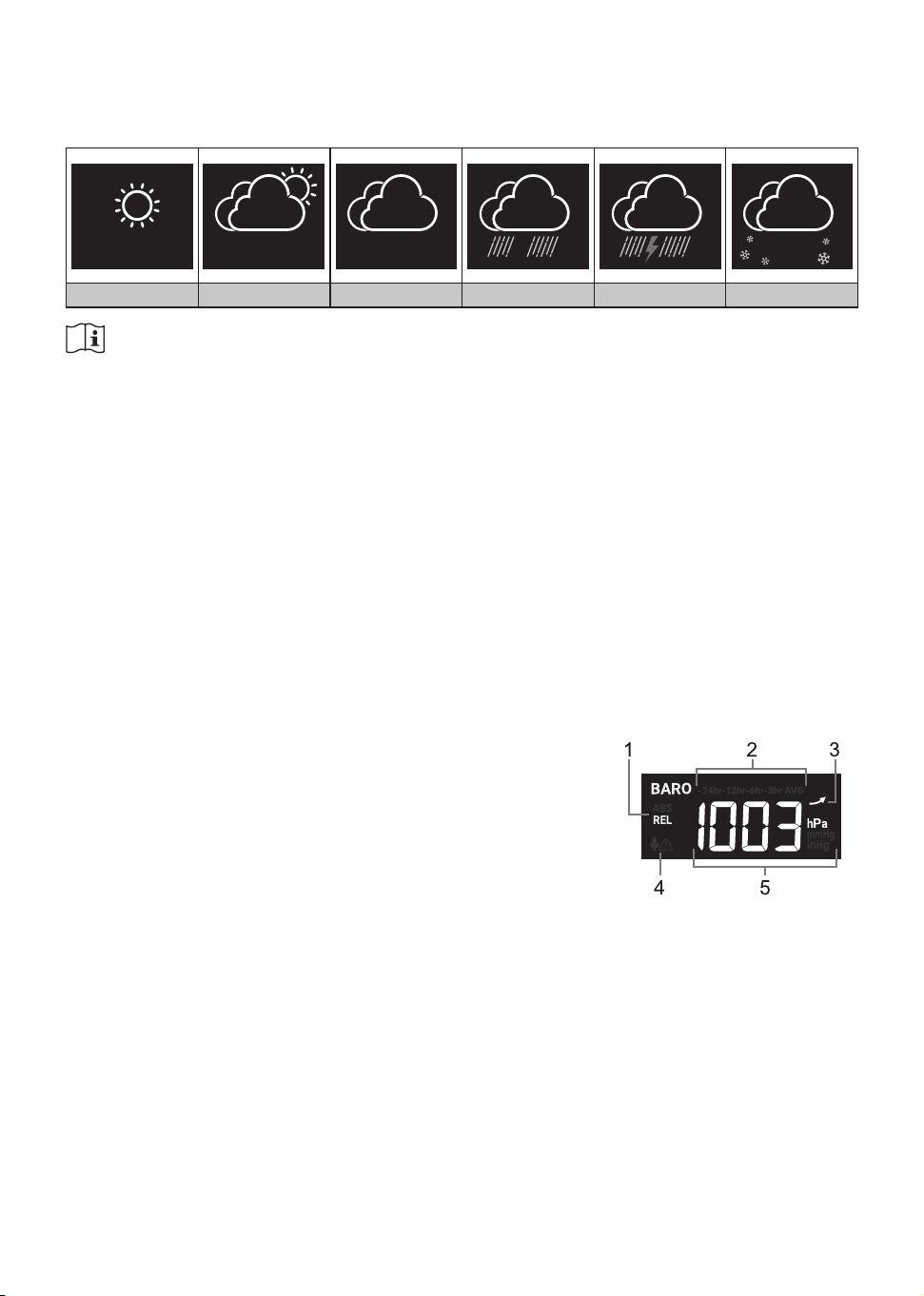

Sunny Partly cloudy Cloudy Rainy Rainy / Stormy Snowy

Note:

- The accuracy of a general pressure-based weather forecast is about 70% to 75%.

- Theweatherforecastisreectingtheweathersituationfornext12~24hours,itmaynotnecessarily

reectthecurrentsituation.

- The SNOWY weather forecast is not based on the atmospheric pressure, but based on the

temperature of outdoor. When the temperature is below -3°C (26°F), the SNOWY weather icon will be

displayed on the LCD.

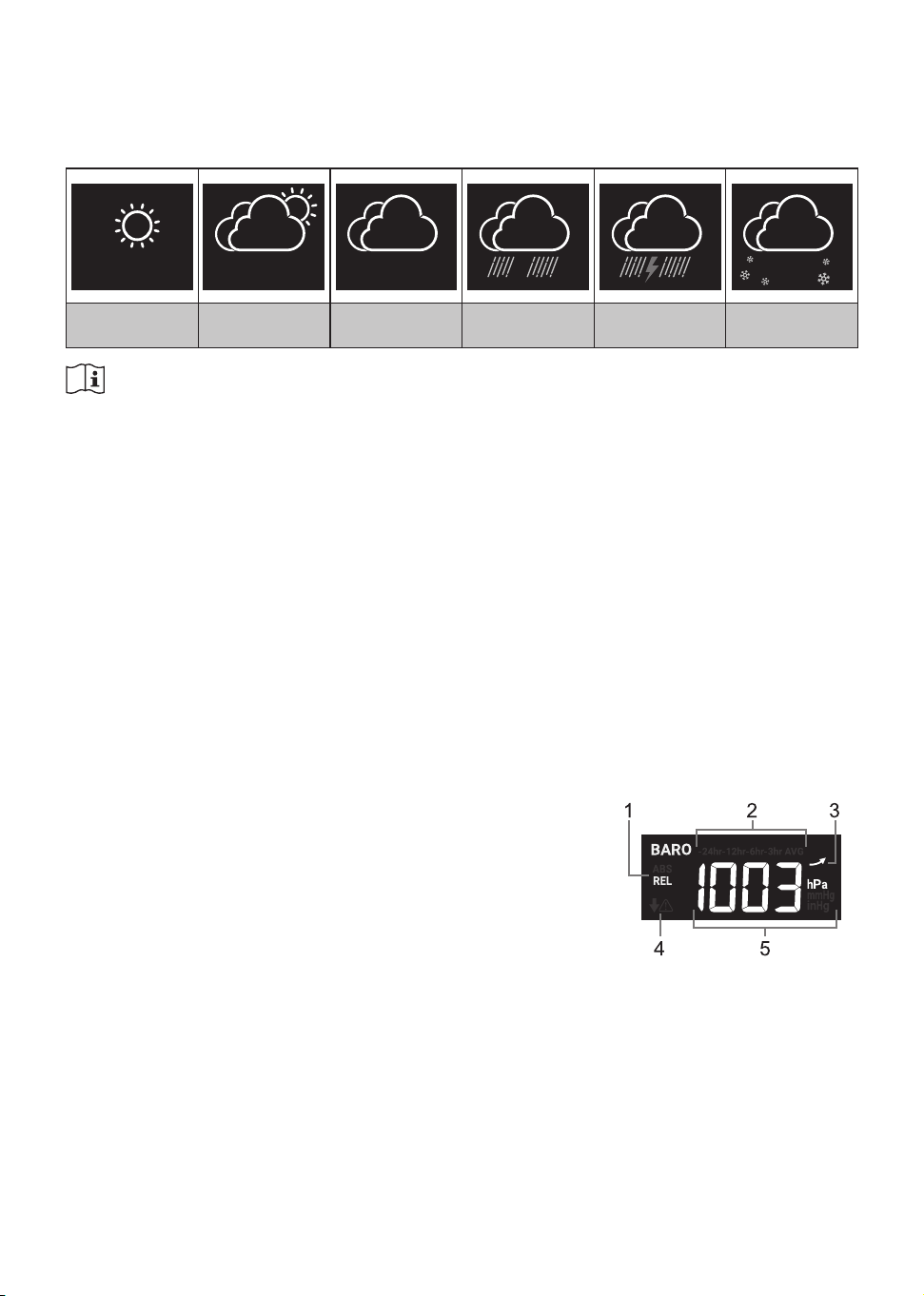

4.3.2 Barometric pressure

The atmospheric pressure is the pressure at any location of the earth caused by the weight of the column

of air above it. One atmospheric pressure refers to the average pressure and gradually decreases as

altitude increases. Meteorologists use barometers to measure atmospheric pressure. Because absolute

atmospheric pressure decreases with altitude, meteorologist correct the pressure relative to sea-level

conditions. Hence, your ABS pressure may read 1000 hPa at altitude of 300m, but the REL pressure is

1013 hPa.

ToobtainaccurateRELpressureforyourarea,consultyourlocalo󰀩cialobservatoryorcheckweather

website on internet for real time barometer conditions, and then adjust the relative pressure in Calibration

(section5.6)ofcongurationapp.

1. Absolute / Relative pressure indicator

2. Past 3, 6, 12, 24 hour average pressure mode indicator

3. Barometric pressure trend

4. Pressure drop alert indicator

5. Barometric pressure reading

4.3.2.1 Viewing pressure history

In normal mode, press [ BARO ] key to view past 3, 6, 12, 24 hour average pressure records.

4.3.2.2 Absolute or relative barometric pressure mode

In normal mode, press and hold [ BARO ] key with 2 second to switch between ABSOLUTE and

RELATIVE barometric pressure.

EN – 13

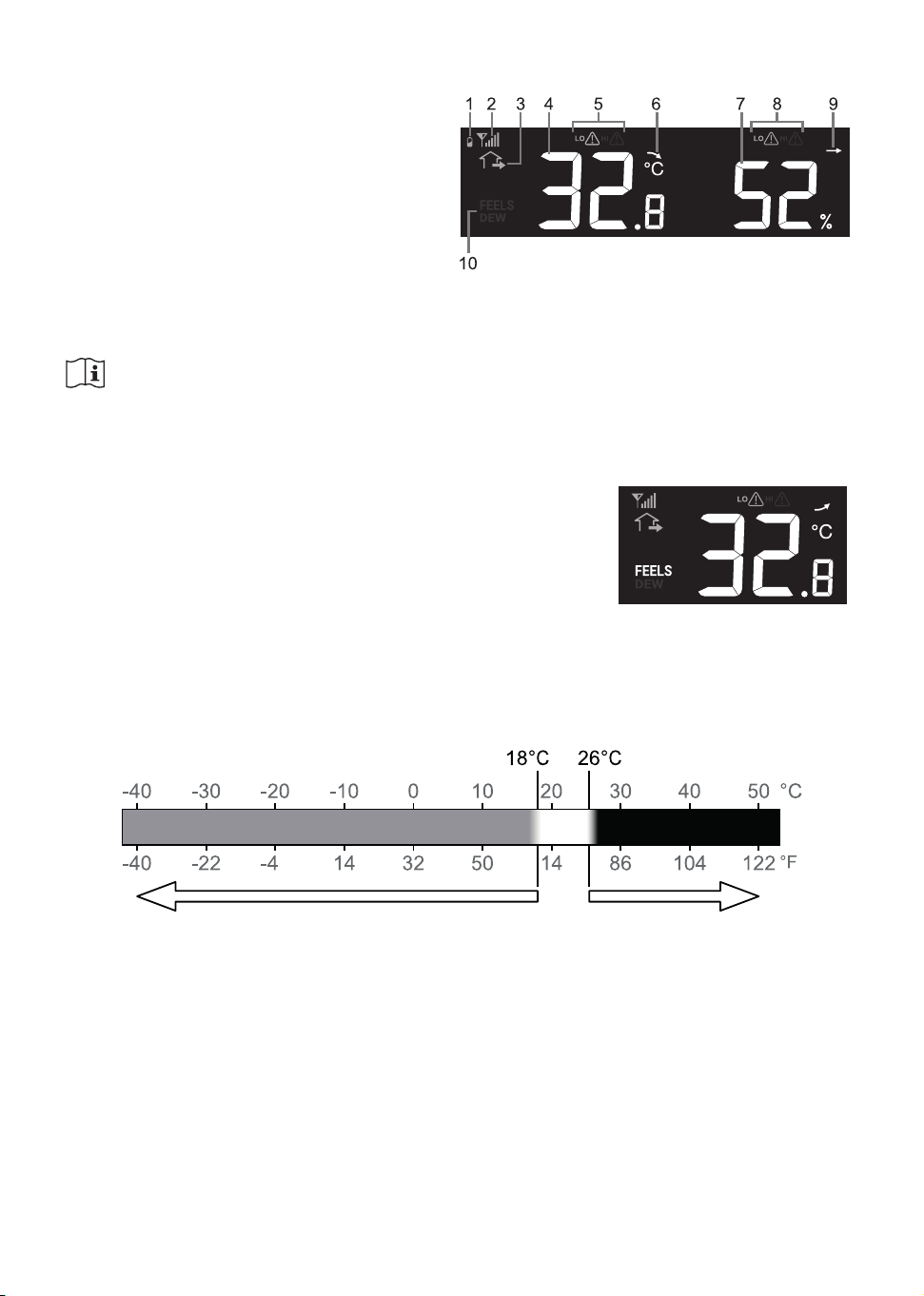

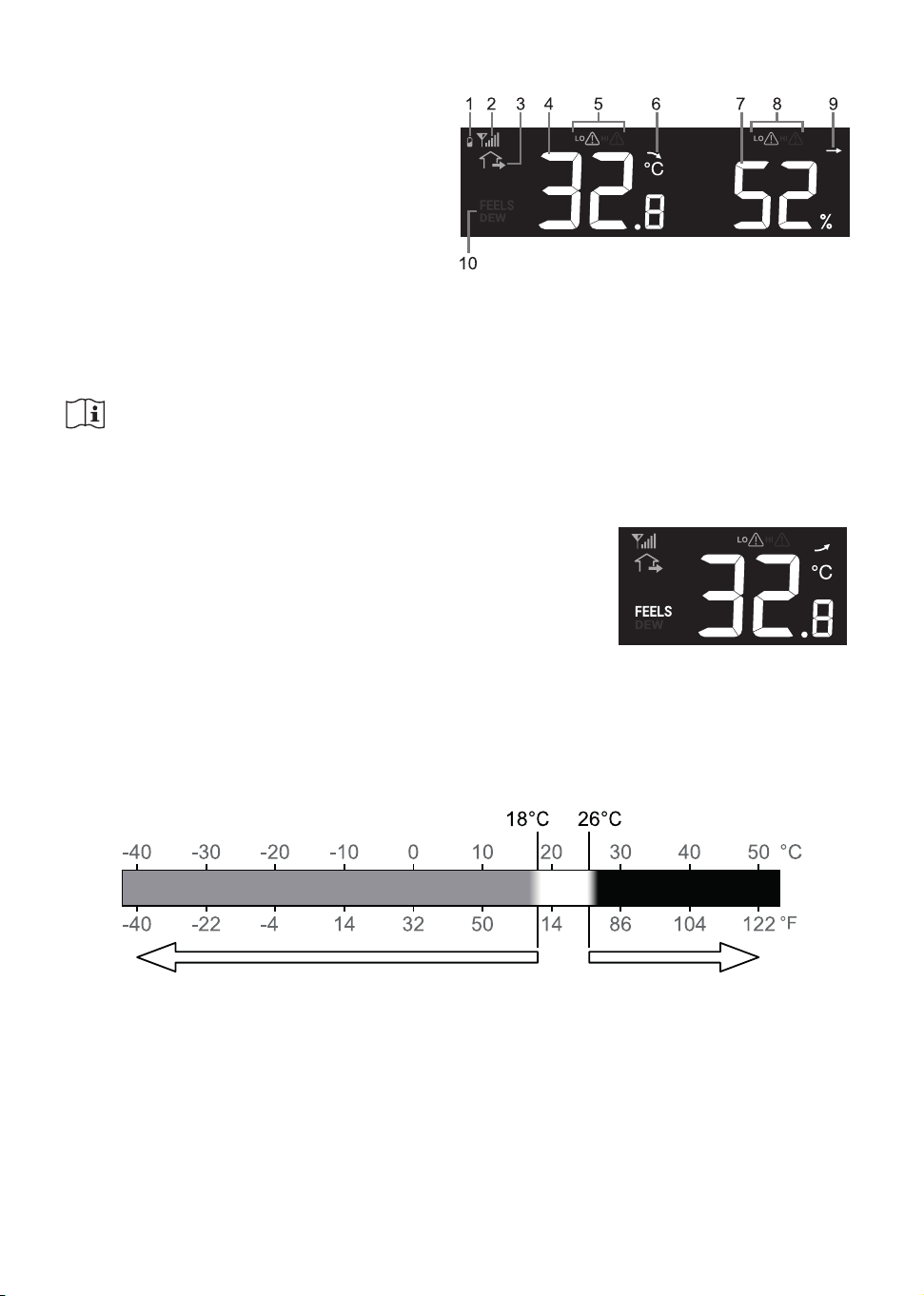

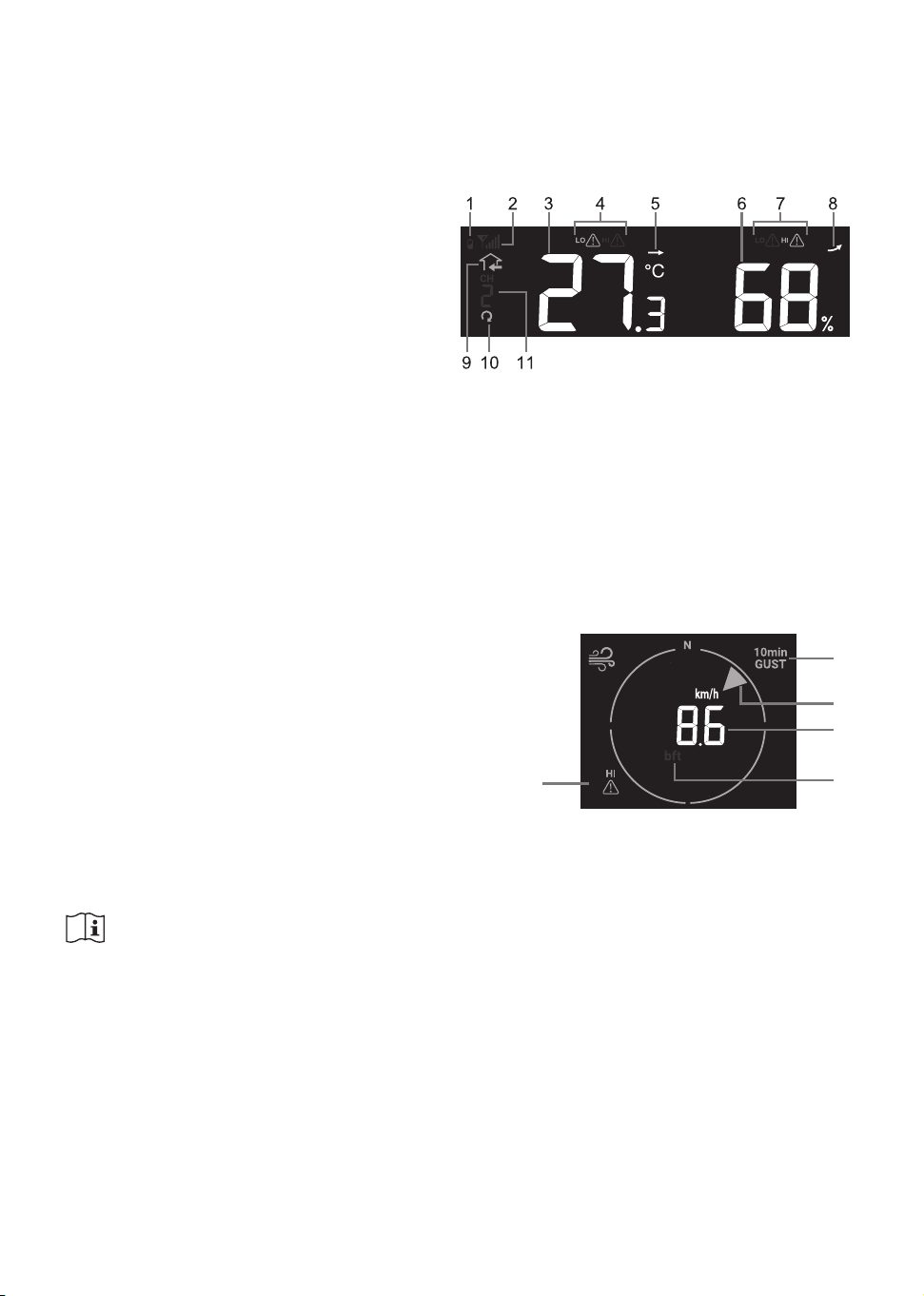

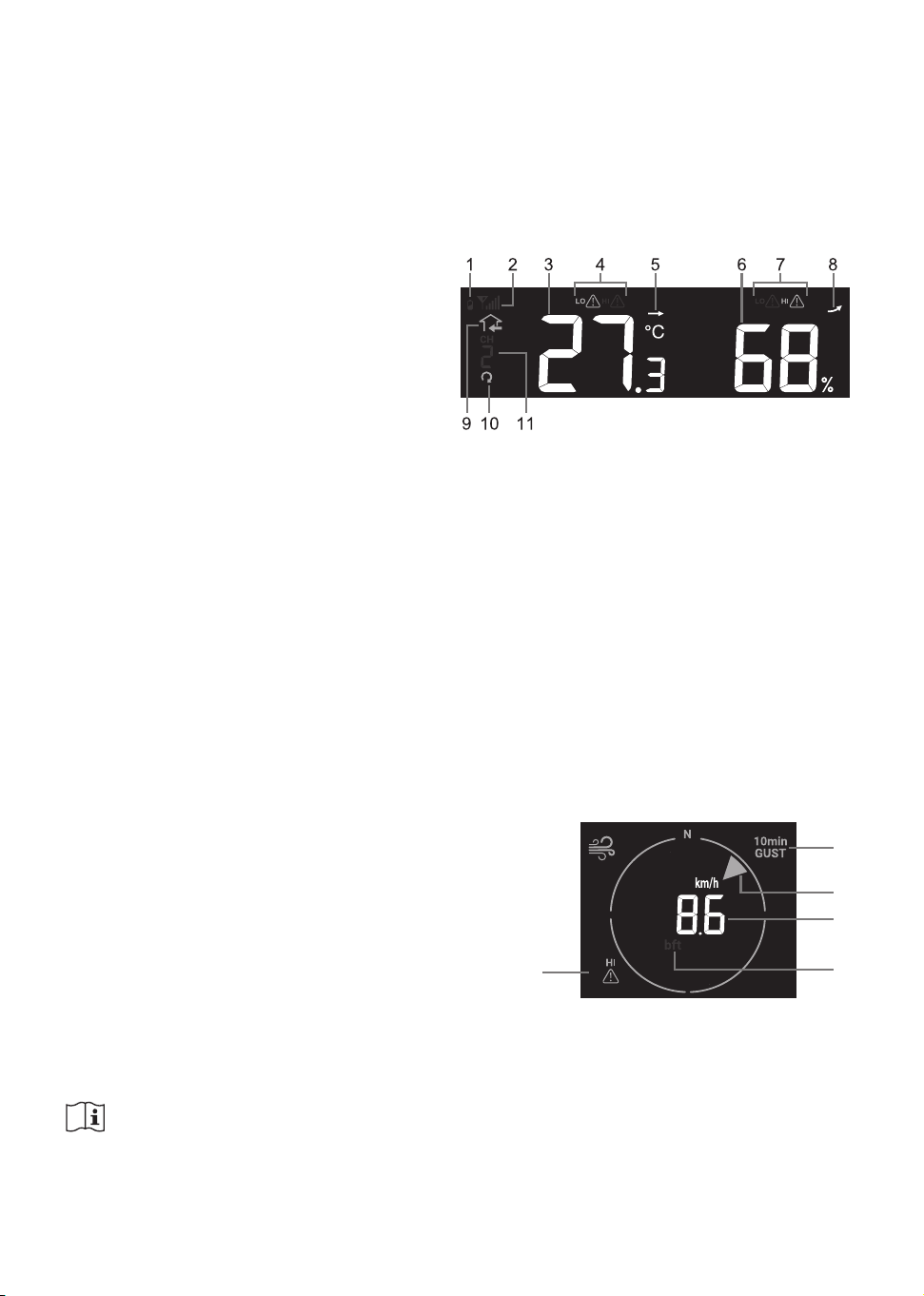

4.3.3 View Outdoor readings

1. Outdoor sensor low battery indicator

2. Outdoor sensor signal indicator to show the

signal receiving strength

3. Outdoor sensor indicator

4. Outdoor temperature reading

5. Outdoor temperature high / low alert

indicator

6. Outdoor temperature trend

7. Outdoor humidity reading

8. Outdoor humidity high / low alert indicator

9. Outdoor humidity trend

10. Feels like and dew point indicator

Note:

If temperature / humidity is below the measurement range, the reading will show “Lo”. If temperature /

humidity is above the measurement range, the reading will show “HI”.

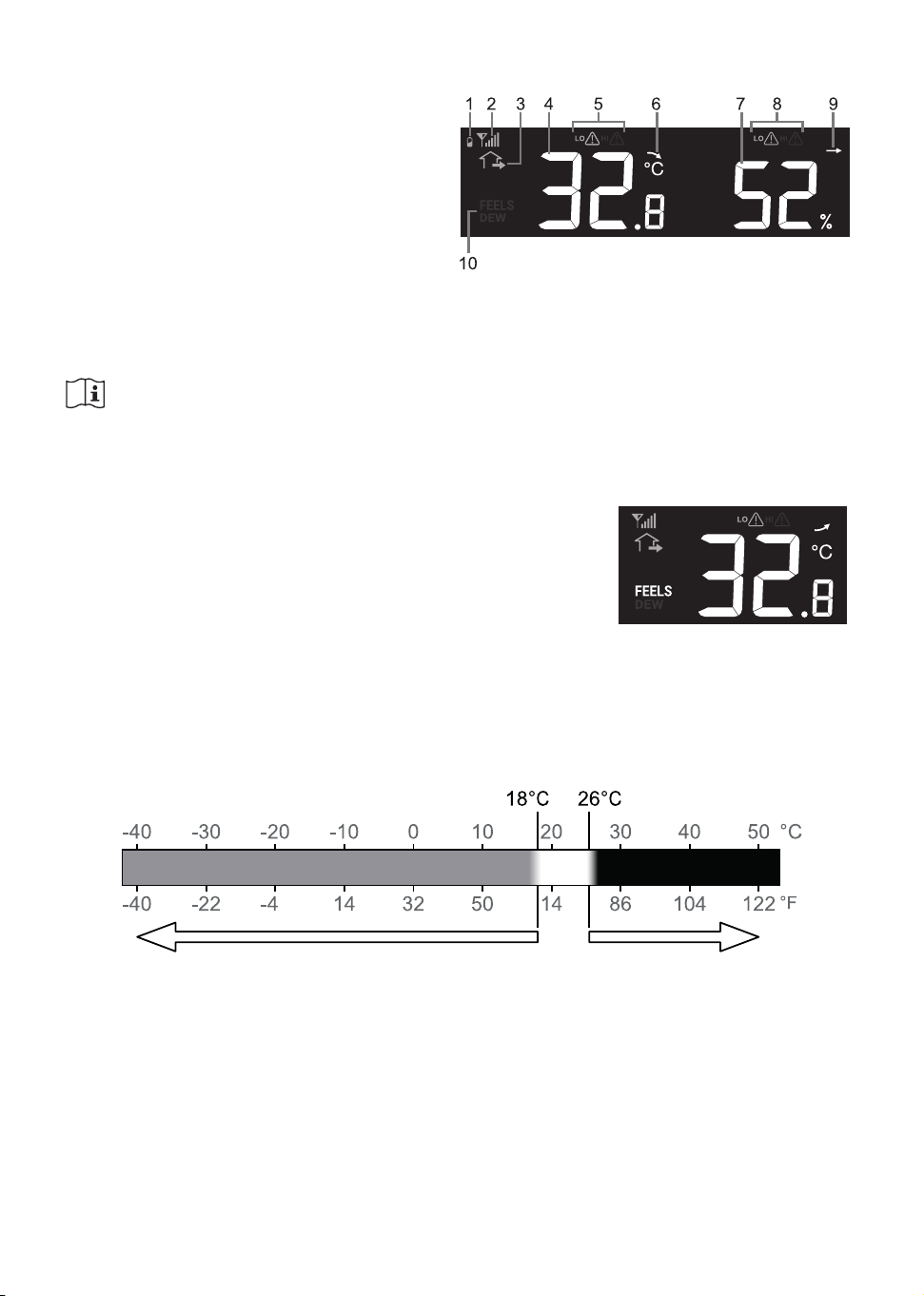

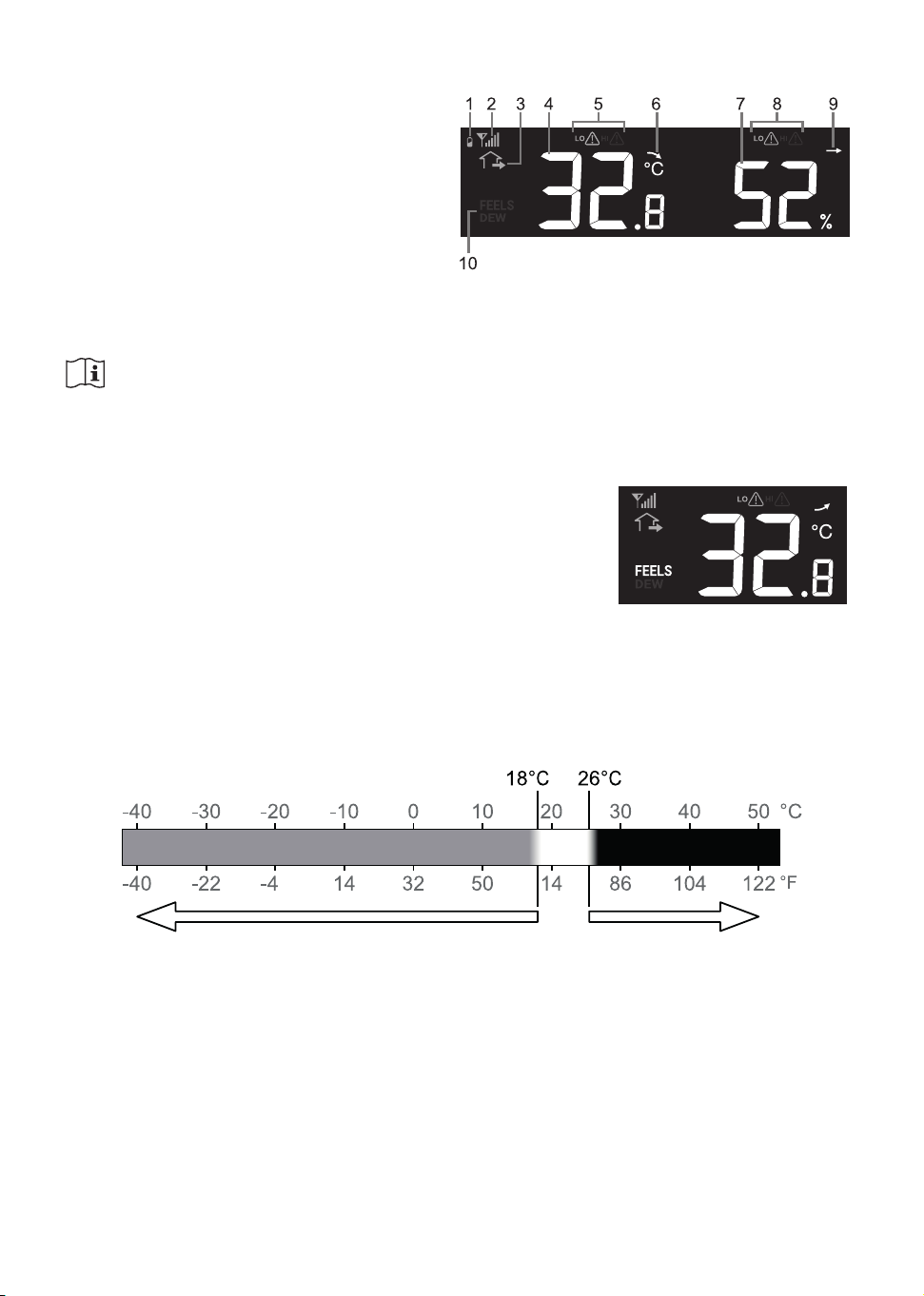

4.3.4 Outdoor temperature Index

Press [ INDEX ] key to switch between Feels like and dew point of

outdoor.

4.3.4.1 Feels like

Feels Like Temperature shows what the outdoor temperature will feel like. It’s a collective mixture of Wind

Chill factor (18°C or below) and the Heat Index (26°C or above). For temperatures in the region between

18.1°Cto25.9°Cwherebothwindandhumidityarelesssignicantina󰀨ectingthetemperature,the

device will show the actual outdoor measured temperature as Feels Like Temperature.

Increasing danger Increasing danger

Wind Chill Heat index

4.3.4.2 Dew point

- The dew point is the temperature below which the water vapor in air at constant barometric pressure

condenses into liquid water at the same rate at which it evaporates. The condensed water is called

dew when it forms on a solid surface.

- The dew point temperature is determined by the temperature & humidity data from wireless 7-in-1

sensor.

EN – 14

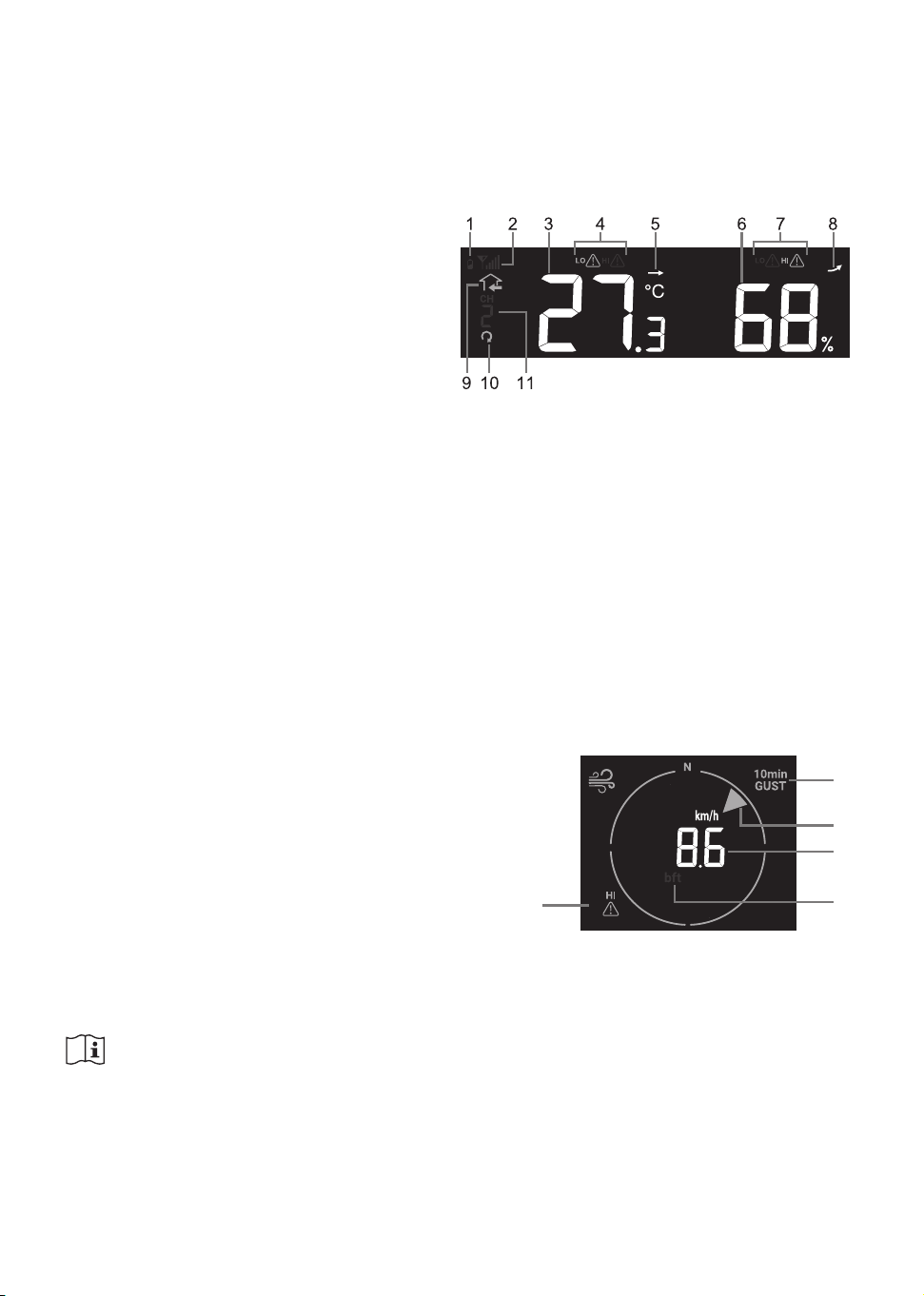

4.3.5 View Indoor / optional thermo-hygro sensor readings

ThisconsolecandisplayIndoorandCH1~3optionalthermo-hygrosensorreadings.Innormalmode,you

can press [ CH ]toswitchbetweenindooranddi󰀨erentwirelesschannels.

For auto-loop function, just press and hold the [ CH ] for 2 seconds and the icon will appear. The console

will scroll the readings of all the sensors every 4 seconds.

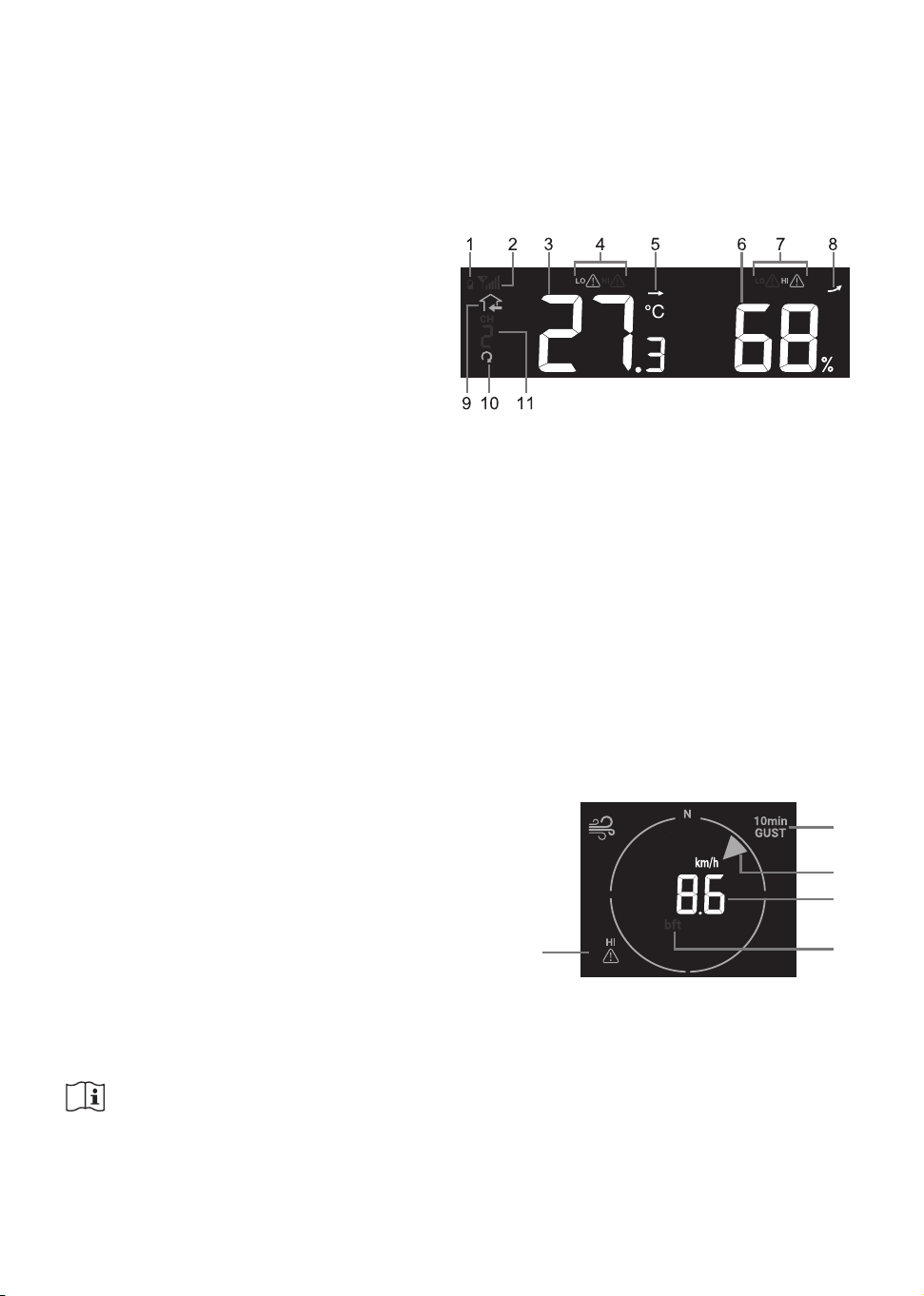

1. Thermo-hygro sensor low battery indicator

2. Thermo-hygro sensor signal indicator to

show the signal receiving strength

3. Indoor / thermo-hygro sensor temperature

reading

4. Indoor / thermo-hygro sensor temperature

high / low alert indicator

5. Indoor / thermo-hygro sensor temperature

trend

6. Indoor / thermo-hygro sensor humidity

reading

7. Indoor / thermo-hygro sensor humidity high /

low alert indicator

8. Indoor / thermo-hygro sensor humidity trend

9. Indoor indicator

10. Channel auto loop icon

11. Thermo-hygro sensor channel

Remark: Thermo-hygro sensor is optional sensor.

4.3.6 Wind

4.3.6.1 Wind speed and direction section overview

1. High wind speed alert indicator

2. Gust / 10 min Gust indicator

3. Real time wind direction indicator (16 points)

4. Average wind speed, gust, 10 min gust or Beaufort

scale

5. Beaufort scale indicator

4.3.6.2 Wind speed, Gust and Beaufort Scale display

Press [WIND] key to switch display between Average wind speed, Gust, 10 minutes Gust and Beaufort

scale.

Note:

- Windspeedisdenedastheaveragewindspeedinthe12secondupdateperiod

- Gustisdenedasthepeakwindspeedinthe12secondupdateperiod

EN – 15

4.3.6.3 Beaufort scale table

The Beaufort scale is an international scale of wind velocities ranging from 0 (calm) to 12 (Hurricane

force).

Beaufort Scale Description Wind Speed Land Condition

0 Calm

< 1 km/h

Calm. Smoke rises vertically.

< 1 mph

< 1 knots

< 0.3 m/s

1 Light air

1.1~5km/h

Smoke drift indicates wind direction.

Leaves and wind vanes are stationary.

1~3mph

1~3knots

0.3~1.5m/s

2 Light breeze

6~11km/h

Wind felt on exposed skin. Leaves rustle.

Wind vanes begin to move.

4~7mph

4~6knots

1.6~3.3m/s

3 Gentle breeze

12~19km/h

Leaves and small twigs constantly moving,

lightagsextended.

8~12mph

7~10knots

3.4~5.4m/s

Moderate

breeze

20~28km/h

Dust and loose paper raised. Small

branches begin to move.

13~17mph

11~16knots

5.5~7.9m/s

5 Fresh breeze

29~38km/h

Branches of a moderate size move.

Small trees in leaf begin to sway.

18~24mph

17~21knots

8.0~10.7m/s

6 Strong breeze

39~49km/h

Large branches in motion. Whistling heard

in overhead wires. Umbrella use becomes

di󰀩cult.Emptyplasticbinstipover.

25~30mph

22~27knots

10.8~13.8m/s

7 High wind

50~61km/h

Wholetreesinmotion.E󰀨ortneededto

walk against the wind.

31~38mph

28~33knots

13.9~17.1m/s

8 Gale

62~74km/h

Some twigs broken from trees.

Cars veer on road. Progress on foot is

seriously impeded.

39~46mph

34~40knots

17.2~20.7m/s

9 Strong gale

75~88km/h

Somebranchesbreako󰀨trees,andsome

small trees blow over. Construction /

temporary signs and barricades blow over.

47~54mph

41~47knots

20.8~24.4m/s

EN – 16

10 Storm

89~102km/h

Treesarebrokeno󰀨oruprooted,structural

damage likely.

55~63mph

48~55knots

24.5~28.4m/s

11 Violent storm

103~117km/h

Widespread vegetation and structural

damage likely.

64~73mph

56~63knots

28.5~32.6m/s

12 Hurricane force

≥118km/h

Severe widespread damage to vegetation

and structures. Debris and unsecured

objects are hurled about.

≥74mph

≥64knots

≥32.7m/s

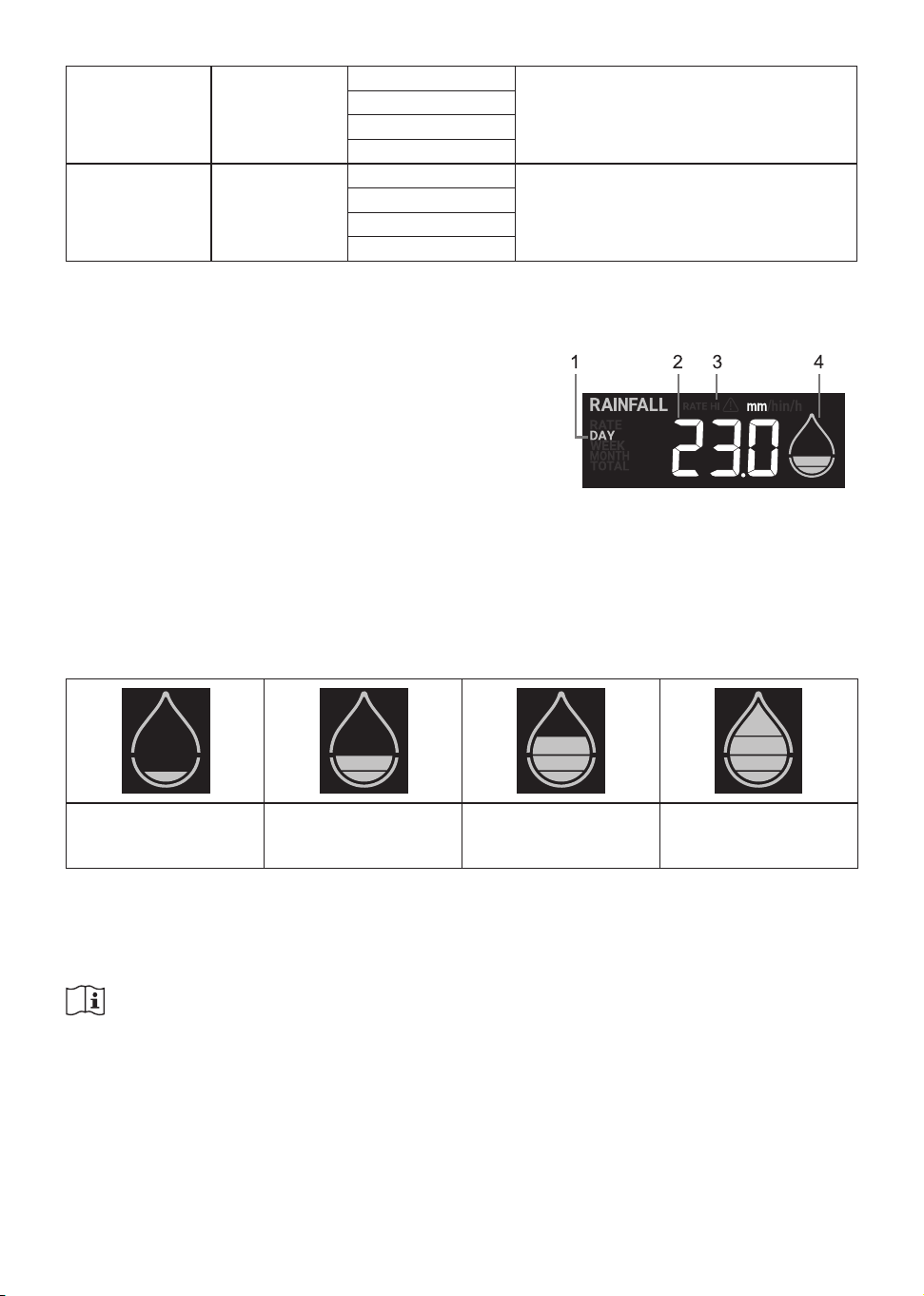

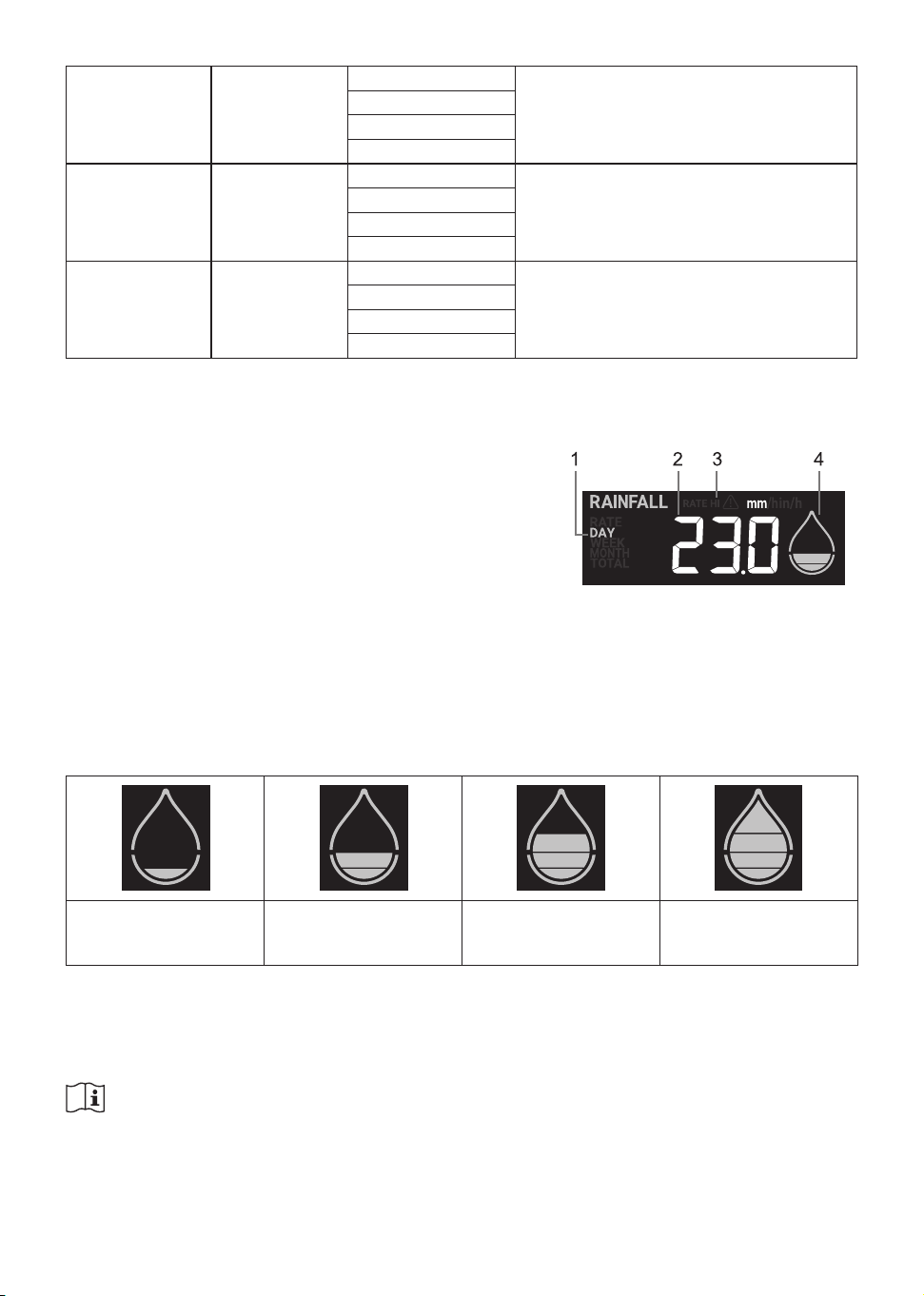

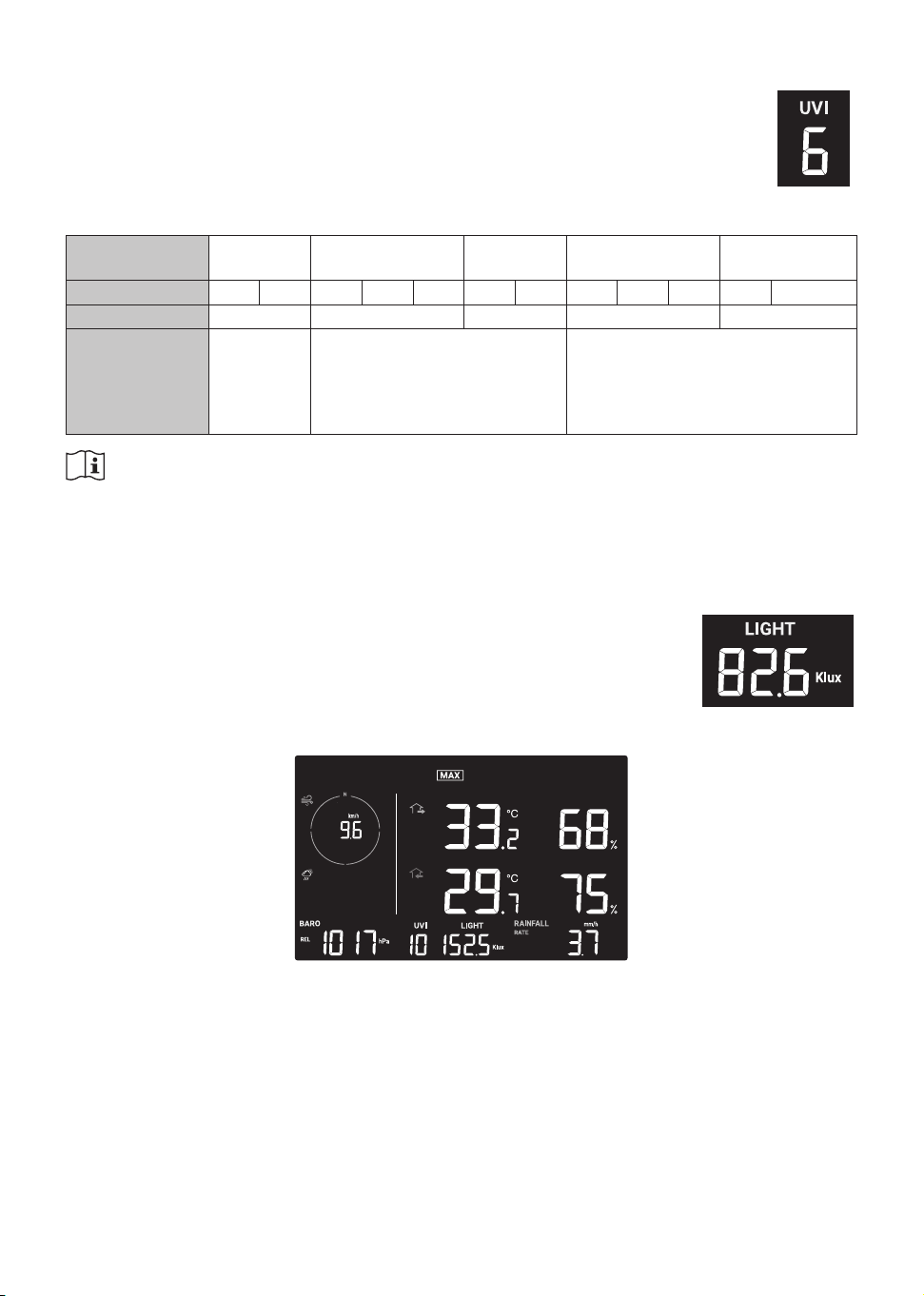

4.3.7 Rain

The RAIN section shows the rainfall or rain rate information.

1. Period of rainfall and rain rate

2. Reading of rainfall or rain rate

3. Rain rate high alert indicator

4. Rain rate level

4.3.7.1 The rain display mode

Press [ RAIN ] key to toggle between:

- DAY - the total rainfall from midnight (default)

- WEEK - the total rainfall of the current week

- MONTH - the total rainfall of the current calendar month

- TOTAL - the total rainfall since the last reset

- RATE - current rainfall rate (base on 10 min rain data)

4.3.7.2 Rain rate level denition

Level 1:

Light rain

0.1~2.5mm/h

Level 2:

Moderate

2.51~10.0mm/h

Level 3:

Heavy rain

10.1~50.0mm/h

Level 4

Violent rain:

> 50.0 mm/h

4.3.7.3 To reset the total rainfall record

In normal mode, press and hold [ RAIN ] key for 6 seconds to reset all the rainfall record.

Note:

Erroneous readings may occur during the installation of the 7-in-1 sensor array. Once the installation is

completed and functioning correctly, it’s advisable to clear all the data and start afresh.

EN – 17

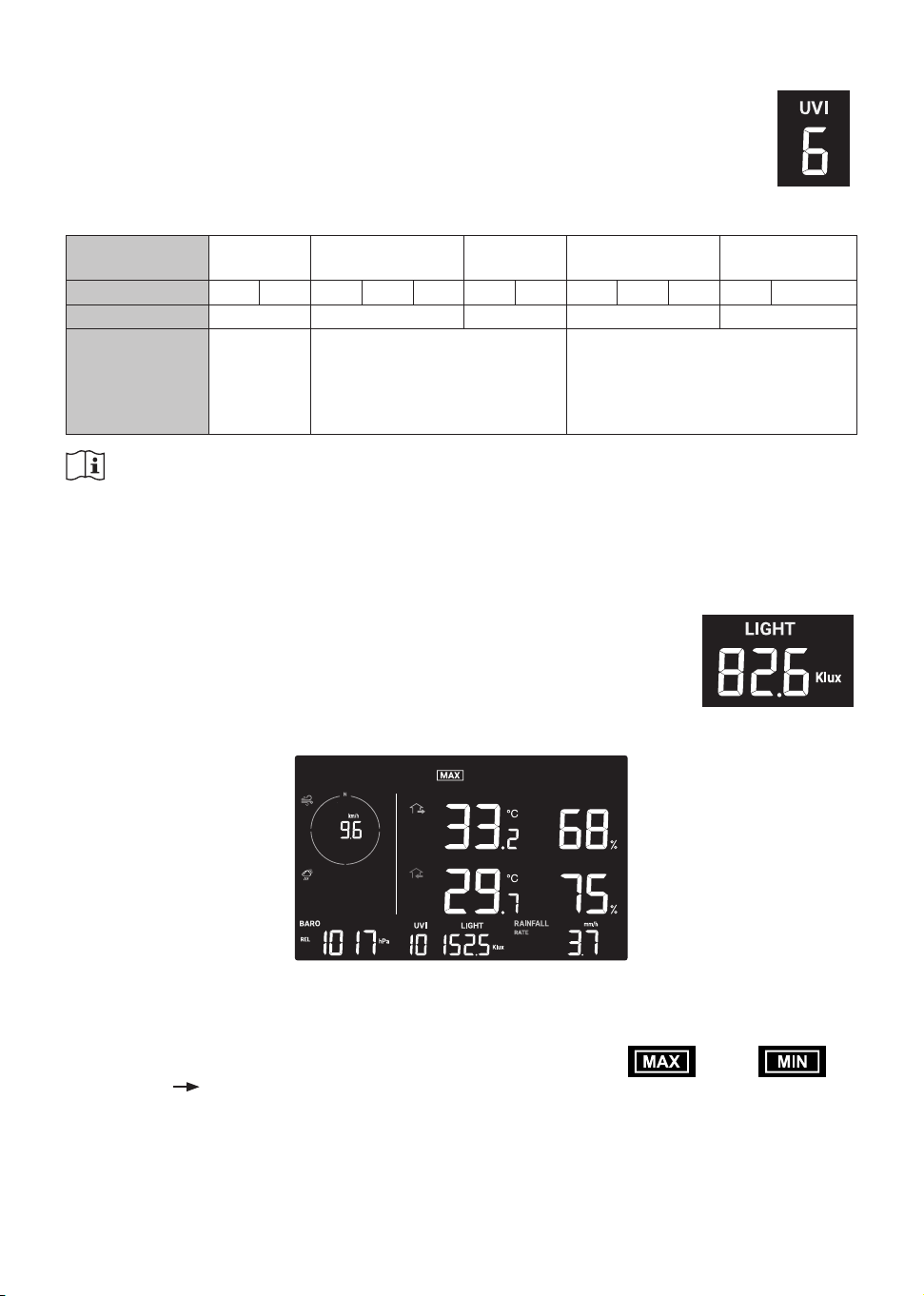

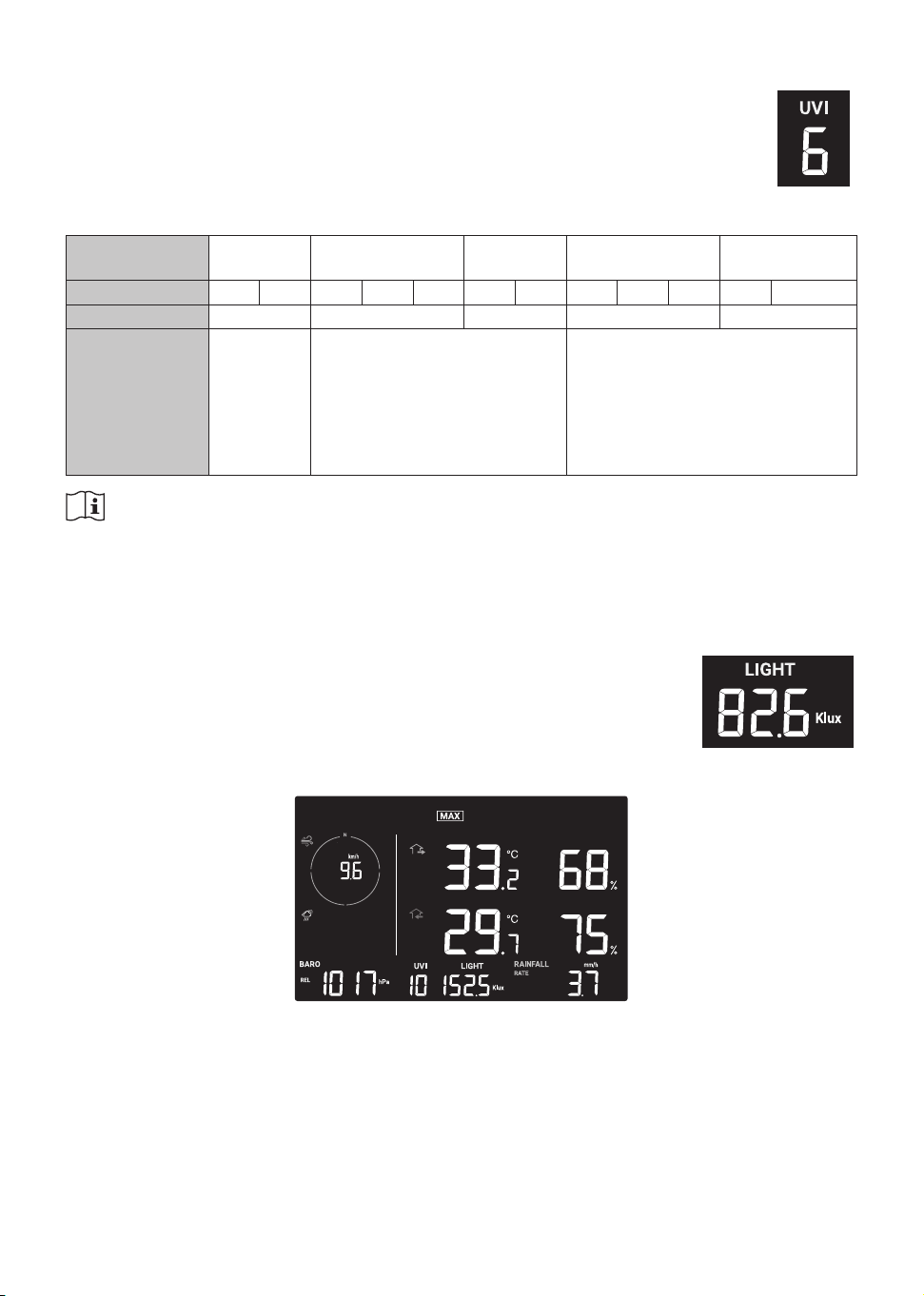

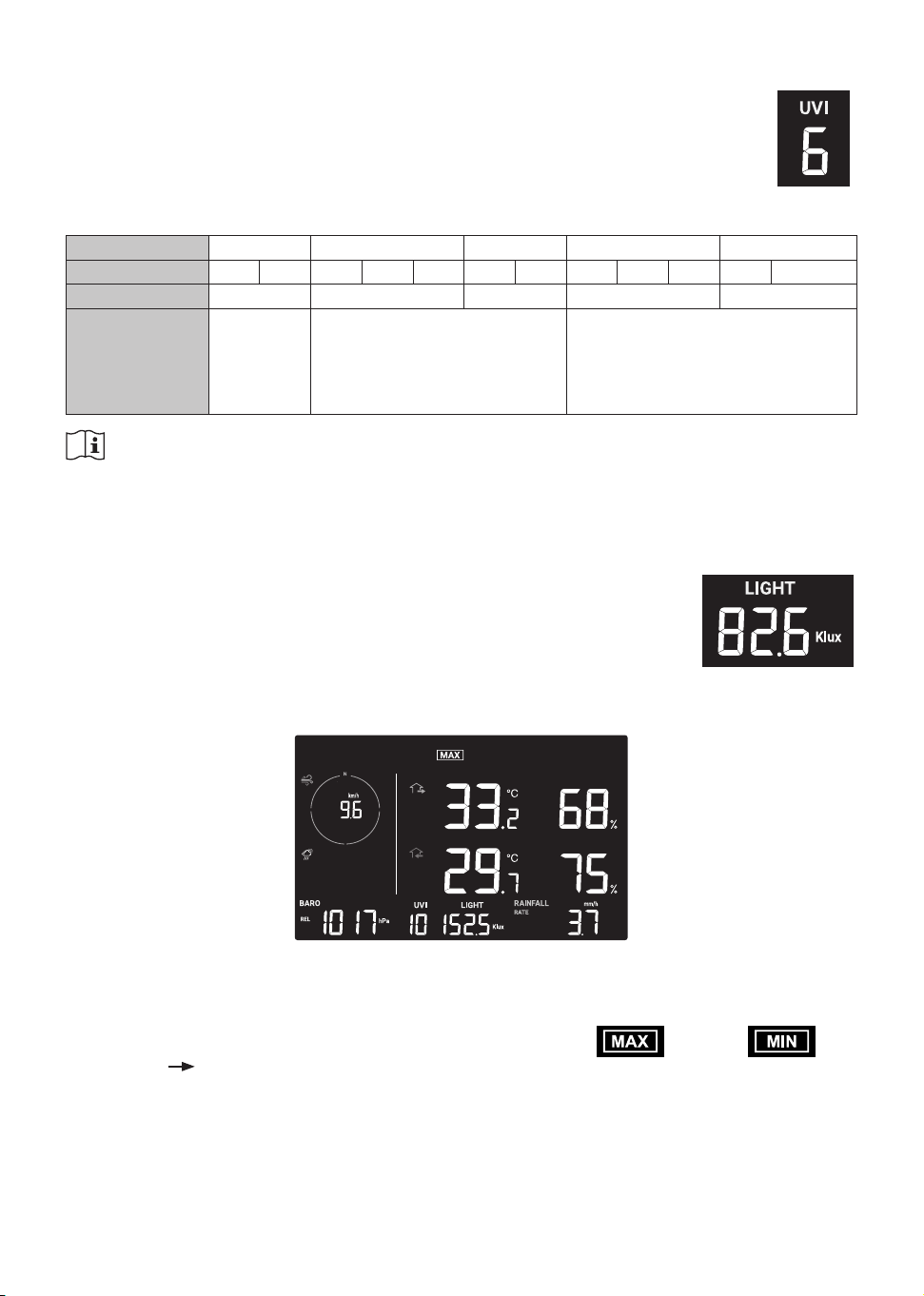

4.3.8 UV index & exposure level

The UVI section show current UV index reading from wireless 7-in-1 sensor.

4.3.8.1 UV index vs exposure table

Exposure level Low Moderate High Very high Extreme

UV index 1 2 3 4 5 6 7 8 9 10 11 12~16

Sunburn time N/A 45 minutes 30 minutes 15 minutes 10 minutes

Recommended

protection

N/A Moderate or high UV level!

Suggest to wear sunglasses,

broad brim hat and long-sleeved

clothing.

Very high or Extreme UV level! Sug-

gest to wear sunglasses, broad brim

hat and long-sleeved clothing, If you

have to stay outdoors, make sure to

seek shade.

Note:

- The sunburn time is based on normal skin type, it is just a reference of UV strength. In general, the

darkerone’sskinis,thelonger(ormoreradiation)ittakestoa󰀨ecttheskin.

- The light intensity function is for sunlight detection.

4.3.9 Light intensity

The LIGHT section shows current sunlight intensity reading from wireless

7-in-1 sensor.

4.3.10 Maximum / Minimum records

The console can record MAX / MIN readings since last reset.

Since MAX record mode

4.3.10.1 MAX / MIN records

In normal mode, press [ MEMORY ] key to check the records of

the on screen reading in the following display sequence: since

MAX records

since MIN records.

In MAX / MIN mode:

1. Press [ INDEX ] key to switch between Outdoor temperature,

Feels like and Dew point MAX / MIN records,

2. Press [ CH ]keytoswitchbetweenIndoorandCH1~3

thermo-hygro MAX / MIN records.

MAX reading

since last reset

MIN reading since

last reset

EN – 18

4.3.10.2 To Clear the MAX / MIN records

Press and hold [ MAX / MIN ] key for 2 seconds to reset all the MAX and MIN records.

4.3.11 Moon phase

The moon phase is determined by time and date

of the console. The following table explains the

moon phase icons of the Northern and Southern

Hemispheres.

Please refer to section 4.4.1 web interface

about how to setup for the Southern

Hemisphere.

Northern

Hemisphere

Moon Phase Southern

Hemisphere

New Moon

Waxing Crescent

First quarter

Waxing Gibbous

Full Moon

Waning Gibbous

Third quarter

Waning Crescent

4.3.12 Wireless sensor signal receiving

1. The console display signal strength for the wireless sensor array, as per table below:

No signal Weak signal Good signal

7-in-1 wireless sensor array

2. If the signal has discontinued and does not recover within 15 minutes, the signal icon will disappear.

The temperature and humidity will display “Er” for the corresponding channel.

3. Ifthesignaldoesnotrecoverwithin48hours,the“Er”displaywillbecomepermanent.Youneedto

replace the batteries and then press [ SENSOR / WI-FI ] key to pair up the sensor again.

4.3.13 Time synchronize status

After the console has connected to the time server, it can get the

UTCtime.The“SYNC”iconwillappearontheLCD.

Thetimewillautomaticallysynchronizeperhour.Youcanalsopressthe[ REFRESH ] key to get the

Internet time manually within 1 minute.

EN – 19

4.3.14 Wi- connection status

WI-FI icon on the console display indicates the console’s connection status with WI-FI router.

Stable: Console is in

connection with WI-FI router

Flashing: Console is trying to

connect to WI-FI router

4.4 Other setting

4.4.1 Time, date, unit and other setting

Press and hold the [ SET ] key for 2 seconds to enter the setting mode. Press [ + / WIND ] or [ - / BARO

] key to adjust, and press [ SET ] key to proceed with next step of the setting. Please refer to following

setting procedures.

Step Mode Setting procedure

[SET]

+2s

DST (Daylight

Saving Time

Press [ + / WIND ] or [ - / BARO ] key to select AUTO / ON / OFF

AUTO is to adjust the daylight saving time automatically based on time

zone entered.

ON is to add one hour on current default time.

OFFistocompletelyturno󰀨theDSTfunction.

[SET] Time Press [ + / WIND ] or [ - / BARO ] key to adjust the minute / hour

[SET] 12/24 hour format Press [ + / WIND ] or [ - / BARO ] key to select 12 or 24 hour format

[SET] Year Press [ + / WIND ] or [ - / BARO ] key to adjust the year

[SET] Date Press [ + / WIND ] or [ - / BARO ] key to adjust the day / month

[SET] MD / DM display

format

Press [ + / WIND ] or [ - / BARO ] key to select "Month / Day" or "Day /

Month" display format

[SET] Time sync ON/

OFF

Press [ + / WIND ] or [ - / BARO ] key to enable or disable Time Sync

function.

If you want to set the time manually, you should set Time Sync OFF

[SET] Hemisphere Press [ + / WIND ] or [ - / BARO ] key to select North / South hemisphere

for moon phase and wireless sensor array point to direction.

[SET] Weekday

language

Press [ + / WIND ] or [ - / BARO ] key to select weekday display language

[SET] Temperature unit Press [ + / WIND ] or [ - / BARO ] key to select °C or °F

[SET] Baro pressure

unit

Press [ + / WIND ] or [ - / BARO ] key to select hPa, mmHg or inHg

[SET] Wind speed unit Press [ + / WIND ] or [ - / BARO ] key to select m/s, knots, mph or km/h

[SET] Rain unit Press [ + / WIND ] or [ - / BARO ] key to select mm or in

[SET] Light unit Press [ + / WIND ] or [ - / BARO ] key to select Klux, Kfc or W/m2

[SET] LCD contrast Press [ + / WIND ] or [ - / BARO ] key to adjust the LCD contrast level

[SET] Exit setting mode

Note:

- In normal mode, press [ SET ] key to switch between year and date display.

- During the setting, you can back to normal mode by press and hold [ SET ] key for 2 seconds.

EN – 20

4.4.2 Setting alarm time and high / low weather alert

In normal time mode, press and hold [ ALARM ] key for 2 seconds to enter alarm / alert setting mode.

Alarm time setting Hi alert setting Lo alert setting

Then press [ SET ] key to proceed with next step of the setting. Please refer to the following setting

procedures.

Step Mode Setting procedure

[ALARM]

+2s

Time alarm Press [ + / WIND ] or [ - / BARO ] key to adjust the time.

Press [ ALARM ]keytotogglethealarmon/o󰀨.

[SET] OUT temperature

high alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the OUT temperature

high alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] OUT temperature

low alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the OUT temperature

low alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] OUT humidity high

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the OUT humidity high

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] OUT humidity low

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the OUT humidity low

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] IN / CH

temperature high

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the IN temperature high

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

Press[CH]keytoselecttheINandCH1~3

[SET] IN / CH

temperature low

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the IN temperature low

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

Press[CH]keytoselecttheINandCH1~3

[SET] IN / CH humidity

high alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the IN humidity high

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

Press[CH]keytoselecttheINandCH1~3

[SET] IN / CH humidity

low alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the IN humidity low alert

value. Press [ ALARM ]keytotogglethealerton/o󰀨.

Press[CH]keytoselecttheINandCH1~3

[SET] Wind speed high

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the wind speed high

alert value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] Rain rate high

alert

Press [ + / WIND ] or [ - / BARO ] key to adjust the rain rate high alert

value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] Pressure drop

alert (drop within

30 minutes)

Press [ + / WIND ] or [ - / BARO ] key to adjust the Pressure drop alert

value. Press [ ALARM ]keytotogglethealerton/o󰀨.

[SET] Exit setting mode

Note:

- When you turn on the time alarm, the “

” icon will display on time section.

- When you turn on the weather alert, the “

” icon will display on the top of reading.

- During the setting, press and hold the [ + / WIND ] or [ - / BARO ] key for quick-adjusting the value.

- The alarm function(s) will turn on automatically once you set the alarm time.

- During the setting, you can back to normal mode by press and hold [ SET ] key for 2 seconds.

EN – 21

4.4.2.1 View alarm time and weather alert value

1. In normal mode, press [ ALARM ] key to show the alarm time.

2. When the alarm time displays, press [ ALARM ] key again to show the high alert value.

3. Press [ ALARM ] key again to show the low alert value.

4.4.2.2 Alarm operation

If you set the time alarm, and reach the time that you set, alarm sound will start.

Where it can be stopped by following operation:

- Auto-stop after 2 minutes alarming if without any operation and the alarm will activate again in the

next day.

- By pressing [BACK LIGHT / SNOOZE] key to enter snooze that the alarm will sound again after 5

minutes.

- By pressing and hold [BACK LIGHT / SNOOZE] key for 2 seconds or press [ ALARM ] key to stop

the alarm and will activate again in the next day.

Note:

- The snooze could be used continuously in 24 hours.

- During the snooze, the alarm icon “

”willkeepashing.

4.4.2.3 Weather alert operation

If you set the weather alert, and this value out of the setting range, alarm sound will start and the related

weatherreadingwillash.

Where it can be stopped by following operation:

- Auto-stop once the value back to the range.

- By pressing the [ BACK LIGHT / SNOOZE ] or [ ALARM ] key to stop the sound.

4.4.3 Back light

The console back light brightness can be adjusted by using the [BACK LIGHT / SNOOZE] key to toggle

betweenHi,LoorO󰀨.

4.5 Battery replacement

When low battery indicator “

” appear near the sensor antenna icon, it indicates that the current sensor

battery power is low respectively. Please replace with new batteries.

4.5.1 Re-pairing the sensor array manually

Whenever you changed the batteries of the 7-in-1 weather sensor array or other additional sensors, re-

synchronization must be done manually.

1. Change all the batteries to new ones of the wireless sensor array.

2. Press [ SENSOR / WI-FI ] key on the console to enter sensor synchronization mode (as indicated by

theashingantenna ).

4.6 Reset and factory reset

To reset the console and start again, press the [ RESET ] key once or remove the backup battery and

then unplug the adapter.

To resume factory settings and remove all data, press and hold the [ RESET ] key for 6 seconds.

EN – 22

4.7 Wireless 7-in-1 sensor array maintenance

CLEANING THE RAIN

COLLECTOR

1. Rotate the rain collector by

turning it 30°anti-clockwise.

2. Gently remove the rain

collector.

3. Clean and remove any

debris or insects.

4. Install the collector when it is

clean and fully dried.

CLEANING HYGRO-THERMO

SENSOR

1. Remove the 2 screws at

the bottom of the radiation

shield.

2. Gently pull out the bottom 4

shields.

3. Carefully remove any dirt or

insects on the sensor (do

not let the sensors inside get

wet).

4. Clean the shield with

water to remove any dirt or

insects.

5. Install all the parts back

when they are clean and

fully dried.

REPLACE THE WIND CUP

1. Remove rubber cap and

Unscrew

2. Remove the wind cup for

replacement

CLEANING THE UV SENSOR

AND CALIBRATION

• For precision UV measurement,

gentle clean the UV sensor cover

• Over time, the UV sensor will

naturally degrade. The UV sensor

can be calibrated with a utility

grade UV meter, please refer to

Calibration section in previous

page for about the UV sensor

calibration.

REPLACE THE WIND VANE

Unscrew and remove the wind vane

for replacement

EN – 23

5. TROUBLESHOOT

Problems Solution

7-in-1 wireless sensor

array is intermittent or

no connection

1. Make sure the sensor array is within the transmission range

2. If it still does not work, reset the sensor pair with console again

No WI-FI connection 1. Check the WI-FI icon on the display, it should be on if connectivity is

successful

2. In the console SETUP page, make sure the WI-FI settings (router’s name,

security type, password) are correct

3. Make sure you connect to 2.4G band of the WI-FI router (5G not

supported)

Not able to add the

device to WSLink

1. Make sure your WSLink is the latest version

2. Make sure your device is in AP mode

3. Make sure no other smart phone connected your device.

Afterrsttimesetup,

data is not showing

at WUnderground or

Weathercloud

1. Please note it make a few minutes to a few hours for WUnderground or

Weathercloud to validate your upload data.

2. Try to refresh the WUnderground or Weathercloud website.

Data not reporting

to WUnderground or

Weathercloud

1. Make sure the WI-FI connection of the console is good.

2. In the console SETUP page, ensure your Station ID and Station Key are

correct

Rainfall is not correct 1. Make sure the rain collector is clean for the tipping bucket to tip smoothly

2. Make sure the sensor has stable and level mounting to ensure correct

tipping

Temperature reading

too high in the day time

1. Placethesensorinopenareaandatleast1.5mo󰀨theground.

2. Ensure that the sensor is placed away from heat generating sources or

structures, such as buildings, pavement, walls or air conditioning units.

Some condensation

beneath the UV sensor

may occur overnight

Thiswilldisappearwhentemperaturerisesupunderthesunandwillnota󰀨ect

the performance of the unit.

EN – 24

6. SPECIFICATIONS

6.1 Console

General specication

Dimensions (W × H × D) 171 × 116 × 21mm (6.7 × 4.5 × 0.8 in) without attach table stand

Weight 247.5g (with battery, without adaptor)

Main power DC 5V, 1A adapter

Backup battery CR2032

Operating temperature range -5˚C~50˚C

Operating Humidity range RH10~90%non-condensing

Support sensor - 1 Wireless 7-in-1 weather sensor array

- 3 Wireless thermo-hygro sensor (optional)

RF frequency 868Mhz

Time related function specication

Time display HH : MM

Hour format 12hr AM / PM or 24 hr

Date display DD / MM or MM / DD

Time synchronize method Internet time server

Weekday languages EN / DE / FR / ES / IT / NL / RU

Setup app

App name WSLink

App download platform Google play and Apple Store

Support platform Android smart phone or iPhone

WI-FI communication specication

Standard 802.11 b/g/n

Operating frequency : 2.4GHz

Supported router security type WPA/WPA2, WPA3, OPEN, WEP (WEP only support Hexadecimal

password)

Barometer (Note: Data detected by console)

Barometer unit hPa, inHg and mmHg

Measuring range 540~1100hPa

Accuracy (700~1100hPa±5hPa)/(540~696hPa±8hPa)

(20.67~32.48inHg±0.15inHg)/(15.95~20.55inHg±0.24inHg)

(525~825mmHg±3.8mmHg)/(405~522mmHg±6mmHg)

Typical at 25°C (77°F)

Resolution 1hPa / 0.01inHg / 0.1mmHg

Indoor temperature (Note: Data detected by console)

Temperature unit °C and °F

Accuracy ≤0°C±2°C(≤32°F±3.6°F)

>0°C±1°C(>32°F±1.8°F)

Resolution °C / °F (1 decimal place)

Indoor humidity (Note: Data detected by console)

Humidity unit %

Accuracy 1~9%RH±8%RH@25°C(77°F)

10~90%RH±5%RH@25°C(77°F)

90~99%RH±8%RH@25°C(77°F)

Resolution 1%

EN – 25

Outdoor temperature (Note: Data detected by 7-in-1 sensor)

Temperature unit °C and °F

Feels like display range -65~50°C

Dew point display range -20~80°C

Accuracy 5.1~60°C±0.4°C(41.2~140°F±0.7°F)

-19.9~5°C±1°C(-3.8~41°F±1.8°F)

-40~-20°C±1.5°C(-40~-4°F±2.7°F)

Resolution °C / °F (1 decimal place)

Outdoor humidity (Note: Data detected by 7-in-1 sensor)

Humidity unit %

Accuracy 1~20%RH±6.5%RH@25°C(77°F)

21~80%RH±3.5%RH@25°C(77°F)

81~99%RH±6.5%RH@25°C(77°F)

Resolution 1%

Wind speed & direction (Note: Data detected by 7-in-1 sensor)

Wind speed unit mph, m/s, km/h and knots

Wind speed display range 0~112mph,50m/s,180km/h,97knots

Resolution mph, m/s, km/h and knots (1 decimal place)

Speed accuracy < 5m/s: +/- 0.8m/s; > 5m/s: +/- 10% (whichever is greater)

Wind direction display mode 16 directions

Rain (Note: Data detected by 7-in-1 sensor)

Unit for rainfall mm and in

Unit for rain rate mm/h and in/h

Accuracy ±7%or1tip

Range 0~19999mm(0~787.3in)

Resolution 0.254mm (3 decimal place in mm)

UV index (Note: Data detected by 7-in-1 sensor)

Display range 0~16

Resolution Integer

Light intensity (Note: Data detected by 7-in-1 sensor)

Light intensity unit Klux, Kfc and W/m2

Display range 0~200Klux

Resolution Klux, Kfc and W/m2 (2 decimal place)

6.2 Wireless 7-in-1 sensor

Dimensions (W × H × D) 343.5 × 393.5 × 136mm (13.5 × 15.5 × 5.35in) installed mounting

Weight 706.5g (with pole & stand, without batteries)

Main power 3 × AA size 1.5V batteries ( Lithium batteries recommended)

Weather data Temperature, humidity, wind speed, wind direction, rainfall, UV and

light intensity

RF transmission range 150m

RF frequency 868Mhz

Transmission interval 12 seconds

Operating temperature range -40~60°C(-40~140°F)Lithiumbatteriesrequiredforlowtemperature

Operating humidity range 1~99%RH

EN – 26

6.3 Adapter technical specications

Manufacturer’s name or trade mark, commercial

registration number and address:

Dongguan Shijie Hua Xu Electronics Factory,

No.200, Technology East Road, Shijie Town,

Dongguan City, Guangdong P.R. China

Modelidentier: HX075-0501000-AG-001

Input voltage: AC100 - 240V

Input AC frequency: 50/60Hz

Output voltage: 4.75-5.25V

Output current: 1.0A

Output power: 5.0W

Averageactivee󰀩ciency: 73.62%

E󰀩ciencyatlowload(10%): 64.93%

No-load power consumption: ≤0.1W

EN – 27

INSTRUCTIONS AND INFORMATION ON THE DISPOSAL OF DISCARDED

PACKAGING MATERIALS

Take the packaging material to a collection yard for disposal.

DISPOSAL OF DISCARDED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product, accessory or packaging indicates that the product must not

be treated as normal household waste. Please dispose of this product in a collection yard

designated for the recycling of electrical and electronic equipment. In some EU countries or

in some European countries, you can return your products to your local retailer when you

buy an equivalent new product. Correct disposal of this product helps save valuable natural

resources and prevents possible adverse impacts on the environment and human health

that might be caused by improper waste disposal. Please contact your local authority or the

nearest waste collection yard for further details. Improper disposal of this type of waste may

be subject to a legal fine.

For companies in the European Union

If you need to dispose of electrical or electronic equipment, ask your dealer or supplier for the

necessary information.

Disposal in countries outside the European Union

To dispose of this product, please ask your local authorities or dealer for the necessary

information on correct disposal.

This product complies with EU requirements.

FASTČR,a.s.herebydeclaresthattheradiodevicetypeSWS10500WIFIcomplieswithDirective

2014/53/EU.

For full version of the EU declaration of conformity, please refer to the website:

www.sencor.cz

Changes in the text, design and technical specifications may be made without prior notice and we reserve

the right to make such changes.

The original version is in Czech.

Manufacturer:FASTČR,a.s.,USanitasu1621,Říčany25101,CzechRepublic,E-mail:info@sencor.com

Authorized service centers: Visit www.sencor.com for detailed information about authorized service

centers.

EN – 28

Warranty conditions

Warranty card is not apart of the device packaging.

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty

is limited to the following conditions. Warranty is referred only to the customer goods using for common

domestic use. The claim for service can be applied either at dealer’sshop where the product was bought, or

at below mentioned authorized service shops. The end-user is obligated to set up aclaim immediately when

the defects appeared but only till the end of warranty period. The end user is obligated to cooperate to certify

the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted.

In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim

application till the date of taking over the product by end-user, or the date the end-user is obligated to take it

over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed

following documents: receipt, certiﬁcate of warranty, certiﬁcate of installation.

This warranty is void especially if apply as follows:

 Defects which were put on sale.

 Wear-out or damage caused by common use.

 The product was damaged by unprofessional or wrong installation, used in contrary to the applicable

instruction manual, used in contrary to legal enactment and common process of use or used for another

purpose which has been designed for.

 The product was damaged by uncared-for or insufﬁcient maintenance.

 The product was damaged by dirt, accident of force majeure (natural disaster, ﬁre, and ﬂood).

 Defects on functionality caused by low duality of signal, electromagnetic ﬁeld interference etc.

 The product was mechanically damaged (e.g. broken button, fall).

 Damage caused by use of unsuitable media, ﬁllings, expendable supplies (batteries) or by unsuitable

working conditions (e.g. high temperatures, high humidity, quakes).

 Repair, modiﬁcation or other failure action to the product by unauthorized person.

 End-user did not prove enough his right to claim (time and place of purchase).

 Data on presented documents differs from data on products.

 Cases when the claiming product cannot be indentiﬁed according to the presented documents (e.g. the

serial number or the warranty seal has been damaged).

Manufacturer:

FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic

info@sencor.com

Authorized service centers:

Visit www.sencor.com for detailed information about authorized service centers.

The original version of the instructions is in the Czech language, other language versions are made by the

appropriate translation.
