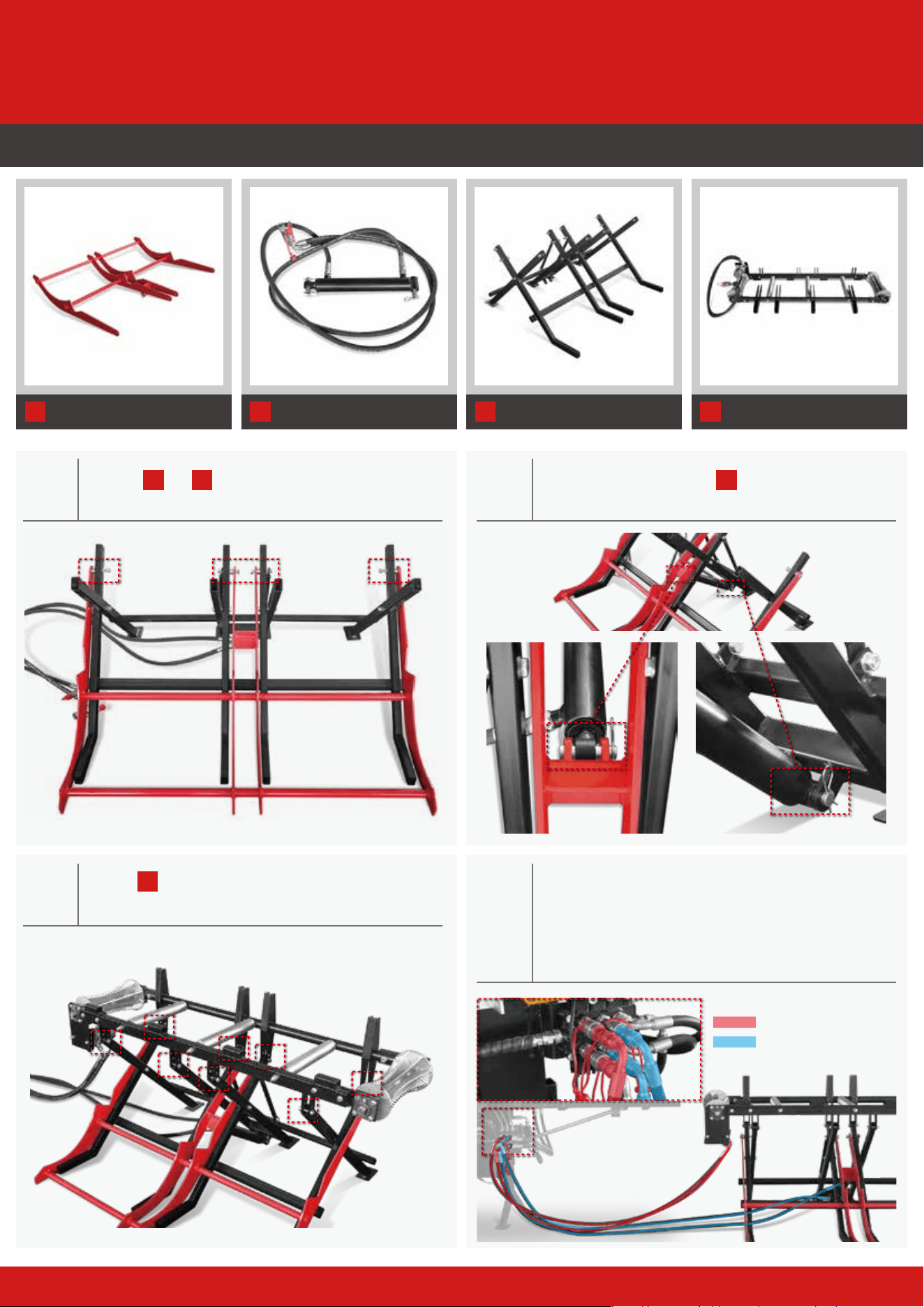

OPEN BOX AND START LAYING OUT ALL COMPONENTS.
LOG LIFT STEEL ROLLERLEG SECTIONHYDRAULIC HOSES
Fasten to with bolts and nuts at four
locations.
Log lifter
Assembly
A
A C
B
C D
1
Install onto the frame using bolts. The eight
bolt fastening locations are shown in the figure.
3 4
Connect both ends of B to the positions
shown in the figure.
B
2
D
Refer to the figure below for the hydraulic hose
connection method. Connect the hydraulic
motor hoses (red) to the two ports on the left,
and connect the hydraulic cylinder hoses (blue)
to the two ports on the right.
Hydraulic Motor Hoses
Hydraulic Cylinder Hoses
