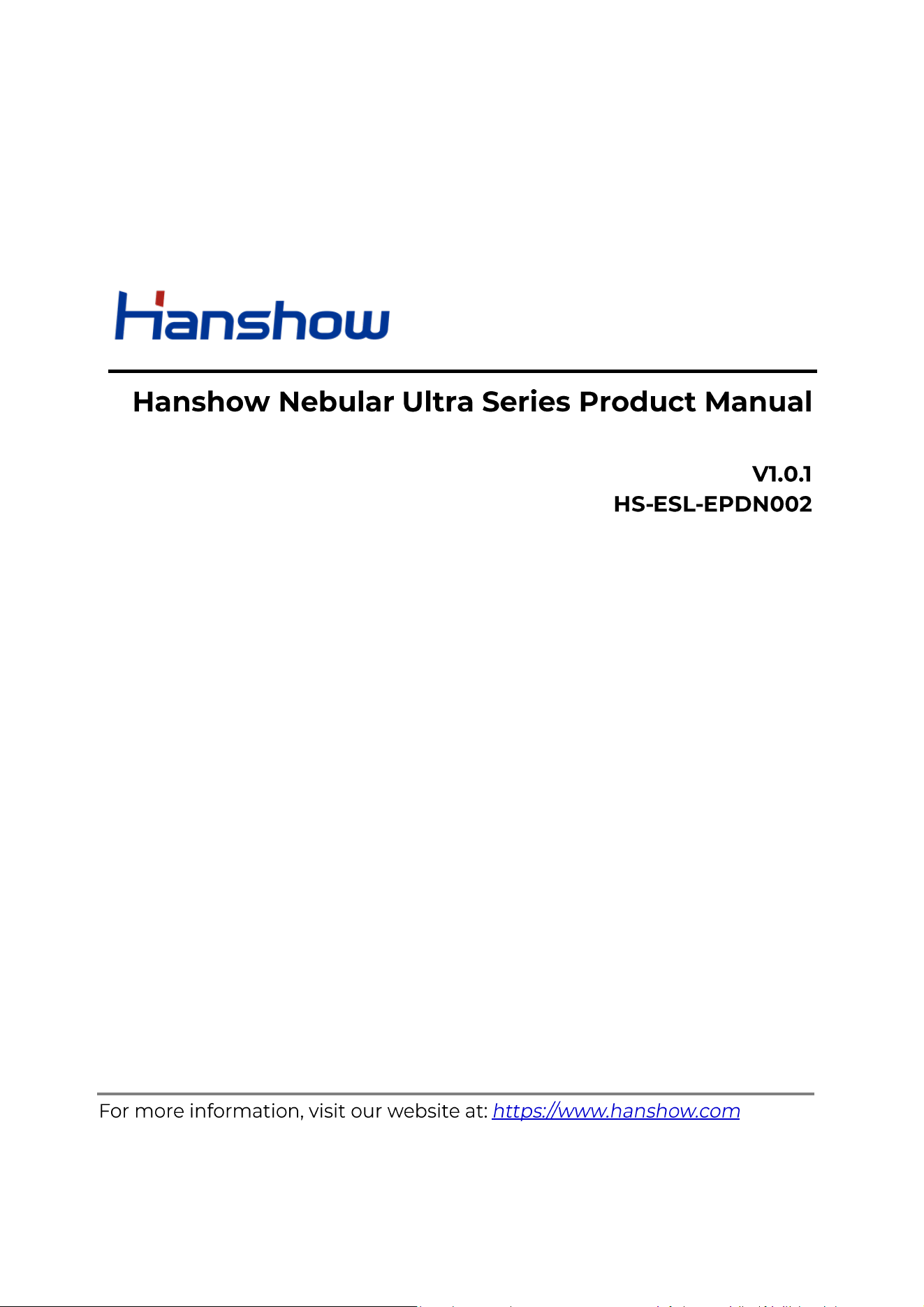

Hanshow Nebular Ultra Series Product Manual
I Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

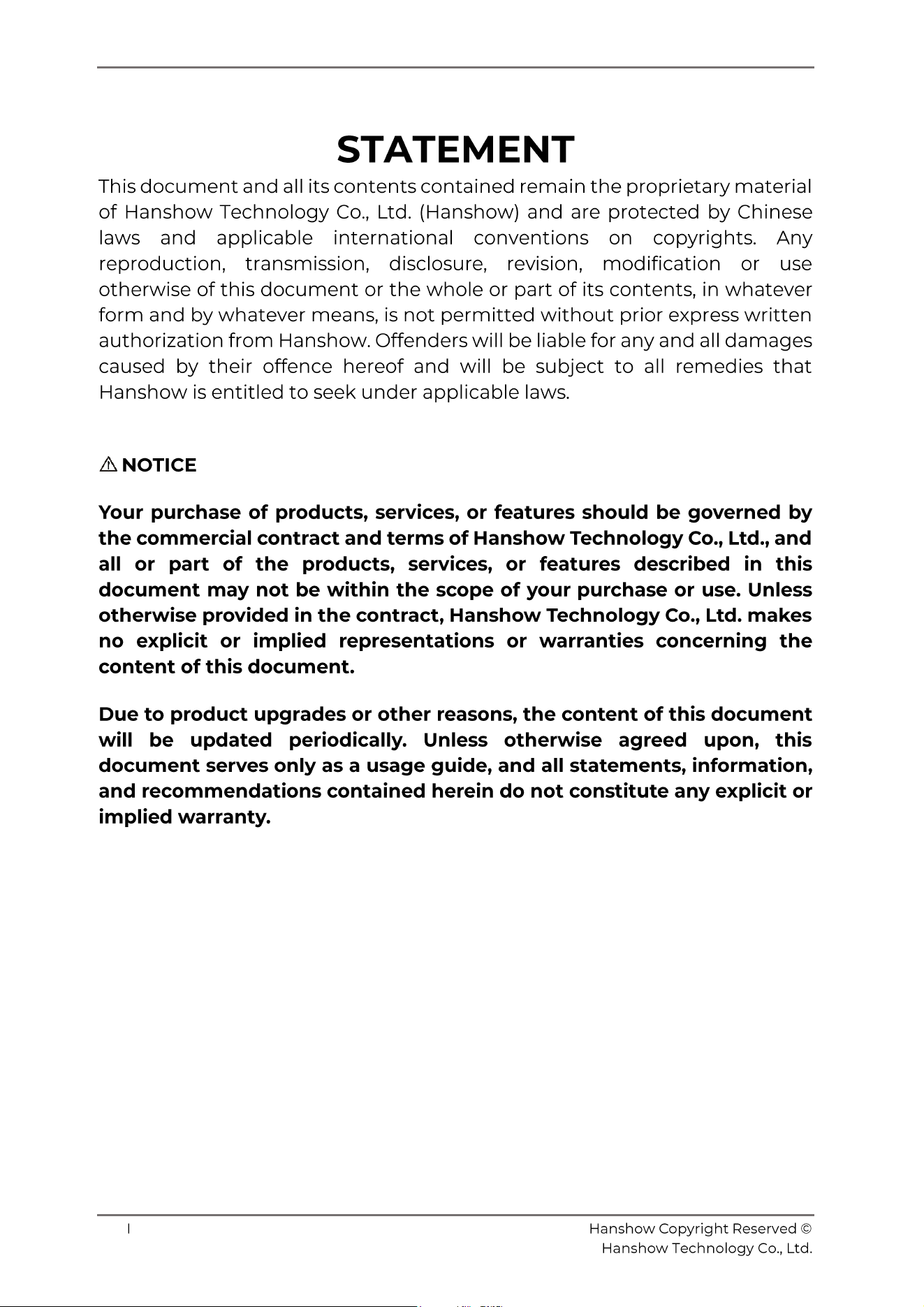

STATEMENT
This document and all its contents contained remain the proprietary material
of Hanshow Technology Co., Ltd. (Hanshow) and are protected by Chinese
laws and applicable international conventions on copyrights. Any
reproduction, transmission, disclosure, rev ision, modification or use
otherwise of this document or the whole or part of its contents, in whatever
form and by whatever means, is not permitted without prior express written
authorization from Hanshow. Offenders will be liable for any and all damages
caused by their offence hereof and will be subject to all remedies that
Hanshow is entitled to seek under applicable laws.
NOTICE
Your purchase of products, services, or features should be governed by
the commercial contract and terms of Hanshow Technology Co., Ltd., and
all or part of the products, services, or features described in this
document may not be within the scope of your purchase or use. Unless
otherwise provided in the contract, Hanshow Technology Co., Ltd. makes
no explicit or implied representations or warranties concerning the
content of this document.
Due to product upgrades or other reasons, the content of this document
will be updated periodically. Unless otherwise agreed upon, this
document serves only as a usage guide, and all statements, information,
and recommendations contained herein do not cons titute any explicit or
implied warranty.
Hanshow Nebular Ultra Series Product Manual
II Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

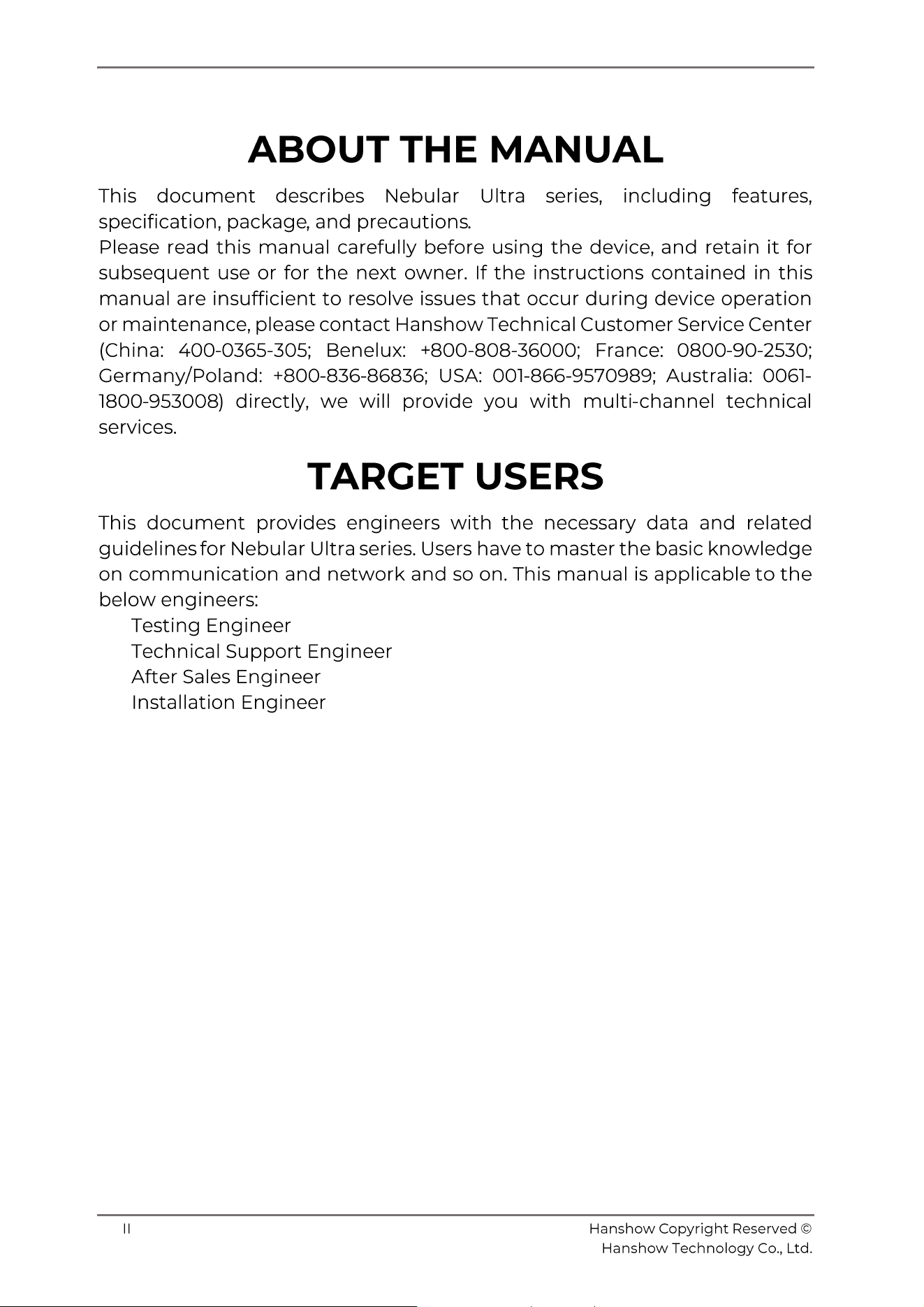

ABOUT THE MANUAL
This document describes Nebular Ultra series, including features,
specification, package , and precautions .
Please read this manual carefully before using the device, and retain it for
subsequent use or for the next owner. If the instructions contained in this
manual are insufficient to resolve issues that occur during device operation
or maintenance, please contact Hanshow Technical Customer Service Center
(China: 400 -0365 -305; Benelux: + 800 -808 -36000; France: 0800 -90 -2530;
Germany/Poland: +800 -836 -86836; USA: 001 -866 -9570989; Australia: 0061 -
1800 -953008 ) directly, we will provide you with multi -channel technica l
services.
TARGET USERS
This document provides engineers with the necessary data and related
guidelines for Nebular Ultra series. Users have to master the basic knowledge
on communication and network and so on. This manual is applicable to the
below engineers :
⚫ Testing Engineer
⚫ Technical Support Engineer
⚫ After Sales Engineer
⚫ Installation Engineer
Hanshow Nebular Ultra Series Product Manual
III Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

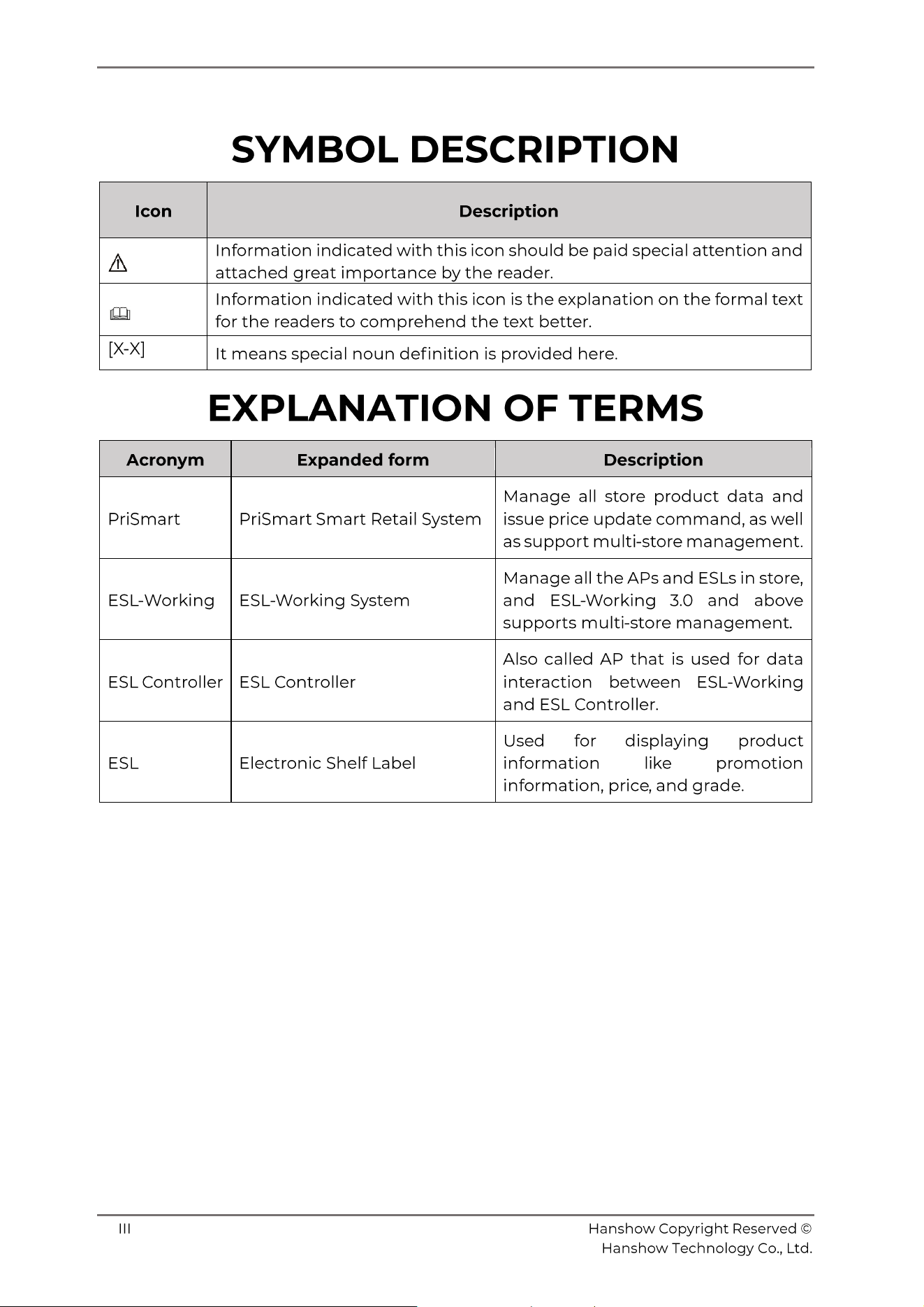

SYMBOL DESCRIPTION
Icon
Description
Information indicated with this icon should be paid special attention and
attached great importance by the reader.
Information indicated with this icon is the explanation on the formal text
for the readers to comprehend the text better.
[X-X]
It means special noun definition is provided here.
EXPLANATION OF TERMS
Acronym
Expanded form
Description
PriSmart
PriSmart Smart Retail System
Manage all store product data and
issue price update command, as well
as support multi -store management.
ESL -Working
ESL -Working System
Manage all the APs and ESLs in store,
and ESL -Working 3.0 and above
supports multi -store management .
ESL Controller
ESL Controller
Also called AP that is used for data
interaction between ESL -Working
and ESL Controller .
ESL
Electronic Shelf Label
U sed for displaying product
information li ke promotion
information, price , and grade.
Table of Contents
IV Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

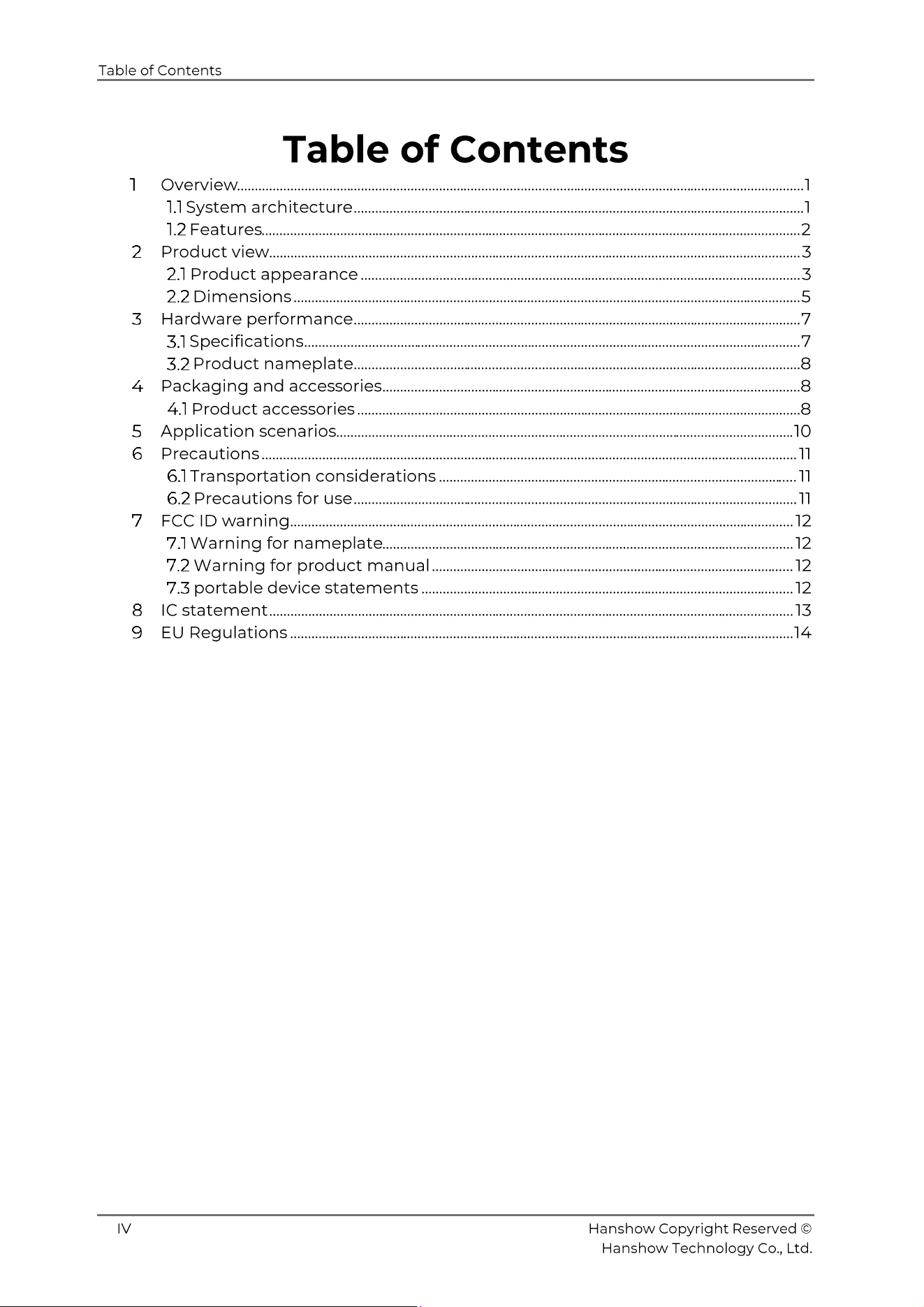

Table of Contents
Overview
................................................................................................................................................................1
System architecture
...............................................................................................................................1
Features
........................................................................................................................................................2
Product view
......................................................................................................................................................3
Product appearance
............................................................................................................................3
Dimensions
...............................................................................................................................................5
Hardware performance
..............................................................................................................................7
Specifications
............................................................................................................................................7
Product nameplate
..............................................................................................................................8
Packaging and accessories
......................................................................................................................8
Product accessories
.............................................................................................................................8
Application scenarios
.................................................................................................................................10
Precautions
.......................................................................................................................................................11
Transportation considerations
.....................................................................................................11
Precautions for use
.............................................................................................................................11
FCC ID warning
..............................................................................................................................................12
Warning for nameplate
....................................................................................................................12
Warning for product manual
......................................................................................................12
........................................................................12
IC statement
....................................................................................................................................................13
EU Regulations
..............................................................................................................................................14
Hanshow Nebular Ultra Series Product Manual
1 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

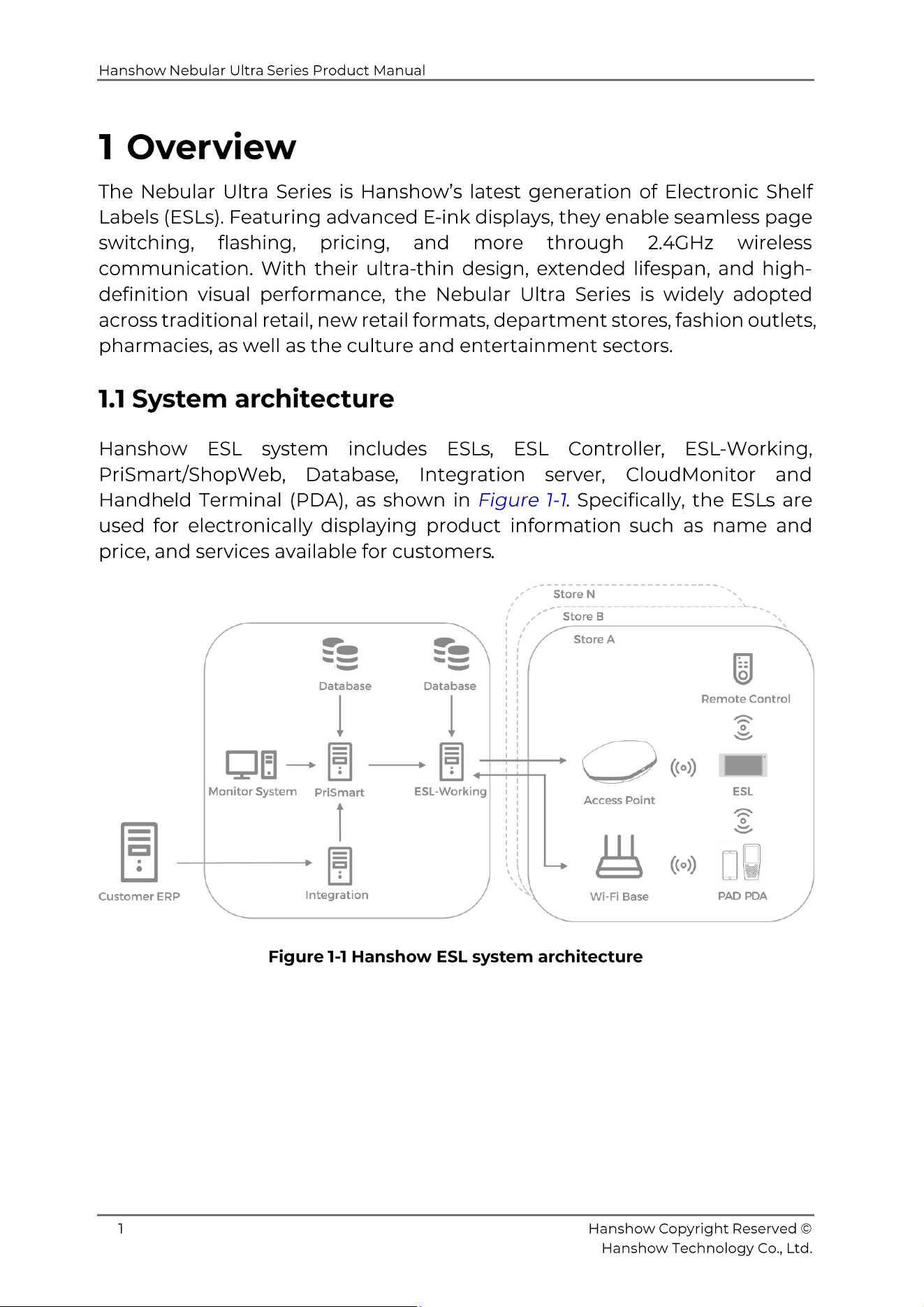

Overview
The Nebular Ultra Series is Hanshow’s latest generation of Electronic Shelf
Labels (ESLs). Featuring advanced E -ink displays, they enable seamless page
switching, flashing, pricing, and more through 2.4GHz wireless
communication. With their ultra -thin desi gn, extended lifespan, and high -
definition visual performance, the Nebular Ultra Series is widely adopted
across traditional retail, new retail formats, department stores, fashion outlets,
pharmacies, as well as the culture and entertainment sectors.
1.1 System architecture
Hanshow ESL system includes ESL s, ESL Controller , ESL -Working,
PriSmart/ShopWeb, Database , Integration server , CloudMonitor and
Handh eld Terminal (PDA), as shown in Figure 1-1. Specifically, the ESL s are
used for electronically displaying product information such as name and
price, and services available for customers .
Figure 1-1 Hanshow ESL system architecture
Hanshow Nebular Ultra Series Product Manual
2 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

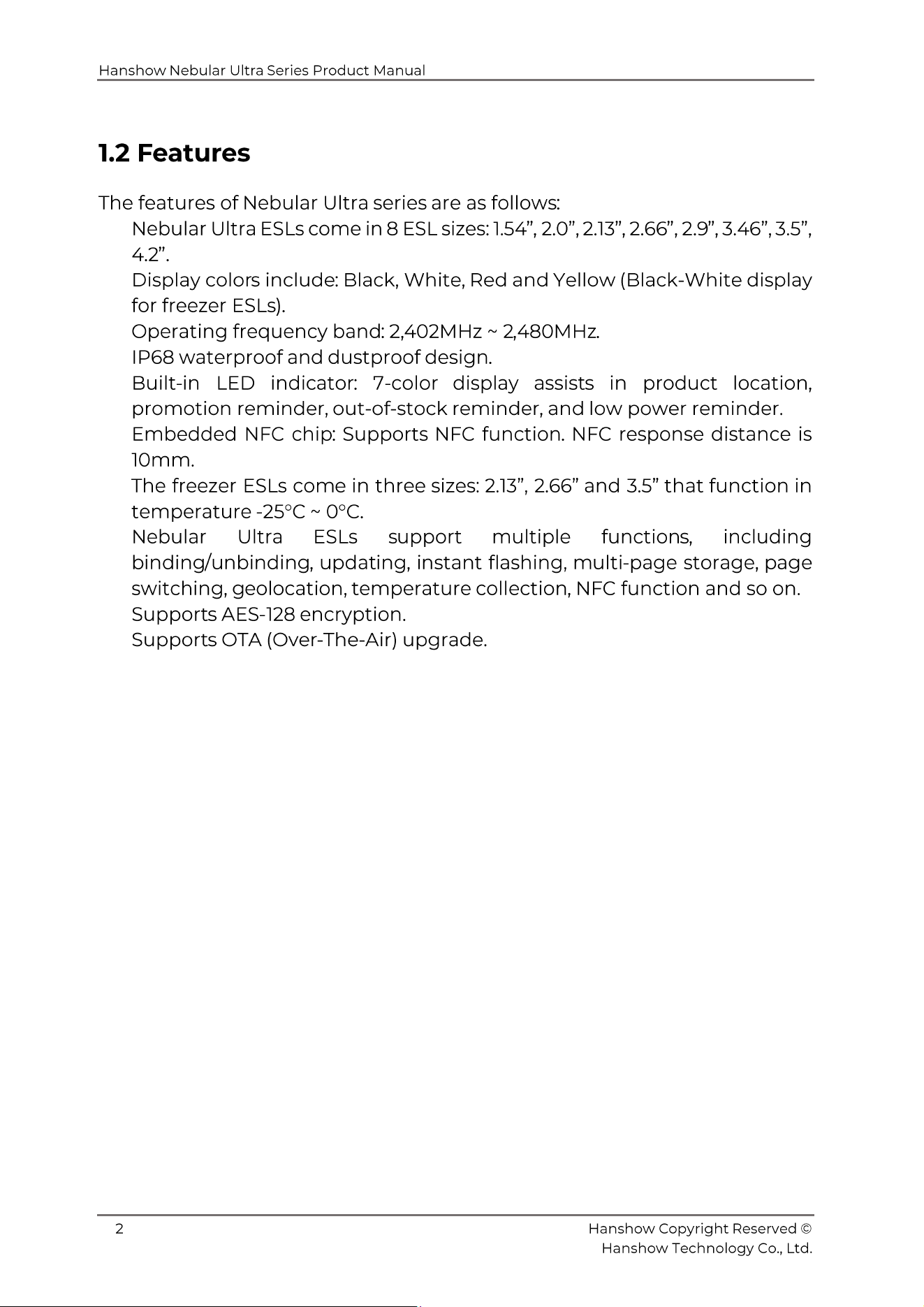

1.2 Features
The features of Nebular Ultra series are as follows :
⚫ Nebular Ultra ESLs come in 8 ESL sizes: 1.54”, 2.0”, 2.13”, 2.66 ”, 2.9”, 3.46”, 3.5”,
4.2 ”.
⚫ Display color s include : Black, White, Red and Yellow (Black -White display
for freezer ESLs ).
⚫ Operating frequency band : 2,402MHz ~ 2 ,480MHz .
⚫ IP68 waterproof and dustproof design .
⚫ Built -in LED indicator : 7-color display assist s in product location ,
promotion reminder, out -of-stock reminder , and low power reminder.
⚫ Embedded NFC chip : S upports NFC function . NFC response distance is
10mm.
⚫ The freezer ESLs com e in three sizes: 2.13”, 2.66” and 3.5” that function in
temperature -25°C ~ 0 °C.
⚫ Nebular Ultra ESLs s upport multiple function s, including
b ind ing /u nbind ing , u pdat ing , instant flashing, m ulti -page storage, p age
switch ing , g eolocation, temperature collection , NFC function and so on.
⚫ Support s AES -128 encryption.
⚫ Support s OTA (Over -The -Air) upgrade.

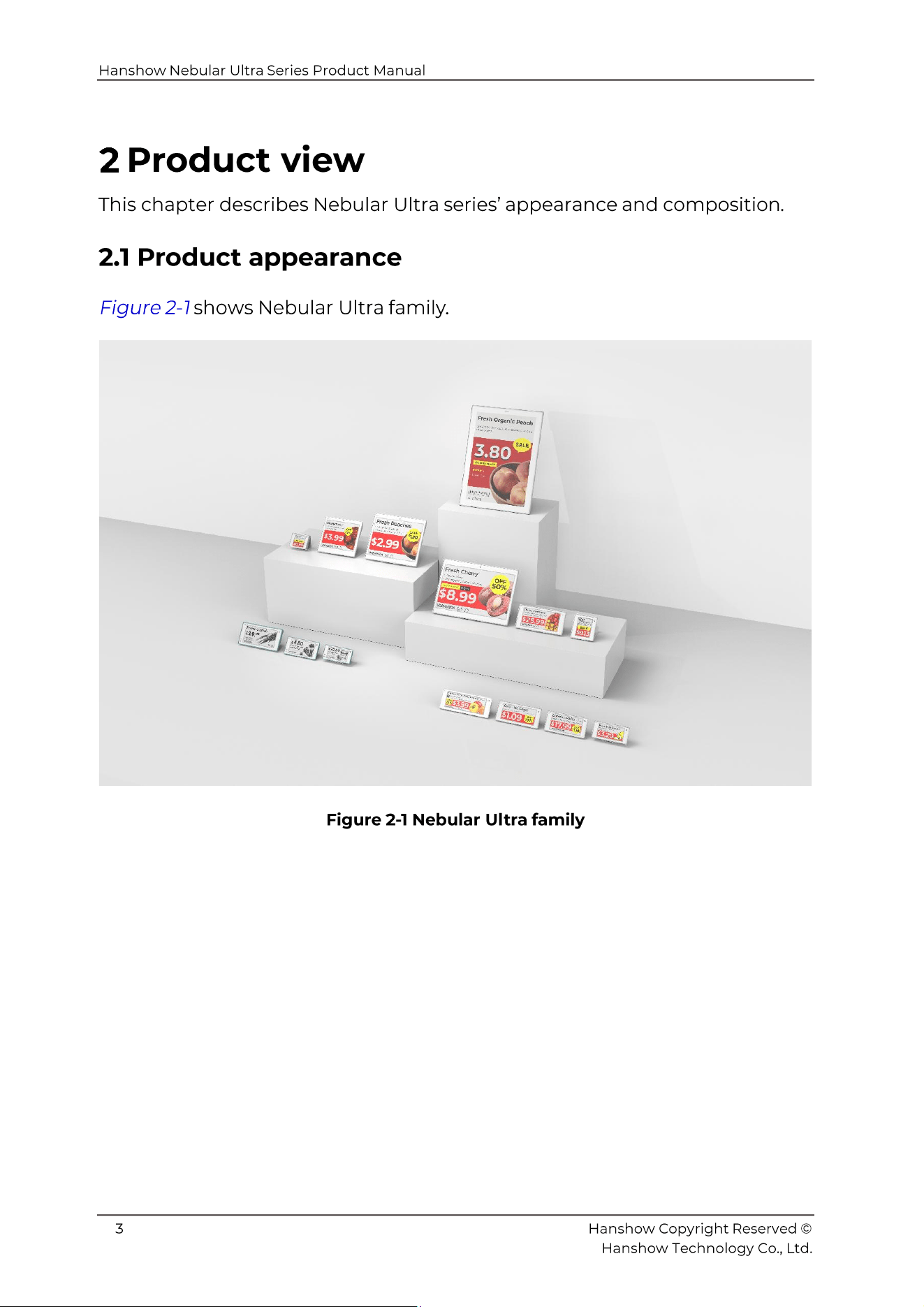

Hanshow Nebular Ultra Series Product Manual
4 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

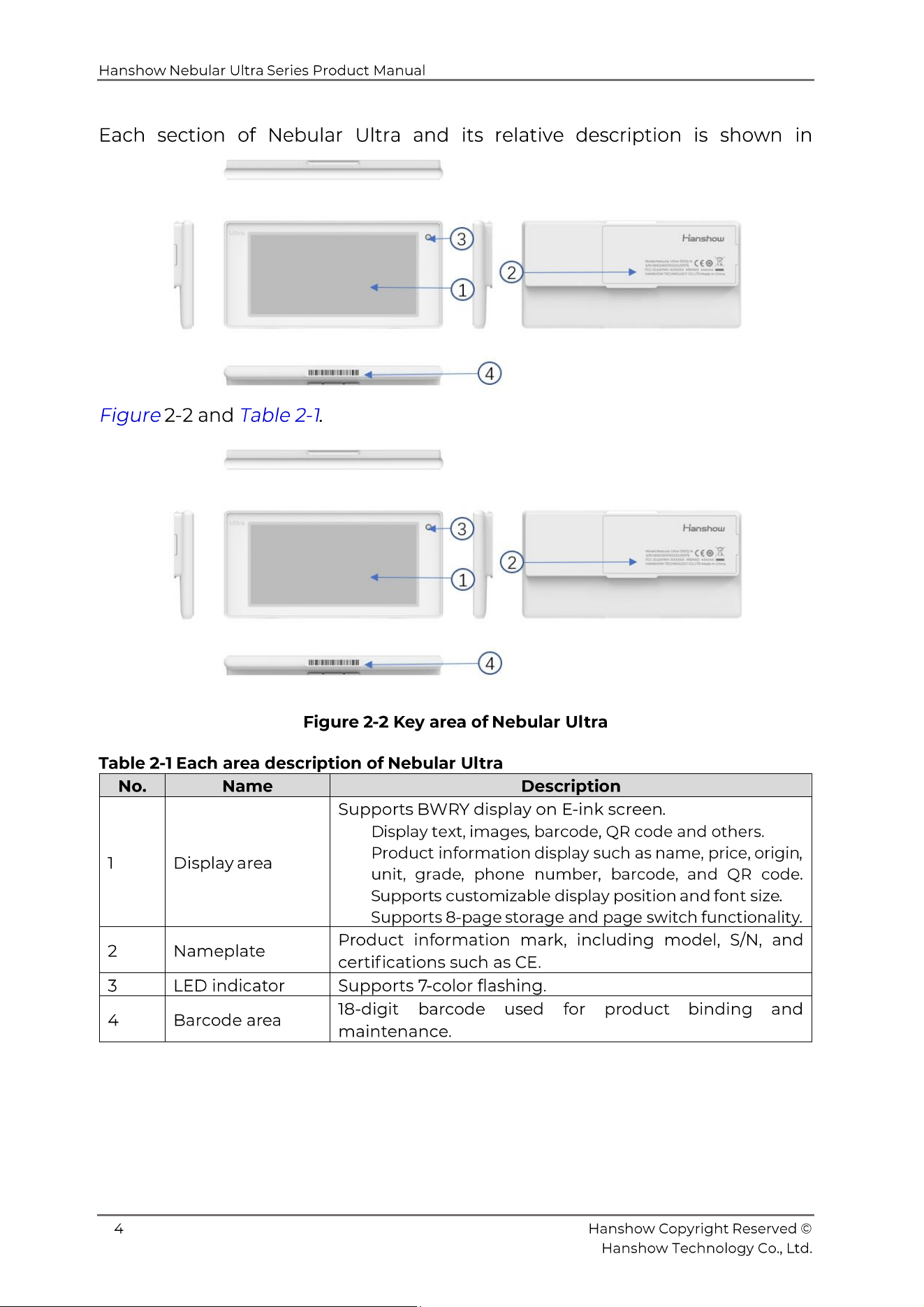

Each section of Nebular Ultra and its relative description is shown in
Figure 2-2 and Table 2-1.
Figure 2-2 Key area of Nebular Ultra
Table 2-1 Each area description of Nebular Ultra
No.
Name
Description
1
Display area
S upport s BWR Y display on E -ink screen .
⚫ D isplay text, images , barcode, QR code and others.
⚫ P roduct information display such as name, price, origin ,
unit, grade , phone number, barcode, and QR code .
S upport s custom izable display position and font size .
⚫ Supports 8-page storage and page switch functionality .
2
Nameplate
Product information mark, including model, S/N, and
certifications such as CE.
3
LED indicator
Supports 7 -color flashing.
4
Barcode area
18-digit barcode used for product binding and
maintenance.
Hanshow Nebular Ultra Series Product Manual
5 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

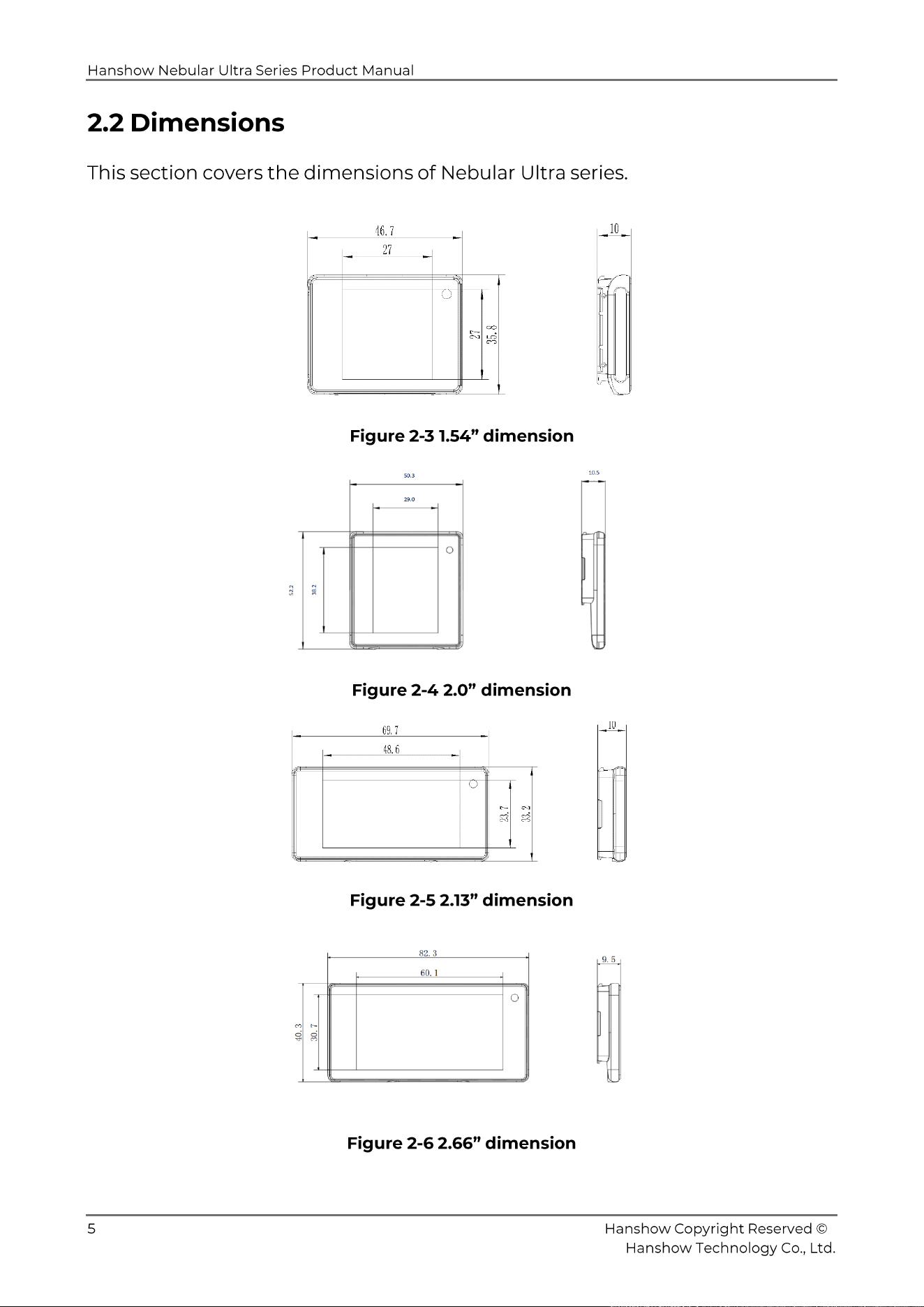

2.2 Dimensions
This section covers the dimensions of Nebular Ultra series .
Figure 2-3 1.54” dimension
Figure 2-4 2.0” dimension
Figure 2-5 2.13” dimension
Figure 2-6 2.66” dimension
Hanshow Nebular Ultra Series Product Manual
6 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

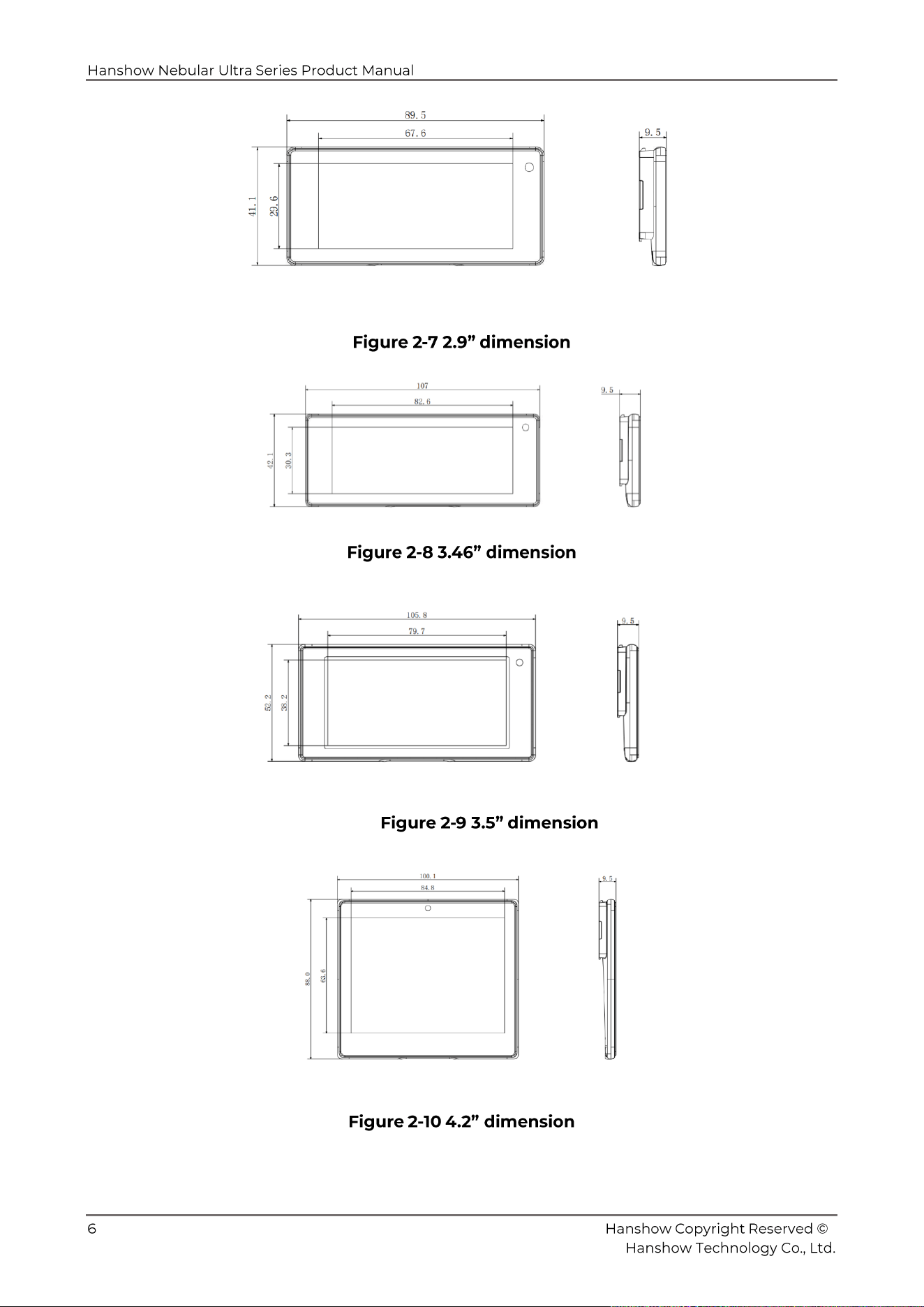

Figure 2-7 2.9” dimension
Figure 2-8 3.46” dimension
Figure 2-9 3.5” dimension
Figure 2-10 4.2” dimension
Hanshow Nebular Ultra Series Product Manual
7 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

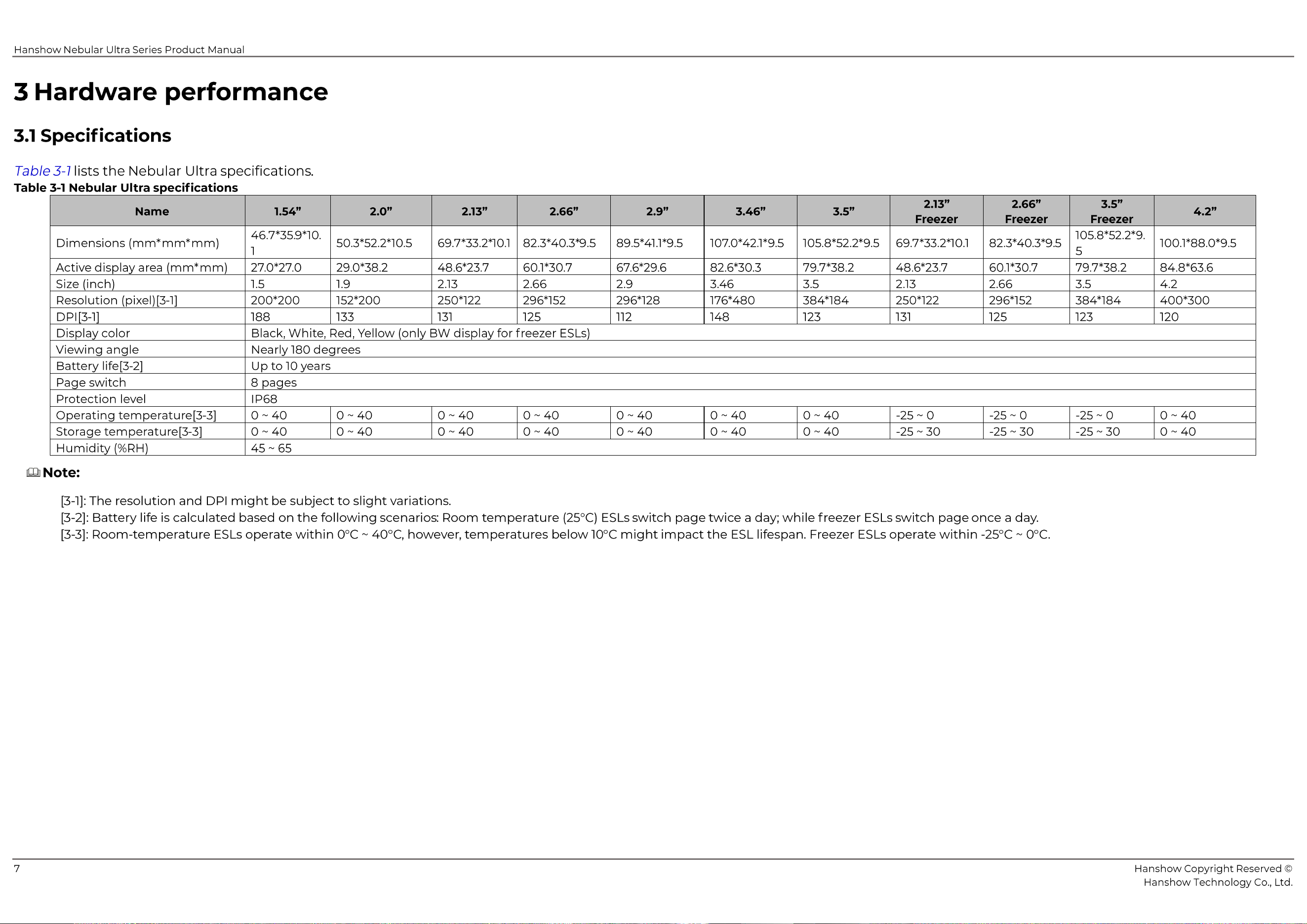

Hardware performance
3.1 Specifications
Table 3-1 lists the Nebular Ultra specifications .
Table 3-1 Nebular Ultra specifications
Name
1.54”
2.0”
2.13”
2.66”
2.9”
3.46”
3.5”
2.13”
Freezer
2.66”
Freezer
3.5”
Freezer
4.2”
Dimensions (mm*mm*mm)
46.7*35. 9*10.
1
50.3*52.2*10.5
69.7*33.2* 10.1
82.3*40.3* 9.5
89.5*41.1*9.5
107.0*42. 1*9.5
105.8*52.2*9.5
69.7*33.2* 10.1
82.3*40.3* 9.5
105.8*52.2*9.
5
100.1*88.0*9.5
Active display area (mm*mm)
27.0*27.0
29.0*38.2
48.6*23.7
60.1*30.7
67.6*29.6
82.6*30.3
79.7*38.2
48.6*23.7
60.1*30.7
79.7*38.2
84.8*63.6
Size (inch)
1.5
1.9
2.13
2.66
2.9
3.46
3.5
2.13
2.66
3.5
4.2
Resolution (pixel)[3 -1]
200*200
152*200
250*122
296*152
296*128
176*480
384*184
250*122
296*152
384*184
400*300
DPI[3 -1]
188
133
131
125
112
148
123
131
125
123
120
Display color
Black, White, Red, Yellow (only BW display for freezer ESLs)
Viewing angle
Nearly 180 degrees
Battery life[3 -2]
Up to 10 years
Page switch
8 pages
Protection level
IP68
Operating temperature[3 -3]
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
-25 ~ 0
-25 ~ 0
-25 ~ 0
0 ~ 40
Storage temperature[3 -3]
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
0 ~ 40
-25 ~ 30
-25 ~ 30
-25 ~ 30
0 ~ 40
Humidity (%RH)
45 ~ 65
Note:
➢ [3-1]: The resolution and DPI might be subject to slight variations .
➢ [3-2]: Battery life is calculated based o n the following scenarios : Room temperature (25°C) ESLs switch page twice a day; while freezer ESLs switch page once a day .
➢ [3-3]: Room -temperature ESLs operate within 0 °C ~ 40 °C , however , temperatures below 10 °C might impact the ESL lifespan. Freezer ESLs operate within -25°C ~ 0 °C .
Hanshow Nebular Ultra Series Product Manual
8 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

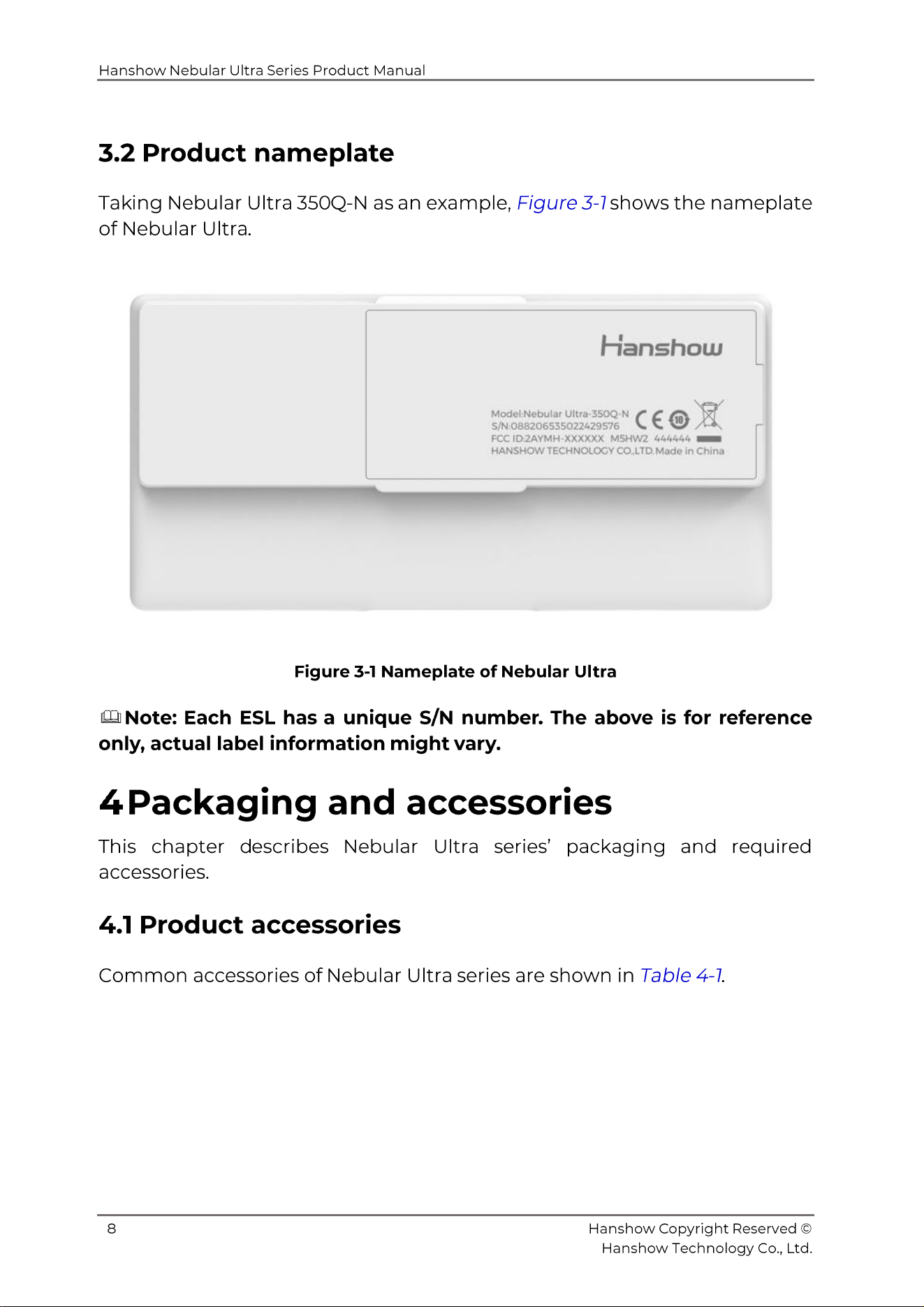

3.2 Product nameplate
Tak ing Nebular Ultra 350 Q -N as an example, Figure 3-1 shows the nameplate
of Nebular Ultra .
Figure 3-1 N ameplate of Nebular Ultra
Note: Each ESL has a unique S/N number . The above is for reference
only, actual label information might vary.
Packag ing and accessories
This chapter d escribes Nebular Ultra series’ packaging and required
accessories.
4.1 Product accessories
Common accessories of Nebular Ultra series are shown in Table 4 -1.
Hanshow Nebular Ultra Series Product Manual
9 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

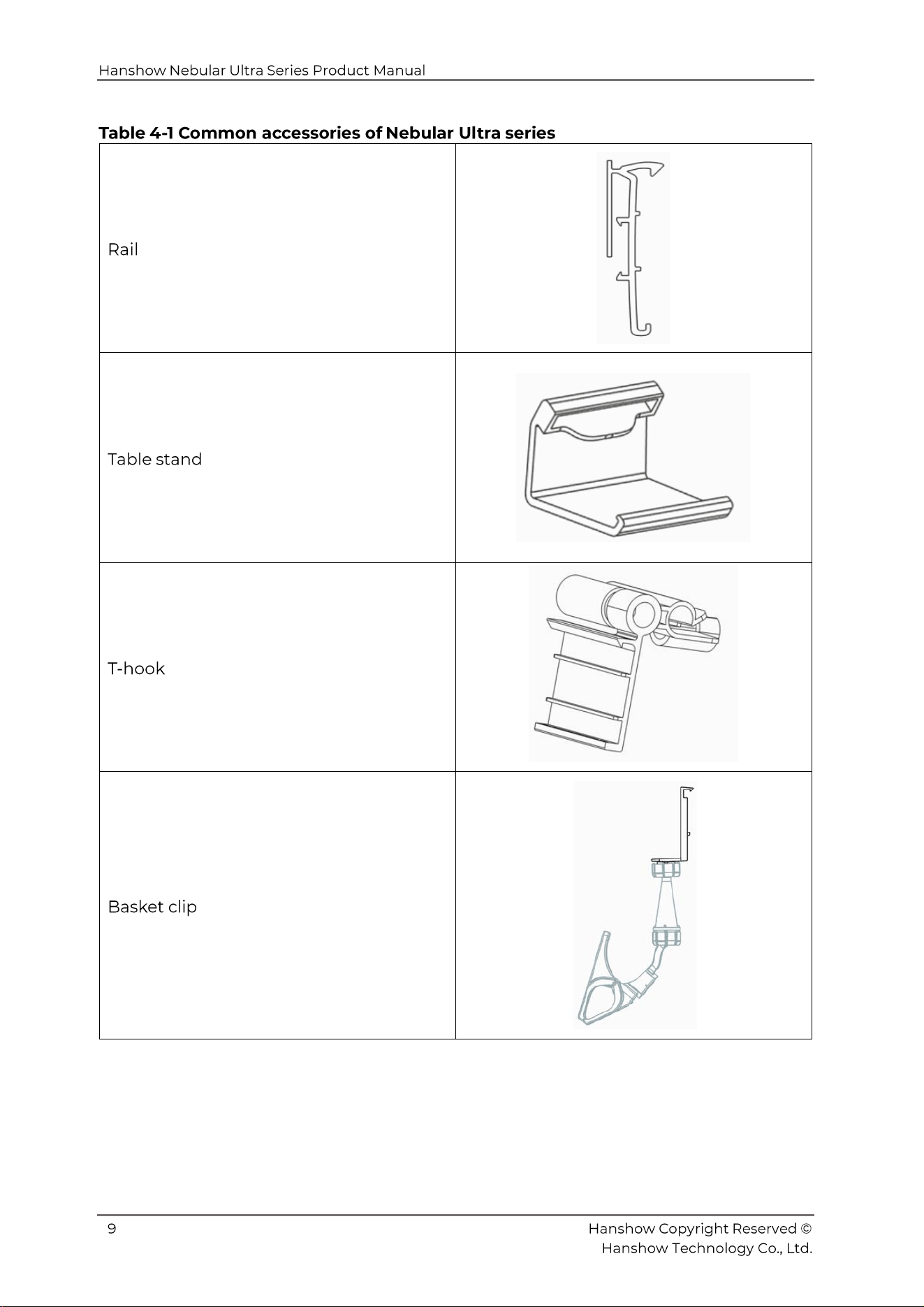

Table 4 -1 Common accessories of Nebular Ultra series
Rail
Table stand
T-hook
B asket clip
Hanshow Nebular Ultra Series Product Manual
10 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

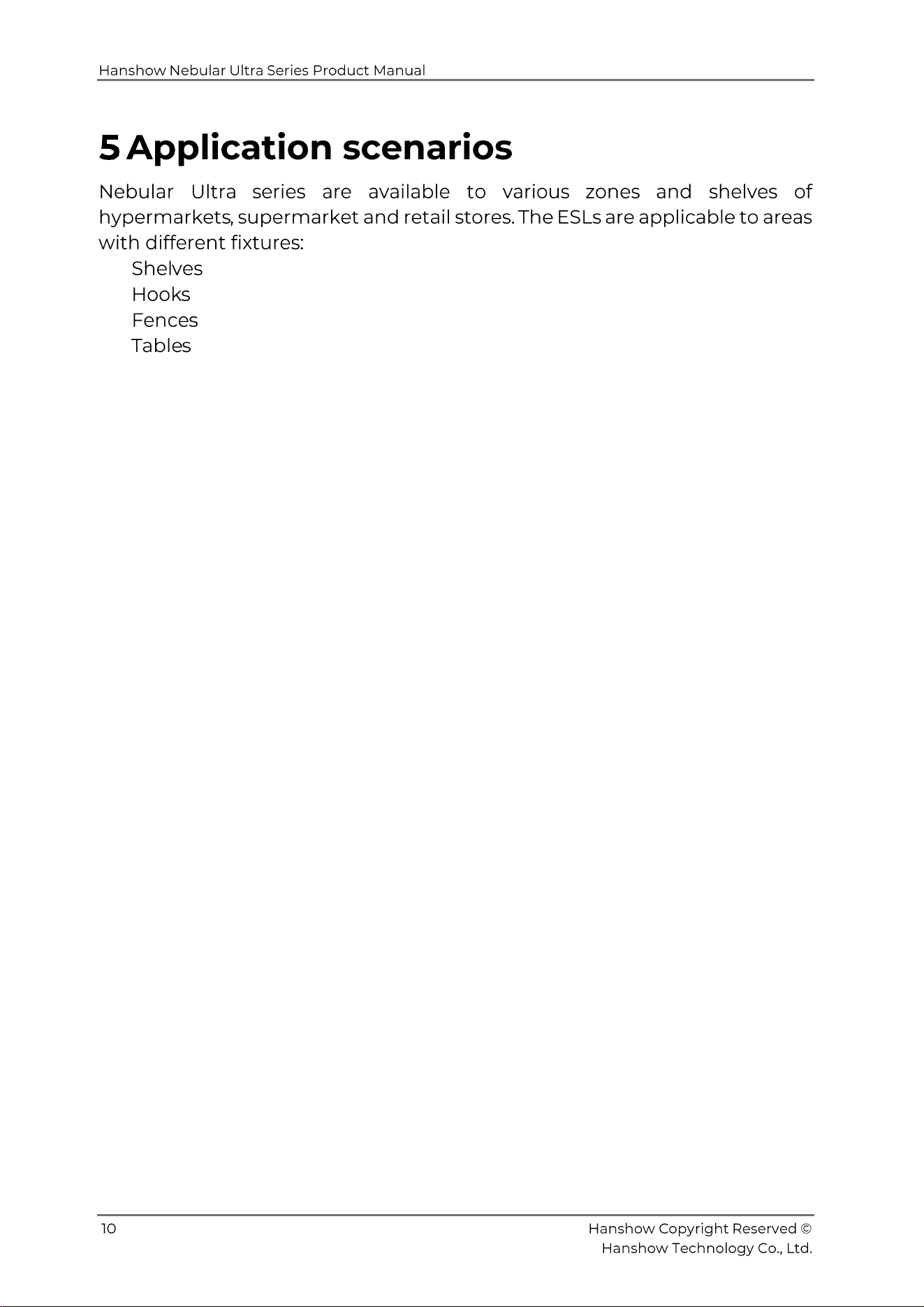

Application scenarios
Nebular Ultra series are available to various zones and shelves of
hypermarkets , supermarket and retail stores. The ESLs are applicable to areas
with different fixtures :
⚫ S hel ves
⚫ H ook s
⚫ F ence s
⚫ Table s
Hanshow Nebular Ultra Series Product Manual
11 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

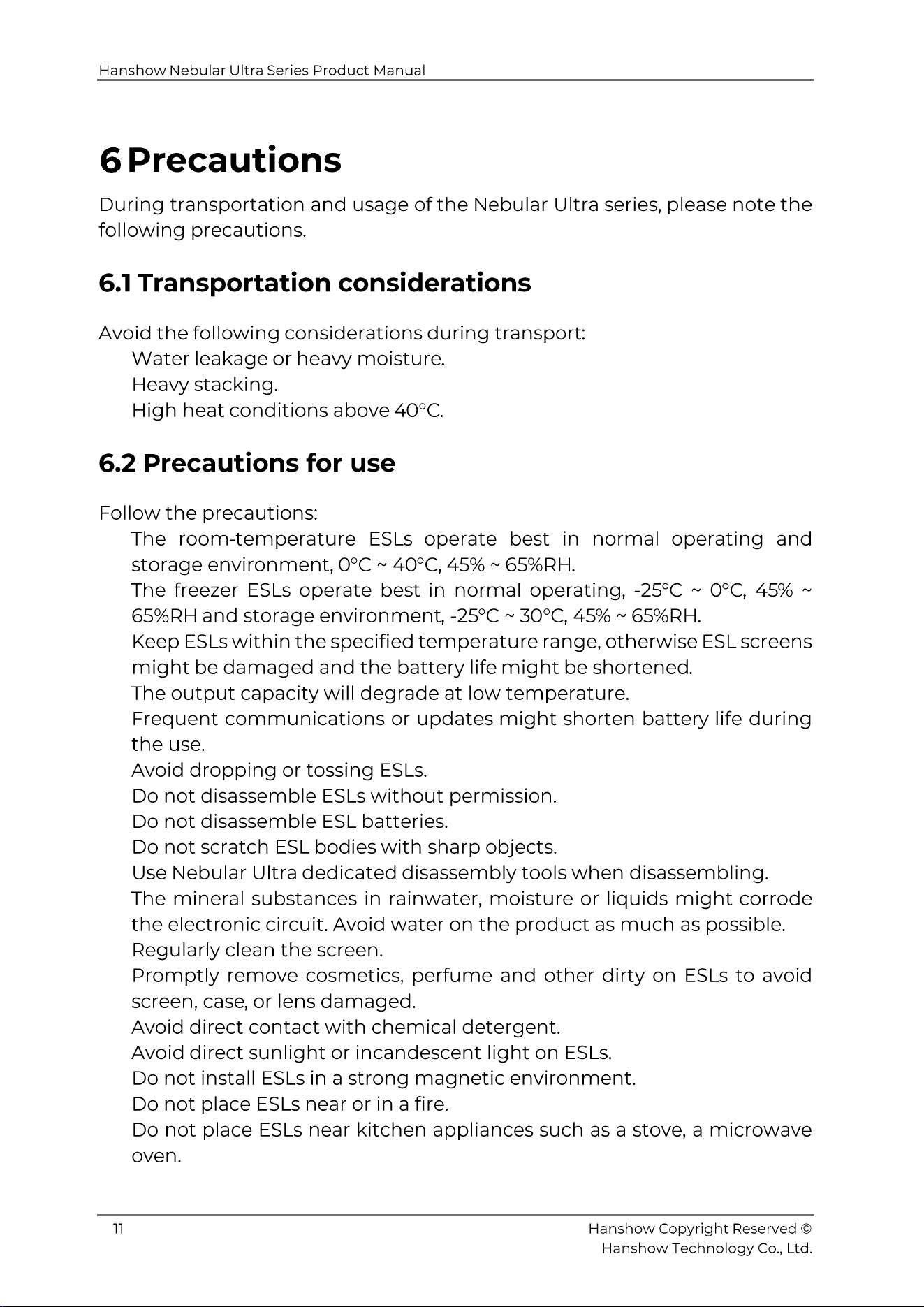

Precautions
During transportation and usage of the Nebular Ultra series, please note the
following precautions.
6.1 Transport ation consideration s
Avoid the following considerations during transport :
⚫ W ater leakage or heavy moisture .
⚫ Heavy stacking .
⚫ High heat conditions above 40 °C.
6.2 Precautions for use
Follow the precautions:
⚫ The room -temperature ESLs operate best in normal operating and
storage environment, 0 °C ~ 40 °C, 45 % ~ 65 %RH .
⚫ The freezer ESLs operate best in normal operating , -25°C ~ 0 °C, 45 % ~
65 %RH and storage environment , -25°C ~ 30 °C, 45 % ~ 65 %RH .
⚫ Keep ESLs within the specified temperature range , otherwise ESL screens
might be damaged and the battery life might be shortened .
⚫ The output capacity will degrade at low temperature.
⚫ Frequent communications or updates might shorten batter y life during
the use.
⚫ Avoid dropping or tossing ESLs.
⚫ Do not disassemble ESLs without permission.
⚫ Do not disassemble ESL batteries.
⚫ Do not scratch ESL bod ies with sharp objects.
⚫ U se Nebular Ultra dedicated disassembly tool s when disassembling.
⚫ The mineral substances in rainwater, moisture or liquids might corrode
the electronic circuit. Avoid water on the product as much as possible.
⚫ Regularly clean the screen.
⚫ Promptly remove cosmetics, perfume and other dirty on ESLs to avoid
screen, case , or lens damaged.
⚫ Avoid direct contact with chemical detergent.
⚫ Avoid direct sunlight or incandescent light on ESLs.
⚫ Do not install ESLs in a strong magnetic environment.
⚫ Do not place ESLs near or in a fire.
⚫ Do not place ESLs near kitchen appliances such as a stove, a microwave
oven.
Hanshow Nebular Ultra Series Product Manual
12 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

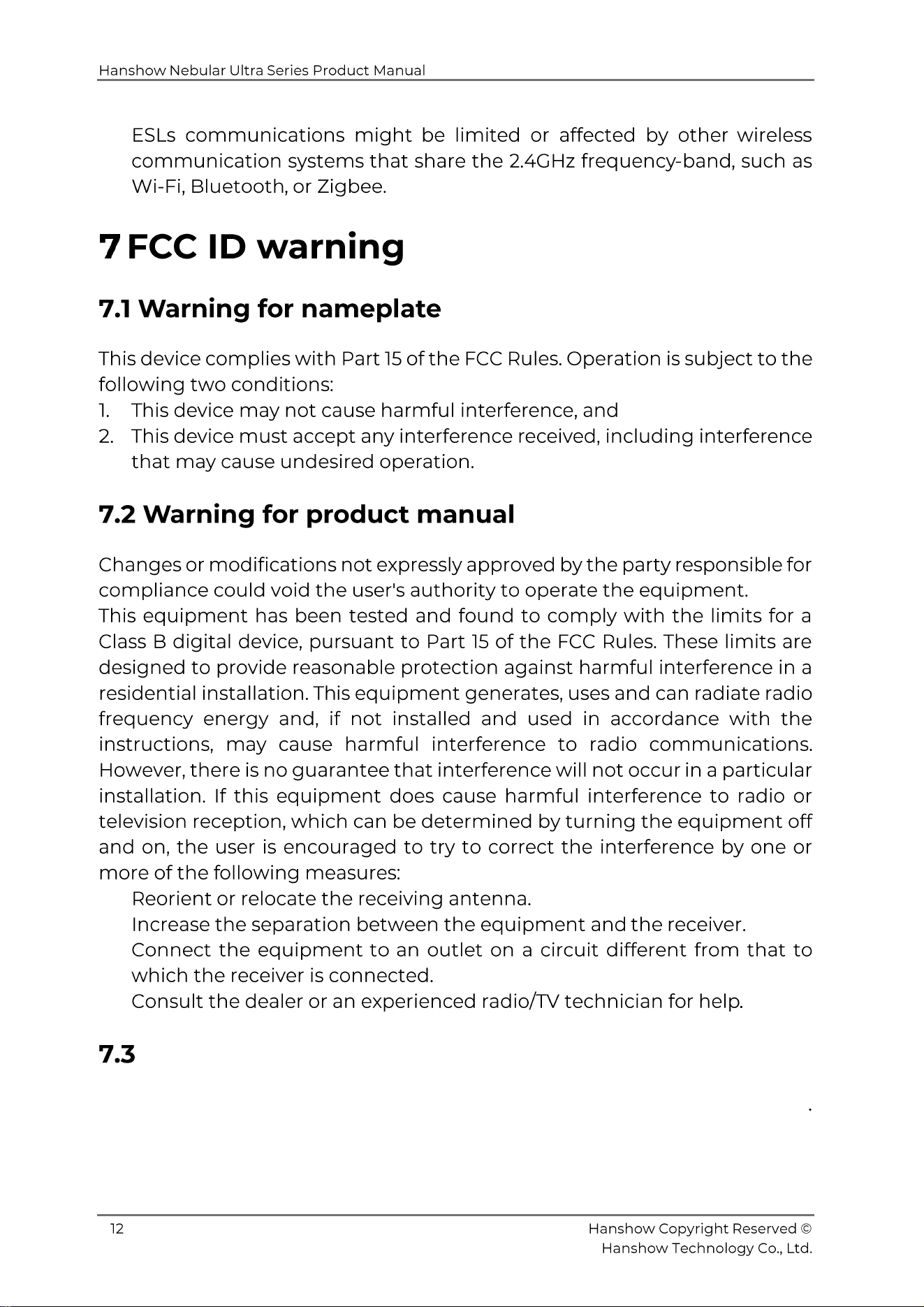

⚫ ESLs communications might be limited or affected by other wireles s
communication systems that share the 2.4GHz frequency -band , such as
Wi -Fi, Bluetooth , or Zigbee.
FCC ID warning
7.1 Warning for nameplate
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
7.2 Warning for product manual
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. Th is equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the f ollowing measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and the receiver.
⚫ Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
⚫ Consult the dealer or an experienc ed radio/TV technician for help .
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements.
This equipment should be installed and operated with minimum distance of
20 cm between the radiator and your body.
Hanshow Nebular Ultra Series Product Manual
13 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.
IC statement
This device complies with CAN ICES -003 (B)/NMB -003(B).
This device complies with Industry Canada licence -exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Cet appareil est conforme à la norme CAN ICES -003 (B)/NMB -003 (B).
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance of 20 cm between the radiator and your body. This
transmitter must not be co -located or operating in conjunction with any
other antenna or transmitter.
Cet équipement est conforme aux limites d’exposition aux rayonnements de
la IC établies pour unenvironnement non contrôé. Cet équipement doit être
installé et fonctionner à au moins 20cm de distance d’un radiateur ou de
votre corps.
Hanshow Nebular Ultra Series Product Manual
14 Hanshow C opyright Reserved ©
Hanshow Technology Co., Ltd.

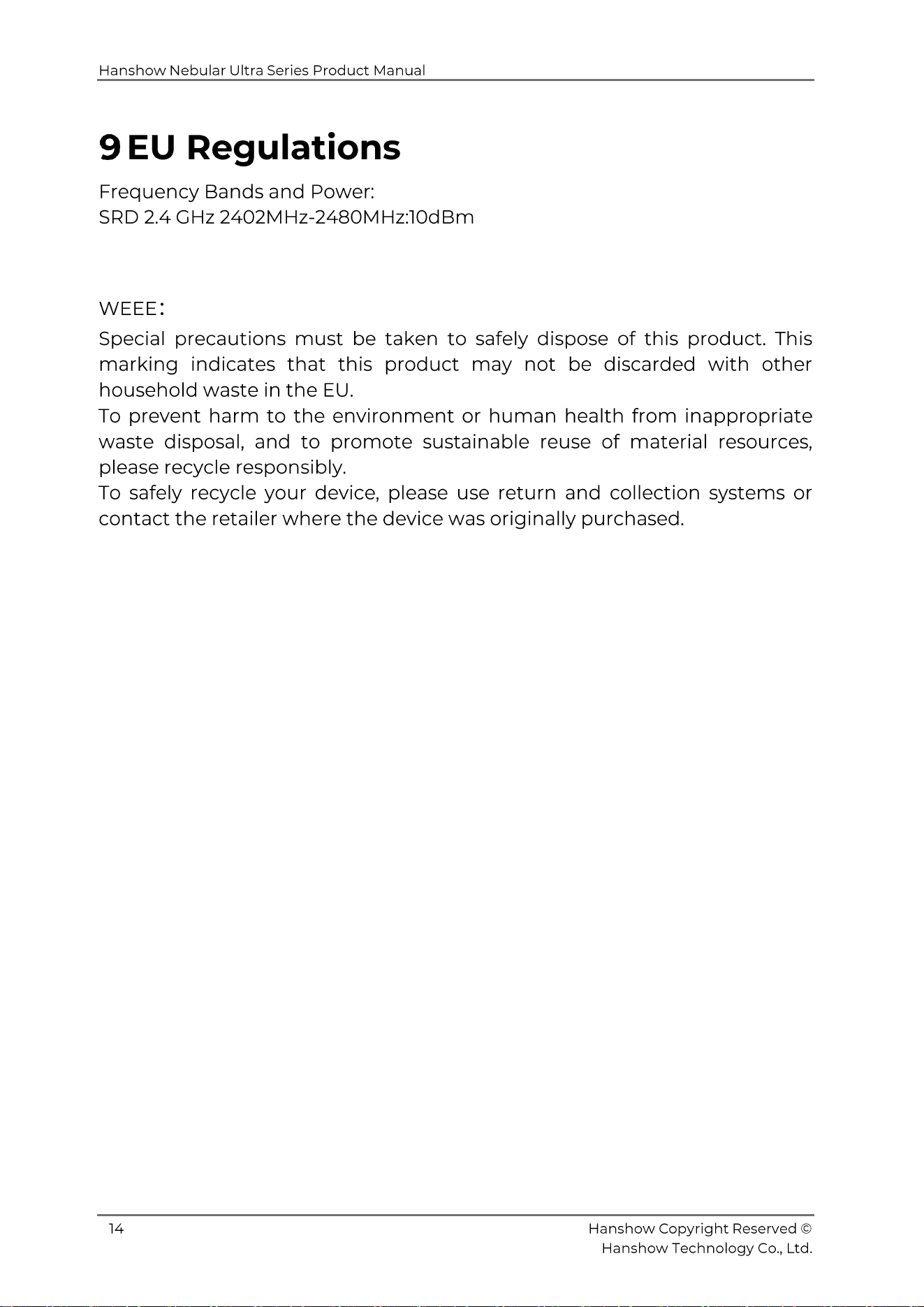

EU Regulations
Frequency Bands and Power:
SRD 2.4 GHz 2402MHz -2480MHz:10dBm
WEEE ：
Special precautions must be taken to safely dispose of this product. This
marking indicates that this product may not be discarded with other
household waste in the EU.
To prevent harm to the environment or human health from inappropriate
waste disposal, and to promote sustainable reuse of material resources,
please recycle responsibly.
To safely recycle your device, please use return and collection systems or
contact the retailer where the device was originally purchased.
Bluetooth: 20 dBm
NFC: 13.56 MHz< 42 dBuA/m at 10m
