Read all instructions and explanations before use.
Follow the instructions carefully.
Keep the operation instructions handy for later use.
If the appliance is sold or passed on then ensure
that the new owner always receives these operation
instructions.
CAUTION: RISK OF FIRE !
OWNER’S MANUAL
Tumble Dryer
MODEL: FLD-5CWHP
For any service-related Issues,
please contact us:
Phone Number: 718-576-6342
Email address: [email protected]
SAFETY AND PRECAUTIONS.................................................................2
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS................................2
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS............................................2
IMPORTANT SAFETY INSTRUCTIONS.................................................................2
INSTALLATION REQUIREMENTS.........................................................6
IMPORTANT TO INSTALLER...............................................................................6
BASIC REQUIREMENTS.....................................................................................6
LOCATION REQUIREMENTS..............................................................................6

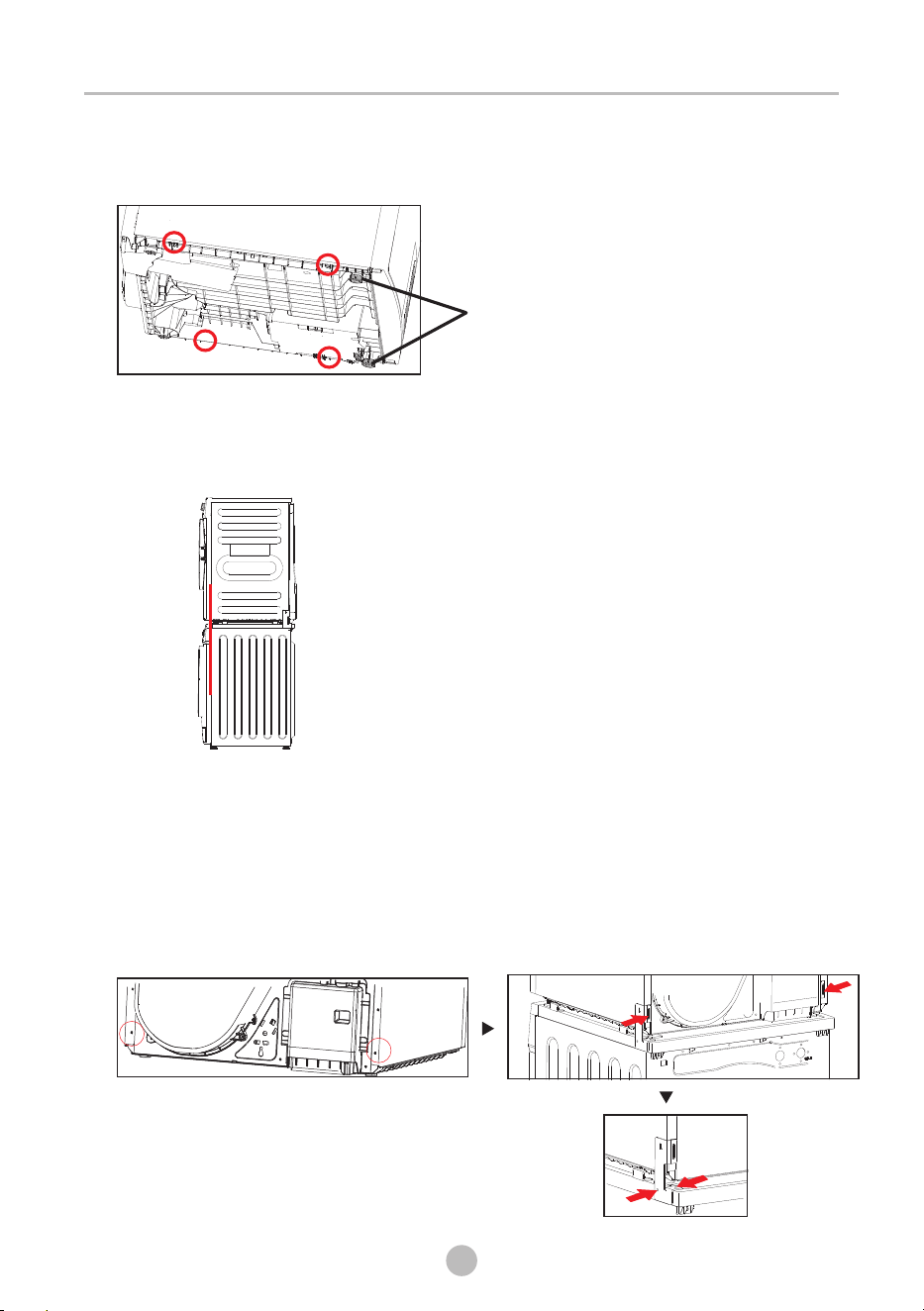

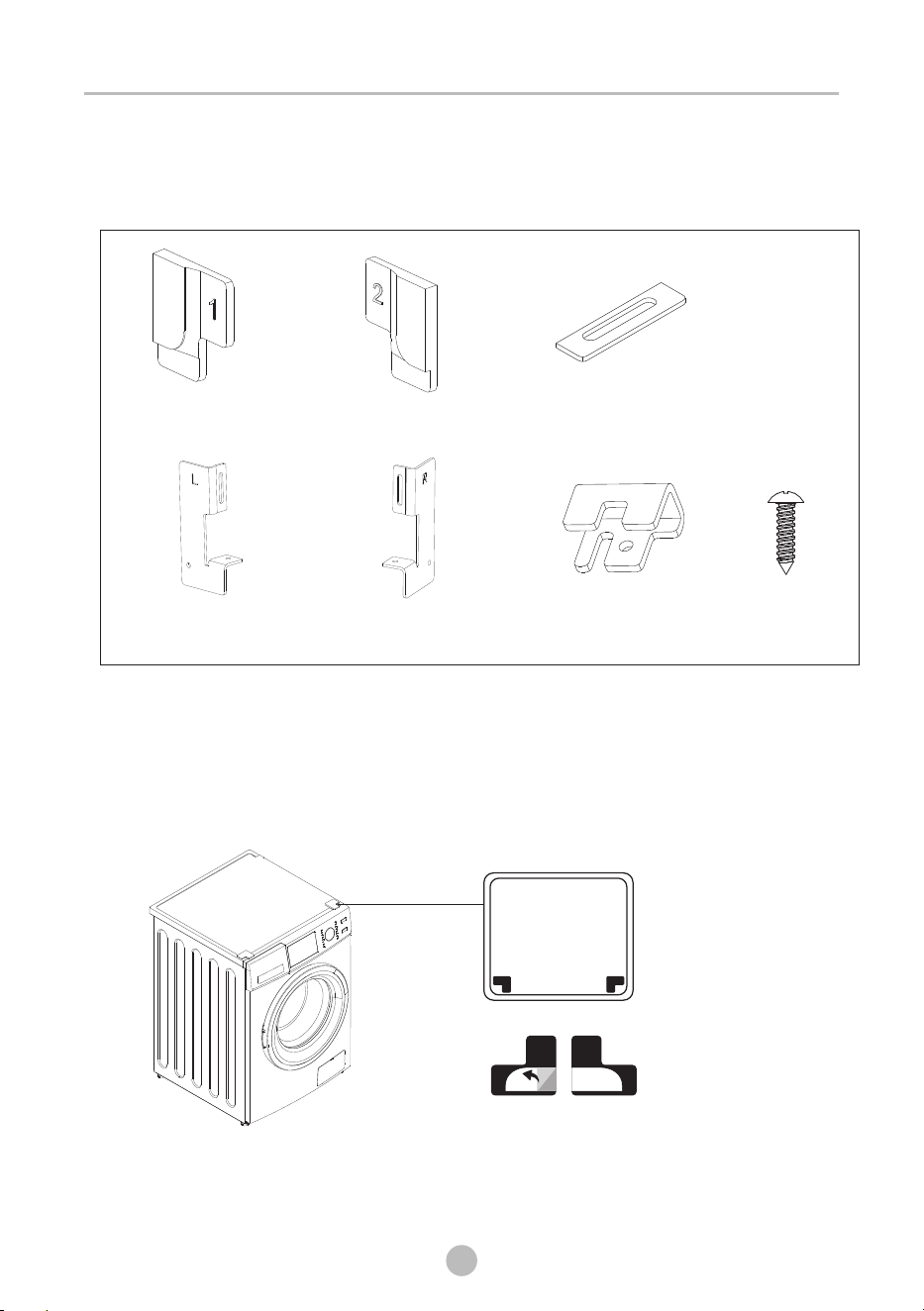

STACK KIT INSTALLATION INSTRUCTION..........................................................10

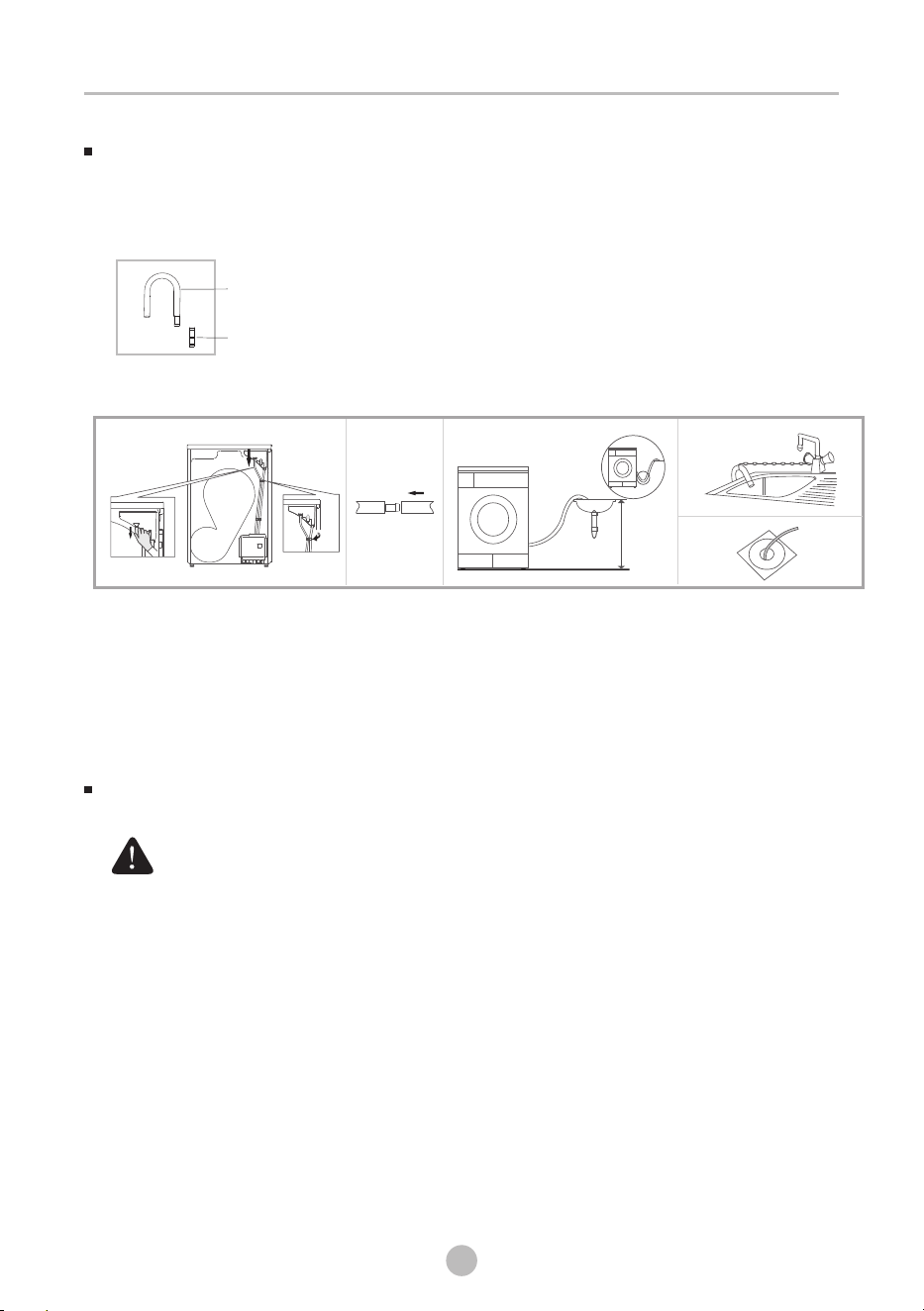

DRAIN SYSTEM...............................................................................................12
ELECTRIC REQUIREMENTS...............................................................................12
GROUNDING..................................................................................................14
REPLACEMENT PARTS AND ACCESSORIES.........................................................14
INSTALLATION INSTRUCTION............................................................14
REMOVING FROM THE PACKAGE.....................................................................15

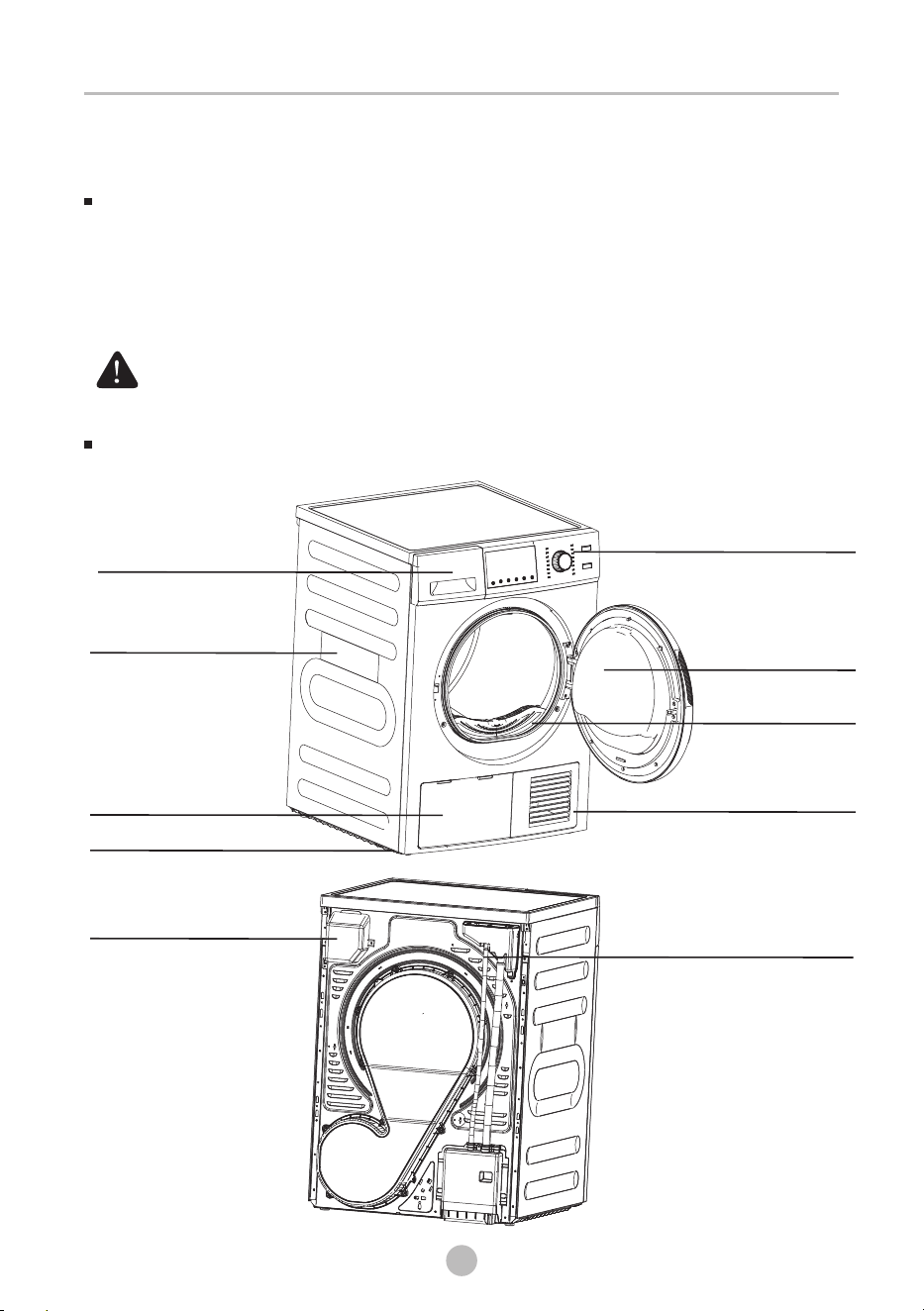

PARTS IDENTIFICATION...................................................................................15
TOOLS NEEDED IN INSTALLATION....................................................................16
INSTALLATION STEPS......................................................................................16
OPERATING INSTRUCTION..................................................................20

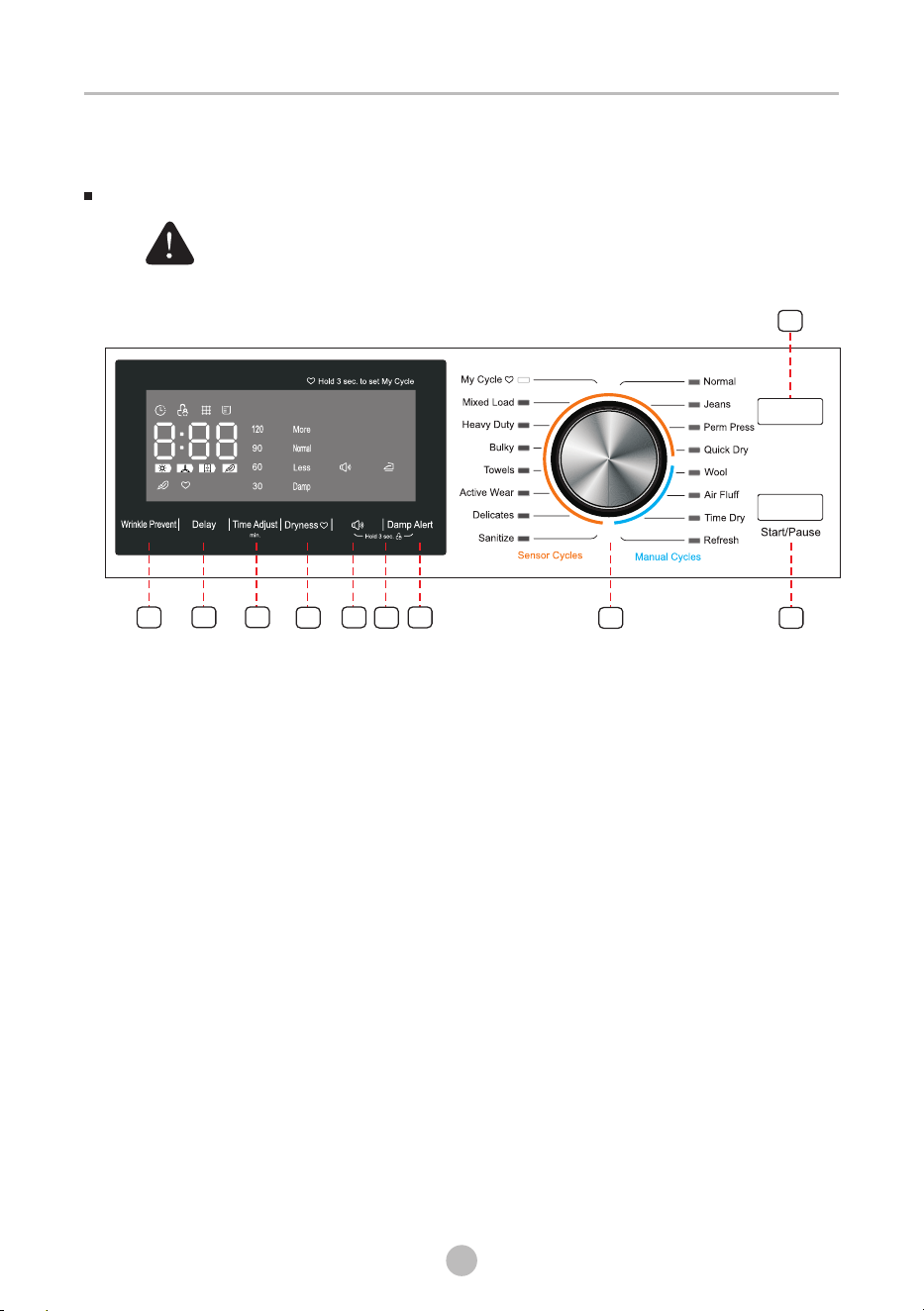

CONTROL PANEL............................................................................................20
DRYING A LOAD OF LAUNDRY........................................................................ .22

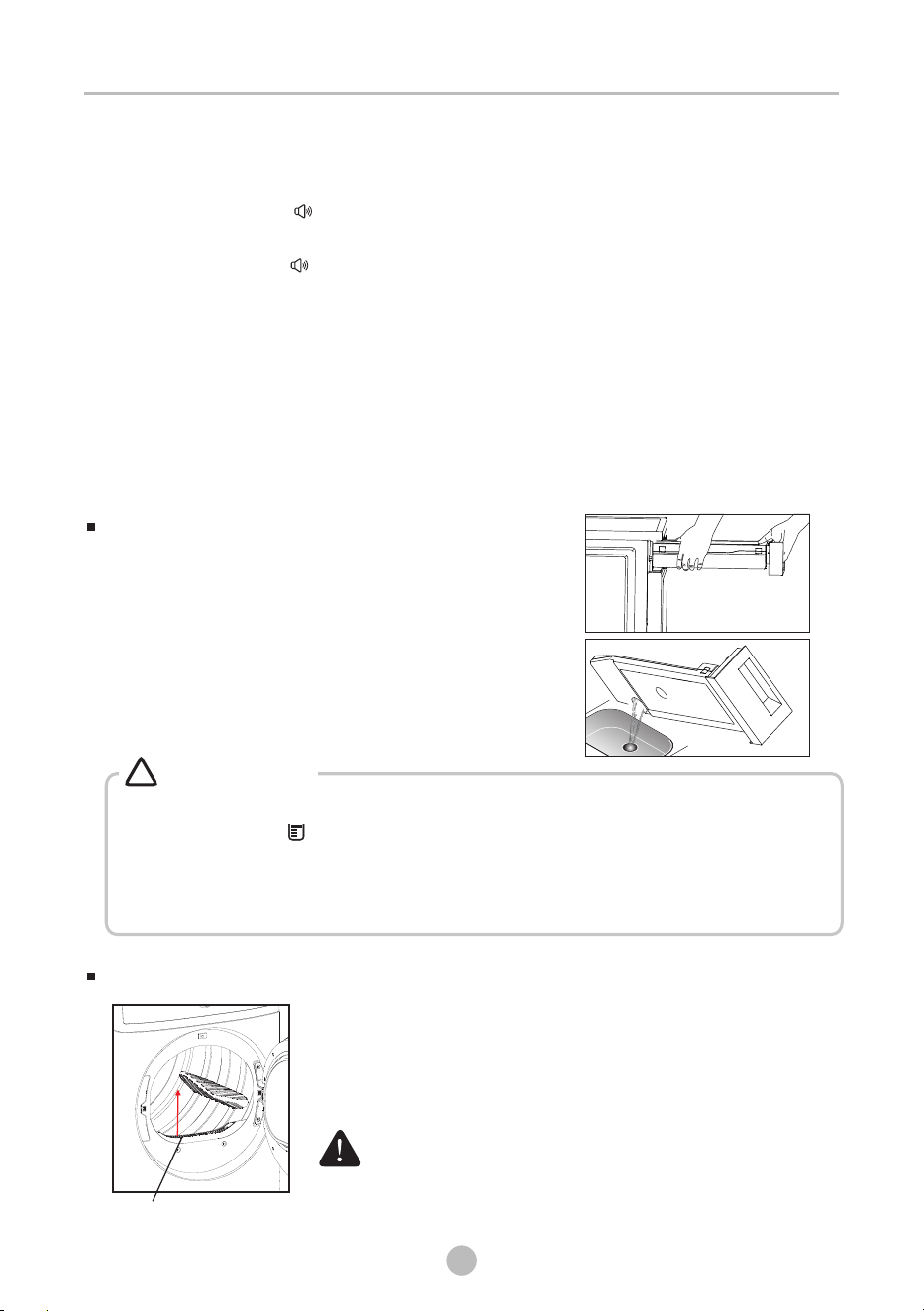

FILTER CLEAN.................................................................................................25

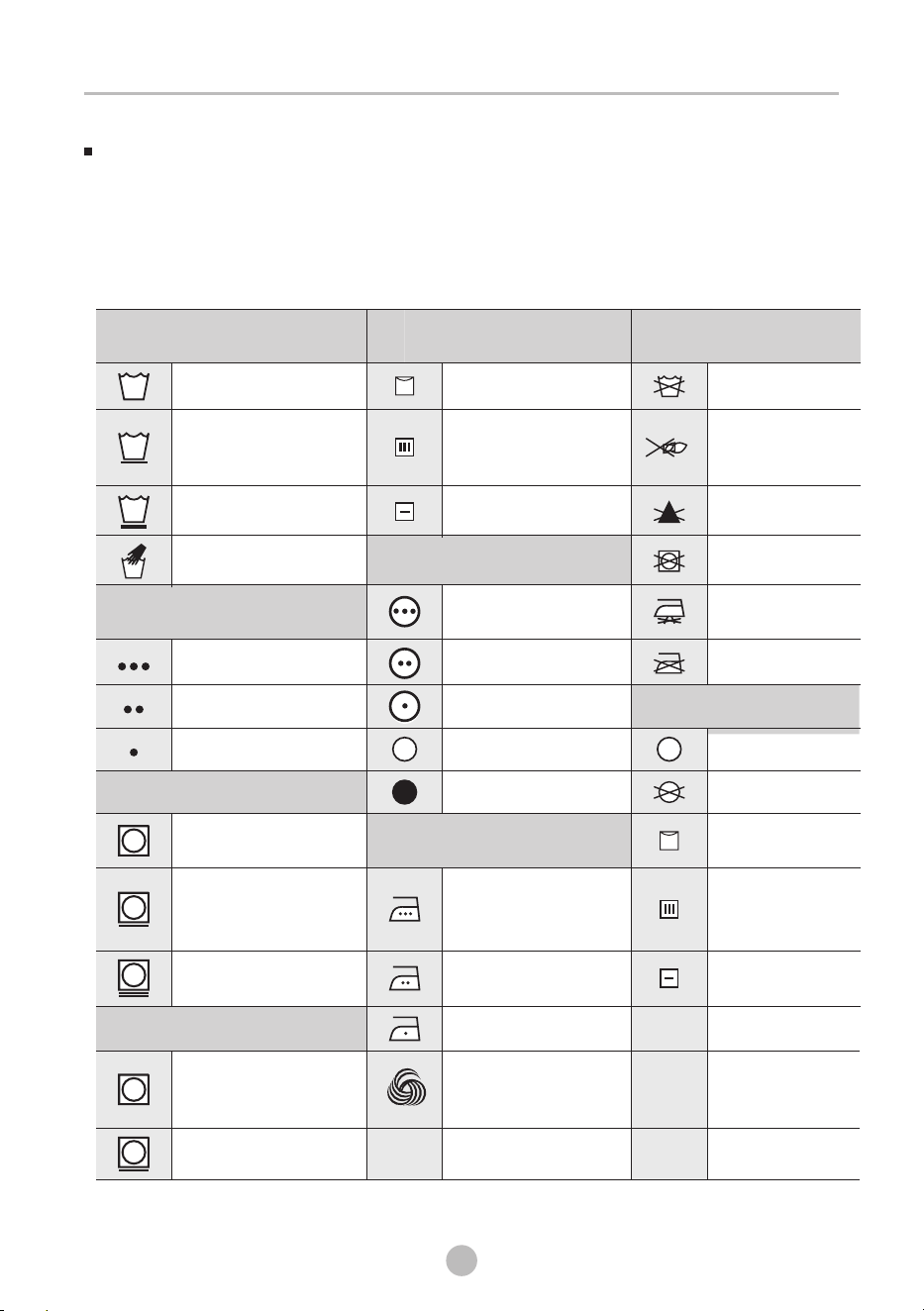

SPECIAL LAUNDRY TIPS...................................................................................27
MAINTENANCE........................................................................................28
CARE AND MAINTENANCE.............................................................................28
TROUBLESHOOTING INSTRUCTIONS..............................................29
CHECK THESE SOLUTIONS IF YOUR DRYER…...................................................29
ERROR CODES...............................................................................................31
APPENDIX.....................................................................................................32
WARRANTY...............................................................................................33
REGISTRATION INFORMATION.........................................................36
CONTENTS
1
SAFETY AND PRECAUTIONS
SAFETY AND PRECAUTIONS
2
Introduction
Congratulations on the purchase of your new Insignia dryer. Insignia dryers feature
the latest in design and capabilities and will provide reliable and trouble-free
performance.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
This manual contains important information on the installation, use, and care of
your appliance. Please read this manual carefully before installation and operation
of this machine to prevent injury and property damage.
Warnings and Important Safety Instructions in this manual DO NOT cover all
possible conditions and situations that may occur. It is your responsibility to use.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
CAUTION
This indicates that hazards or unsafe practices may cause
serious personal injury or death.
To reduce the risk of fire, explosion, electric shock, or
personal injury when using your dryer, these basic safety
precautions SHOULD be followed.
This indicates that hazards or unsafe practices may
cause minor personal injury or property damage.
For your safety the information in this manual
must be followed to minimize the risk of fire or
explosion, or to prevent property damage,
personal injury or death.
WARNING
– Do not store or use gasoline or other flammable vapors and liquids
i
n the vicinity of this or any other appliance.
– Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
1. Read all instructions before using the appliance.
2
. Use this appliance only for its intended purpose as described in this Owner’s Manual.
3. Before use, the dryer must be properly installed as described in this manual.
WARNING-To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
3
SAFETY AND PRECAUTIONS
4. ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
5
. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, other flammable or explosive
substances as they give off vapors that could ignite or explode.
6. Do not use the dryer to dry clothes which have traces of any flammable substance,
such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc.,
or anything containing wax or chemicals, such as mops and cleaning clothes.
F
lammable substances may cause the fabric to catch fire by itself.
7
. Do not store or use gasoline or other flammable vapors and liquids near this or
a
ny other appliance.
8
. Do not allow children to play on or in the appliance. Close supervision of children
is necessary when the appliance is used near children.
9
. Before the appliance is removed from service or discarded, remove the lid of the
washing or door of the drying compartment.
10.Do not reach into the appliance if the drum is moving.
11.Do not install or store this appliance where it will be exposed to the weather o
r
f
reezing temperatures.
12.Do not tamper with the controls.
13.Do not repair or replace any part of the appliance or attempt any servicing unless
it is specifically recommended in the user-maintenance instructions or in published
user-repair instructions that you understand and have the skills to carry out.
14.Keep the area underneath and around your appliances free of combustible material
s
(
lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
15.Do not place items exposed to cooking oils in your dryer. Items contaminated with
c
ooking oils may contribute to a chemical reaction that could cause a load to catch
f
ire. o reduce the risk of fire due to contaminated loads, the final part of a tumble
dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer
before the end of the drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
16.Turn off the water faucets and unplug the washer if the machine is to be left for a
n
e
xtended period of time, such as during vacations.
17.Packaging material can be dangerous for children. There is a risk of suffocation
!
Keep all packaging from children.
18.Always check the inside of the dryer for foreign objects before loading laundry
.
Keep the door closed when not in use.
19.Do not use fabric softeners or products to eliminate static unless recommended
by the manufacturer of the fabric softener or product.
20.Clean the lint screen before or after each load.
T
4
SAFETY AND PRECAUTIONS
21.Keep the area around the exhaust opening and surrounding areas free from lint,
dust, and dirt.
22.The interior of the dryer and exhaust duct should be cleaned periodically by
qualified service personnel.
23.Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch
fire.
24.This appliance must be grounded. See “Electric requirements” and
“Grounding” in the “ ” section.
25.This appliance must be properly grounded. Never plug the power cord into a
receptacle that is not grounded adequately and in accordance with local and
national codes. Refer to installation instructions for grounding this appliance.
26.Ensure pockets are free from small irregularly shaped hard objects and foreign
material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
27.Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.
SAVE THESE INSTRUCTIONS.
INSTALLATION REQUIREMENTS
WARNING-To reduce the risk of fire or explosion
Do not dry items that have been previously cleaned, washed, soaked, or spotted
with gasoline, dry cleaning solvents, or other flammable or explosive substances.
They emit vapors that could ignite or explode. Any material that has been in
contact with a cleaning solvent or flammable liquids or solids should not be
placed in the dryer until all traces of these flammable liquids or solids and their
fumes have been removed.
There are many highly flammable items used in homes, such as acetone,
denatured alcohol, gasoline, kerosene, some liquid household cleaners, some
spot removers, turpentine, waxes, and wax removers.
Do not dry items containing foam rubber (may be labeled latex foam) or similarly
textured rubber-like materials on a heat setting. Heated foam rubber materials
can under certain circumstances, produce fire by spontaneous combustion.
5
SAFETY AND PRECAUTIONS
CAUTION
1. Do not sit on top of the dryer.
2. Because of continuing product improvements, Koolmore America reserves the right
of change specifications without notice. For complete details, see the
Installation Instructions packed with your product before selecting cabinetry, making
cutouts, or beginning installation.
3. Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.
4. Install and use in accordance with the manufacturer’s instructions.
5. Do not place items in your dryer that have been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these items may contain significant amounts of these
oils.
6. Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion
increases when items containing vegetable oil or cooking oil are exposed to heat. Heat
source such as your dryer can warm these items, allowing an oxidation reaction in the oil to
occur.
7. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping
and can create a fire hazard.
8. Take care that children’s fingers are not caught in door when closing it.
This may result in injury.
Clothes dryer installation must be performed by a qualified installer.
Install the clothes dryer according to the manufacturer’s instructions and local
codes.
To reduce the risk of severe injury or death, follow all installation instructions.
Save these instructions.
WARNIG- Risk of Fire
6
INSTALLATION REQUIREMENTS
INSTALLATION REQUIREMENTS
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer.
These instructions should be kept for future reference.
The dryer is not suitable for installation in a mobile home.
Remove the door from all discarded appliances to avoid the danger of a
child being trapped and suffocating, after unplugging cut off Power Cord.
CAUTION
BASIC REQUIREMENTS
Make sure you have everything necessary for the proper installation.
- A GROUNDED ELECTRICAL OUTLET is required. Refer to the “Electrical
requirements” section.
- A POWER CORD electric dryer (except for Canada).

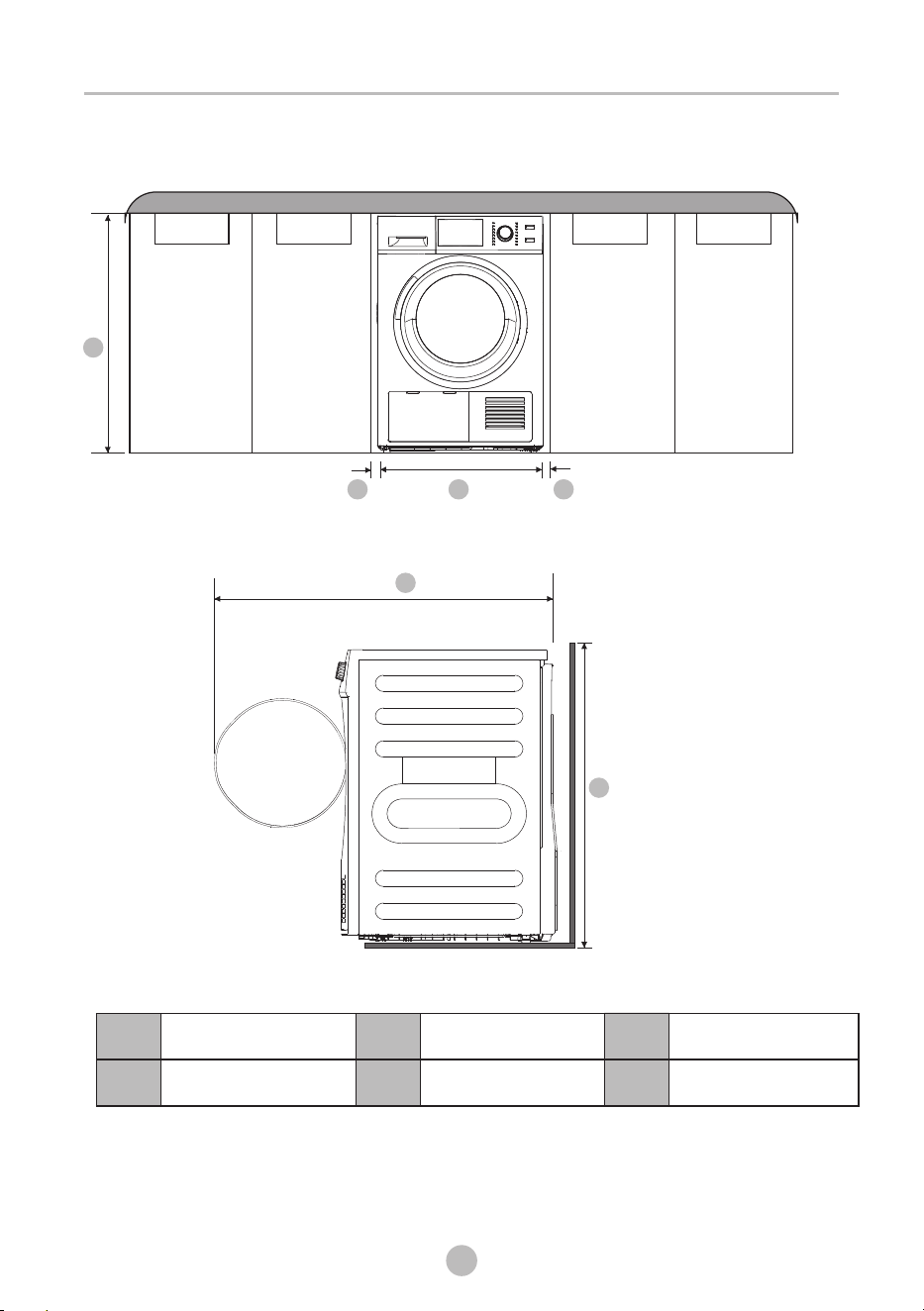

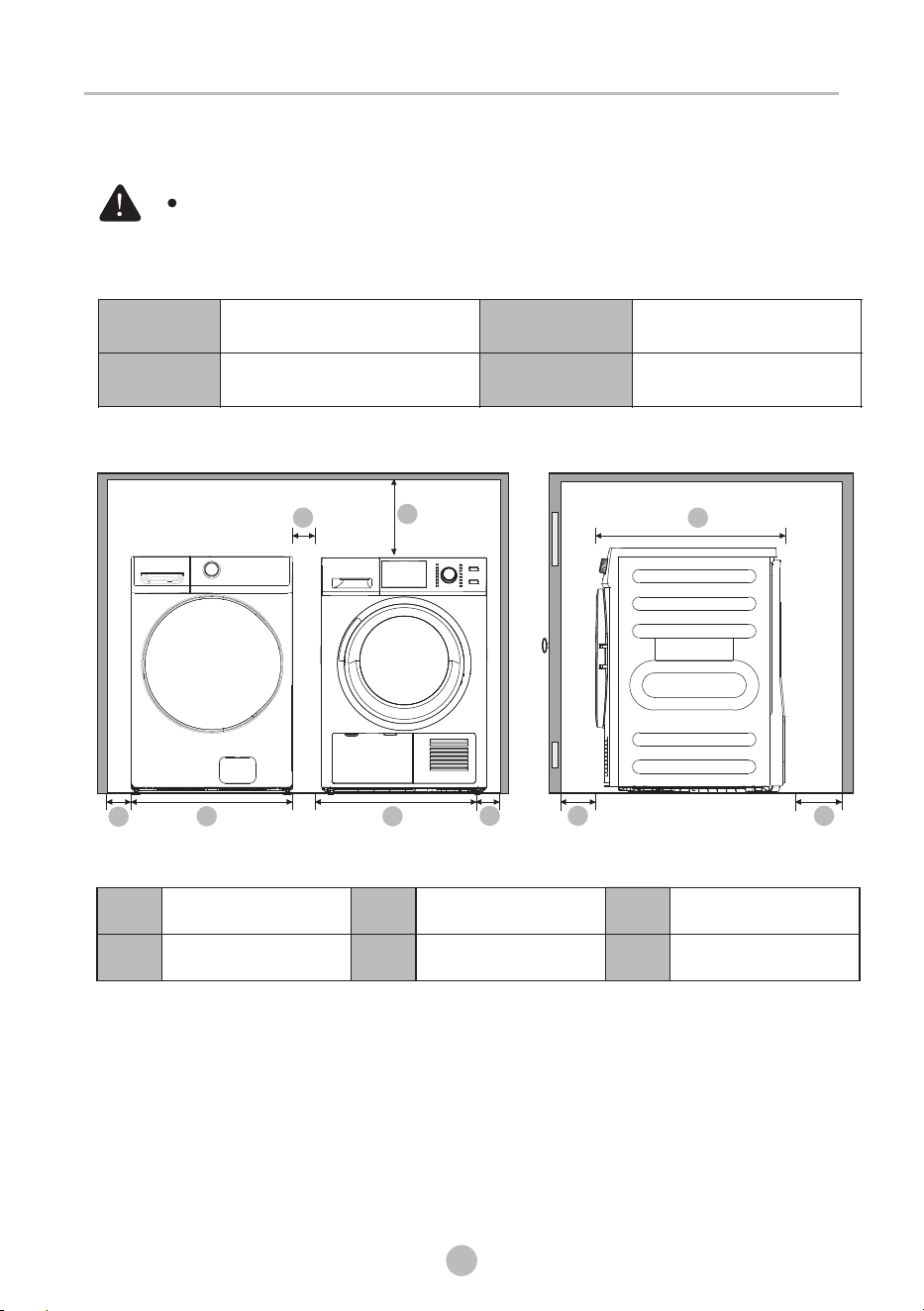

LOCATION REQUIREMENTS
1. The dryer should be located where there is enough space at the front for loading
the dryer, and enough space behind for the exhaust system.
2. Make sure the room in which the dryer is located has enough fresh air. The dryer
must be located where there are no air-flow obstructions.
3. The dryer must not be installed or stored in an area where it will be exposed to
water and/or weather. The dryer area must be kept clear of combustible materials,
gasoline, and other flammable vapors and liquids. A dryer produces combustible
lint. The area around the dryer should be kept lint-free.
7
INSTALLATION REQUIREMENTS
WARNING

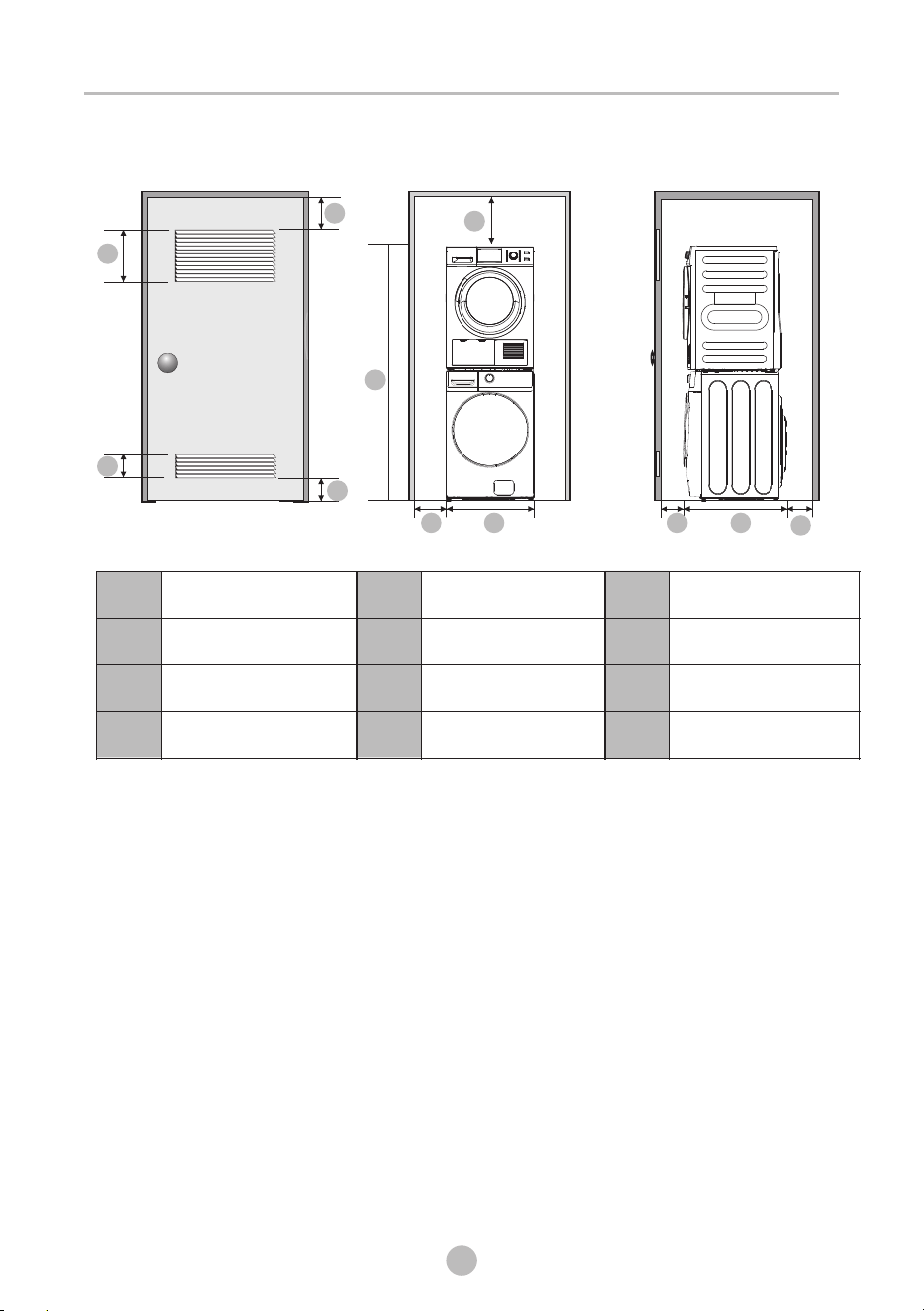

Alcove or closet installationsor wall insert/recessed
Minimum clearances between the dryer and adjacent walls or other surfaces :
No other fuel-burning appliance should be installed in the same closet as the dryer.
Sides
1 in. (25.4mm)
Rear
2 in.(50.8mm)
Top
2 in. (50.8mm)
Closet front
2 in. (50.8mm)
A
A
A
B B
C
E
D F
A
B
C
D
E
F
1 in. (25.4mm)
23.4 in. (595mm)
2 in. (50.8mm)
2 in. (51mm)
25.7 in. (653mm)
2 in. (50.8mm)
8
INSTALLATION REQUIREMENTS
A
CB D
Undercounter installation
E
F
A
B
C
D
E
F
≥35.5in.( ≥901mm)
1 in. (25mm)
23.4 in. (595mm)
1 in. (25mm)
42.2in.(1072mm)
33.5in.(850mm)
9
INSTALLATION REQUIREMENTS
Installation with stacked washing machine and dryer
A
B
C
D
E
F
G H I J
K
NOTE
The front of the closet must have two unobstructed air openings for a combined
minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76mm)
at the top and bottom. A slatted door with equivalent space clearance is acceptable.
C
D
G
H
K
24in.²(1550mm²)
3in.(76mm)
1in.(25.4mm)
23.4 in. (595mm)
2 in.(50.8mm)
A
B
E
F
I
J
3in.(76mm)
48in.² (3100mm²)
2in.(50.8mm)
/
3in.(76mm)
25.7 in.(653mm)
10
INSTALLATION REQUIREMENTS
Stack Kit Installation Instruction
1.The stacking kit includes the following parts:
Rubber pad x1
Rubber sheet x2
Rubber pad x1
Connecting bracket L x1
Support piece x4
Screw x10
Connecting bracket R x1
2.Rubber pad attaching position
Attach the rubber pad to the top cover of the front loader, as shown in the
figure below:
1
2
11
INSTALLATION REQUIREMENTS
3.Support piece installation
Install the support at the bottom of the dryer, as shown in the figure below:
Screw the two feet on the front of
the dryer to the minimum distance
(clockwise rotation)
4.Method for stacking clothes dryer and washing machine
Lift the dryer to the top of the washing machine. Adjust the position of the dryer
to align both sides, as shown in the picture:
5.Connecting bracket installation
1.Remove the screws at the back of the dryer, first fix the connecting bracket
and the rubber sheet to the back of the dryer and align the U-shaped holes
of the rubber sheet and the connecting bracket.
2.Use a 3mm diameter drill bit to drill the remaining two screw holes.
Then use a torque not exceeding 5Nm to fix the screws.
12
INSTALLATION REQUIREMENTS
DRAIN SYSTEM
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves and install them as per the
instruction below.
Condensing drain hose
Connector
Installation
1. Take the hose out of the holder.
2.Disconnect the hose from the water container inflow.(To assure water tightness,
there is tension between the hose and the inflow and therefore an increased
force is required for disassembly.)
3. Insert the drain hose and the external drainage hose into the connector.
4. Put the hose on the washing basin or floor drain. To assure the smooth drainage, ensure
the pipe is not folded.
ELECTRIC REQUIREMENTS
The wiring diagram is located on the back board of the unit.
- The improper connection of the equipment grounding conductor can result
in the risk of electric shock. Check with a qualified electrician or serviceman
if you are in doubt as to whether your dryer is properly grounded. Do not
modify the plug provided with your dryer - if it doesn’t fit the outlet, have a
proper outlet installed by a qualified electrician.
- To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring and grounding must be done in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSI/NFPA
No. 70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA
C22.1 - Latest Revisions and local codes and ordinances. It is your
responsibility to provide adequate electrical services for your dryer.
- All gas installations must be done in accordance with the National Fuel
Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149
Installation Codes - Latest Revision (for Canada) and local codes and
ordinances.
WARNING
Max. 78cm
x
13
Electric models - U.S. only
The dryers require a 120/240 volt, 60Hz AC approved electrical service.
The electric service requirements can be found on the data label located on the back.
A 30-amperefuse or circuit breaker on both sides of the line is required.
- If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
- The power cord is NOT provided with U.S. electric model dryers.
RISK OF ELECTRIC SHOCK:
When local codes allow, the electrical supply of the dryer may be connected by
means of a new power supply cord kit, marked for use with a dryer, that is UL
listed and rated at a minimum of 120/240 volts, 30-ampere with three No. 10
copper wire conductors terminated with closed loop terminals, open-end spade
lugs with turned up ends, or with tinned leads.
- Do not reuse a power supply cord from an old dryer. The power cord electric
supply wiring must be retained at the dryer cabinet with a suitable UL-listed
strain relief.
- Grounding through the neutral conductor is prohibited for (1) new branch-
circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the neutral conductor. (Use a
4-prong plug for 4 wire receptacles, NEMA type 14-30R.)
WARNING
An individual branch (or separate) circuit serving only your dryer is recommended.
DO NOT USE AN EXTENSION CORD.
Electrical connections
Electric models - Canada only
- A 120/240 volt, 60Hz AC approved electrical service fused through a 30-ampere
fuse or circuit breaker on both sides of the line is required.
- All Canadian models are shipped with the power cord attached. The power cord
should be plugged into a 30-ampere receptacle.
Note: A power cord is NOT provided with U.S. electric model dryers
INSTALLATION REQUIREMENTS
14
GROUNDING
- For products sold in the U.S., your dryer has an optional cord with an equipment-
grounding conductor and a grounding plug, which is sold separately.
For products sold in Canada, your dryer is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
- The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
- Do not modify the plug provided with the appliance: if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
- If a power cord is not used and the electric dryer is to be permanently wired,
This appliance must be connected to a grounded metal, permanent wiring system,
or an equipment-grounding conductor must be run with the circuit conductors
and connected to the equipment-grounding terminal or lead on the appliance.
WARNING
- Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or service
representative or personnel, if you are in doubt as to whether the appliance
is properly grounded.
-
electric shock only during servicing.
service personnel-do not contact the following parts while the appliance is
energized: Main Motor; Cooling Fan.
Certain internal parts are intentionally not grounded and may present a risk
of
INSTALLATION INSTRUCTION
Install the clothes dry according to manufacture’s instructions and local
codes.
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer where you
purchased your dryer or KOOLMORE customer care center at 718-576-6342.
15
INSTALLATION INSTRUCTION
REMOVING FROM THE PACKAGE
INSTALLATION INSTRUCTION
1. Unpack your dryer and inspect it for shipping damage. Make sure you have
received all the items shown below.
2. To prevent personal injury or strain, wear protective gloves whenever lifting or
carrying the unit.
Packaging materials can be dangerous to children;
Keep all packaging material (plastic bags, polystyrene, etc.) well out of
children’s reach.
WARNING
PARTS IDENTIFICATION
water tank
Side Plate
Maintenance Cover
Adjustable leg(Two legs)
Control Panel
Door
Filter
Fan Cover
Wiring Box
Drain Hose
16
INSTALLATION INSTRUCTION
TOOLS NEEDED IN INSTALLATION
Pliers
Flat screwdriver
Level
Cutting knife
Adjustable wrench
that opens to 1"
(25 mm)
Phillips screwdriver
Tools needed:
Tape measure
INSTALLATION STEPS
For the proper installation, we recommend that you hire a qualified installer.
1. Move your dryer to an appropriate location for the installation. Consider
installing the dryer and washer side-by-side, to allow access to the gas, electrical,
and exhaust connections. Place two of the carton cushion-tops on the floor. Tip
your dryer on its side so it lies across both cushion-tops.
2. Set your dryer back in an upright position.
STEP 1 Choose the proper location
STEP 2 Connect the electrical wiring
3-Wire
receptacle
(10-30R)
Three wire outlet
Then choose a 3-wire power supply cord with ring terminals and
UL listed strain relief. The 3-wire power supply cord, at least
4.92 ft. (1.5 m) long, must have 3 10-gauge solid copper wires
and match a 3-wire receptacle of NEMA Type 10-30R, rated
120/240V, min 10A.
17
INSTALLATION INSTRUCTION
3-Wire system connections
1. Connect the grounding wire of the power cord to the external
screw. If there is no the power cord
2. Remove the two side terminal block screw and connect the other wires to the
outer terminal screws. Be sure to cross the screw through the terminal ring and
tighten the screw.
3. Tighten the strain relief screws.
4. Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure
the cover with a screw.
ground conductor
grounding wire of , please remove the Neutral
grounding wire from center terminal block screw of the dryer, then connect it to
the external ground conductor screw and connect the neutral wire to the center
terminal block screw.
- Ring-type terminals are recommended. If using strap
terminals, make sure they are tightened.
WARNING
4-Wire
receptacle
(14-30R)
Four wire outlet
Then choose a 4-wire power supply cord with ring terminals and
UL listed strain relief. The 4-wire power supply cord, at least
4.92 ft. (1.5 m) long, must have 4 10-gauge solid copper wires and
match a 4-wire receptacle of NEMA Type 14-30 R, rated 120/240V,
min 10A. The ground wire (ground conductor) may be either green
or bare.The neutral conductor must be identified by a white color.
4-Wire system connections
1.
2.
3.
Remove the center terminal block screw.
Connect the ground wire (green or unwrapped) of the power cord to the external
ground conductor screw.
Connect the neutral wire (white or center wire) of the power cord and the appliance
ground wire (white) under the center screw of the terminal block. Be sure to cross the
screw through the ring of the power cord terminal and tighten the screw.
Connect the other wires to the outer terminal block screws. Be sure to cross the
screw through the terminal ring and tighten the screw.
4.
3-Wire system instructions:
A Center terminal block screw
B External ground connector
C Neutral grounding wire (White)
D Neutral wire (white or center wire)
E 3/4" (1.9cm) UL-listed strain relief
A
B
C
D
E
18
INSTALLATION INSTRUCTION
5.
6.
Tighten the strain relief screws.
Insert the tab of the terminal block cover into your dryer’s rear panel slot. Secure
the cover with a screw.
Ring-type terminals are recommended. If using strap terminals, make sure
they are tightened.
WARNING
U.S. Models:
Risk Of Electric Shock - All U.S. models are produced for a 3-WIRE
SYSTEM CONNECTION.
The dryer frame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEM CONNECTION is required for new or remodeled
construction,mobile homes, or if local codes do not permit grounding through
neutral conductor.
If the 4-wire system is used, the dryer frame cannot be grounded to the neutral
conductor at the terminal block. Refer to the “Electric requirements”
section on page 14 for 3-WIRE or 4-WIRE SYSTEM CONNECTIONS.
Remove the terminal block cover plate.
Insert the power cord with a UL-listed strain relief through the hose provided
in the cabinet near the terminal block.
- A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Be sure the
y
are tight.
Use a 3/8" (1cm) deep well socket.
WARNING
STEP 3 Level the dryer
To ensure that the dryer provides the optimal drying performance, it must be leveled.
To minimize vibration, noise, and unwanted movement, the floor must be a perfectly
level, solid surface.
- Adjust the leveling feet only as much as necessary to level the dryer. Extending the
leveling feet more than necessary can cause the dryer to vibrate.
4-Wire system instructions:
IMPORTANT: Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.
A Center terminal block screw
B External ground connector
C Green or bare copper wire of the
power cord
D Neutral grounding wire (White)
E Neutral wire (white or center wire)
F 3/4" (1.9cm) UL-listed strain relief
A
B
C
D
E
F
White
Black
Red
Green
19
INSTALLATION INSTRUCTION
loosen lock
Adjustable legs
level
STEP 4 Power on
Make sure all electrical connections are complete. Plug in your dryer.
STEP 5 Final check
- Make sure the dryer is plugged into an electrical outlet and is properly grounded.
- The dryer is leveled and is sitting firmly on the floor.
- Start your dryer to confirm that it runs, heats, and shuts off.
20
OPERATING INSTRUCTION
CONTROL PANEL
OPERATING INSTRUCTION
WARNING
IMPORTANT SAFETY INSTRUCTIONS before operating the appliance.
To reduce the risk of fire, electric shock, or injury to persons, read the
1-Power button
Press to turn your dryer on or into stand-by situation. If your dryer is on for mor
e
than 10 minutes without any buttons being pressed, it automatically turns into
stand-by situation.
2-Start/Pause button
Press to start or pause the program. You can't change any setting except add a garment.
3-Cycle selector
Select your desired cycle for the type of load.
The cycle you select determines the heat control for the cycle.
The Normal, Jeans, Perm Press, Quick Dry, My Cycle, Mixed Load, Heavy Duty, Bulky
,
Towels, Active Ware, Delicates, Sanitize are Sensor cycles.
Wool, Air Fluff, Time Dry, Refresh are Manual cycles.
4-Wrinkle Prevent
Press once to add the wrinkle care step into the operating program. Press again t
o
cancel selection.
If wrinkle prevent was active, it provides approximately 90 minutes of intermitten
t
tumbling in unheated air at the end of the cycle to reduce wrinkling.
The load is already dry, and can be removed at any time during the wrinkle care cycle.
1
2
3
4
5 6
7
8 9
10
Power
21
OPERATING INSTRUCTION
5-Delay
This function is used for delaying clothes drying time within 24 hours. The delay time
means the programme will start after x hours. When the delay programme starts, the
time starts to countdown on the display and the delay icon blinks.
6-Time Adjust
These buttons are effective only for Manual cycles. Press these buttons to change the
drying time you prefer. Push repeatedly to get your desired drying time, including
120minutes,90minutes, 60minutes, 30minutes.
7-Dryness
Press the button to select the dry level, including More, Normal, Less, Damp. Different
dry level will result in different drying time. For clothes to be ironed manually, a lower
dry level should be selected.
Press and hold for 3 seconds to remember your favorite drying cycle, this cycle will be
“My Cycle”.
8-signal
Press once to stop the buzzer sound. Press again to activate the sound. Your selection
will be kept until next pressing.
9-Damp Alert
This function is useful when you want to take some garments out for ironing. The unit
will beep 10s when the moisture in the clothes is good for ironing. At this
time, you can take those garments out and continue drying the other by pressing the
"START/PAUSE" button once.
Note: The unit will not stop operating if you don't take those garments out for ironing.
10-Control Lock
Press the " " and "Damp Alert" together to activate the control lock function.
Press again for another 3 seconds to deactivate the function. All buttons except the
"Power" will be out of function when control lock activated.
Symbols
Delay start
Control lock
Clean filter
Water tank full
(you should empty
water tank)
Wrinkle Prevent
My Cycle
Buzzer sound open
Damp alert open
Cycle phase status
Means machine was drying
with heating air
Means machine was making
wrinkle care
Means machine was working
with cooling air
Means it is time to open the door
22
OPERATING INSTRUCTION
DRYING A LOAD OF LAUNDRY
STEP 1: Power on your dryer
- Press this Power button to power your dryer on.
STEP 2: Load your dryer
- Place only one wash load in your dryer at a time.
- Mixed loads of heavy and light weight fabrics will dry differently,which may result
i
n lightweight fabrics being dry while heavy fabrics remain damp at the end of a
d
rying cycle.
- Add one or more similar items to your dryer when only one or two articles of clothin
g
n
eed drying. This improves the tumbling action and drying efficiency.
- Overloading restricts tumbling action, resulting in uneven drying as well as excessive
w
rinkling of some fabrics.
STEP 3: Select the appropriate cycle and options for the load
- Select the appropriate cycle by Cycle Selector according to the cycle chart on page 18-19.
- Select the appropriate optional function by buttons according to the chart on page 19.
-My cycl
e
Once you have set the cycle selector and option function, you can push and hold the
“Dryness” button for 3 seconds to memory this setting as your favorite cycle befor
e
s
tart the unit.
The light beside the knob will flash to confirm the memory with beeps.
- You can finish this Step by just select the “My cycle” once to use your favorite.
STEP 4: Start your dryer
Pressing Start/Pause button will start the selected cycle. To PAUSE cycle press
Start/Pause button then open the door. To resume operation after closing the door
always presses Start/Pause.
Opening the door during the operation will instantly stop operation and will require
pressing Start/Pause button to resume operation.
23
Cycle
Maxim-um
Amount
Dryness
Level
Delay
Time
Adjust
Damp
Alert
Wrinke
Prevent
Normal
Jeans
Perm
Press
Quick
Dry
Wool
Air Fluff
Time Dry
Refresh
Sanitize
Delicates
Active
Ware
Towel
Bulky
Heavy
Duty
Mixed
Load
My Cycle
/
/
Damp
Less
Normal
More
More
/
/
/
/
/
/ /
/
/
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
N
N
Y
N
Y
Y
N
N
N
N
N
N
N
N
Y
N
Y
N
Y
N
N
Y
N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
* Table in bold is an initial setting. “Y”are all optional functions you can select.
* For even better drying effect, please select higher dry level.
Load Size Recommendations:
For best results, follow the wet load size
recommendations noted for each cycle.
Small load: Fill the dryer drum with
3-4 items, not more than 1/4 full.
Medium load: Fill the dryer drum up
to about 1/2 full.
Large load: Fill the dryer drum up to
about 3/4 full. Do not overload. Items
need to tumble freely.
OPERATING INSTRUCTION
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
Damp
Less
Normal
More
24
For best results, follow the wet load size recommendations noted for each cycle.
For the best performance, the load for each cycle should be recommended as follows:
OPERATING INSTRUCTION
Delicates
Active Ware
Towel
Bulky
Perm Press
Quick Dry
Heavy Duty
Mixed Load
Cycle
Normal
Jeans
Wool
Air Fluff
Time Dry
Refresh
Sanitize
Items Weight
Recommend load
81b
Cotton
81b
7.5b
21b
31b
31b
21b
81b
51b
31b
51b
81b
41b
81b
81b
Jeans
Chemical fiber(easy care)
small accounts of clothing
/
/
/
Cotton
Delicates
sports clothes, Chemical fiber
Towels
bedsheet
Jeans, sports clothes, skirts
Chemical fiber
Wool
STEP 5: Unloading your laundry
- The “Clean filter” will flash 10 sec. when your laundry load is powered on.
- The dryer will beep 3 times after the cycles done.
- You should clean the filter after every load once the laundry is unloaded.
Note:
1.Clothes that are easy to be tangled or worn and small pieces,
please put them in the laundry bag to dry.
2.Clothes with long belts or ropes, please make a knot to dry.
3.Clothes with slender buttons, please button up to dry.
4.Clothes with zippers, please zip up and flip to the inside to dry.
25
OPERATING INSTRUCTION
Control Lock
This function is useful to prevent children from playing with the unit.
- Press and hold the “ ”and “Damp Alert” buttons simultaneously for 3 seconds to
activate this function. The blue “Control Lock” light will turn ON.
- Press and hold the “ ” and “Damp Alert” buttons simultaneously again for 3
seconds to deactivate this function. The “Control Lock” light will turn OFF.
- When this function is activated, all functions will be out of function except the
POWER button and DEACTIVATE function above.
- You can Power ON your unit and set this function then Power OFF. When you do so,
even if the unit is powered on, you still cannot start it before the Control Lock
function is deactivated.
- This function will be cancelled automatically if your unit is out of power, such as
unplug the unit, power supply out of service, etc.
Filter clean
To prevent a risk of fire, make sure to clean the lint filter
before or after every load.
- To shorten drying time.
- To operate more energy efficiently.
Lint filter
CAUTION
-
place.
- Do not use a damage or broken lint filter. This may
reduce performance and/or cause fire.
Do not operate your dryer without the lint filter in
Empty the water tank
1. Pull out and hold the water tank
with two hands.
2.Transfer the water tank flatly in case
of water overflow.
3. Tilt the water tank, pour out the
condensate water into the basin.
4. Install the
water tank.
• Empty the water tank after each use.Otherwise,the programme will be
paused and the” ” icon will light. After the tank is emptied, the dryer
can be restarted by pressing 【Start/Pause】 button.
• Do not drink the condensate water.
• Do not use the dryer without the water tank.
Warning!
！
26
OPERATING INSTRUCTION

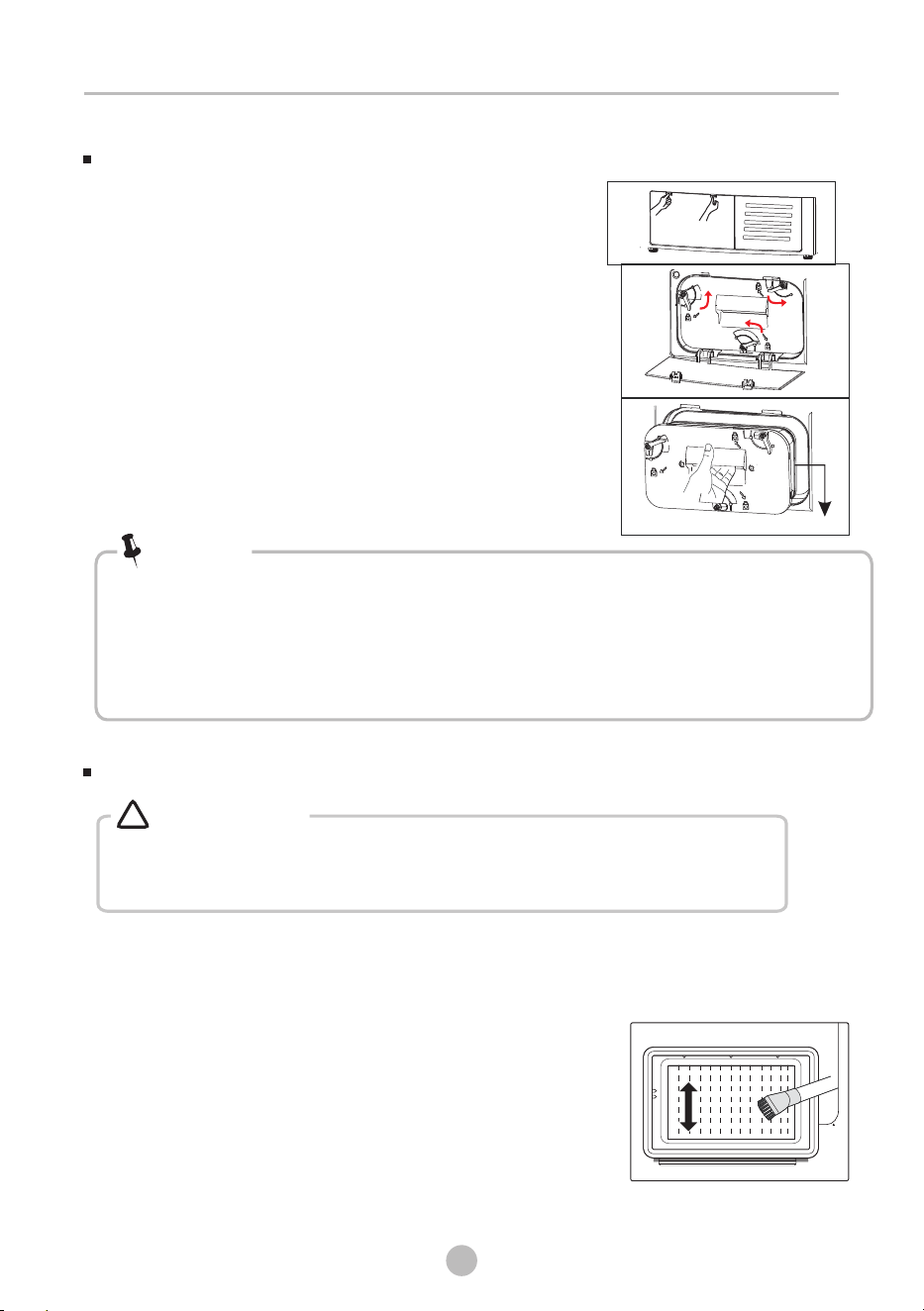

regularly will increase drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the base filter after each fifth cycle to prevent fluff accumulation inside the dryer.
• The fluff accumulated on the filter will block the air circulation. Not cleaning the filter
Note!
Clean the base filter
1. Open the cover.
2. Unlock three locking levers and grasp the
filter handle.
3. Remove the base filter and clean it.
If there is too much lint on the filter, clean it in
water. Dry the filter thoroughly before installing
it back.
4. Clean the rubber sealing, both at the filter and handle.
5. Re-insert the filter.
6. Lock three locking levers and make sure that the
levers are in correct lock position.
7. Close the cover until there is a click sound.
As necessary, approx. once every 2 months, remove the fluff from the heat
exchanger using a vacuum cleaner with a dusting brush attached.
Clean the heat exchanger without applying any pressure. Otherwise the heat
exchanger could be damaged. The dryer will not dry
if the cooling fins are damaged or bent.
•
•
Clean the heat exchanger
Warning!
！
Do not touch the heat exchanger with your hand,
which may cause an injury.
Filter Base
27
OPERATING INSTRUCTION
SPECIAL LAUNDRY TIPS
Items
Drying guide
Bedspreads &
Comforters
- Follow the care label instructions or dry in Bulky cycle.
- Make sure the item is thoroughly dry before using or storing.
- May require repositioning to ensure even drying.
Blankets
- Use the Normal cycle and dry only one blanket at a time for
best tumbling action.
- Make sure the item is thoroughly dry before using or storing.
- May require repositioning to ensure even drying.
Curtains &
Draperies
- Use the Casual cycle and less dry to help minimize wrinkling.
- Dry these in small loads for best results and remove as soon
as possible.
Cloth Diapers
- Use the Normal cycle.
Down Filled Items
(jackets,sleeping bags,
comforters, etc.)
- Use the Normal cycle.
- Add a couple of dry towels to shorten drying time and absorb
moisture.
Foam Rubber
(rug backs,stuffed toys,
shoulder pads,etc.)
- DO NOT dry on a seat setting. Use the Air Fluff cycle (no heat).
WARNING: Drying a rubber item with heat may damage
it or create a fire hazard.
Pillows
- Use the Normal cycle.
- Add a couple of dry towels and a pair of clean sneakers
to help the tumbling action and to fluff the item.
DO NOT dry kapok or foam pillows in the dryer. You can
dry these items in the dryer as long as you use the air fluff
cycle.
Plastics (shower
curtains, outdoor
furniture covers,
etc.)
- Use the Air fluff cycle (no heat).
MAINTENANCE
28
Control panel
- Clean with a soft, damp cloth. Do not use abrasive substances.
- Do not spray cleaners directly on the panel.
- The control panel finish may be damaged by some laundry pre-treatment soil and
stain remover products. Apply such products away from your dryer and wipe up
any spills or overspray immediately.
Stainless steel or anonized drum
- To clean the stainless steel or anonized drum, use a damp cloth with a mild,
non-abrasive cleaner suitable for stainless steel and anonized surfaces.
- Remove the cleaner residue and dry with a clean cloth.
Dryer exterior
- Clean with a soft, damp cloth. Do not use abrasive substances.
- Protect the surface from sharp objects.
- Do not place any heavy or sharp objects or a detergent box on the dryer. Keep
them on the purchased pedestal or in a separate storage box. This may scratch or
damage the top cover of the dryer.
- Since the entire dryer has a high-gloss finish, the surface can be scratched or
damaged.
- Avoid scratching or damaging the surface when using the dryer.
Certain internal parts are intentionally not grounded and may
present a risk of electric shock only during servicing. Service
Personnel – Do not contact the following parts while the appliance
is energized: Main Motor , Cooling Fan.
WARNING
CARE AND MAINTENANCE
TROUBLESHOOTING INSTRUCTIONS
29
CHECK THESE SOLUTIONS IF YOUR DRYER
If your dryer has any problems as followings, you can check as the solutions listed
below before making a service call. This will help you save time and money.
Problem
Solution
The unit doesn't start
- Make sure the door is latched shut.
- Be sure the power cord is plugged into a live electrical outlet.
- Check the home's circuit breaker and fuses.
- Press the Start/Pause button again if the door is opened
during the cycle.
The unit doesn't heat
- Check the home's circuit breaker and fuses.
- Select a heat setting other than Air fluff .
- Clean the lint filter .
- Dryer may have moved into the cool-down process of the
cycle.
Doesn't dry
- Check the entire above, plus...
- Do not overload. 1 wash load = 1 dry load.
- Sort heavy items from lightweight items.
- Large, bulky items like blankets or comforters may require
repositioning to ensure even drying.
- Load may be too small to tumble properly. Add a few towels.
The unit is noisy
- Check the load for objects such as coins, loose buttons, nails,
broken zips, etc. Remove promptly.
- It is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
- Be sure the dryer is leveled properly as outlined in the
installation instruction.
-The sensor cycle will estimate dampness of clothes automatically.
Due to amount and material of clothes, to assure the expected
dampness，the dryer will adjust remaining time, this is normal .
The remaining time
changes abnormally
30
- Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the
selected dryness level. This is normal. Select the Time Dry
setting if desired.
- If one heavy item is dried with a lightweight load, such as
one towel with sheets, it is possible that the heavy item will
not be completely dry when the rest of the load has reached
the selected dryness level. Sort heavy items from lightweight
items for best drying results.
Problem
Solution
Clothes are unevenly
dried
Shuts off before
load is dry
- Household odors from painting, varnishing, strong cleaners,
etc. may enter the dryer with surrounding room air. This is
normal as the dryer draws the air from surrounding air space
of the dryer locations.
- When these odors linger in the air, ventilate the room
completely before using the dryer.
Garments still wrinkled
after Wrinkle-prevent
- Small loads of 1 to 4 items work best.
- Load fewer garments. Load similar-type garments.
Odors remain in clothing
after refresh
- Fabrics containing strong odors should be washed utilizing
desired wash cycle.
Lint on clothes
- Lint filter be cleaned before every cycle. With some loads that
produce high amounts of lint, it is necessary to clean the filter
after the cycle.
- Some fabrics are lint producers (for example, a fuzzy white
cotton towel) and they should be dried separately from clothes
that are lint trappers (for example, a pair of lack linen pants).
- Divide larger loads into smaller loads for drying.
- Check pockets thoroughly before washing and drying clothes.
TROUBLESHOOTING INSTRUCTIONS
“ ”is lighting
“ ”is ingflash
Clear lint filter.-
- When the cycle is end, “ ”will flash and dryer will beep 5
seconds.
- Check the water container. If it's full, please pour out the
condensate water and restart the dryer.
- If the container is not full, please restart the dryer directly.
- If the “water full“ icon is still flashing after you have
finished the first two steps, please call the service.
31
TROUBLESHOOTING INSTRUCTIONS
Problem
Solution
Degree of dryness was
not reached or drying
time too long
-
- Empty container.
- Check drain hose.
- Dryer installation place is too restricted.
- Clean the moisture sensors.
- Keep the Air inlet clean.
- Use higher drying intensity level programme or
time programme.
Clean lint filter.
ERROR CODES
Error Code Possible Cause
Solutions
Humidity
Temperature sensor
error
Motor communication
error
Please contact your
local service center
if the problem occurs.
PCB communication
error
32
APPENDIX
Fabric Care Chart
The following symbols provide garment care direction. The Clothing care labels include
symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use
of symbols ensures consistency among garment manufacturers of domestic and imported
items. Follow care label directions to maximize garment life and reduce laundering problems.
Wash Cycle Special Instructions
Normal Line Dry/ Hang to Dry
Permanent Press /
Wrinkle Resistant /
Wrinkle Control
Drip Dry
Gentle/Delicates Dry Flat
Hand Wash Heat Setting
Water Temperature**
High
Hot Medium
Warm Low
Cold Any Heat
Bleach
No Heat/Air
Any Bleach (when
needed)
Iron-Dry or Steam
Temperatures
Only Non-Chlorine
(color-safe)
Bleach (when needed)
High
Tumble Dry Cycle Medium
Normal
Low
Permanent Press/
Wrinkle Resistant/
Wrinkle Control
Gentle/ Delicates
Warning Symbols for
laundering
Do Not Wash
Do Not Wring
Do Not Bleach
Do Not Tumble Dry
No Steam (added
to iron)
Do Not Iron
Dryclean
Dry Clean
Do Not Dry Clean
Line Dry/ Hang to
Drip Dry
Dry Flat
For machine-washable
wool. Loads should be
under 8 pounds.
Dry
** The number of dots represent appropriate wash water temperatures for various items.
The temperature range for Hot is 105°-125°F/41°-52°C, for Warm 85°-105°F/29°-41°C and for Cold 60°-85°F/16°-29°C.
TROUBLESHOOTING INSTRUCTIONS
WARRANTY
33
KOOLMORE
LAUNDRY DRYER
LIMITED
WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE
IS REQUIRED TO OBTAIN WARRANTY SERVICE.
Please
have the following information available when
you call the Customer Service Center:
■
■
■
■
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer
name and address
If YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires
repair. Some
questions can be addressed without service.
Please take a few minutes to review the Troubleshooting section of the User Manual, or visit
www.koolmore.com.
2. All warranty service is provided exclusively by our authorized Koolmore Service Providers, in
the U.S. and Canada.
Koolmore Customer Service
In the U.S.A. or Canada, call 1-718-576-6342.
If
outside the 50 States of the United States or Canada, contact your authorized Koolmore
dealer to determine whether another warranty applies.
LIMITED WARRANTY
WHAT IS COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
For one year from the date of purchase, if this major appliance is installed, operated and maintained
according to instructions attached to or furnished with the product, Koolmore America Corporation
(hereafter “KOOLMORE”) will pay for factory specified replacement parts and repair labor to correct
defects in materials or workmanship that existed when this major appliance was purchased, or at its
sole discretion replace the product. In the event of product replacement, your appliance will be
warranted for the remaining term of original unit’s warranty period.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED HEREIN.Service must be provided by a Koolmore designated service
company. This limited warranty is valid only in the 50 States of the United States or Canada and
applies only when the major appliance is used in the country in which it was purchased. This limited
warranty is effective from the date of original consumer purchase. Proof of original purchase date is
required to obtain service under this limited warranty.
WARRANTY
34
LIMITED WARRANTY
WHAT IS NOT COVERED
The cost of repair or replacement under these excluded circumstances
shall be borne by the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR
THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations
on the duration of implied warranties of merchantability or fitness, so this limitation may not
apply to you. This warranty gives you specific legal rights, and you also may have other rights
that vary from state to state or province to province.
1. Commercial, non-residential or multiple-family use, or use inconsistent with published
user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in
accordance with electrical codes or correction of household electrical system (i.e. house
wiring, fuses, etc.).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine Koolmore parts or accessories.
6. Damage from accident, misuse, abuse, fire ,floods, electrical issues, acts of God or use
with products not approved by Koolmore.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized
service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance
finished unless such damage results from defects in materials and workmanship and is
reported to Koolmore within 30 days.
9. Routine maintenance of the product.
10.
Products that were purchased “as is” or as refurbished products.
11.
Products that have been transferred from its original owner.
12.
Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive
environments including but not limited to high salt concentrations, high moisture or
humidity or exposure to chemicals.
13. Pick-up or delivery. This product is intended for in-home repair.
14. Travel or transportation expenses for service in remote locations where an authorized
Koolmore servicer is not available.
15. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim,
decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere
with servicing, removal or replacement of the product.
16. Service or parts for appliances with original model/serial numbers removed, altered or not
easily identified.
WARRANTY
35
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Koolmore makes no representations about the quality, durability, or need for service or repair of this
major appliance other than the representations contained in this warranty. If you want a longer or
more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Koolmore or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. KOOLMORE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, so these limitations and exclusions may not apply to you. This warranty gives
you specific legal rights, and you also may have other rights that vary from state to state or province to
province.
36
REGISTRATION INFORMATION
PROTECT YOUR PRODUCT:
We will keep the model number and date of purchase of your new Koolmore
product on file to help you refer to this information in the event of an insurance
claim such as fire or theft.
Go to koolmore.com
-Or-
Please fill out and return it to the following address:
Koolmore Supply, Inc. 383 Kingston Ave #365 Brooklyn, NY 11213
----------------------------------------------- (detach here) ----------------------------------------------
Name:
Model#: FLD-5CWHP
Serial #:
Address: Date Purchased:chased:
Store / Dealer Name:
City: State: Zip: E-mail Address:
Area Code: Phone Number: Occupation:
Did you purchase an additional warranty: As your Primary Residence:
How did you learn about this product:
❑ Advertising
❑ In Store Demo
❑ Personal Demo
Age:
Please consider leaving a customer review at www.koolmore.com.
Koolmore Supply, Inc.
383 Kingston Ave #365
Brooklyn, NY 11213
Customer Service 718-576-6342
Made in China
Information collected or submitted to us is only available to company internal employees for
purposes of contacting you or sending you emails, based on your request for information and to
company service providers for purposes of providing services relating to our communications with
you. All data will not be shared with other organizations for commercial purposes.
Marital Status:
