S/D660
SWING-ARM GATE OPENER
USER MANUAL
V20230831
Read Carefully Before Use
Keep for Future Reference
1
• Read these instructions completely before installation and use. Provide them to any technician
used to install, maintain, or repair this device and provide them with the device if it is ever given
or sold to a third party.
• Install and use this gate operator only in accordance with these instructions and all applicable
local and national laws and regulations. Adding clearly visible warning signs may be necessary
in your area and is a requirement for UL 325 compliance. Only use the device for its intended
purpose, opening and closing gates for Class I residential vehicular trac. Always aim to
minimize public exposure to potential hazards such as pinch points. Failure to do so may result
in serious property damage and severe personal injury.
• Install and use this operator only on rm and well-supported surfaces. Install and use this
device so that its motor and other hazardous components are not in public areas and protected
as much as possible from unauthorized access and use. There should be adequate clearance
between your gate and any nearby structures to prevent any possibility of a pinching or crushing
hazard during use. If this is impossible, the area should be guarded as well as possible and
warnings placed nearby.
• ONLY allow trained technicians to install and repair this automatic gate operator and its
electrical connections. Keep electronic components disconnected from any power source
during installation and maintenance except as instructed for safely testing functionality.
• Conrm BEFORE any digging that there are no nearby gas, power, or other utility lines or that
all such lines have been fully disabled and cleared to allow for safe work.
• DO NOT install this device in any area prone to ooding or in locations exposed to ammable
or explosive fumes.
• ONLY use this device with gates of compatible weight and size.
• ONLY install xed controls for the gate where they cannot be reached over, under, around,
or through the gate. They should also be far enough away that operators cannot contact the
moving gate during use. For full UL 325 compliance, there should be a clear line of sight
between the control box and the gate, but the box and any other permanent access system
should still be at least 6 feet (2 m) away from any of the gate’s moving parts.
• When properly congured and activated, the gate operator’s collision reaction system functions
as a Type A entrapment protection and an attentive user and the device remote function
together as a Type B1 non-contact sensor. If any other access system is added, additional
contact or non-contact sensors such as photo eyes, edge sensors, and/or infrared sensors may
be necessary to ensure legal and UL 325 safety compliance.
• NEVER allow children to play on or around this device or its attached gate. Keep controls away
from children and out of their reach at all times and warn them of the gate’s danger.
• NEVER pair a remote control for this device with any other control board. Never attempt to
operate this device with two or more remotes or control devices at the same time.
• All provided components of this device are weatherproofed to withstand normal rain. Ensure
adequate insulation and protection of all electrical connections and never direct pressurized
water against any part of this device.
• Keep your gate well maintained and the device’s piston(s) free of grime and debris. Periodically
conrm that it runs smoothly under manual operation.
• DO NOT use if any component is missing, loose, worn, or damaged. Tighten, repair, or replace
problematic parts before further use. Only replace components with identical parts and always
fully replace damaged electrical cords.
Warning!
Safety Information
2
Specications
Input Power
110–120 V~ 60
24V
Hz
DC
Rated Power (ea.)
50 W
Duty Cycle
S2 30 min.
Max. Force (ea.)
630 lb. 2800 N
Max. Torque (ea.)
390 lb.-ft. 523 N·m
Max. Piston Speed
2.95 fpm 0.9 m/min.
Max. Stroke Length
13 in. 33 cm
Est. Time to Open 90°
10–17 sec.
Max. Noise
58 dB
Operational Temp. Range
−4° to 158 °F −20° to 70°C
Weatherproong
IP44
Max. Number of Remotes
32
Remote Range
98 ft. 30 m
Remote Frequency
433.92 MHz
Power Cord Length
4 ft. 11 in. 1.5 m
3

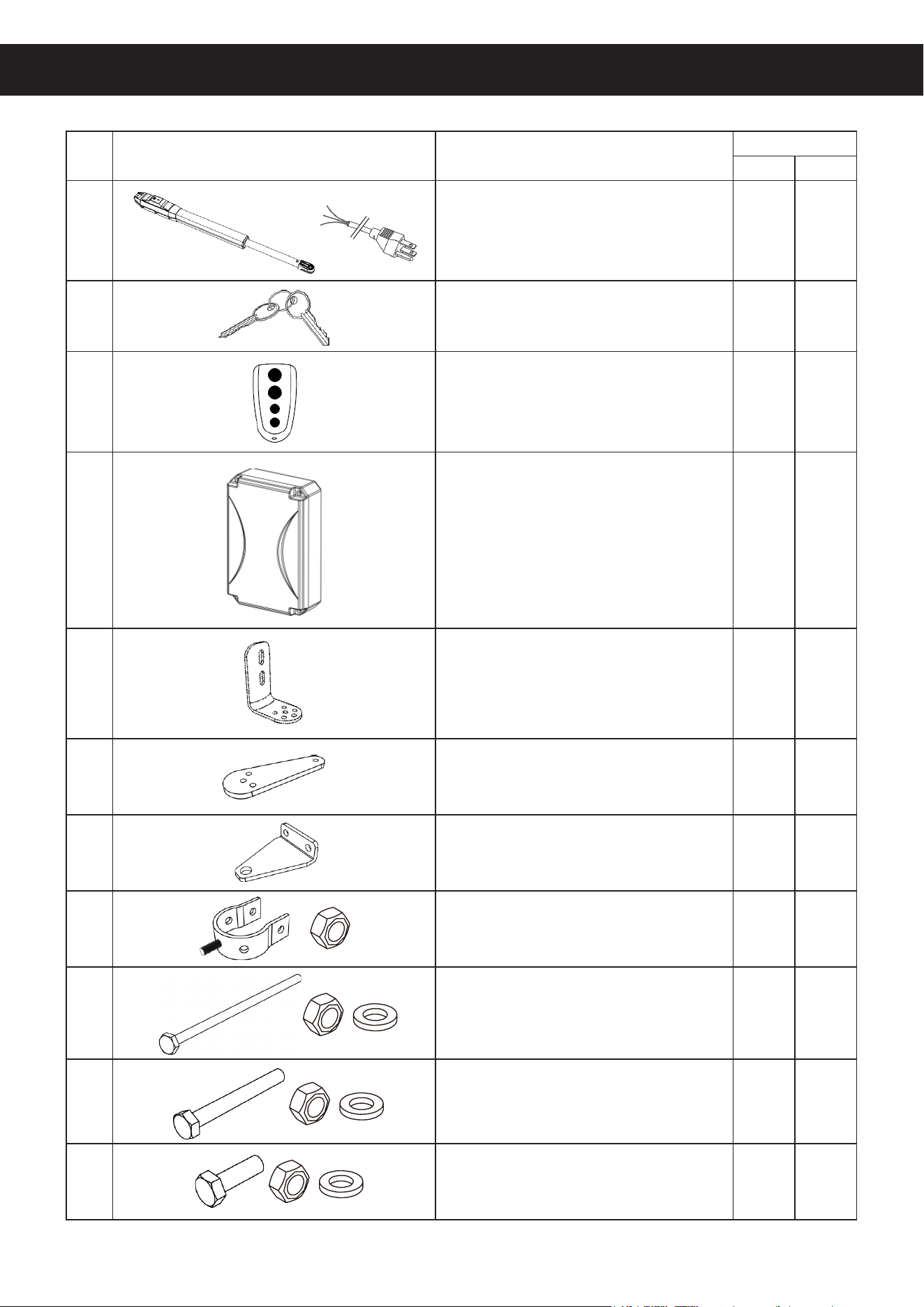

Package List

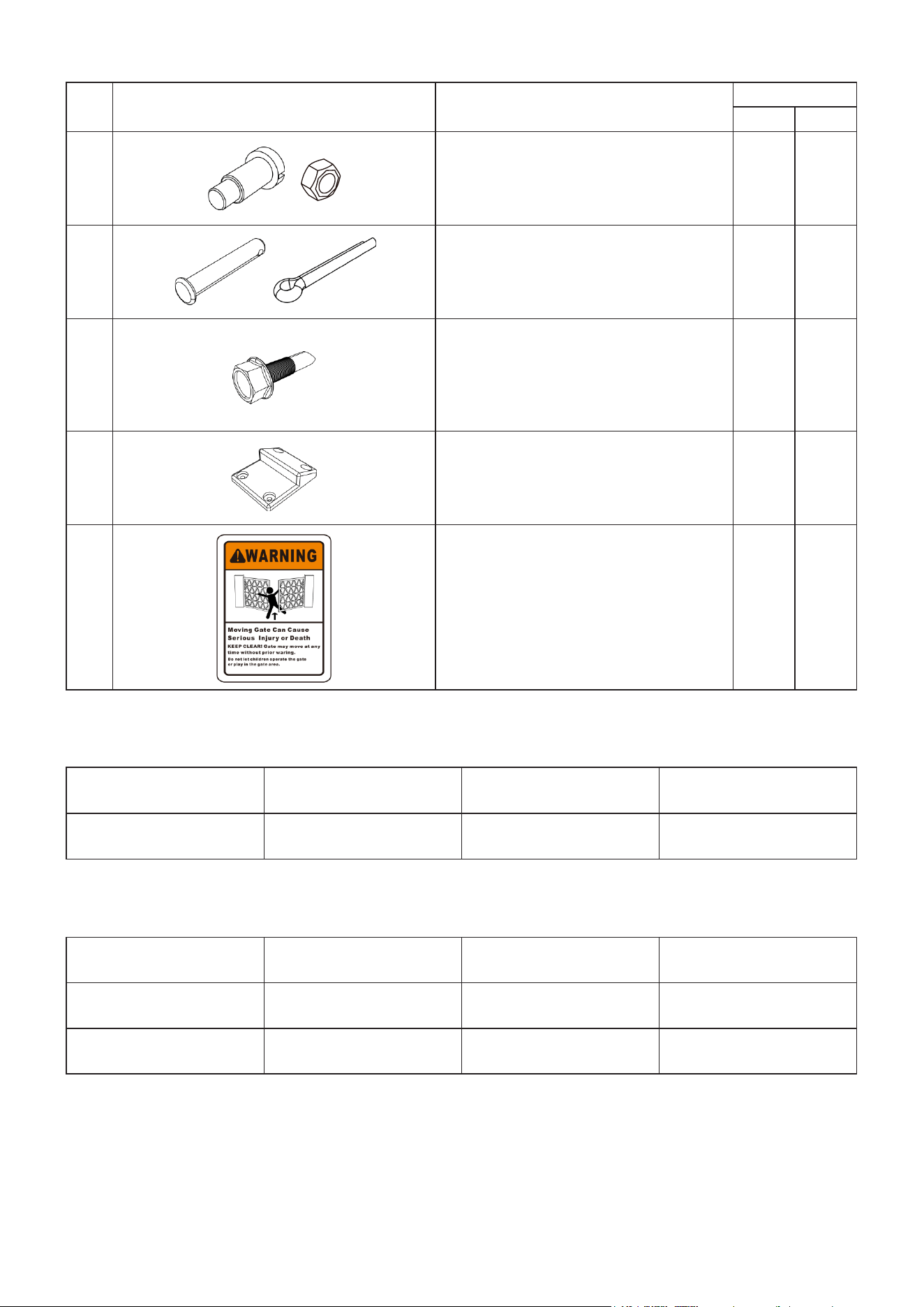

No. Picture Name
Qty.
S660 D660
A
Gate Opener with Motor & Wiring 1 2
B
Manual Release Key 2 2
C
Remote Controls 2 2
D
Control System with Casing 1 1
E
Post Base Brackets 2 4
F
Post Pivot Bracket(s) 1 2
G
Gate End Bracket(s) 1 2
H
Gate Tube Brackets & M8 Nuts 2 4
I
M10×200 Bolts, Nuts, & Washers 4 8
J
M8×70 Bolts, Nuts, & Washers 4 4
K
M8×25 Bolts, Nuts, & Washers 2 2
4
IR Sensor System Keypad Alarm Lights Electronic Lock
Backup Battery Box PVC Tubing Solar Panel System Detection Loops
Hex Wrenches Wire Stripper Tape Measure Deck Screws
Screwdrivers Silicone Level Hacksaw
End Stops or Catches Electrical Wiring Pen Cable Ties
Optional Equipment
Not Included but Necessary
No. Picture Name
Qty.
S660 D660
L
Mounting Bolt(s), M8 Nut(s) 1 2
M
8×40 Clevis Pin(s) & Cotter(s) 1 2
N
6.3×25 Self-Drilling Screws
with Bonded Washers
2 4
O
Limit Stop 1 1
P
Warning Sign(s) 1 2
5
Installation
Initial Setup
1. Double check your gate’s weight and size. Conrm that your automatic gate operator will be
able to provide the necessary torque using the chart below.
DO NOT continue with installation if your device’s motor will not be able to provide the
necessary torque for your gate. Contact customer service to work through your options.
2. Double check your gate’s condition. Conrm that it is plumb and level both vertically and
horizontally. Conrm that it swings smoothly on its hinges throughout its full range of motion
without any binding or contact with the ground. Conrm that its posts are rmly secured in
concrete and that the gate itself will not bend or ex once its movement is automated. Lubricate,
repair, and reinforce the gate’s components as needed.
For full UL 325 compliance, place one or more warning signs so that they are clearly visible to
anyone near the gate on either side. Such signs should warn of the possibility of serious injury
or death from the moving gate, warn against allowing children nearby, and guide pedestrians to
keep clear and to use a separate entrance.
Ball bearing hinges are HI GHLY recommended for gate leaves heavier than 275 pounds (125 kg).
For heavy gates, friction WILL cause excessive strain on standard hinges, leading to poorer
performance and premature failure of the gate operator(s). Failure to use ball bearing hinges
for such gates voids any warranty stated or implied.
Support wheels are a likely point of failure and are NOT recommended for swing gates (cf.
ASTM F2220). If your gate requires wheels, ensure that they rotate smoothly, have a clean
and rmly mounted track along their entire path, and are protected against any obstruction
or binding from corrosion. As potential pinch points, access to exposed wheels must also be
restricted using roller guards.
If you will use an electronic lock with your gate, make any necessary adjustments so that the
two sides connected by the lock are spaced ⅝ to ¾ inch (1.5–2 cm) apart. (If you will not use
an automated electronic lock, any range should be ne.)
kg lb.
500 1100
✓✓ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗
400 880
✓✓ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗
300 660
✓✓ ✓✓ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗
250 550
✓✓ ✓✓ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗
200 440
✓✓ ✓✓ ✓✓ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗ ✗✗
150 330
✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✗✗ ✗✗ ✗✗ ✗✗
100 220
✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✗✗
4 6 8 10 12 14 16 18 20 ft.
1.2 2 2.5 3 3.5 4.25 5 5.5 6 m
Single Gate Length
Single Gate Weight
6
3. Double check that there will be enough space around the gate along its ENTIRE range of
motion to avoid any pinching or crushing hazard once its movement is automated. Make any
necessary adjustments to eliminate hazardous areas around the gate.
If this is impossible for your location, post clear warnings about the potential danger and
block all pedestrian access to the hazardous area.
4. Double check that the gate will not enter or obstruct ANY public area once its movement is
automated.
If this is impossible for your location, get specic approval from the relevant authority. Post
clear warnings and take every protective measure necessary so the gate will not risk
accidents or block any public right of way.
5. Select the location for your control box. For full UL 325 compliance, it must be placed within
sight of the gate but at least 6 feet (2 m) from any moving part. Never mount it on the same post
as the gate itself. For best results, mount the box on a sturdy level surface within 20 feet (6 m)
of the gate opener in a position inaccessible to anyone reaching through the gate. It must be at
least 3 feet (1 m) above the ground to avoid damage from rain and snow and, for best results,
place it 5 feet (1.5 m) or higher to help keep it inaccessible to small children and animals.
The control box should be located at least 3 feet (1 m) away from any power outlet to avoid
possible electrical interference. When using AC power, its own outlet should be visible from
the gate and equipped with a GFCI or circuit breaker. If no outlet is available within 1000 feet
(300 m) of the control box, the gate should be powered by a 24V DC battery, two 12V DC
batteries wired to provide 24V power, and/or a dedicated solar system adequate to its needs
(sold separately) or a licensed electrician should be consulted to safely make the necessary
adjustments to handle the expected voltage drop along the power cord.
6. If using AC power, prepare the main power cord for the control system. If you will be using
additional wire to extend the length of the provided power cord, be sure to keep all connections
clean and well insulated. Any additional wiring should be a 3-core cable at least 16 AWG
(1.5 mm²) thick for distances less than 300 feet (90 m) and 14 AWG (2.5 mm²) for distances
beyond that. If the power outlet is located a considerable distance from the control box, the
wiring should be placed inside a weatherproof PVC sheath and buried to avoid damage from
animals, vehicles, etc. and minimize any risk of tripping.
ONLY make and adjust electrical connections while all lines are fully disconnected from
power. ALWAYS conrm BEFORE digging that each area is free of underground utility
lines or that any such lines have been deactivated and cleared to allow safe work.
7. Select the location for your automated gate operator(s). Each operator should be on the
same side of the gate leaf as its hinge, positioned at a height between 1 foot (30 cm) o the
ground and the midpoint of the gate. Its bolt will need to go all the way through a wood post
at least 6 inches (15 cm) thick. Any thinner post should be made of metal and checked to
conrm it will be able to bear the operator’s force.
If an operator will be located on the opposite side of the gate from the control box, its power and
control wiring should be placed inside a weatherproof PVC sheath and buried to avoid damage
from animals, vehicles, etc. and to minimize any risk of tripping. If additional length is needed,
use 2-core cable at least 16 AWG (1.5 mm²) thick and ensure all connections are well insulated
and protected against rain and other weather.
7
Operator Installation

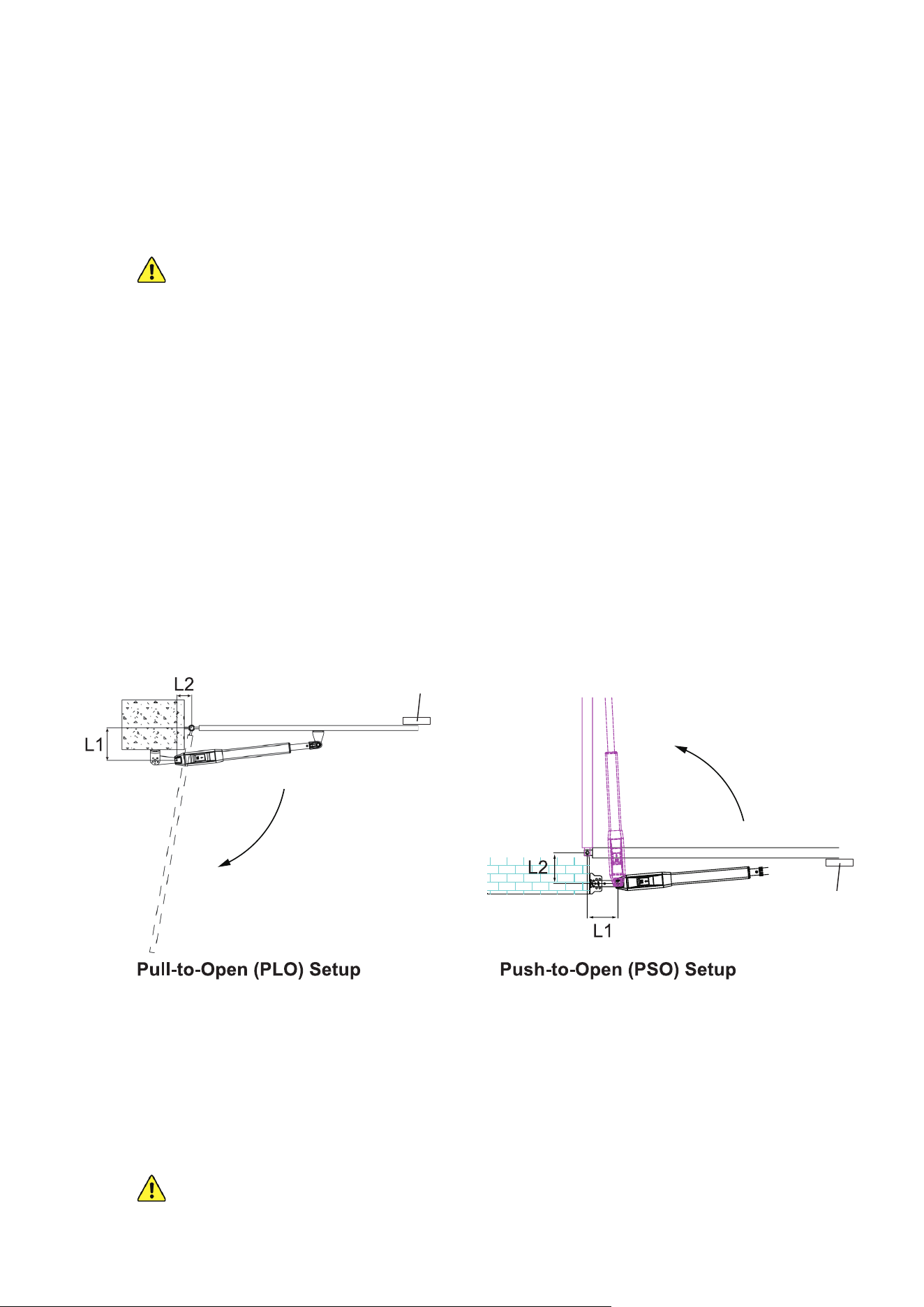

1. Each automatic gate operator can be used to PULL a gate leaf open towards your property
(“pull to open” or “PLO”) or to PUSH the gate outwards (“push to open” or “PSO”). For a paired
system controlling two gate leaves simultaneously, both operators should move in the same
direction.
In a pull to open setup, the operator(s) should be fully contracted when the gate is OPEN. The
piston will retract during operation to pull the gate open inwards and then fully extend to push
the gate closed again.
In a push to open setup, the operator(s) work in just the opposite way. They should be fully
contracted when the gate is CLOSED, extend during operation to push the gate open outwards,
and then contract to pull the gate closed again.
2. The base of each gate operator must be rmly attached to a post beside the gate. Because of
the forces involved, its bolts must go completely through wood at least 6 inches (15 cm) thick
or completely through metal able to handle the stress. Each post should be well secured in a
deep concrete foundation to avoid any movement over time.
Alternatively, the base can be secured in masonry or concrete using heavy-duty drills and long
anchor bolts. Using a professional contractor for such work is highly recommended to ensure
all connections are snug and rm and to avoid any possible damage to your wall.
3. The end of each gate operator must be rmly attached
to a bracket mounted on the gate itself. For a PLO setup,
the bracket should be mounted to match the operator’s
contracted length when the gate is OPEN. For a PSO
setup, it should match the contracted length when the gate
is CLOSED. Check that your gate oers a secure crossbar
at the necessary distance. Many gates will require you to
install a new crossbar so that the operator’s end bracket
can be rmly attached at the correct distance.
As you check and mark your locations, be sure the
centerline of the base brackets will be EXACTLY in
line with the center of the end bracket. Minor
adjustments can be made using the bolts, but try to
keep everything in line at each stage of installation.
4. Once the post and gate are fully prepared, mark the
locations for the four bolt holes that will secure the base
brackets (E) for each gate operator. You can use vises
and/or clamps to hold the brackets and operator in place
if needed.

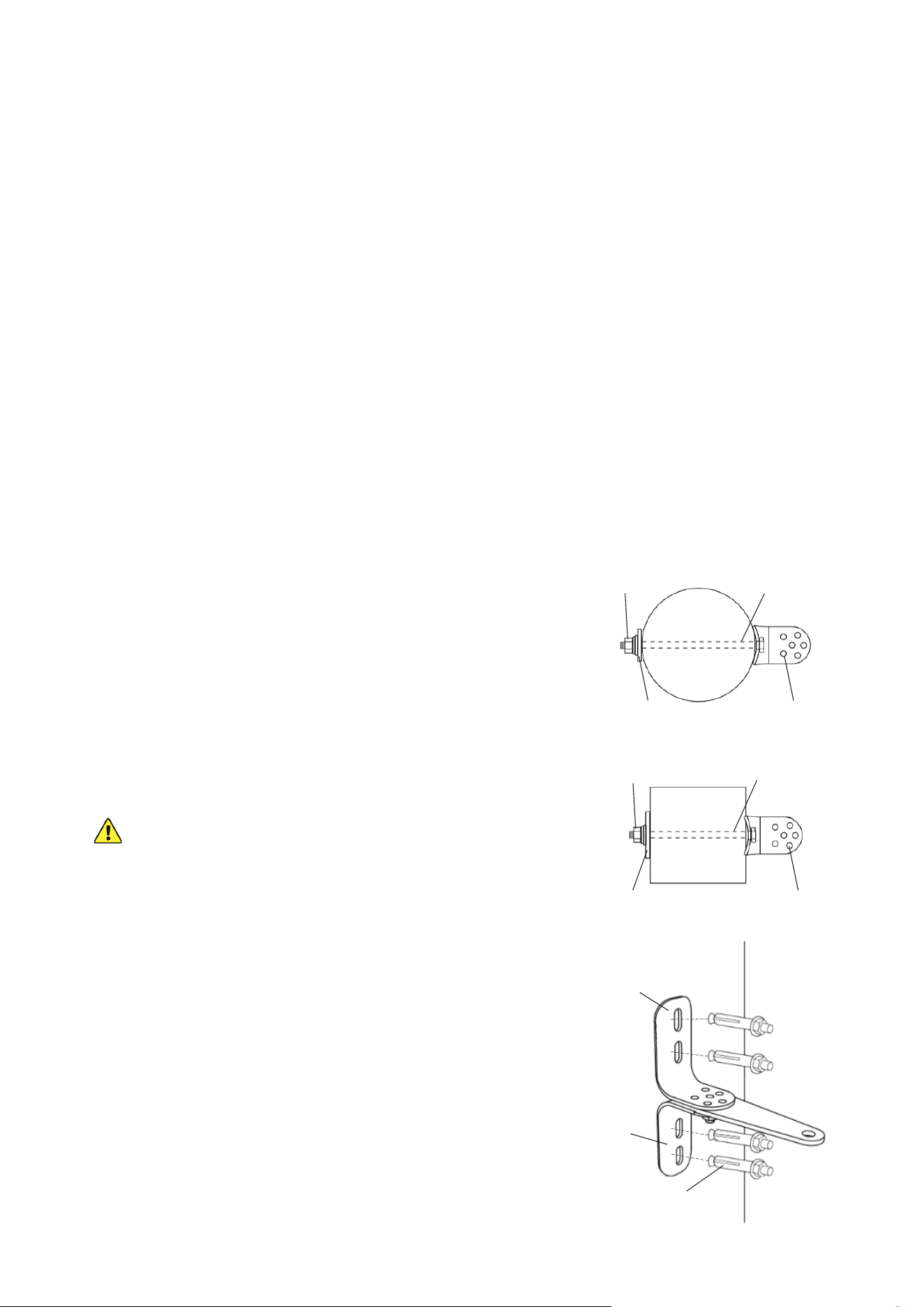

To use the provided hardware, drill holes 10.5 mm across
straight through your support post. You can start by drilling
the holes for the bottom base bracket rst to get more exact
placement for the other holes. Use the M10×200 bolts,
their M10 washers, and M10 nuts (I) as shown to secure
the base brackets. If you install the top bracket at this
point, remember to leave just enough room between the
two brackets for the pivot bracket that will need to be held
securely between them.
M10 Nut M10×200 Bolt
M10 Washer Base Bracket
M10 Nut
M10×200 Bolt
M10 Washer Base Bracket
Upper
Bracket
Lower
Bracket
M10×200 Bolts
or Anchor Bolts
8
If you will need to use other hardware (e.g. for mounting
through thicker posts or for mounting to solid masonry
or concrete) make the necessary adjustments, being
sure your fasteners will t into the bracket bolt holes and
securely hold the bracket assembly.

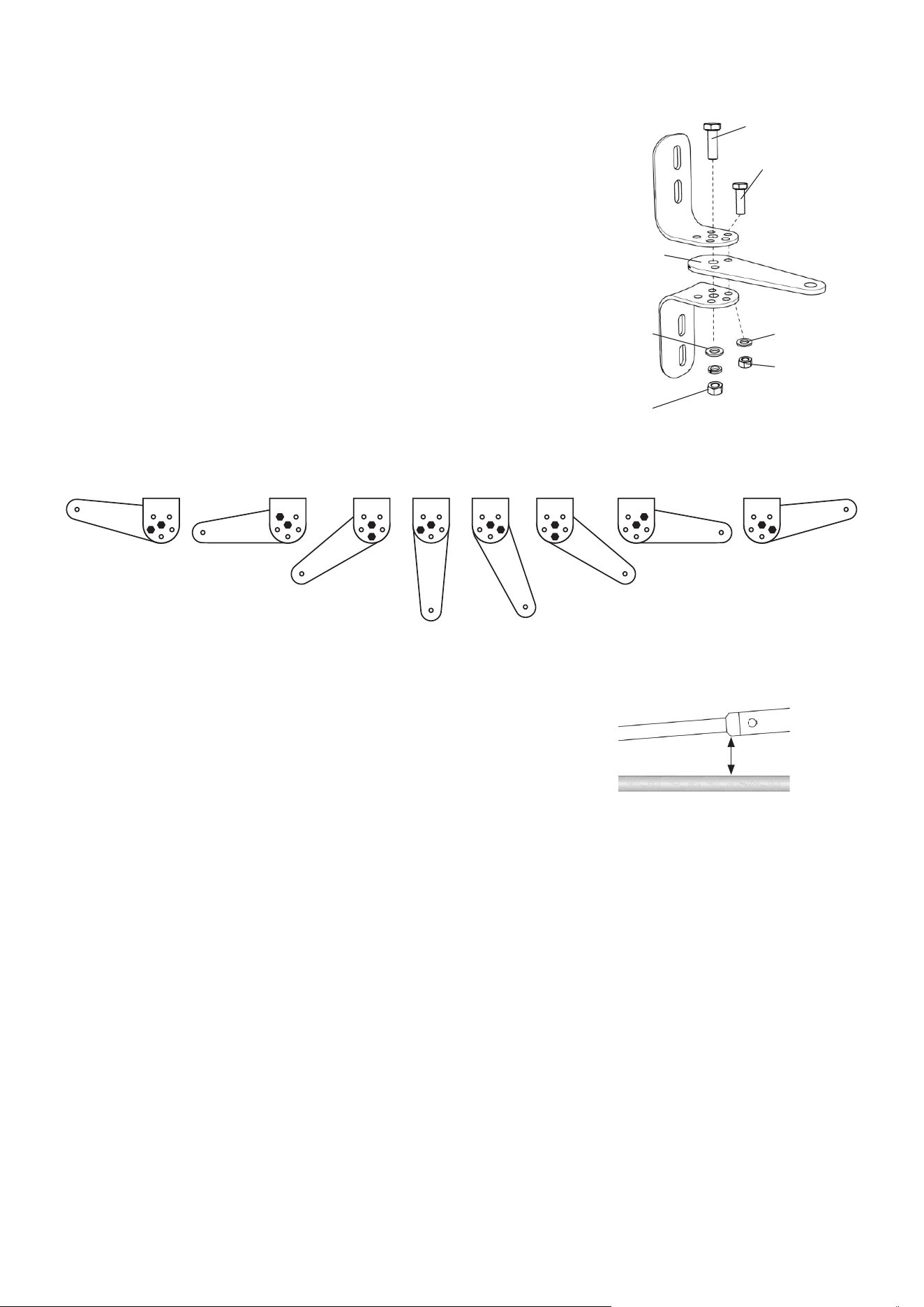

5. Each pivot bracket (F) can be tted between its two base
brackets in several positions. An M8×25 bolt, an M8
washer, and an M8 nut (K) should be used as shown to
form the inner connection. A similar bolt, washer, and nut
should be used to form the outer connection.
The best position for the pivot bracket and its bolts will
vary depending on your gate’s specic circumstances.
The most important factor is ensuring the operator can
move your gate through its full range of motion without
obstruction.
Another important consideration is providing for at least
one inch (2.5 cm) of clearance between the widest part of
the operator and your gate at both the open and closed
positions. An easy way to make this adjustment is to t
the inner M10 bolt loosely, pivot the operator and pivot
bracket as needed to adjust the clearance, and then
install the M8 bolt and tighten both bolts to hold the pivot
bracket in its best position.
6. Mount each end bracket (G) to your gate at the appropriate location. Remember that it should
match the length of your contracted operator when the gate is OPEN if you are using a pull
to open setup but it should match the length of your contracted operator when the gate is
CLOSED if you are using a push to open setup.
Tube brackets (H) are included to easily secure each end bracket for most gates. Just t the
tube brackets around your gate’s crossbars so the built-in bolts point inwards towards where
your operator(s) will be mounted. Use M8×70 bolts, M8 washers, and M8 nuts (J) and the self-
drilling screws (N) to lock them into place and then use their built-in bolts and M8 nuts (H) to
mount the end bracket onto them.
If your gate’s design requires you to build your own crossbar to mount the operators at the
correct distance, use the appropriate fasteners to rmly attach each end bracket as needed.
7. Use the manual release key (B) to unlock each operator. Conrm that the pistons move smoothly
through their full range of motion. Attach the base of each operator to its pivot bracket with an
8×40 clevis pin and its cotter (M) and attach the end of each operator to its end bracket with a
mounting bolt and M8 nut (L). Test that everything is completely level, adjusting as needed.
1″ (2.5 cm)
M8×25 Bolt
M8 Nut
M8 Washer
M8×25 Bolt
Pivot Bracket
M8 Washer
M8 Nut
9
Mounting Bolt
End Bracket
M8 Nut

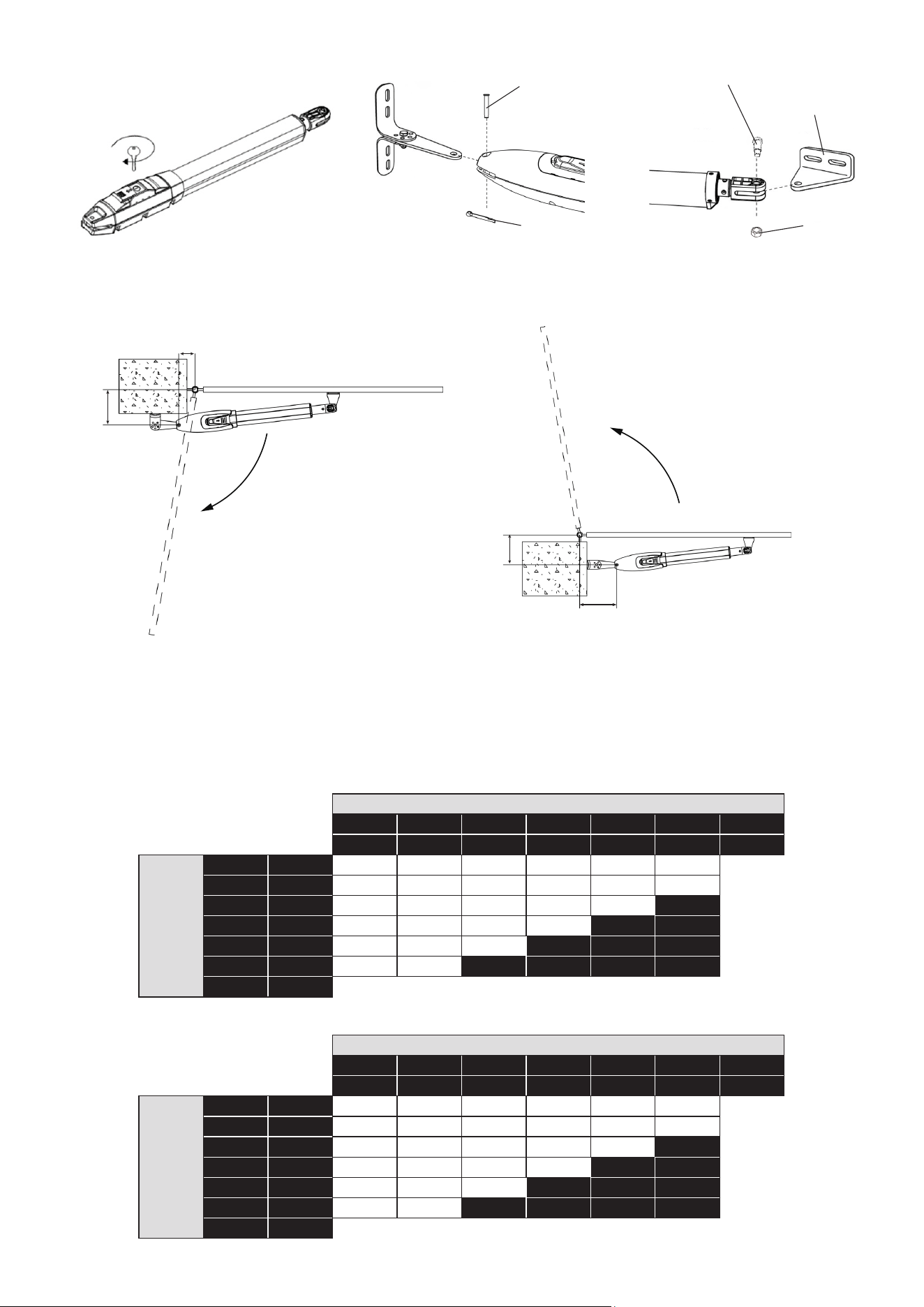

8. Gently move each gate leaf and operator through their full range of motion by hand, adjusting the
positions of all the bolts and brackets as needed. Remember to ensure at least 1 in. (2.5 cm) of
clearance between the widest part of each operator and the gate throughout the path.
The exact movement of the gate will depend on whether you are using a PLO or PSO setup, the
exact distance from the base to the outer pivot hole (L1), and the exact distance from the outer
pivot hole to the centerline of your gate (L2). The combination of these factors will determine
the maximum open position of your gate as shown in the charts below.
Pull-to-Open (PLO) Setup Push-to-Open (PSO) Setup
L1
L1
L2
L2
8×40 Clevis Pin
Cotter
Pull to Open Setup
Length from Outer Pivot Hole to Base (L1)
10 12 14 16 18 20 cm
4 4¾ 5½ 6¼ 7 7¾ in.
10 4 103° 111.5° 118.5° 120.5° 108° 100.5°
12 4¾ 101° 108.5° 115° 110° 100.5° 94.5°
14 5½ 99.5° 106.5° 112.5° 101° 94°
✗✗
16 6¼ 98.5° 104.5° 101.5° 93°
✗✗ ✗✗
18 7 97.5° 103° 92°
✗✗ ✗✗ ✗✗
20 7¾ 97° 90.5°
✗✗ ✗✗ ✗✗ ✗✗
cm in.
Length from OPH
to Centerline (L2)
Push to Open Setup
Length from Outer Pivot Hole to Base (L1)
10 12 14 16 18 20 cm
4 4¾ 5½ 6¼ 7 7¾ in.
10 4 103° 101° 99.5° 98.5° 97.5° 97°
12 4¾ 111.5° 108.5° 106.5° 105° 103° 100.5°
14 5½ 118.5° 115° 112.5° 106° 96.5°
✗✗
16 6¼ 121° 110° 101.5° 93.5°
✗✗ ✗✗
18 7 106° 98.5° 92°
✗✗ ✗✗ ✗✗
20 7¾ 96.5° 90.5°
✗✗ ✗✗ ✗✗ ✗✗
cm in.
Length from OPH
to Centerline (L2)
10
9. When everything is correctly adjusted for your needs, check that all fasteners are securely
tightened and then use a hacksaw or similar tool to remove any excess length from your bolts
to reduce the possibility of later accidents.
10. Check that all wiring is securely out of the gate’s way throughout its full range of use. If
necessary, use cable ties or other appropriate equipment to hold the wiring for each operator.
11. Gently move each gate leaf and operator through their full range of motion by hand once
again. Conrm everything remains level and secure and then mark the desired closed and
fully open positions. Install the limit stop (O) so that it holds the gate closed at the correct
position. Install a separate end catch or end stop at the fully open position to limit the ability
of the gate to overshoot its nal position due to inertia, wind, etc.
Failure to install such catches and/or stops will allow the operator to exceed its designated
stroke, WILL cause damage and premature failure, and voids any warranty stated or
implied.
12. Once nished, use the manual release key to lock the operator(s) back into standard use.
Control Box Installation

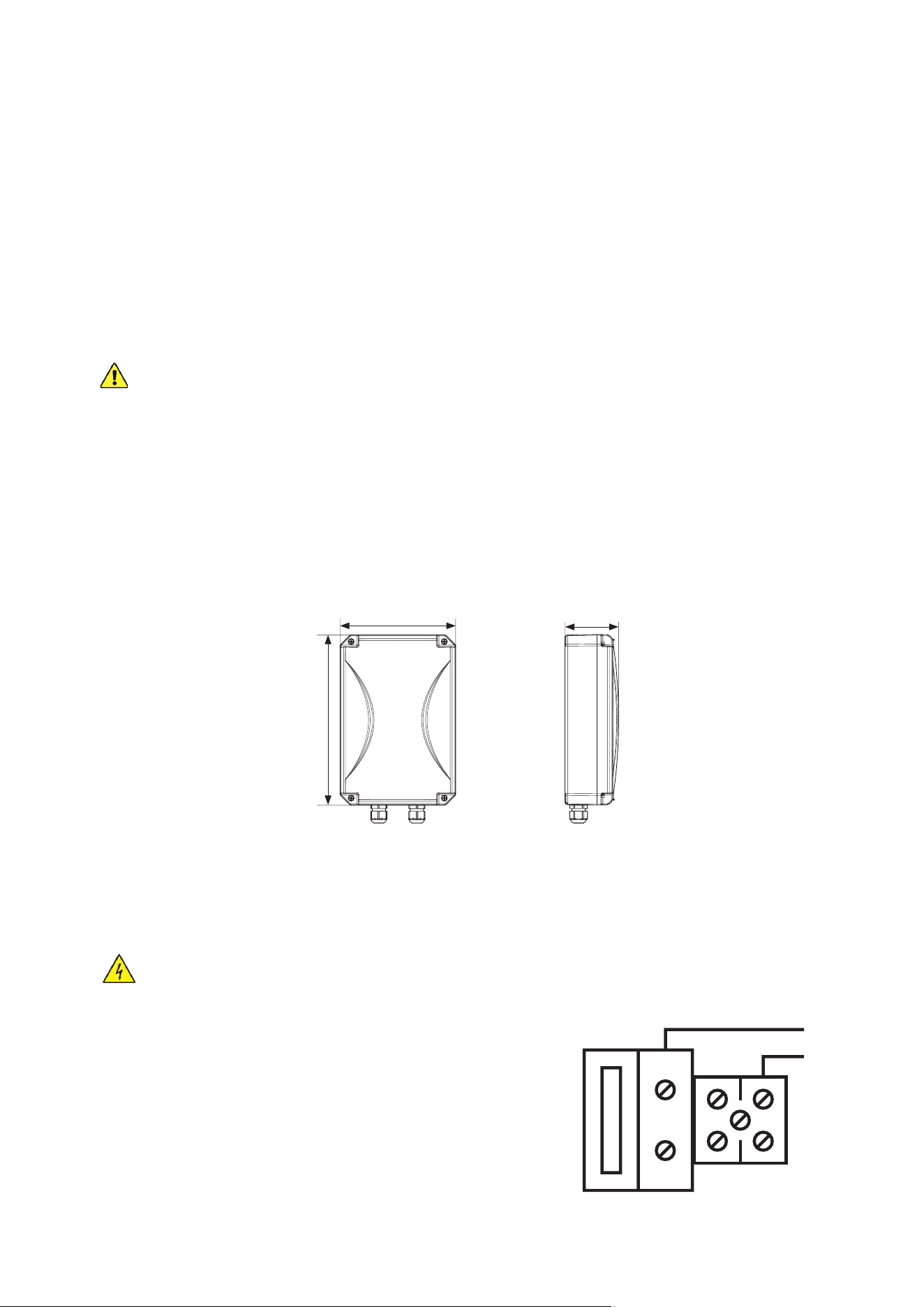

1. The control box should be attached to the location previously selected using 4 deck screws
or 4 anchor bolts (not included). Be sure the box’s strain relief slots are all pointed DOWN to
help drain excess moisture.
2. Remove the protective cover from the control box. Keep its fasteners nearby. Loosen the
strain relief slots at the bottom of the box. In each step below, feed the wires through the
strain reliefs before making connections so the wiring can be held securely in place between
adjustments.
NEVER make electrical connections while your power supply is active. Turn o your AC
power or disconnect your battery terminal(s) during any wiring adjustment.
3. If you will be using AC power, connect the provided
cord or your extension to the main power terminal.
This small white box runs to a 10A fuse and 24V
transformer which should be prewired to the part of
the circuit board's X1 terminal marked AC24VIN.
Use a small screwdriver to loosen and tighten the
main power terminal’s screws as needed. Connect
the ground wire to the central pin, the live wire to the
left pin, and the return or neutral wire to the right pin.
Be sure no wiring is left bare and exposed.
9.8 in.
25 cm
6.7 in.
17 cm
3.1 in.
7.9 cm
L PE N
11

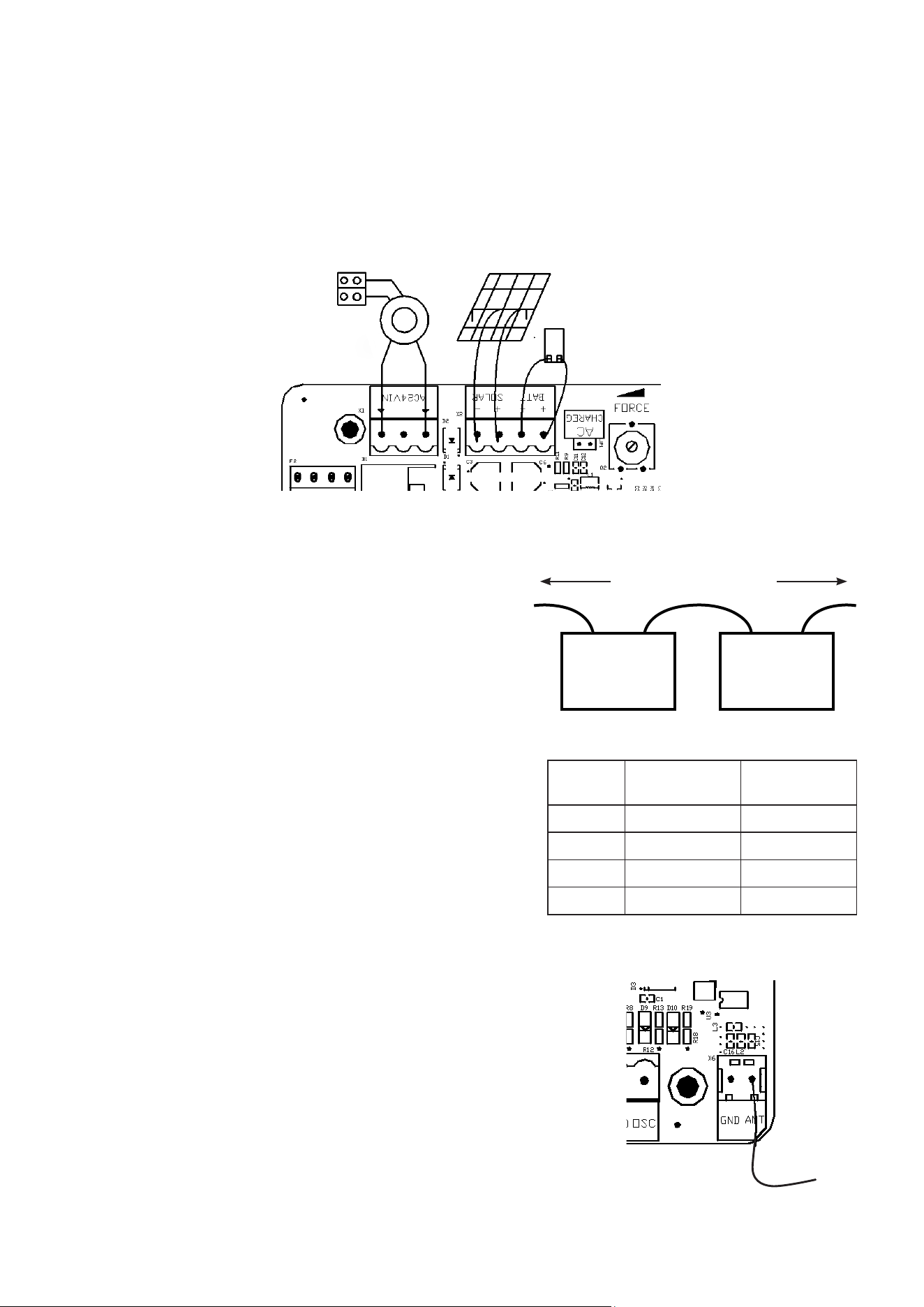

If you will be using a dedicated solar system, follow its separate instructions for installation,
adjust its wiring so no power will be owing as you work, and connect its live wire to the
SOLAR+ pin on the X2 terminal and its return or neutral wire to the SOLAR− pin. Any gate
that will be using a solar system should also have a 24V battery attached (see below). This
will allow the solar system to charge it during sunny days but still provide consistent service
at night, in poor weather, and on occasions where the operator(s) must be used repeatedly in
a short time.
Wire
Color
Master
Operator
Secondary
Operator
Brown MOTOR1+ MOTOR2+
Black MOTOR1− MOTOR2−
Yellow EM1 EM2
Blue LM1 LM2
To use a 24V battery to provide primary or backup
power, prepare weatherproof housing for it near
the control box. Two 12V batteries can also be
used as a single 24V unit by wiring the negative
terminal of the rst battery to the positive terminal
of the second. Whether you are using one or
two batteries, leave one terminal disconnected
to prevent power from owing during setup
and adjustment. Connect the live wire from the
battery's positive terminal to the BATT+ pin on the
board’s X2 terminal and the return or neutral wire
from the negative terminal to the BATT− pin.

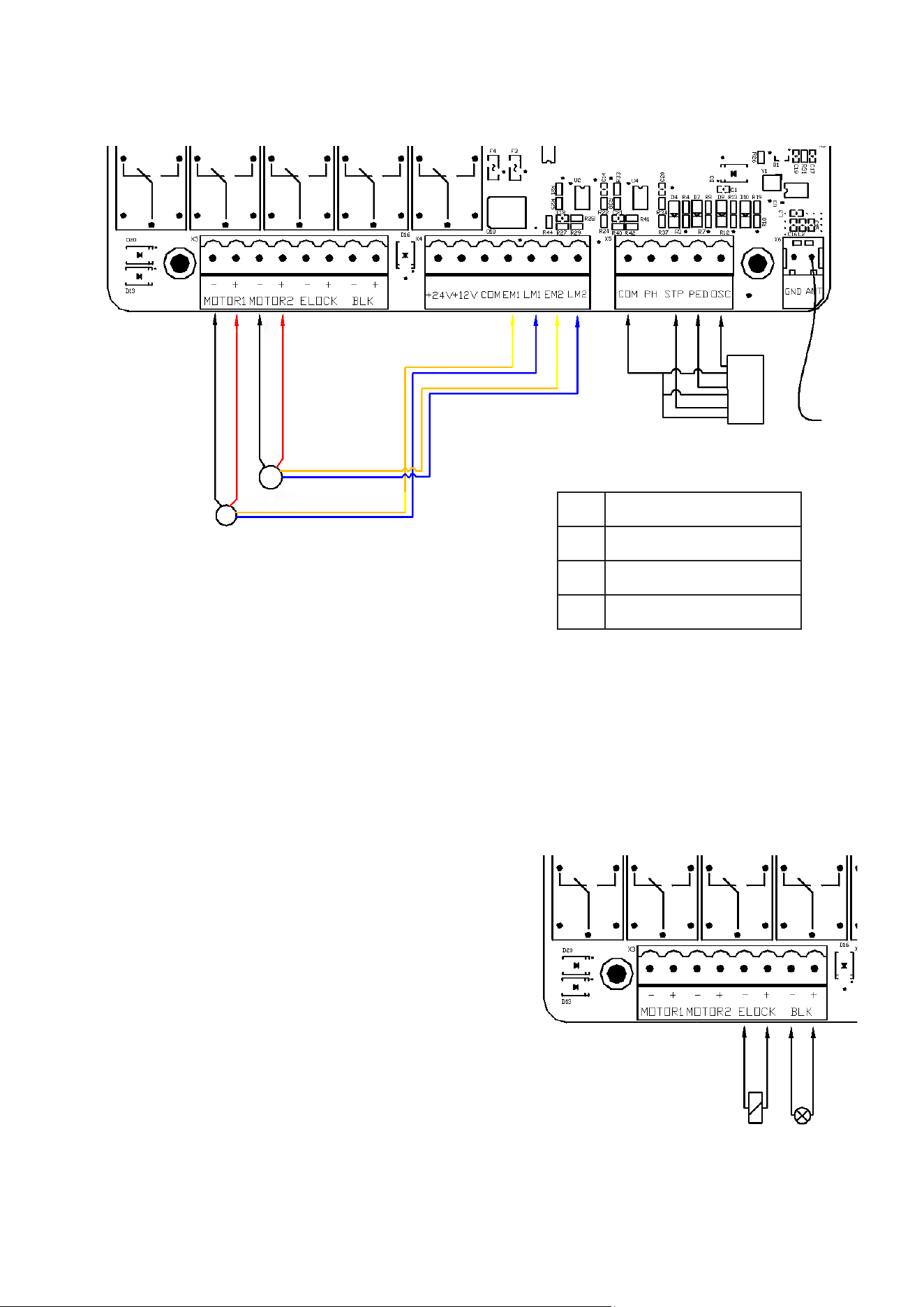

4. Each operator should have four wires to connect it
to the circuit board for power and control signals.
Connect them as shown on the right. The MOTOR
pins are located on the board’s X3 terminal and the
EM and LM pins are located on the X4 terminal.
5. Double check that the wire from the remote control
antenna is securely connected to the ANT pin on
the X6 terminal.
If your gate will have a separate keypad entry
system, follow its separate instructions for
installation and connect its wiring to the X5
terminal. The return or neutral wires should be
connected to the COM pin, the signal wire for
STOP commands to the STP pin, the signal wires
for pedestrian commands to the PED pin, and
the signal wire for cyclical control—OPEN/STOP/
CLOSE/STOP—to the OSC pin.
10A Fuse Solar System
24V Battery
+ + − −
to
BATT+
to
BATT−
12
6. Connect any other accessories you might wish to use with this gate opener, following
their separate manuals to ensure safe and reliable operation. Some of the more common
accessories for this gate opening system include:
Electronic Locks
The circuit board provides a 24V DC power. Make
sure it is compatible with your electronic lock. To
automatically control the electronic lock on your
gate, connect its signal wire to the ELOCK+ pin
on the board’s X3 terminal. Connect its return or
neutral wire to the ELOCK− pin.
Alarm Lights
The circuit board provides a 24V DC power. Make
sure it is compatible with your alarm light. To
automatically control the alarm or indicator light
when the gate is in motion, connect the light’s
signal wire to the BLK+ pin on the X3 terminal.
Connect the light’s return or neutral wire to the
BLK− pin.
Black
Brown
Yellow
Blue
KP
A
M1
M2
Lock Light
M1 Main Operator
M2 Secondary Operator
KP Optional Keypad
A Remote Antenna
13

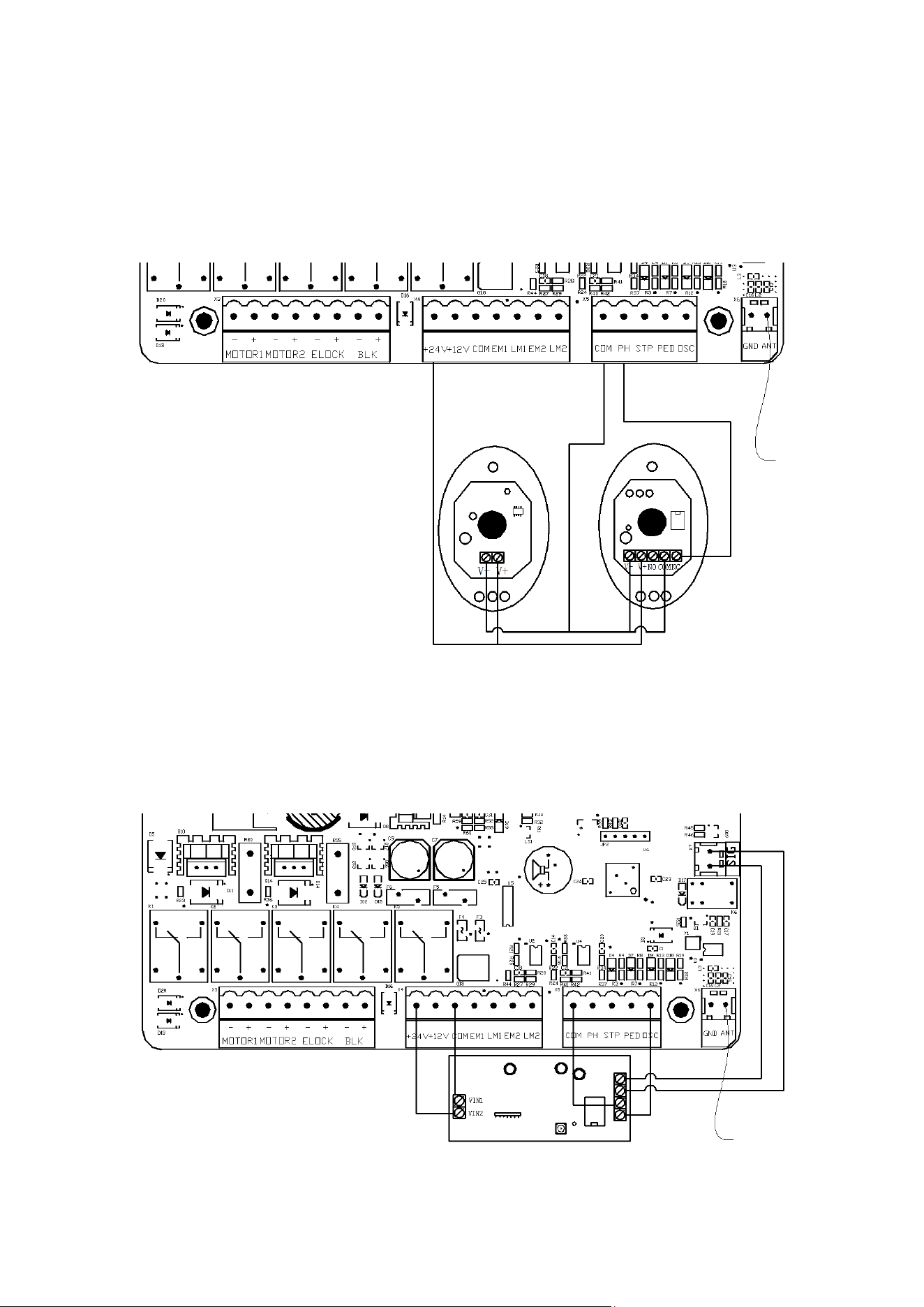

Infrared Sensors (“Photo Eyes”)
As shown below, connect the sensors’ common (COM) and return or neutral pins (V−) to the
COM pin on the board’s X5 terminal. Connect the receiver’s normally closed (NC) pin to the
PH pin on the same terminal. Connect the power input pins (V+) on each sensor to the 24V
power supply pin (+24V) on the board’s X4 terminal. Remove any other wire connecting any
of these pins directly, but save any such wire in a safe place in case you ever need to use the
operator(s) without the photocells.
Wi Module
To control your gate operator(s) using a 24V DC wi system, connect its VIN1 pin to the COM
pin on the board’s X4 terminal. Connect its VIN2 pin to the 24V power supply pin (+24V)
nearby. On the other side, connect the rst two pins to the signal terminal (SIG), the third pin
to the COM pin on the X5 terminal, and the fourth pin to the cyclical control pin (OSC) nearby.
7. Once all your initial wiring is completed, tighten the strain relief slots to hold the wires in place
and restore power to your system.
14

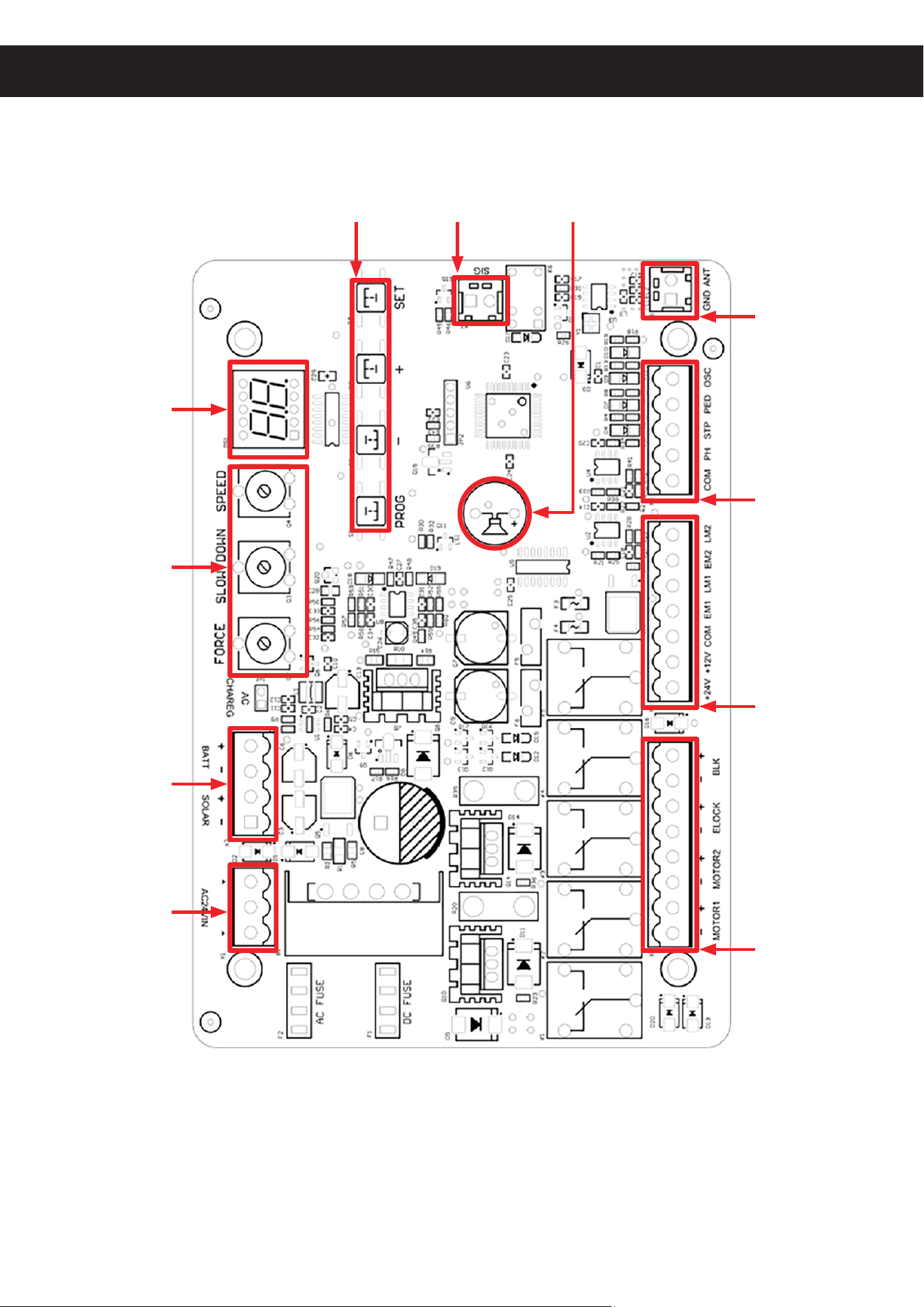

Circuit Board Diagram
Adjustment
Buttons
Digital
Display
Adjustment
Knobs
X2 Terminal
X6 Terminal
X5 Terminal
X4 Terminal
X3 Terminal
X1 Terminal
Signal
Terminal
Alarm
15
Initial Testing
1. Your system should come correctly
preprogrammed to work as a single operator
for a single gate or as paired operators for two
separate gate leaves. To conrm this before
testing the gate, press the PROG button until
the digital display changes from “--” to “NE”.
Press + or – until the display reads “SP”. Press
SET to conrm that the circuit board is using the
proper operational mode. The display should
read “OF” for one operator working alone and
“ON” for two operators working together.
If the setting doesn’t match your system, use +
or – to toggle to the correct setting and press
SET to conrm your change.
2. Your system should come preprogrammed
to use pull-to-open operation, opening inward towards your property. If your gate will be
using push-to-open operation instead, pushing the gate outward, you will need to reset that
parameter.
Press the PROG button until the digital display changes from “--” to “RL”. Press + or – until the
display reads “dR”. Press SET to enter the submenu and use + or – to toggle the setting from
“IN” to “OU”. Press SET to conrm your change.
3. Clear any obstacles from the gate’s path and keep all bystanders away throughout the following
steps.
4. Limit Mode–Hall Sensor
The circuit board now needs to be trained to recognize inputs from its Hall sensors. This will
also allow you to conrm the correct polarity of the operator wiring.
① Unlock each gate operator and open your gate halfway. Lock each operator again.
② Hold the + button on the circuit board until the digital display reads “SU”. Release + and
wait for the display to change to “A0”.
③ In this mode, pressing + should open the gate and pressing – should close it for pull-
to-open operation. The two buttons should have the opposite eect for push to-open
operation. Press the correct button to move the rst gate leaf to its fully open position.
④ The display should read “AK”. Press PROG to save and the circuit board should
automatically move to the next step.
If the + and – have the wrong eects in this mode, disconnect the circuit board from
power, swap the position of the operator’s two MOTOR wires, reconnect the board
to power, and repeat this step. Other problems may arise from poor connections:
Disconnect all power, correct the wiring, and check again.
⑤ For a single operator, the display should read “B”. Press the correct button to move the
gate to its fully closed position and press PROG to save. The display should change to
“OK” and then automatically return to standby mode, reading “--”.
⑥ For a two-operator system, the second step should display “B0”. The adjustment buttons
will now control the second gate leaf.
⑦ As before, use the correct button to move it to its fully open position. The display should
read “bK”.
16
⑧ Press PROG to save and the circuit board should move on to the third step, displaying “C”.
⑨ Use the correct button to move the rst gate leaf to its fully closed position. Press PROG
to save and the circuit board should move on to the nal step, displaying “d”.
⑩ Use the correct button to move the second gate leaf to its fully closed position.
⑪ Press PROG to save. The display should change to “OK” and then automatically return to
standby mode.
If the display doesn’t read “AK” or “bK”, check that both operators are fully contractible.
If not, adjust the location of the end brackets.
Limit Mode—End Stop
Alternatively, you can set the stroke of your gate by using a dierent limit mode.
① Hold PROG until the display reads “rL”.
② Press “-” several times until the display reads “LP”.
③ Press SET and the display reads “LS”.
④ Press “-” once to change the reading into “RS”.
⑤ Press SET to save your change. Now the circuit board controls the operator to open and
close your gate based on resistance detection and stored values.
Follow the steps below to retrain your circuit board about the limit stop.
① Open your gate to its fully open position and lock the operator
② Hold the + button on the control board until the display reads “SU”.
③ Your gate should start to close, stop at the limit stop, open to its fully opening position, and
close and stop for a second time, indicating the retraining is done.
ATTENTION! For either PLO or PSO setup, after being initially opened, your gate
should be moving to its closed position. If it is moving in the other direction, stop it
and switch the operator’s motor pins’ wiring on the circuit board.
Limit Stop
Limit Stop
17
If the gate starts up too slow or too fast, use
the SLOW DOWN knob on the circuit board to
adjust the speed.
If the door stops abruptly due to wind or the
friction of the gate itself or if the gate does not
react appropriately to the end stops or closes
you are using, turn FORCE knob to adjust the
operator’s force against resistance.
If you, by accident, turned the SPEED knob
during any point of these steps, you have to
start all over again.
5. The top button on both remote controls should already be paired with your circuit board. They
use a single control mode at a distance of up to 98 feet (30 m). Pressing either button should
cycle through the commands OPEN→STOP→CLOSE→STOP. Test both remotes through
the full cycle of commands. The gate should now automatically stop at the right places but be
ready to manually stop the gate using the remote if the memorized settings do not activate
correctly. Conrm that the display shows “OP” as the door is opening and “CL” as it is closing.
(If the top button on either remote does not control the gate, see below for pairing instructions
and then repeat this testing.)
6. Your system does not come preprogrammed to automatically close your gate after reaching
its fully open position. If you activate this function (see below), test that it works correctly
by using either remote to open the gate to its fully open position and waiting to see if it
begins closing automatically. Conrm that the remote can still stop the gate when it is closing
automatically.
7. If you have installed any additional safety features like an infrared sensor system or magnetic
detection loops, test them now and conrm that they work correctly and safely.
8. Disconnect your system from its power source. If any abnormalities have been detected during
testing, make the necessary adjustments—e.g. by repositioning your end stops, shifting the
adjustment knobs, or changing the stored parameters (see below)—or contact Customer
Service. Once everything is functioning, replace the circuit board and motor covers and their
fasteners, reconnect power, and enjoy!
18
Remote Pairing
The top button of each included remote should come already paired with your gate opener. Up to
30 additional remotes or wireless control buttons can be paired to the gate’s circuit board. Be sure
that they use the 433.92 MHz (LPD433 Channel 35) radio band or can be congured to do so.
1. Remote pairing must be done with the circuit board exposed and connected to power. Be careful
and only touch the adjustment buttons while the circuit is live. Disconnect your power supply
while the control box’s cover is being removed or replaced and while making any adjustment to
any wiring.
2. Press the + button until the digital display shows the current remote control mode (“PO”, “Pd”,
or “SE”) and then displays the number of currently paired remotes. Release the + button.
3. Press the remote button to be paired or enter a passcode and press the open button on your
wireless control.
4. Press the same button on the remote control again or reenter the passcode and press the open
button again on the wireless control. The digital display should show the new total number of
devices and then automatically return to standby mode, displaying “--”.
5. The button or keypad is now paired and can be used to open or close the gate. This pairing
should remain stored in memory even when power to the gate opener is cut accidentally or at
its circuit breaker.
6. Test that your gate responds correctly to commands from the new remote or keypad. When you
are nished pairing and testing, disconnect the gate from power, replace the control box’s cover
and fasteners, and restore power.
When remote inputs are handled in four-button mode (see the “Pd” setting below), you can also
pair a remote without opening the control box. Hold the bottom two buttons on any previously
installed remote control to authorize remote pairing. Hold the bottom two buttons on the new
remote to pair it. Test that each of the four buttons works safely and correctly.
This board cannot unpair an individual remote. If you need to remove lost remotes from the system’s
memory, you will need to delete ALL stored remotes at once. Open the control box as before. Hold
the + button for about eight seconds. (Alternatively, press the PROG button until the digital display
changes from “--” to “NE”. Press + or – until the display reads “RE”. Press SET to access the
remote submenu. Press + or – until the display reads “rE”. Press SET to conrm the deletion and
exit.) Use any remote to test that all stored remotes have been purged.
Once this process is successful, pair the remotes that you want to continue using in the same way
as before.
19
Parameter Adjustment
Aside from the three settings controlled by the adjustment knobs, all other parameters are controlled
using the adjustment buttons and the digital display. There are two separate menus, one for basic
settings and another for advanced settings.
In each case, use PROG to enter the main menus; + and – to toggle through menus and adjust
values up or down; and SET to select submenus or conrm and save your changes. You can also
wait one minute for the system to reset to standby (“--”) without saving changes.
Basic Setting Menu
Electronic locks cannot be used when the OH value is set to 0, 1, or 2 seconds.
Submenu Name Options
NE
Operational Mode
SA
Use this setting for standard operation without autoclosure
PE
Activates automatic gate closure
HO
Activates automatic gate closure and only responds to
one remote at a time (for commercial and large residential
units)
oc
Use this setting for standard xed 3 button control systems
oA
Use this setting for 3 button systems with automatic closure
SP
Gate Mode
ON
Use this setting for 2-leaf gates with twin operators
OF
Use this setting for single gates with a single operator
OH
Gate Open Delay
##
Automatically delays opening the gate after a signal is
received for this number of seconds (3 sec. default)
CH
Gate Close Delay
##
Automatically closes the gate from a fully open position
after this number of seconds (15 sec. default) if activated
RE
Remote Settings
PO
Uses standard cyclical operation from a single button
Pd
Uses four separate buttons for opening, closing, stopping,
and opening the master side only on a 2-leaf gate
SE
Opens only the master side of a 2-leaf gate
rE
Deletes a saved remote (see above)
LC
Energy Saving Mode
ON
Reduces power consumption after more than 1 minute
without use but causes a slightly slower response time
OF
Uses standard operation
20
Advanced Setting Menu
Submenu Name Options
rL
Resistance Limit Time
r1
Sets the time in seconds that the master operator will slow
at each end of its movement
r2
Sets the time in seconds that the secondary operator will
slow at each end of its movement
L1
Adds a value in 1/100ths of a second to the r1 value for
ne tuning the master operator’s movement
L2
Adds a value in 1/100ths of a second to the r2 value for
ne tuning the secondary operator’s movement
PH
Infrared Mode
NO
If an infrared sensor is attached to the system, use this
setting for those that use a normally open signal
NC
Use this setting with any infrared sensors that use a
normally closed signal
EL
Electric Lock Mode
NO
If an electronic lock is attached to the system, use this
setting for those that use a normally open signal
NC
Use this setting with any electric locks that use a normally
closed signal
Oc
Lock Pushback
NO
Opens the gate directly
YS
Pushes outward when rst opening, used to prevent
catching on some delayed electric locks
PA
Alarm Light Mode
NO
If an alarm light is attached to the system, it will stay on
continuously when the gate is in motion
FL
Any alarm light will ash on and o when the gate is in
motion
LP
Limit Mode
RS
Processes the open and close limits based on stored
values and resistance detection
LS
Processes the open and close limits based on stored
values and magnetic detection from the Hall sensors
Nd
Gate Type
00
Use this setting for extremely heavy gates that respond
poorly even with the POWER adjustment knob is at its
maximum
01
Use this setting for standard gates
02
Use this setting for better operation with extremely small or
light gates (under 110 lb. or 50 kg)
dr
Gate Direction
IN
Use this setting for pull-to-open gates
OU
Use this setting for push-to-open gates
bE
Alarm Buzzer
YS
Sounds an alarm when the gate moves or an error occurs
NO
Disables the alarm (Note that such an audible alarm may
be required for automatic gates in your area)
FP
Parameter Reset
OF
Exits without changes
ON
Removes all stored information, requiring setup to be
repeated
21
Maintenance
Troubleshooting
• Always supervise children and pets near the gate, the operators, and their controls to prevent
accidents.
• Always fully disconnect the control box from its power supply before removing its cover or
making any adjustments to its wiring, except as specically directed elsewhere in this manual.
Use trained and licensed electricians for rewiring or electrical repair work.
• Keep your gate and its hinges clean and free of any corrosion, grime, or obstructions.
• Lubricate hinges as needed and, in climates where temperatures reach 34°F (1°C) or lower,
spray silicone on the operator piston(s) every 4–6 weeks to prevent freezing.
• If your gate is not in regular use, test your gate opener’s operation at least once a month. If
any problems are noticed during testing or normal use, disconnect the control box from power,
unlock the operator(s), and test manually that the gate still moves smoothly on its own. Tighten,
repair, or replace problematic parts as needed. Only use identical components and always fully
replace damaged or malfunctioning electrical cables.
Possible Problems Typical Solution(s)
The gate does not open or
close normally and the digital
display does not activate on
the circuit board.
Verify that the power supply if functioning properly.
Check that the fuse is not blown. If necessary, replace it with an
identical 10A 250V fuse.
Have a certied electrician rewire your system.
Operator 1 or 2 is blocked
from opening (errors “E1”
or “E2”) or closing (“E3” or
“E4”).
Remove any obstacles that might be in the gate’s path.
Decrease the gate’s obstruction sensitivity with the FORCE knob.
Increase the gate’s deceleration distance with the SLOW DOWN
knob.
No infrared signal is detected
by the circuit board (“E5”).
Remove anything that might be in the sensors’ path.
Check all wiring for any damage or poor connections.
If there is no IR system, replace the short wire between the PH
and COM pins on the X5 terminal.
The master operator closes
long before the secondary
operator (“E6”).
Adjust the open delay (“OH”) settings to see if the situation
resolves.
Check all wiring for any damage or poor connections.
Repeat the steps in Initial Testing above, teaching the system
about its route again.
The motor overheats or the
system misunderstands the
operator(s) as overheated
(“E7”).
Wait for the operator(s) to cool before resuming operation.
Repeat the steps in Initial Testing above, teaching the system
about its route again.
Have a certied electrician check the Hall sensors and repair or
replace as needed.
22
Contact Us
Thank you for choosing our products! If you have any questions or comments,
contact us at contact@b2csupportpro.com and we'll resolve your issue ASAP!
For a .pdf copy of the latest version of these instructions, use the appropriate
app on your smartphone to scan the QR code to the right.
Disposal
Electrical products should not be disposed of with household products. In the
EU and UK, according to the European Directive 2012/19/EU for the disposal
of electrical and electronic equipment and its implementation in national laws,
used electrical products must be collected separately and disposed of at the
collection points provided for this purpose. Locations in Australia, Canada,
and the United States may have similar regulations. Contact your local
authorities or dealer for disposal and recycling advice.
Possible Problems Typical Solution(s)
The system does not have
or has forgotten its route
information (“E8”).
Repeat the steps in Initial Testing above, teaching the system
about its route again. (Remember that this is necessary after any
adjustment of the SPEED knob.)
The gate opens but does not
close.
If an IR system is installed, correct any problems it might have. If
there is no IR system, replace the wire shorting the IR pins.
Decrease the gate’s obstruction sensitivity with the FORCE knob.
The gate does not respond
to commands from a remote.
Repeat the remote pairing process.
Remove any obstructions between the remote and the control
box.
Replace the remote’s battery.
Check that the receiver antenna is wired to the ANT pin.
The gate does not move
even though the control box
and operator(s) function
normally.
Lubricate or repair the gate’s hinges. (Again, ball bearing hinges
are highly recommended for any large gates.)
Check that all components and xtures remain level, xing as
needed.
The gate suddenly stops or
reverses when moving.
Remove any obstacles that might be in the gate’s path.
Check any IR sensors and wiring, adjusting as necessary.
Decrease the gate’s obstruction sensitivity with the FORCE knob.
SGO-D660-00
SGO-S660-00
Rev. 31 Aug. 2023
