BG-EXH-8K100U
8K60/4K120 48Gbps HDMI 2.1 Extender Kit over CAT5E/6/7
with USB 2.0/Bi-Directional IR/PoC/RS-232
and Audio De-Embedding up to 328ft
User Manual
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Supported Input / Output Resolutions 8
Operation Controls and Functions 9
IR Pin Definition 11
Connection Diagram 12
Troubleshooting 13
Tech Support 14
Limited Product Warranty Terms 14
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Introduction
The BG-EXH-8K100U is a high-performance HDMI™ 2.1 HDBaseT extender
designed to transmit ultra-high-definition video, audio, control signals, and USB 2.0
over a single CAT5e/6 cable up to 100 meters (328ft). Supporting bandwidths up to
48Gbps FRL and 18Gbps TMDS, it enables video resolutions up to 8K@60Hz (4:2:0
12-bit) as well as high-refresh formats such as 4K@144Hz, while maintaining full
compatibility with modern HDMI™ 2.1 features including VRR, ALLM, QMS, QFT,
and SBTM. The system also supports HDR formats such as HDR10, HDR10+,
Dolby Vision, and HLG, ensuring full dynamic range performance across
professional AV environments.
In addition to video extension, the BG-EXH-8K100U integrates USB 2.0 extension,
bi-directional IR, RS-232 pass-through, and CEC control for complete system
management from either end of the link. Advanced EDID management (COPY TV /
STD) ensures optimal handshake and compatibility across varied source and display
devices, while bi-directional PoC allows the system to be powered from either
transmitter or receiver end for simplified installation. With support for audio
de-embedding on the receiver and a full suite of lossless audio formats including
Dolby Atmos and DTS:X, this extender is engineered for demanding applications
such as conference rooms, control centers, digital signage, and high-end
multimedia distribution.
Features
● HDMI™ 2.1 Ultra-High Bandwidth Transmission: Supports up to 48Gbps FRL and
18Gbps TMDS for full-featured 8K video and advanced HDMI™ 2.1 functionality.
● 8K60 Video Support over HDBaseT: Transmits resolutions up to 8K@60Hz (4:2:0
12-bit) and up to 4K@144Hz over a single CAT5e/6 cable.
● 100m Long-Distance Extension: Extends HDMI™, USB, IR, and control signals up
to 100 meters (328ft) over HDBaseT.
● USB 2.0 Extension Support: Enables USB peripheral extension such as cameras,
keyboards, mice, and storage devices between TX and RX.
● Bi-directional IR Transmission: Supports full IR pass-through for remote control of
source or display devices from either end.
● RS-232 Control Pass-Through: Provides serial control extension for integration with
automation and control systems.
● CEC Pass-Through Support: Allows HDMI™ CEC commands for simplified device
control across connected equipment.
● Advanced EDID Management: Includes COPY TV and STD EDID modes for
optimized compatibility with source and display devices.
● HDR Format Compatibility: Supports HDR10, HDR10+, Dolby Vision, and HLG for
enhanced dynamic range and color accuracy.
● High-Fidelity Audio Support: Passes advanced audio formats including Dolby
Atmos, DTS:X, and full HD audio codecs.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
● Audio De-Embedding (Receiver): Extracts analog audio from HDMI™ signal for
connection to external audio systems.
● Bi-directional PoC (Power over Cable): Allows power delivery from either
transmitter or receiver for flexible installation.
● Compact Metal Housing Design: Durable enclosure optimized for rack, wall, or
under-desk installation environments.
Packing List
● 1× 8K60 HDMI™ over HDBaseT Extender
(Transmitter)
● 1× 8K60 HDMI™ over HDBaseT Extender
(Receiver)
● 1× 24V/1A Locking Power Supply
● 1× USB Cable (USB-A to USB-B)
● 1× IR Blaster Cable (1.5m)
● 1× IR Wideband Receiver Cable (1.5m)
● 2× 3-pin 3.5mm Phoenix Connectors
● 4× Mounting Ears (Rack/Wall Installation)
● 8× Machine Screws (KM3×6)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Specifications
TECHNICAL
HDMI™ Compliance
HDMI™ 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps FRL / 18Gbps TMDS
Max Video Resolution
Up to 8K@60Hz (4:2:0 12-bit)
High Refresh Support
4K@144Hz,
4K@120Hz,
8K@60Hz
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth
8/10/12-bit
HDR Support
HDR10, HDR10+, Dolby Vision, HLG
HDMI™ Features
VRR, ALLM, QMS, QFT, SBTM
Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX,
DTS-96/24, DTS-HD Master Audio, DTS:X
CEC Support
Yes (pass-through)
EDID Management
COPY TV / STD modes
CONNECTIONS
Transmitter Inputs
1× HDMI™ Type-A, 1× USB-B (Host), 1× IR IN, 1× IR OUT, 1× RS-232, 1×
USB-C (Service)
Transmitter Output
1× HDBaseT (RJ45)
Receiver Input
1× HDBaseT (RJ45)
Receiver Outputs
1× HDMI™ Type-A, 1× Audio Out (3.5mm), 4× USB-A (USB 2.0 Device)
Receiver Control Ports
1× IR IN, 1× IR OUT, 1× RS-232, 1× USB-C (Service)
USB Support
USB 2.0 extension (Host/Device)
IR Support
Bi-directional IR (20–60kHz)
RS-232 Control
3-pin Phoenix connector (bi-directional)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
MECHANICAL
Housing
Metal enclosure
Dimensions (W × D × H)
6.2in × 3.5in × 0.79in [157mm × 88mm × 20mm]
Weight
TX: 0.82lb [371g] / RX: 0.83lb [378g]
Power Supply
DC 24V/1A locking adapter
Power Consumption
21.2W (PoC operation)
Operating Temperature
32°F to 104°F / 0°C to 40°C
Storage Temperature
-4°F to 140°F / -20°C to 60°C
Operating Humidity
20%–80% RH (non-condensing)
Storage Humidity
10%–90% RH (non-condensing)
ESD Protection
IEC 61000-4-2: ±8kV air, ±4kV contact
Supported Input / Output Resolutions
Resolution Type
Supported Formats
SD / VESA PC
640×480p60, 800×600p60, 1024×768p60, 1280×1024p60,
1360×768p60, 1440×900p60, 1440×1050p60, 1600×1200p60
SD Video (Interlaced &
Progressive)
720×480i59.94, 720×480p59.94, 720×576i50, 720×576p50
HD (720p)
1280×720p50, 1280×720p59.94, 1280×720p60
Full HD (1080i)
1920×1080i50, 1920×1080i59.94, 1920×1080i60
Full HD (1080p)
1920×1080p23.98, 1920×1080p24, 1920×1080p25, 1920×1080p29.97,
1920×1080p30, 1920×1080p50, 1920×1080p59.94, 1920×1080p60
4K UHD (3840×2160)
3840×2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 120, 144
4K DCI (4096×2160)
4096×2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 120, 144
Ultra-Wide (5K)
5120×2160p50, 5120×2160p60
8K UHD
7680×4320p23.98, 24, 25, 29.97, 30, 50, 60
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

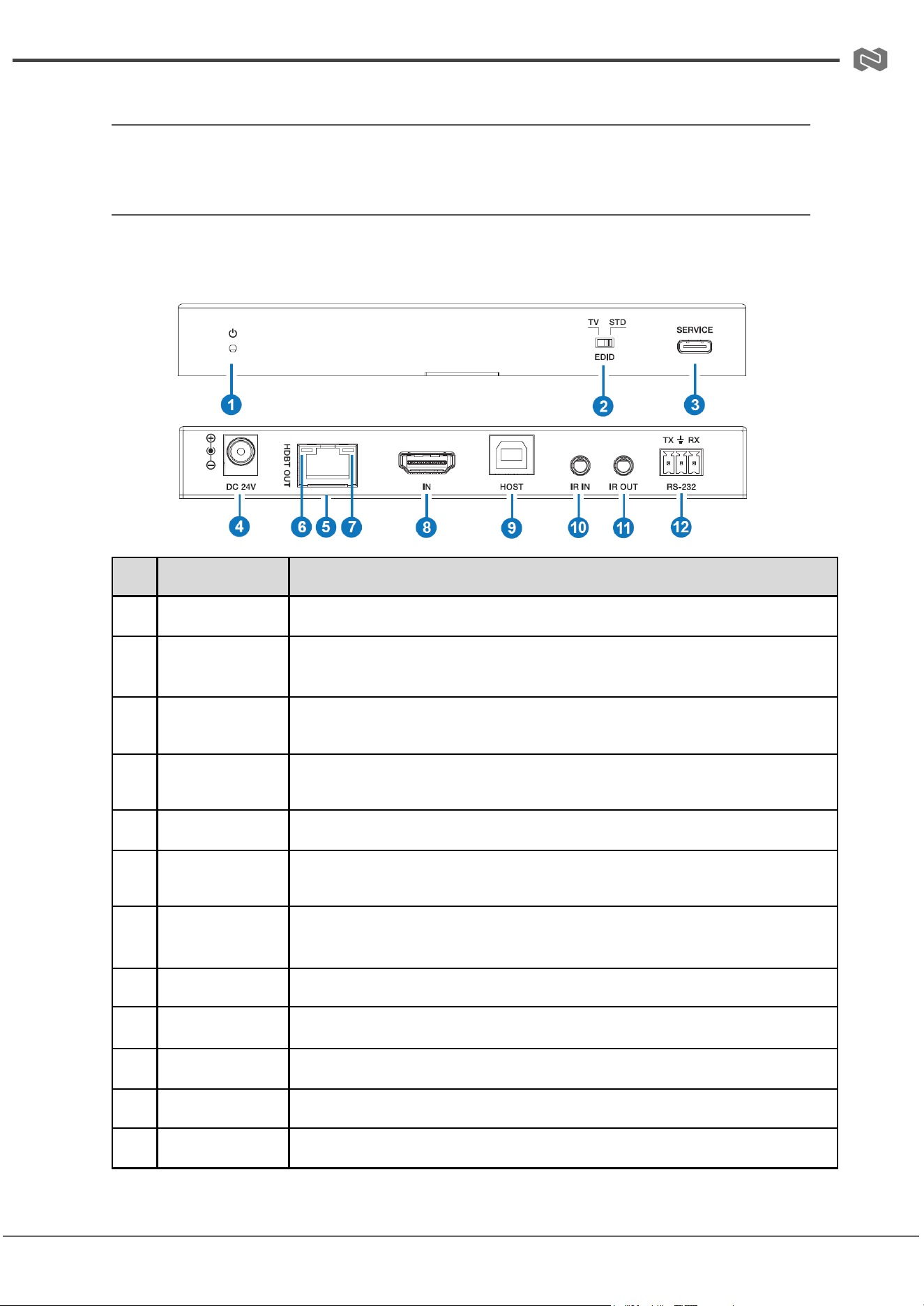

Transmitter Panel
No.
Name
Function Description
1
PWR LED
Green LED illuminates when the transmitter is powered on.
2
EDID DIP Switch
Selects EDID mode: TV (COPY) copies EDID from the connected display;
STD uses built-in standard EDID (4K60 4:4:4 SDR 2CH).
3
SERVICE
(USB-C)
Firmware update port for system maintenance and upgrades.
4
DC 24V
Locking 24V/1A power input. Supports PoC operation (powering RX from TX
or vice versa).
5
HDBT OUT
HDBaseT output (RJ45) connection to receiver unit.
6
LINK LED
(Green)
ON: TX and RX are linked. OFF: No HDBaseT link.
7
DATA LED
(Yellow)
ON: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. OFF: No
HDMI signal.
8
HDMI IN
HDMI™ input from source device.
9
HOST (USB-B)
USB host connection to PC for USB 2.0 extension.
10
IR IN
Connects IR receiver cable for sending IR to receiver side IR OUT.
11
IR OUT
Connects IR blaster cable for receiving IR from receiver IR IN.
12
RS-232
3-pin Phoenix connector for serial control pass-through.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL

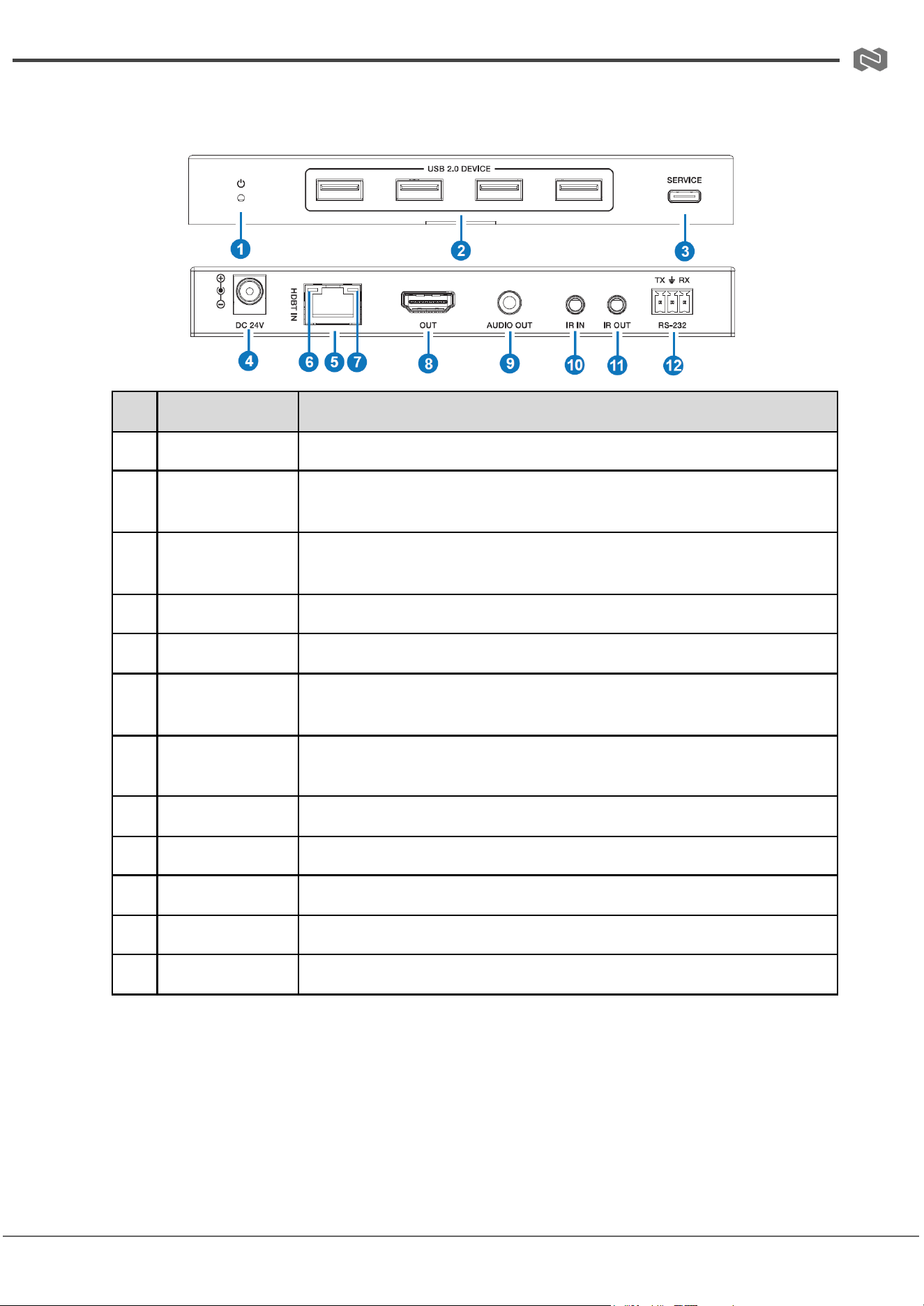

Receiver Panel
No.
Name
Function Description
1
PWR LED
Green LED illuminates when the receiver is powered on.
2
USB 2.0 DEVICE
USB-A ports for peripherals such as keyboard, mouse, flash drives, and
cameras (5V/500mA per port).
3
SERVICE
(USB-C)
Firmware update port for system maintenance and upgrades.
4
DC 24V
Locking 24V/1A power input. Supports PoC operation.
5
HDBT IN
HDBaseT input (RJ45) connection from transmitter unit.
6
LINK LED (Green)
ON: TX and RX are linked. OFF: No HDBaseT link.
7
DATA LED
(Yellow)
ON: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. OFF:
No HDMI signal.
8
HDMI OUT
HDMI™ output to display device (monitor/TV/projector).
9
AUDIO OUT
Analog audio de-embedding output (3.5mm).
10
IR IN
Connects IR receiver cable for sending IR to transmitter side IR OUT.
11
IR OUT
Connects IR blaster cable for receiving IR from transmitter IR IN.
12
RS-232
3-pin Phoenix connector for serial control pass-through.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL

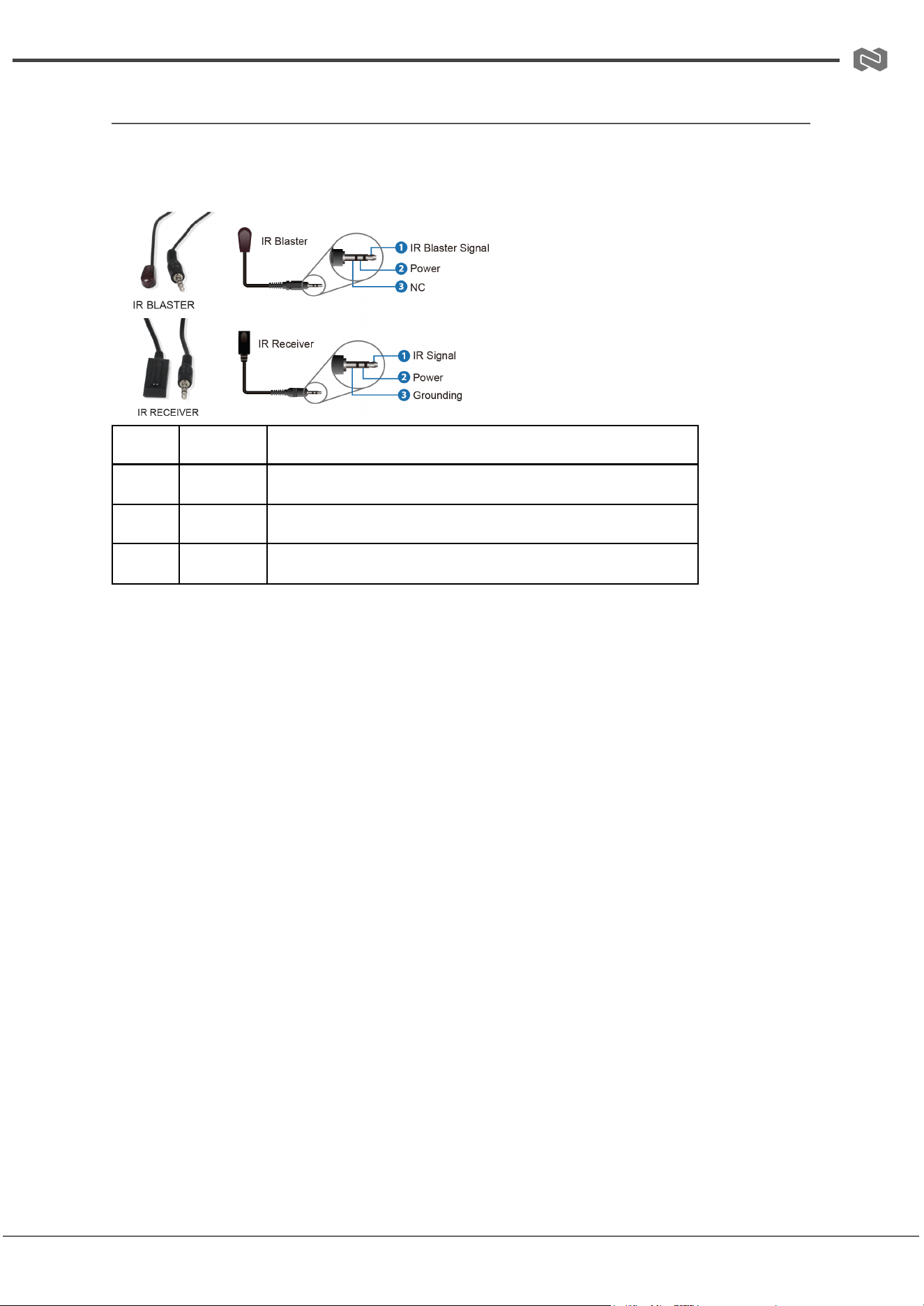

IR Pin Definition
The IR receiver and IR blaster cables use a standard 3.5mm connection with the following
pin configuration:
Pin
Signal
Function Description
Tip
IR Signal
Carries the modulated IR signal (20–60kHz wideband).
Ring
+5V
Provides power for active IR receiver modules.
Sleeve
GND
Ground reference for IR signal and power return.
IR Operating Notes
● IR transmission supports wideband frequencies from 20kHz to 60kHz for
compatibility with most consumer and professional remote controls.
● The system supports bi-directional IR pass-through, allowing control of source or
display devices from either transmitter or receiver side.
● Optimal IR reception distance is dependent on angle:
○ 0–5 meters at approximately 45° angle
○ 0–8 meters at approximately 90° angle
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL

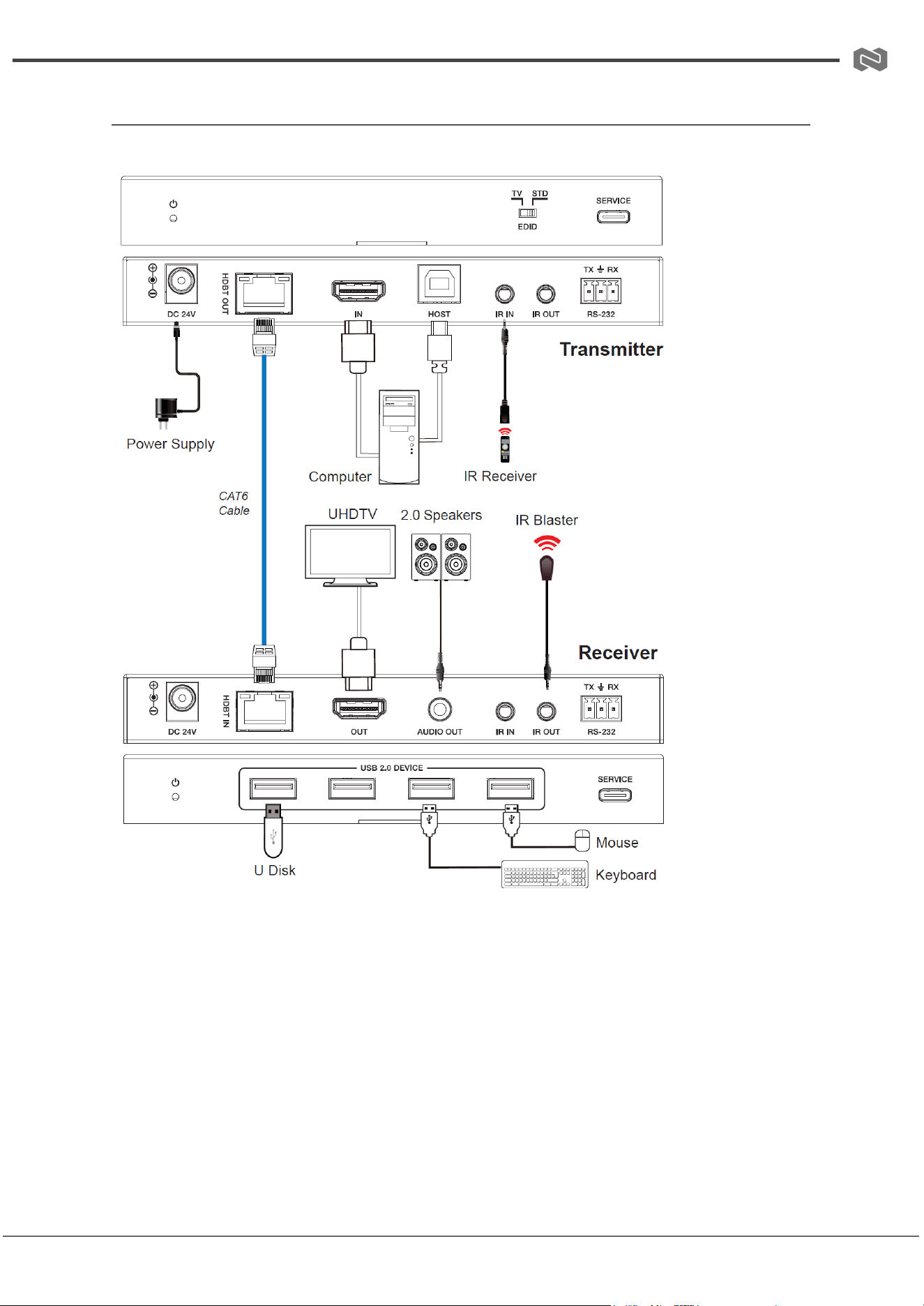

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-EXH-8K100U PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
