Mammotion YUKA 3000 Robot Lawn Mower

USER MANUAL

YUKA 1000/2000/3000

Original Instructions Version 5.0

2025.06

Thank you for choosing Mammotion as your garden care lawn mower. This user manual will help you learn

and operate Mammotion YUKA, a perimeter-free lawn mower, to cut grass and maintain your lawn.

This manual is copyrighted by Mammotion company. Without the written permission of the company, any

unit or individual shall not copy, modify, reproduce, transcribe or transmit in any way or for any reason.

This manual is subject to change without notice at any time.

i

2 Introduction .........................................................................................................................................- 5 -

3 Installation .........................................................................................................................................- 20 -

5 Maintenance ...................................................................................................................................... - 84 -

8 Compliance ........................................................................................................................................- 99 -

9 Simplified EU Declaration of Conformity ......................................................................................... - 101 -

 Carefully read and understand the user manual before using the robot.

 Only individuals who are legally considered adults in their state of residence are recommended to use

 Only use the equipment recommended by Mammotion with the robot. Any other usage is incorrect.

 Never allow children, persons with reduced physical, sensory or mental capabilities or lack of

 Avoid using the robot when there are people, especially children or animals, in the task area.

 If operating the robot in public areas, place warning signs around the task area with the following text:

 Wear sturdy footwear and long trousers when operating the robot.

 To prevent damage to the robot and accidents involving vehicles and individuals, do not set task

 Seek medical aid in case of injury or accidents.

 Set the robot to OFF and remove the security key before clearing blockages, performing maintenance,

- 2 -

 Do not connect or touch a damaged cable until it is disconnected from the power outlet. If the cable

 Do not place cables in areas where the robot will cut.

 Only use the charging station included in the package to charge the robot. Incorrect use may result in

 Keep your hands and feet away from the rotating blades. Do not place your hands or feet near or

- 3 -

 Do not lift or move the product when it is turned on.

 Ensure that there are no objects such as stones, branches, tools, or toys on the lawn. Otherwise, the

 Do not put objects on top of the product, charging station or RTK reference station.

 Do not use the product if the STOP button is not functioning.

 Avoid collisions between the product and people or animals. If a person or animal comes in the path

 Always power off the robot when it is not in operation.

 Do not reverse the robot to wash the bottom. If you do reverse it for cleaning purposes, make sure to

- 4 -

Lithium-ion batteries can explode or cause a fire if disassembled, short-circuited, or exposed to water,

fire, or high temperatures. Handle them with care, do not dismantle or open the battery, and avoid any

form of electrical/mechanical abuse. Store them away from direct sunlight.

 Only use the battery charger and power supply provided by the Manufacturer. The use of an

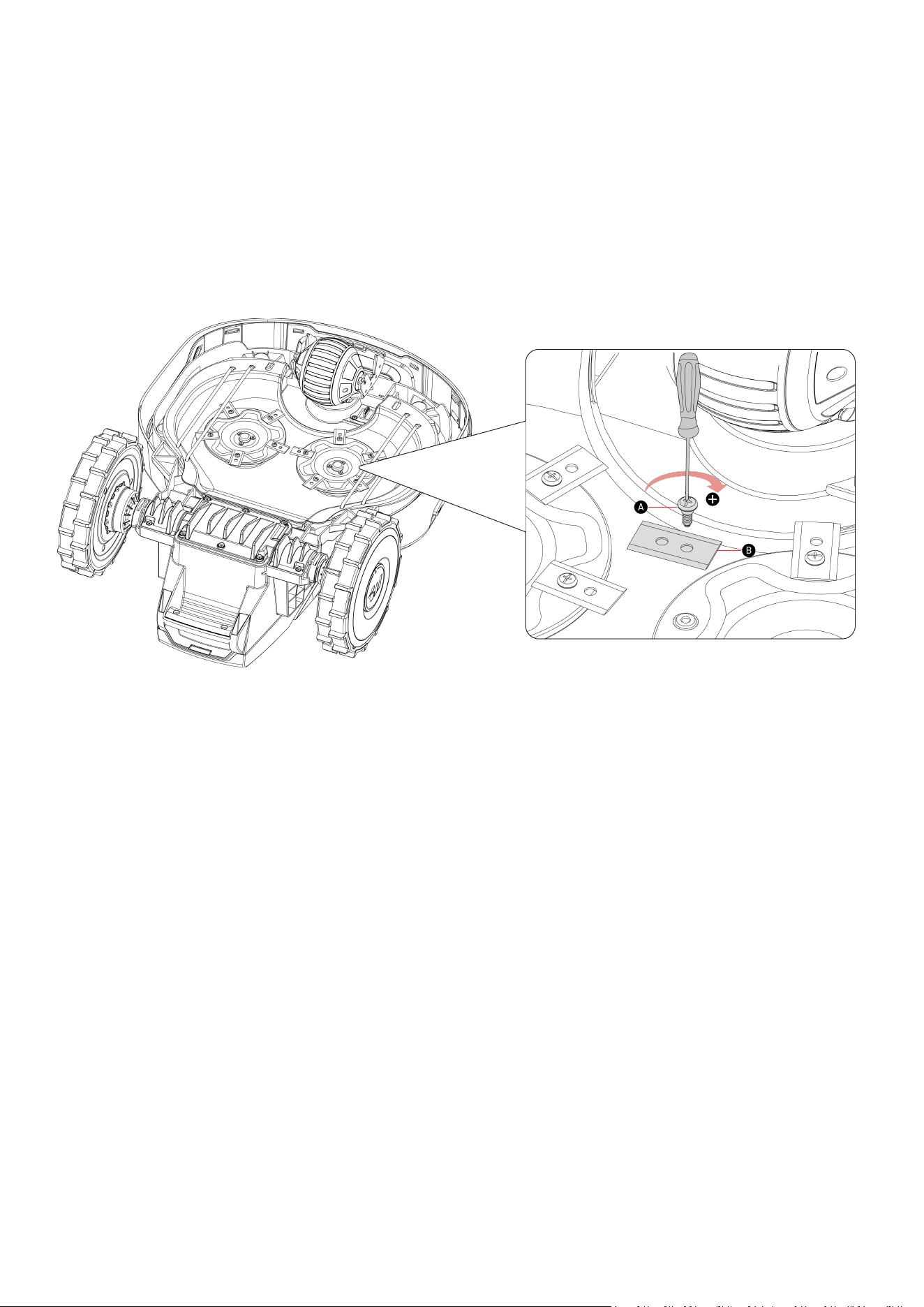

To avoid injuries, wear protective gloves when replacing the blades.

Mammotion robots are designed for residential lawn care and are not intended for commercial use.

Dispose of this product in compliance with local electronic waste (WEEE) regulations. Do not dispose of it

with regular household waste. Instead, bring it to an authorized recycling center or collection point to

ensure safe handling and environmentally responsible disposal of electronic components.

- 5 -

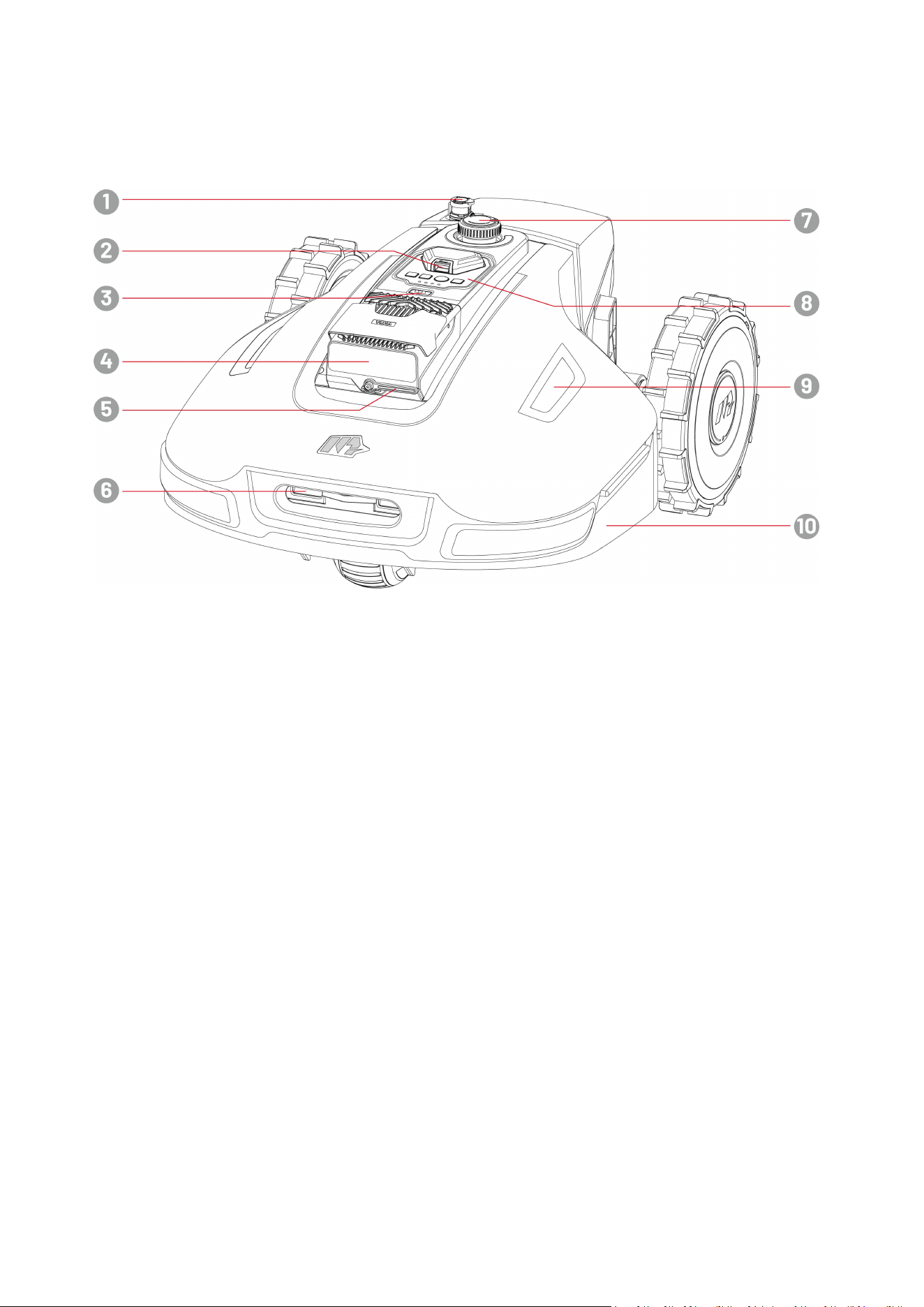

The YUKA Series Perimeter Wire Free Robot Lawn Mower, known as YUKA, boasts dual cutting discs for

efficient mowing. It utilizes floating cutting discs to ensure precise cuts across diverse terrains and

features a U-shape bumper for improved maneuverability and protection.

YUKA is equipped with a vision module that provides vision positioning, vision obstacle detection, and

FPV mode.

 Vision positioning helps to guarantee positioning accuracy when RTK positioning fails due to poor

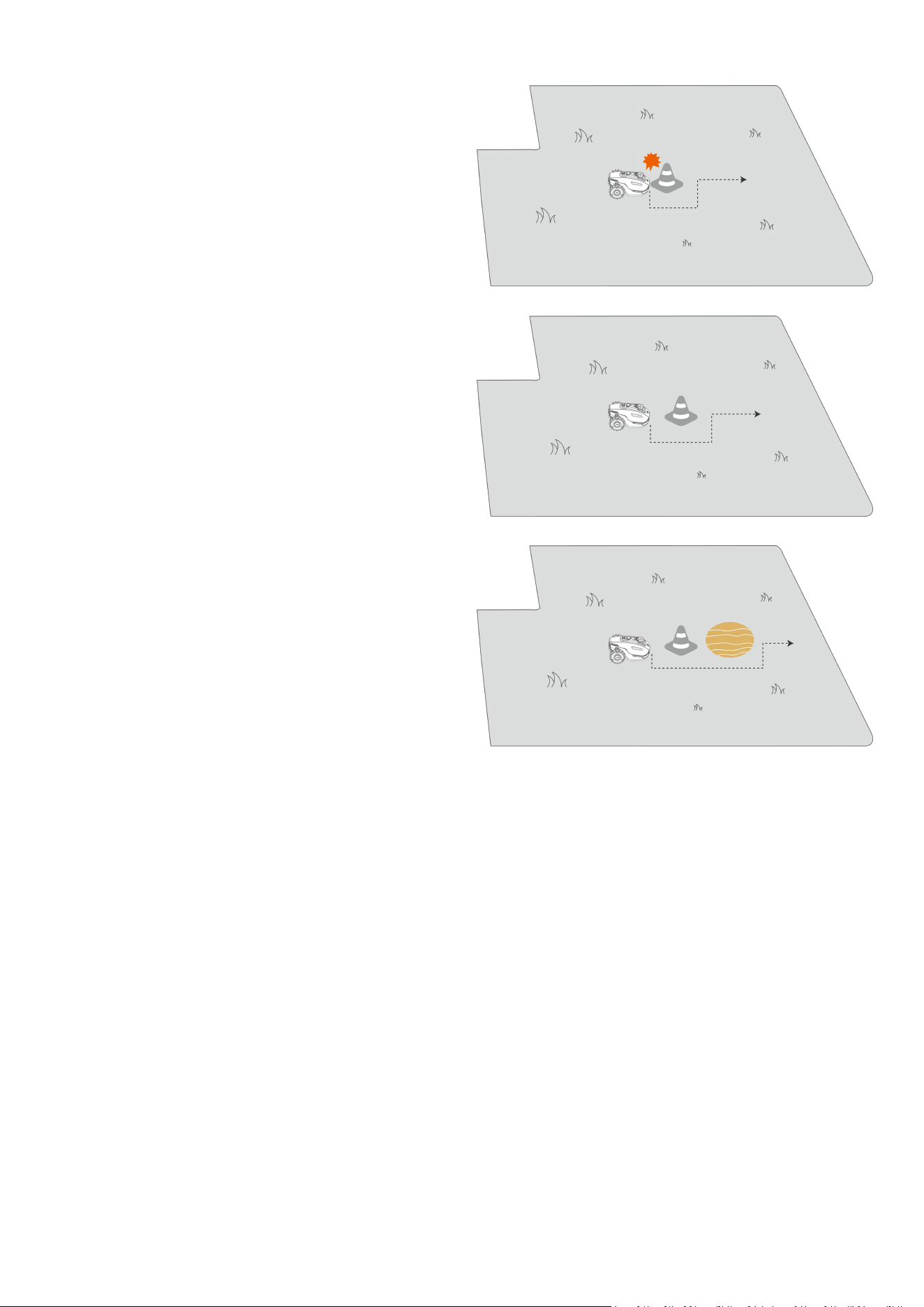

 Vision obstacle detection identifies obstacles in the front.

 FPV mode can be used for monitoring as a security camera.

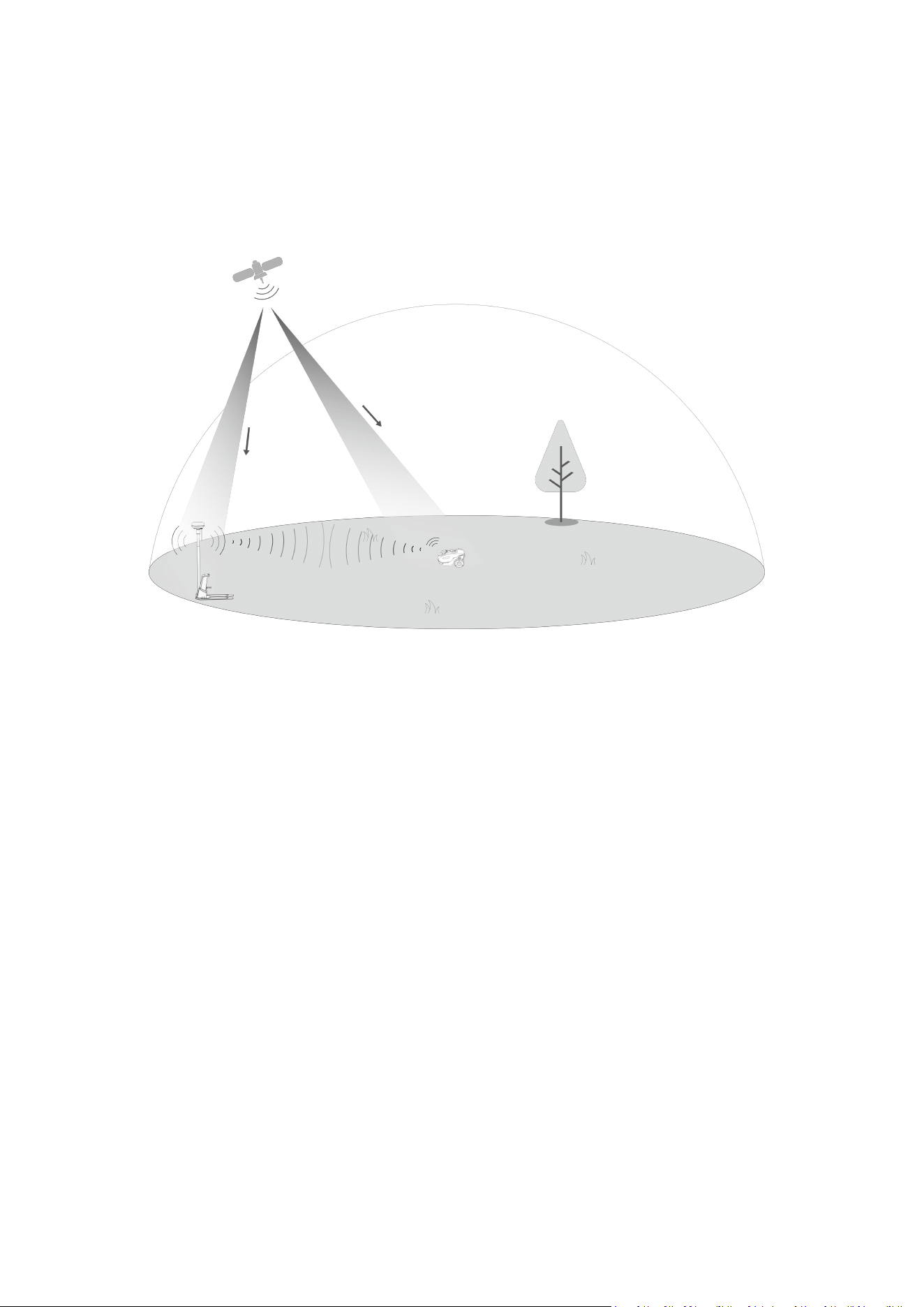

YUKA is built in an RTK (real-time kinematic) navigation system, a multi-sensor integrated navigation

system, and a vision positioning system, which provide more accurate positioning data.

- 12 -

- 13 -

- 14 -

- 15 -

Ensure the parts can be found in the package according to your order. If any parts are missing or

damaged, contact your local dealer or our after-sales support. Mammotion recommends you keep the

package box and foam inserts for future use.

- 16 -

- 17 -

satellite signal reception.

Lawn Sweeper Kit

- 18 -

These symbols can be found on the product. Study them carefully.

- 19 -

- 20 -

To optimize the performance of the RTK system, the RTK reference station must be in an open area to

receive satellite signals. You can install the RTK reference station on flat, open ground or on an

unobstructed wall or roof. In general, if your lawn is L-shaped (A), you can place the RTK reference station

on a wall or roof or on the ground; if your lawn is O-shaped (C) or U-shaped (B), or if you have multiple

lawns (D), we recommend that you place the RTK reference station on a wall or roof.

- 21 -

The location requirements are as follows:

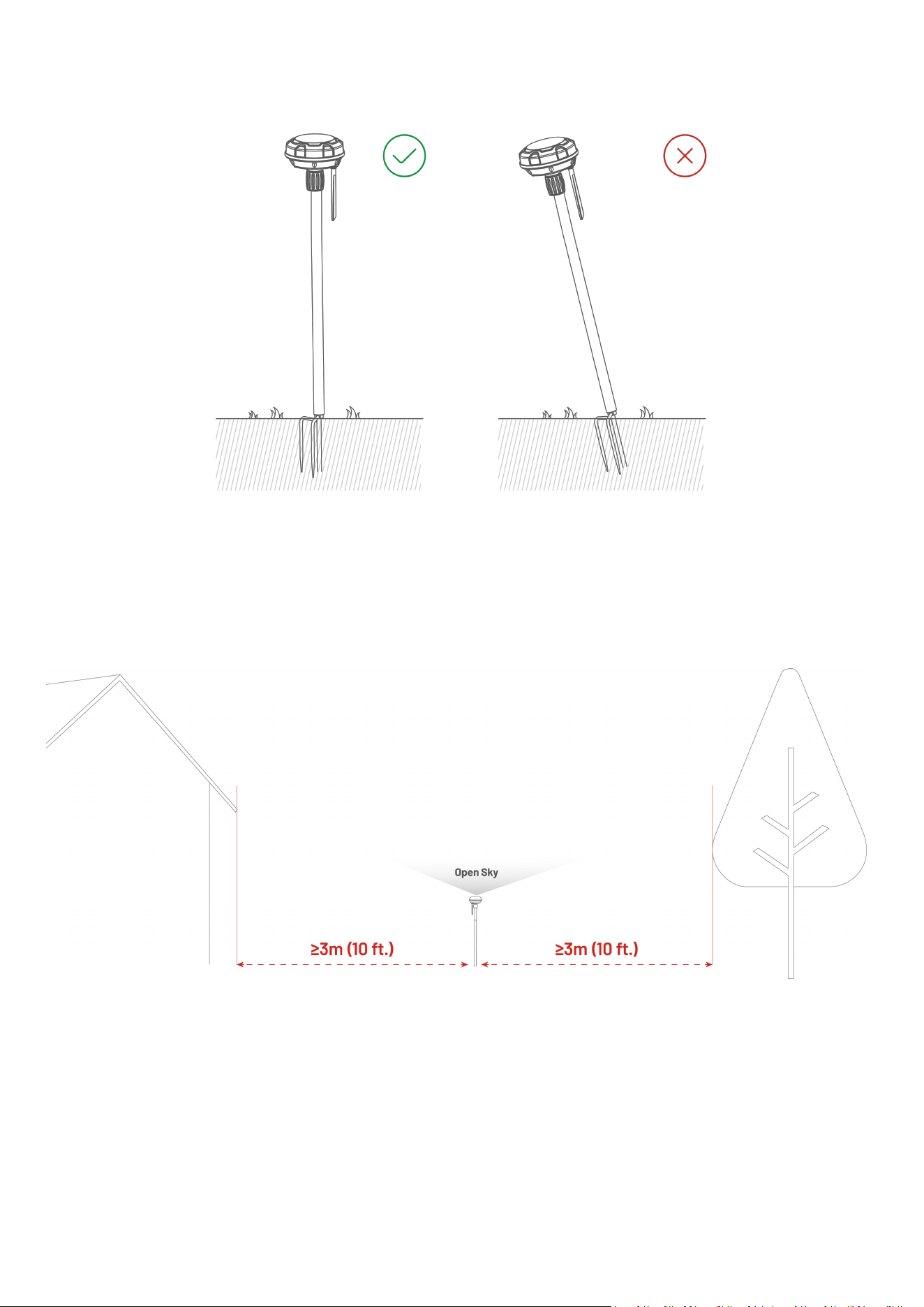

 The RTK reference station should be oriented vertically, as shown below:

 Place the RTK reference station on a flat, open ground or on an unobstructed wall or roof. Make sure

 Maintain a distance of at least 3 meters (10 feet) between the RTK reference station and any wall or

- 28 -

- 29 -

- 30 -

- 31 -

- 32 -

 Read and understand safety instructions before operation.

The robot is designed to work with the Mammotion app, please download the free Mammotion app first.

You can scan the QR code below to get it from the Android or Apple app stores, or search for Mammotion

in these stores.

After installing the app, please sign up and log in. During use, the app may ask you for Bluetooth, Location,

and local network access when necessary. For optimal use, it is recommended to allow the above access.

For more information, please refer to our Privacy Agreement. Go to Mammotion app > Me > About

Mammotion > Privacy Agreement.

If you want to log in with a third-party account, tap or on the login page to continue. Mammotion

app now supports logging in with Google and Apple accounts.

- 33 -

2. Select Add.

3. Follow the onscreen guidelines to set up the device.

5. Follow the onscreen instructions to activate the built-in SIM card.

- 34 -

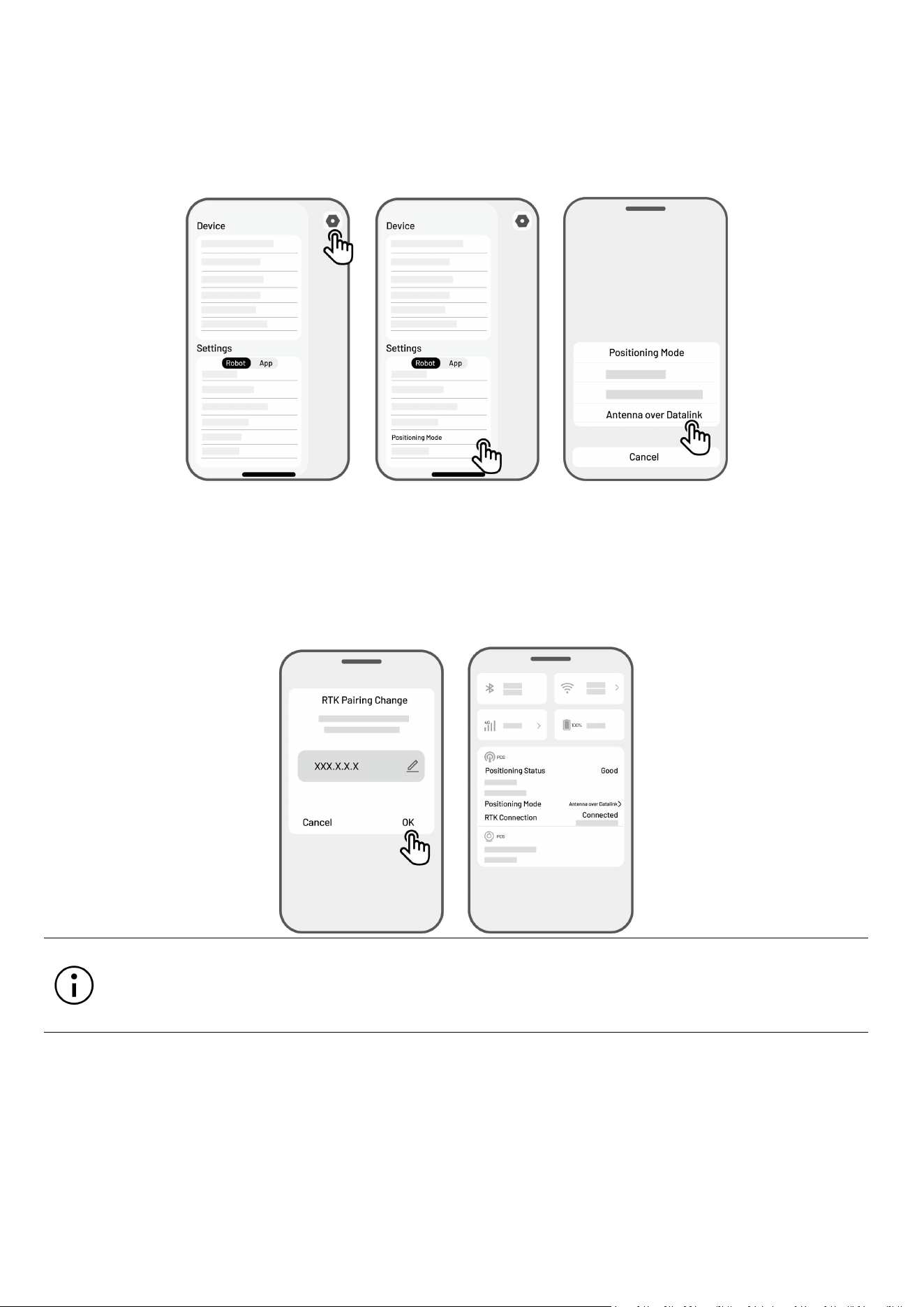

1. Tap Settings > Positioning Mode > Antenna over Datalink.

2. Enter the new LoRa number. The LoRa number is indicated on the nameplate of the RTK reference

station. Tap OK to proceed.

3. Verify that the LoRa number matches the one on the nameplate and the RTK Connection shows

‘Connected’. Your setup is now successful.

- 35 -

If you didn't activate the SIM card during the device binding process, you can do so by tapping the Status

Bar on the Home page:

1. Tap the Status Bar on the Home page.

2. Tap the 4G status button.

3. Tap Activate and wait for the activation to complete successfully.

- 36 -

Before mapping, it is important to be aware of key considerations.

 Remove debris, piles of leaves, toys, wires, stones, and other obstacles from the lawn. Make sure no

- 37 -

- 44 -

- 45 -

- 46 -

- 47 -

of a hole, or weak positioning signals, you can adjust the mapped area without needing to delete it entirely.
