TIRE RACK
MODEL:TC0510NW, TC0510
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL: TC0510NW, TC0510
<Picture Only For Reference >
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TIRE RACK
- 2 -
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating
or servicing this product. Failure to follow these warnings and
instructions can cause personal injury or damage to valuable property.
• Avoid children using the product. And this product is not a toy. Do not allow
children to play.
SETUP PRECAUTIONS
1. Assemble only according to these instructions. Improper assembly can create
hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or
medication.
6. Keep away from sharp points,blades and other items.
7. For additional information regarding the parts listed in the following pages,
please refer to the Assembly Diagram of this manual. Unwrap and separate all
parts in a clean work area. Please keep small spare parts out of children's reach.
SAVE THESE INSTRUCTIONS
SAFETY AND PRECAUTIONS
WARNING:
Only used to place tires.
This product is intended for indoor installation use only.
- 3 -
SPECIFICATION
Model
TC0510NW
TC0510
Size
L*W*H:
460*460*1090mm
L*W*H:
460*460*1160mm
Caster wheel
Not included
Included
Number of wheels placed
4
4
Part List
No.
Name
QTY
TC0510NW
TC0510
1
Base
1
1
2
Post A
1
1
3
Post B
1
1
4
Supporting foot
4
4
5
Pin
4
4
6
Support ring
4
4
7
screws
4
4
8
Nut
/
4
9
Caster wheel
/
4
10
Tyre marking
/
8
11
Manual
/
1
1
- 4 -
Tire Rack ASSEMBLE

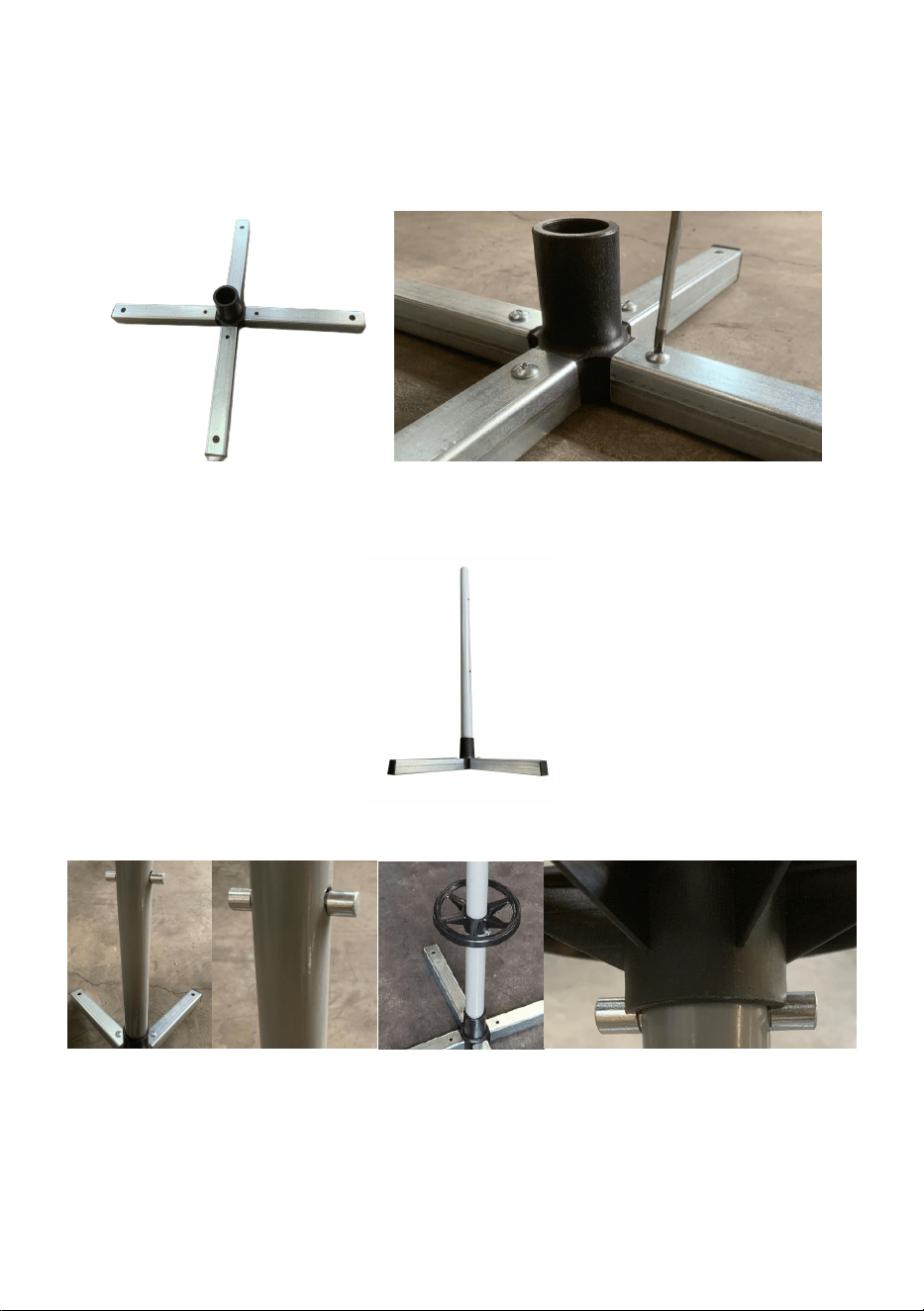

STEP1. Insert the support feet into the base,Then tighten with
screws(No.7)
STEP2. Insert Post B and A.
STEP3. Insert the pin and then insert the Support ring.
- 5 -

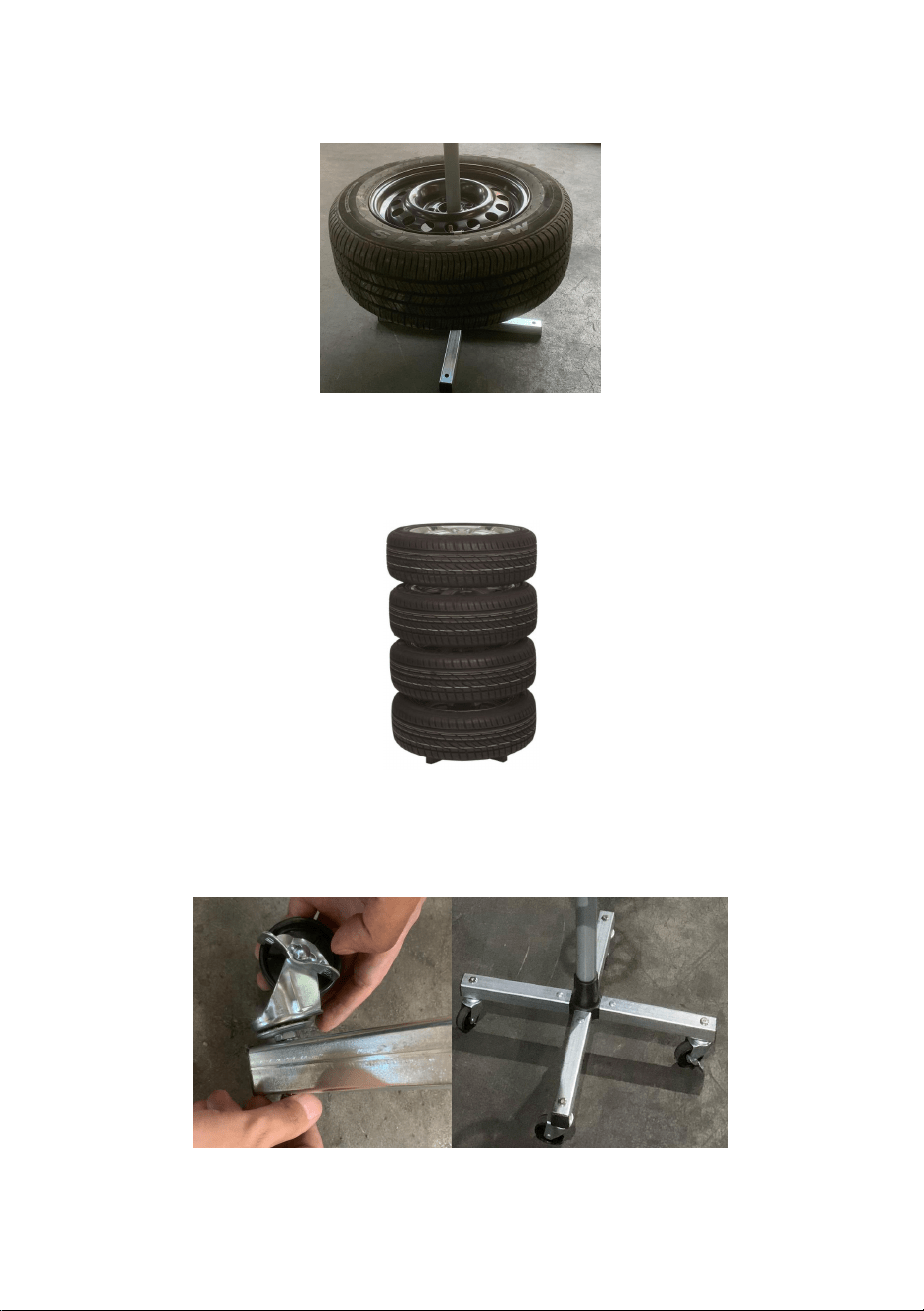

STEP4. Put in the bottom tire with the hub center supported on the support
ring.
Depending on the number of tires you need to place, repeat steps 3,4
to place up to 4 tires.
Caster wheel installation(only for model TC0510)
Insert the caster screw into the Supporting foot mounting hole and screw in
nut (8) to secure.
- 6 -
