Page 1 PUB-00357 Rev A March 03, 2026
FS Cell™ is an 8-key beltpack that works with private LTE systems and connects to an Eclipse
®
-HX
matrix with E-IPA-HX interface card. It is part of the FreeSpeak
®
family of products.
Charging the Beltpack
To remove the battery, open the battery release latch and
push in the direction indicated on the device.
The beltpack uses a rechargeable Li-Ion battery.
A dedicated drop-in battery charger (AC80) can charge up to
four Li-Ion batteries simultaneously.
You can also charge the batteries using a USB C cable to USB
chargers (5 Volts, 1-3 Amps).
Inserting and Removing a Nano SIM Card
The SIM card slot is located under the battery
To access the SIM slot:
1. Remove the battery. The SIM slot is located under the cover.
2. Pull up the SIM Cover.
3. Push the SIM card into the slot until it locks into position.
To remove the SIM card, pull up the cover and push the edge of the SIM card until it gets ejected.
Quick
Start
Guide
FreeSpeak Cell Beltpack
Important! Before use, please verify that the system
firmware is up to date.
Quick Start Guide | FreeSpeak Cell Beltpack)
Page 2 PUB-00357 Rev A (Draft) March 03, 2026
Copyright © 2026 HME Clear-Com Ltd.
All rights reserved.

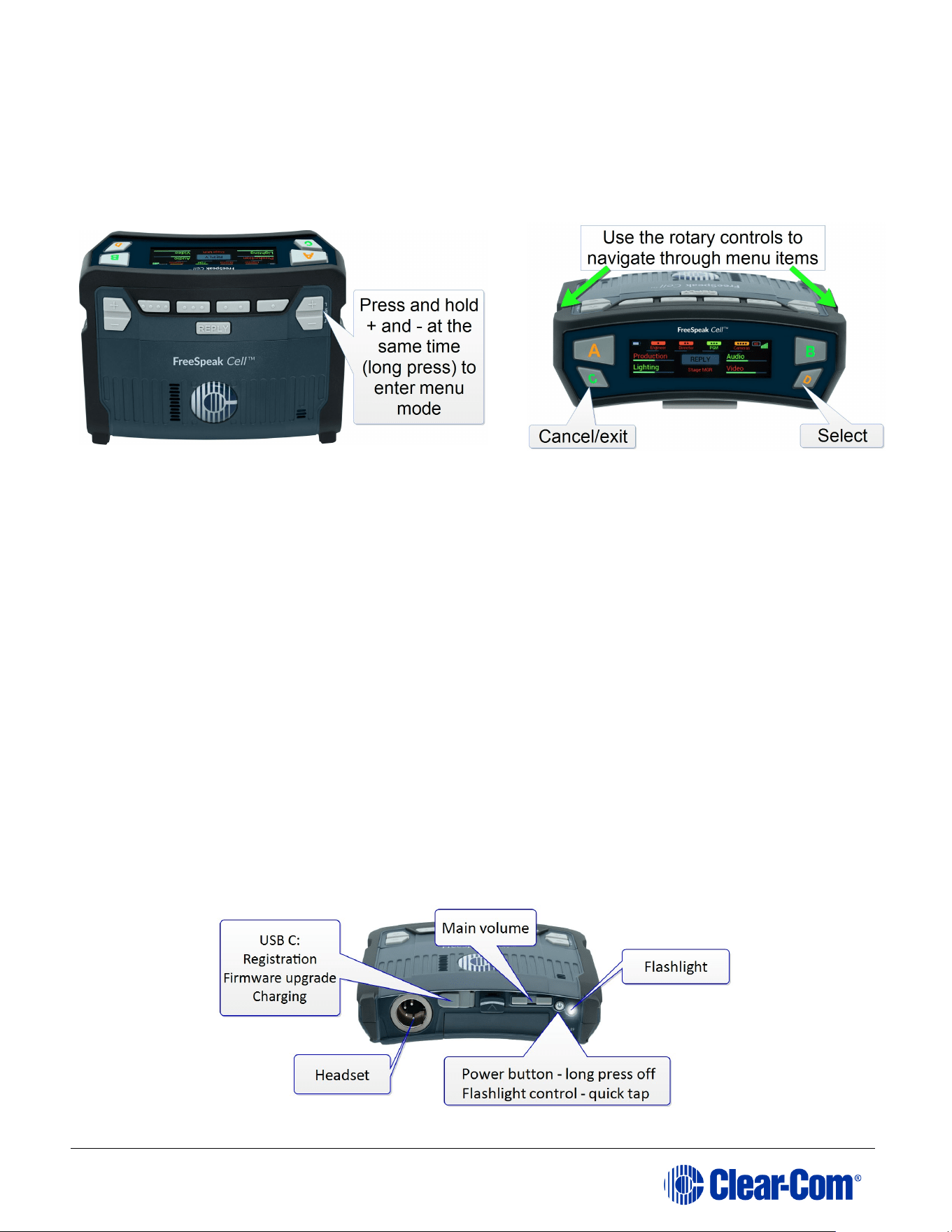

Using the Menu System
• Configure volume and display settings for the beltpack
• Read information, such as software version
• Connect to the system
• Connect to a Bluetooth headset
Registering the Beltpack
Before you use a beltpack, you must register it with the host system using a USB cable.
The beltpack can be powered on either before or after connection.
1. Connect the beltpack to the PC that is hosting the EHX Configuration Software using a USB
cable.
2. Navigate to EHX > Hardware > Beltpacks, and then select Register via USB at the bottom
of the screen.
3. Follow the on-screen instructions.
Connecting the Beltpack
Once the host system is open for registration you can connect the beltpack:
1. On the beltpack, go to Menu > System > System Connect. Available systems are displayed
in the beltpack screen.
2. Select the required system (rotary controllers, then D key)
The beltpack registers to the system and connects. If the beltpack role is not fixed, select a role before
connecting
If your beltpack is already registered to a system you will be asked to confirm a disconnect before
connecting to the required system.
Connectors and Controls
Quick Start Guide | FreeSpeak Cell Beltpack)
Page 3 PUB-00357 Rev A (Draft) March 03, 2026
Copyright © 2026 HME Clear-Com Ltd.
All rights reserved.
Regulatory Information
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference; (2) This device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Industry Canada Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions: (1) This device may not cause interference; (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
FCC/IC/EC RF Exposure Warning
This product complies with FCC/IC/CE radiation exposure limits set forth for an uncontrolled
environment.
The beltpack has been tested to comply with FCC/IC/CE RF Exposure requirements in body worn
position. Use of third-party clips or holsters with the beltpack may not ensure compliance with
FCC/IC/EC RF exposure requirements and should be avoided.
