Product Specification
MKBAL-C25-P AoA Locator
Version 1.1
MKBAL-C25-P
AoA Locator
MOKO TECHNOLOGY LTD.
MKBAL-C25-P AoA Locator Specification V1.1
Revision History
Version
Data
Notes
Contributor(s)
V1.1
July 20, 2023
Initial version
Leo
About document
This product specification was designed to help users to know the hardware overview and basic instructions of
MKBAL-C25-P AoA Locator product. Through this document, users will be initial to understand the application
scenarios, hardware specifications, basic instructions of the product.
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
1
Table of Contents
1. Overview .............................................................................................................................................. 2
2. General specifications ...........................................................................................................................3
2.1 Product Specifications ............................................................................................................................................3
2.2 Mechanical Drawings ............................................................................................................................................ 3
3. Basic instructions ..................................................................................................................................4
3.1 Product instruction .................................................................................................................................................4
3.2 Interface description.............................................................................................................................................. 4
3.3 Installation instruction ...........................................................................................................................................4
3.4 LED indicator instruction ........................................................................................................................................5
3.5 Notes ......................................................................................................................................................................5
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
2
1. Overview
This Product specification is mainly applicable for MOKO MKBAL-C25-P AoA Locator product, and mainly contained
below parts:
General specifications
Basic instructions
For more information about user guidance of product functions , please contact our sales team directly for official
document – “MOKO AoA CoreLocation System User Guide”.
Applicable version descriptions:
CCS: Version 2.6.2 or above
CLE: Version 2.6.2 or above
MKBAL-C25-P firmware: Version 1.1.3 or above
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
3

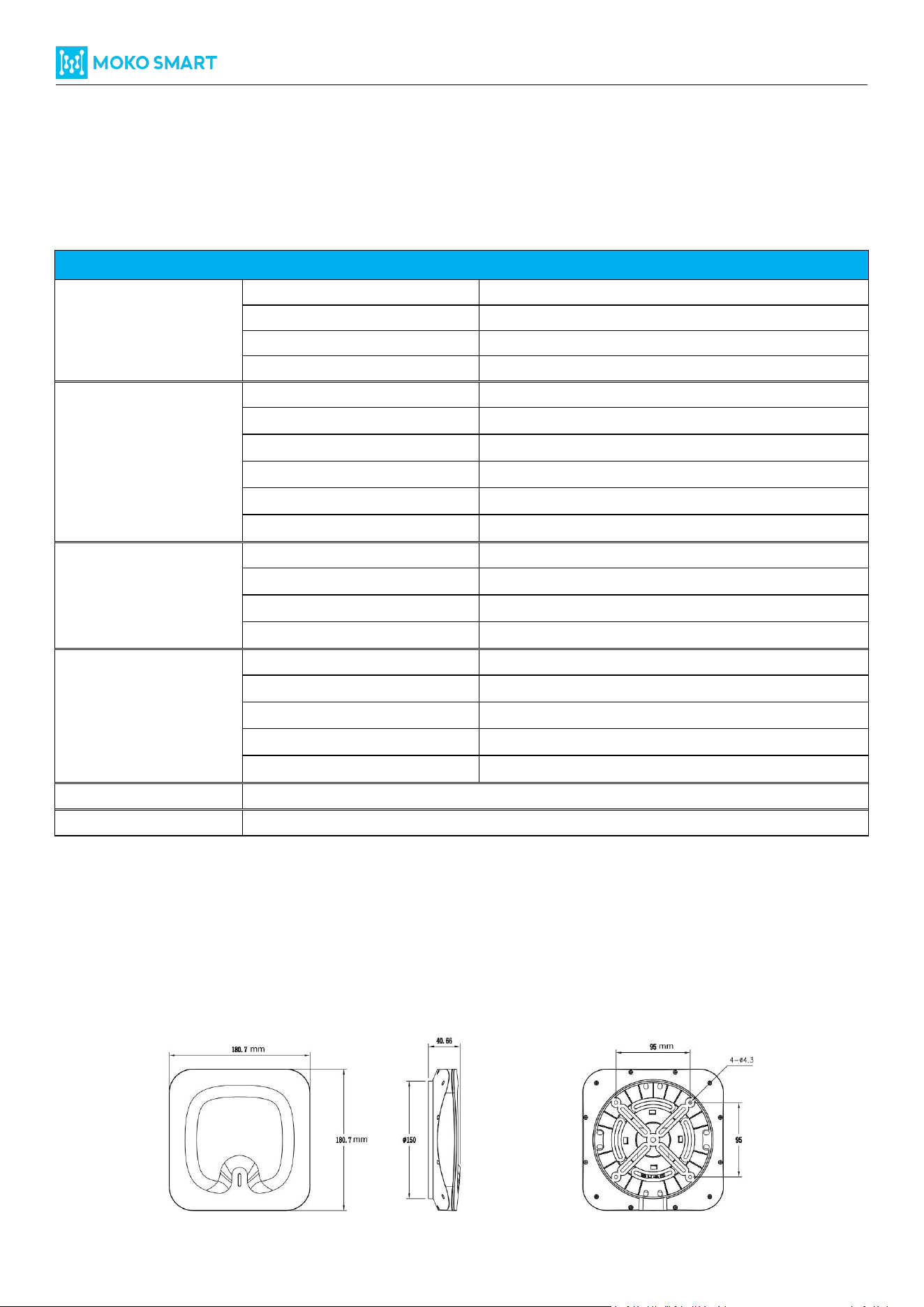

2. General specifications
2.1 Product Specifications
General specifications
Physical Specification
Dimensions(L*W*H)
180.7mm*180.7mm*40.7mm
Weight
582g
Material
ABS+PC
Color
White
Hardware Specification
Bluetooth
Bluetooth 5.1 / Bluetooth 4.2
Frequency band
2.401~2.481 GHz
Network connection
Ethernet 10/100Mbps (support hand in hand cascade*)
Power supply
PoE (support hand in hand cascade*)
；
DC (12 - 30V, 1A)
Antenna type
PCB antenna (AoA array antenna)
LED
Yes
Structural Specification
Waterproof
IP66
Operating temperature
-20°C / + 60°C
Storage temperature
Normal temperature
Humidity
0% ~ 90% (non-condensing)
Technical parameter
Installation mode
Ceiling
Installation height
Up to 10m
Scan coverage
Up to 500m
2
(open area)
Positioning accuracy
0.1m ~ 1m
Network protocol
MQTT/ HTTP/ Websocket/ UDP
Certification
CE
Application scenarios:
Personnel location; Asset management; Animal location; Indoor navigation; Geo-fencing
Table 1: General specifications of MKBAL-C25-P Locator
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Hand in hand cascade*: MKBAL-C25-P Locator supports the power supply and network supply by PoE switch, and the PoE
interface of the Locator also supports input and output, which can realize the installation of a network cable for multiple
Locators (the length of the network cable between each two base stations not exceed 10m, and up to 8 base stations can
be cascelled using Class six network cables).
2.2 Mechanical Drawings
Figure 1: MKBAL-C25-P AoA Locator Mechanical Drawings
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
4
3. Basic instructions
3.1 Product instruction
MKBAL-C25-P Locator uses BLE AoA (Angle of Arrival) precision positioning technology, equipped with high-precision
positioning antenna array and high-precision adaptive algorithm, the positioning accuracy can up to sub-meter level.
This product uses standard Ethernet data communication, 802.3af Poe 48V power supply mode,and supports PoE
cascading power supply mode, reducing wiring length, saving switch ports, and reducing costs.

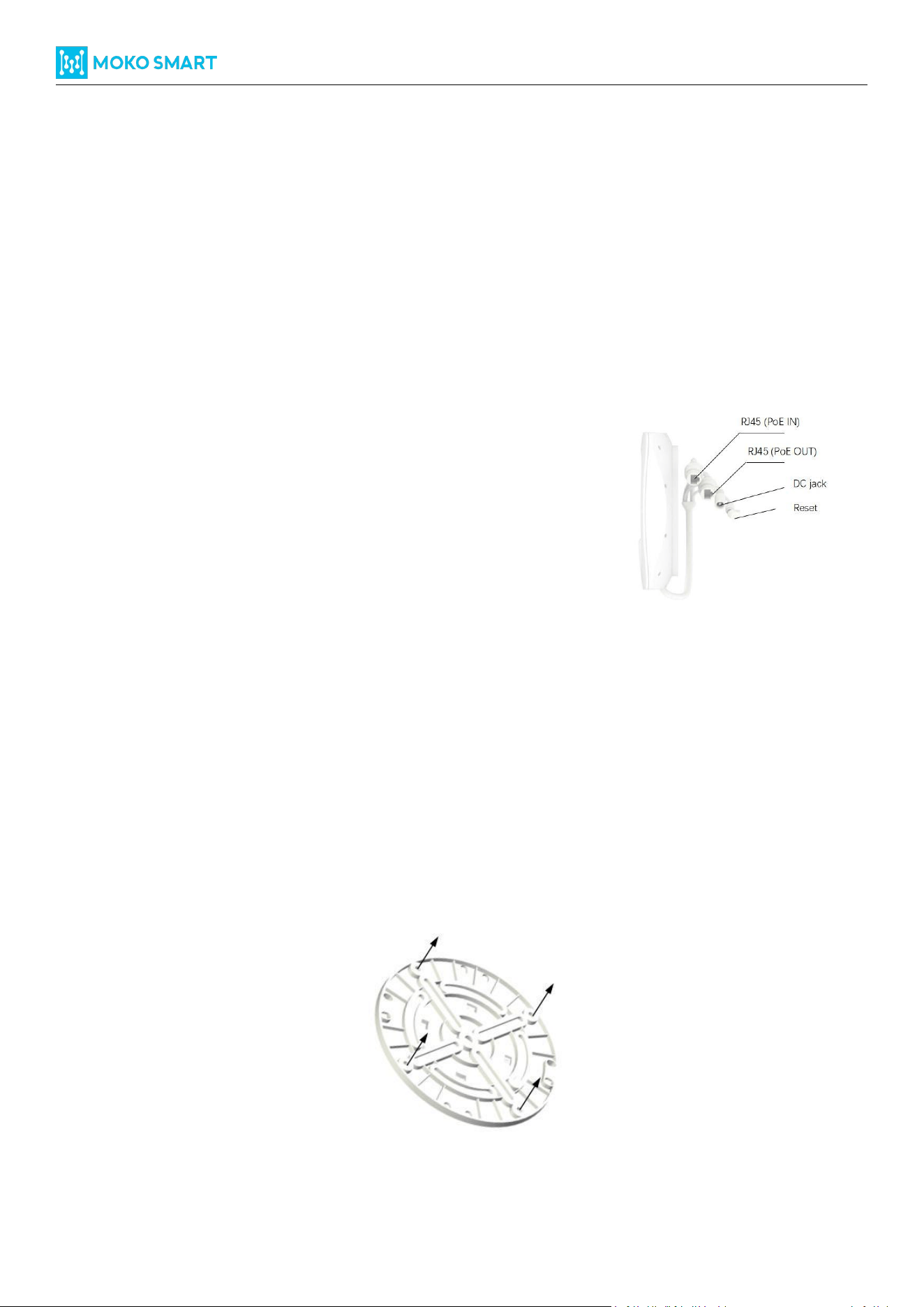

3.2 Interface description
3.3 Installation instruction
Please confirm that the fixed position can bear 2kg or more before installation.
As shown in the figure 3, use KA4 screws to fasten the rack on the ceiling (direction indicated by the arrow)
Align the mounting plate rack buckle and push the base station into the mounting plate rack bayonet. The
direction of the network port marked on the buckle surface of the plate rack should be the same as the direction
of the network port marked on the back of the AoA Locator.
Connect the upper-level network cable to the base station RJ45 interface (PoE IN)
If there is a lower-level cascaded base station, connect the RJ45 interface (PoE OUT) of the base station and
the RJ45 interface (PoE IN) of the lower base station through a network cable. It is recommended that the base
station cascade does not exceed 8 levels.
Figure 3: How to install the AoA Locator
The following is the description of the AoA Locator interfaces
RJ45*2: Divided into PoE IN and PoE OUT power supply and data
transmission interface, the PoE interface can be connected to a standard
PoE switch through a network cable or through the similar dual network
port of AoA Locator by hand in hand cascade；
DC jack: Adaptation of power supply voltage to PSE power supply
Reset button: Restore factory settings button. Long press the reset
button for 3 seconds, the green light of the AoA Locator will flashes 5
times, indicating recovery factory setup successful.
Figure 2: Interface of AoA Locator
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
5
3.4 LED indicator instruction
After the AoA Locator is correctly installed and connected with the PoE switch, the AoA Locator will start
automatically. After starting, the running status of the AoA Locator can be judged by the LED indicator.
The rules of AoA Locator LED indicator are shown in the table below:
AoA Locator LED indicator instruction
LED Status
Locator running status instruction
Green LED flashes quickly for 5s
Locator start/reset button long press to restart
Red LED flashing
Locator is getting IP address
The green LED flashes slowly
Locator IP address obtained successfully
Green LED keep solid on
Locator Successfully connected to the positioning engine
Red LED keep solid, after 30s, the AoA Locator will automatically reset
Locator at this level is faulty or not connected
Green and Red LED flash alternately and slowly
The next level AoA Locator is faulty or not connected
LED off
No power connection
Table 2: AoA Locator LED indicator instruction Table
The rules of the RJ45 interface LED indicator are shown in the table below:
RJ45 interface LED indicator instruction
LED Status
Locator running status instruction
LED keep solid on
Network connection is successful
LED flashing
There is data transmission
LED off
No internet connection
Table 3: RJ45 interface LED indicator instruction
3.5 Notes
*Please be sure that the AoA Locator is connected to the specified standard PoE power supply equipment (PSE
equipment conforming to IEEE 802.3af protocol)
*The AoA Locator works at -20°C to +60°C, and the humidity is 0~90%. There is no condensation in the indoor
environment. It is necessary to avoid rain or long-term outdoor exposure, and keep away from fire sources and
strong electromagnetic interference sources
MKBAL-C25-P AoA Locator Specification V1.1
Copyright © 2023 MOKO TECHNOLOGY LTD.
6
Contac
© Copyright 2023 MOKO TECHNOLOGY. All Rights Reserved. Any information furnished by MOKO TECHNOLOGY LTD. is
believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use
and application of MOKO TECHNOLOGY LTD. materials or products rests with the end user since MOKO TECHNOLOGY
LTD. cannot be aware of all potential uses. MOKO TECHNOLOGY LTD. makes no warranties as to non-infringement nor
as to the fitness, merchantability, or sustainability of any MOKO TECHNOLOGY LTD. materials or products for any
specific or general uses. MOKO TECHNOLOGY LTD. or any of its affiliates shall not be liable for incidental or
consequential damages of any kind. All MOKO TECHNOLOGY LTD. products are sold pursuant to the MOKO
TECHNOLOGY LTD. Terms and Conditions of Sale in effect from time to time, a copy of which will be furnished upon
request. Other marks may be the property of third parties. Nothing herein provides a license under any MOKO
TECHNOLOGY LTD. or any third-party intellectual property right.

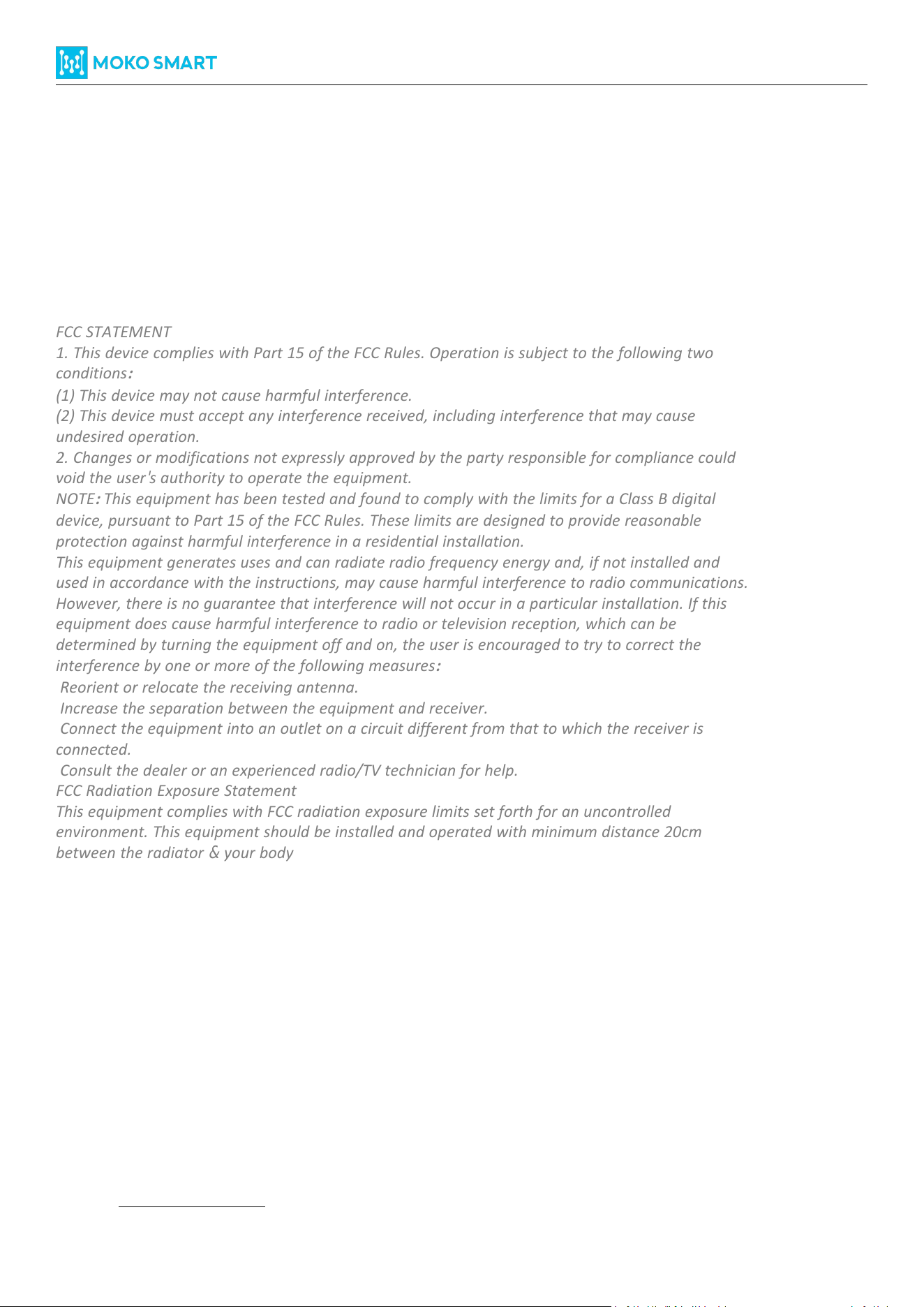

FCC
