LW014-WB Datasheet
MOKO TECHNOLOGY LTD.
www.mokosmart.com
Version 1.0
LW014-WB Datasheet
Introduction
LW014-WB is a wristband that combines LoRaWAN network transmission with Bluetooth and GPS fix
technologies, it can be used for indoor and outdoor positioning.
Lw014-WB supports multiple alarms for indoor and outdoor emergency situation. With the wristband
design, it’s easy to wear and convenient to use. LW014 is applicable to hospitals, nursing homes, schools
and factories.
Key Features
➢ Long-range & Low-power communication
➢ Multi-mode positioning fusion
➢ anti-accidental touch
➢ Shift-Long comfort, Weightless Wearing Experience
➢ Multiple working mode
➢ IP66 water proof

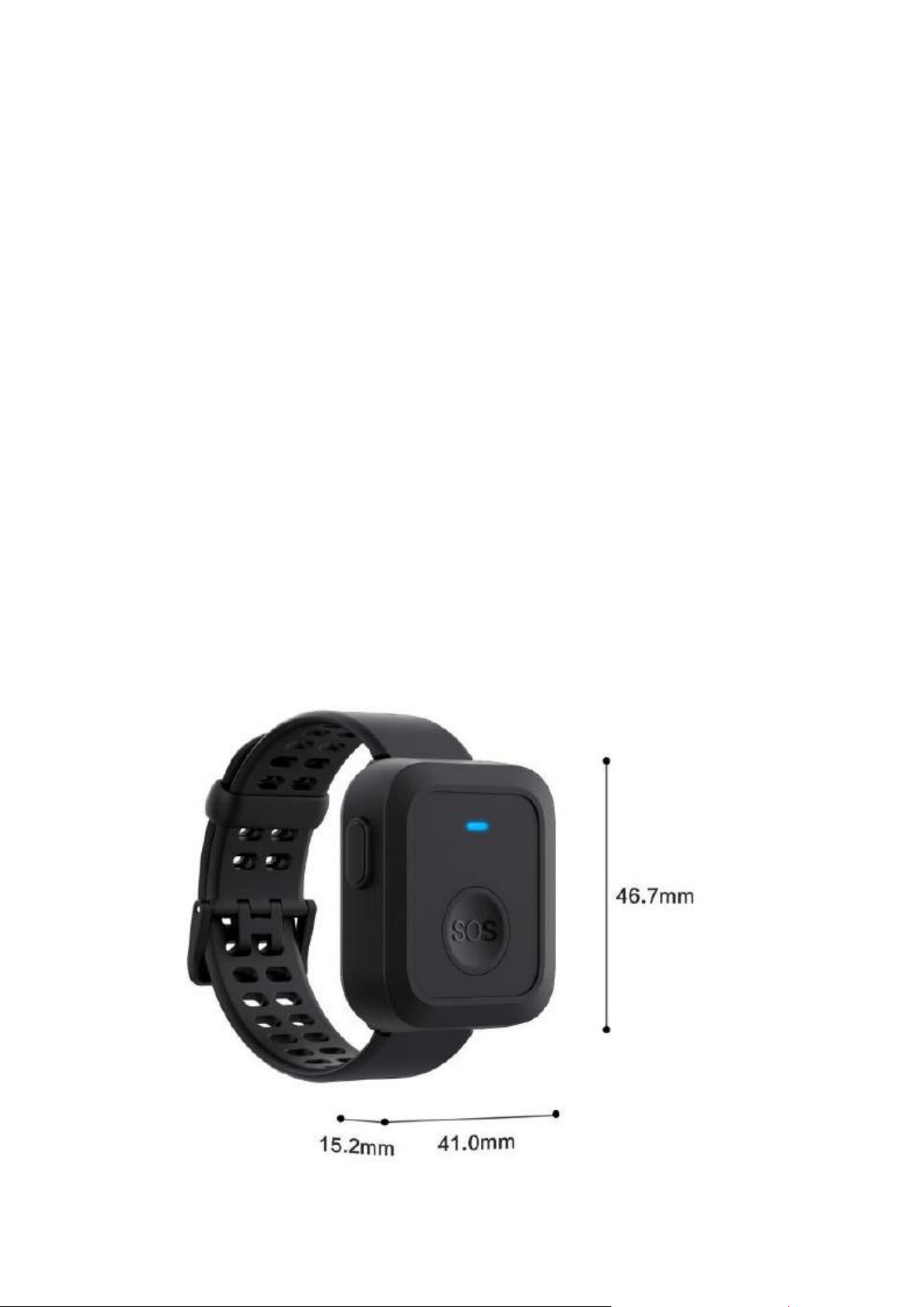

Mechanical Size Description
LW014-WB Datasheet
2 www.mokosmart.com
General Specifications
Categories
Parameter
Value
LoRa
Wireless
Specification
LoRa Protocol
LoRaWAN V1.0.3
Lora Frequency
EU868/AU915/US915/AS923/IN865/KR920/RU
864/AS923-1/AS923-2/AS923-3/AS923-4
Tx Power
Max 22dBm
LoRa Communication Distance
Up to 5 km (in urban open space)
BLE Wireless
Specification
Bluetooth® (BLE)
4.2
TX Power
Max 4 dBm
BLE Broadcast Distance
Up to 50m in free space
BLE Scan Distance (1M PHY)
Up to 150m in free space
Power Supply
Power Supply
300 mAh rechargeable battery
Physical
Specification
Protection level
IP66
Dimension
46.7*41.0*15.2mm
Weight
41.9g
Application
Specification
Power Switch
power button
Operation Temperature/
Storage Temperature
-20℃ ~ 60℃
Operation Humidity
10%~90%
Certification
CE/FCC/Reach/RoHS pending approval
Ordering Information
Product Type
Description
Notes
LW014-WB US915
LW014-WB EU868
Wristband
Subnet except US915 and EU868
also supported, please consult
with moko before ordering
MOKO TECHNOLOGY LTD.
4F,Buidling2, Guanghui Technology Park,
MinQing Rd, Longhua, Shenzhen, Guangdong, China
Tel:86-755-23573370-829
FCC warning statements:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
