What's in the Box
Make sure everything is included.
Anything missing?
Please contact support@eufy.com
❶
❷
❸
❼
QSG
❹ ❻❺
❽ ❾
❿
#
Items Add-On 2-Cam Kit 3-Cam Kit 4-Cam Kit
❶
Camera 1 2 3 4
❸
Backup Solar Panel(s) 0 1 1 2
❹
Mounting Brackets 1 3 4 6
❽
Positioning Stickers 2 3 4 6
❾
Screw Packs 2 3 4 6
❿
Hard Drive Screws & Reset
Needle
0 1 1 1
At a Glance
eufyCam S3 Pro (T8162)
➀
➃
➄
➅
➉
➆
➈
➇
➁
➂
Spotlight
Camera Lens
Motion Sensor
LED Indicator
Microphone
Built-in Solar Panel
Speaker
SYNC Button
USB-C Charging Port
Mounting Hole
HomeBase S380 (T8030)
➀
➃
➄
➅
➆
➇
➈
➁
➂
Status LED
Reset Hole
Speaker
Hard Drive Bracket
SYNC / ALARM OFF Button
USB Port 1 (Output Power: 5V/2.4A; for Charing
eufyCam)
USB Port 2 (for Data)
Ethernet Port
DC Power Port
Getting Started with the App
1. Scan the QR code below or search for "eufy" to download.
eufy
2. Log in or create a new account.
3. Follow in-app instructions to add the HomeBase.
• Turn on the HomeBase and connect it to your router.
• Wait about 1 minute for the LED to turn blue.
• Use the included Ethernet cable to connect to your home Wi-Fi router.
• Use the included power adapter (12V/2A) to power on the HomeBase.
• To improve the wireless range of HomeBase, place it on a table or shelf 3-5 feet (1-1.5 m) high and as
far away from the wall as possible.
4. Follow in-app instructions to add eufyCam S3 Pro and then sync them with the HomeBase.
• Up to 16 eufyCams can be synchronized with the HomeBase.
• Keep the maximum distance of 1 meter between HomeBase and eufyCam when
synchronizing.
• Upgrade the firmware if a new version is detected and the popup prompts you to do so.
< 3.3 ft (1 m)
2s
5. Complete other settings or skip for later setup.
• Motion Detection
• Face Management
• Video/Audio Settings
Preparing
Expand HomeBase Storage (Optional)
HomeBase S380 comes with 16 GB of storage for saving video recordings and allows you to add an additional
hard drive to expand the space. Your hard drive must meet the following requirements:
Type Hard disk drive (HDD) or solid state drive (SSD) that uses the SATA inteace
Size 2.5 inch
Capacity Unlimited
Recommended Western Digital, Seagate, SAMSUNG, Kingston, PNY, Crucial, SanDisk
• The HomeBase must be powered o when you install or remove a hard drive.
• Transfer all the data in your hard drive to a secure location before adding it to the
HomeBase.
• A new hard drive must be initialized through the eufy Security app to work with the
HomeBase.

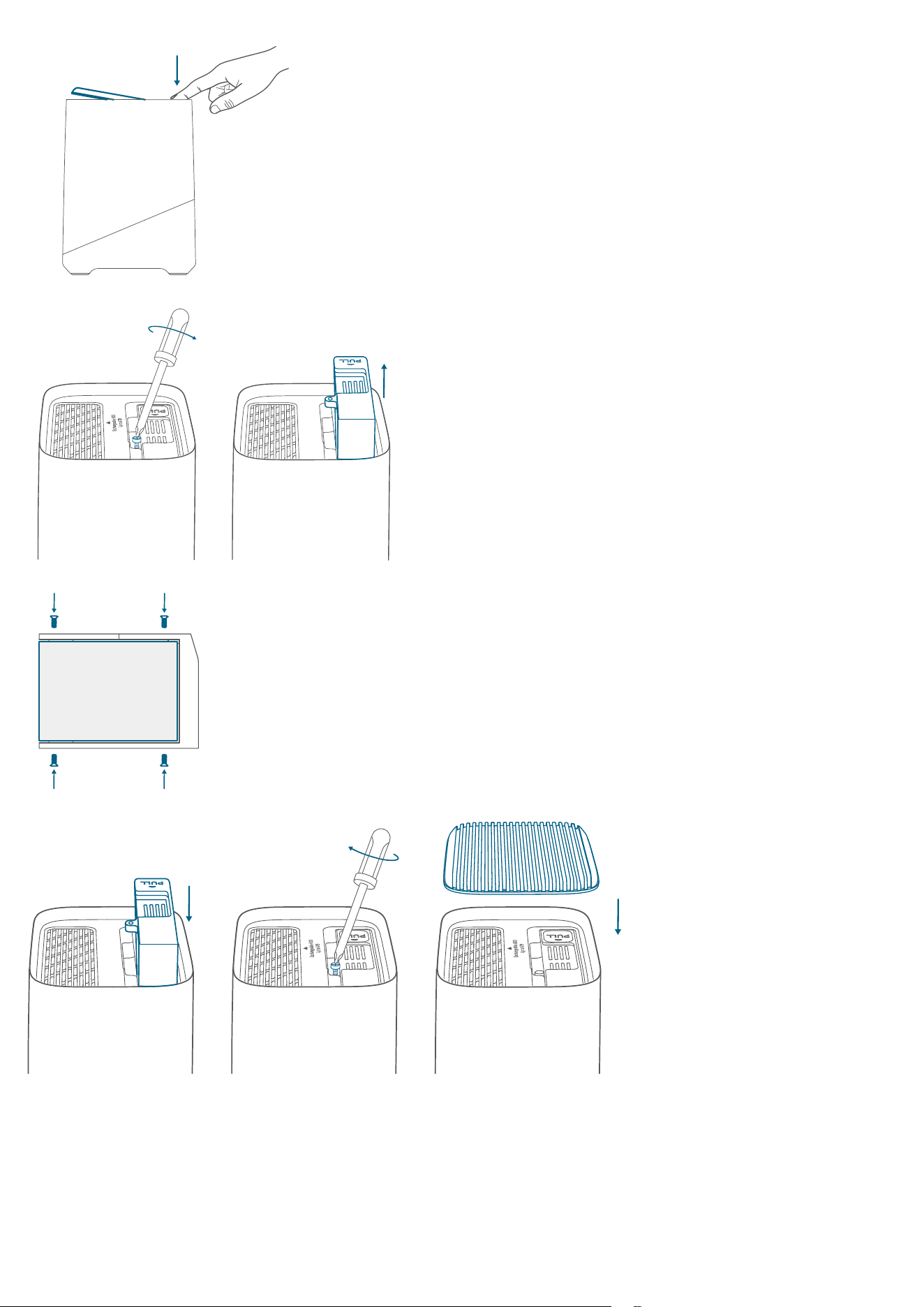

1. Push down the top lid to remove it.
2. Loosen the screw, then take out the hard drive bracket.
3. Fix your hard drive to the bracket with the provided screws.
HARD DRIVE
4. Insert and screw the bracket back to the HomeBase, then put the top lid back into place.
Fully Charge the Cameras before Mounting
Fully charge the cameras (to 100% battery level) before installing them outdoors.
LED Indicator Description
Blue In Charging
O Fully Charged

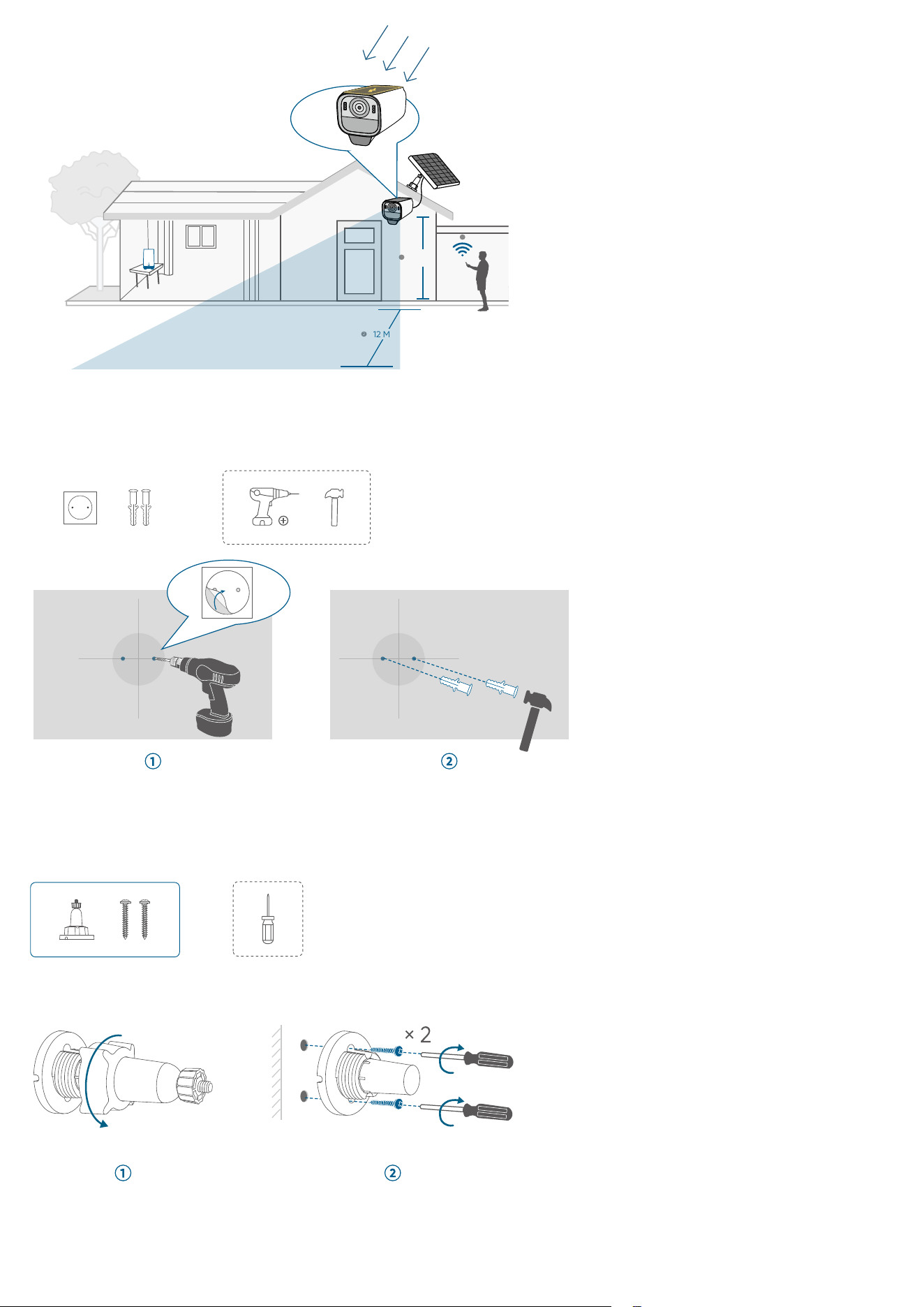

Mounting Guide
1.
Choose a Location
Your eufyCam includes a built-in solar panel and a backup solar panel that converts sunlight into electrical
energy and keeps your eufyCam charged every day.
• The charging eiciency fluctuates according to the intensity of the sunlight.
• Don't worry when the battery level goes down. It happens when there isn't enough sunlight or the camera
is consuming more power than usual. You don't need to charge the camera with a cable until a low battery
alarm goes o.
For eufyCam
Choose a location where you can get the desired view.
Best location recommended:
• Height of 2-3 m
• Field of View of 12 m
• 100% of the built-in solar panel area receives sunlight
• Fully exposed to direct sunlight for at least 1.5 hours per day
• Strong Wi-Fi signal
For Backup Solar Panel
Best location recommended:
• 100% of the built-in solar panel area receives sunlight
• Fully exposed to direct sunlight for at least 1.5 hours per day
2-3 M
1
4
12 M
2
2.
Install the Mounting Bracket
Position & Drill Holes
16/64" (6mm)
1. Drill holes
2. Insert anchors (skip for wooden wall)
Install Mounting Base
1. Take it apart
2. Install the base
3.
Mount the Camera
Make sure the USB-C charging port is securely protected by the waterproof cover.
Mount the Camera
1. Tighten the small knob
2. Tighten the small knob
Adjust the Camera Field of View
1. Remove the protective film
2. Get an optimal angle when viewing the live stream in the app
3. Tighten the large knob
4.

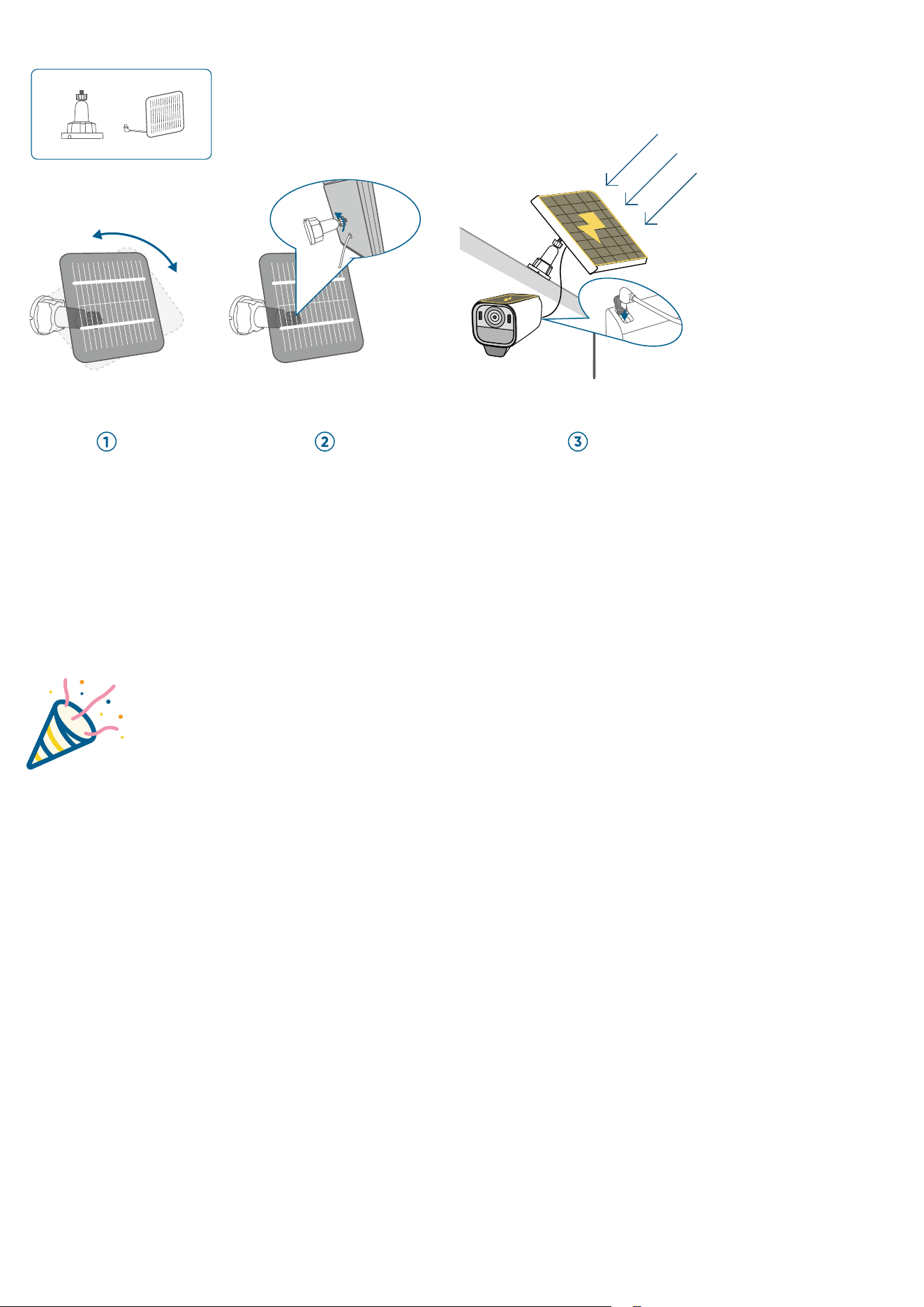

Mount the Backup Solar Panel
1. Mount the solar panel
2. Tighten the small knob
3. Connect and adjust
Congratulations!
Now you're all set to use your eufyCam!
Please explore more in the eufy app.
Other Information
Compliance
Default Open Port 1: Wi-Fi (2.4GHz)
Port Description:
1. When powered on for the first time or aer a reset, if there is no configured Wi-Fi information, it may enter
network pairing mode (such as AP/BLE pairing);
2. In normal working mode, it will automatically connect to the router and save the SSID and password;
3. If you need to switch Wi-Fi configuration, you can use the App or follow the instructions in the manual to
reconfigure the network.
4. TCP monitors Port 15250, and is used for connecting HomeBase.
Model: T8162
1. Power consumption in low power: ≤ 0.5 W;
When the product is fully charged and supplied by the EPS, it enters the low power consumption condition aer
1 minute.
2. Recommended external adapter:
Brand: ANKER
Manufacturer: Anker Innovations Limited
Model: A2337
Input: 100-240V~ 1.0A, 50-60Hz
Output: 5.0VDC, 2.0A, 10W
Model: T8030
1. Networked standby mode: ≤ 7 W;
When the product is connected to the router via the RJ45 port and provides Wi-Fi signal to T8162, in case of no
data transmission, it enters the networked standby mode aer 1 minute.
When the product is disconnected from the RJ45 port and does not provide Wi-Fi signal to T8162, in case of no
data transmission, it enters the networked standby mode aer 1 minute.
2. Adapter information:
Brand
:
Keyu
Manufacturer: Shenzhen Keyu Power Supply Technology Co., Ltd.
Model: KA2401A-2001200EU
Input: 100-240V~, 50/60Hz or 50-60Hz, 0.65A Max
Output: 20.0VDC, 1.2A, 24.0W
