MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
BULLETIN NO.
PN0011616
SERVICE PARTS LIST
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
PACKOUT™ Accessories
DATE
July 2025
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Screw with Washer (2)
2 --------------- 3/16" Hex Key Adapter (1)
3 14-46-8700 Mounting Hardware Kit (1)
2
1
(2x)
1
2
3
No. 48-22-8601
PACKOUT
™
Tool Box Attachment Mount
No. 48-22-8603
PACKOUT
™
Tool Box M18
™
Battery Rack Attachment
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Divider (3)
2 14-46-8702 Hand Tool Caddy Divider Kit (Set of 3) (1)
1
1
2
No. 48-22-8602
PACKOUT
™
Tool Box
Caddy Attachment
CATALOG NO. 48-22-8601 PACKOUT
™
Tool Box Attachment Mount Pg.1
48-22-8602 PACKOUT
™
Tool Box Caddy Attachment Pg.1
48-22-8603 PACKOUT
™
Tool Box M18
™
Battery Rack Attachment Pg.1
48-22-8604 PACKOUT
™
Tool Box M12
™
Battery Rack Attachment Pg.2
48-22-8605 PACKOUT
™
Tool Box Tray Attachment Pg.2
48-22-8606 PACKOUT
™
Tool Box 3-Hook Attachment Pg.2
48-22-8607 PACKOUT
™
Tool Box Long Tool Holder Attachment Pg.2
48-22-8608 PACKOUT
™
Tool Box Compact Plate Pg.2
3
1
2
3
4

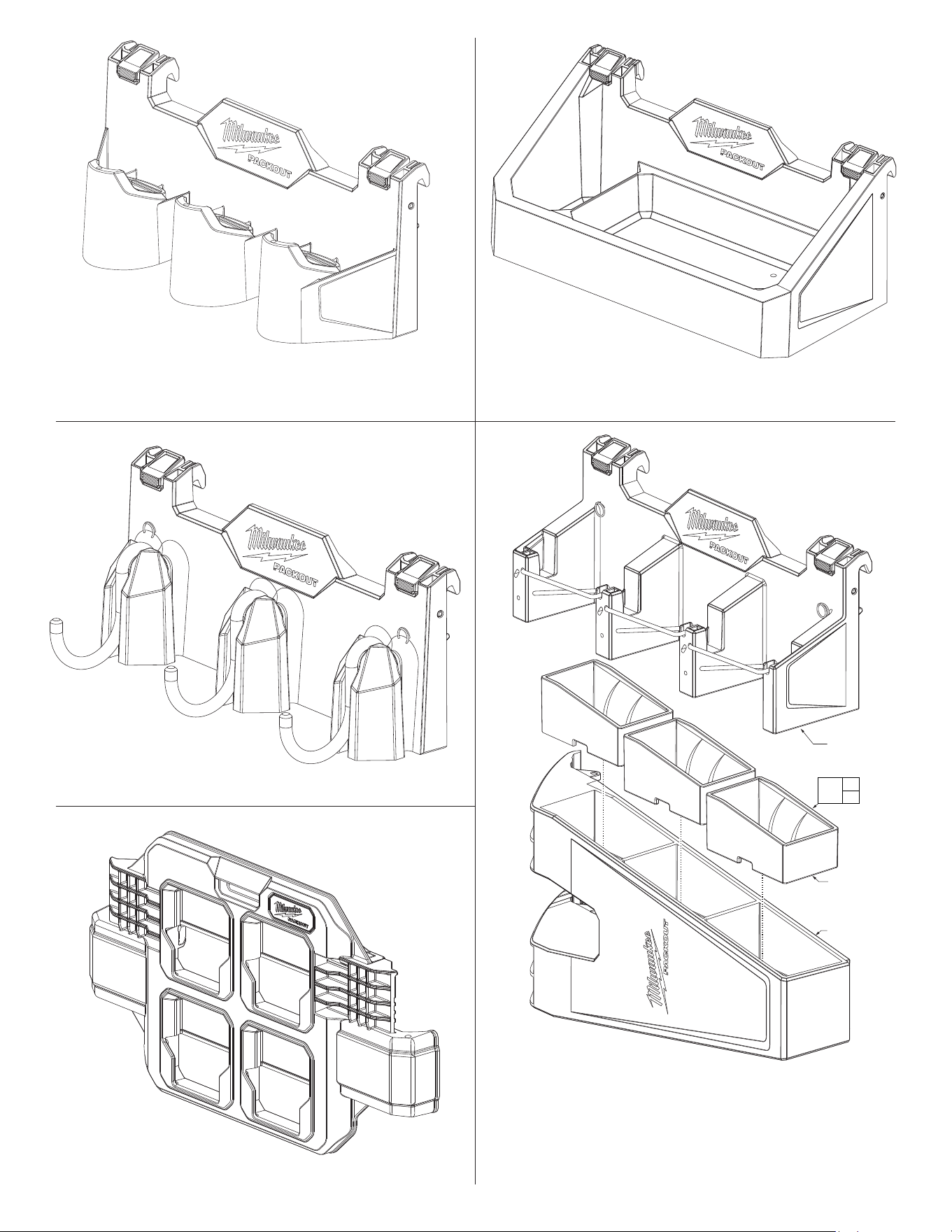

No. 48-22-8604
PACKOUT
™
Tool Box
M12
™
Battery Rack Attachment
No. 48-22-8606
PACKOUT
™
Tool Box
3-Hook Attachment
No. 48-22-8605
PACKOUT
™
Tool Box
Tray Attachment
No. 48-22-8607
PACKOUT
™
Tool Box
Long Tool Holder Attachment
No. 48-22-8608
PACKOUT
™
Tool Box
Compact Plate
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Upper Tool Box Long Tool Holder Attachment (1)
2 --------------- Lower Tool Box Long Tool Holder Attachment (1)
3 --------------- Caddy Insert (1)
4 14-46-8701 Long Tool Caddy Inserts Kit (Set of 3) (1)
