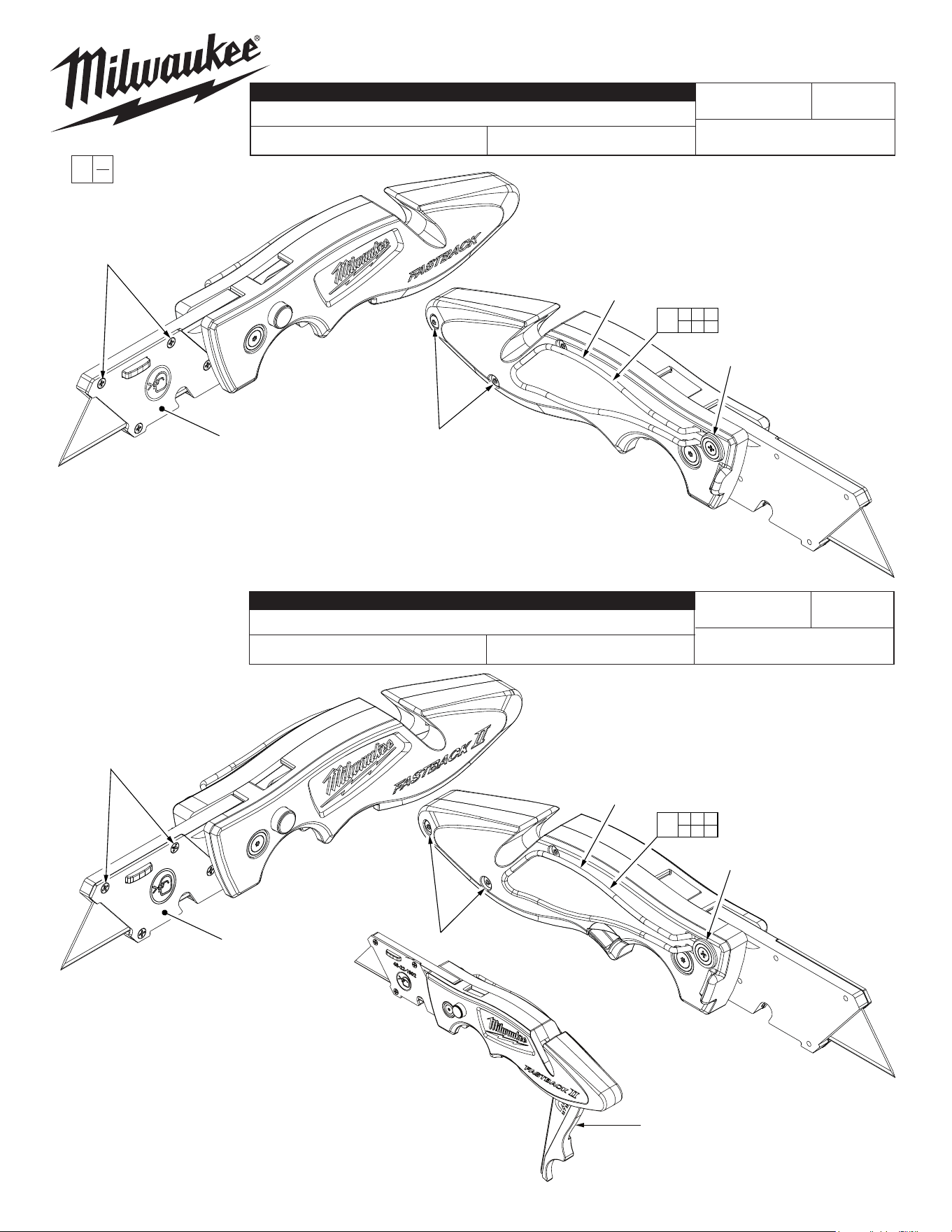

48-22-1901
FASTBACK™ FLIP POCKET KNIFE
Aug. 2021
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Belt Clip (1)
3 --------------- M2.5 x 0.45 Phillips P1 Screw (1)
4 --------------- M2 x 0.4 Flat Hd. Phillips Screw (4)
5 --------------- M2.5 x 0.45 Pan Hd. T-6 Screw (3)
6 14-46-1901 Belt Clip/Screw Service Kit (Contains all the above) (1)
54-49-3115
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 5
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
NOTE:
Apply a drop of non-permanent thread locking sealant
(Loctite
®
222 or the equivalent) to the threads of each
screw prior to installation. Fastener heads #4 must be
subflush to the blade holder cover.
4 (4x)
Blade Holder Cover
5 (3x)
1
3
1 3 4
5 6
6
48-22-1902
FASTBACK II™ FLIP POCKET KNIFE
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
NOTE:
Apply a drop of non-permanent thread locking sealant
(Loctite
®
222 or the equivalent) to the threads of each
screw prior to installation. Fastener heads #4 must be
subflush to the blade holder cover.
4 (4x)
Blade Holder Cover 5 (3x)
1
3
1 3 4
5 6
6
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Belt Clip (1)
3 --------------- M2.5 x 0.45 Phillips P1 Screw (1)
4 --------------- M2 x 0.4 Flat Hd. Phillips Screw (4)
5 --------------- M2.5 x 0.45 Pan Hd. T-6 Screw (3)
6 14-46-1901 Belt Clip/Screw Service Kit (Contains all the above) (1)
Magnetic
Blade Storage Door
48-22-1901
FASTBACK™ FLIP POCKET KNIFE
Aug. 2021
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Belt Clip (1)
2 --------------- M3.5 x .06 Phillips P1 Screw (1)
3 14-46-1911 Belt Clip/Screw Service Kit (Contains all the above) (1)
54-49-3115
REVISED BULLETIN
SERVICE PARTS
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00

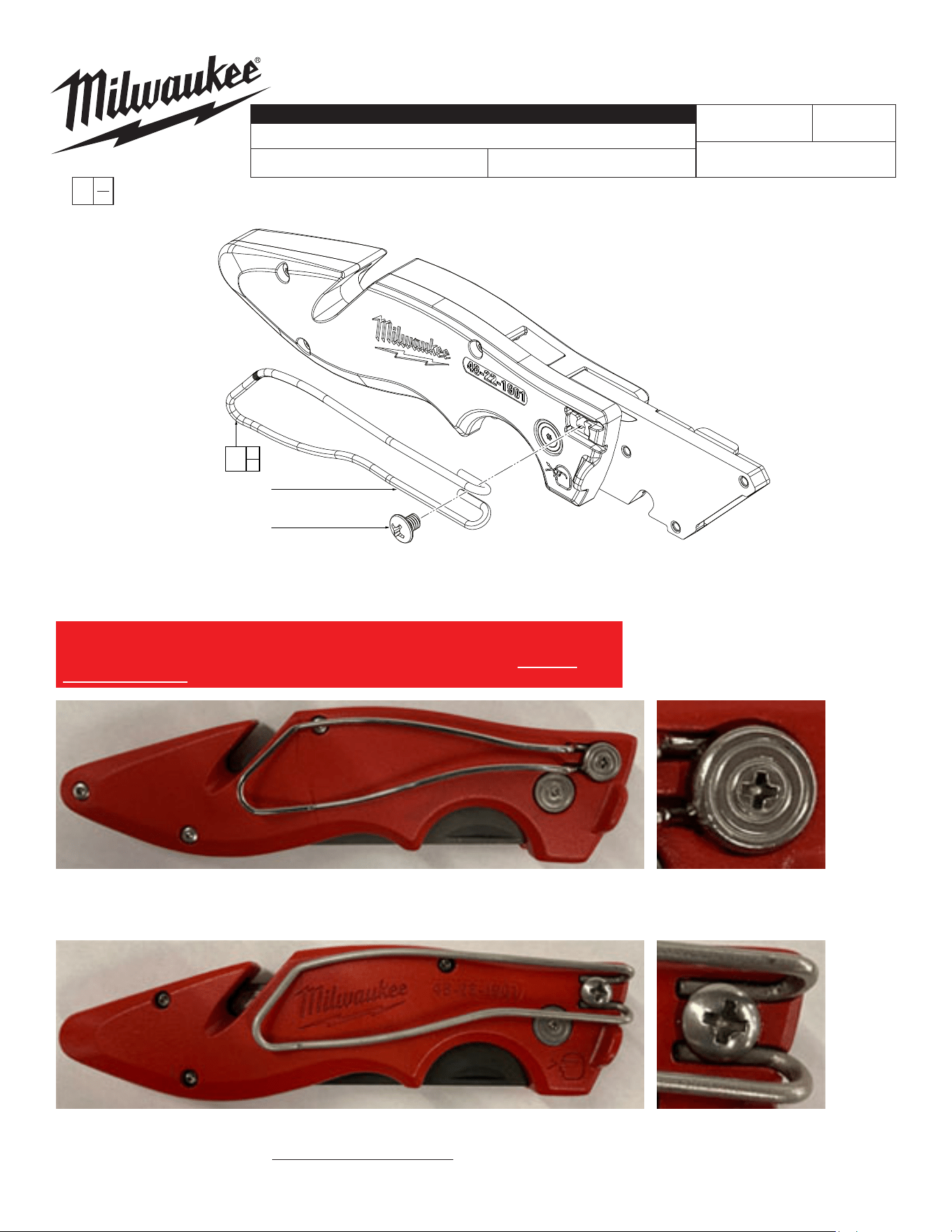

FASTBACK™ FLIP POCKET KNIFE (48-22-1901)
NOTE: Early design of this knife utilized a belt clip kit (14-46-1901) that is no longer available.
The newer knife design uses a belt clip kit (14-46-1911). The two belt clip kits ARE NOT
INTERCHANGEABLE. See detail below to determine which design you are trying to service.
New belt clip design
Order Belt Clip Service Kit 14-46-1911 for the new knife design.
Note: Old and new belt clip service kits ARE NOT INTERCHANGEABLE between
the old knife design and new knife design.
Old belt clip design
Belt Clip Service Kit 14-46-1901 is discontinued and no longer available.
Contact 1.800.SAWDUST (1.800.729.3878) for warrenty issues.
1
2
1
2
3
DISCONTINUED BELT CLIP DESIGN
