RT56B FCC & RT656B CE
User’s manual
To the user:
Thanks for purchasing our explosion-proof transceiver. We believe it will provide great convenience for your work
and life. With novel design and stable performance, you will experience professional and humanized design from
our explosion-proof transceiver. We believe that you will be satisfied with the quality and functions, and it will
provide you with convenient, quick, reliable two way voice communication. Please read the manual carefully
before using the product.
CAUTION
• Do not operate it in flammable, explosive or other. transceiver-forbidden places such as petrol station, gas
station, hospital, airport etc.
• Do not expose it to direct sunlight for a long time, do not place it near any heating devices.
• Do not put it in extremely dusty, moist or splash place; do not place it on unstable surface.
• If it emits smoke or strange odours, remove the battery from the product immediately and contact us or the
local dealer.
• Cannot be transmitted without antenna installed • Refer service to the well-trained professional technicians
only.
• The power supply of this transceiver is DC 7.4V, please BL56B 7.4V 1800mAh Li-ion Battery as configured.
DO NOT repair or disassemble by yourself. DO NOT charge battery in explosion-proof locations.
• This transceiver should be charged by configured adaptor. Do not use batteries other than those provided by
supplier.
• Do not expose it to direct sunlight for a long time, do not place it in environment near any heating devices with
temperatures below -20℃ or above +40℃.
• If it emits smoke or strange odours, remove the battery from the product immediately and contact us or the
local dealer.
• Cannot be transmitted without antenna installed, or the devices will be damaged.
• Do not operate it and power off in flammable, explosive environment.
• MAKE SURE transceiver antenna, earphone jack cover and battery cover are dry before attachment. Exposing
the inside of the transceiver to water will result in serious damage to the transceiver.
• Do not put the battery separately in the water or contact with wet material. Do not short circuit the battery.
DO NOT ATTACH, REMOVE OR CHARGE THE BATTERY IN EXPLOSION-PROOF LOCATIONS.
EU Importer: Germany Retevis Technology GmbH
Address: Uetzenacker 29,38176 wendeburg
For downloading further resources:
Brochures, Software/Firmware, Manual etc, Pls contact your direct reseller first OR go
to website retevis.com and check “support” in the each product link to download it.
Menu
Safety and Explosion-proof...................................................
Unpacking and Checking Equipment...................................
Preparation Work....................................................................
Charging the Battery..............................................................
Install/Remove Battery Pack.................................................
Getting Acquainted................................................................
Basic Operation......................................................................
Main Function Operation.......................................................
Specification...........................................................................
Common Troubleshooting.....................................................
Frequency table
...................................................................
DE(11- 20)
FR(21- 30)
IT(31- 40)
ES(41- 50)
RU(51- 60)
1
1
2
2
2
3
4
4
6
6
61
Safety and Explosion-proof
The explosion-proof handheld transceiver meets GB3836.1-2010 "Explosive environment Part 1: General
requirements for equipment", GB 3 8 3 6. 4 - 2 0 1 0 "Explosive environment Part 4: Equipment protected by
intrinsically safe "i", GB12476. 1-2013 "Electrical equipment for flammable dust environment - Part 1: General
requirements", GB12476.4-2010 "Electrical equipment for flammable dust environment - Part 4: Intrinsically safe
"iD" standard, the explosion-proof mark is Ex ib IIB T4 Gb, which has passed the inspection and certification of
the national explosion-proof product quality supervision and inspection center, and obtained the explosion-proof
certificate, certificate No. CNEx19.2543X. The product is suitable for use in zones 1 and 2 containing II A-II B
and T1-T4 explosive gas mixtures.
The Explosion-proof handheld transceiver adopts a new optimized explosion-proof design. The battery adopts
dual output current Limiting protection and short circuit protection. The whole structure Design is compact and
reliable, with safe and reliable explosion-proof performance, and is the ideal professional communication
Transceiver in hazardous gas working environment.
Unpacking and Checking Equipment
Supplied Accessories
Please carefully unpack the product and check the main equipment and accessories listed in the following table.
If any items are missing or have been damaged during shipment, please contact the dealer immediately.
Level
Temp-erature
T1(450℃)
T2(300℃)
T3(200℃)
T4(135℃)
T5(100℃)
T6(85℃)
II A
II B
II C
Methane, toluene, methy ester, Ethane, propane,
styrene, Carbonmonoxide, ethylacetate, Acetica-
cid, chlorobenzene, methyl acetate, ammonla
Propylene,Propyene Clear,
dimethyl ether,Hydrogen
cyanide,City gas
Butadiene,ring Ethoxye-
thane,B Ene, furan
Dimethyl ether, propylene
Aldehyde, hydrogen sulfide
Dibutyl ether, two Ether,
ethyl methyl, Tetrafluoro-
ethylene
ethanol, ethanol,ethylbenzene,Propyl alcohol,
propylene,butanol,Butane, butyl acetate,Amyl
acetate, cyclopentane
Pentane, pentanol, hexane,Hexanol, heptane,
octane,Ethanol, turpentine, Naphtha, petroleum
(including steam Oil),fuel oil,Pentanol
tetrachloromethane
Acetaldehyde, trimethylamine
Ethyl nitrite
Hydrogen,
water gas
Acetylene
Carbon
disulfide
Ethyl
nitrate
Accessories Quantity
Adaptor
Manual
Desktop Charger
Explosion- proof
Li-Pol Battery
Belt Clip
1
1
1
1
1
Adaptor
Explosio Blet
Manual Deskt
1
Preparation Work

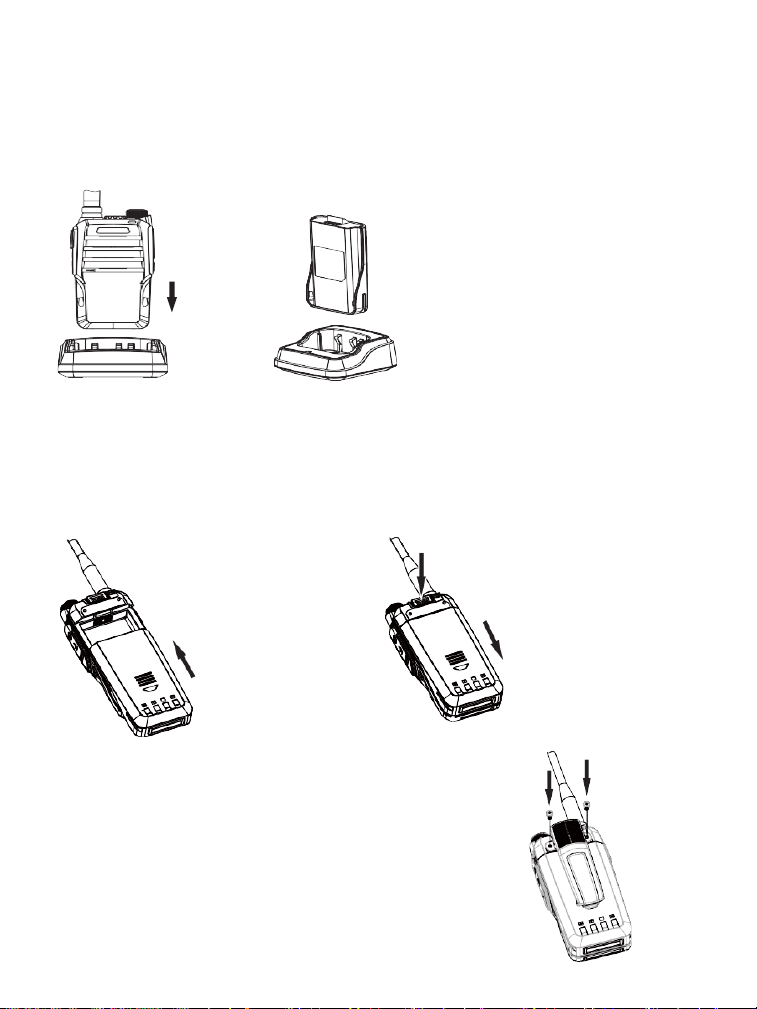

Charging the Battery
1.Well connect adaptor cable and desktop charger, connect adaptor to AC power, light up charger orange light
for 2 seconds then out.
2.Insert battery or transceiver with battery into battery grove, make sure well connected and stable.
3.Charger red light on or flashing when charging start. Green light on when full charging.
Warnign: Do not charger in explosion-proof locations.
Notice：
It is suggested to power off before charging, or else battery status can’t be well judged by charger.
Install/Remove Battery Pack
1.Lay battery pack in the battery groove, press battery bottom and push forward until hearing clicked sound, so
battery pack fixed well.
2.Press “PUSH”
Clip on the top and lightly pull downward to remove battery pack.
Notice:
Never short circuit battery terminal and throw battery in fire.
Never try to remove shell an install battery in dangerous environment,
electric spark will cause explosion.
Install Belt Clip
Remove battery firstly and aim belt clip at two screw holes on transceiver,
then screw on by screwdriver. Unscrew to remove belt clip.
Warning: Do not
attach battery in
explosion-proof
locations.
Warning: Do not
remove battery in
explosion-proof
locations.
2
Install External Loudspeaker/Microphone
Open rubber plug and insert loudspeaker/microphone into jacks.
Warning：Do not insert/pull out external loudspeaker/microphone in
explosion-proof locations.
Getting Acquainted
External View
1.Antenna Base
For inserting supplied antenna.
2.[PTT]Key
Press to transmit signal, release to switch receive status.
When transmitted, Press[-/PF2] Key to transmit 1750 tone until release.
3.[PF1] Programmable Key
Short press [PF1] to switch channel go up and make a noise and report number commend.
Press [PF1] for at least 1 second, turn on/off scanning function, open Squelch, and report number commend.
Short press [PF1] and [PF2] Key simultaneously, open scanning function, and report number commend.
Press [PF1] and [PF2] Key simultaneously at least 1 second, turn on/off FM radio, and report number commend.
4.[PF2] Programmable Key
Short press [PF2] key to switch channel go down and a beep prompt tone and report number commend.
Press [PF2] for at least 1 second, turn on/off flashlight function, and report number commend.
Short press [PF1] and [PF2] Key simultaneously, open scanning function, and report number commend.
Press [PF1] and [PF2] Key simultaneously at least 1 second, turn on/off FM radio, and report number commend.
5.Loudspeaker/Microphone Jack
For external loudspeaker/Microphone.
6.Status Indicator Light
No light when standby, light red when transmitted, light green when received.
Flash every 30 second orange light when kill, and a beep prompt tone.
Flash every 30 second red light when low power, and make “low power “voice.
7.[PWR/VOL] Control Knob
For power on/off and adjust the volume.
Turn the knob to adjust volume after power on.
8.Torch Light
To achieve torch light function.
3
1
2
3
4
5
6
7
8
Speaker
Microphone
Basic Operation
Power On
Rotate [PWR/VOL] control button in clockwise direction to power on, and a beep prompt tone.
Volume adjustment
Press Monitor Key [MONI], while rotate [PWR/VOL] to adjust volume.
Transmit/Receive
If want to call out, press [PTT] key, red indication light on, speak on the microphone with normal volume.
Release [PTT] Key, enter the receiving state.
Notice: Keep lips 3~5cm away from microphone.
When transmitted, red indication light on.
When received, green indication light on, and mic worked.
Signal Monitoring
For weak signal or channel with CTCSS/DCS, long press monitor key [PF1] to monitor signal. long press monitor
key [PF1] again to shut down monitor signal.
Torch Light Function
Long press [PF2] key to enter torch light mode, long press [PF2] key again to shut down torch light function.
FM Radio Function
Long press [PF1]and [PF2] simultaneously to enter FM radio status; press [PF1] key to upward seek radio
station, and press [PF2] key to downward seek radio station. There are 16 FM channels, and must program the
FM channel frequency by PC programming software.
Main Function Operation
Scanning Function
Scanning function can be selected for multiple channels for rotation monitoring, receiving signals from multiple
frequency points. Two scan mode selection (CO-Carrier Scan/TO-Time Scan).
Turn on/off Scanning: short press keys [PF1] and [PF2] simultaneously to enter channel scan. Short press keys
[PF1] and [PF2] simultaneously again return to standby channel.
In channel scanning mode, press [PTT] to end scanning, and it will go on transmitting.
CO—Carrier Scan: Stop scanning when detects a signal until signal vanishes. Restart scanning
after signal vanishes for 5 seconds, unless new signal detected during delay time.
TO—Time Scan: Stop scanning when detects a signal. Stay for 5 seconds then go on scanning, even signal
exists.
CTCSS Function
When the channel opens the CTCSS decoding function, the received signal can be filtered. Only when the
transmitter and receiver set the same CTCSS, the receiver will open the speaker to make sound.
Remote Stun/Remote Kill Function
DTMF signaling codec technology is used to control the two-way radio remotely and make it enter the state of
remote stun/remote kill, which can prevent the loss of the two-way radio from being monitored by others during
the use of the two-way radio.
Operation Method: The remote stun/remote kill signaling and on/off are set by PC programming software in
advance, and then the main control party can launch the remote stun/remote kill signaling by pressing [PTT] key,
and the charged party can be remote stun/remote kill.
When remote stun status, press [PTT] cannot transmit with a beep prompt tone.
When remote kill status, it is forbidden to transmit and receive simultaneously, all keys are invalid, flash orange
light every 30 second and a beep prompt tone.
In case of remote stun/remote kill, please contact the product dealer in time.
Transmit 1750Hz signal
Press [PTT] to transmit, in transmit status, press [PF2] key to transmit 1750Hz, end transmit until release [PF2]
key or [PTT] key.
VOX function
VOX function that is through the voice control of the radio transmission, can release hands.
When the VOX function is turned on, you can speak directly into the microphone without pressing the [PTT] key.
The two-way radio will automatically transmit, and the two-way radio will automatically stop transmitting when
you stop speaking.
Speech volume should be appropriately large, more than a certain value will be launched automatically.
4
Time out timer (TOT) function
TOT function can prevent long time transmit caused by the damage of overheating. When TOT is turned on,
automatically stop transmitting and enter receive status after transmitting for a period time.
TOT automatically stop transmitting, and a beep prompt tone.
Battery Save Function
In the standby state, the battery save function can greatly extend the use time. There are three battery save
model: 1:1, 1:2, 1:3.
Tone Tail Eliminate Function
At the end of the transmission, the end sound of the transmission is eliminated. When the receiver receives the
signal, it shuts down the receiving to eliminate the noise of the receiving tail.
Low Power Warning
When the power is low, red indication light every 30 second and “Low power” warning. When the power
continues to decrease, the two-way radio enters the low power state. When the battery power is very low, the
two-way radio will shut down automatically to protect the battery.
When the low power alarm occurs, please immediately charge, so as not to affect the normal use.
Specification
General Specifications
Frequency range: FRS/PMR446
Modulation Type: 11K0F3E
Memory Channels: 16/22
Operating Temperature: -20℃~ +60℃
Frequency Stability: ± 2.5ppm
Voltage Rating: DC7.4V
Battery Capacity: 1800mAh（Li-ion）
Antenna Impedance: 50Ω
Dimension: 61mm（W）
123mm（H）
36.5mm(D)
Weight: 266g (With Battery, Antenna and Belt Clip)
Transmitter
RF Power: 2W(FRS)/0.5W(PMR446)
Max Frequency Deviation: ±2.5kHz
Adjacent Channel Power: ≥55dB
Spurious Radiation: ≤-31dBm
Audio Distortion：≤5 %
Receiver
Sensitivity(12dB SINAD): ≤0.35µV
Adjacent Channel Selectivity: ≥60dB
Intermodulation Rejection: ≥60dB
Spurious Response Rejection: ≥60dB
Blocking Characteristic: ≥85dB
Audio Output:
＞600mW @10%
5
Serial No. Troubles Troubleshooting
1 Power-on with no response. • Battery life exhausted, please replace battery or charge.
• Battery not installed correctly, please remove and reload.
2 The battery is easily exhausted • Battery pack life is ending, please replace it.
after full charging.
• Communication distance out of effective range.
3 Cannot contact with group members. • Different frequency or CTCSS/DCS/DTMF signals are
used, please reset it.
Hear other voice (not from the • Please change CTCSS/DCS/DTMF signal.
4 same group) in the channel. • Meanwhile reset CTCSS/DCS/DTMF signal for all the
group members.
• Please check whether antenna is well connected.
5 Short communication distance. • Please check whether the antenna is original.
• Please check whether battery voltage is normal.
• Adjust squelch level.
6
Common Troubleshooting
RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE
TWO-WAY RADIOS
Before using this radio, read this guide which contains important operating instructions for
safe usage and rf energy awareness and control for compliance with applicable standards
and regulations.
ATTENTION!
This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communica-
tions between two or more users over a distance. RF energy, which when used improperly, can cause biological
damage.
All Retevis two-way radios are designed, manufactured, and tested to ensure they meet government-established
RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of
two-way radios. These instructions are important because they inform users about RF energy exposure and
provide simple procedures on how to control it.
Please refer to the following websites for more information on what RF energy exposure is and how to control
your exposure to assure compliance with established RF exposure limits:http://www.who.int/en/
Local Government Regulations
When two-way radios are used as a consequence of employment, the Local Government Regulations requires
users to be fully aware of and able to control their exposure to meet occupational requirements. Exposure
awareness can be facilitated by the use of a product label directing users to specific user awareness
information. Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or
separate safety booklet includes information and operating instructions required to control your RF exposure and
to satisfy compliance requirements.
Radio License
Governments keep the radios in classification, business two-way radios operate on radio frequencies that are
regulated by the local radio management departments (FCC, ISED, OFCOM, ANFR, BFTK, Bundesnetzagen-
tur...).To transmit on these frequencies, you are required to have a license issued by them. The detailed
classification and the use of your two radios, please contact the local government radio management
departments.
Use of this radio outside the country where it was intended to be distributed is subject to government regulations
and may be prohibited.
Unauthorized modification and adjustment
Changes or modifications not expressly approved by the party responsible for compliance may void the user’s
authority granted by the local government radio management departments to operate this radio and should not
be made. To comply with the corresponding requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to perform transmitter maintenance and
repairs in the private land mobile and fixed services as certified by an organization representative of the user of
those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the local government
radio management departments equipment authorization for this radio could violate the rules.
FCC Requirements:
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does
not cause harmful interference. (Licensed radios are applicable);
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (Other
devices are applicable)
(1) This device may not cause harmful interference, and
(2
) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE:
7
•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
CE Requirements:
•(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment
type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU
and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU declaration of
conformity is available at the following internet address: www.retevis.com.
•Restriction Information
This product can be used in EU countries and regions, including: Belgium (BE), Bulgaria (BG), Czech Republic
(CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia
(HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT),
Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland
(FI), Sweden (SE) and United Kingdom (UK).
For the warning information of the frequency restriction, please refer to the package or manual section.
•Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the
European Union, all electrical and electronic products, batteries, and accumulators (rechargeable
batteries) must be taken to designated collection locations at the end of their working life. Do not dispo-
se of these products as unsorted municipal waste. Dispose of them according to the laws in your area.
IC Requirements:
Licence-exempt radio apparatus
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2
) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2
) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
RF Exposure Information
•DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also
cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the
manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna
gain shall not exceed the specified gain by the manufacturer declared.
•During transmissions, your radio generates RF energy that can possibly cause interference with other devices
or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
•DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals,
aircraft, and blasting sites.
•Portable Device, this transmitter may operate with the antenna(s) documented in this filing in Push-to-Talk and
body-worn configurations. RF exposure compliance is limited to the specific belt-clip and accessory configura-
tions as documented in this filing and the separation distance between user and the device or its antenna shall
be at least 2.5 cm.
•Mobile Device, during operation, the separation distance between user and the antenna subjects to actual
regulations, this separation distance will ensure that there is sufficient distance from a properly installed
externally-mounted antenna to satisfy the RF exposure requirements.
8
•General population/uncontrolled Radio, this radio is designed for and classified as “General population/uncon-
trolled Use”.
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environment exposure limits,
always adhere to the following procedures.
•User awareness instructions should accompany the device when transferred to other users.
•Do not use this device if the operational requirements described herein are not met.
•Transmit no more than the rated duty factor of 75% of the time. To Transmit (Talk), push the Push to Talk (PTT)
button. To receive calls (listen), release the PTT button. Transmitting 50% of the time, or less, is important
because the radio generates measurable RF energy exposure only when transmitting in terms of measuring for
standards compliance.
•Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away
from a properly installed according to installation instructions, externally mounted antenna.
•When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder,
holster, case, or body harness for this product. Using approved body-worn accessories is important because the
use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF
exposure limits.
Hand-held Mode
• Hold the radio in a vertical position with the microphone (and other parts of the radio including the
antenna) at least 2.5 cm (one inch) away from the nose or lips. The antenna should be kept away
from the eyes. Keeping the radio at a proper distance is important as RF exposure decreases with
increasing distance from the antenna.
Electromagnetic Interference/Compatibility
NOTE:
Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately
shielded, designed, or otherwise configured for electromagnetic compatibility
Avoid Choking Hazard
Small Parts. Not for children under 3 years.
Turn off your radio power in the following conditions:
WARNING
•Turn off your radio before removing (installing) a battery or accessory or when charging battery.
•Turn off your radio when you are in a potentially hazardous environments: Near electrical blasting
caps, in a blasting area, in explosive atmospheres (inflammable gas, dust particles, metallic powders,
grain powders, etc.).
•Turn off your radio while taking on fuel or while parked at gasoline service stations.
To avoid electromagnetic interference and/or compatibility conflicts
•Turn off your radio in any facility where posted notices instruct you to do so, hospitals or health care
facilities (Pacemakers, Hearing Aids and Other Medical Devices) may be using equipment that is
sensitive to external RF energy.
•Turn off your radio when on board an aircraft. Any use of a radio must be in accordance with
applicable regulations per airline crew instructions.
• Use the lowest volume necessary to do your job.
• Turn up the volume only if you are in noisy surroundings.
• Turn down the volume before adding headset or earpiece.
• Limit the amount of time you use headsets or earpieces at high volume.
• When using the radio without a headset or earpiece, do not place the radio's speaker directly
against your ear
Protect your hearing:
WARNING
9
Antennas
•Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into
contact with the skin when the radio is in use, a minor burn can result.
Batteries (If appropriate)
•When the conductive material such as jewelry, keys or chains touch exposed terminals of the
batteries, may complete an electrical circuit (short circuit the battery) and become hot to cause bodily
injury such as burns. Exercise care in handling any battery, particularly when placing it inside a
pocket, purse or other container with metal objects.
Long transmission
•When the transceiver is used for long transmissions, the radiator and chassis will become hot.
• Use careful with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
Note: Exposure to loud noises from any source for extended periods of time may temporarily or
permanently affect your hearing. The louder the radio's volume, the less time is required before
your hearing could be affected. Hearing damage from loud noise is sometimes undetectable
at first and can have a cumulative effect.
Forbid
•Do not use charger outdoors or in moist environments, use only in dry locations/conditions.
•Do not disassemble the charger, that may result in risk of electrical shock or fire.
•Do not operate the charger if it has been broken or damaged in any way.
•Do not place a portable radio in the area over an air bag or in the air bag deployment area. The radio
may be propelled with great force and cause serious injury to occupants of the vehicle when the air
bag inflates.
To reduce risk
•Pull by the plug rather than the cord when disconnecting the charger.
•Unplug the charger from the AC outlet before attempting any maintenance or cleaning.
•Contact Retevis for assistance regarding repairs and service.
•The adapter shall be installed near the equipment and shall be easily accessible
•Contact Retevis for assistance regarding repairs and service.
•The adapter shall be installed near the equipment and shall be easily accessible
•This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or
designated for the product. Use of other accessories may not ensure compliance with the RF
exposure guidelines and may violate regulations.
•For a list of Retevis-approved accessories for your radio model, visit the following website:
http://www.Retevis.com
Approved Accessories
WARNING
Safety Operation
WARNING
WARNING
Avoid Burns
10
61
Frequency CTCSS CTCSS
CH
Frequency
CH
US (
Frequency table)
462.5625
462.5875
462.6125
462.6375
462.6625
462.6875
462.7125
467.5625
467.5875
467.6125
467.6375
467.6625
467.6875
467.7125
462.5500
462.5750
462.6000
462.6250
462.6500
462.6750
462.7000
462.7250
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
67.0
118.8
127.3
131.8
136.5
141.3
146.2
D243N
D032N
D047N
D051N
D053N
D065N
D116N
123.0
D743I
D332I
127.3
D243I
D606N
D731I
136.5
Frequency CTCSS CTCSS
CH
Frequency
CH
EU (
Frequency table)
446.00625
446.01875
446.03125
446.04375
446.05625
446.06875
446.08125
446.09375
446.10625
446.11875
446.13125
446.14375
446.15625
446.16875
446.18125
446.19375
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
114.8
114.8
114.8
114.8
114.8
114.8
114.8
114.8
D026N
D026N
D026N
D026N
D026N
D026N
D026N
D026N
Guarantee
Model Number:
Serial Number:
Purchasing Date:
Dealer: Telephone:
User’s Name: Telephone:
Country: Address:
Post Code: Email:
Remarks:
1.This guarantee card should be kept by the user, no replacement if lost.
2.Most new products carry a two-year manufacturer’s warranty from the date of
purchase. Further details, pls read http://www.retevis.com/after-sale/
3.The user can get warranty and after-sales service as below:
• Contact the seller where you buy.
• Products Repaired by Our Local Repair Center
4.For warranty service, you will need to provide a receipt proof of purchase from the
actual seller for verification
Exclusions from Warranty Coverage:
1.To any product damaged by accident.
2.In the event of misuse or abuse of the product or as a result of unauthorized
alterations or repairs.
3.If the serial number has been altered, defaced, or removed.
Please cut along with this line
Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli
6th Road, Jihua Street, Longgang District, Shenzhen, China
Web: www.retevis.com
E-mail: [email protected]
Facebook: facebook.com/retevis
Shenzhen Retevis Technology Co.,Ltd.
尺寸：120*160mm
印刷：黑白印刷
装订：胶订
纸张材质：胶合纸
本页无需印刷
说明书要求
