User Manual
QR10M/QR10L
Date: September 2021
Doc Version: 1.0
English
Preface
Thank you for choosing our product QR10 series QR code reader. Please read this User
Manual carefully before use.
We strongly believe that the QR code reader will provide you and your customers with an
outstanding user experience and will elevate your brand image and management to a
higher level.
Please do not optionally dismantle the product or modify the system settings without
professional instructions, as this could compromise the product’s quality and service life.
Please contact the local dealers if you have any questions.
Contents
1. Introduction ........................................................................................................................................ 1
2. Features ................................................................................................................................................ 3
3. Technical Specifications ................................................................................................................. 3
4. Scanning .............................................................................................................................................. 4
5. Driver Installation .............................................................................................................................. 5
Notes ................................................................................................................................................................... 7
Statements concerning Human Rights Privacy ................................................................................... 8
1
1. Introduction
The QR10M module is a compact optical module. It not only has all the functions of the
reader, but it can also integrate applications with various products in a flexible manner
without the use of any accessories.

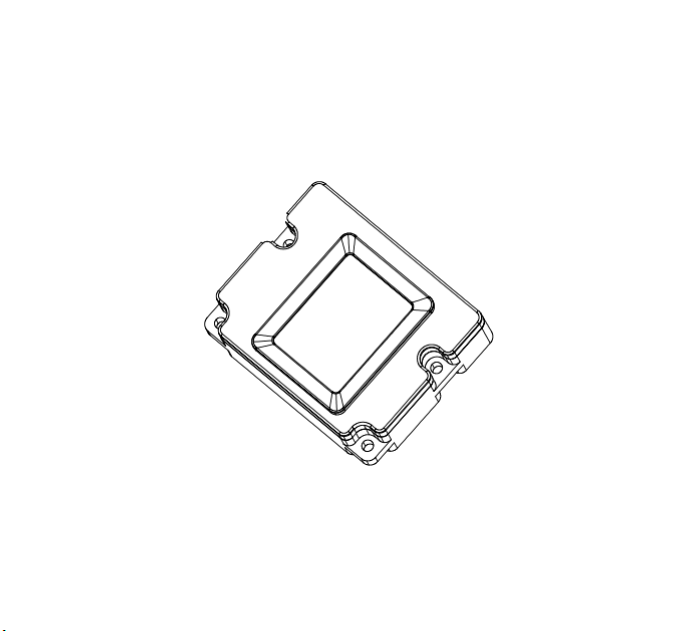

QR10M
2
QR10L QR code reader is a highly integrated, high-performance QR code reader that
includes the QR code scanning engine algorithm and driver. The product has a delicate
appearance and is equipped with a high-speed processor, making it suitable for all types
of users. The reader supports Windows, Android, and Linux operating systems.
QR10L
3
2. Features
• It is the most recent and precise QR code Identification Technology.
• It is compatible with Windows, Android, and Linux operating systems.
3. Technical Specifications
Features Specifications
Scanner Type QR10M and QR10L
Material
Optical
Dimensions (L * W * H)
QR10M: 40 * 44 * 20.1 mm
QR10L: 75.5 * 53.2 * 19 mm
Operating System Windows, Linux, and Android
Scanning Angle Roll: 360°, Pitch: ±40°, Yaw: ±60°
FOV Horizontal: 66°, Vertical: 50°
Image Size
648 * 488 pixels
Illumination Intensity 0 to 10000 Lux
One-dimensional Code
Types
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, EAN-14,
EAN-128, UCC128, ISBN/ISSN, CODE11, CODE32,
CODE39, CODE39 Full ASCII, CODE93, CODE128,
interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, China
post code, UK/Plessey, and GS1
4
Types of QR Code
QR code, PDF417, Data Matrix, MicroPDF417, and
Aztec
Operating Temperature
-10°C to +50°C
Operating Humidity
5% to 93% RH (Non-condensing)
Operating Voltage
5.0V±0.25V (USB)
Operating Current
(Working Mode)
240mA
Operating Current
(Idle Mode)
50mA
Anti-static Voltage ≥8kV
Communication Interface USB keyboard, USB HID
4. Scanning
Depth of Field
Code Type Barcode Size Content Byte Size
Scanning Distance
Code128
6mil 6 bytes 5 to 6cm
Code128
12.5mil 15 bytes 10 to 15cm
Qrcode
40mil 28 bytes 5 to 25cm
5
5. Driver Installation

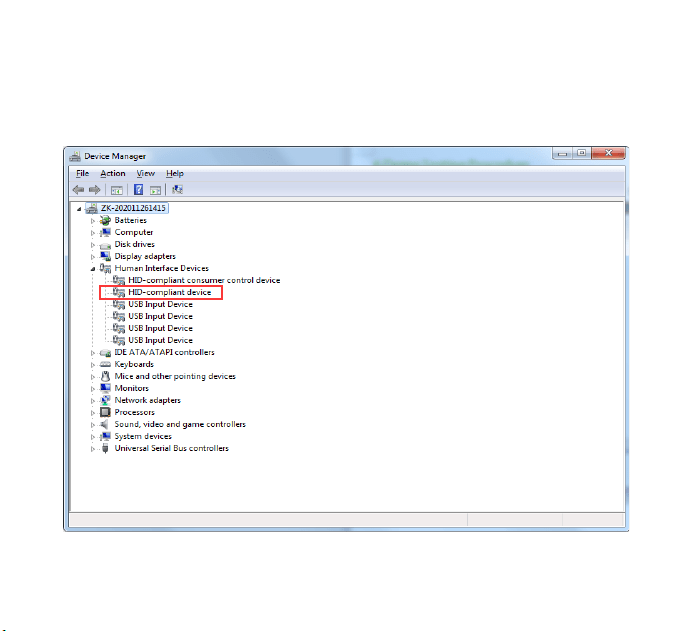

Insert the USB and open the device manager. The device will be displayed as shown in
the figure.
6
It is not necessary to install the driver or use the SDK. After inserting the USB successfully,
open the Notepad and scan the code directly. The public content will be displayed as
the text of the successful scan, indicating that the device verification was successful.
7
Suggestions
1. Please keep the sensor away from dust.
2. Please use adhesive tape to clean the collecting area.
Do not use water or other detergents, which may damage the sensor.
3. Please wipe the sensor with a wool-free cloth.
4. Please make sure the sensor is clean after each use.
Notes
The product operating environment is indoors, and it is not recommended to
install the product under direct sunlight.
Please do not dismantle the product without proper guidance.
The company cannot guarantee for any violations that interrupt the product
activity.
