ZKTeco TS2000 PRO TS2200 Pro Series User Manual

mTS1000 Series Tripod Turnstile User Manual

Thank you for choosing our product. Please read the instructions carefully

before operation. Follow these instructions to ensure that the product is

functioning properly. The images shown in this manual are for illustrative

purposes only.

For further details, please visit our Company’s website

www.zkteco.com

.

User Manual

TS2200 Pro Series Tripod Turnstile

Applicable Model(s): TS2200 Pro, TS2211 Pro, TS2222 Pro

Date: April 2026

Doc Version: 1.2

English

TS2200 Pro Series Tripod Turnstile User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

copyright in all the documents, drawings, etc. in relation to the ZKTeco supplied equipment vests in and is

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

TS2200 Pro Series Tripod Turnstile User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (I) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at: [email protected]om

.

To know more about our global branches, visit www.zkteco.com.

TS2200 Pro Series Tripod Turnstile User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques.With years of experience in the industrialization of biometric verifications, ZKTeco was officially

established in 2007 and now has been one of the globally leading enterprises in the biometric verification

industry owning various patents and being selected as the National High-tech Enterprise for 6 consecutive

years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of TS2200 Pro Series Tripod Turnstile.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with ★ are not available in all devices.

TS2200 Pro Series Tripod Turnstile User Manual

Table of Contents

1 OVERVIEW ............................................................................................................................................ 6

Features ........................................................................................................................................................ 7 1.1

Appearance and System Components .................................................................................................... 7 1.2

1.2.1

Appearance ................................................................................................................................................................................................. 7

1.2.2 System Components ............................................................................................................................................................................. 8

Model Number and Access Control.......................................................................................................... 8 1.3

Mechanical System ..................................................................................................................................... 9 1.4

Electronic Control System ......................................................................................................................... 9 1.5

Power-On Self-Test ..................................................................................................................................... 9 1.6

Status of Traffic Indicator ........................................................................................................................ 10 1.7

Working Principle...................................................................................................................................... 10 1.8

Technical Specifications ........................................................................................................................... 11 1.9

2

FUNCTION INTRODUCTION .............................................................................................................. 13

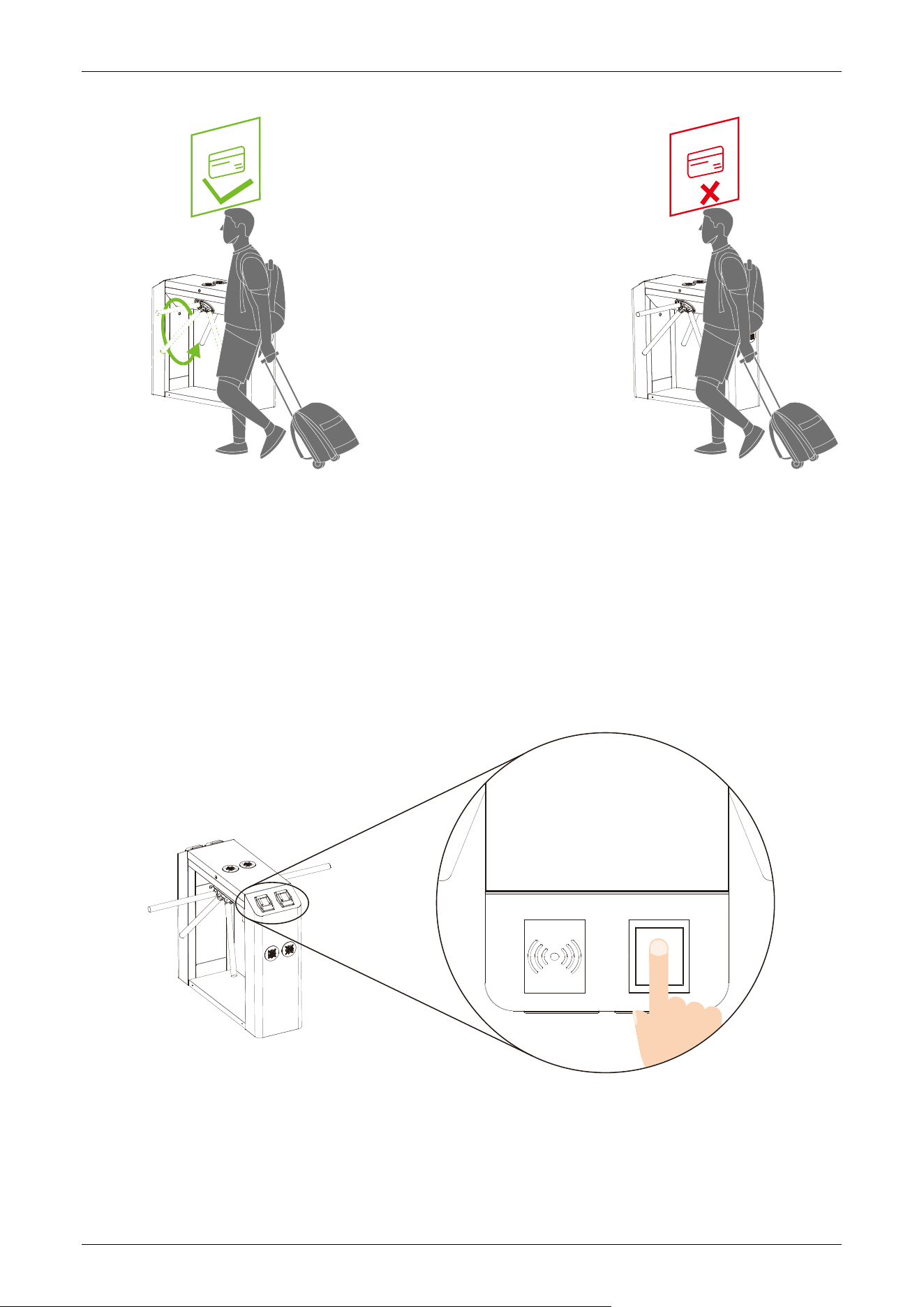

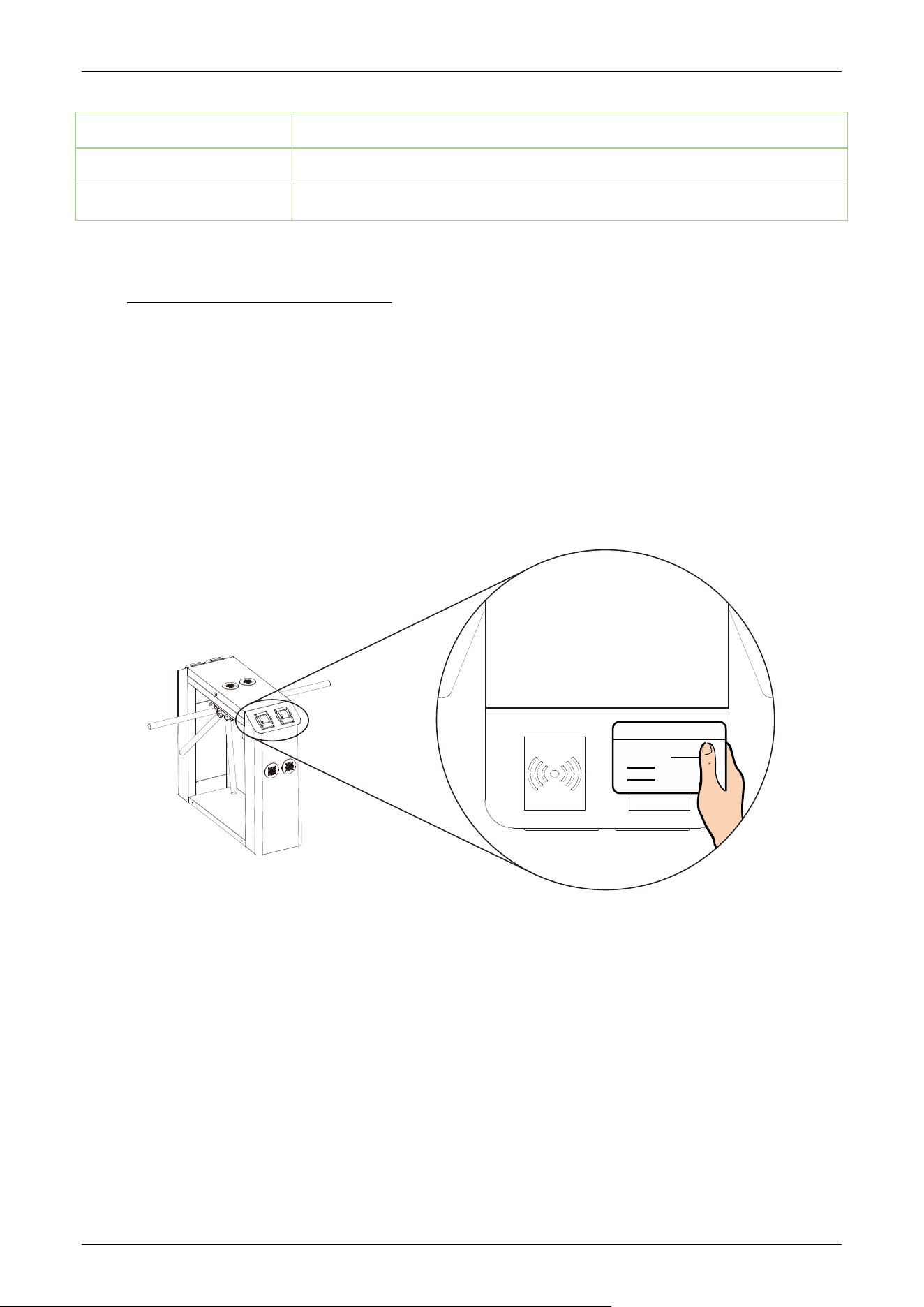

Card Verification ★ .................................................................................................................................. 13 2.1

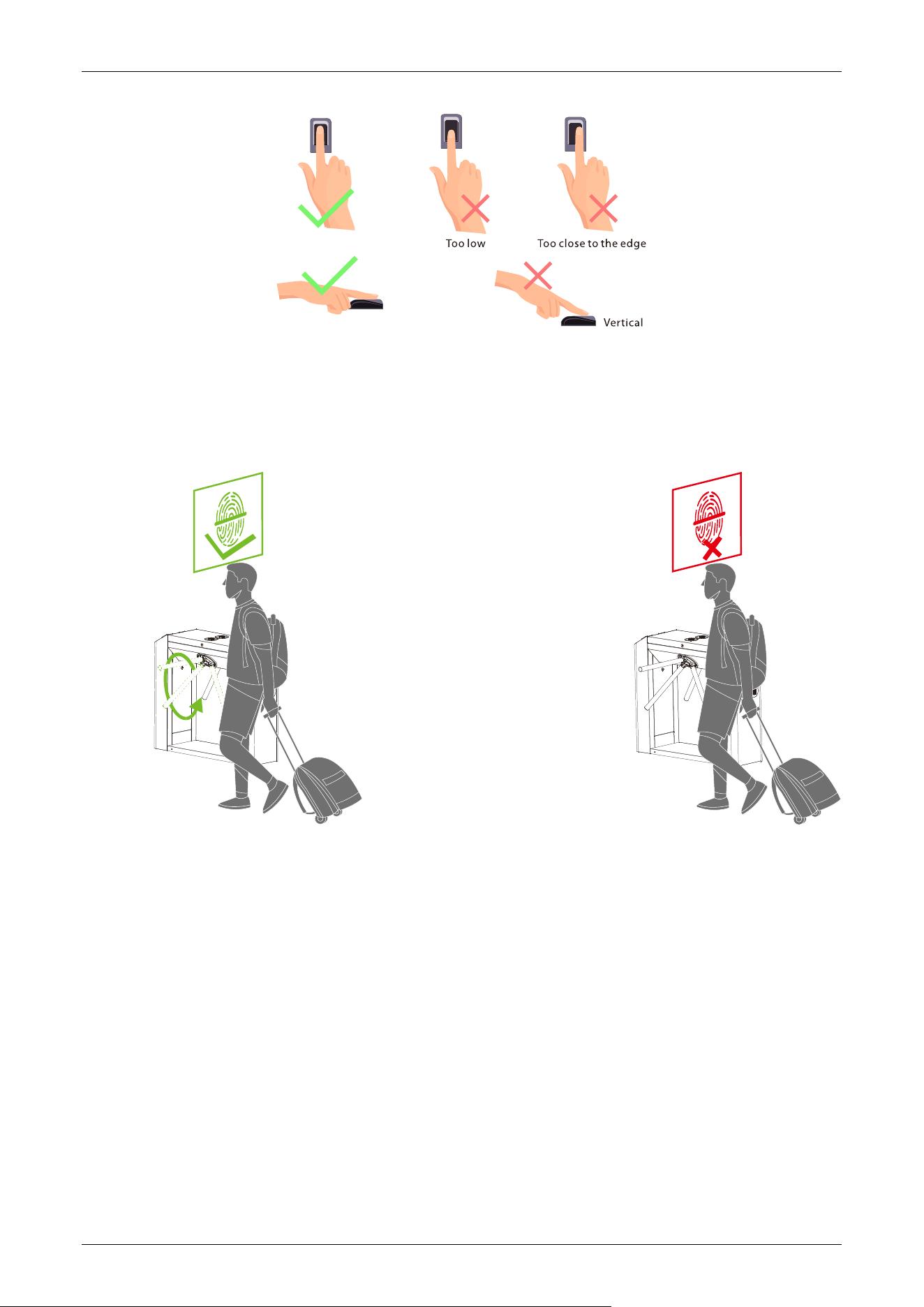

Fingerprint Verification★ ....................................................................................................................... 14 2.2

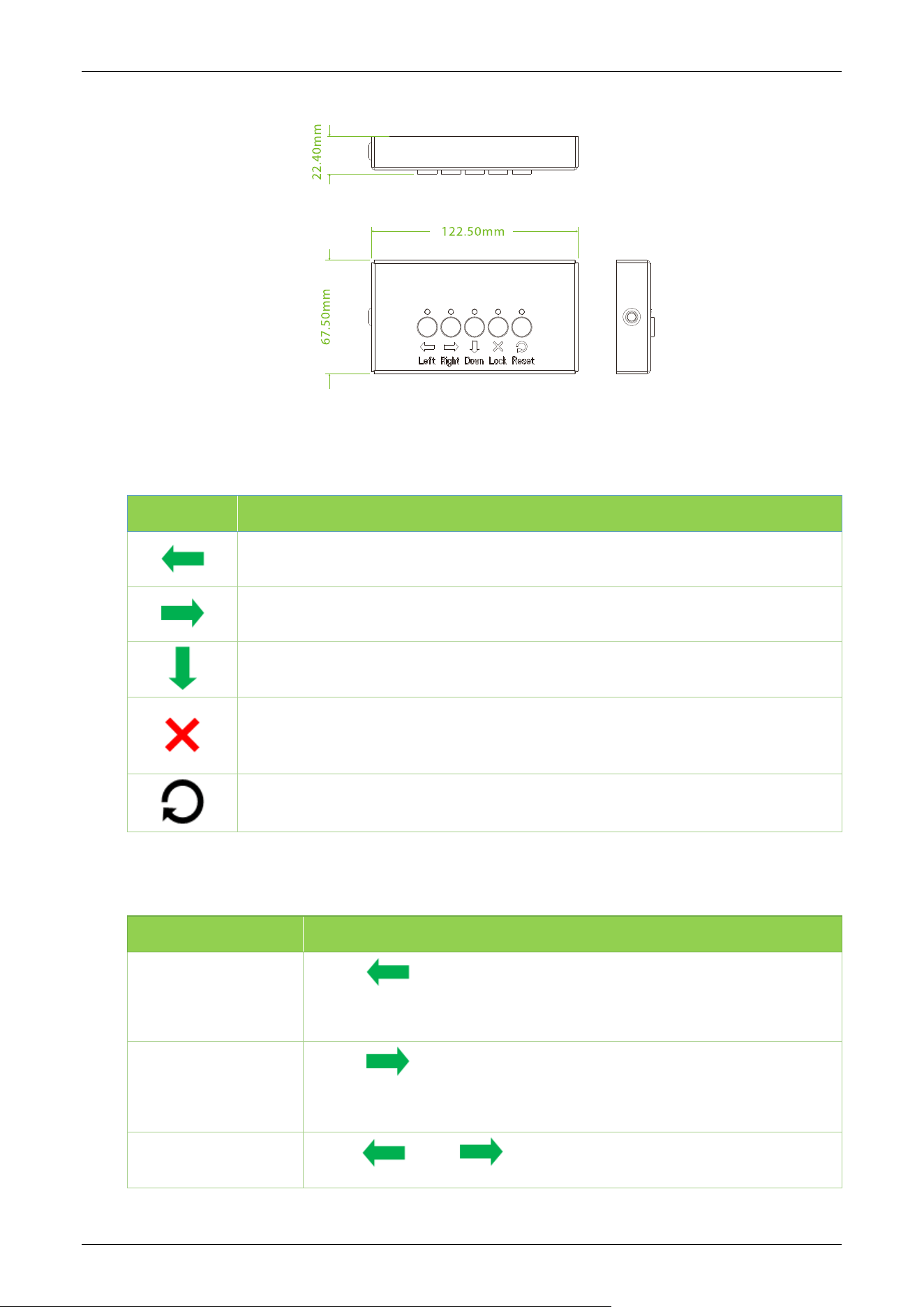

Wired Remote Control★ ......................................................................................................................... 15 2.3

Wireless Remote Control★ ..................................................................................................................... 18 2.4

3

CONTROL SYSTEM INTRODUCTION ................................................................................................. 20

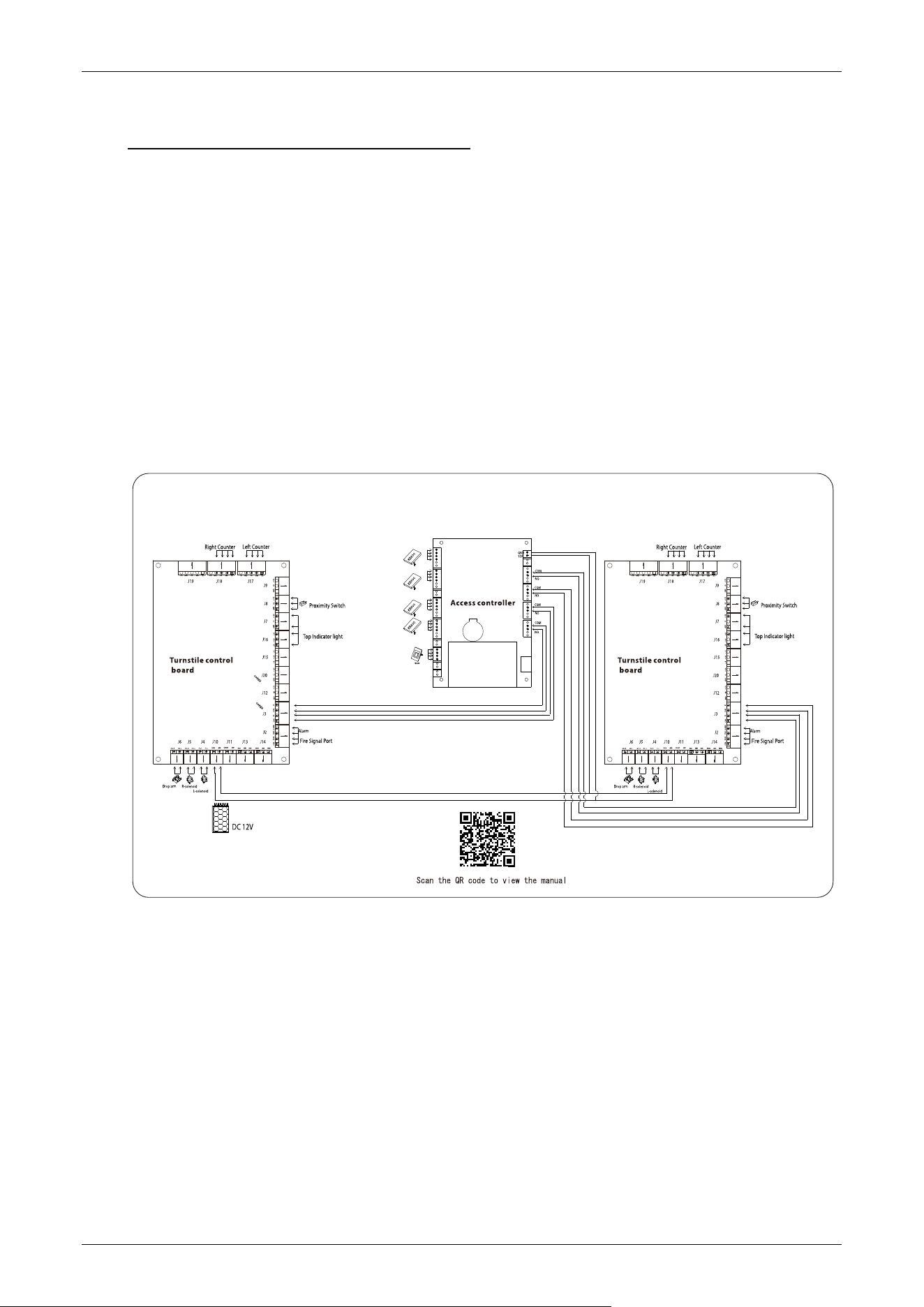

Wiring Diagram ......................................................................................................................................... 20 3.1

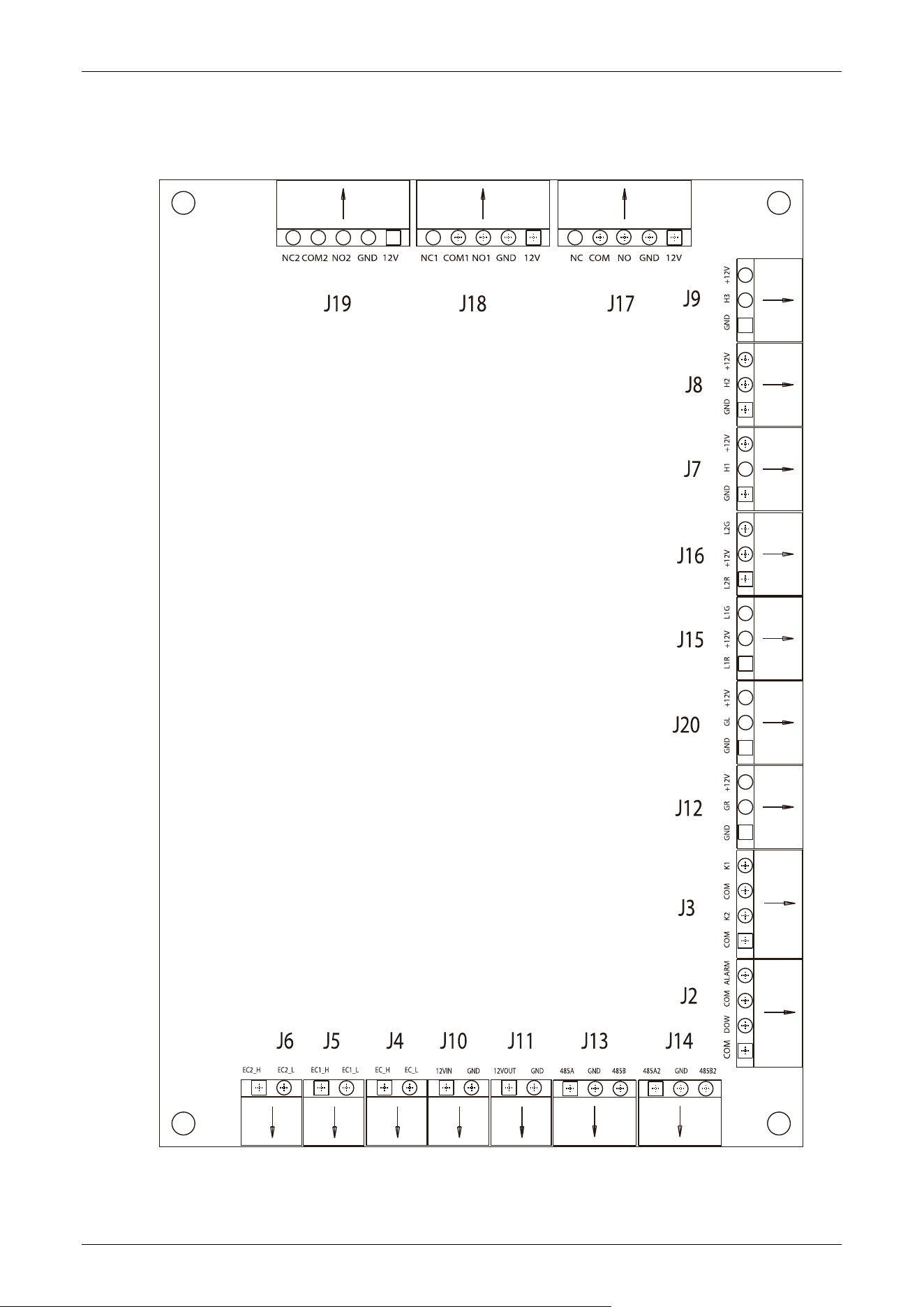

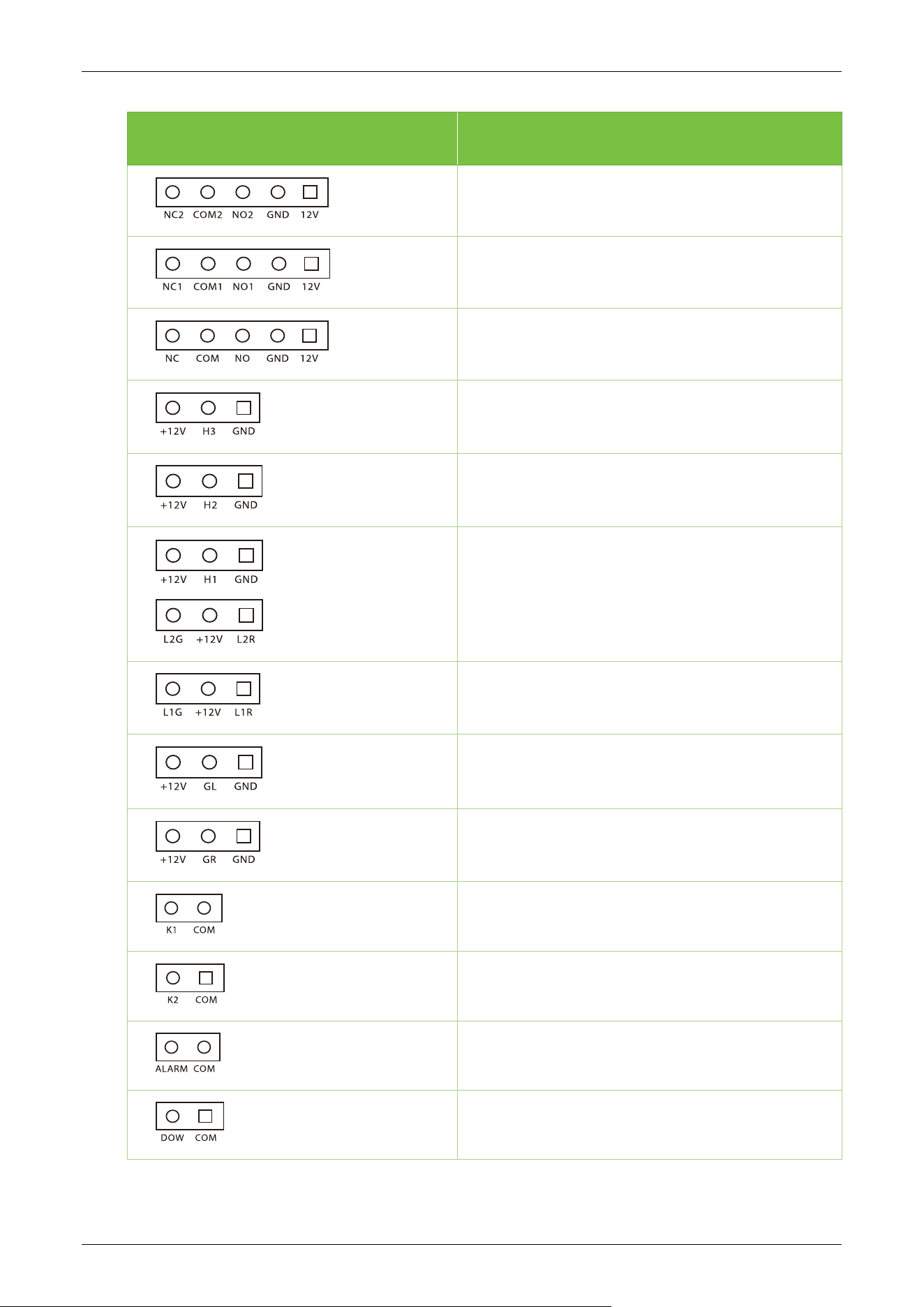

Turnstile Control Board ............................................................................................................................ 21 3.2

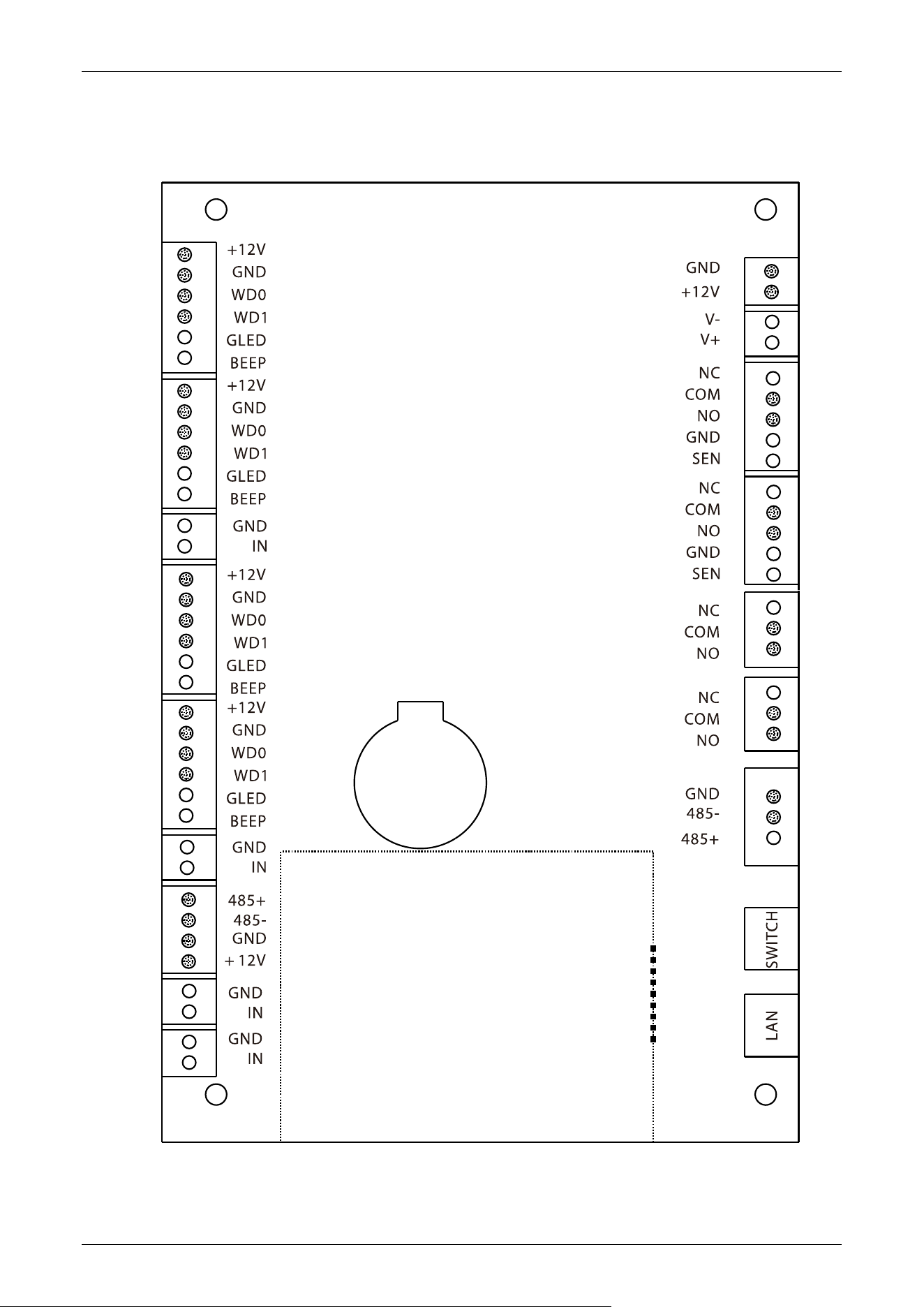

Access Control Board ................................................................................................................................ 24 3.3

4

DEFAULT PARAMETERS .................................................................................................................... 26

5 TROUBLESHOOTING.......................................................................................................................... 27

6 PRECAUTION ...................................................................................................................................... 28

7 MAINTENANCE .................................................................................................................................. 29

Chassis Maintenance ................................................................................................................................ 29 7.1

Movement Maintenance .......................................................................................................................... 29 7.2

Power Supply Maintenance .................................................................................................................... 29 7.3

8

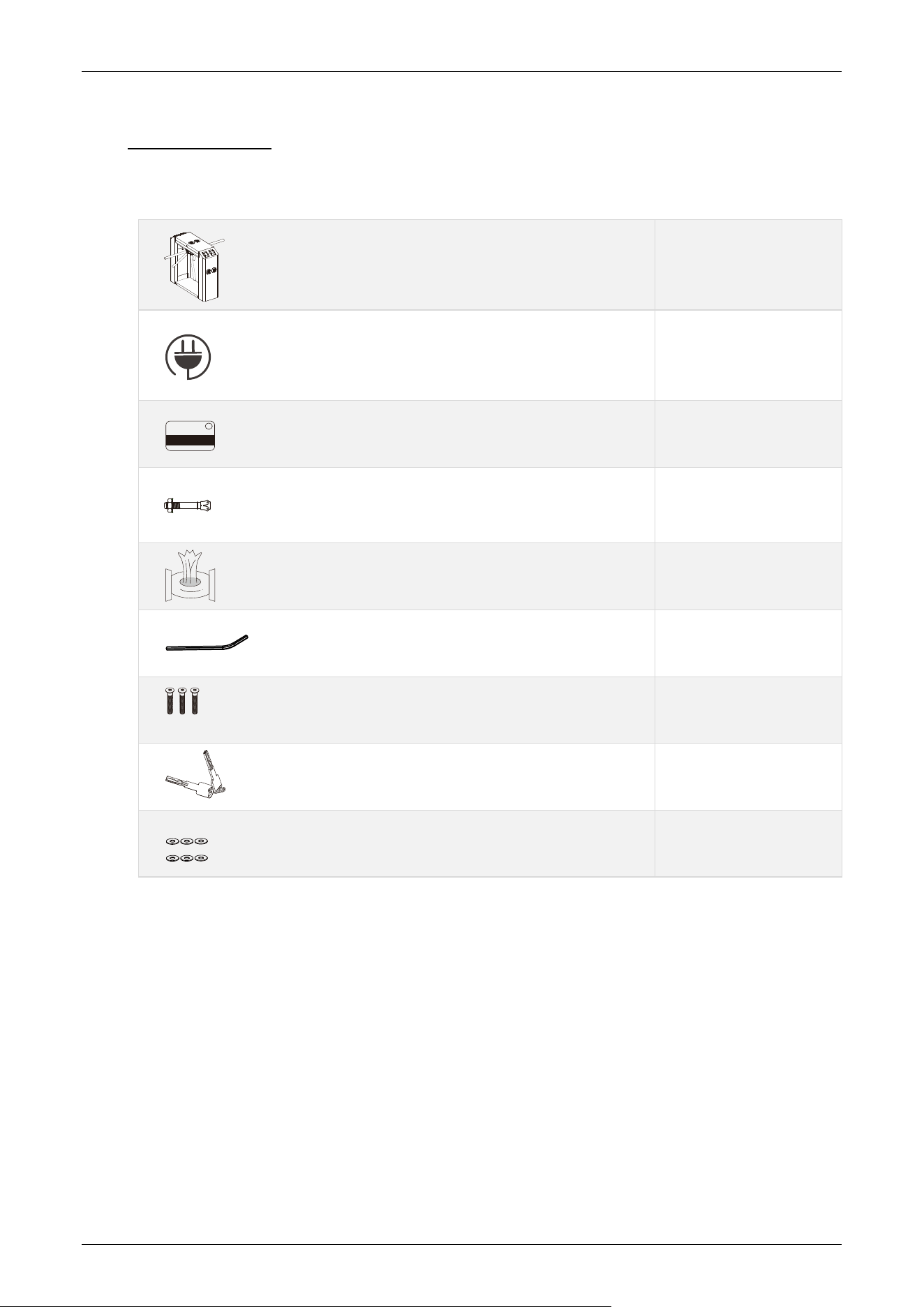

PACKING LIST .................................................................................................................................... 30

TS2200 Pro Series Tripod Turnstile User Manual

1 Overview

The TS2200 Pro series is one kind of innovative semi-automatic tripod turnstile series. It features a

dual-core design, making it an affordable and practical products. The shell is made of high quality

304 stainless steel, and the parts are treated with anti-corrosion coating for enhances durability. The

top cover panel of the TS2200 Pro series, which integrated general access control, is customizable

based on different verification modes. It can support controller★, RFID reader★ or fingerprint

reader★, depending on the specific requirements. Additionally, thanks to its small and compact

body design, the TS2200 Pro series operates smoothly and quietly while consuming minimal power.

Our Pro series tripod turnstiles represent a classic and reliable solution for safeguarding your

premises. They are extensively utilized in a wide range of indoor environments due to their

versatility. These turnstiles are an ideal economical choice for office buildings and other similar

applications, seamlessly integrating into the overall setting.

TS2200 Pro Series Tripod Turnstile User Manual

Features 1.1

 Long service life, capable of opening and closing the gate more than 2 million times when

measured.

 Drop arm automatically during power off.

 Self-protection function to prevent strong intrusion, excessive current and other special

circumstances, such as damage to the product, death, etc.

 Support fire linkage, allowing them to drop the arm in case of a fire signal received,

accompanied by an emergency alarm prompt.

 SUS304 stainless steel housing.

 LED pictograms for intuitive user experience and high throughput in both directions

 High quality at an affordable price.

 Low power consumption.

 Easy and simple installation process.

Appearance and System Components 1.2

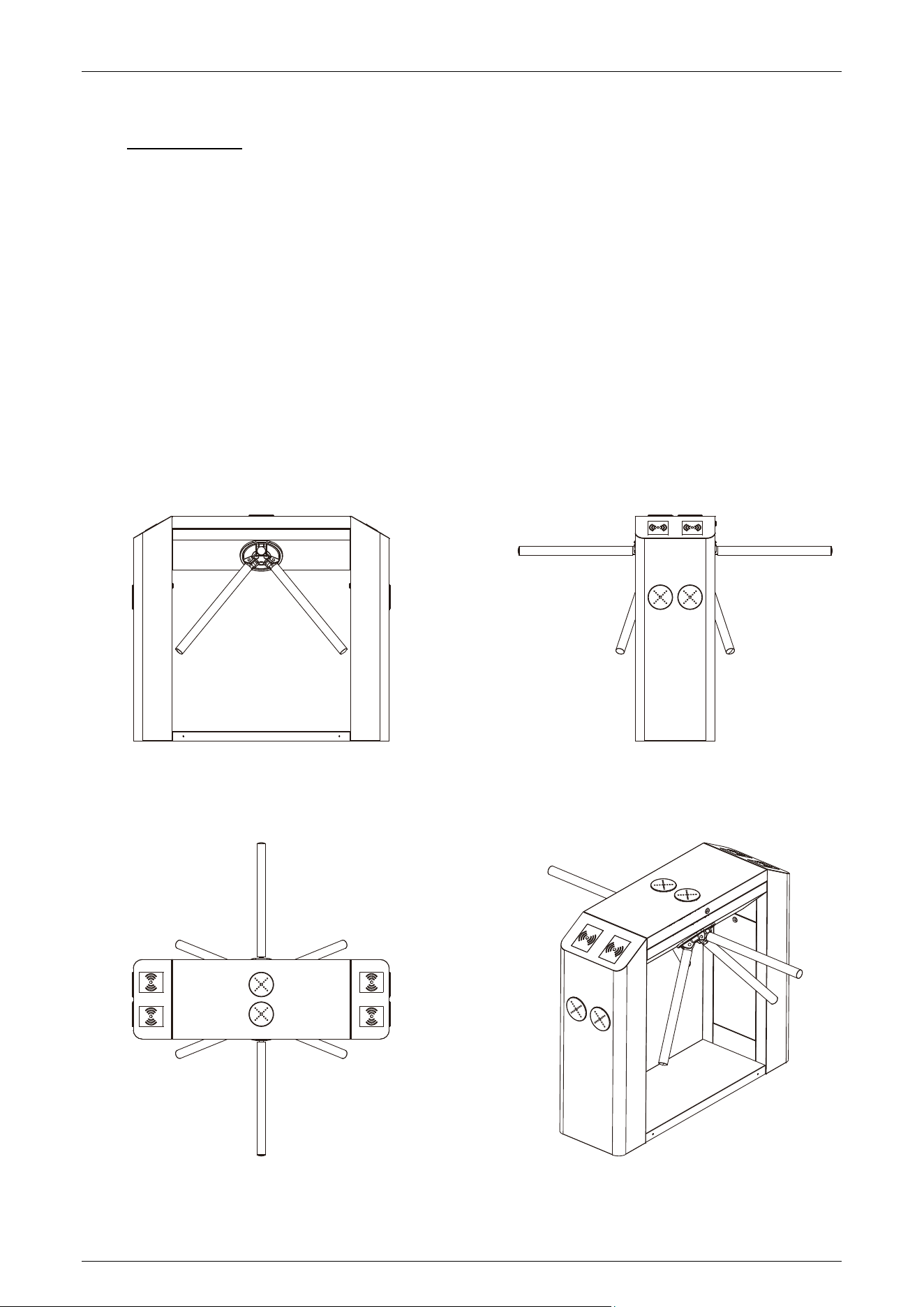

1.2.1 Appearance

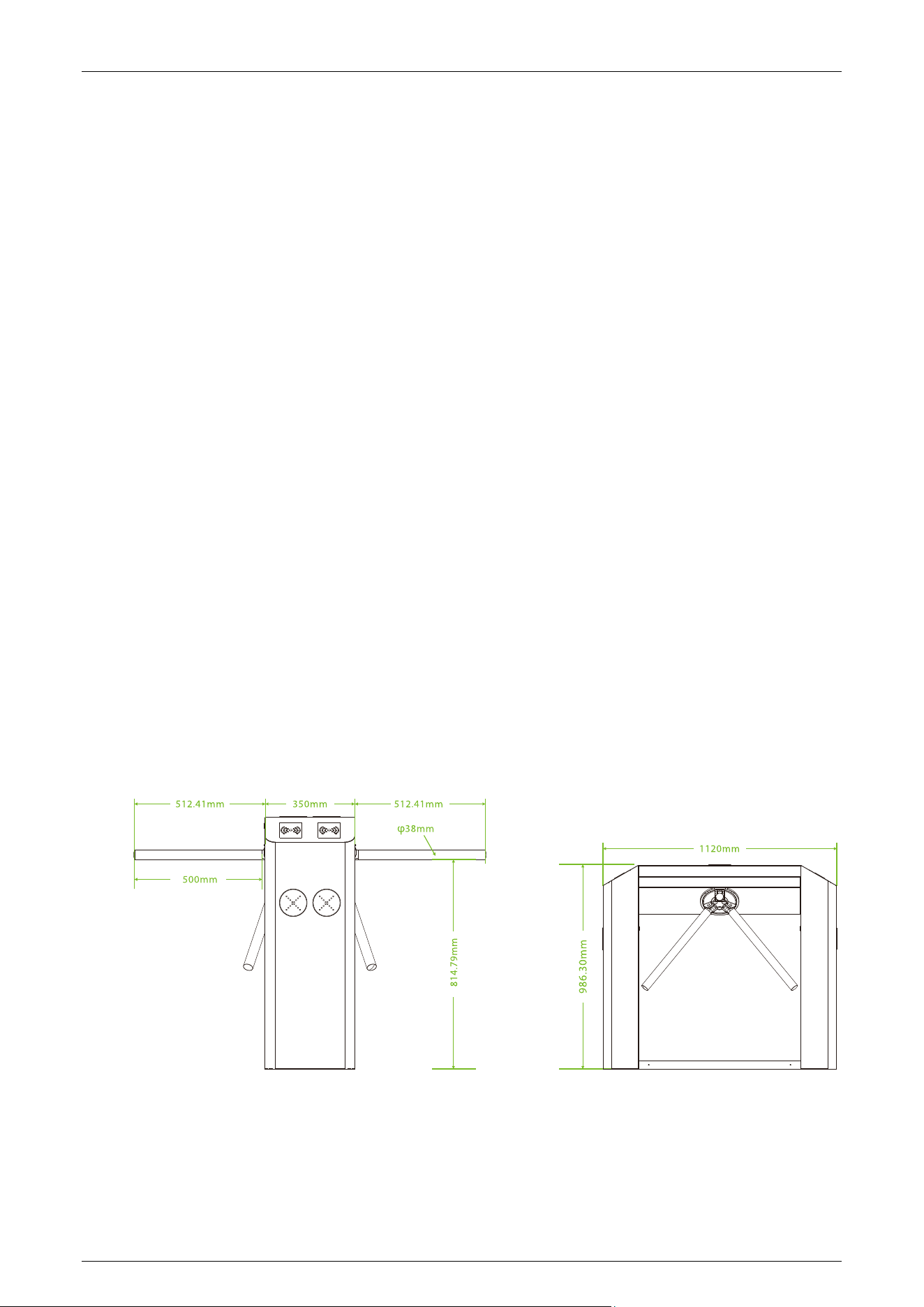

The appearance and dimensions of the TS2200 Pro series are shown in the figure below:

TS2200 Pro Series Tripod Turnstile User Manual

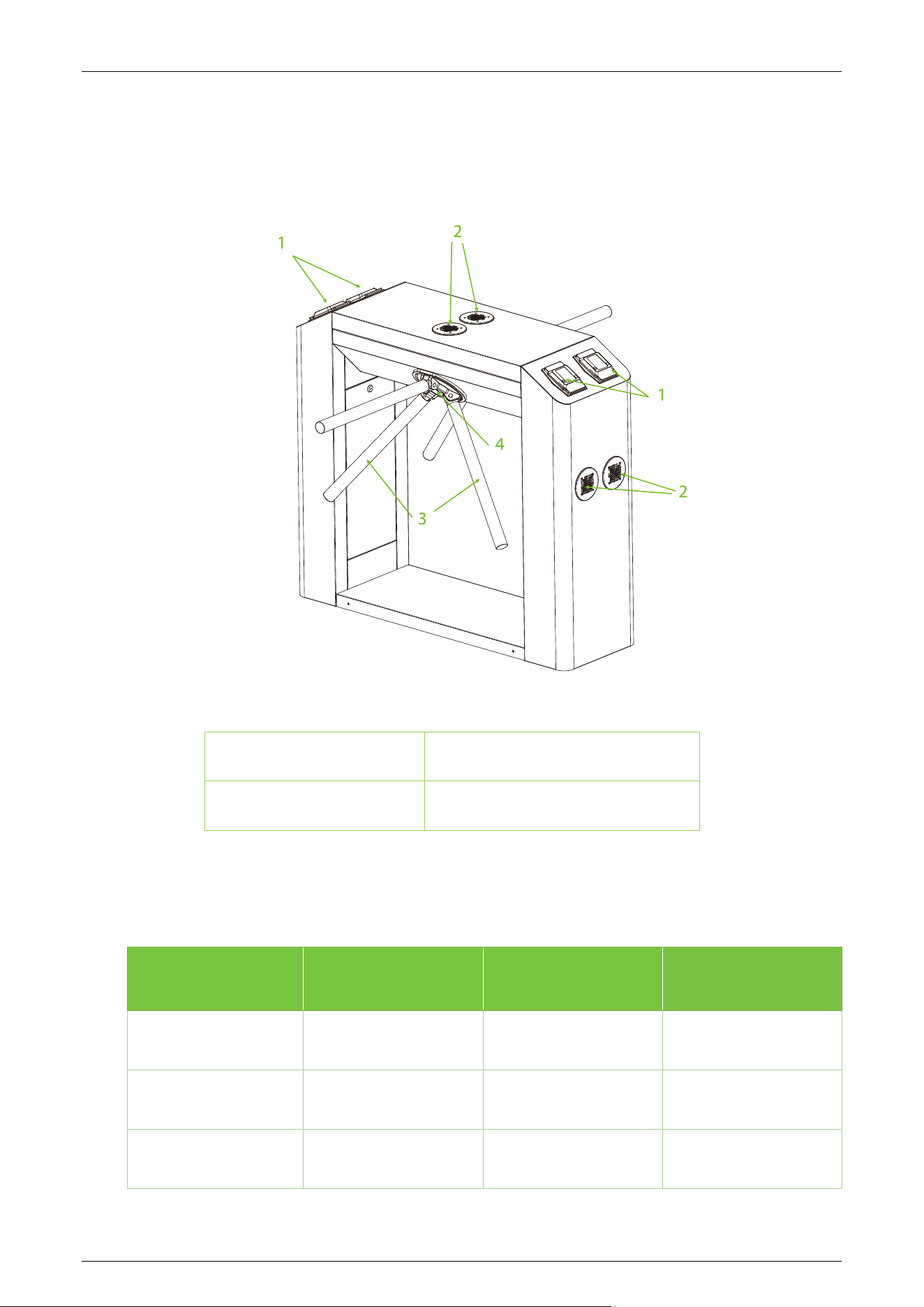

1.2.2 System Components

The system components of the TS2200 Pro series are shown below:

1. Verification Units 2. Traffic Indicator

3. Arm 4. Disk Wheel

Model Number and Access Control 1.3

Model No. Controller RFID Reader Fingerprint Reader

TS2200 Pro

TS2211 Pro √ √

TS2222 Pro √ √ √

TS2200 Pro Series Tripod Turnstile User Manual

Mechanical System 1.4

The mechanical system of the tripod turnstile consists of the chassis and the core components. The

chassis serves as a carrier for the installation of the Traffic Indicator, RFID Reader★, Fingerprint

Reader★ and Door lock. (Note: RFID and fingerprint reader not included in TS2200 Pro. Included in

TS2211 Pro (RFID only) and TS2222 Pro (RFID + fingerprint.)

Electronic Control System 1.5

The electronic control system of a tripod turnstile mainly consists of the RFID Reader★/Fingerprint

reader★, Turnstile control board and Traffic Indicator.

RFID Reader★: The reader reads the data on the card and transmits it to the Access Controller. (For

TS2211 Pro and TS2222 Pro only)

Fingerprint Reader★: The device compares the fingerprint being pressed onto the fingerprint

reader with the stored fingerprint data and transmits it to the Access Controller. (For TS2222 Pro

only)

Turnstile Control Board: The turnstile control board serves as the control center of the system,

receiving signals from the reader and the dry contact. It performs logical calculations and processing

of these signals, and subsequently sends executive commands to the traffic indicator and the arm.

Traffic Indicator: The system will illuminates the red indicator when the gate is closed. When

someone passes the verification, the system will illuminates the green indicator.

Power-On Self-Test 1.6

1. Please make sure that the power requirements are strictly to avoid permanent damage to the

unit. Input voltage: AC 100 to 120V /200 to 240V. Note: The tripod turnstile must be connected

to the ground (earth).

2. Power on the tripod turnstile and wait 30s to complete the self-check program.

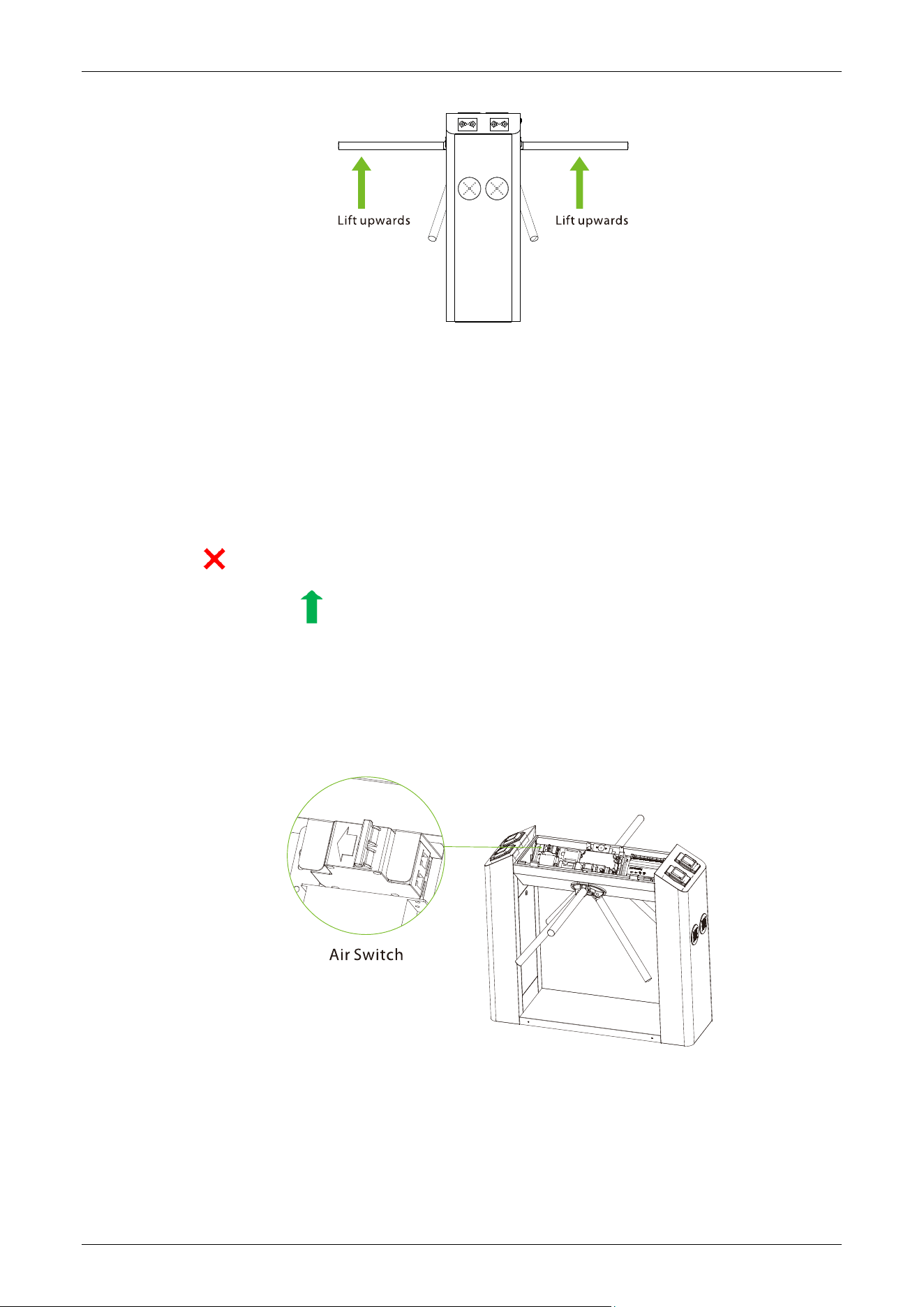

3. Lift the arms manually, as shown in the diagram below:

TS2200 Pro Series Tripod Turnstile User Manual

4. Check whether the tripod turnstile and the traffic indicators work properly. If there is any

problem, please contact the supplier.

Status of Traffic Indicator 1.7

The tripod turnstile is in working state after power-on self-test. The traffic indicators gives

pedestrians the corresponding indication of passage.

Standby:

Pass-through (In/Out):

Working Principle 1.8

1. When the device is connected to the power, the system performs the Power-On Self-Test. If no

issues are detected during this process, the device will operate normally

2. When a valid Card★/Fingerprint★ is detected, the traffic indicator will display a green light to

indicate successful verification to the pedestrian. And then, the reader sends signals to the

Access Controller to request permission to pass through the passage. The Access Controller will

send the signal to the mother control panel.

TS2200 Pro Series Tripod Turnstile User Manual

3. After receiving the signal from the Access Controller, the turnstile control board sends valid

control signals to the solenoid.

4. Pedestrians should follow the traffic indicator and gently push the unlocked arm; the arm will

automatically rotate till the pedestrian passes through the channel.

5. If a pedestrian enters the passage without successfully verifying their identification or if their

card★/fingerprint★ is invalid, the system will not grant passage. Only when a valid card★

/fingerprint★ is successfully confirmed, the pedestrian will be allowed to pass through the

passage.

Note:

1) Make sure the ground wire of the system is reliably connected to avoid personal injuries or

other accidents.

2) RFID and fingerprint reader not included in TS2200 Pro. Included in TS2211 Pro (RFID only) and

TS2222 Pro (RFID + fingerprint).

Technical Specifications 1.9

Model TS2200 Pro Series

Visual Indicator

Steady green=Open

Steady red=Close

Audio Indicator

Internal buzzer

Lane Type

Dual Lane (support bi-directional)

Lane Width

550mm

Barrier Movement Type

Rotating (tripod)

Tripod Length

500mm

Footprint

1120x350mm

Lid Material

SU304 stainless steel

Lid Options

Streamlined (Pole mount options)

Authentication Methods

N/A (standard);

Fingerprint authentication, RFID verification (optional)

Chassis Material

SU304 stainless steel (T=1.2mm)

Chassis Color

Silver/grey

Barrier Material

SUS304 stainless steel

Motherboard Function

Tripod (drop arm) duration; access mode configuration

Motherboard

Communication

Fire alarm port (relay)*1, RS485 port*1

TS2200 Pro Series Tripod Turnstile User Manual

Controller

N/A

Optional model upon request: TS2211 Pro/TS2222 Pro

(controller: C3-200 Plus (recommended); InBio 260 Pro Plus or third-party

controller subject to turnstile chassis space)

Credential Options

N/A

Optional model upon request: TS2211 Pro (RFID only) ; TS2222 Pro (RFID +

Fingerprint)

Under Mount RFID Reader (ProID Series, KR Series)

Under Mount Fingerprint Reader: FR1200 / FR1500

Flow Rate

RFID: 25 passengers per minute

Fingerprint: 20 passengers per minute

Accessibility

Adult; Children (with care); Disability (with care)

Power Supply

110V / 220V AC ±10% 50/60Hz; DC 12V

Power Rating

10VA (Standby)

40VA (Operation)

Fire Signal

Input for voltage free contact

Noise Level

Less than 60dB

MTTR

Less than 60 minutes

MCBF

2 million

Weight

Gross weight: 75kg

Net weight: 65kg

Dimensions (L*W*H)

1120*350*986mm

Dimensions with Packing

(L*W*H)

1215*430*1104mm

Operating Temperature

-20℃ to 70℃

Operating Humidity

0% to 80% RH (non-condensing)

Certifications

CE, FCC

Ingress Protection Rating

Tested to IPX4-level water resistance (self-tested result)

Supported Software

ZKBio CVAccess/ ZKBio CVSecurity

(expands functionality for access control)

Safety Levels

Auto-locking tripod upon authentication failure; drop arm during power off

or power outage

Security Features

Anti-tailgating

Product Delivery

Pre-assembled

Application Environment

Indoor/Outdoor (if sheltered)

Site Preparation

Flat level finished floor

(base plate in options for unfinished floor)

TS2200 Pro Series Tripod Turnstile User Manual

Security Level

Medium

Emergency Mode

Support (drop arm)

Packing Material

Wooden box (standard)

2 Function Introduction

Card Verification

★

2.1

(Only included in TS2211 Pro and TS2222 Pro.)

The Card Verification mode compares the card number in the card induction area with all the card

number data registered in the device and sends it to the Access Controller.

When a user places their card on the card reading area, the device enters card authentication mode.

TS2200 Pro Series Tripod Turnstile User Manual

Fingerprint Verification

★

2.2

(Only included in TS2222 Pro.)

In this verification mode, the device compares the fingerprint that is being pressed onto the

fingerprint reader with all the fingerprint data sends it to the Access Controller.

When a user places their finger onto the fingerprint scanner, the device enters the fingerprint

authentication mode.

Recommended fingers: It is recommended to use index, middle, or ring finger for registration and

avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint

reader.

TS2200 Pro Series Tripod Turnstile User Manual

Note: Please use the correct method when pressing your fingers onto the fingerprint reader for

registration and identification. Our company will assume no liability for recognition issues that may

result from incorrect usage of the product. We reserve the right of final interpretation and

modification concerning this point.

Wired Remote Control

★

2.3

The wired remote control has five buttons: the Left button, Right button, Down button, Lock button,

and Reset button. These five independent buttons have individual functions as well as combined

functions. Pressing two buttons within the specified time interval can call up a predefined mode.

TS2200 Pro Series Tripod Turnstile User Manual

The following tables describe the modes of different button press actions:

1. Independent functions:

Button Description

Press the button once to open the tripod turnstile and can pass by identity

verification from the inbound.

Press the button once to open the tripod turnstile and can pass by identity

verification from the outbound.

In emergency mode, press the button once to fall the arm lever. Then the inbound

and outbound sides get open and can pass freely without identity verification.

Press the button once to raise the arm lever. Then the inbound and outbound

sides are controlled by the tripod turnstile. The i

dentity verification becomes

invalid, and no pass is allowed.

Press a button once to restore the default inbound and outbound identity

verification pass mode of the arm.

2. Combined functions:

Status Description

Inbound free,

Outbound control

Press " " twice to open the tripod turnstile on both sides. The

inbound side is free to pass without identity verification and can pass by

identity verification from the outbound.

Inbound control,

Outbound free

Press " " twice to open the tripod turnstile on

both sides. The

outbound side is free to pass without identity verification and can pass by

identity verification from the inbound.

Inbound free,

Outbound free

Press " " and " " at the same time to open the tripod turnstile

TS2200 Pro Series Tripod Turnstile User Manual

on both sides and both inbound and outbound sides can pass freely

without identity verification.

Inbound forbidden,

Outbound free

First press " " once, and then press " " once, then the inbound

side is forbidden to pass, and the outbound side is free to pass without

identity verification.

Inbound free,

Outbound forbidden

First press " " once, and then press " " once, then the outbound

side is forbidden to pass, and the inbound side is free to pass without

identity verification.

Inbound control,

Outbound forbidden

First press " " once, and then press " " once, then the outbound

side is forbidden to pass, and the inbound side needs to identity

verification to pass.

Inbound forbidden,

Outbound control

First press " " once, and then press " " once, then the inbound

side is forbidden to pass, and the outbound side needs to identity

verification to pass.

The wired remote control is connected to the controller, then set the controller's code pairing mode

to complete the wired remote control’s setup.

Dial code description:

The DIP switch is divided in eight dial codes from KE-1 to KE-8. Move the switch Up to turn ON and

down to turn OFF.

Description of Function Setting:

 Dial 0 to turn OFF.

 Dial 1 to turn ON.

Dial code function item:

 Unmanned passage time (KE-1, KE-2, KE-3):

Dial code function item:

Switch Status Time Period

000 (OFF OFF OFF)

5s (Default)

001 (OFF OFF ON)

10s

010 (OFF ON OFF)

15s

011 (OFF ON ON)

20s

100 (ON OFF OFF)

30s

TS2200 Pro Series Tripod Turnstile User Manual

101 (ON OFF ON)

40s

110 (ON OFF ON)

50s

111 (ON ON ON)

60s

 Memory Swipe Mode (KE-6):

Dial 1 (ON) to turn on.

Dial 0 (OFF) to turn off.

 Turn on Alarm Mode (KE-8):

Dial 1 (ON) to turn on.

Dial 0 (OFF) to turn off.

Wireless Remote Control

★

2.4

The tripod turnstile's wireless remote control is an intelligent device that remotely controls the

entrance and exit. It is designed for the administrator to control the tripod turnstile manually. The

wireless remote control contains four buttons: A, B, C, and D, which correspond to the options open

entrance gate, open exit gate, emergency mode open-bar pass, and alarm lock.

Buttons Description

A

Press the button once to open the tripod turnstile on the inbound and can pass by

identity verification from the inbound.

B

Press the button once to open the tripod turnstile on the outbound and can allow

people to pass after their identity verification from the outbound.

C

In emergency mode, press the button once to fall the arm lever. Then the inbound

and outbound sides get open and can pass freely without identity verification.

D

Press the button once to raise the arm lever. Then the inbound and outbound

sides are controlled by the tripod turnstile. The i

dentity verification becomes

invalid, and no pass is allowed.

TS2200 Pro Series Tripod Turnstile User Manual

The wireless remote control is not in communication with the controller when the controller is

turned on. Press and hold the controller's DIP switch to enter code pairing mode and operate the

remote control using the controller's eight DIP switch codes.

Pair code:

1. First, power the controller of the tripod turnstile.

2. Short press the learning button on the controller, and a light corresponding to the button will

flash slowly. Then press any switch on the remote control for acquiring the information. After

the successful operation, the light turns off.

Clear code:

Long press the learning button on the three roller gate controller for 3 seconds. The learning light

stays on for a while then turns off indicating the code is cleared successfully. The original learning

remote control cannot be used again and can only be remote-controlled by the code again.

TS2200 Pro Series Tripod Turnstile User Manual

3 Control System Introduction

If you are using TS2211 Pro or TS2222 Pro models, all the connections between the access control

and turnstile control boards are already completed at the factory. Just plug in communication cable

to access controller and proceed with the necessary settings.

If you are using TS2200 Pro model, it is important to connect access control system to the control

board, please check the content in this chapter carefully.

Warning: The lock relay trigger time for the third-party access control system should be set to 1

second or less.

Wiring Diagram 3.1

TS2200 Pro Series Tripod Turnstile User Manual

Turnstile Control Board 3.2

TS2200 Pro Series Tripod Turnstile User Manual

Terminal Description

J19

Reserved

J18

Right Counter

J17

Left Counter

J9

Reserved

J8

Proximity Switch

J7 / J6

Top Indicator Light

J15

Reserved

J20

Reserved

J12

Reserved

J3

Right Open

J3

Left Open

J2

Alarm

J2

Fire Signal

TS2200 Pro Series Tripod Turnstile User Manual

J14

RS485

J13

RS485

J11

12V Power Supply Output

J10

12V Power Supply Input

J4

L-solenoid

J5

R-solenoid

J6

Drop Arm

TS2200 Pro Series Tripod Turnstile User Manual

Access Control Board 3.3

TS2200 Pro Series Tripod Turnstile User Manual

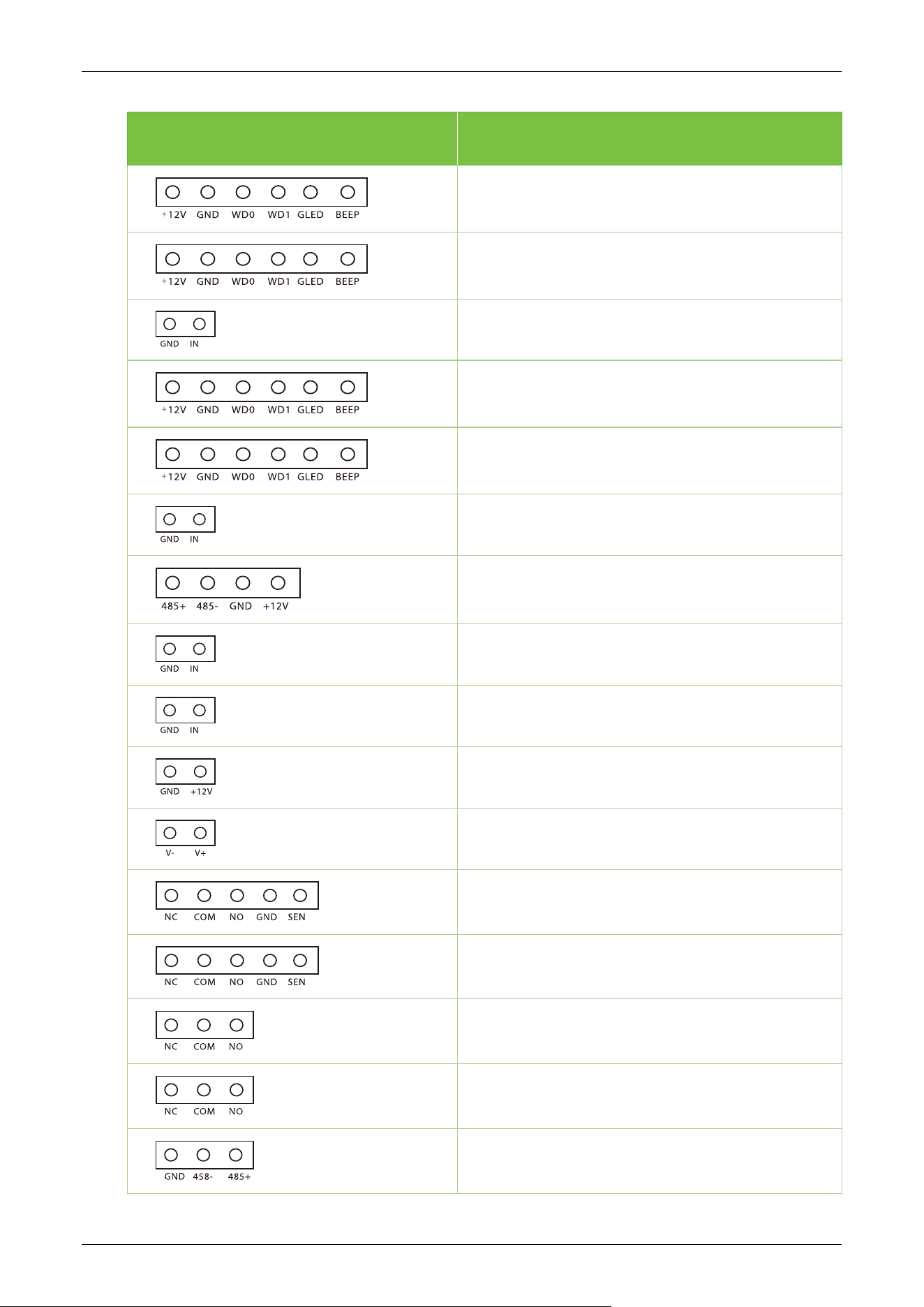

Terminal Description

Reader

Button

Reader

Button

RS485

Auxiliary Input

Power In

Lock

Auxiliary Output

485 Connections

TS2200 Pro Series Tripod Turnstile User Manual

Switch

Ethernet

4 Default Parameters

No. Function Default

1

Lock Driving Duration

5s

2

Door Sensor None

3

Verification Interval

1s

4

Controller Communication TCP/IP: 192.168.1.201

5

Turnstile Opening Duration 5s

6

Passing Direction Indicator Passing is allowed in both directions

7

Continue Passing Function Disabled

8

Alarm Function Disabled

Note: The default Lock Driving Duration is set to 5 seconds. To adjust it to 1 second, please modify the

settings accordingly.

TS2200 Pro Series Tripod Turnstile User Manual

5 Troubleshooting

Failure Description Solution

The indicator is not

lighted when the

equipment is powered on

It may be caused by the power supply or circuit.



Check whether the connection cable and power cable

between are damaged, or the wiring is loose.

The device can't be

manually lift arm after

powering on

 Check whether the limit seat is properly aligned with the the

disk wheel when lifting the arm.

 Check whether the arm drop magnet is working properly,

open the upper cover of the chassis, open the movement

cover with a hexagonal screwdriver and check the working

status of the electromagnet.

No gate opening after

authentication (Only

applicable to TS2211 Pro

and TS2222 Pro)

 Check whether the user has permission.

 Please refer to the 3 wiring diagram to check the wiring.

After opening the gate,

the passage is not smooth,

the resistance of the push

rod is large, and the

rotation cannot be homed

 The tension spring can be adjusted by adjusting the live joint

bolt at the tension spring.

Dropping the arm during

use

 Check if the limit seat is properly aligned or if there is a gap.

 Check whether the arm drop magnet is fully engaged. If it is

not fully engaged

, please power off for 2 minutes and then

power on.

Continuous single-sided

passage during use,

without locking the lever.

 Check if the gate opening magnet is working propeerly, open

the top cover of the device and open the movement cover

with a hexagonal screwdriver. Check if the gate opening

magnet is stuck or the shrapnel is disconnected.

TS2200 Pro Series Tripod Turnstile User Manual

6 Precaution

1. It is recommended to purchase optional accessories to use in outdoor environment.

a) Optional cooling fans should be installed for the equipment if the working temperature is

frequently above 50 °C.

b) It is equivalent to IPX4 waterproof under proper installation. However, it cannot work in the

region that may suffer typhoon.

c) If the temperature reaches -30 °C, it is recommended to install a heating plate. It might

need multiple times to power on while getting hot automatically through the self-check

program.

d) The service life of this equipment may be reduced if it is used outdoors in coastal areas or

regions prone to acid rain.

2. If the power and signal cables are connected properly, this equipment can be submerged in

water up to a depth of 250 mm, but it must not be powered on for operating when it is

submerged in water.

3. It is highly recommended that a card swiping warning line to set for prompting passers-by to

swipe cards properly and a reasonable passage width shall be set to prevent passers-by from

squeezing in illegally.

4. It is recommended that a warning sign is placed at a conspicuous position, and prompt: "Please

swipe your card outside the warning line and pass in order. Thank you!”

The maximum tolerance of the tripod turnstile's arms

Please note that the maximum stress tolerance at the center of the arm is 80kg and at the ends of

the arm is 40kg. When the impact force on the tripod turnstile reaches the designed limit, the arms

will break down first to prevent damage to the entire equipment and ensure the safety of passers-by.

TS2200 Pro Series Tripod Turnstile User Manual

In case of emergencies

This equipment is designed to automatically lower the arms in the event of a power failure, allowing

the passage to be open for the public. Additionally, the turnstile control board provides an interface

to connect an emergency switch (Drop Arm), which keeps the tripod turnstile in an open position

during emergencies. Please note that after power is restored, it is important to wait for more than 6

seconds before lifting the arms manually.

7 Maintenance

Chassis Maintenance 7.1

The chassis is made of SUS304 stainless steel or cold rolled sheet steel. If it has been used for a long

time, the surface may develop rust stains. It is recommended to clean the surface regularly with a

clean cloth. Additionally, apply a coat of anti-rut oil to the surface, ensuring not to cover the infrared

sensor.

Movement Maintenance 7.2

Before doing maintenance, turn off the power. Open the door, wipe the surface dust, and apply

lubricant for smooth movement.

Power Supply Maintenance 7.3

 Switch off the power supply before maintenance.

 Check the power plug connection, if found loose, fix it properly.

 Do not change any connection position randomly.

 Check the external power supply insulation periodically.

 Do periodic check for any kind of leakage.

 Check if the technical parameters of interface are normal.

 Check the service life of the electronic components and replace accordingly.

Caution: All the maintenance methods mentioned above for swing barrier should be performed by

a professional technician, particularly when dealing with the movement and electric control

components. To ensure operational safety, it is crucial to switch off the power supply when the

barrier is not in use.

TS2200 Pro Series Tripod Turnstile User Manual

8 Packing List

The package consists of the following items:

1

6

1

3

2

6

TS2200 Pro Series

Card (TS2211 Pro, TS2222 Pro )

Expansion Screw M12*100

Stainless Steel Maintenance Wipes

Hex Wrench

Key

Washer

Allen Screw

Power Cable

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com

ZKTeco TS2000 PRO TS2200 Pro Series

Product's Documents

PDF TS2200 Pro Series User Manual 20260429 User Manual 2.2MB 2026-04-30

Specifications

ZKTeco TS2000 PRO Questions and Answers

Related Products

ZKTeco FBL6000 PRO & FBL6200 Pro

ZKTeco INBIO160 PRO PLUS InBio Pro Plus Series

ZKTeco MARS PRO - S1200

ZKTeco MARS PRO - F1200 Series

ZKTeco MARS PRO - F1000 Series

ZKTeco MARS PRO - S1000 Series
