ZKTeco MARS PRO - S1000 Series User Manual

mTS1000 Series Tripod Turnstile User Manual

Mars Pro-S1000 Series User Manual

Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any

way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or

"ZKTeco").

Trademark

is a registered trademark of ZKTeco. Other trademarks involved in this manual are owned by

their respective owners.

Disclaimer

This manual contains information on the operation and maintenance of the ZKTeco equipment. The

the property of ZKTeco. The contents hereof should not be used or shared by the receiver with any third

party without express written permission of ZKTeco.

The contents of this manual must be read as a whole before starting the operation and maintenance of the

supplied equipment. If any of the content(s) of the manual seems unclear or incomplete, please contact

ZKTeco before starting the operation and maintenance of the said equipment.

It is an essential pre-requisite for the satisfactory operation and maintenance that the operating and

maintenance personnel are fully familiar with the design and that the said personnel have received

thorough training in operating and maintaining the machine/unit/equipment. It is further essential for the

safe operation of the machine/unit/equipment that personnel has read, understood and followed the

safety instructions contained in the manual.

In case of any conflict between terms and conditions of this manual and the contract specifications,

drawings, instruction sheets or any other contract-related documents, the contract conditions/documents

shall prevail. The contract specific conditions/documents shall apply in priority.

ZKTeco offers no warranty, guarantee or representation regarding the completeness of any information

contained in this manual or any of the amendments made thereto. ZKTeco does not extend the warranty

of any kind, including, without limitation, any warranty of design, merchantability or fitness for a particular

purpose.

ZKTeco does not assume responsibility for any errors or omissions in the information or documents which

are referenced by or linked to this manual. The entire risk as to the results and performance obtained from

using the information is assumed by the user.

ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect,

special, or exemplary damages, including, without limitation, loss of business, loss of profits, business

interruption, loss of business information or any pecuniary loss, arising out of, in connection with, or

Mars Pro-S1000 Series User Manual

relating to the use of the information contained in or referenced by this manual, even if ZKTeco has been

advised of the possibility of such damages.

This manual and the information contained therein may include technical, other inaccuracies or

typographical errors. ZKTeco periodically changes the information herein which will be incorporated into

new additions/amendments to the manual. ZKTeco reserves the right to add, delete, amend or modify the

information contained in the manual from time to time in the form of circulars, letters, notes, etc. for better

operation and safety of the machine/unit/equipment. The said additions or amendments are meant for

improvement /better operations of the machine/unit/equipment and such amendments shall not give any

right to claim any compensation or damages under any circumstances.

ZKTeco shall in no way be responsible (I) in case the machine/unit/equipment malfunctions due to any

non-compliance of the instructions contained in this manual (ii) in case of operation of the

machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in

conditions different from the prescribed conditions of the manual.

The product will be updated from time to time without prior notice. The latest operation procedures and

relevant documents are available on http://www.zkteco.com

If there is any issue related to the product, please contact us.

ZKTeco Headquarters

Address ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone +86 769 - 82109991

Fax +86 755 - 89602394

For business-related queries, please write to us at: sales@zkteco.com.

To know more about our global branches, visit www.zkteco.com.

Mars Pro-S1000 Series User Manual

About the Company

ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein)

readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition

Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and

Consumer products including battery-operated fingerprint and face-reader Door Locks. Our security

solutions are multi-lingual and localized in over 18 different languages. At the ZKTeco state-of-the-art

700,000 square foot ISO9001-certified manufacturing facility, we control manufacturing, product design,

component assembly, and logistics/shipping, all under one roof.

The founders of ZKTeco have been determined for independent research and development of biometric

verification procedures and the productization of biometric verification SDK, which was initially widely

applied in PC security and identity authentication fields. With the continuous enhancement of the

development and plenty of market applications, the team has gradually constructed an identity

authentication ecosystem and smart security ecosystem, which are based on biometric verification

techniques. With years of experience in the industrialization of biometric verifications, ZKTeco was

officially established in 2007 and now has been one of the globally leading enterprises in the biometric

verification industry owning various patents and being selected as the National High-tech Enterprise for 6

consecutive years. Its products are protected by intellectual property rights.

About the Manual

This manual introduces the operations of Mars Pro-S1000 Series.

All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent

with the actual products.

Features and parameters with ★ are not available in all devices.

Mars Pro-S1000 Series User Manual

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or

property loss.

The precaution measure is divided into Dangers and Cautions:

Dangers: Neglecting any of the warnings may cause serious injury or death.

Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Symbols

Convention

Description

Dangers: Follow these safeguards to prevent serious injury or death.

Cautions: Follow these precautions to prevent potential injury or material damage.

Dangers:

 In the use of the product, you must be in strict compliance with the electrical safety regulations of the

nation and region.



The equipment must be connected to an earthed mains socket-outlet.



Shock hazard! Disconnect all power sources before maintenance.



Do not touch the bare metal contacts of the inlets after the circuit breaker is turned off. Electricity still

exists.

 To prevent possible hearing damage, do not listen at high volume levels for long periods.



All the electronic operation should be strictly compliance with the electrical safety regulations, fire

prevention regulations and other related regulations in your local region.



Please use the power adapter, which is provided by normal company. The power consumption cannot

be less than the required value.

 Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire

hazard.

 Please make sure that the power has been disconnected before you wire, install or dismantle the

device.



If the top caps should be open and the device should be powered on for maintenance, make sure:

1. Power off the fan to prevent the operator from getting injured accidentally.

2. Do not touch bare high-voltage components.

3. Make sure the switch's wiring sequence is correct after maintenance.

 Please make sure that the power has been disconnected before you wire, install or dismantle the

device.

Mars Pro-S1000 Series User Manual



If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable,

and then please contact the service center.

 If the product does not work properly, please contact your dealer or the nearest service center. Never

attempt to disassemble the device yourself. (We shall not assume any responsibility for problems

caused by unauthorized repair or maintenance.)



The Terminal PE of the switch should be connected to a ground wire.

Cautions:

 Instructions must be read before installation. Please follow these instructions carefully, incorrect

installation could affect gate operation.



When mounting and positioning this product please ensure the power cable is unplugged.



The motor cover will need to be removed to mount the motor to the mounting plate. Electrical-related

operation of the main unit can only be made by a licensed electrician.

 To prevent injury, this equipment must be securely attached to the floor/base of the turnstile in

accordance with the installation instructions.



Keep straight down when moving or using the equipment.

 Never place the equipment in an unstable location. The equipment may fall, causing serious personal

injury or death.



Stainless steel may be corroded in some circumstances. You need to clean and care the device by

using the stainless steel cleaner. It is suggested to clean the device every month.

 Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism

radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance

can cause equipment damage).



Do not place the device in extremely hot (refer to the specification of the device for the detailed

operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic

radiation.

 The device cover for indoor use shall be kept from rain and moisture.

 Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is

forbidden (ignorance can cause fire danger).



Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise

(which is not a malfunction however), and affecting the endurance of sensor at the same time.



Please use the provided glove when open up the device cover, avoid direct contact with the device

cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use

alkaline detergents.



Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to

return the device to the factory with the original wrapper. Transportation without the original wrapper

may result in damage on the device and lead to additional costs.

Mars Pro-S1000 Series User Manual



Improper use or replacement of the battery may result in hazard of explosion. Replace with the same

or equivalent type only. Dispose of used batteries according to the instructions provided by the

battery manufacturer.



Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require

a higher security level, use multiple authentication modes.



Do not stay in the lane when the device is rebooting.

 RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS.

 SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.



The instructions shall require connection of the equipment protective earthing conductor to the

installation protective earthing conductor.

Mars Pro-S1000 Series User Manual

Table of Contents

1 OVERVIEW ................................................................................................................................................ 10

1.1 F

EATURES

............................................................................................................................................................11

1.2 S

PECIFICATION

.................................................................................................................................................... 12

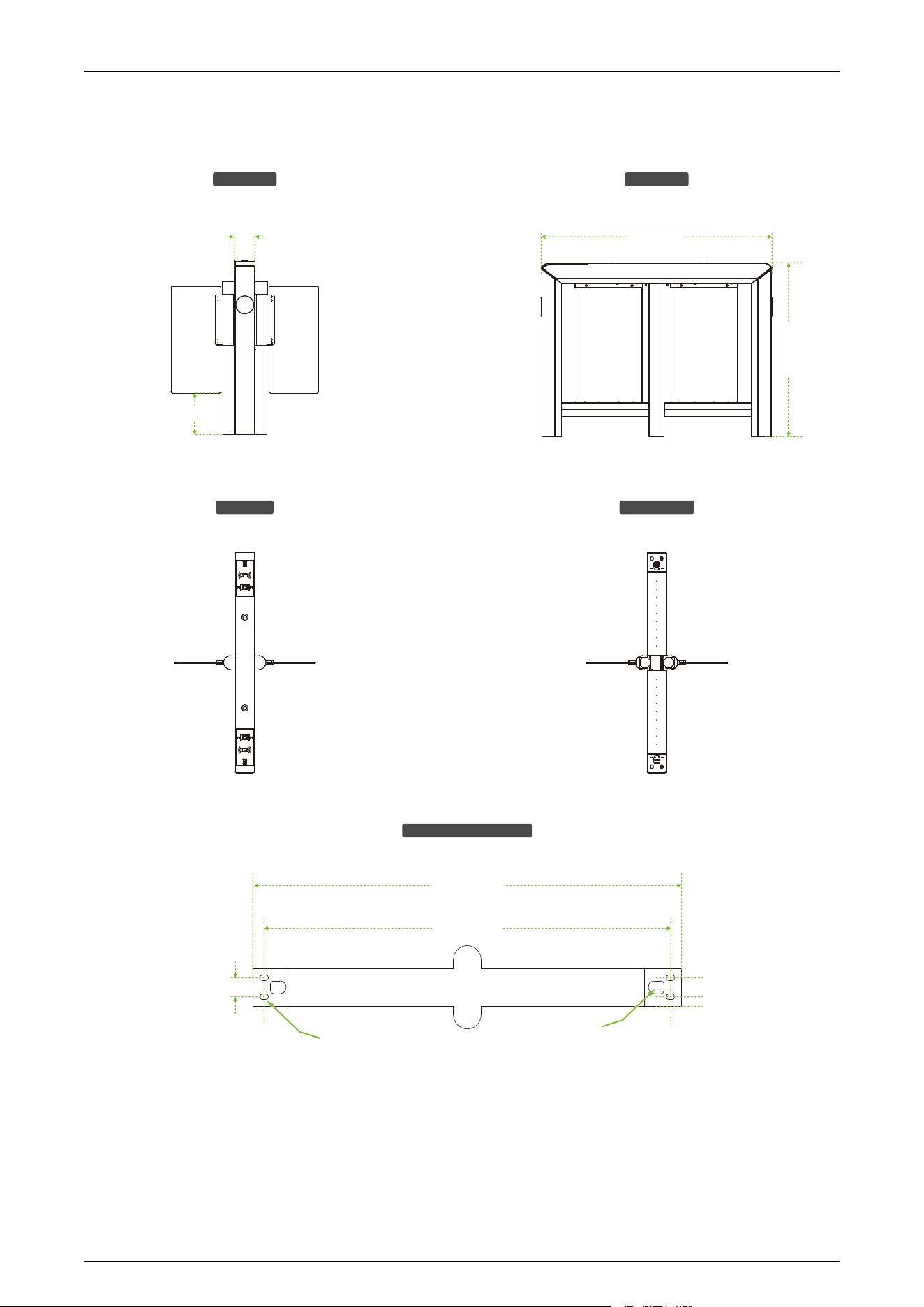

1.2.1 APPEARANCE...................................................................................................................................................................................................12

1.2.2 SYSTEM COMPONENTS.............................................................................................................................................................................15

1.2.3 TECHNICAL SPECIFICATIONS.................................................................................................................................................................17

1.3 M

ECHANICAL

YSTEM

......................................................................................................................................... 18

1.4 E

LECTRONIC

ONTROL

YSTEM

........................................................................................................................... 19

2 AUTHENTICATION METHODS................................................................................................................. 21

2.1 C

ARD

ERIFICATION

............................................................................................................................................ 21

2.2 F

INGERPRINT

ERIFICATION

★ ............................................................................................................................. 22

2.3 QR

CODE

ERIFICATION

★ ...................................................................................................................................23

2.4 F

ACIAL

ERIFICATION

★ ...................................................................................................................................... 23

3 INSTALLATION......................................................................................................................................... 25

3.1 I

NSTALLATION

OOLS

..........................................................................................................................................25

3.2 I

NSTALLATION

EQUIREMENTS

.............................................................................................................................25

3.3 I

NSTALLATION

NVIRONMENT

..............................................................................................................................25

3.4 I

NSTALLATION

ABINET

....................................................................................................................................... 26

3.5 A

CCESSORY

NSTALLATION

.................................................................................................................................. 33

3.5.1 FACIAL EQUIPMENT INSTALLATION..................................................................................................................................................33

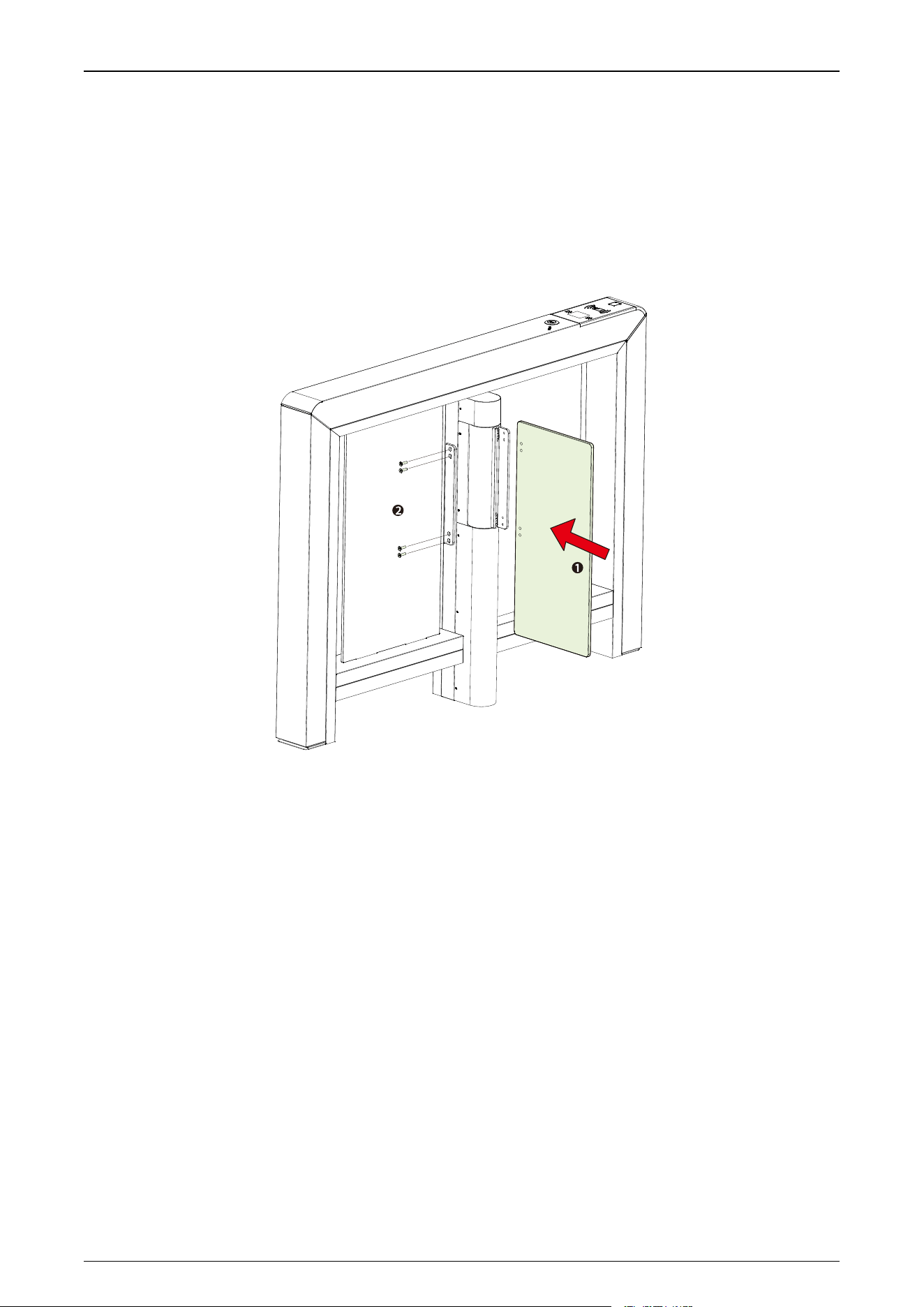

3.5.2 DOOR LEAF INSTALLATION.................................................................................................................................................................... 34

4 TERMINAL DESCRIPTION.........................................................................................................................35

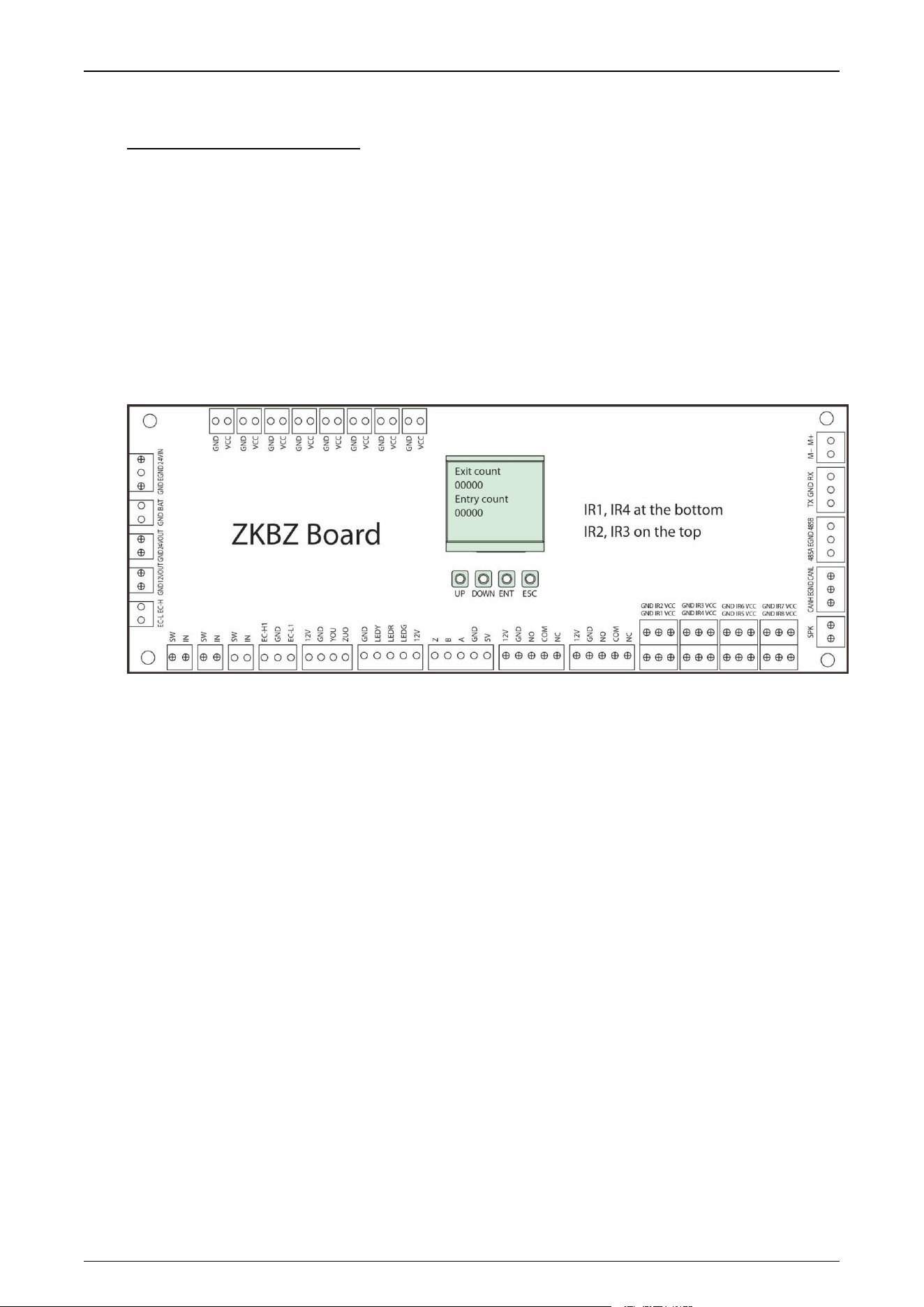

4.1 ZKBZ B

OARD

..................................................................................................................................................... 35

4.2 PGIC C

ONTROLLER

DDITIONAL ACCESSORY

)....................................................................................................36

4.3 IR B

OARD

............................................................................................................................................................37

4.4 M

ASTER

LAVE

OTOR

RIVING

ONTROLLER

...................................................................................................37

5 WIRING INSTRUCTIONS...........................................................................................................................39

Mars Pro-S1000 Series User Manual

5.1 M

ASTER

SLAVE

OCATION

...................................................................................................................................39

5.2 W

IRING

ETHODS

...............................................................................................................................................40

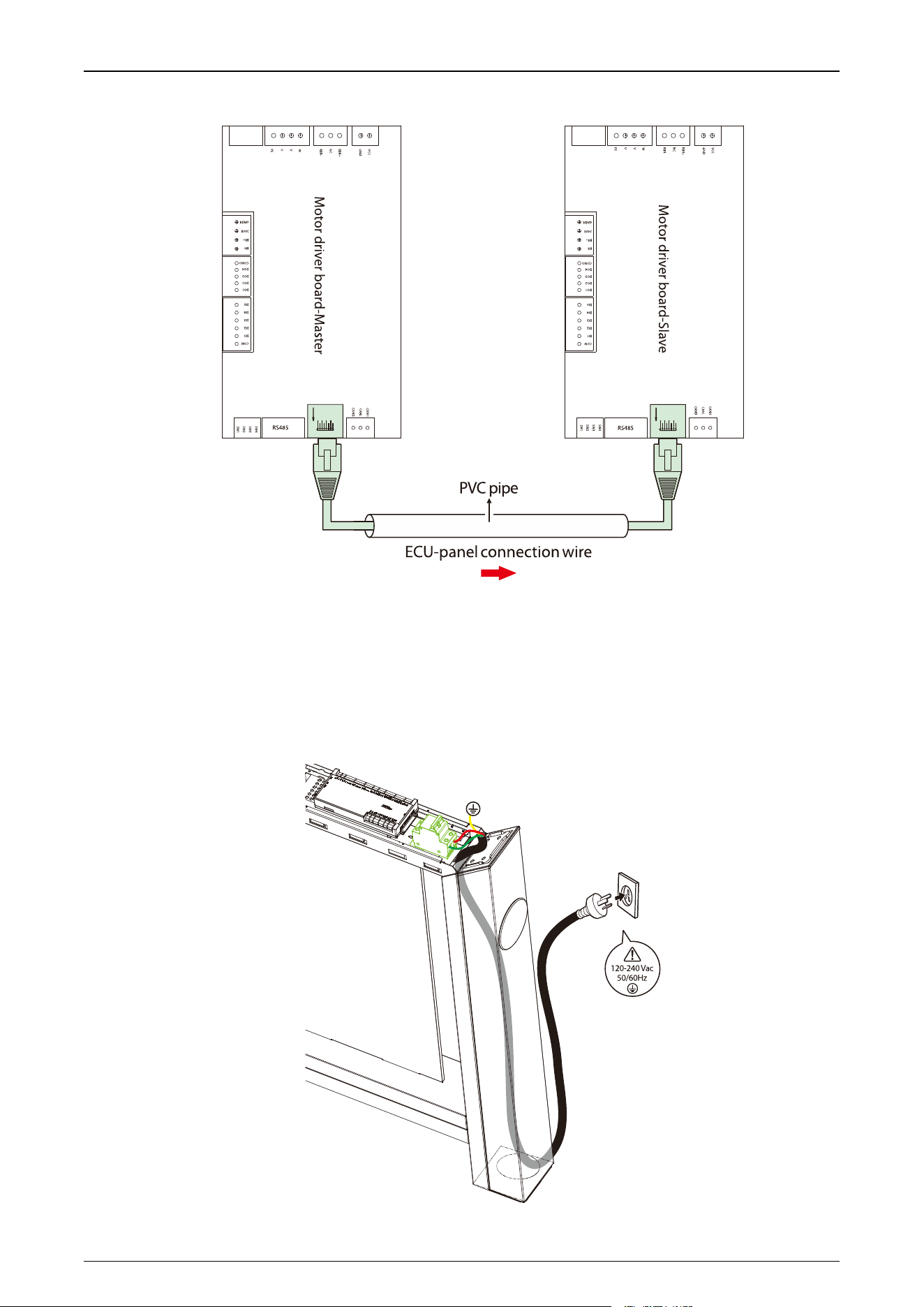

5.3 W

IRING THE

ECU-

PANEL

ONNECTION

ABLE

.....................................................................................................40

5.4 P

OWER AND

WITCH

IRING

........................................................................................................................41

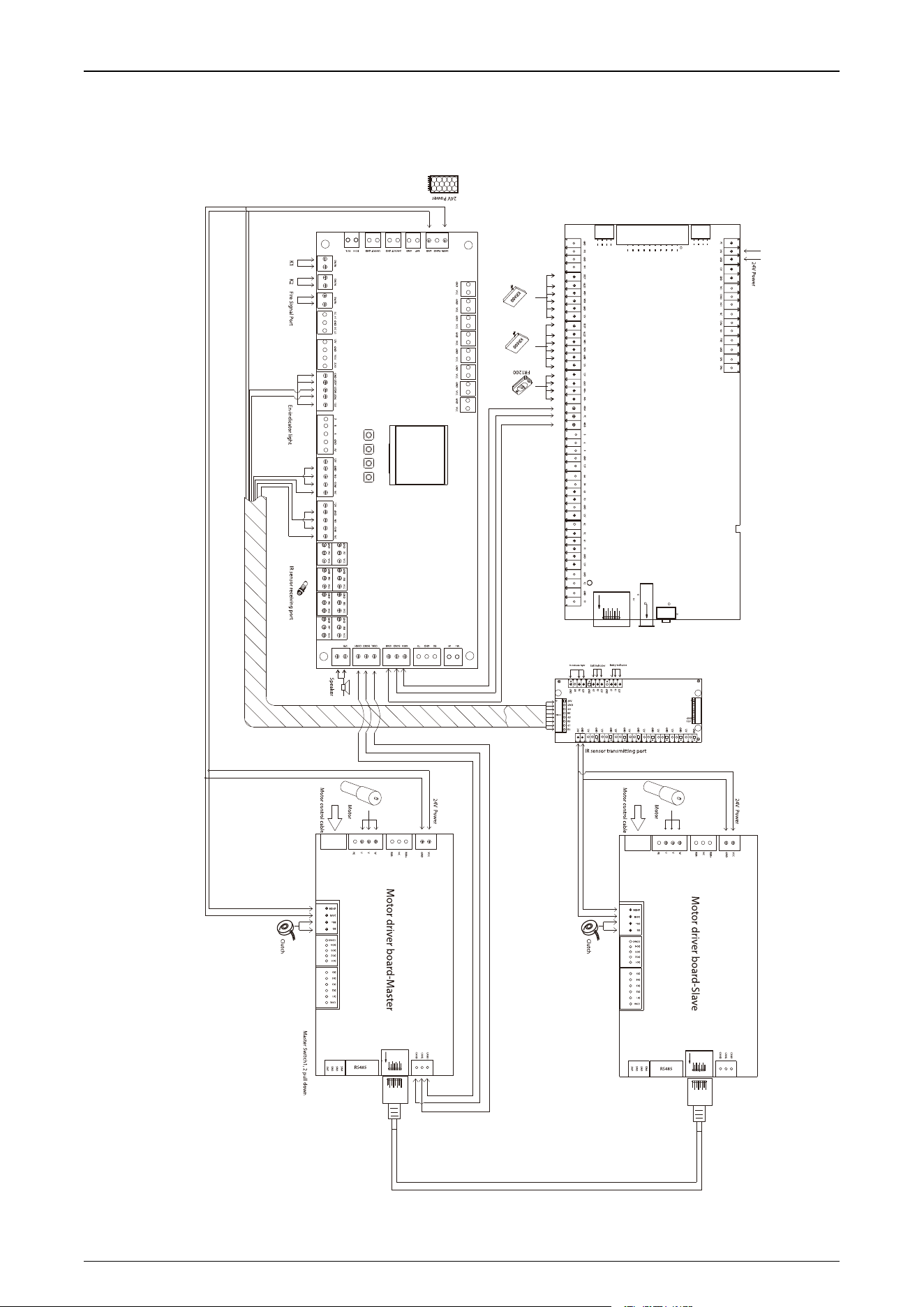

5.5 S

YSTEM

IRING

IAGRAM

.................................................................................................................................. 42

6 OPERATION PROCESS ..............................................................................................................................43

7 MACHINE OPERATION .............................................................................................................................45

7.1 O

PERATION

UTTONS

ESCRIPTION

.................................................................................................................... 45

7.2 M

ENU

ARAMETER

ETTINGS

.............................................................................................................................. 45

8 MAINTENANCE.........................................................................................................................................56

8.1 C

HASSIS

AINTENANCE

...................................................................................................................................... 56

8.2 M

OVEMENT

AINTENANCE

................................................................................................................................. 56

8.3 P

OWER

UPPLY

AINTENANCE

........................................................................................................................... 56

9 TROUBLESHOOTING................................................................................................................................57

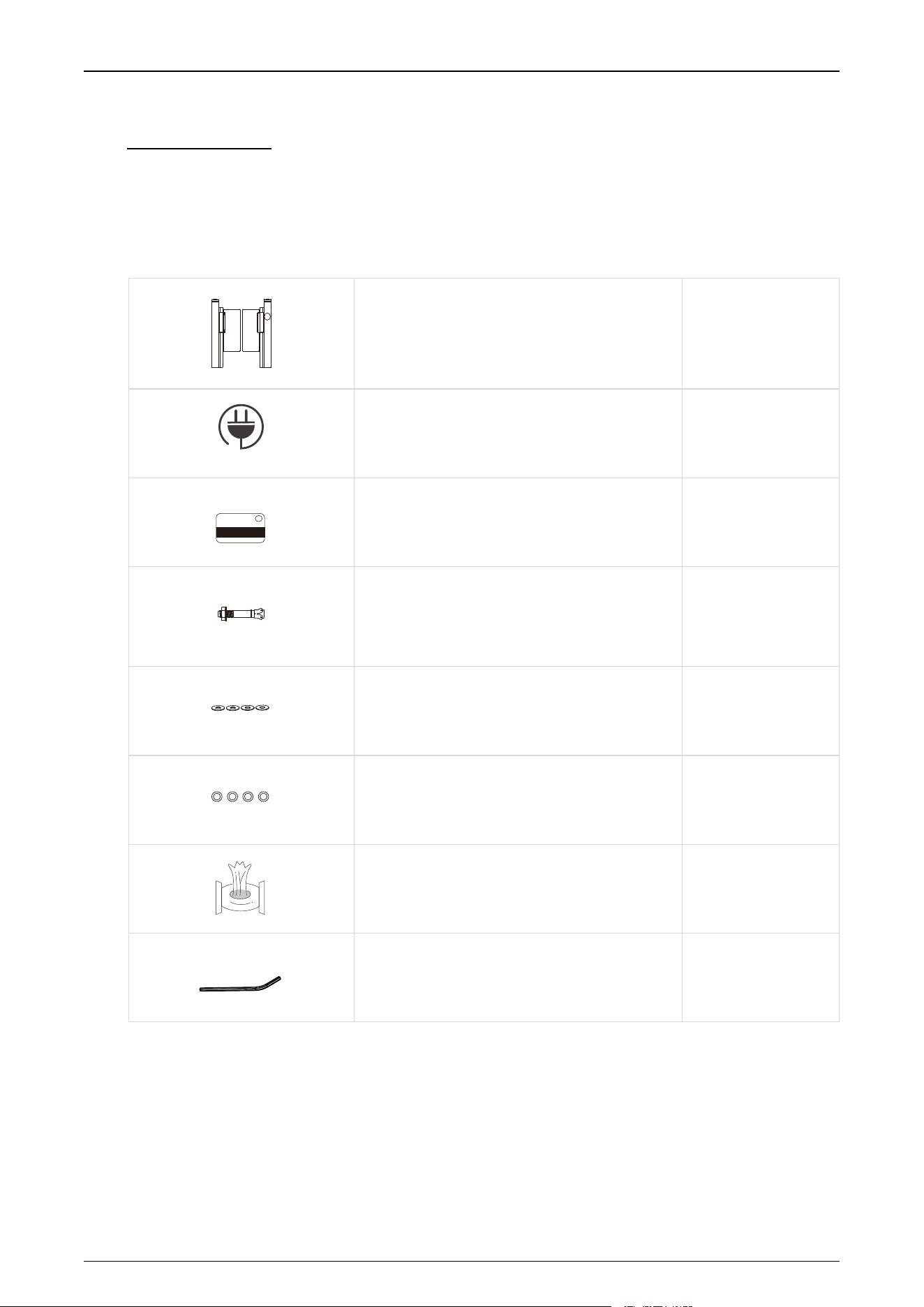

10 PACKING LIST .........................................................................................................................................58

Mars Pro-S1000 Series User Manual

1 Overview

The Mars Pro-S1000 Series swing barrier turnstile is an elegant high performance entrance control

system designed for high-traffic volume. The Mars Pro-S1000 Series barriers are normally held in a

locked position, thus denying access to the secured side. When the Mars Pro-S1000 Series correctly

identifies the user's Card (RFID)/Fingerprint/QR code, etc. to verify the identity, its barriers swing

automatically, thus allowing users passage to the secured side.

Mars Pro-S1000 Series User Manual

1.1 Features

 Highly Durable and Low Maintenance Costs

 Modularized structure design



Exposed mounting holes for easy installation

 Mainly made of cold rolled steel with powder coating finishing.

 Intelligent Turnstile Controller



Equipped with a PGIC controller, which enable connect with ZK's entrance management

software. (lincense required)

 General features and parameters settings on the controller's menu

 LED Indicator

 Visual cues for correct walking direction



Clear guidance with green and red illustration

 Switchable Reader Panel



Four panels available:

- RFID only

- RFID & Fingerprint

- RFID & QR Code

- RFID & Fingerprint & QR Code



Reducing middlemen's inventory pressure



Reducing installation time & expenses



Installation Place for Facial Recognition A&C Terminals

 Diameter: 34mm

 Integration with Facial Recognition, Temperature and Mask Detection Terminals



Infrared Sensors

 16 pairs of infrared sensors for stronger tailgating detection

Mars Pro-S1000 Series User Manual

1.2 Specification

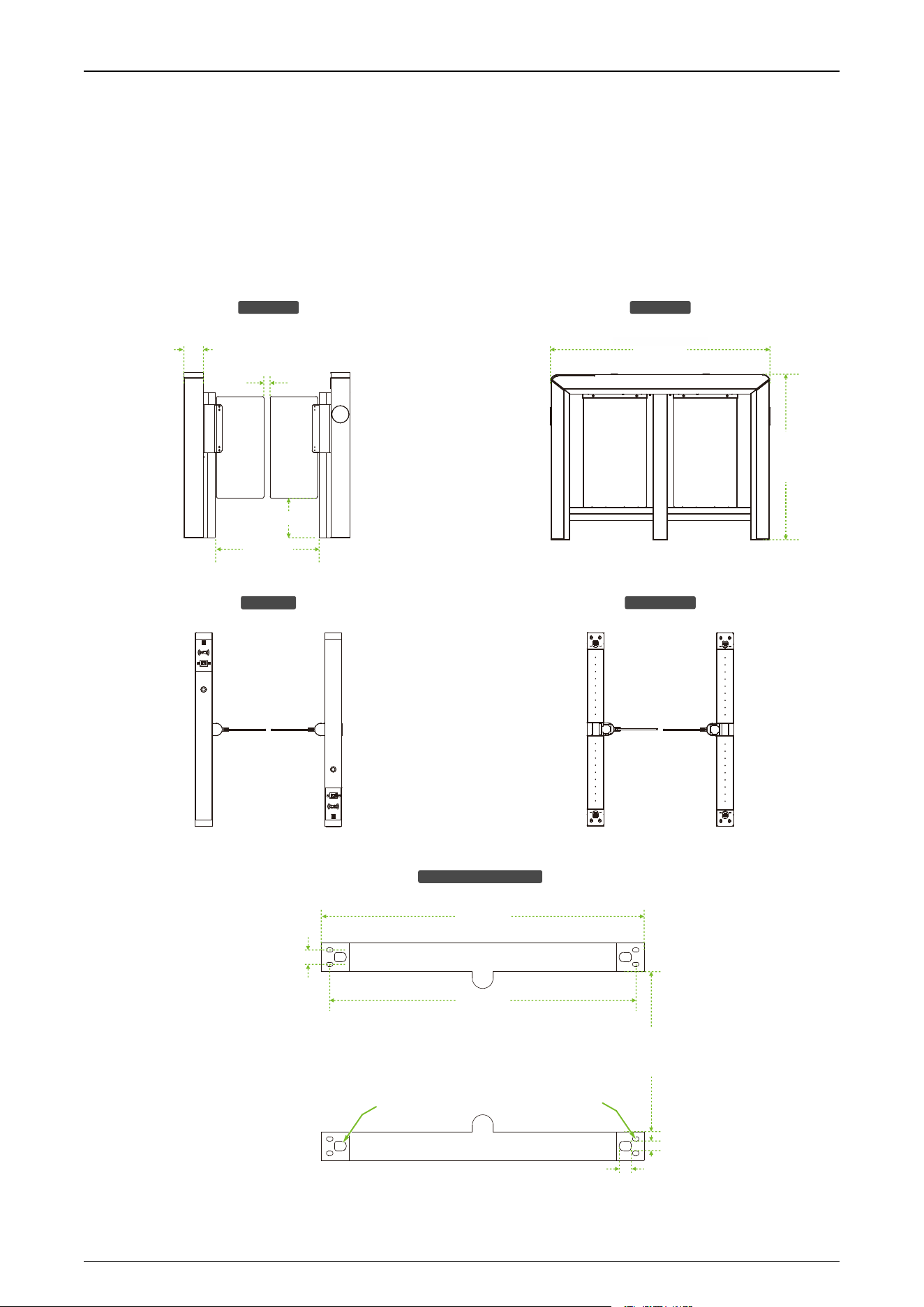

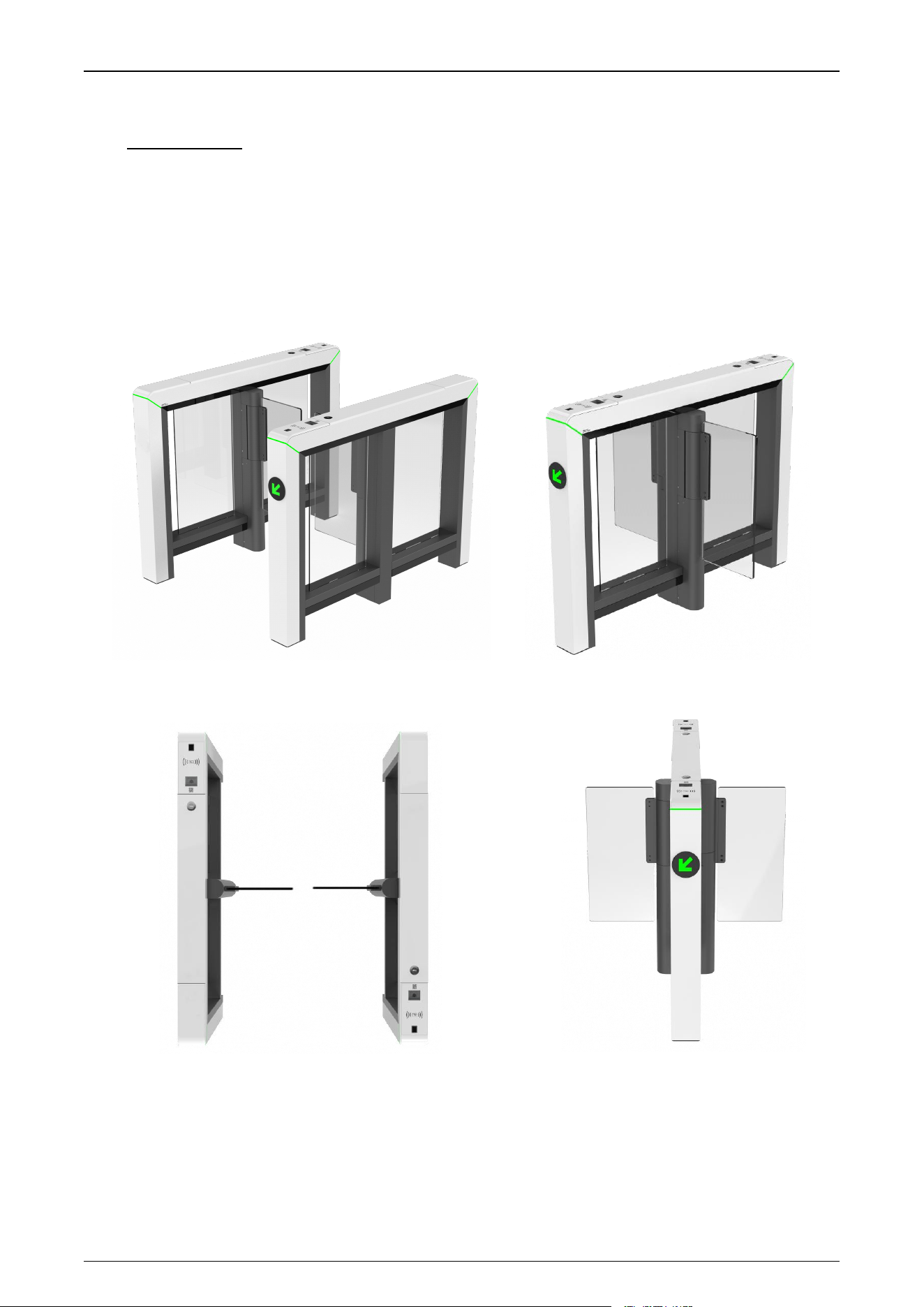

1.2.1 Appearance

 Mars Pro-S1000:

650mm

50mm

Front View

245mm

120mm

1355mm

1022mm

Side View

Top View Bottom View

Bottom Mounting Hole

1355mm

60mm

1282mm

802mm

Mounting Holes

Wire Holes

40mm

50mm

28x18mm

Mars Pro-S1000 Series User Manual

 Mars Pro-S1200:

Front View

1355mm

1022mm

Side View

Top View Bottom View

Bottom Mounting Hole

120mm

245mm

Mounting Holes

Wire Holes

1355mm

60mm

1282mm

28x18mm

50x40mm

Mars Pro-S1000 Series User Manual

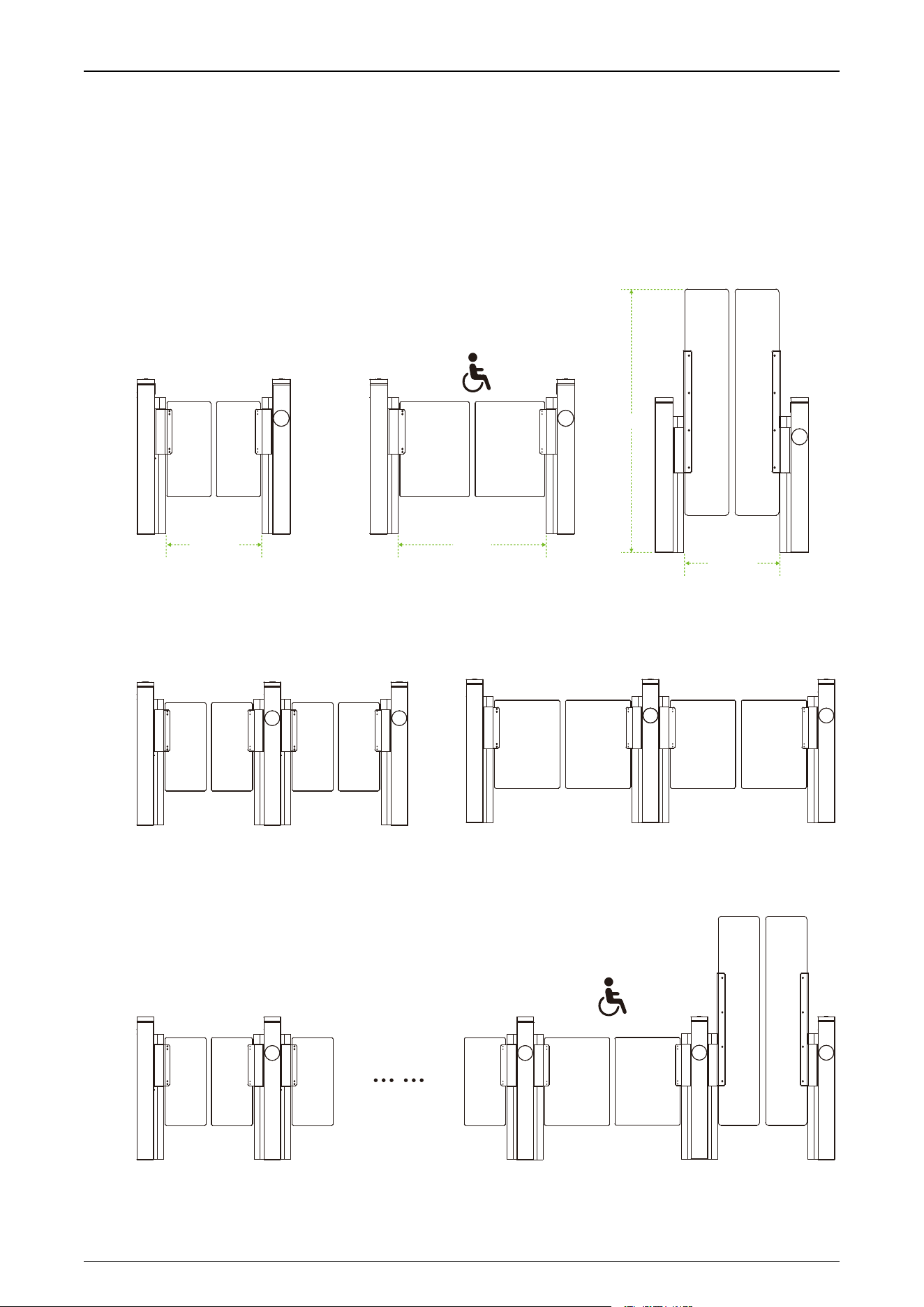

 Door Leaf Specifications

The Mars Pro-S1000 and Mars Pro-S1200 can be combined to form a single, dual or multi-lane

system, allowing the user to select the appropriate door leaf size according to actual needs.

1) Single-lane

650mm

Standard Lane Wide Lane / ADA Lane High-barrier Lane

Dimensions of the door leaf (available):

(630*295mm)(H*W)(Standard)

(630*425mm)(H*W)(Optional)

(1047*295mm)(H*W)(Optional)

920mm

650mm

1800mm

2) Dual-lane

3) Multi-lane

Mars Pro-S1000 Series User Manual

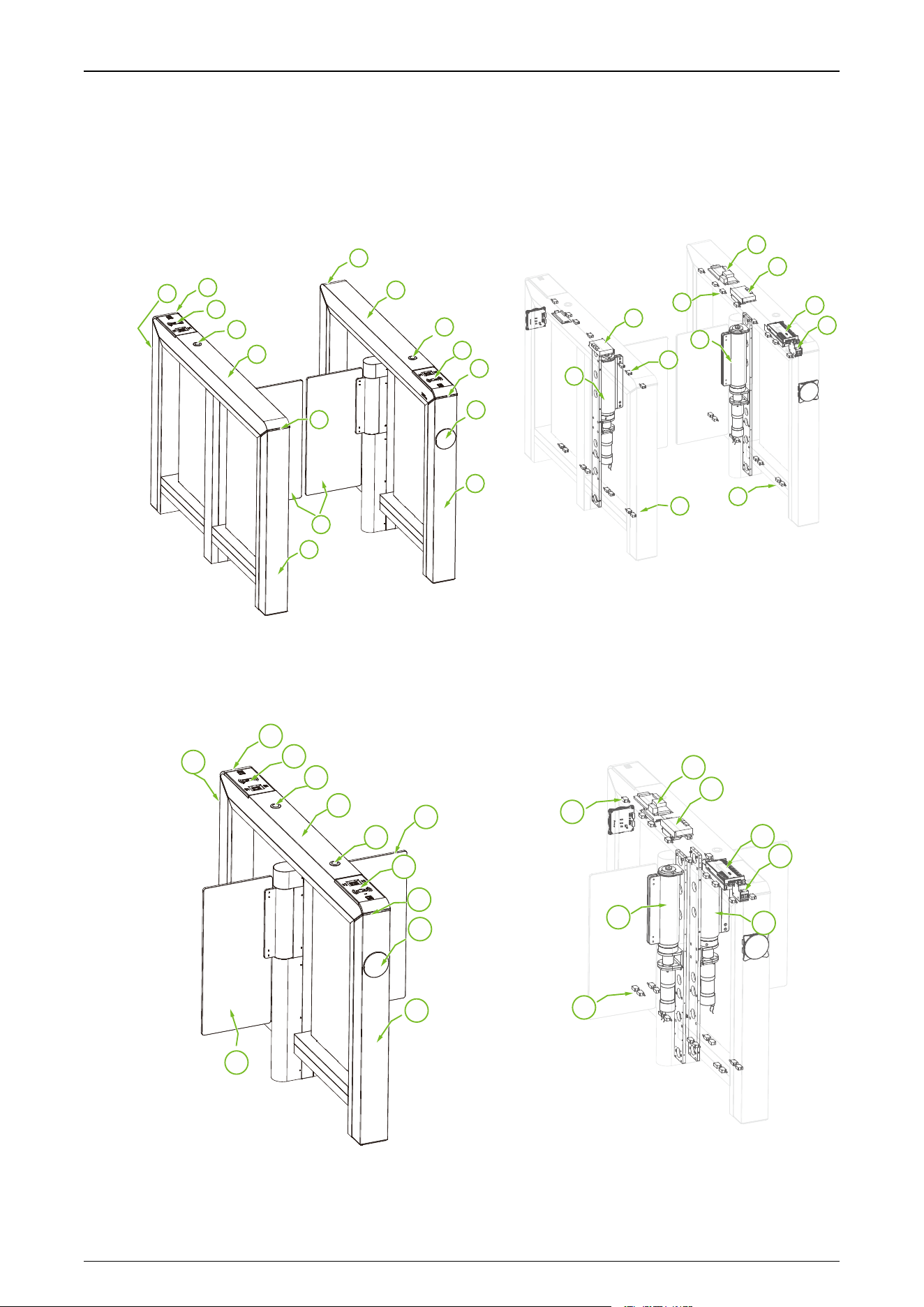

1.2.2 System Components

 Mars Pro-S1000:

Master

Slave

Master

Slave

 Mars Pro-S1200:

Mars Pro-S1000 Series User Manual

No.

Components

Descriptions

Side Lid

Cold rolled steel

Direction Indicator

Used to indicate the direction and status of gate passage

Traffic Indicator

Used to indicate the passage status of the gate

Authentication

Card (RFID)/Fingerprint/QR Code modules are available

Reserve Mounting Holes

Reserved mounting holes for face verification devices.

Top Lid

Cold rolled steel

Swing Arm

Clear Acrylic(optional: Tempered Glass)

Air Switch

When overload, short circuit, voltage reduction or disappearance occurs

within the circuit, it can automatically cut off the circuit for reliable

protection.

Access Controller Board

PGIC access controller board (non-standard)

Servo Motor Drive

Controller

It is responsible for receiving control signals and converting them into

current or voltage signals to accurately control the speed, position and

torque of the motor to realize high precision and high performance of the

gate.

Turnstile Controller Board

The system’s control center

Infrared Sensor

It detects the position of the pedestrian and plays a role in ensuring

safety and protection

Core Component

Operating components of the turnstile

Mars Pro-S1000 Series User Manual

1.2.3 Technical Specifications

Model

Mars Pro-S1000

Mars Pro-S1200

Visual Indicator

Green: Lane available

Red: Lane unavailable

Audio Indicator

Internal Buzzer

Lane Type

Support single lane, dual-lane and multi-lane

Lane Width

650mm (Standard), 920mm (Optional)

Barrier Movement Type

Swing

Motor

Servo Motor

Movement Speed (Open/

Close timing)

0.6s per movement (Adjustable)

Speed of Throughput

Maximum

30 / minute

Lid Material

Cold rolled steel

Cabinet Material

Cold rolled steel

Door Leaf Material

Clear Acrylic (Optional: Tempered Glass)

480*295mm (Standard)(H*W)

480*425mm (Optional)(H*W)

1047*295mm (Optional)(H*W)

IR Sensors

16 Pairs (Option: ≤16 Pairs)

Motherboard Function

System Configuration, Access Mode Configuration, Anti-pinch

Configuration, Anti-tailgate Configuration, etc.

Power Supply

120V / 240V AC@50 to 60 Hz

Fire Signal

Input for Voltage Free Contact

Noise Level

Less than 60dB

MTTR

Less than 60 minutes

MCBF

10 Million

Weight

Gross Weight (160kg)

Net Weight (110kg)

Gross Weight (90kg)

Net Weight (65kg)

Lane width(mm)

650mm (optional- 920mm)

high:1200mm(Max high 1800mm)

Footprint(mm*mm)

Dimensions(L*W*H)

1355*120*1022(mm)Cold rolled

steel

1355*120*1022(mm)

Mars Pro-S1000 Series User Manual

Dimension with

packing(L*W*H)

1510*365*1216(mm)(2 boxes)

1510*365*1216(mm)

Operating Temperature

-25°C to 65°C (Standard)

-40°C to 80°C (Optional)

Operating Humidity

20% to 95% RH (Non-condensing)

Certifications

CE, FCC

Protection Level

IP34

Supported Software

ZKBio CVAccess / ZKBio CVSecurity

(Compatible with the software when connected with the control panel)

Security Features

Intrusion, Tailgating, Wrong Way Direction, Leave Aisle Timeout

Product Delivery

Pre-assembled

Application Environment

Indoor

Site Preparation

Flat & Level Finished Floor (Base Plate in Options for unfinished Floor)

Emergency Mode

Supports

Security Level

Medium

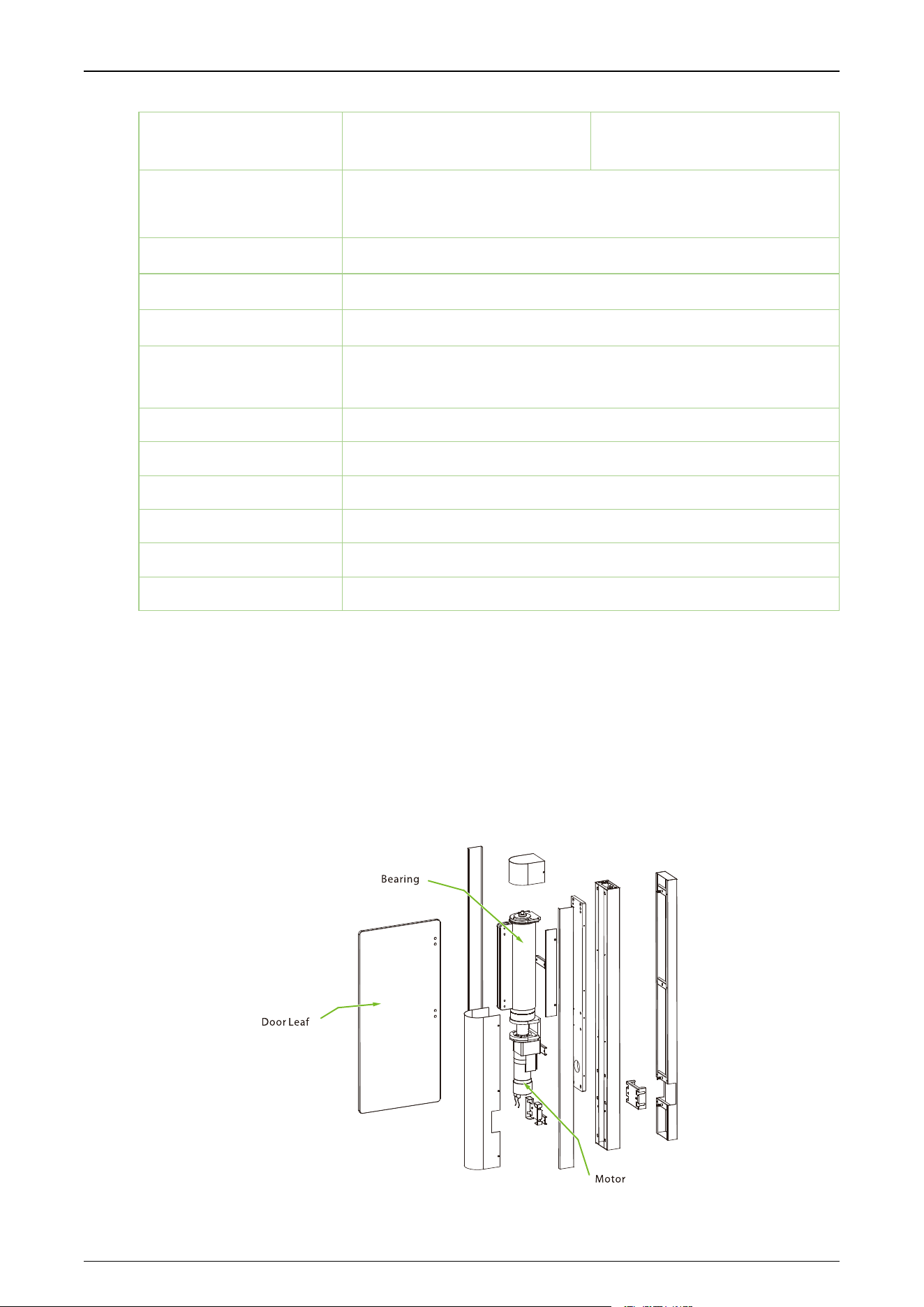

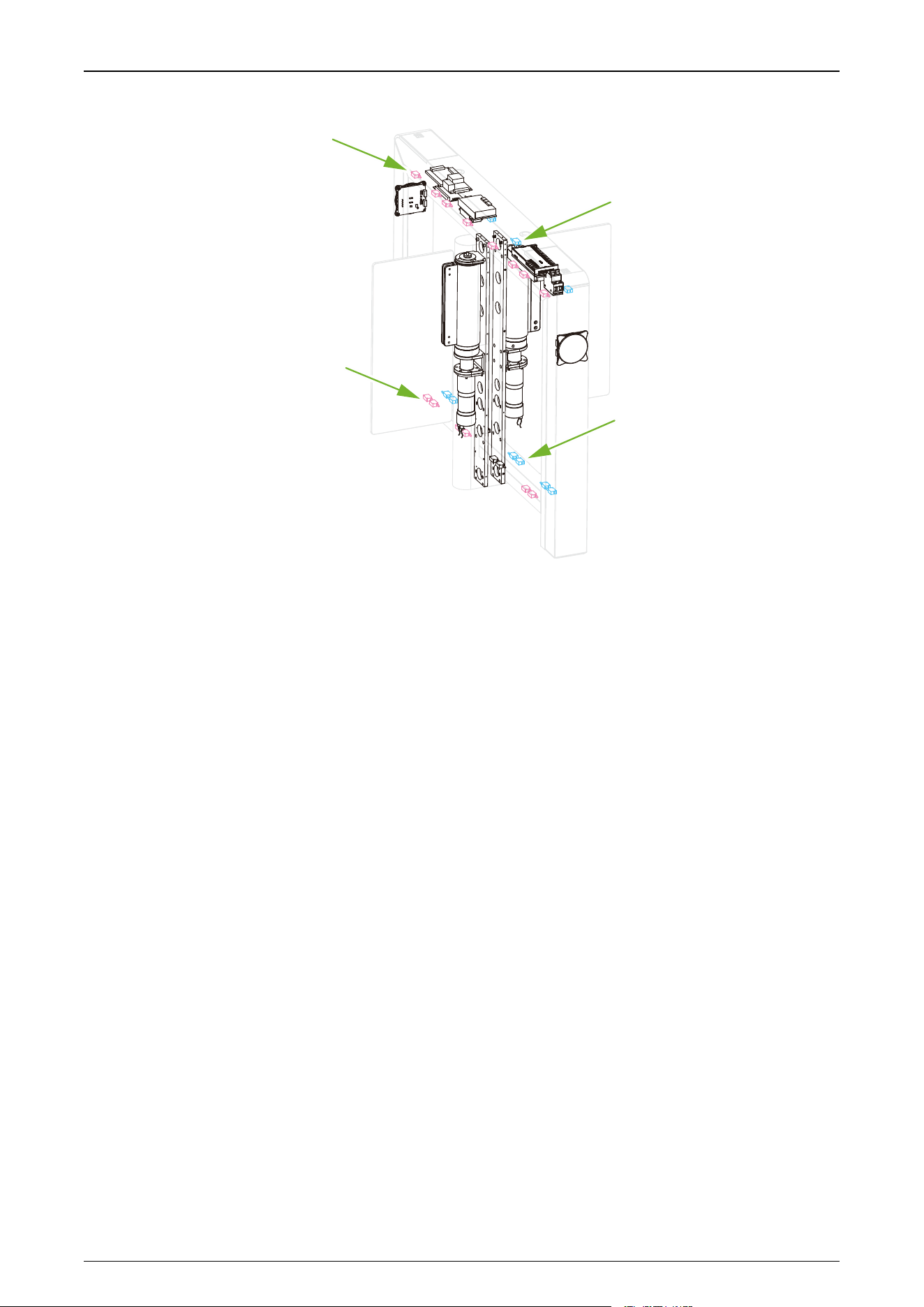

1.3 Mechanical System

The mechanical system of the turnstile includes the chassis and the core component.

 Chassis: It is a carrier where the Traffic Indicator, Infrared Sensor and the Door lock are installed.

 Core Component: The core component mainly consists of the Motor, Frame, Bearing and Door

Leaf.

Mars Pro-S1000 Series User Manual

1.4 Electronic Control System

The electronic control system of a turnstile is mainly composed of the Servo Motor Driver, Infrared

Sensor, Turnstile Control Board, Traffic Indicator and Alarm.



Card Reader: The reader reads the data in the card and sends it to the Access Controller.



Fingerprint Reader: The device compares the fingerprint that is being pressed onto the

fingerprint sensor with all the fingerprint data and sends it to the Access Controller.

 QR Code Reader: The sensor compares the acquired QR code with all QR code data registered in

the device and sends it to the Access Controller.

 Infrared Sensor: It detects the position of the pedestrian and plays the role of safety protection.



Turnstile Control Board: The Turnstile control board is the system’s control center that receives

signals from the reader. The IR performs logical calculation and processing of these signals and

then sends executive commands to the Traffic Indicator, Electric Motor, and the alarm.

 Traffic Indicator: The system will light up the red indicator when the gate is closed. When

someone passes the verification, the system will light up the green indicator.



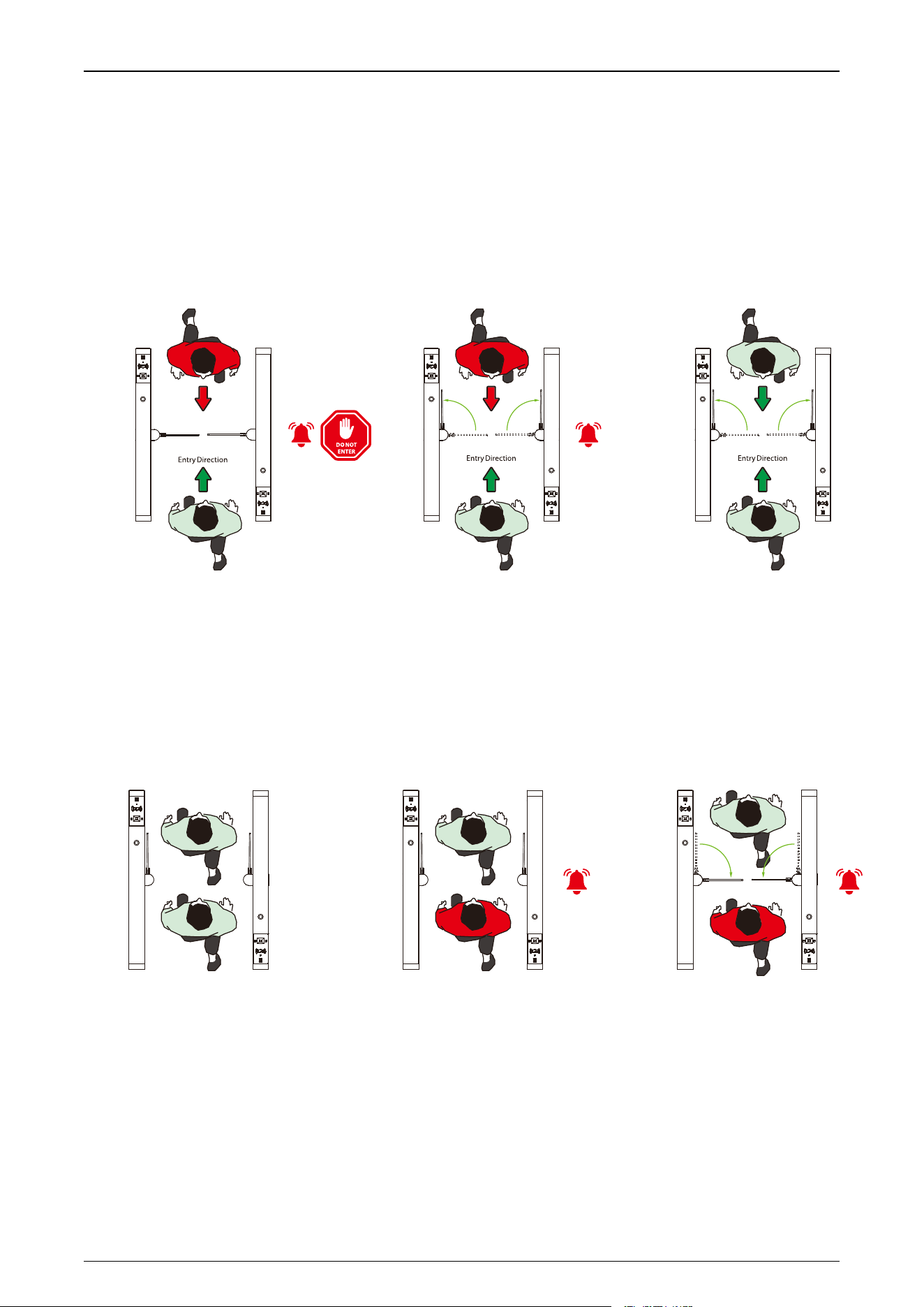

Alarm: The alarm gives the voice and light alarm if the system detects any unauthorized entry to

the passage, false direction entry, anti-tailgate and other violations.

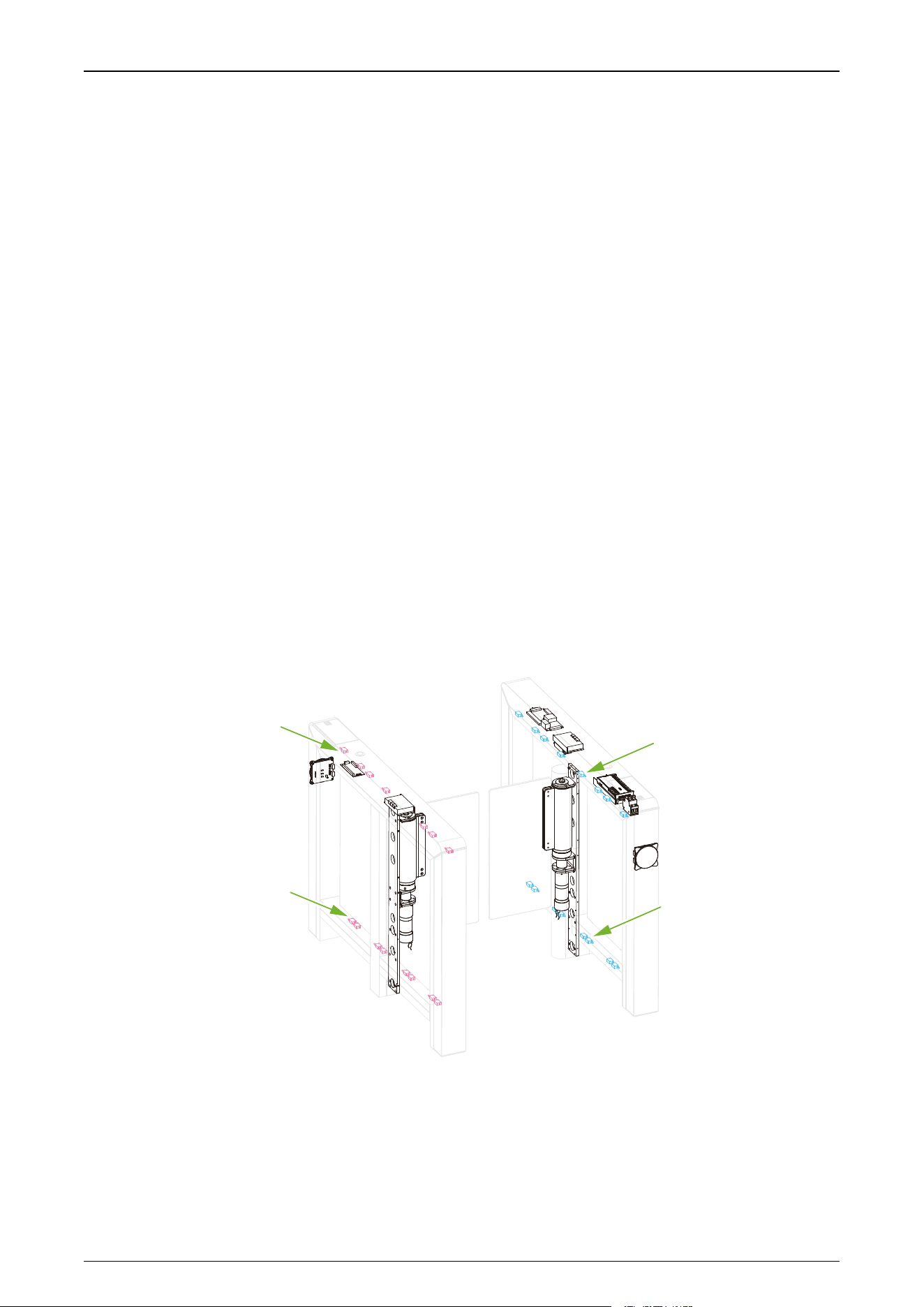

 Mars Pro-S1000:

Infrared Sensor

(IR Sensor Receiver)

Infrared Sensor

(IR Sensor Receiver)

Infrared Sensor

(IR Sensor Transmitter)

Infrared Sensor

(IR Sensor Transmitter)

Master

Slave

 Mars Pro-S1200:

Mars Pro-S1000 Series User Manual

Infrared Sensor

(IR Sensor Receiver)

Infrared Sensor

(IR Sensor Receiver)

Infrared Sensor

(IR Sensor Transmitter)

Infrared Sensor

(IR Sensor Transmitter)

Mars Pro-S1000 Series User Manual

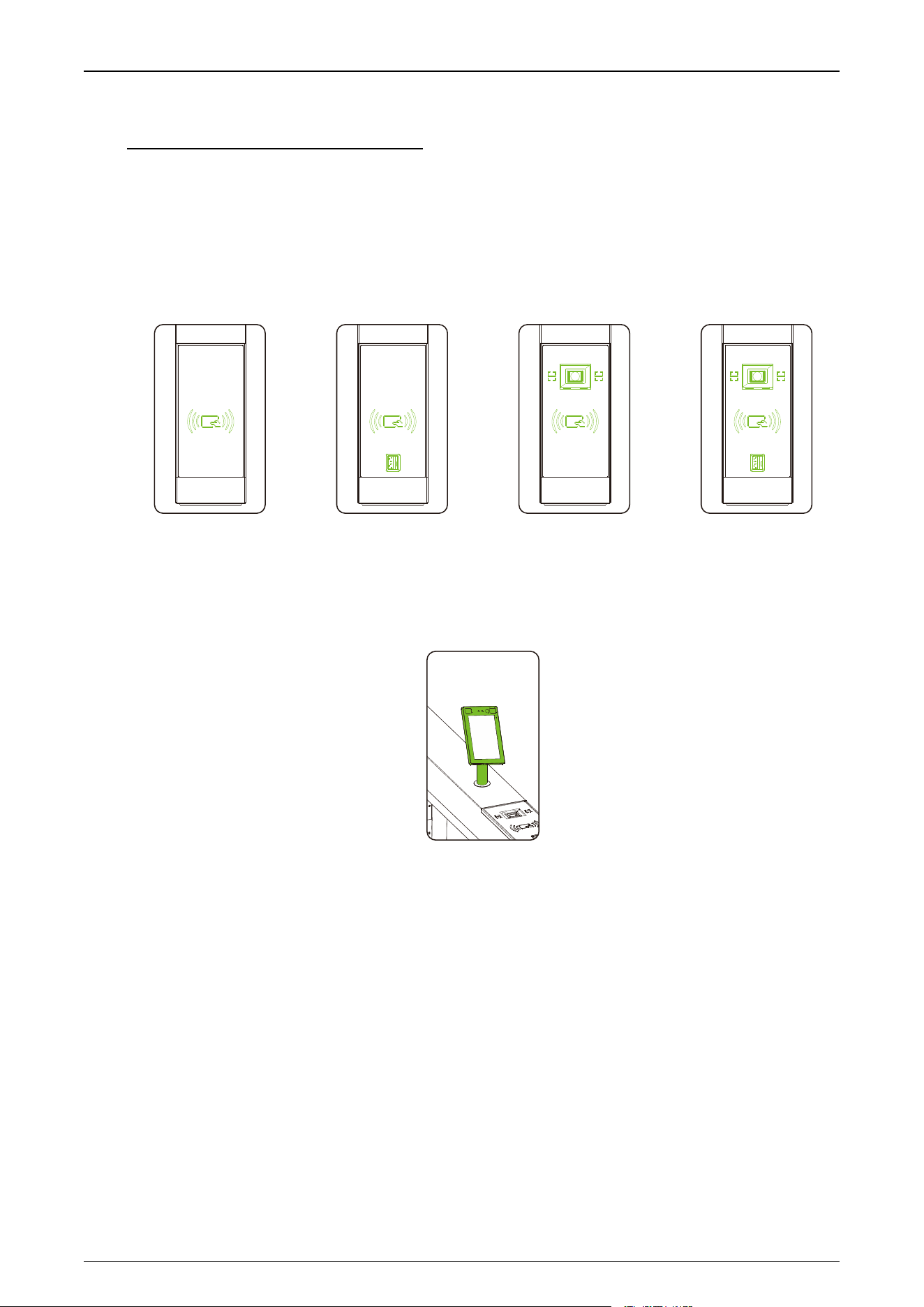

2 Authentication Methods

Users can freely choose to configure the authentication module according to actual needs. The

following options are included.

Streamlined Under Mount Options:

RFID only, RFID & Fingerprint, RFID & QR Code, RFID & Fingerprint & QR Code.

Top Mount Option:

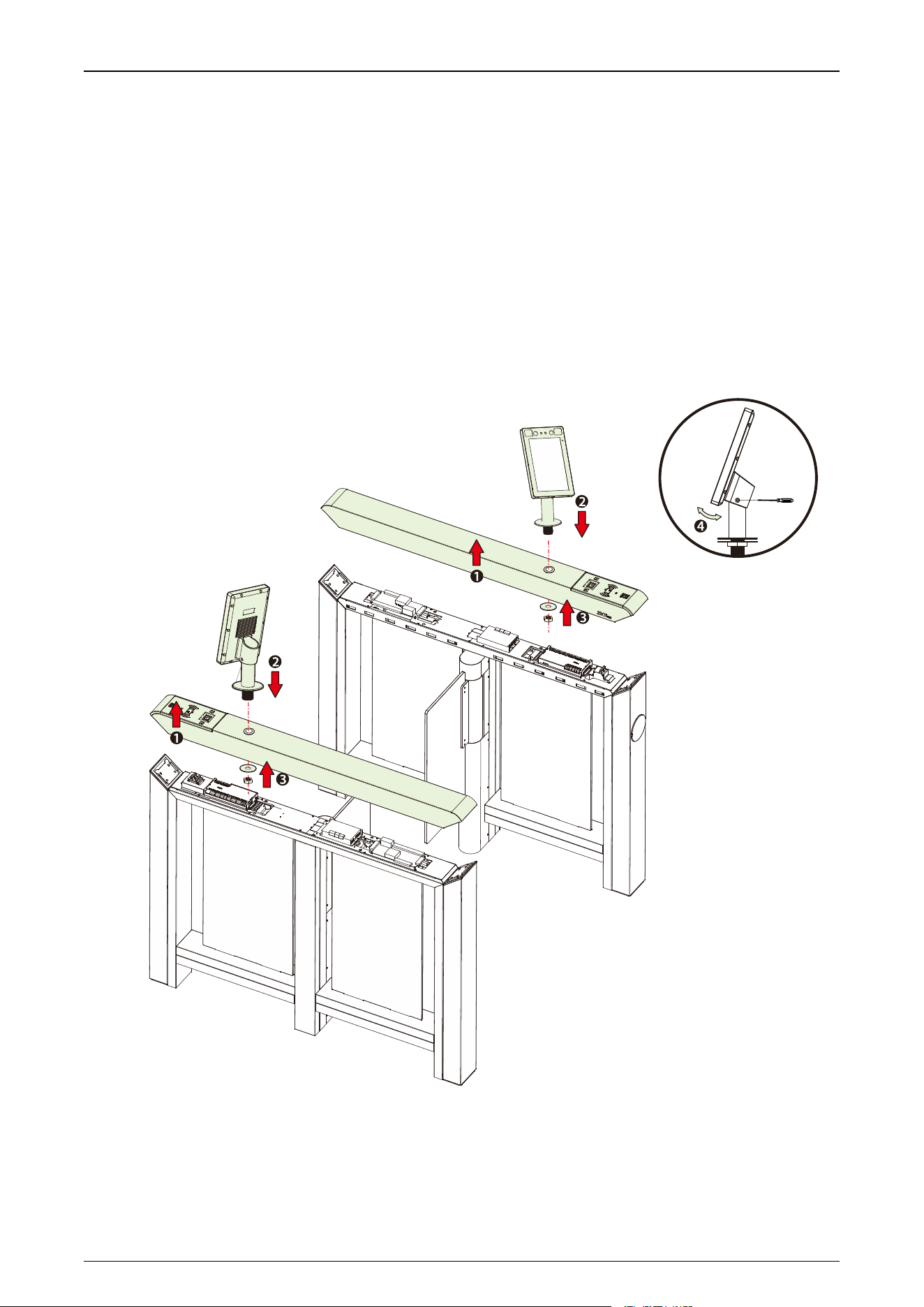

Mounting Pole (Compatible with ProFace X series / SpeedFace V5L / Elite Pass).

2.1 Card Verification

When the device is configured with a card swipe module, the Card Verification mode compares the

card number in the card induction area with all of the card number data registered in the device and

sends it to the Access Controller.

When a user presses his / her card on the card reading area, the device enters card authentication

mode.

Mars Pro-S1000 Series User Manual

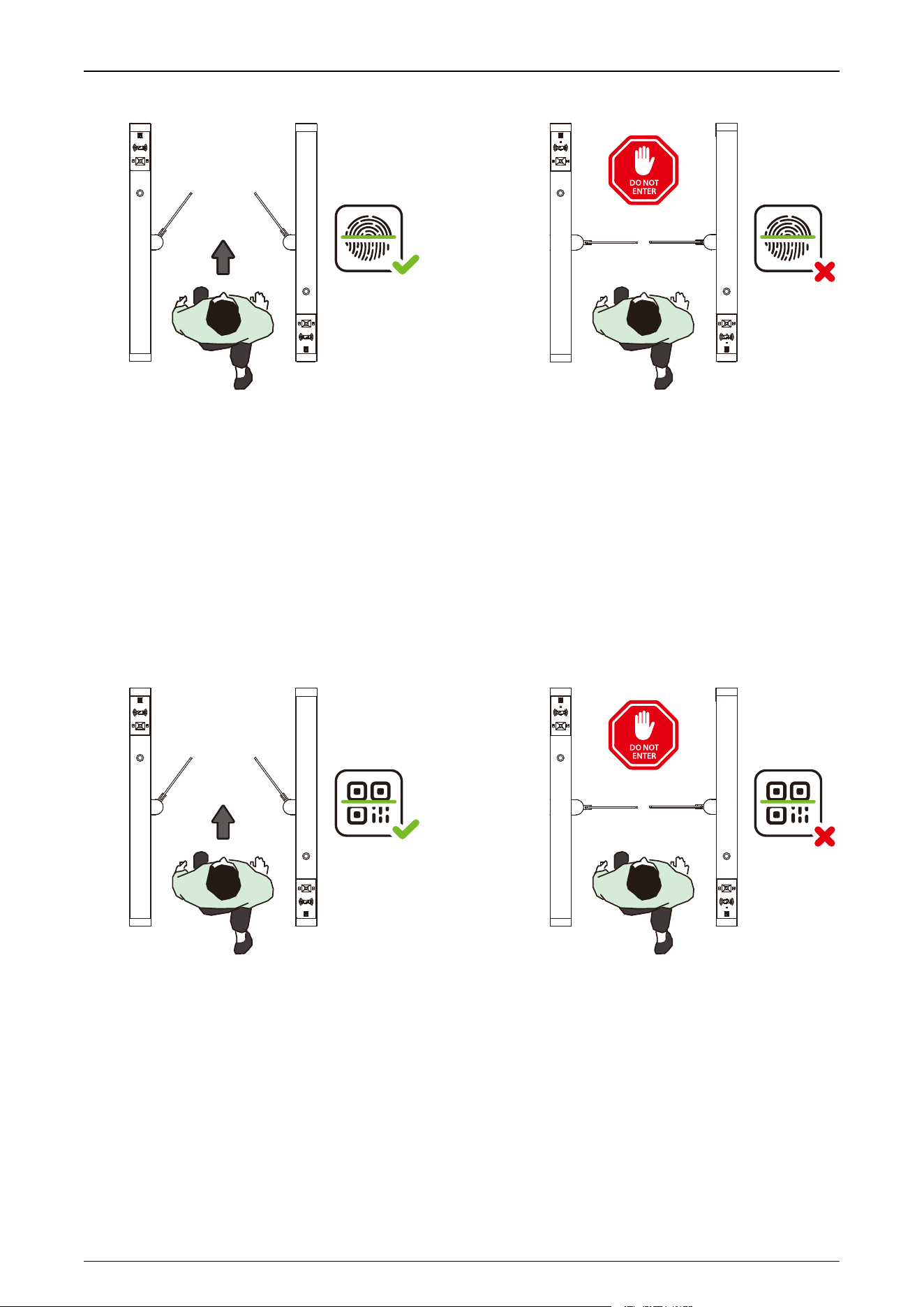

2.2 Fingerprint Verification

★

In this verification mode, the device compares the fingerprint that is being pressed onto the

fingerprint reader with all the fingerprint data sends it to the Access Controller.

The device enters the fingerprint authentication mode when a user presses his/her finger onto the

fingerprint scanner.

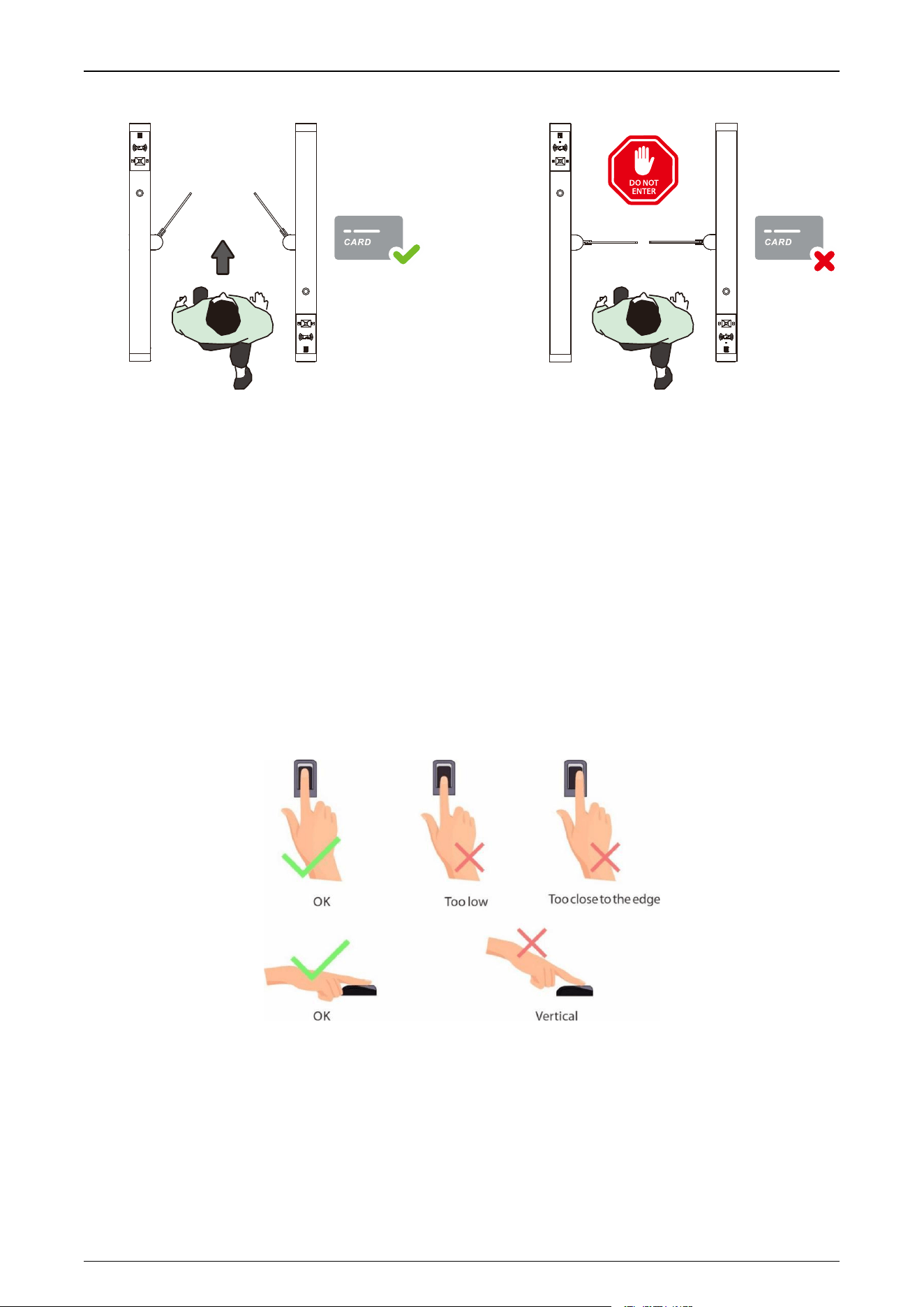

Recommended fingers: It is recommended to use index, middle, or ring finger for registration and

avoid using the thumb or little finger, as they are difficult to accurately press onto the fingerprint

reader.

Note: Please use the correct method when pressing your fingers onto the fingerprint reader for

registration and identification. Our company will assume no liability for recognition issues that may

result from incorrect usage of the product. We reserve the right of final interpretation and modification

concerning this point.

Mars Pro-S1000 Series User Manual

2.3 QR code Verification

★

The QR code Verification mode is to scan the QR code on the user's mobile phone through the QR

code scanner and compare the data with the registered QR code, and then sends it to the Access

Controller.

When the user places the mobile phone displaying with the QR code on top of the QR code scanner,

the device enters the QR code authentication mode.

2.4 Facial Verification

★

In this verification mode, the device compares the collected facial images with all face data

registered in the device and then sends it to the Access Controller.

Try to keep the face in the centre of the screen during authentication. Please face towards the

camera and stay still during face registration.

Mars Pro-S1000 Series User Manual

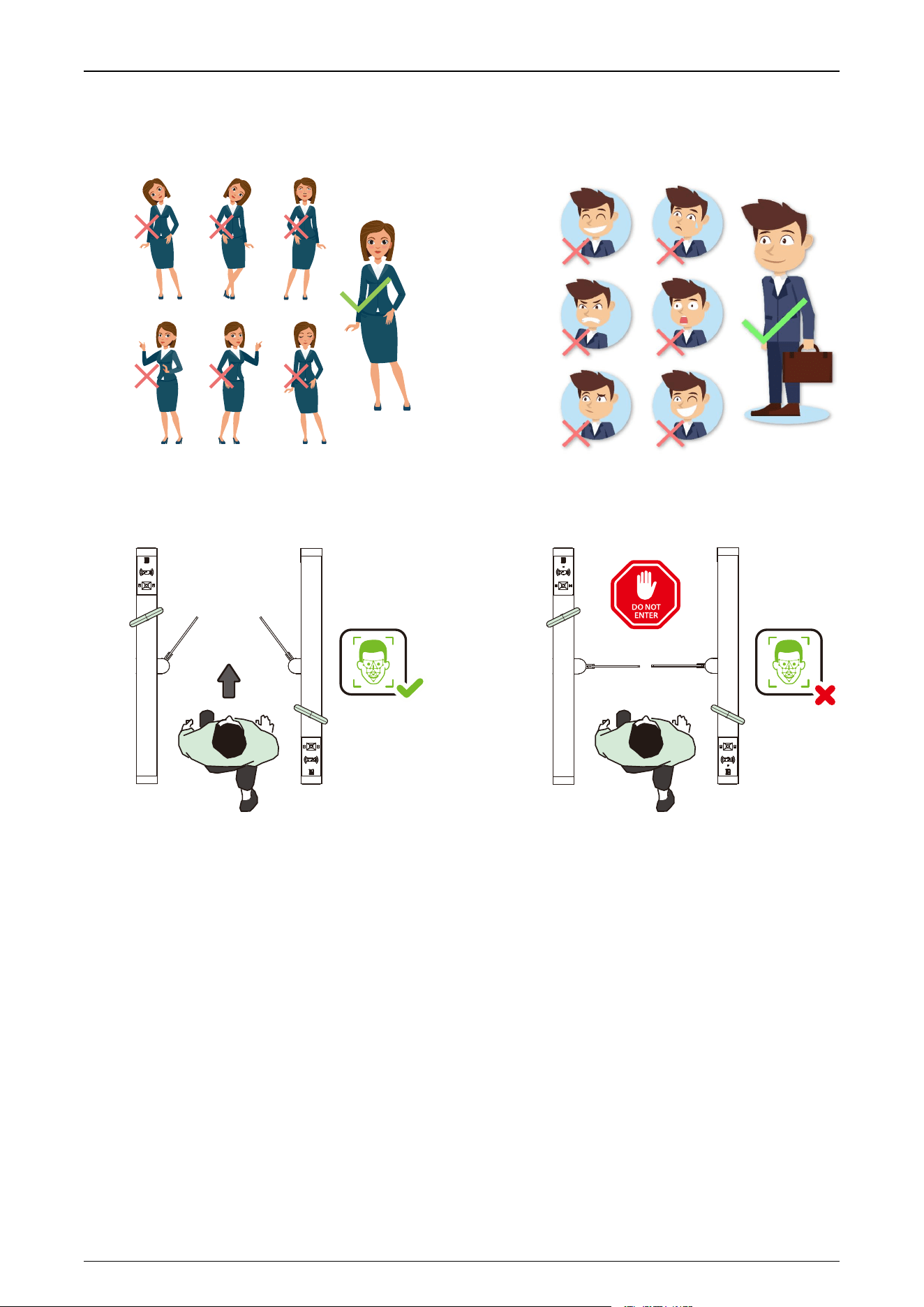

Recommended Standing Posture and Facial Expression:

Note: Please keep your facial expression and standing posture natural while enrollment or verification.

Mars Pro-S1000 Series User Manual

3 Installation

3.1 Installation Tools

 Tapeline

 Marker Pen



Pencil



Percussion Drill

 Screwdriver



Wrench

 Hex Wrench

 Cutting Machine

3.2 Installation Requirements

1. It is recommended that the turnstile must be installed on a horizontal solid platform with a height of

50mm to 100mm.

2. It is recommended that the turnstile should not be used in the corrosive environment.

3. Make sure that the ground wire of the system is securely connected to avoid personal injuries or

other accidents.

4. After installation, check if the connection has been done correctly at the connecting points of

the ground wire, at the connector assemblies and wiring points of the circuits, as well as at each

movable part of the turnstile. Any loose nuts, screws and other fasteners should be tightened in

time to avoid any failures caused by long-time operations.

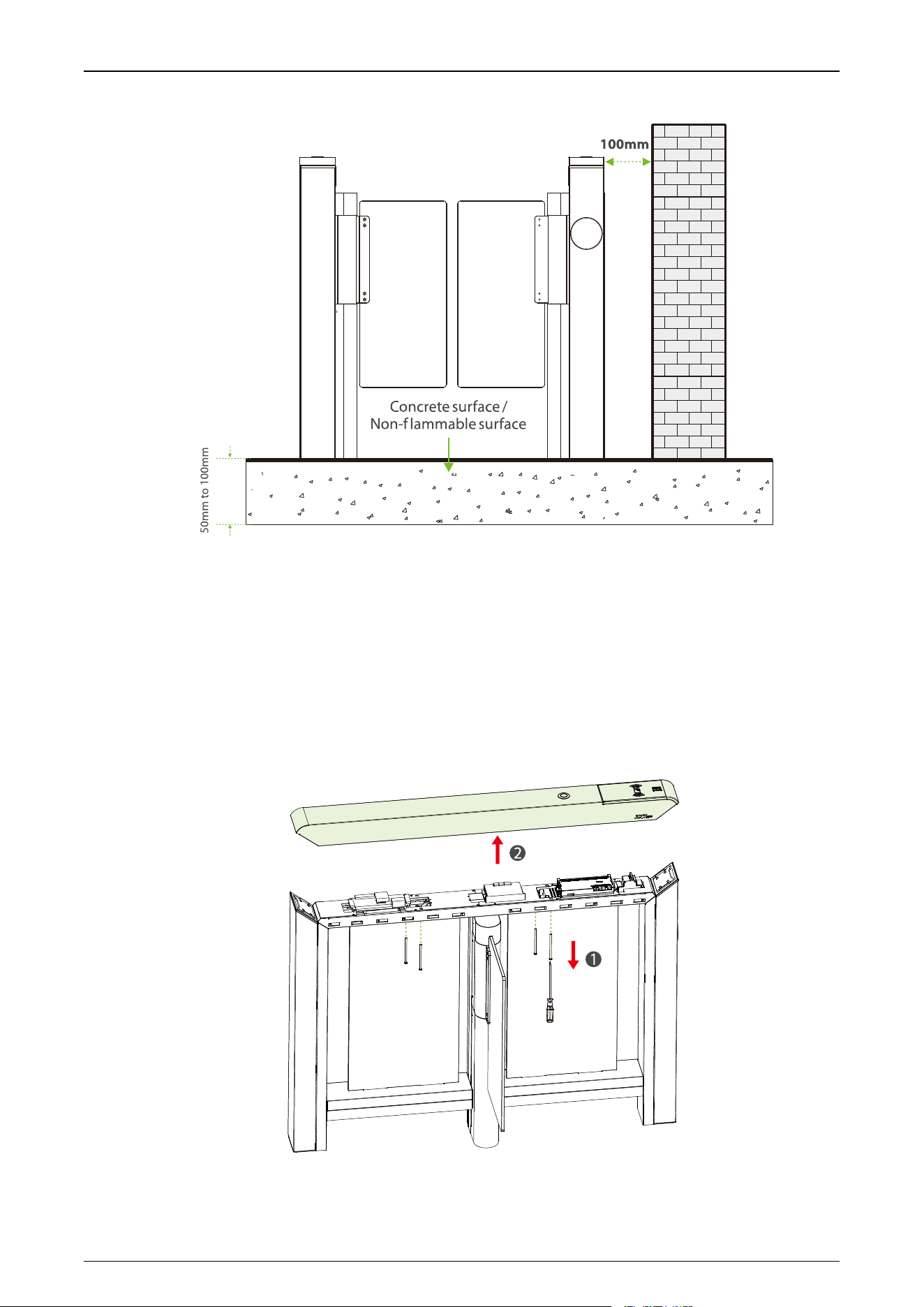

3.3 Installation Environment

1. Before installation begins, prepare installation tools, check the device and the accessories, and

clear the installation base.

2. Make sure that the appliance is mounted on a concrete surface or other non-f flammable surfaces.

3. The installation position of the turnstile depends on its size. A distance of 100mm between the

turnstile and the wall needs to be reserved for ease of opening the top lid of the turnstile to

perform maintenance and adjustment. The reference figure is shown below:

Mars Pro-S1000 Series User Manual

3.4 Installation Cabinet

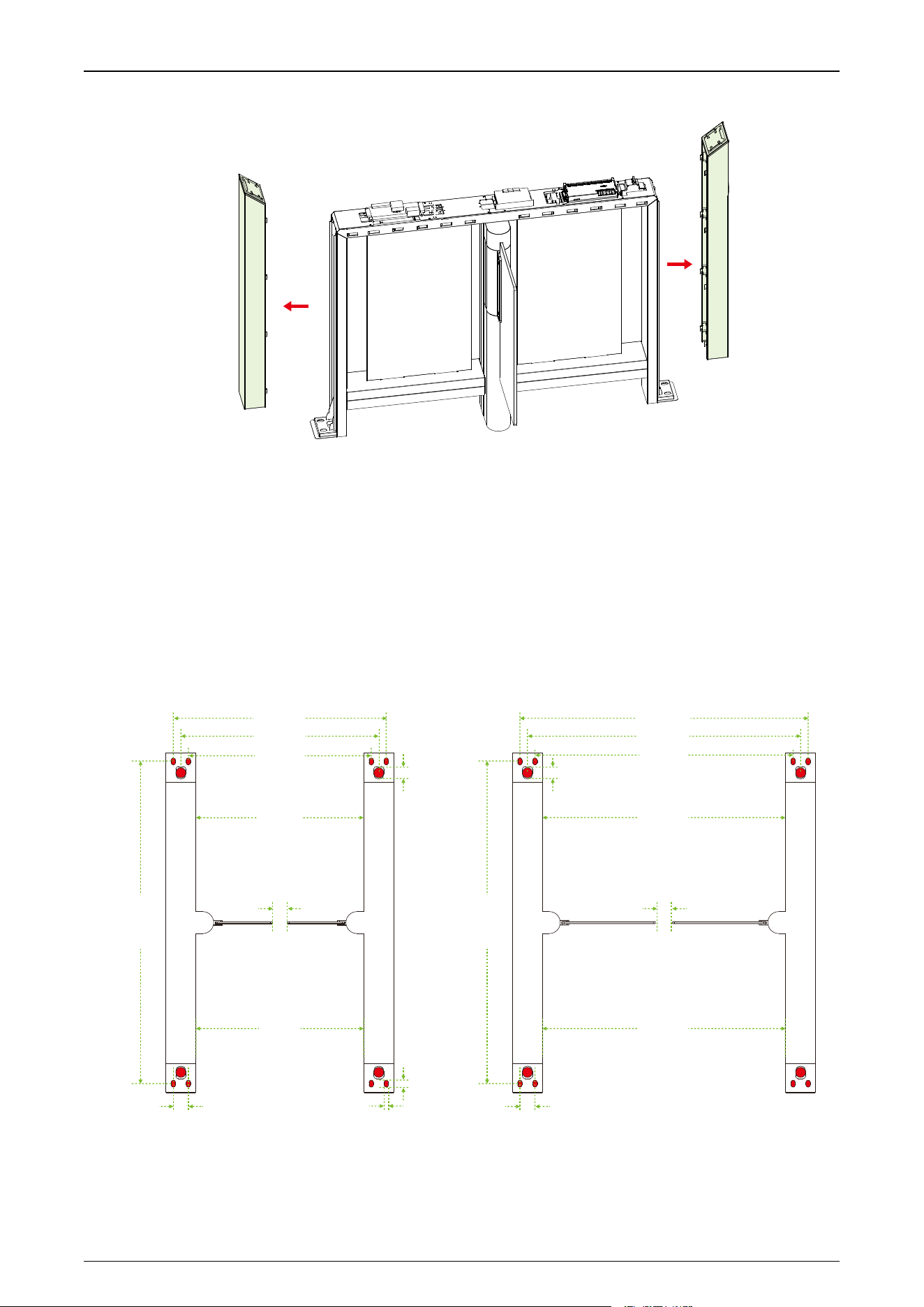

Stept 1 Remove the Top lid and Side Lid

1. Remove thefourscrews hidden under thetop lid, thenremove the top lid.

2. Remove theside lid that hangon the device.

Mars Pro-S1000 Series User Manual

Stept 2 Determine the Mounting Location

1. Please refer to the user's manual andcomplete the power-on self testoperation before installation.

2. Thenplace the cabinet according to the mounting distances shown in the diagrambelow.Take care to

measure the distance between the bottom inside walls of the cabinets on the entrance side and exit

side of the channel and makesure thatthe measurementsare consistent.

802mm

60mm

1282mm

802mm

50mm 50mm

920mm

60mm

1282mm

920mm

40mm

28mm

18mm

922mm 1040mm

862mm

982mm

980mm

1100mm

40mm

Mars Pro-S1000 Series User Manual

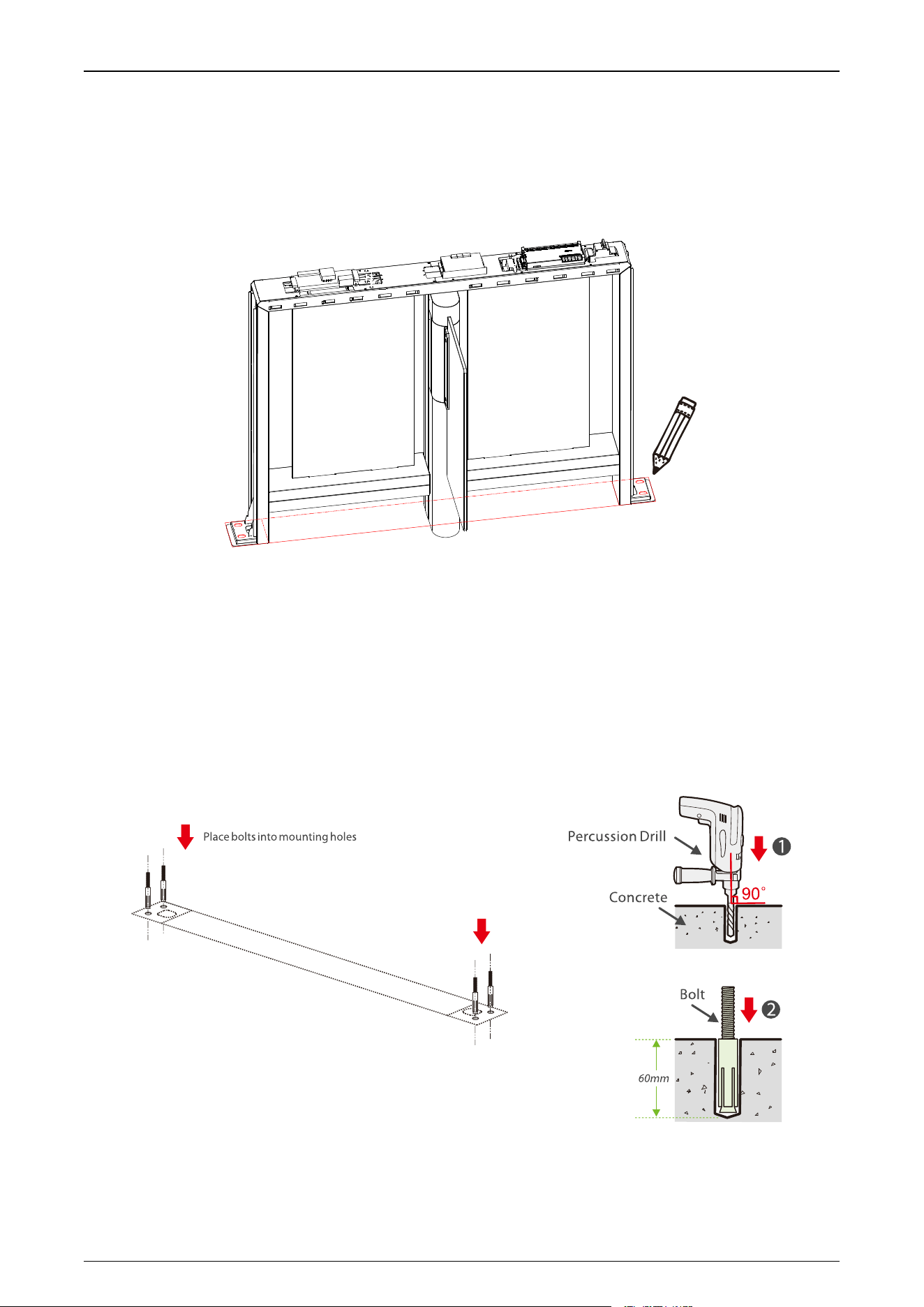

Stept 3 Marker Position

Draw the location ofthe cabinet with a marker andmark each location of the mountingholes. There will be

a total of four mounting holes and two wire holes per cabinet.

Stept 4 Drill Holes and Place Bolts

1. Using a concrete drill bit, drill the mounting holes 60mm in depth at the center of each marked

location.

2. Theninsertthe bolts vertically intothe mounting holes as shown at right.

3. Make sure the bolts are placedin place.Use a hammer to tapthe bolts into place, if needed.

Mars Pro-S1000 Series User Manual

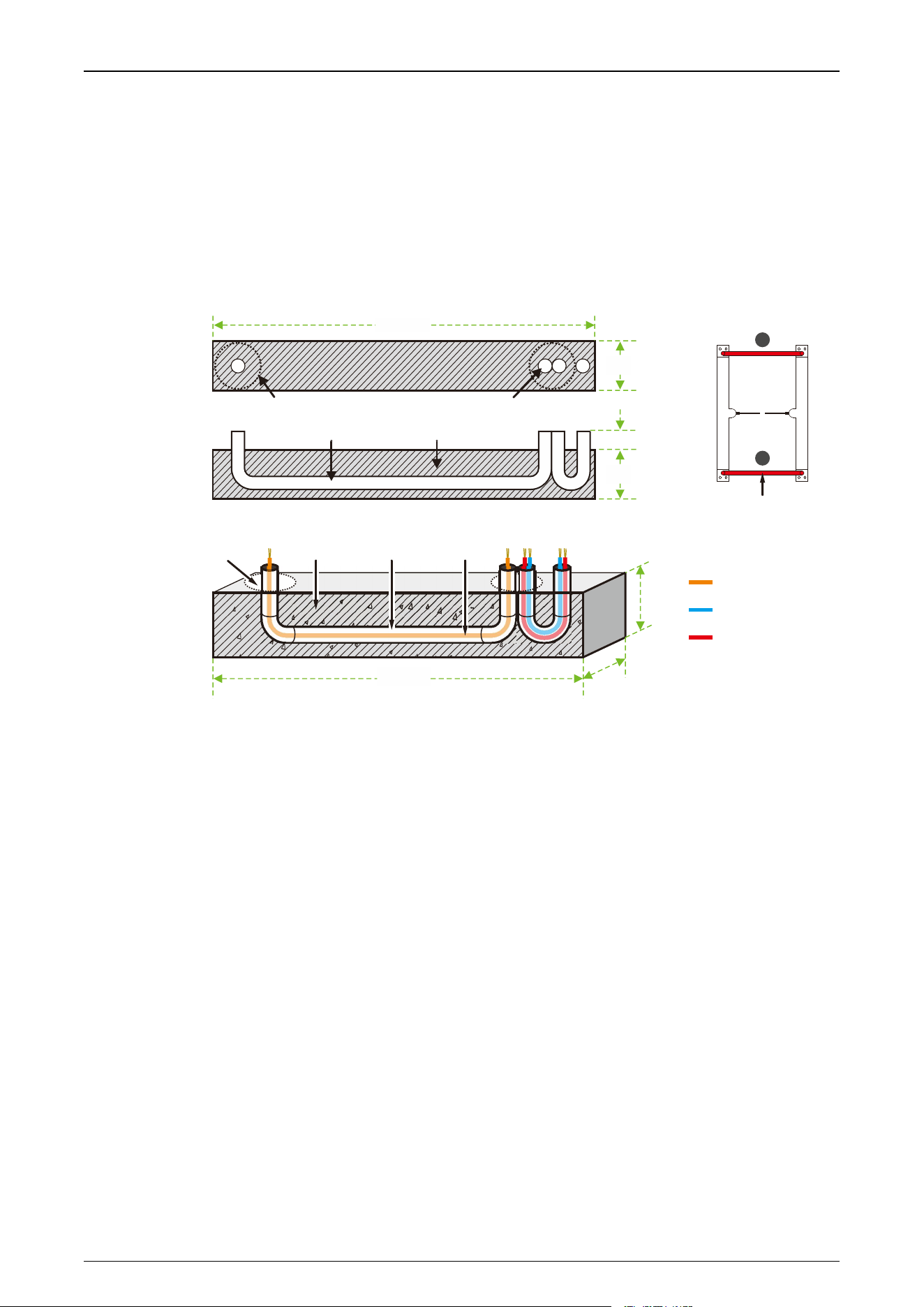

Stept 5 Wireway Laying

1. Dig a recess of 50mm depth between the wire holes on both sides of the channel with the dimensions

shownbelow. Recesses can bedug at positions 1 and 2.

2. Thenlay two 25mm diameter PVC pipes as shown below.

3. After threadingthe cable out of the PVC pipe, pour concrete to f ix it in place.

ECU-panel connection wire

Ethernet cable /

Access control cable

Power cable

Conduit

20 to 25mm

PVC pipe

Concrete

≥1002mm

Cable

Wire hole

35m m

50m m(D)

20m m(D)

Wire hole

25mm PVC pipe

PVC pipe

Concrete

Position of the notch:

≥1002mm

Top View

Side View

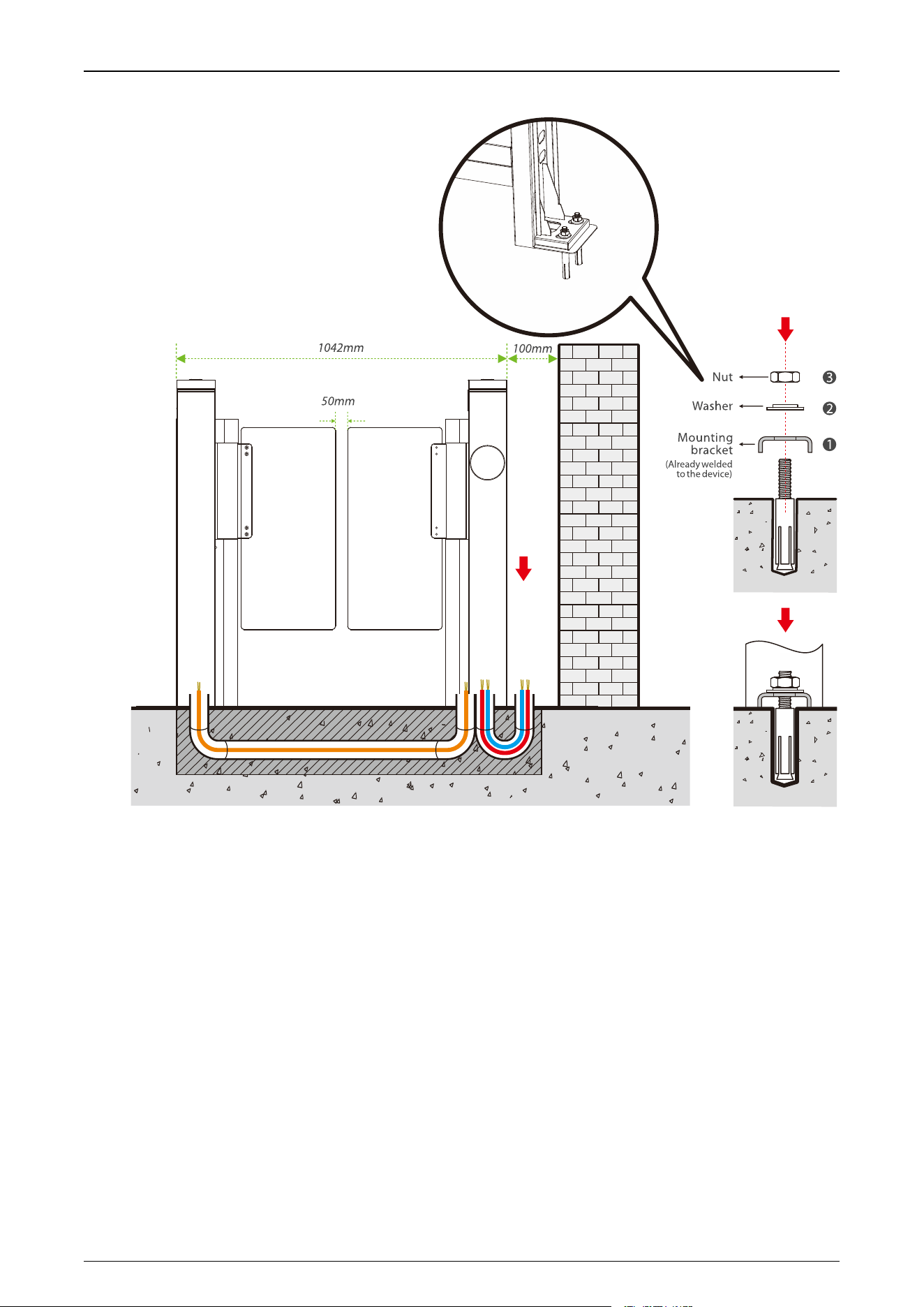

Stept 6 Fixed Cabinet

1. After laying the PVC pipe, placethe cabinet alignment bolts back into the mounting position.

2. Theninsertthe four washers and nuts into the bolts one by one.

3. Tighten the nuts to hold the cabinet in place. Don't tighten it completely until after you're sure it won't

move anymore. The f inished result is shown below:

Mars Pro-S1000 Series User Manual

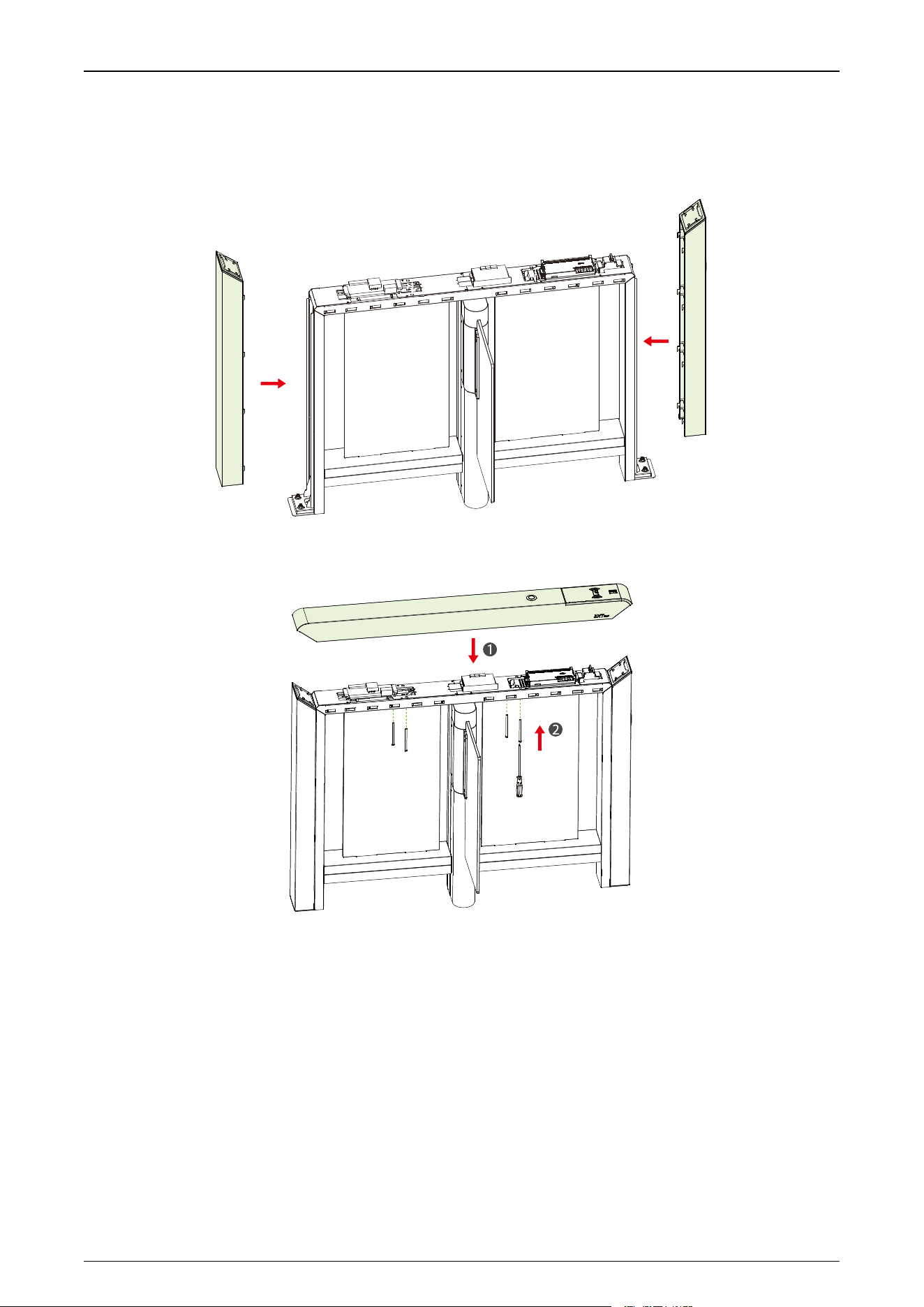

Stept 7 Close the Side Lid and Top Lid

Close the side lid and top lid,and secure with screws.

Mars Pro-S1000 Series User Manual

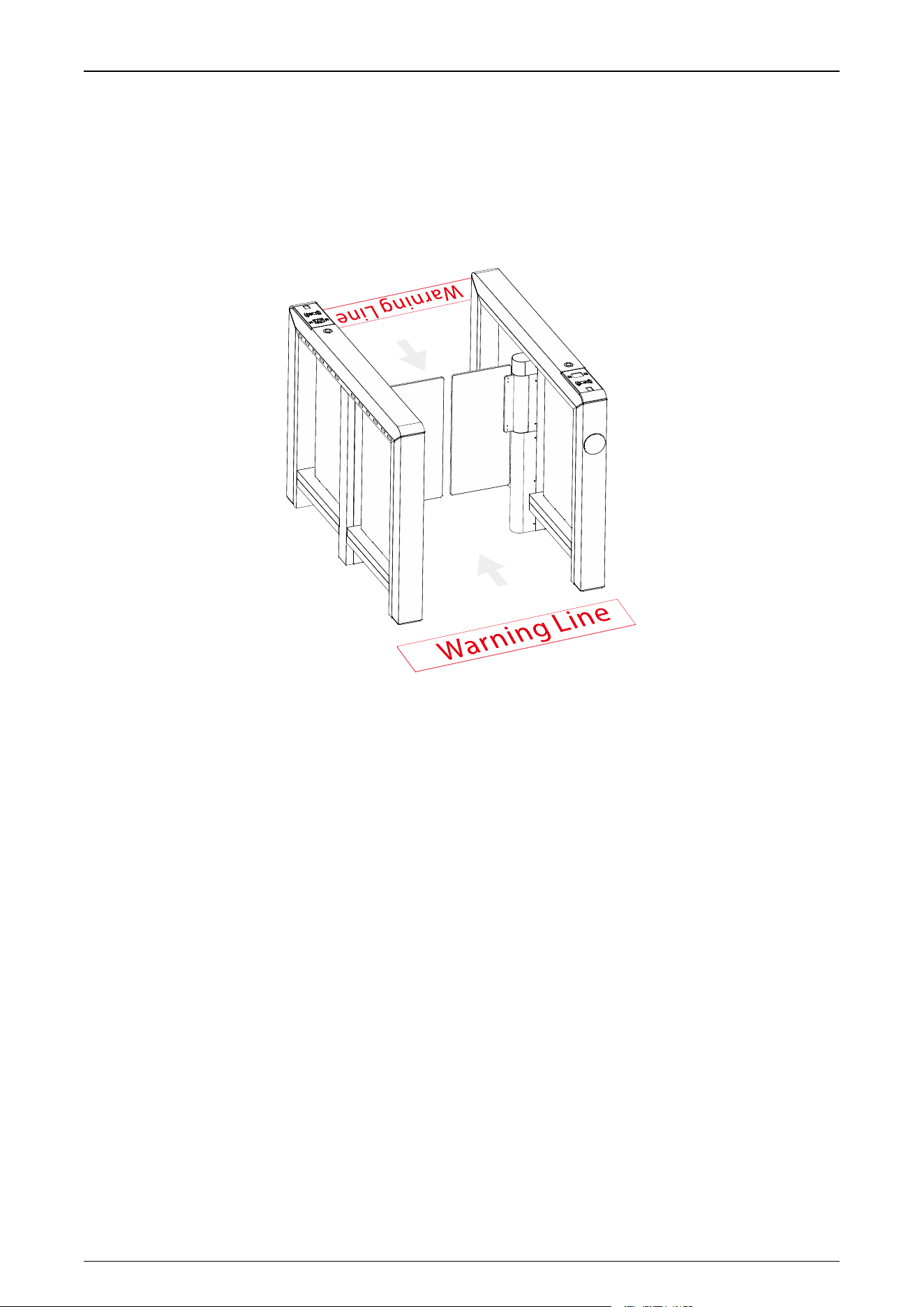

Stept 8 Marking the Warning Line

1. It is recommended that warninglines be marked onthe ground and used to alert users.

2. A warning line can alert users to wait outside the line until theprevious user completes the verif ication

process and passes throughthe turnstile.

Mars Pro-S1000 Series User Manual

3.5 Accessory Installation

3.5.1 Facial Equipment Installation

1. Remove thetop cover plate and routethe unit's cables throughthepre-drilled mounting holes.

2. Passthe mounting bracketthrough the mountingholes.

3. Place the gasket and nut and tightenthe nut to secure the unit.

4. Adjust theunit to a suitable angle.

Mars Pro-S1000 Series User Manual

3.5.2 Door Leaf Installation

1. Pushthe door leaf into the clamping block.

2. Lockthe door leafwith the screws.

Mars Pro-S1000 Series User Manual

4 Terminal Description

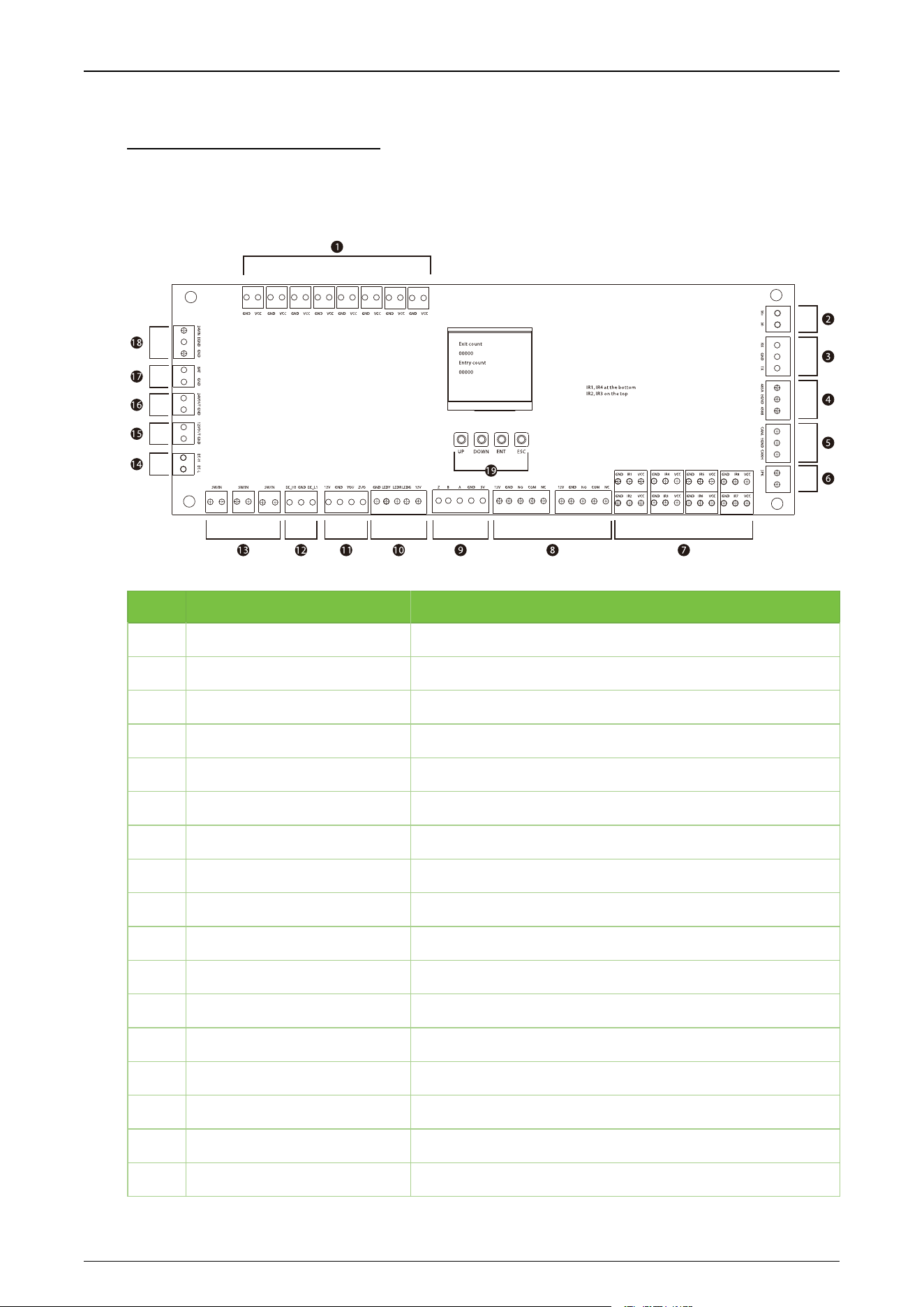

4.1 ZKBZ Board

NO.

Terminal

Descriptions

GND, VCC *8

12V infrared power supply of swing barrier

M+, M-

Motor of swing barrier

RX, GND, TX

RS232 communication

485A, EGND, 485B

RS485 communication

CANH, EGND, CANL

CAN communication

SPK

Speaker

GND, IR, VCC *8

Infrared sensor receiving port

12V, GND, NO, COM, NC *2

8-core connection wire

Z, B, A, GND, 5V

Encoder for swing barrier

GND, LEDY, LEDR, LEDG, 12V

Passing light of swing barrier

12V, GND, YOU, ZUO

Proximity switches for flap barrier

EC-H1, GND, EC-L1

Arm drop of tripod turnstile

SW, IN

Fire Control Port, Right Open, Left Open

EC-H, EC-L

Clutch of the swing barrier

12VOUT, GND

12V power supply output

24VOUT, GND

24 V power supply for the main board of the swing barrier

BAT, GND

Fire power supply for swing barrier

Mars Pro-S1000 Series User Manual

24VIN, EGND, GND

24V power supply input

UP, DOWN, ENT, ESC

Control buttons for setting menu parameters.

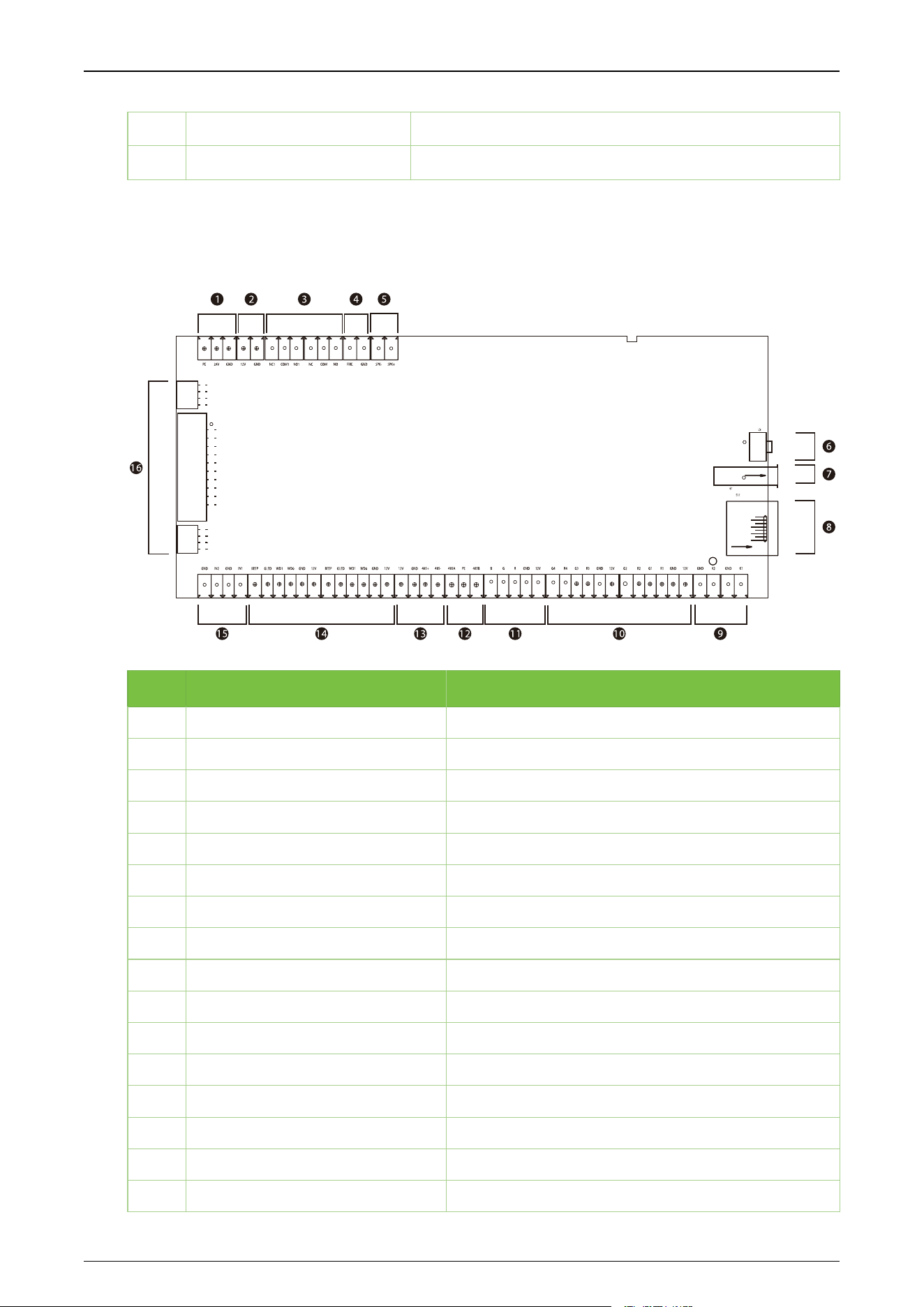

4.2 PGIC Controller (Additional accessory)

NO.

Terminal

Descriptions

PE, 24v, GND

24V DC power supply input

12V, GND

12V DC power supply input

NC, COM, NO

Auxiliary input

FIRE, GND

Fire signal

SPK-, SPK+

Speaker

Reset

USB slot

Ethernet/POE interface

GND, K *2

Door

G, R, G, R, GND, 12V *2

Exit or entry status indicator

B, G, R, GND, 12V

Status indicator

485A, PE, 485B

RS485

12V, GND, 485+, 485-

Exit RS485

BEEP, GLED, WD1,WD0, GND, 12V

Wiegand reader

GND, IN *2

Auxiliary input

IR sensor

Mars Pro-S1000 Series User Manual

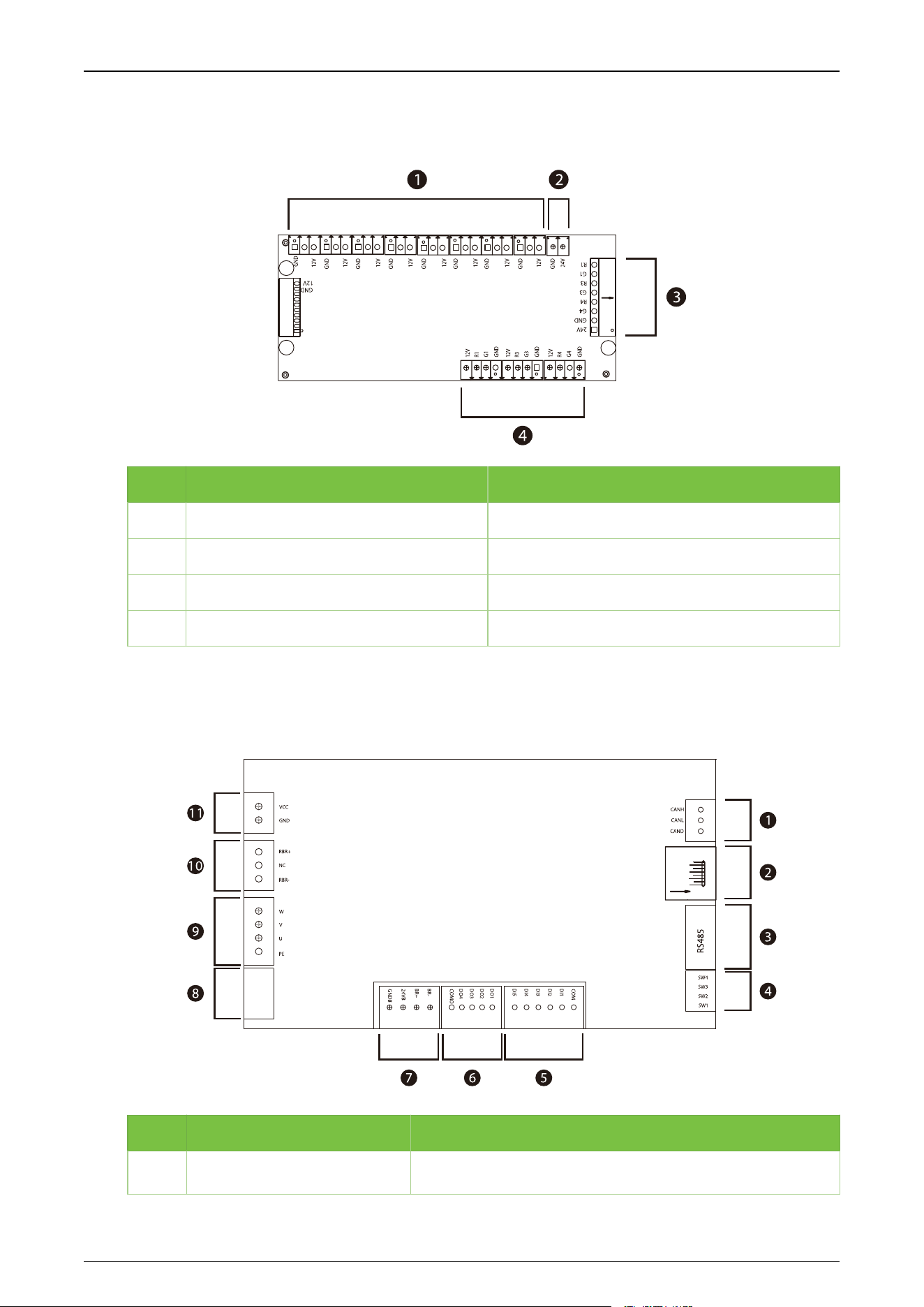

4.3 IR Board

NO.

Terminal

Descriptions

GND, 12V *9

Infrared sensor transmitting port

GND, 24V

24V power supply output

R1, G1, R3, G3, R4, G4, GND, 24V

8-core connection wire

12V, R, G, GND *3

Left side indicator

4.4 Master/Slave Motor Driving Controller

NO.

Terminal

Descriptions

CANH, CANL, CGND

CAN communication

Mars Pro-S1000 Series User Manual

Ethernet

Ethernet communication between master and slave

drives

RS485

RS485 communication between master and slave drives

SW4, SW3, SW2, SW1

The master

’

s SW2 needs to be dialed down, the slave does

not need to dial the code

DI5, DI4, DI3, DI2, DI1, COM

Reserved

COMO, DO4, DO3, DO2, DO1

Reserved

GNDB, 24VB, BR+, BR-

24V power supply input of clutch, Clutch

Motor data cable input

W, V, U, PE

Motor three-phase input

RBR+, NC, RBR-

Reserved

VDC, GND

24V power supply input

Mars Pro-S1000 Series User Manual

5 Wiring Instructions

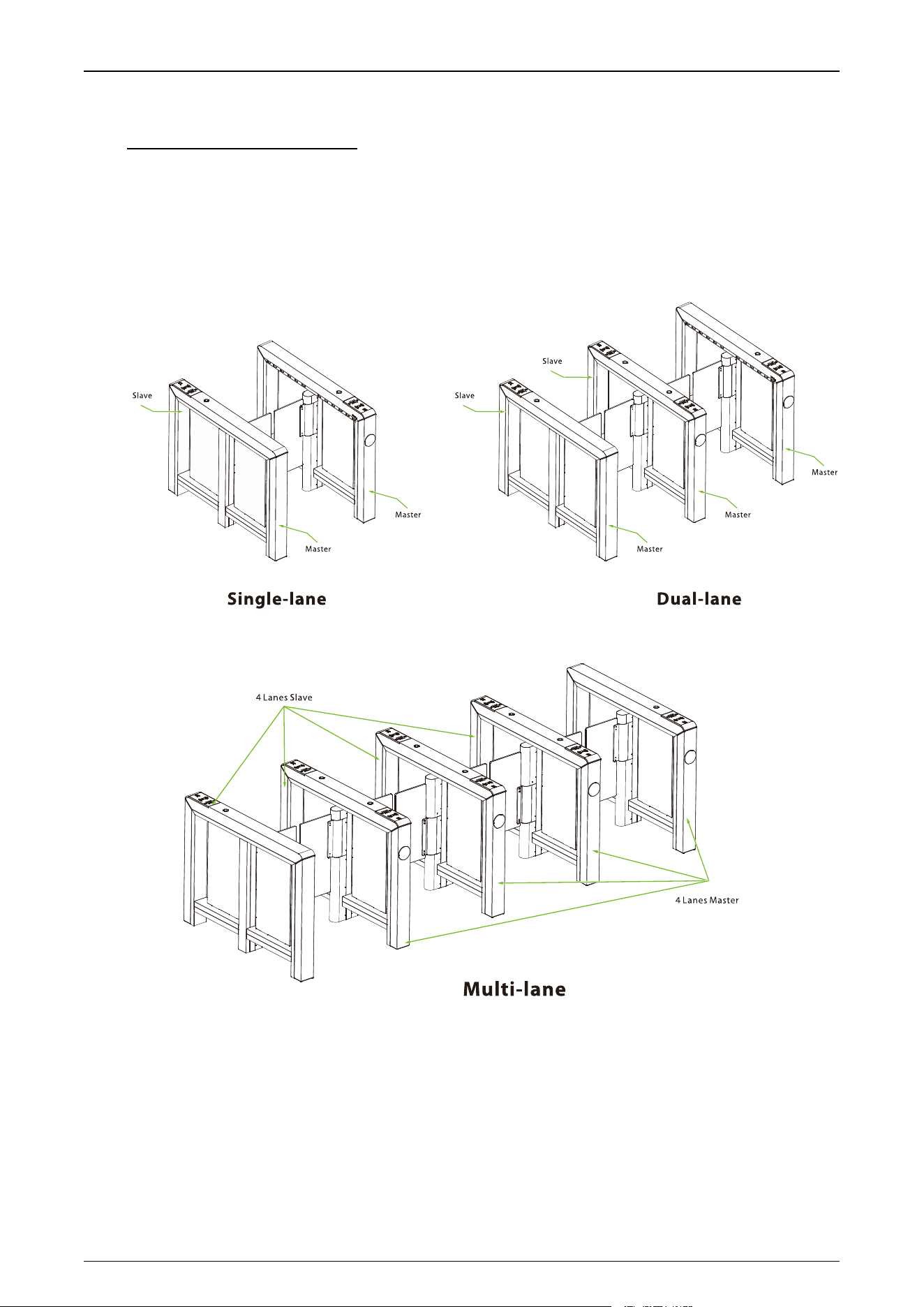

5.1 Master-slave Location

The positions of the master and slave corresponding to single-lane, dual-lane and multi-lane are

shown in the figure below.

Mars Pro-S1000 Series User Manual

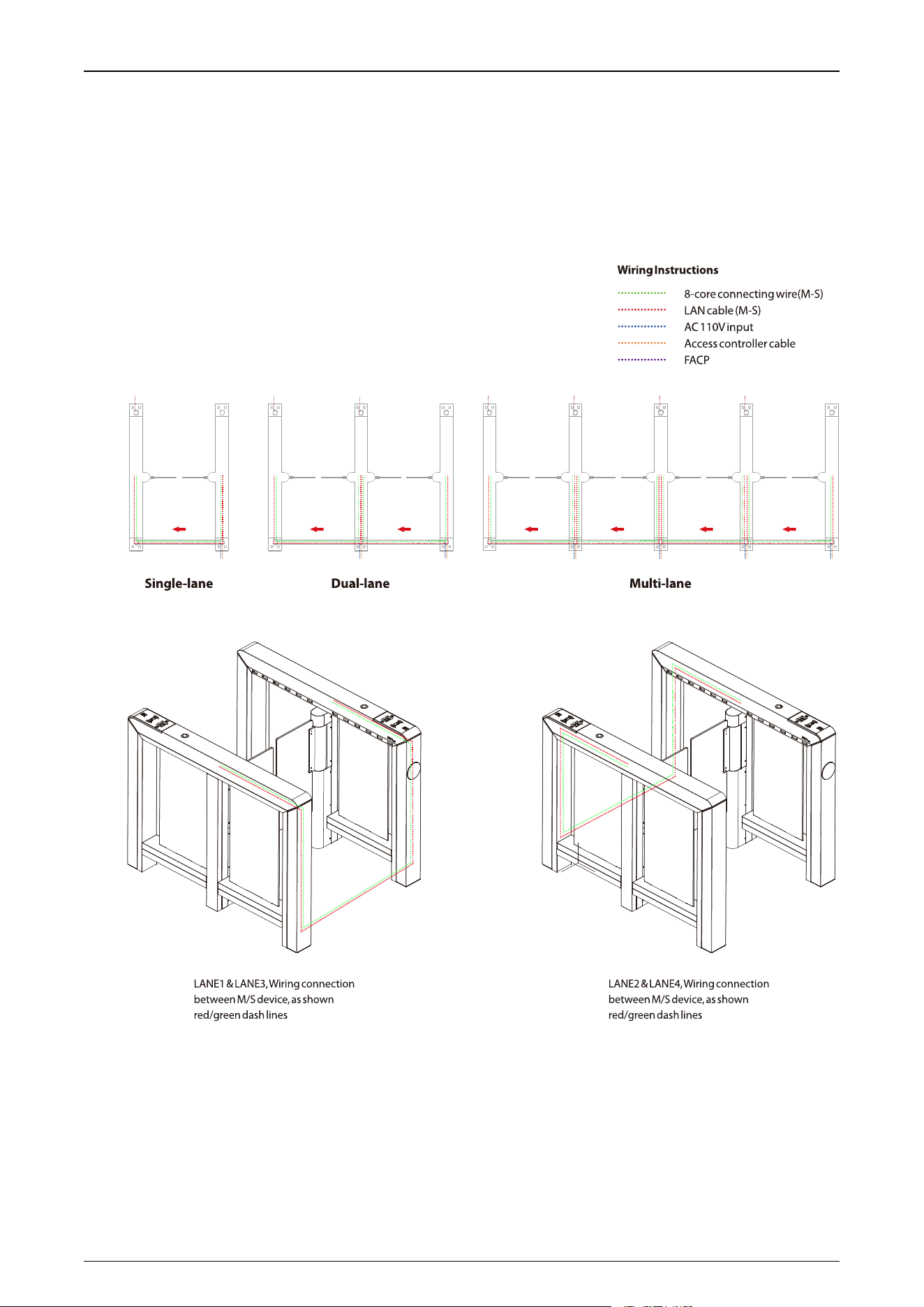

5.2 Wiring Methods

The wiring principle is to connect the master device to the slave device and communicate via the

ECU-panel connection wire. Each master device is then powered individually. The following diagram

shows how the different channels are wired.

5.3 Wiring the ECU-panel Connection Cable

Insert the ECU-panel connection wire through the PVC pipe and then into the Ethernet ports of the

master and slave motor driving controller respectively to communicate via Ethernet, as shown in the

following figure.

Mars Pro-S1000 Series User Manual

5.4 Power and Air Switch Wiring

120Vac and 240Vac primary power must be hard wired in place (Note: must be grounded). It is

strongly recommended that a licensed electrician perform this procedure in accordance with

applicable local codes.

Mars Pro-S1000 Series User Manual

5.5 System Wiring Diagram

Mars Pro-S1000 Series User Manual

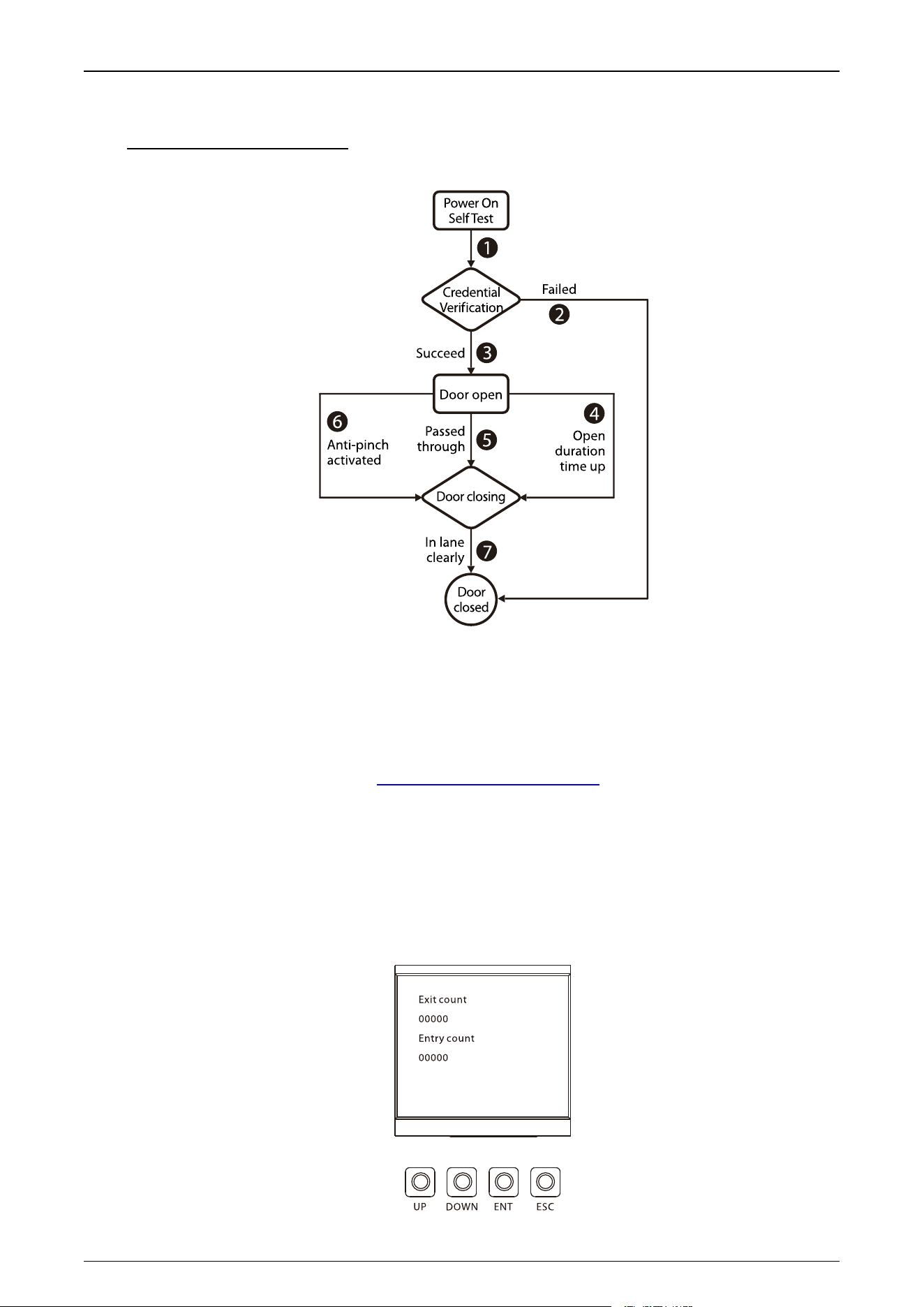

6 Operation Process

1. POST(Power On Self Test)

When powering up the unit, wait 30 seconds for the system to perform a POST (Power On Self Test)

procedure. If no problems are detected, the unit will operate normally. If a fault is detected, the

system will display a relevant message on the LCD display so that the user can quickly understand

and solve the problem. (Reference 5.5 Power and air switch wiring for connecting the air switch and

power supply.)

2. CredentialVerification

After the unit's power on self test is complete, you can test the door opening by pressing the Up

button on the motherboard.

Mars Pro-S1000 Series User Manual

When the user presses the Up button on the main board, it is equivalent to recognizing a valid card.

The LCD display will show success and a buzzer will give a positive audible indication to the

pedestrian that it has been successfully validated. The card reader then sends a signal to the access

controller requesting permission to pass through the channel. The access controller will send a

signal to the revolving door control panel. After receiving the signal from the card reader and the

Infrared Sensor, the Turnstile Control Board will send valid control signals to the servo motor driver.

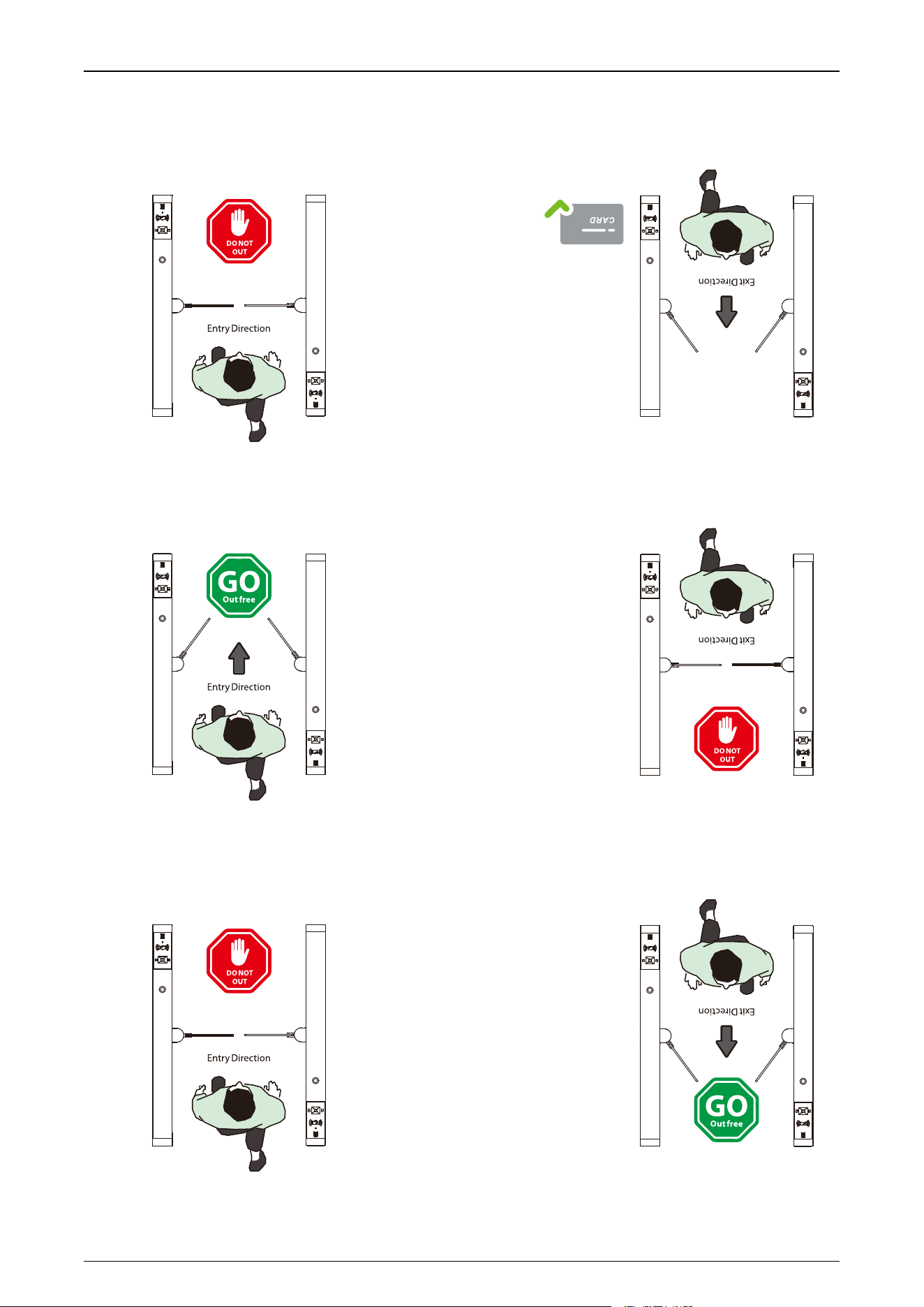

1) Verification Success

When the verification is successful, the door is opened.

2) Validation Failure

When verification fails, the door remains closed.

Note: At this time, if the system is in forbidden passing mode, the mode indicator light will turn red,

and the Turnstile Control Board will not accept signals of card.

3. Passed Through

After the passenger passes the channel according to the opening direction of the swing arm, the

Infrared Sensor will keep detecting the movement of the pedestrian throughout the passage and

continue to deliver signals to the Turnstile Control Board until the pedestrian passes through the

passage.

If the pedestrian enters the passage but forgets to verify identification, or if the card by the

pedestrian is invalid, the system will prompt an audible alarm to warn the pedestrian to stop passing.

The alarm signal will not be cancelled until the passenger retreats from the passage. The pedestrian

can pass through the passage only after a valid card is successfully verified.

Mars Pro-S1000 Series User Manual

7 Machine Operation

7.1 Operation Buttons Description

To meet different needs, this system provides multiple working modes for users, including the Normal

Working Mode, Normally Open Mode, Normally Closed Mode, and Testing Mode.

After supplying power to the device, the LCD screen on the control board will display a default state.

There are 4 operation buttons below the LCD screen, "UP", "DOWN", "ENT" and "ESC". You can set the

parameters through the operation buttons on the control board, as shown in the figure below.

Operation Buttons Description:

 UP: To move upwards or increase the value.

 DOWN: To move downwards or decrease the value.

 ENT: To enter a menu setting item or confirm the current modified value.

 ESC: To return to the previous menu or cancel the current operation.

 Instructions for menu operation

Press the ENT button to enter the password input interface and enter the default password (the

default password is: UP, UP, DOWN, DOWN, DOWN, DOWN, DOWN). You can press ESC button to

clear the last entered password. After entering the menu, press UP or DOWN to select the menu

item, then press ENT to enter the interface and adjust the function or value.

7.2 Menu Parameter Settings

Tips: For each function, you need to press ENT key first to start changing the parameters.

1. Correct Barrier Position

Press ENT to modify, press UP/DOWN to select the correction type, and press ESC to exit.

Mars Pro-S1000 Series User Manual

Correction Type:

 Zero position (Default)

 Left opening position



Right opening position

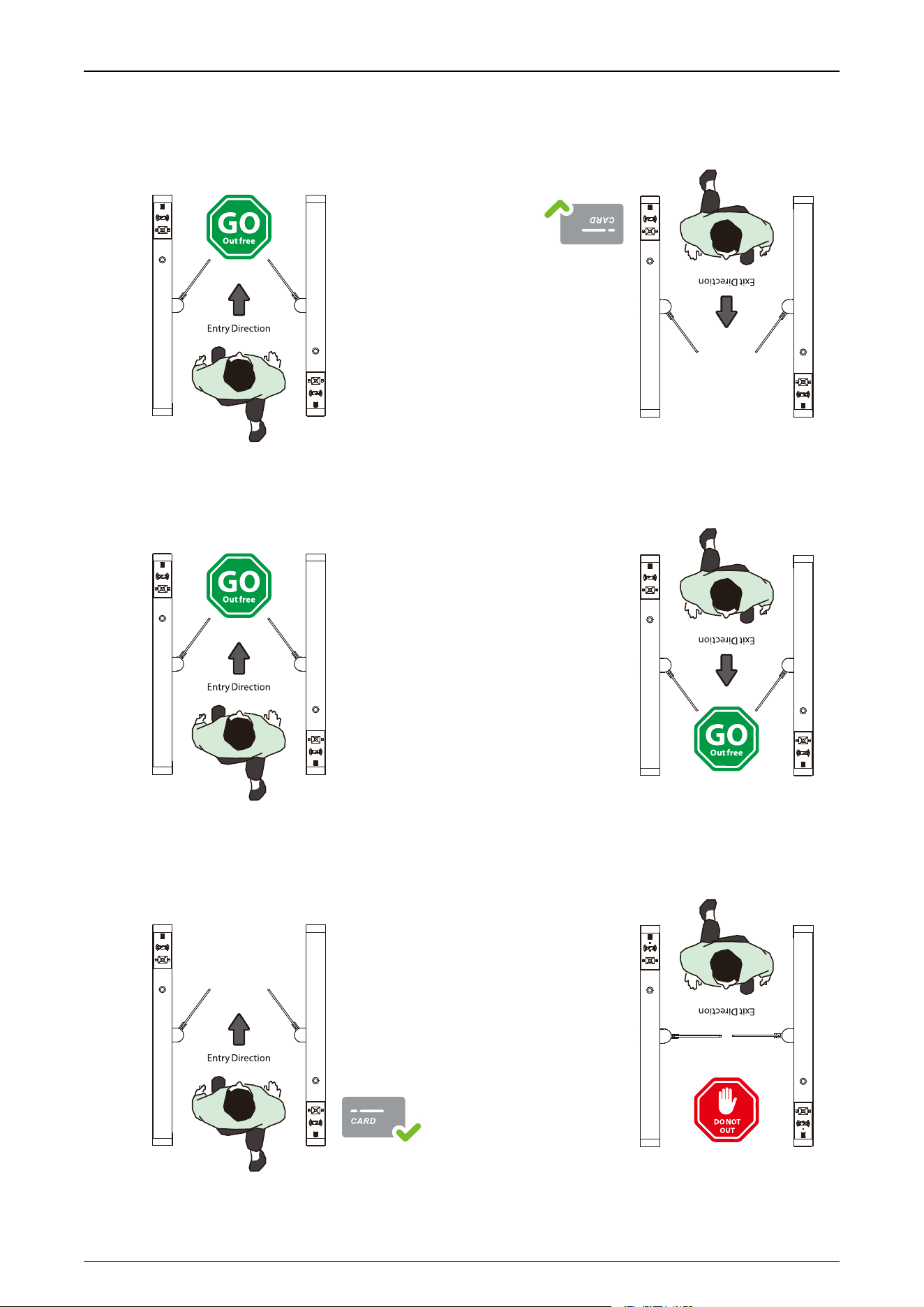

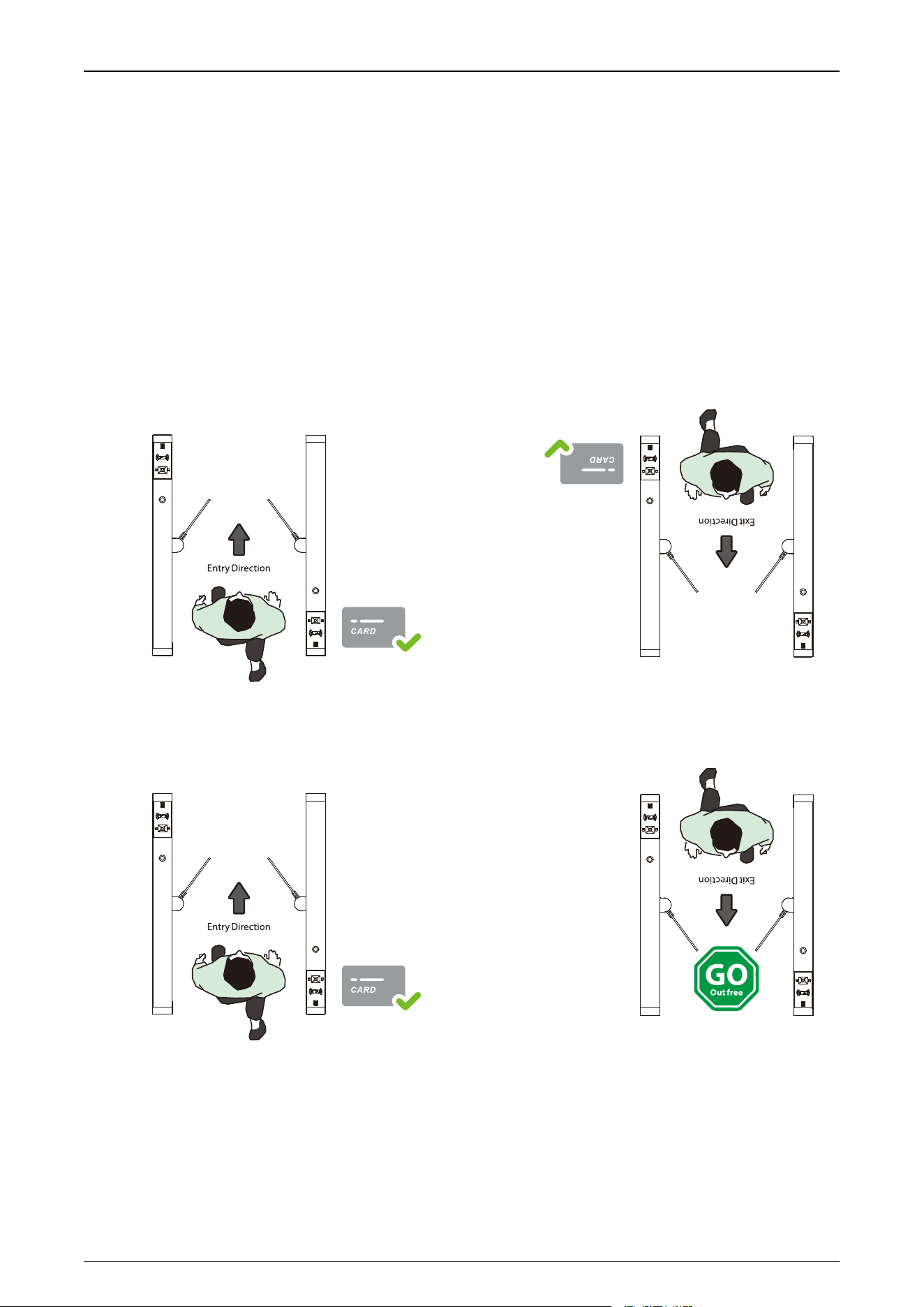

2. Opening Mode Setting

 Two-way controlled, both need verification (Default)

 In need verification, Out free

Mars Pro-S1000 Series User Manual

 In free, Out need verification

 Two-way free



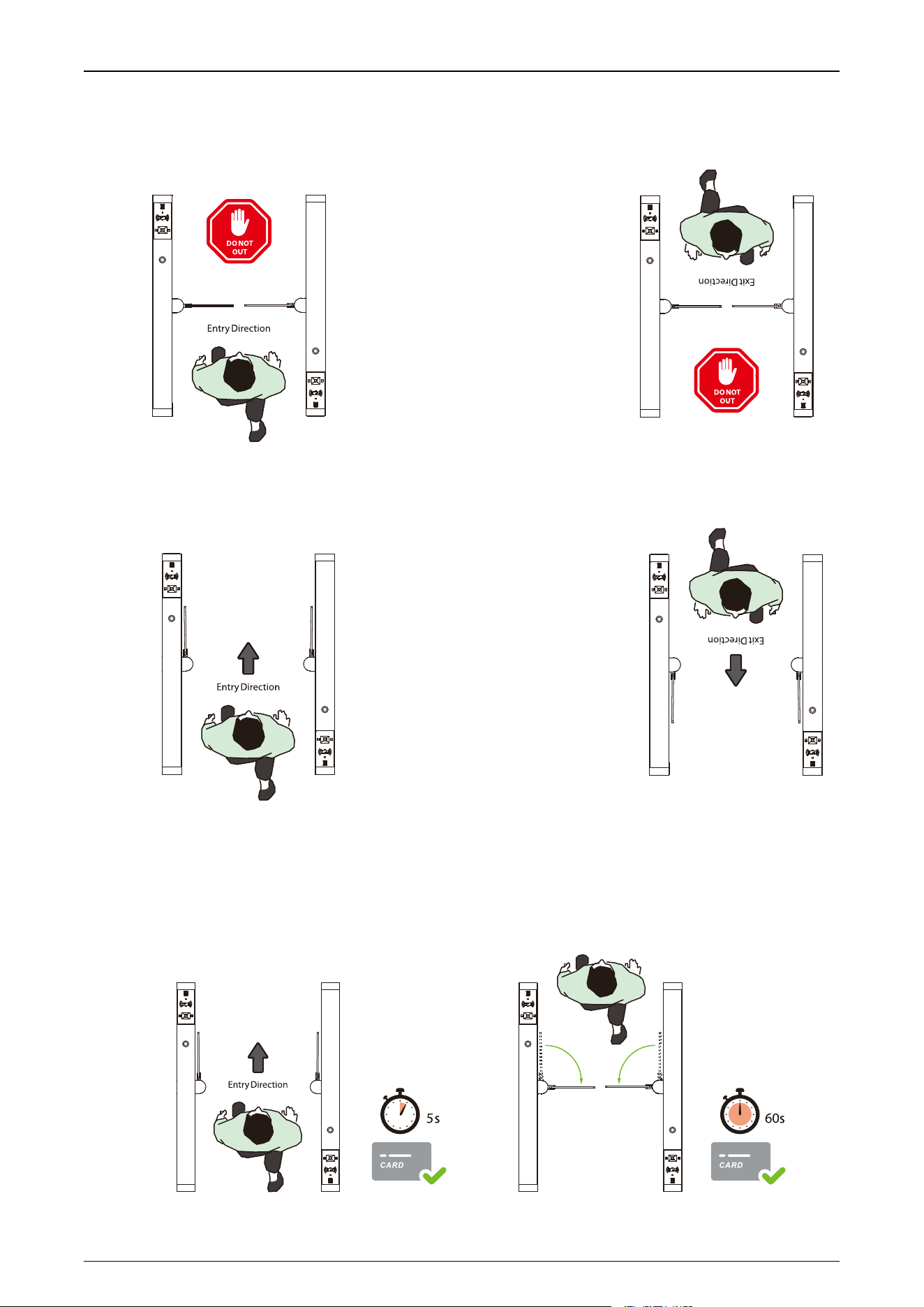

In need verification, Out prohibited

Mars Pro-S1000 Series User Manual

 In prohibited, Out need verification

 In free, Out prohibited



In prohibited, Out free

Mars Pro-S1000 Series User Manual

 Two-way prohibited

 Normal Open

3. Open Duration Time

It can be set the valid time period after successful verification, after arriving at the set time, the gate

will close automatically, the larger the number set, the longer the valid time. The valid value is 2 to

60 seconds, and the default value is 5s.

Mars Pro-S1000 Series User Manual

4. False Direction Entry

 Close the door and voice alarm



Only voice alarm (Default)



Close detection

5. Trailing Mode



Close detection

 Only voice alarm (Default)



Close the door and voice alarm

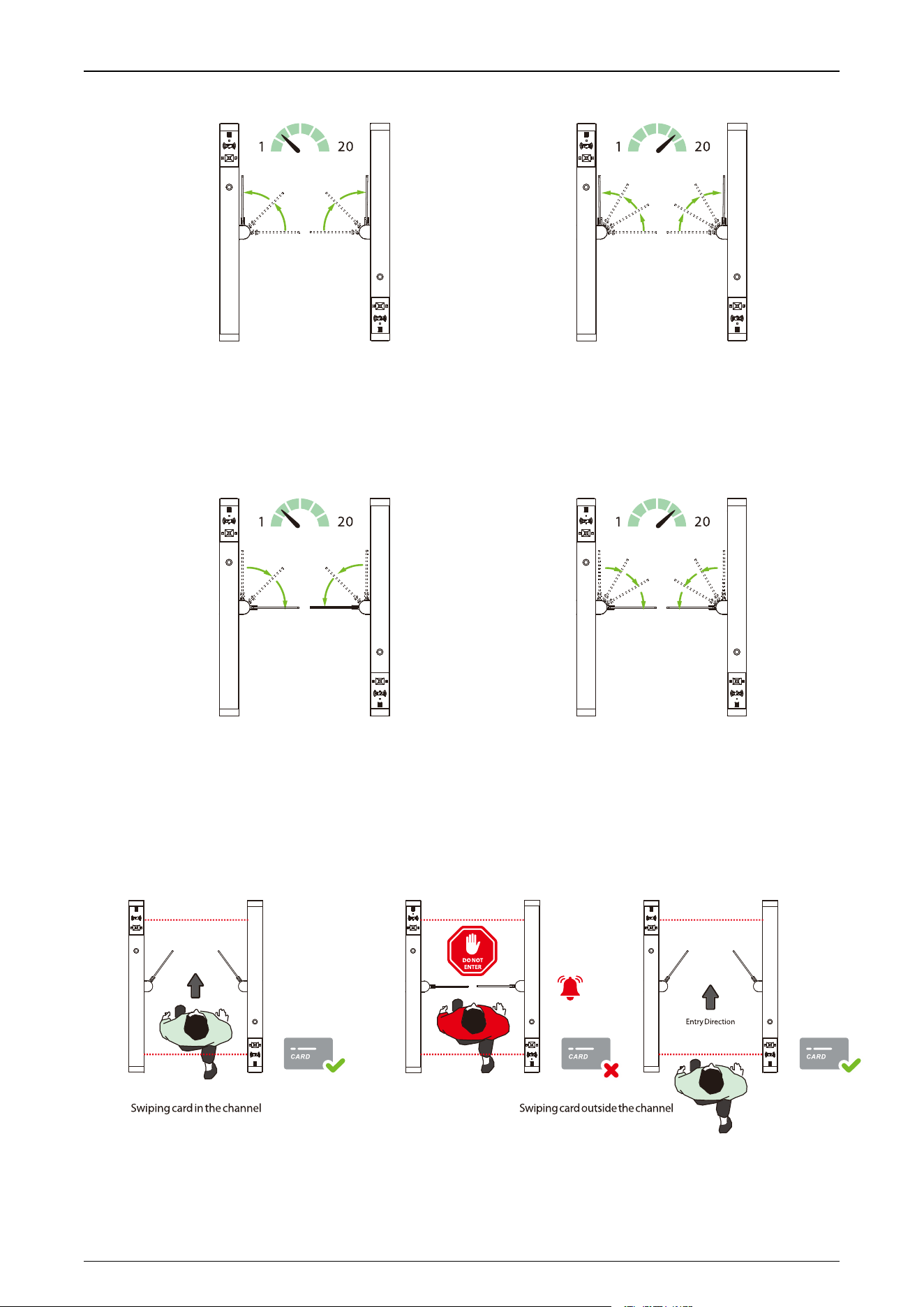

6. Opening Speed

Set the gate opening speed to open the gate. The larger the number is set, the faster the speed. The

gate opening speed value can be set between 1 to 20 and the default value is 3.

Mars Pro-S1000 Series User Manual

7. Closing Speed

Set the gate closing speed to close the gate. The larger the number is set, the faster the speed. The

gate closing speed value can be set between 1 to 20 and the default value is 3.

8. Swiping Limitations

 Allowed swiping card in the channel (Default)



Forbidden swiping card in the channel

Mars Pro-S1000 Series User Manual

9. Reset Counter

 Out counter



Entering counter



All (Default)

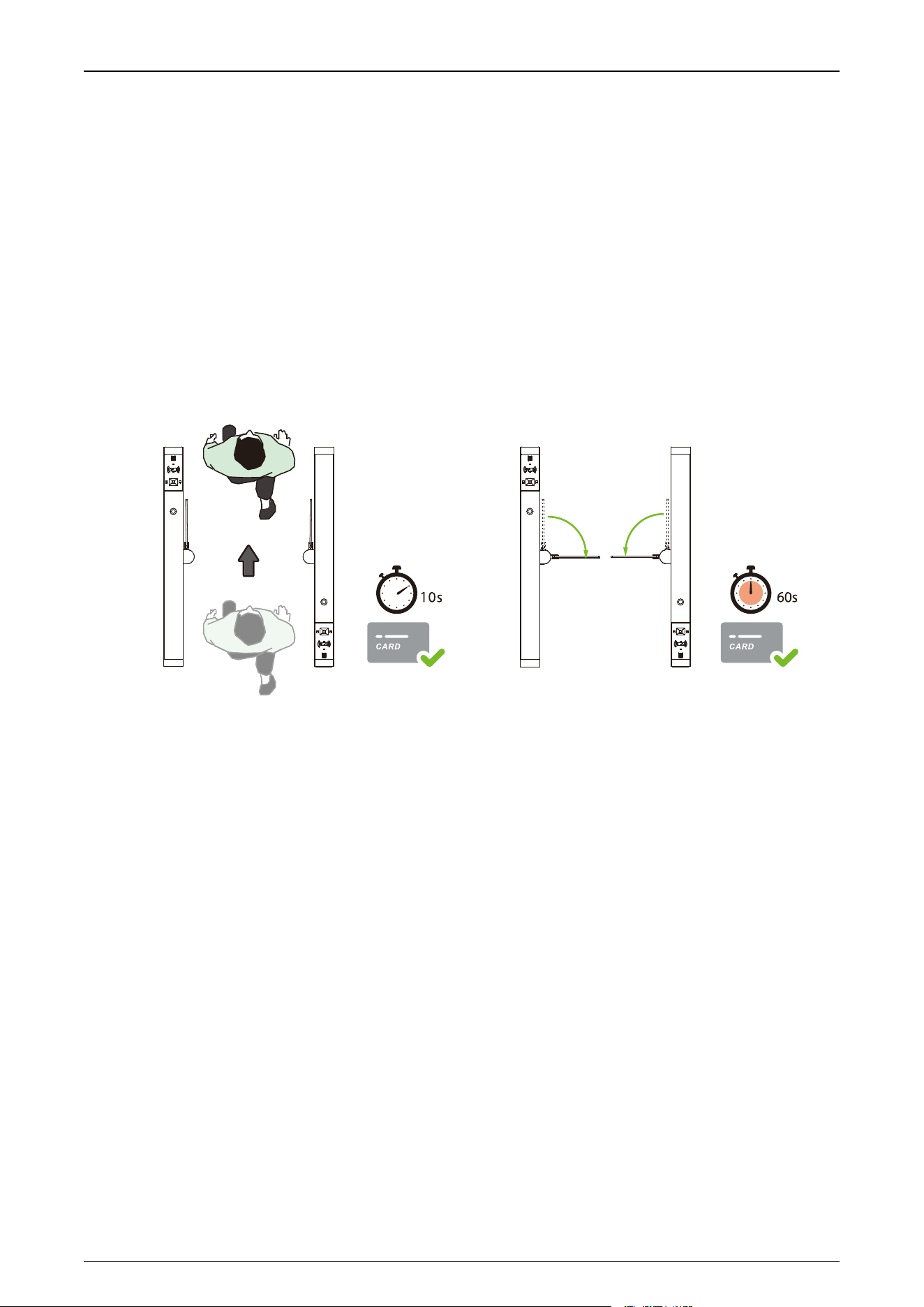

10. Delay Closing Gate Time

Set the delay time of gate closing after passing. The valid value for gate closing delay time can be set

between 0 to 60s and the default value is 10s.

11. Unlock Brake Method

 Delay to unlock (Default)



Swiping card to unlock

12. Brake Starting Angle

The valid value for brake activation angle can be set between 3 to 10 and the default value is 3.

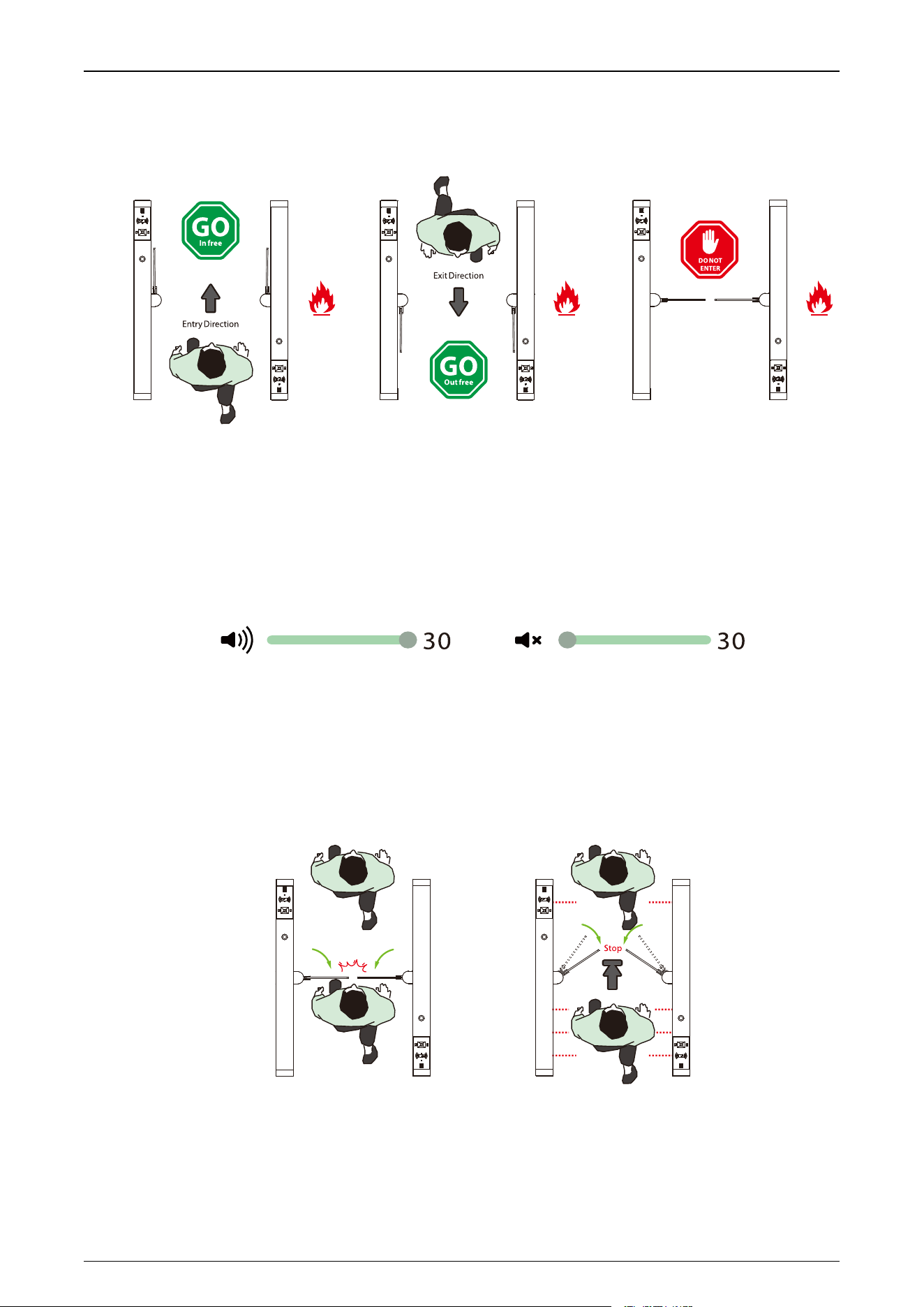

13. Firefighting Signal Setting

According to the external fire device, select the corresponding type of trigger mode.

 Right open



Left open (Default)

 Close

Mars Pro-S1000 Series User Manual

Note: Close detection, the gate will not open automatically in the inbound/outbound direction in

case of fire, and it needs to be verified to open the gate.

14. Volume Setting

Adjust the volume of the device, the valid value can be set between 1 to 16 and the default value is

15.



15. IR Anti-pinch Setting

 No-activated



Stop-activated (Default)

Mars Pro-S1000 Series User Manual

16. Anti-pinch Area Setting

 In and out of the infrared (Default)



All infrared zone anti-pinch

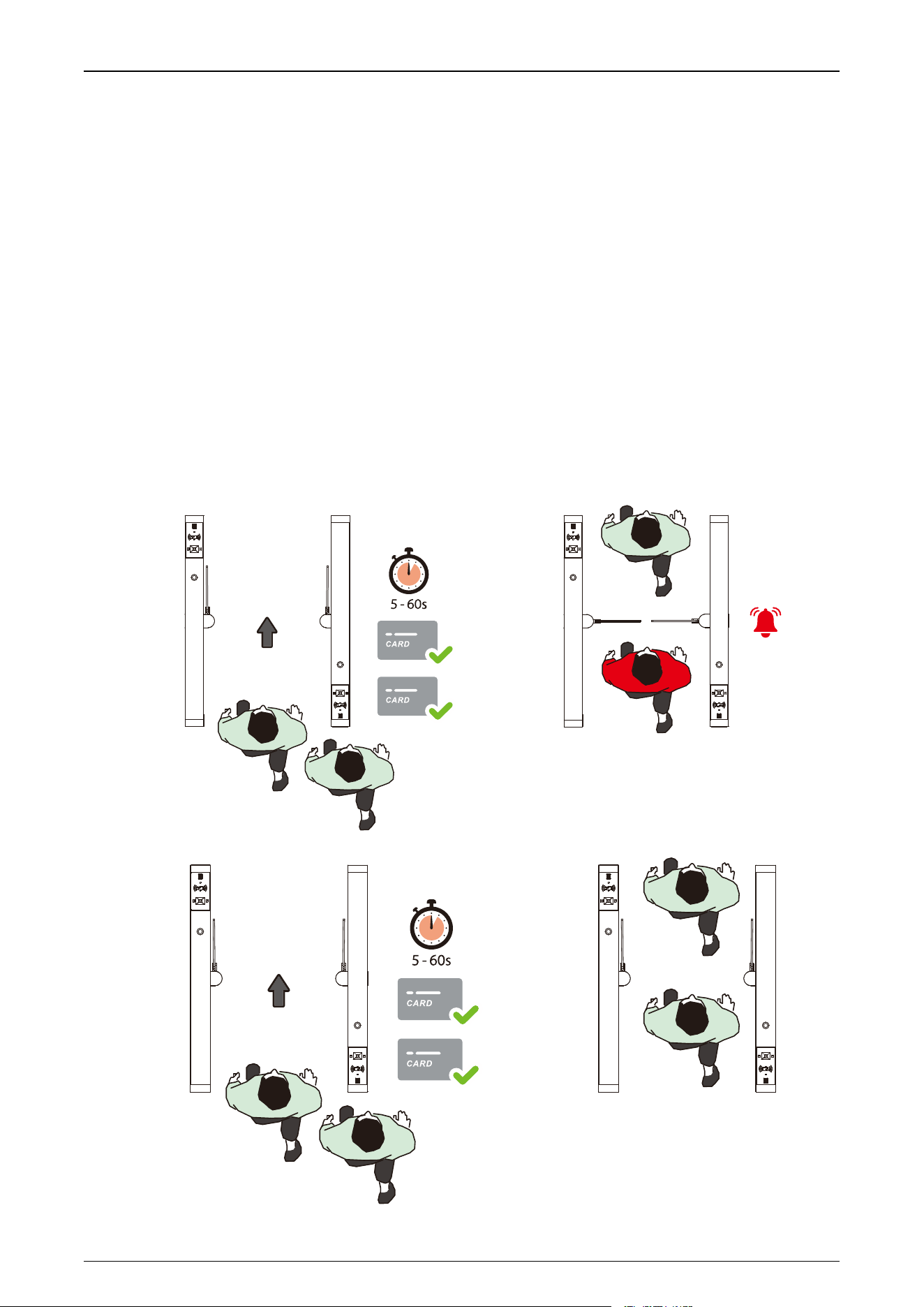

17. Memory Opening

When more than two legal access signals are given at the same time (including the same direction

and the opposite direction), the system will remember all the pass requests and complete each pass

in turn.

 No (Default)



Yes

Mars Pro-S1000 Series User Manual

18. Swing Arm Type

 Standard swing arm (Default)



Extra wide swing arm

19. System Working Mode

 Work mode (Default)



Auto test

 System initialization

20. Voice Type

 Type: 0 (Default)



Type: 1

Note: ZKBZ main board 1.2 and ZKBZ main board 1.3 are set to 1, and ZKBZ main board 1.4 is set to

0. Otherwise, the voice does not broadcast.

21. Version Number

 Version: V9.0.8

Mars Pro-S1000 Series User Manual

8 Maintenance

8.1 Chassis Maintenance

The chassis is made up of stainless steel or cold rolled sheet. If it is used for substantial period, then

there may be rust stains on its surface. Regularly clean the surface with a clean cloth carefully. Coat

the surface with anti-rust oil and do not cover the infrared sensor.

8.2 Movement Maintenance

Before doing maintenance, turn off the power. Open the door, wipe the surface dust, and apply

lubricant for smooth movement.

8.3 Power Supply Maintenance

 Switch off the power supply before maintenance.

 Check the power plug connection, if found loose, fix it properly.

 Do not change any connection position randomly.



Check the external power supply insulation periodically.



Do periodic check for any kind of leakage.



Check if the technical parameters of interface are normal.

 Check the service life of the electronic components and replace accordingly.

Caution: All the above-mentioned maintenance methods for swing barrier must be carried out by

a professional technician, especially the movement and the electric control part. For ensuring

operational safety, first switch off the power supply when the barrier is not in use. Perform the safety

check on a weekly basis to ensure that the turnstile is safe and ready for user operation.

Mars Pro-S1000 Series User Manual

9 Troubleshooting

No.

Failure Descriptions

Analysis and Solution

The mode indicator light does not

respond or the indication is

incorrect.

Check that the control panel mode indicator wiring

is correct or that the contact is poor.

After swiping the card, there is only a

speed gate unlocked.

Check the mode setting of the master and slave

devices and the 8-core, 2-core connection lines. See

the wiring diagram for the specific connection

circuit.

The barrier doesn’t close when the

opening delay time is ended.

Check to see if the opening delay time is too long

or whether the IR sensor is covered.

When the gate is self-tested, the

swing arm is not in the normal

closing position!

In the process of self-test, there are obstacles,

please remove the obstacles, restart the self-test

after power-on!

Mars Pro-S1000 Series User Manual

10 Packing List

The package consists of the following items:

 Mars Pro-S1000:

Mars Pro-S1000 (Master and Slave)

Power Cable

Card

Expansion Screw M12*100

Washer

Expansion Screw Washers

Stainless Steel Maintenance Wipes

Hex Wrench

Mars Pro-S1000 Series User Manual

 Mars Pro-S1200:

Mars Pro-S1200

Power Cable

Card

Expansion Screw M12*100

Washer

Expansion Screw Washers

Stainless Steel Maintenance Wipes

Hex Wrench

Mars Pro-S1000 Series User Manual

Revision History

Revision

Date

Author

Reviewer

Description

V1.0

09/28/2021

Yang Kaijin

Original Document

V1.1

02/17/2025

Huang Liye

The control board, and wiring

diagram have been changed.
