POOL CLEANER ROBOT W/ CONTROL BOX
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 75065
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.0880 MON-FRI 9AM TO 3PM PST
IMPORTANT SAFETY INFORMATION
1
GENERAL SAFETY WARNINGS
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
DO NOT use if unit is damaged in any way.
WARNING: To reduce the risk of injury, children are not allowed to use this product unless they are under
close supervision at all times
WARNING: There is a risk of electric shock. Connect only to grounded sockets protected by ground fault
circuit breakers (GFCI). If you are unable to verify that the sockets are protected by GFCI, please contact
a qualied electrician.
WARNING: To reduce the risk of electric shock, please replace the damaged power cord immediately.
WARNING: Your cleaner should not be used while people are swimming in the pool. Do not allow swimmers
in the pool while pool cleaner is operating.
WARNING: DO NOT switch on the pool cleaner if it is not immersed in the water. Operating the cleaner
out of the water may cause severe damage and will result in loss of warranty.
WARNING: Always remember to turn the power supply off and unplug it from the power outlet before
removing the cleaner from the pool.
SAVE THESE WARNINGS
WARNING: DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
WARNING: To use this cleaner only when water temperature is 50ºF - 95ºF and the depth of the pool is
1.64-9.84ft. The cleaner is designed to work for the pool with 128 square feet surface area.
WARNING: Keep the controller box in a dry place which is 11.5 feet away from your pool.
OPERATION
2
1. START/STOP:
Measures the pool size automatically and set the working cycle.
2. FLOOR CLEAN ONLY MODE:
To only clean the pool oor and to increase the clean efciency.
3. ALL PURPOSE CLEANING MODE:
All-around cleaning, including pool oor; pool wall and waterline.
4. MODE OF WATERLINE CLEAN ONLY:
To quick clean the waterline only.
5. USE APP TO CONTROL (NOT AVAILABLE FOR ALL MODELS):
To control the cleaner by Bluetooth and clean the pool.
OPERATION INSTRUCTIONS:
1. Connect oating power cord.
2. Position the power supply so that it is approximately in the middle of the long side of the pool at a
distance of 11.5ft.
3. Put the Pool Cleaner into the pool. Release the Pool Cleaner and let it sink to the oor of the pool. Make
sure that the oating cable is free of any obstructions.
4.Turn the power supply ON (115V AC 60HZ) in the position. One of the three modes light will be on. Press
the button for the mode you want to run, then press ON/OFF button, the Pool Cleaner will now operate until
it has reached the end of the cleaning.
MINIMUM 11.5 FEET
OPERATION AND MAINTENANCE
5.Mode switching: Press on/off button, choose the mode, press on/off button to start the cleaner.

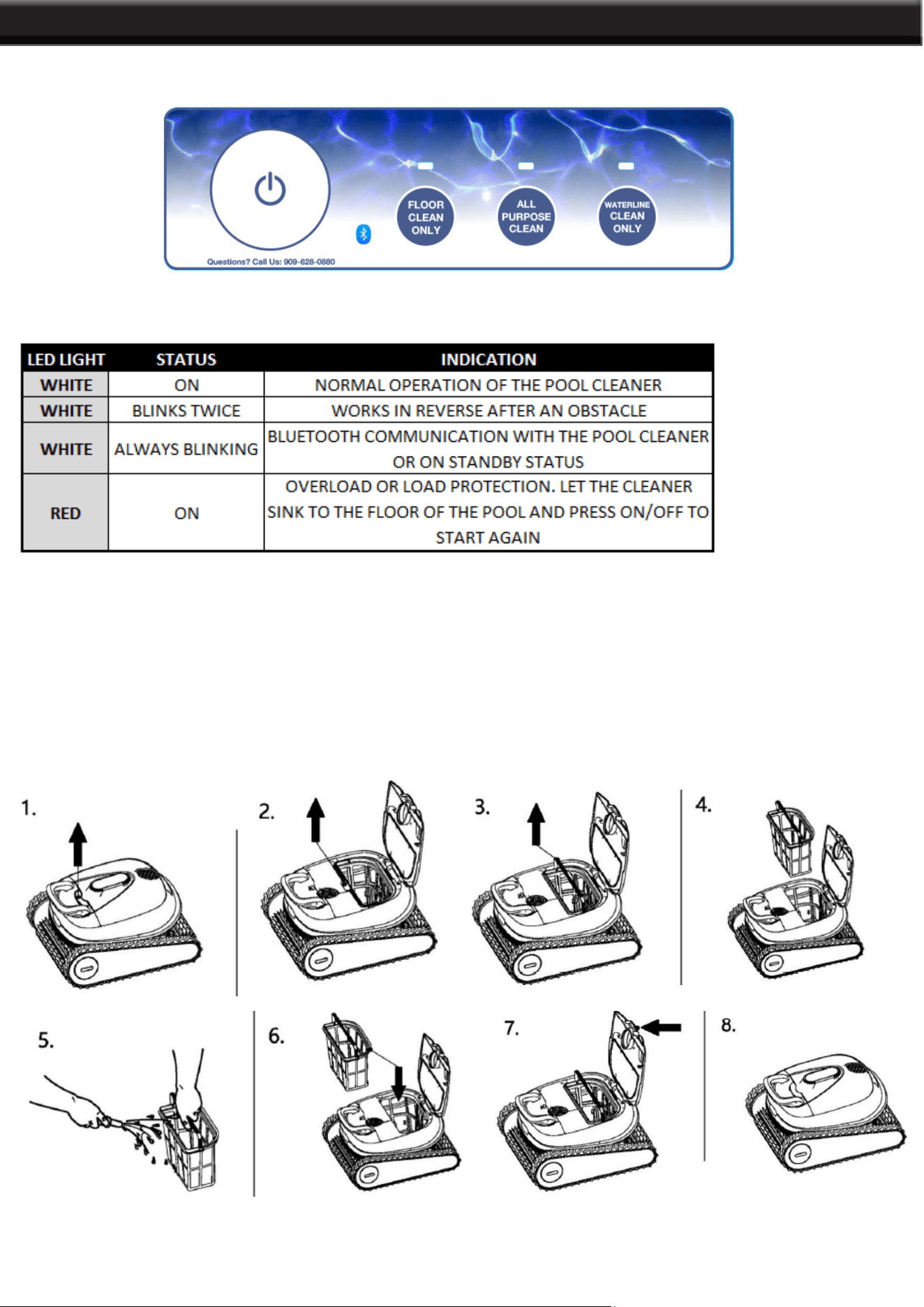

INDICATOR LIGHTS:
3
ROUTINE MAINTENANCE:
1. CLEAN THE FILTER BASKET
Turn off the Pool cleaner. Open the filter cover. Clean the filter basket with a hose. Insert the clean
filter basket and close the filter cover. Make sure the power supply is switched off and unplugged. It is
highly recommended to clean the filter basket after each cleaning cycle.
MAINTENANCE
4

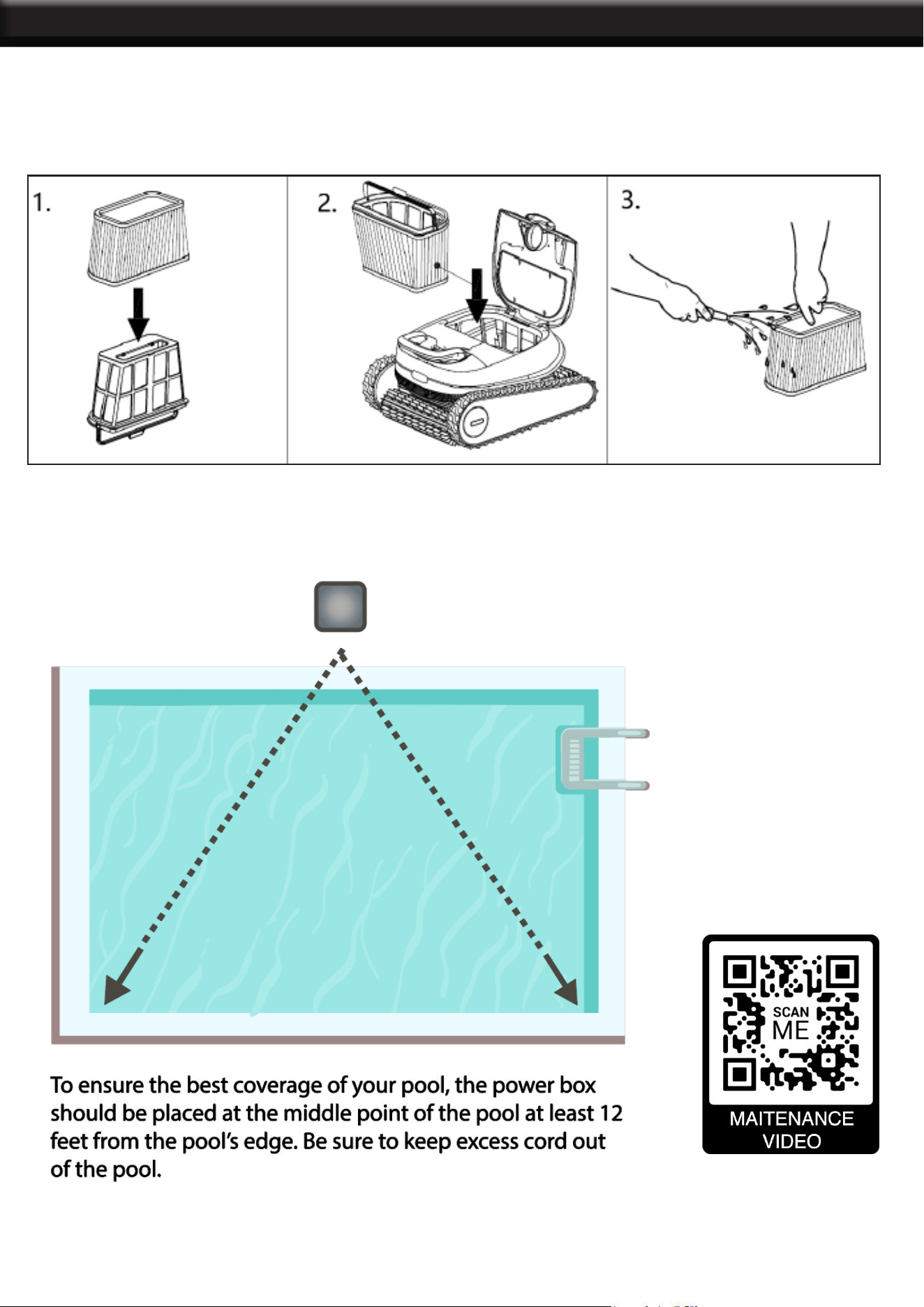

2. PAPER CORE FILTER
The lter paper core is a fragile part, which can lter particles below 5um, and its service life is less than 72
hours. (The lter paper core can be used without affecting the performance of the robot, and it is strongly
recommended that the lter paper core be not used in the dirty swimming pool.)
For more information on
how to maintain your
pool cleaner scan the
code below.
Pool Cleaner Power Box Placement
5

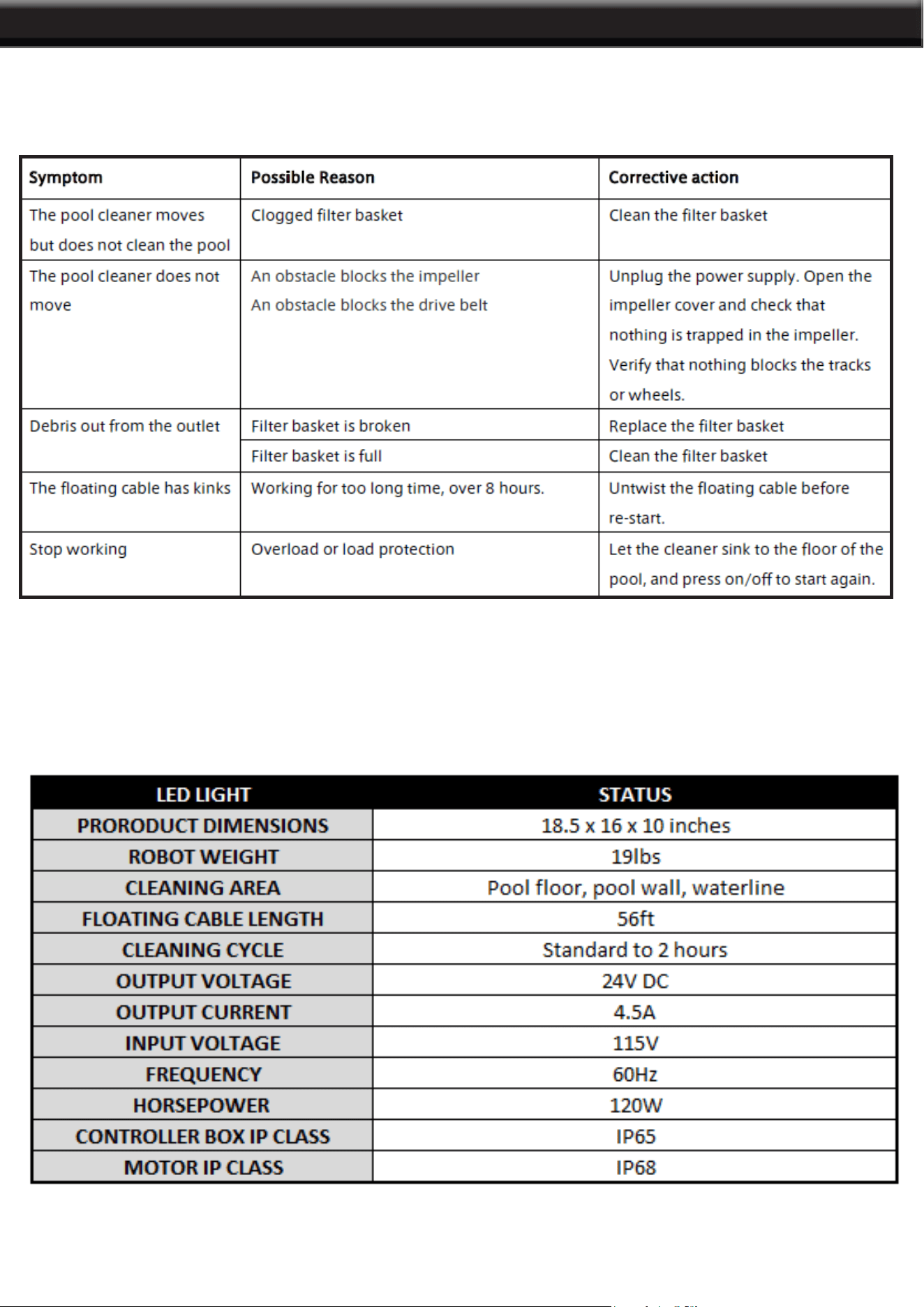

TROUBLESHOOTING
3.ROUTINE MAINTENANCE OF THE FLOATING CABLE
The oating cable may get twisted after 8 hours of continuous work, please untwist the cable then before re-
start the pool cleaner. After each use, roll up the cable so that it has no kinks.
SPECIFICATIONS:

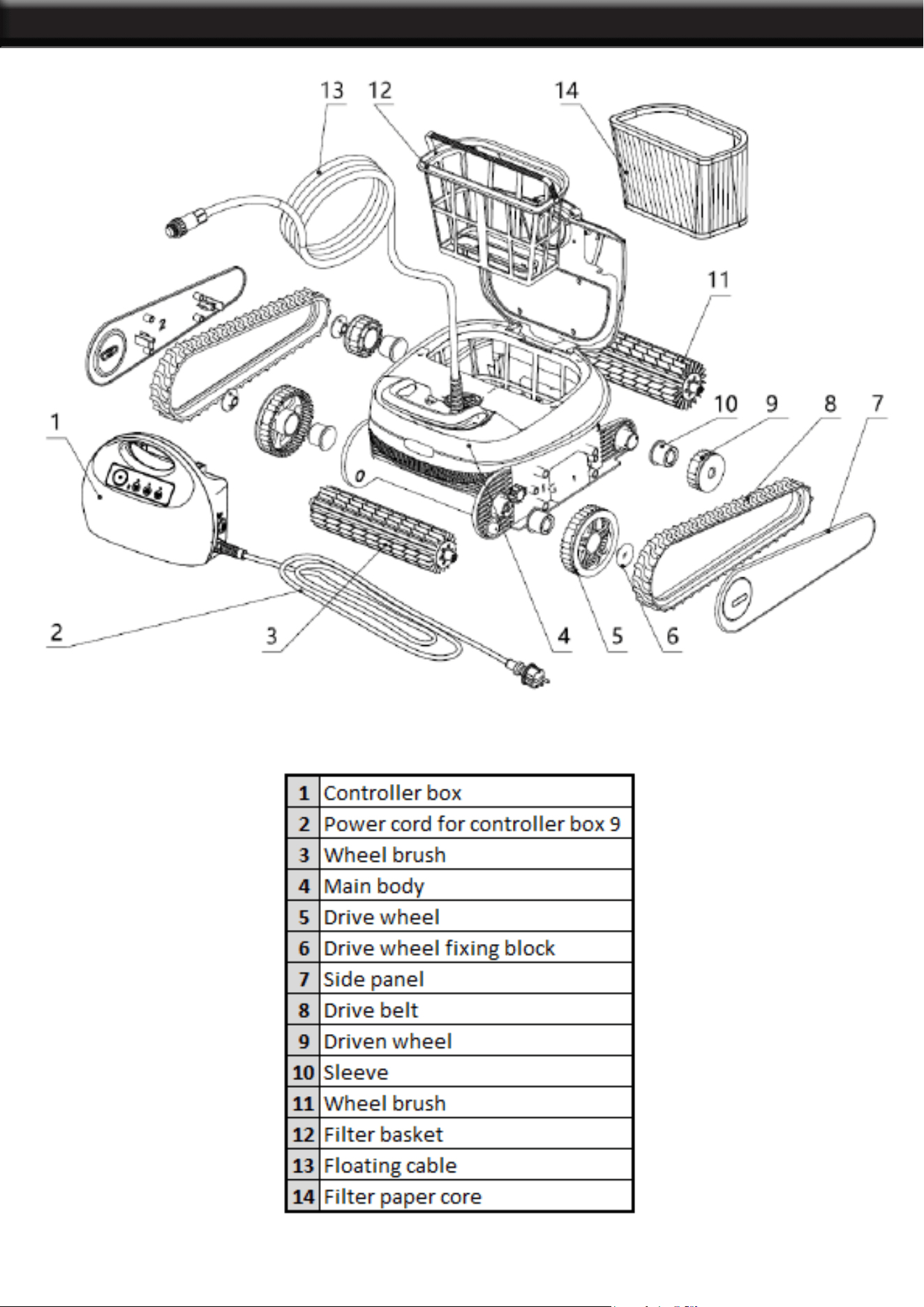

PARTS INFORMATION
6
',6&/$,0(5
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
PRODUCT MADE IN CHINA
