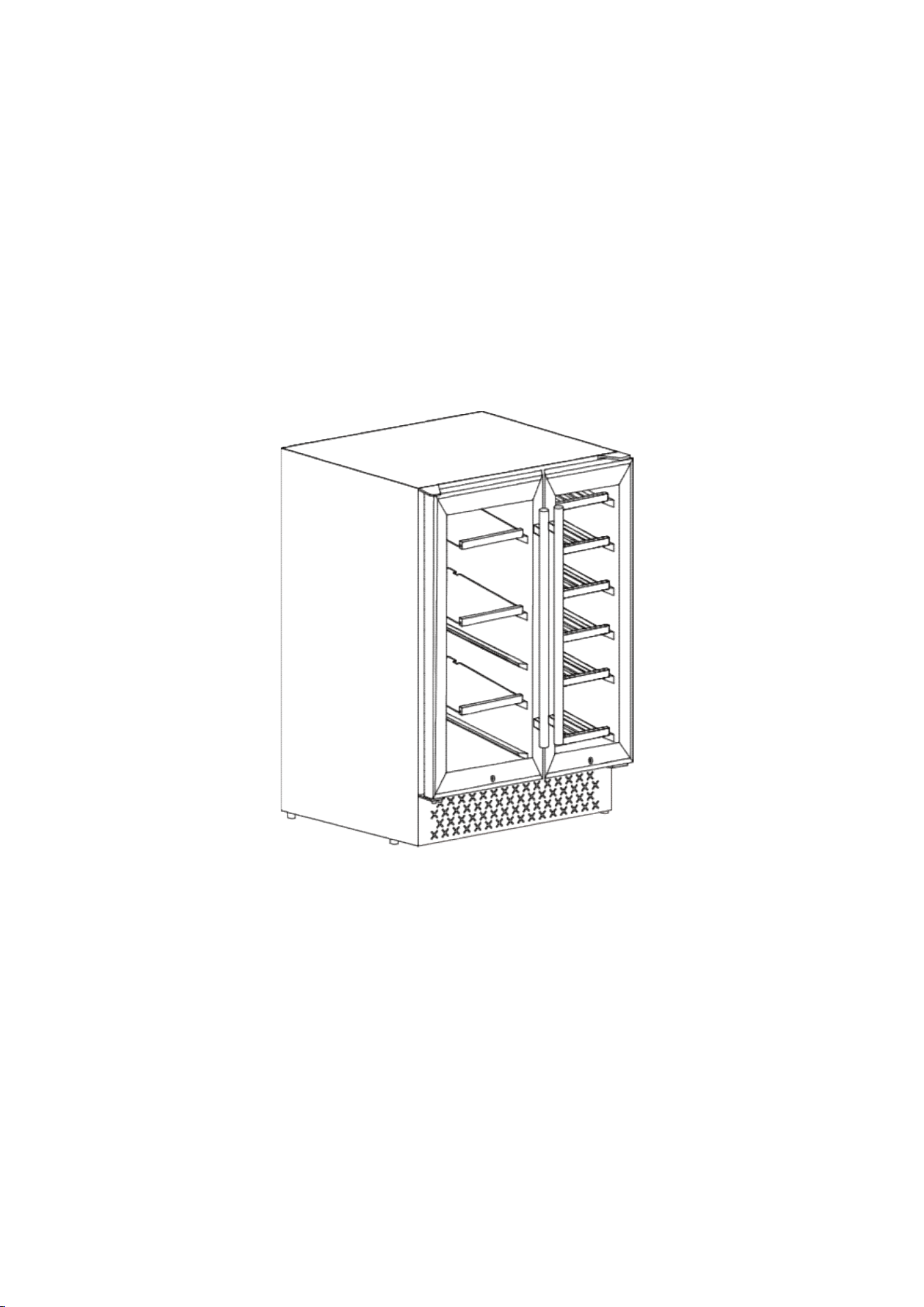

WINE COOLER WC120-2D
USER MANUAL
MODEL: YC120-2D
Read this manual and follow all safety rules and operating instructions before first use
of this wine cooler.
CONTENTS
IMPORTANT SAFEGUIDES .................................................................................1
RODUCT FEATURES ...........................................................................................4
INSTALATION.......................................................................................................4
OPERATING THE APPLIANANCE ...................................................................... 5
CARE AND MAINTENANCE ................................................................................ 8
TROUBLESHOOTING GUIDE ............................................................................. 9
WARRANTY ........................................................................................................ 10
GET SALES SERVICE ....................................................................................... 10
AFTER-SALES INFORMATION ......................................................................... 10
1
IMPORTANT SAFEGUIDES
Plug into a grounded 3-prong outlet, do not under any circumstances cut or remove the
third ground prong from the power cord supplied..
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous.
Before you throw away your old wine cooler, take off the door but leave the shelves in
place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard
or explosion. And do not store or use gasoline or other flammable vapor and liquids in
the vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line
of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified
technician.
Use two or more people to move and install appliance. Failure to do so can result in back
or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 16°C (60.8°F) and
below 32°C (89.6°F). This unit must be installed in an area protected from the element,
such as wind, rain, water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in
accordance with state and local codes. A standard electrical supply, properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of appliance.
2
The fuse (or circuit breaker) size should be 13 amperes.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners
may damage or discolor the interior.
Before the appliance is used, it must be properly positioned and installed as described in
this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or
injury when using the appliance.
Before the appliance is used, it must be properly positioned and installed as described in
this manual.Please read the manual carefully to reduce the risk of fire, electrical shock or
injury when using the appliance.
It is recommended that a separate circuit, serving only your appliance be
provided. Use receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard
or explosion. And do not store or use gasoline or other flammable vapour and liquids in
the vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line
of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.Unplug the
appliance or disconnect power before cleaning or servicing.Failure to do so can result in
electrical shock or death.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
To be repaired only by trained service personnel.DO NOT puncture refrigerant tubing.
Consult repair manual /owner's guide before attempting to service this product. All safety
precautions must be followed.
To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
WARNING
To reduce the risk of fire, electrical shock, or injury,when
using your appliance, following these basic precautions:
3
Read all instructions before using the wine cooler.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous.
Before you throw away your old wine cooler, take off the door but leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a
fire hazard or explosion.
Do not store or use gasoline or any other flammable vapor and liquids in
the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
EXTENSION CORD
Because of potential safety hazards, it is strongly recommended that you do not use an
extension cord with this appliance. However, if you must use an extension cord, it is
absolutely necessary that it be a UL/CUL Listed, 3-wire grounding type appliance extension
cord having a grounding type plug and outlet and that the electrical rating of the cord be
115 volts and at least 10 amperes.
4
PRODUCT FEATURES
Dual cooling zones for storing different beverages and wines together.
Beverage Refrigerator (Left Zone) Capacity: 57 standard 12oz cans
Wine Refrigerator (Right Zone) Capacity:18 standard 750ml wine bottles
Stainless steel glass doors with sleek black cabinet
Stainless steel handle
Tempered double-layered glass door with stainless steel frame
Adjustable temperature for both zones
Soft White Interior Lights
Fahrenheit and Celsius degree optional temperature indicators
3 removable wire shelves - Beverage Refrigerator (Left Zone)
6 removable wooden shelves - Wine Refrigerator (Right Zone)
INSTALATION
Before the first use
● Remove the exterior and interior packing materials.
● It is important for the appliance to be leveled in order to work properly. You may need to
adjust the feet to make it level.
● Let the appliance stand upright for approximately 24 hours before connecting it to the
power source, which helps to reduce the possibility of a cooling-system malfunction from
handling during transportation.
● Use a soft cloth to clean the interior surface with lukewarm water.
Door handle installation
①Gasket ②Screws ③Screw Driver
④ Handle
5

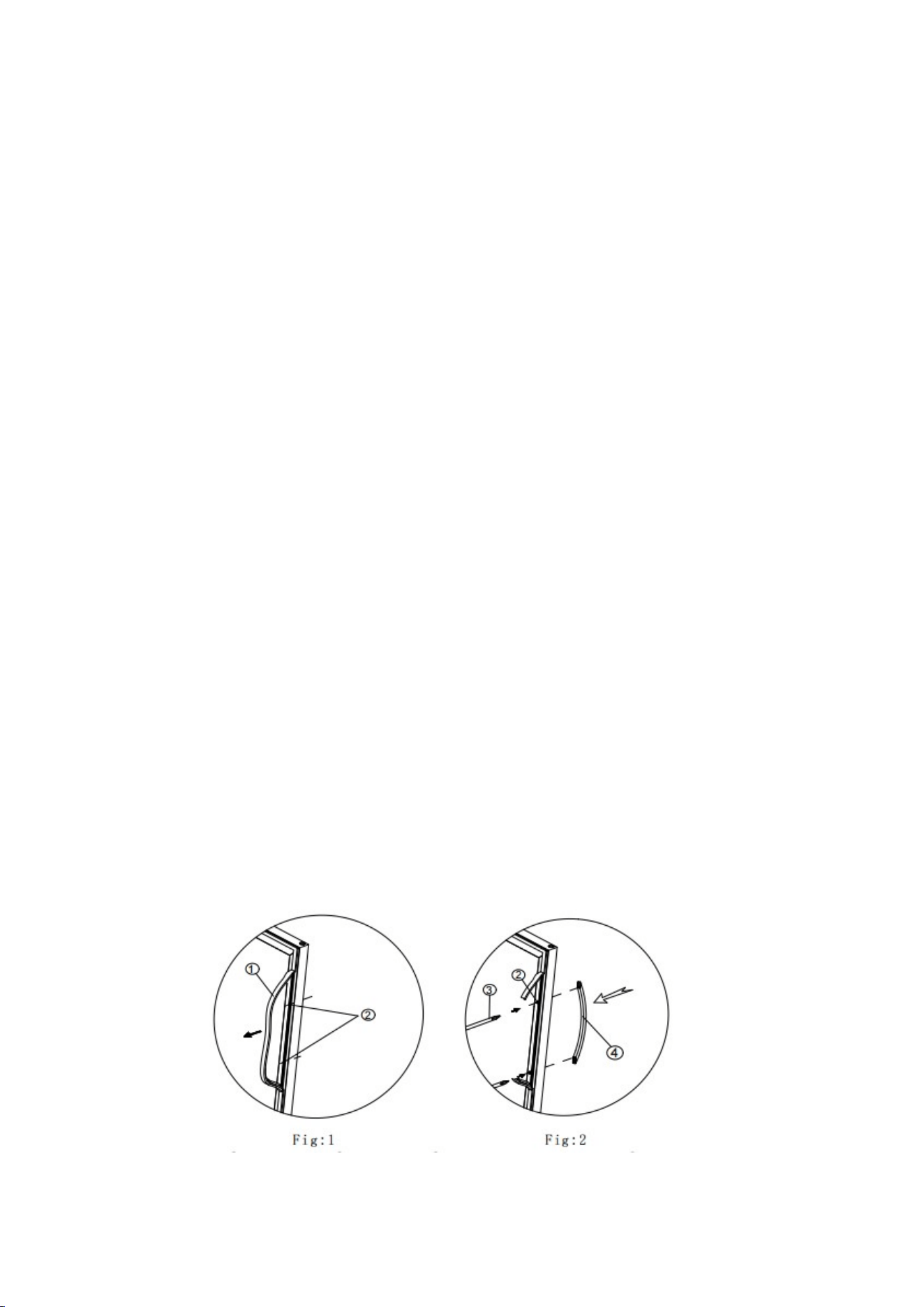

How to install the handle
：
1. Pull away the sealing gasket where the handle is to be installed as shown in Fig1. The gasket is easily
displaced by hand. No tools are necessary.
2. Align the handle with the screws installed. Tighten the screws using a Phillips head screwdriver until the
handle sets both flush and secured tightly against the door frame. (DO NOT over tighten as this will cause
damage to the handle assembly).
3. Install the sealing gasket to its original position.

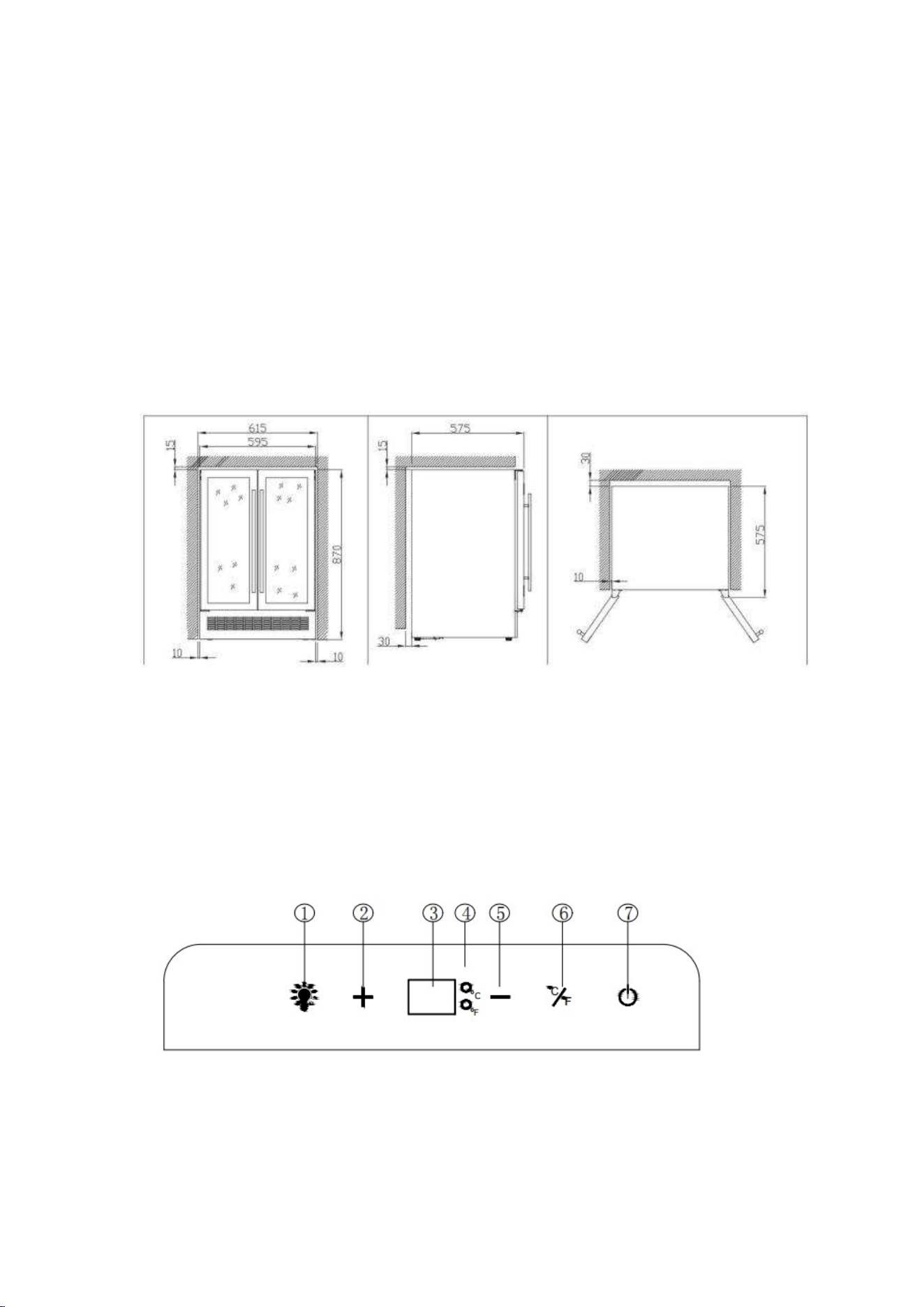

Built-in installation
These appliances are designed for both built-in or free standing installation. For built-in
installation, ensure proper service access and ventilation, allow at least ¼ ” (6. 3 5 mm) space
on each side and at the top.
OPERATING THE APPLIANANCE
Control Panel
①
Lighting button
②
Temperature up
③
Display window
④
Fahrenheit and Celsius indicate light
⑤
Temperature down
⑥
Fahrenheit &Celsius switch button
⑦
Power button
6
Power On /Off
When the appliance is plugged into a power outlet, it powers on automatically.
Touch the power button to turn on the appliance.Press power button for 3 seconds to turn off the
appliance if needed.
Light Control
Touch the lighting button to turn on/off the interior cool LED lighting.
Set Temperature
Touch the or button to increase or decrease the temperature of the selected zone. The
temperature will increase 1ºF or 1ºC if you touch the button once; On the contrary the temperature
will decrease 1ºF or 1ºC if you touch the button once.
Cooling Zone Temperature Range
Beverage Refrigerator (Left Zone) 2℃-10℃ (35℉-50℉)
Wine Refrigerator (Right Zone) 5℃-18℃ (41℉-64℉)
Note:
If the appliance is power off suddenly. Please turn on the appliance after 3-5 minutes later. The
temperature setting is with automatic memory function.
This wine cooler is suitable for the ambient temperature 5-32℃/41-89.6ºF. If the temperature is
higher or lower than it,the performance may be affected.
If it is the first time to use this appliance,it is normal that the preset temperature and display
temperature is different. Everything will back to normal after few hours working.
Shelf
To avoid the damage of door sealing, please open the door fully when you slide out the
shelves.
For your convenience of taking wine, you can pull out the shelf by 1/ 3 . Our product is
designed with shelf holder to prevent the shelf pull over and fall off the cabinet.

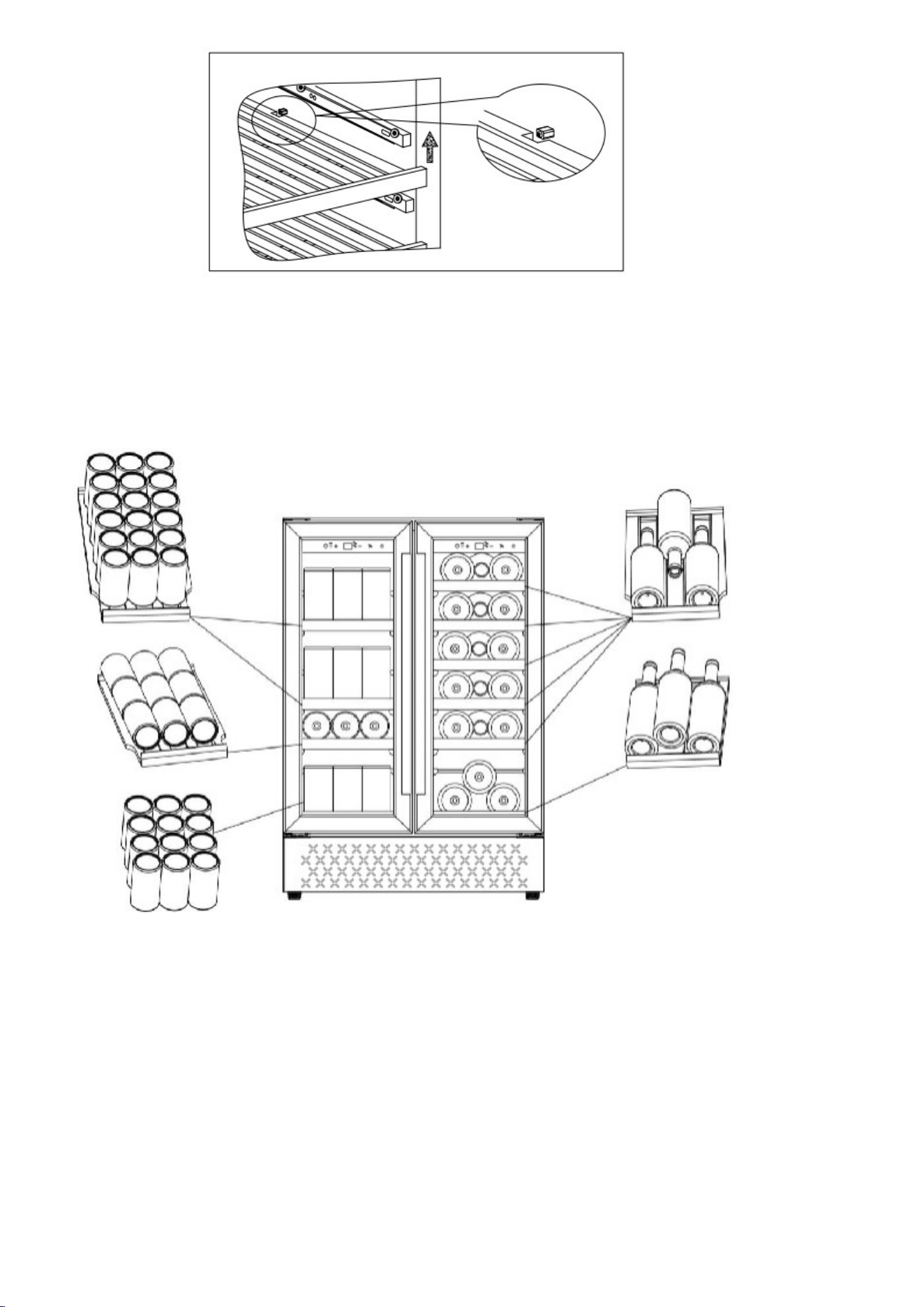

If you need to take off the shelf from cabinet, you can pull out the shelf to the position
where the notch of shelf is exactly under the plastic post and then lift it up and take it
out. (As shown below)
7
Storage
Beverage Cooler Zone
Shelf one to two - 18 standard 12oz cans per shelf
Shelf Three - 9 standard 12oz cans per shelf
Bottom Section - 12 standard 12oz cans
Wine Cooler Zone
Shelf One to Five - 3 standard 750ml bottles per shelf
Bottom Section - 3 standard 750ml bottles
8
CARE AND MAINTENANCE
Cleaning your wine cooler
Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a warm water and soft cloth.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth. Do not use steel wool or steel brush on the stainless steel. These will
contaminate the stainless steel with steel particles and rusting may occur.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature
of your appliance if you minimize the number of times the door is opened. If the power is
going to be off for a longer period of time, you need to take the proper steps to protect your
contents.
Moving your wine cooler
Remove all items (bottles)
Tape down securely all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut. Be sure the appliance stays secure in the upright position during transportation.
Also protect outside of appliance with a blanket, or similar item.
Energy saving tips
The wine cooler should be located in the coolest area of the room, away from heat producing appliances,
and out of the direct sunlight.
9
TROUBLESHOOTING GUIDE
You can solve many common wine cooler problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the
service.
PROBLEM POSSIBLE CAUSE
Wine cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.
External environment may require a higher setting.
The door is opened too often .
The door is not closed completely.
The door gasket does not seal properly.
The compressor turns on and off frequently.
The room temperature is hotter than normal.
A lots of bottles has been added to the cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF” .
Vibrations.
The cooler is not leveled.
The bottles are vibrating.
There is an object under the cooler.
The cooler seems to make too much noise.
The flow of refrigerant is normal.
The circulation of the refrigeration.
The cooler is not level.
The door will not close properly.
The cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
10
WARRANTY
This device is covered by a limited manufacturer's warranty. The manufacturer will repair or
replace any part of this equipment that is defective in material or workmanship within two years
from the date of original purchase, provided that the equipment is used under normal operating
conditions as intended by the manufacturer.
WARRANTY TERMS
During the first two years, any part of this equipment that is defective due to material or
workmanship will be repaired or replaced at the manufacturer's discretion, free of charge, to the
original purchaser. The purchaser will be responsible for any removal or shipping costs.
WARRANTY EXCLUSIONS
Warranty will not apply if damage is caused by any of the following:
Damaged when transporting or moving the device
Improper power supply, such as low voltage, defective household wiring, or improper fuses
Accidents, alterations, misuse or abuse of electrical appliances, such as the use of
unapproved accessories, insufficient indoor air circulation, or abnormal operating conditions
(extreme temperatures)
Fire, flood, war, riot, hostilities or acts of God such as hurricanes, floods, etc.
Damage caused by the use of force or external influence
Partially or completely disassembled equipment that is excessively worn by the user
GET SALES SERVICE
When making a warranty claim, please have the original purchase checklist with the purchase
date ready. Once your device is confirmed to be eligible for warranty service, all repairs will be
performed by an authorized repair facility. For technical support and warranty services, please
AFTER-SALES INFORMATION
Model: YC120-2D
Email: su[email protected]
Phone: 1-866-658-5891 (US)
Monday-Friday from 7 a.m.- 3 p.m. EST
