. The basic parameters :
Model
Dimensions
(mm)
Power
（
Kw
）
Voltage
（
V
）
Switching few
LD-610 665*470*220 3.2 120 Group 2
LD-450 460*400*220 1.6 120 Group 1
LD-821 540*400*220 1.6 120 Group 1
LD-820 730*480*230 3 120 Group 2
LD-818A
540*400*220 1.6 120 Group1
LD-818B
360*390*220 1.5 120 Group 1
LD-822 730*480*230 3 120 Group 2
Ⅱ
.Transportation and custody:
During the process, the products should be mistreated, to prevent severe
shock, packaging products generally not a good long-term outdoor storage,
take a well-ventilated, non-corrosive gases within the warehouse, not
inverted, the need for temporary storage, resistant measures should be
adopted.
Ⅲ
.Installation location and attention
：
1.The products should be on smooth, Unbarring left side about 10cm above
objects, should back away from Unbarring - 20cm above.
2.Keep away from flammable items (such as towels, etc.) on the lining, this
may cause a fire burning incidents.
3.The equipment used in power supply voltage must be the product
nameplate supply voltage line.
4.Users need in the vicinity of the fixed equipment supply road and opened
with a contact from the entire ≥ 3m very disconnected devices and leakage
protection switch is not allowed in front of owning.
5.The use of the equipment must be safe before the grounding.
6.Replacement power line should use the same cable, and requested the
replacement of professionals.
7.Before use of the product should check the electrical components
connected whether solid, reliable safety grounding.
Ⅳ
.The use of methods:
1.Temperature control device installed in front of products, used to control
the heating plate heat temperature, thereby ensuring serving plate
temperature
2.Power Up, Green-light, rotating clockwise direction respectively
temperature control device, the temperature of the temperature required for
alignment position, this bright orange light, power has for the rest of the
furnace, heat pipe to start work, when the temperature of the required
temperature, temperature control device can automatically cut off the power
supply, while orange color light exterminated, heating stop. When the
temperature dropped slightly, temperature control device can automatically
connected power, orange indicator light, heat pipe heat recovery, an increase
in temperature, so repeated cycle to ensure that the set temperature within
constant. If necessary, adjust to the required temperature, the food will be
produced the desired results.
3.Use oil to a timely liquidation of oil to prevent overflow.
4.Use process, anomalies should immediately stop using the inspection
troubleshooting, before use.
Ⅴ
.Cleaning and maintenance:
1.In a clean maintenance, the power supply should be cut off to prevent
accidents.
2.Every day after work, the available non-corrosive cleaning agent towels,
cleaning furnace surface to prevent damage to the surface lining.
3.It is normal for the surface of the frying pan to turn black during the use of
the electric griddle. It is normal for the new machine to have an odor or a
small amount of smoke when it is heated. It doesn
’
t affect the use, those
who mind it please consider carefully before buying.
4.Please do not wash it by water after used the machine to avoid rusting.
Please clean the oily residue on the surface of the frying pan by a spatula.
Ⅵ

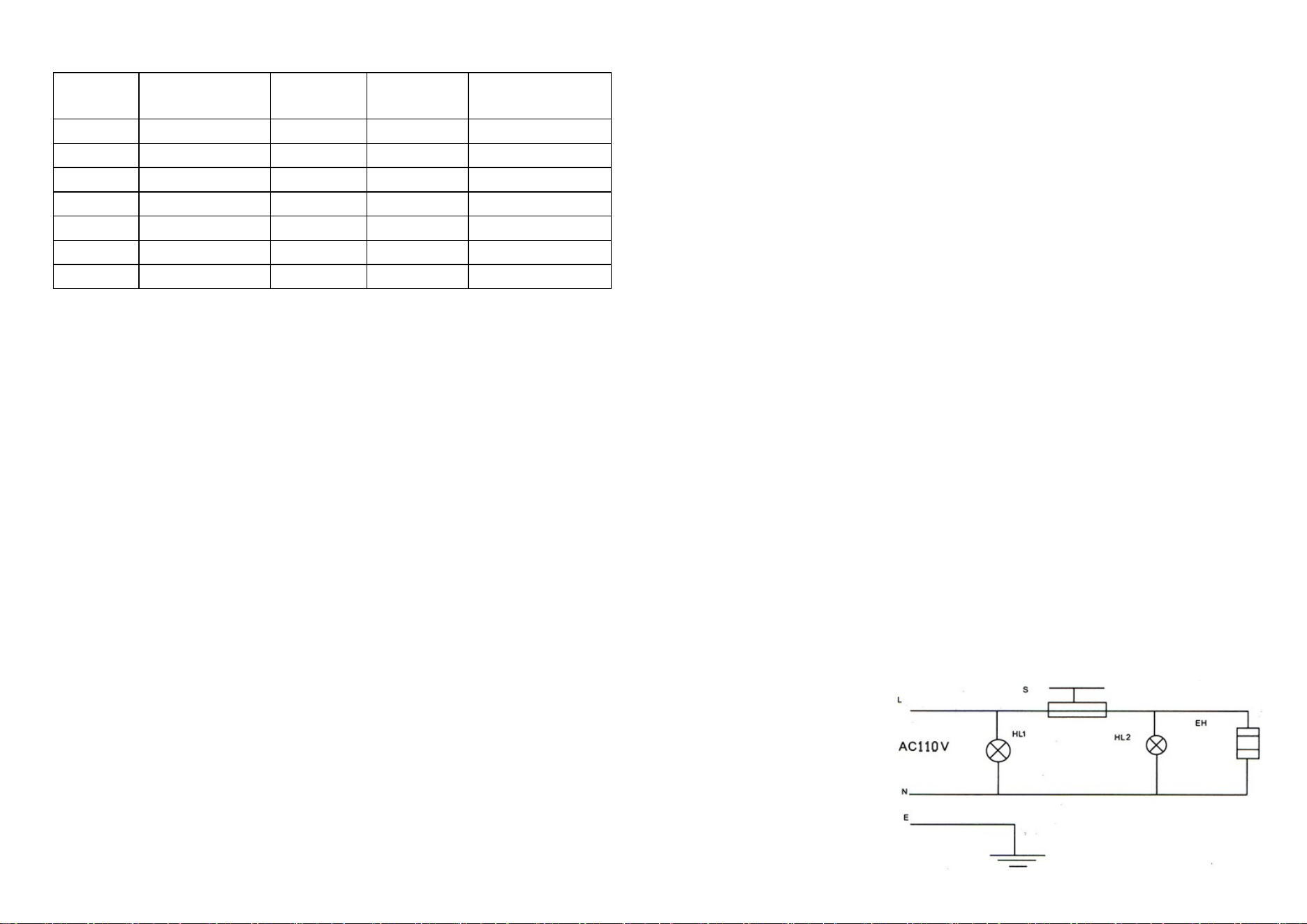

.Electrical schematics:
EH- Electric tube
HL1- Power indicator
S- Temperature Controller
Warranty cards
Order
number
User name
address
Date of
purchase
User address
Outgoing
No.
The products "wrapped", such as failure of users cannot be
ruled out, I may or local maintenance department with the
resolution, in the after-sale within 1 year free repair.
a. User at the time of purchase to be complete warranty cards, and
the seal-force distribution, the leading card after crude repairs.
b. Any statement in accordance with the provisions of the wiring,
improper use of transportation, such as collision damage, the
need to replace parts of the products, the company only
recovers spare parts.
c. Please raise a post-sales service request on Amazon.
WARNING
1
、
HOT SURFACES DO NOT TOUCH
2
、
FORBIDDING USE BY CHILDREN UNDER 12 YEARS OLD
Children over 12 years old must be under the guidance of a guardian
Manufacturer: Guangzhou Hongtian Catering Equipment Co.,Ltd
Address: No.1, Shiyantang Street, Chengxi Village, Huashan Town, Huadu
District, Guangzhou City, Guangdong Province.
Electric Griddle
User Manual
This is the original instruction, please read all manual instructions carefully before
operating. We reserves clear interpretation of our user manual. The appearance of
the product shall be subject to the product you received. Please forgive us that we
won't inform you again if there is any technology or software updates on our
product.
