Instruction Manuals
Attention!
Please contact us promptly for any problems
：
Please read this page carefully during use
1. This elliptical has been upgraded and has been tested to hold a maximum weight of 400 lbs.
2. Please contact our official email at the first time if you encounter any problem during installation,
we will reply within 24 hours. (email: feierdun01@sina.com)
3. We provide detailed installation video, please scan the QR code to view the installation video
4. About the way to deal with the problems encountered:
a. E01 error processing: when the display appears E01 error, this is due to poor contact with the
junction port, you need to disconnect the power supply, the console's junction port re-docking,
immediately after connecting the power supply to adjust the middle of the block to see if it is
normal to show. If you still can't deal with the problem, don't worr please contact us at the
first time, we will provide parts replacement service.
b. The machine squeaks: you need to apply a layer of lubricant on the slide, if you still can not solve
the problem, please contact us at the first time.
c. Part of the product accessories are damaged: do not worry, please contact us at the first time, we
will provide suitable accessories replacement service.
Safety Instructions For Use
Thank you for purchasing our products, please read the following carefully before using this equipment:
1. It is very important to read through the manual completely before installation and use! Only by properly
installing, maintaining and using this equipment can the exercises become safe and effective.
2. Before you start an exercise program, please consult your doctor to determine your current physical
condition and see if you are using this equipment for exercise, whether it will cause any harm to your
health. If you are undergoing some treatment regarding heart rate, blood pressure and cholesterol, then
your doctor's advice is very necessary.
3. Pay attention to some of your own body's signals. Improper and excessive exercise will harm your
health. If you experience any of the following symptoms: pain, chest tightness, rapid heartbeat,
shortness of breath, light-headedness, dizziness and nausea, stop practicing immediately. If you want to
continue your exercise program, please consult with your doctor first.
4. Make sure that children and pets are kept away from this equipment, which is designed for adults.
5. Use a solid, flat material on the bottom of the equipment to protect your floor, carpet. For safety reasons,
please ensure that the product in the up and down process to have enough free space, in the movement
of the surrounding to ensure that there is 0.6 meters of space distance, so that the movement will not
appear collision.
6. Please make sure that the screws and nuts are tightly locked before use. Please use this equipment
carefully. If you find any defects in the installation or use of equipment, or hear any abnormal sound,
please stop practicing immediately. Please do not continue to use before the problem is not solved.
7. Electronic watch has a number of functions to display, it will reflect the corresponding value according
to the amount of different degrees of human movement, here to warmly remind you that the heart rate
value of the electronic watch may not be accurate, can only give you some reference.
8. When exercising, wear clothes that fit well to prevent loose clothes from being tripped by the equipment
or limiting the movement. Please note that incorrect and excessive exercise and may cause harm to the
body.
9. This equipment is only suitable for indoor and home use.
10. When moving this equipment should
be as careful as possible to avoid causing unnecessary injuries.
11. Please keep this manual and installation tools.
12. This product can not be used as medical equipment.

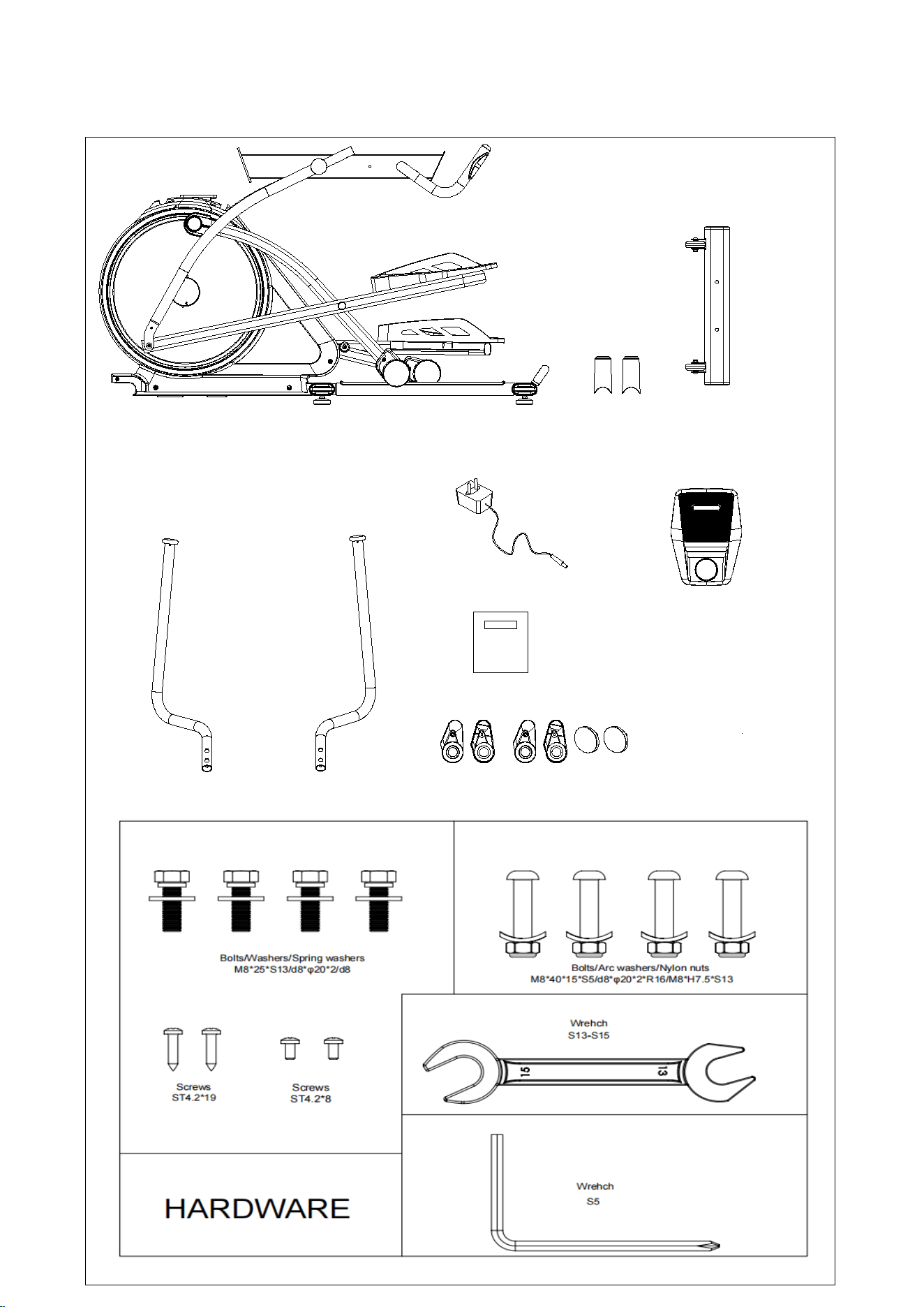

Accessories and tools:
Main Frame
Front Stabilizer
L/R Hanedlebar
Covers
Covers
Computer
Adapter
Manual
十字槽盘头自攻钉 ST4.2*19 十字槽盘头自攻钉
ST4.2*8
十字内六角扳手
S5

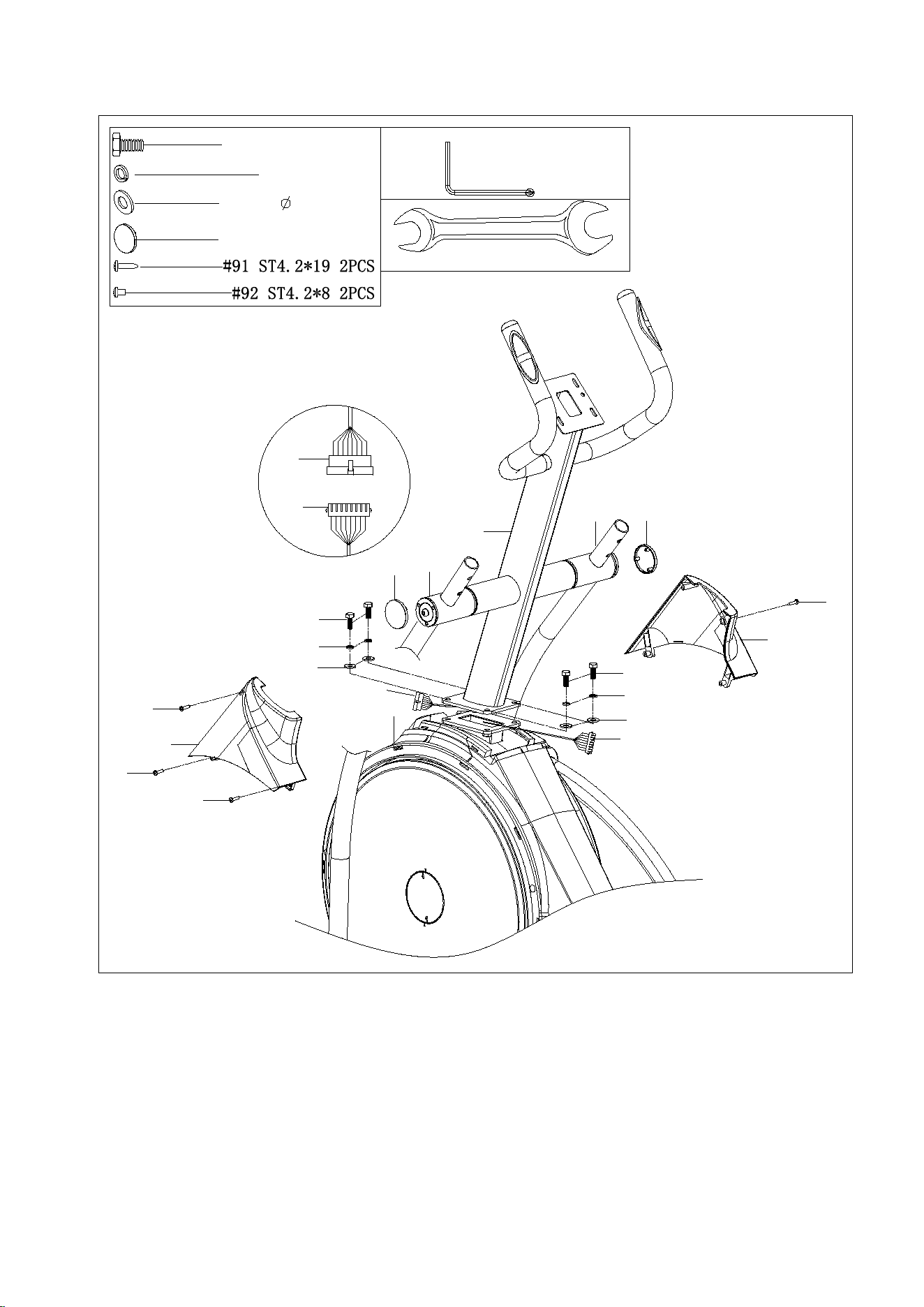

Step 1:
1. Docking of relay (8) and relay (13).
2. Use open-end wrench (B) to lock the riser union (14) to the main frame (88) with hexagonal
bolt (9), spring pad (10) and washer (11).
3. Lock the left/right riser cover (12L/R) on the riser union (14) with cross slotted pan
head self-tapping nails (91) and cross slotted pan head self-tapping nails (92) using a cross
dummy wrench (A).
4. Attach covers (22) in the two sides of the left/right swing union (27L/R).
9
10
11
9
10
11
12L
91
92
92
12R
91
14
88
13
8
8
13
#9 M8*25*S13 4PCS
#10 d8 4PCS
#11 d8* 20*2 4PCS
#A
#B
S13
22
22
#22 2PCS
27L
27R

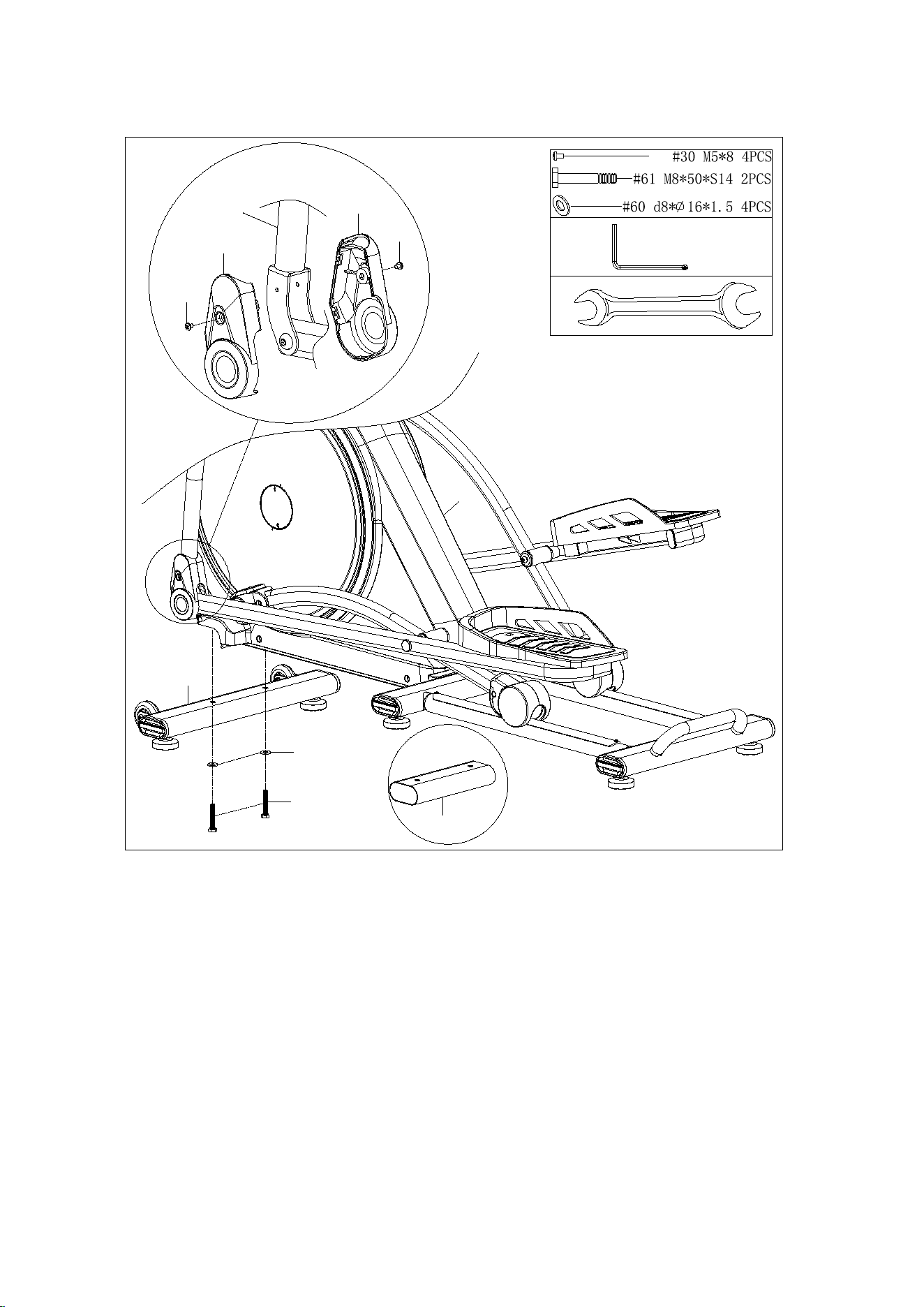

Step 2:
30
30
31L
31R
88
43
60
61
27L(27R)
#A
#B
S13
99
1. Removing hexagonal bolts (61), washers (60), packing tubes (99) pre-installed on the main
frame union with an open-end wrench (B);
2. Locking the front bottom tube union (43) to the main frame (88) with hexagonal bolts (61),
and washers (60) with an open-end wrench (
B);
3. Removing cross slotted pan head screws (30) pre-installed on the left/right swing
cover (31L/R) with a cross dull wrench (A) ;
4. Use a cross dull wrench (A) to tighten the left/right swing cover (31L/R) on the left/right
swing union (27L/R) with cross slotted pan head screws (30), locking.

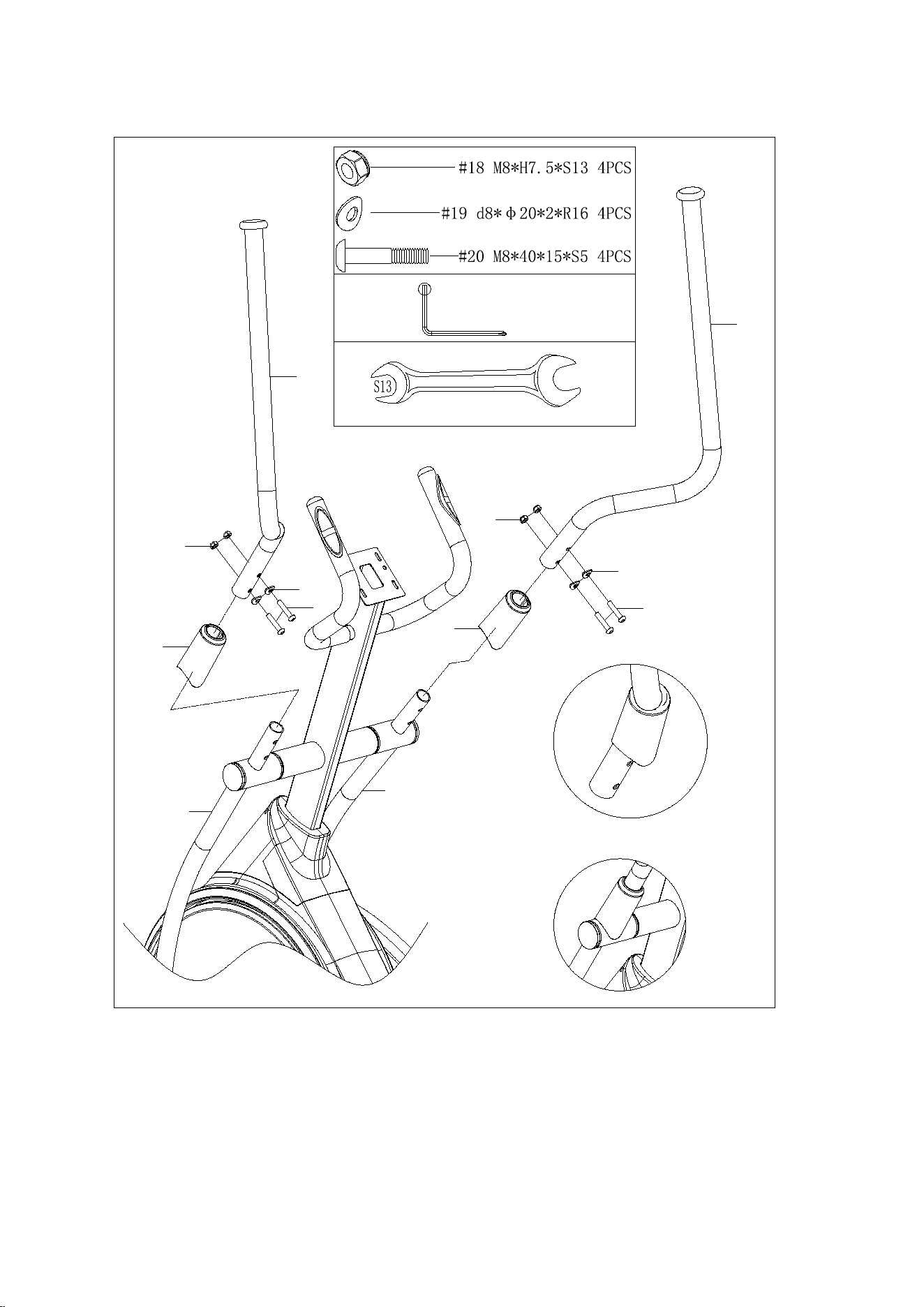

Step 3:
1. As shown in Fig A : put the armrest cover (21) onto the left/right armrest;
2. Lock the left/right armrest (17L/R) with an open-end wrench (B) onto the left/right
swing combination (27L/R) with hexagonal pan head bolts (20), curved washers (19) and
nylon nuts (18);
3. Place the armrest cover (21) to the position as shown in Figure B.
18
19
20
18
19
20
17L
17R
21
21
27L
27R
#B
#A
A
B

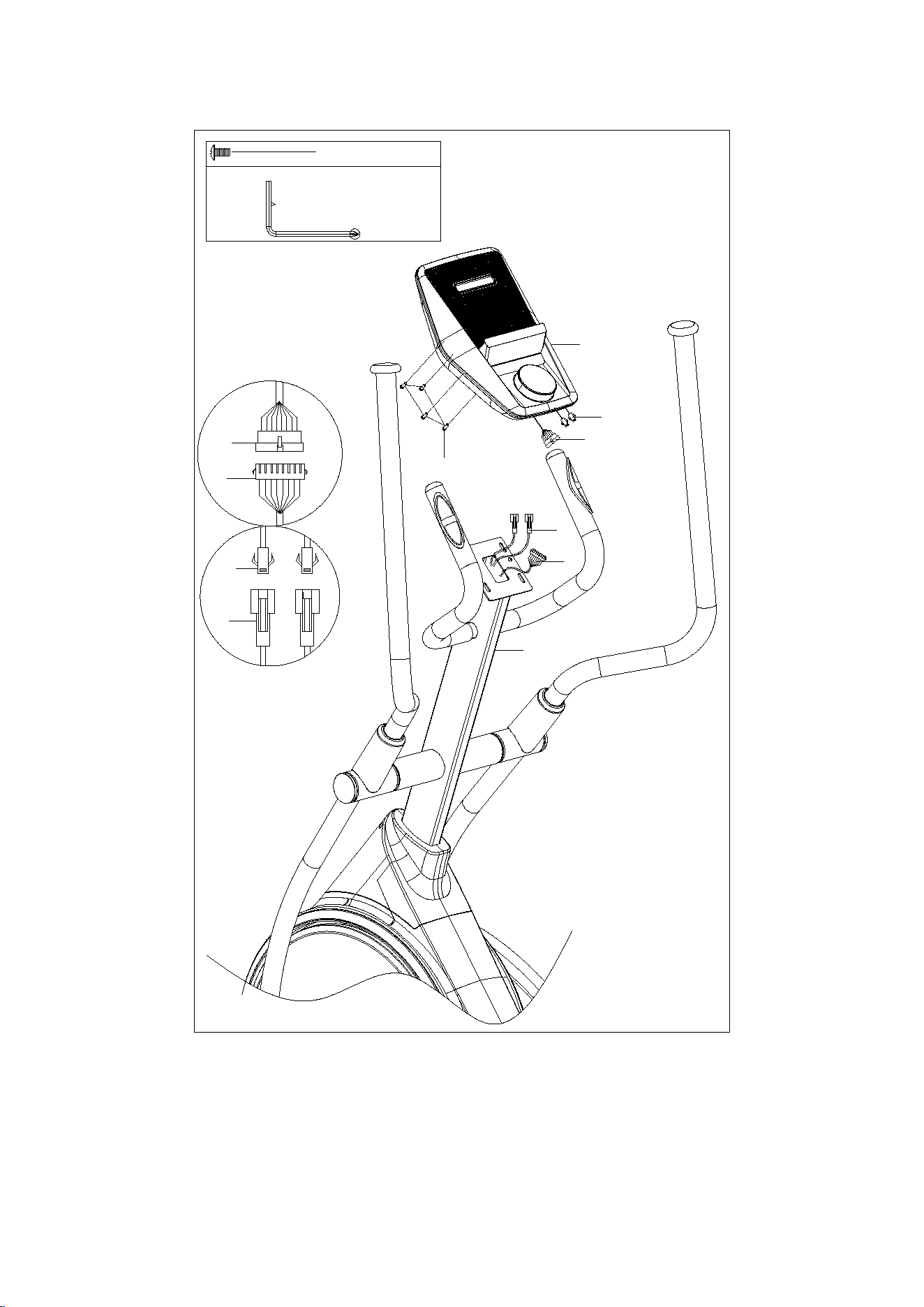

Step 4:
1. Connect the e-meter protrusion line (1a)
to the
heart rate line (7) and the e-meter
protrusion line (1b) to the relay line (8) ;
2. Remove the cross-slotted pan head screws (2) pre-installed on the electronic meter (1)
with a cross-drag wrench (A);
3. Use the cross wrench (A) to lock the electronic meter (1) with the removed cross slot
pan head screws (2) on the riser combination (14).
2
1a
1b
1
14
7
8
7
1a
1b
8
#2 M5*1
0 4PCS
#A
Installation complete!
1. Foot pad adjustment instructions for use
56
When the ground is uneven, rotate the adjusting foot pad (56)
under the bottom tube to adjust the frame height, as shown in
the figure.

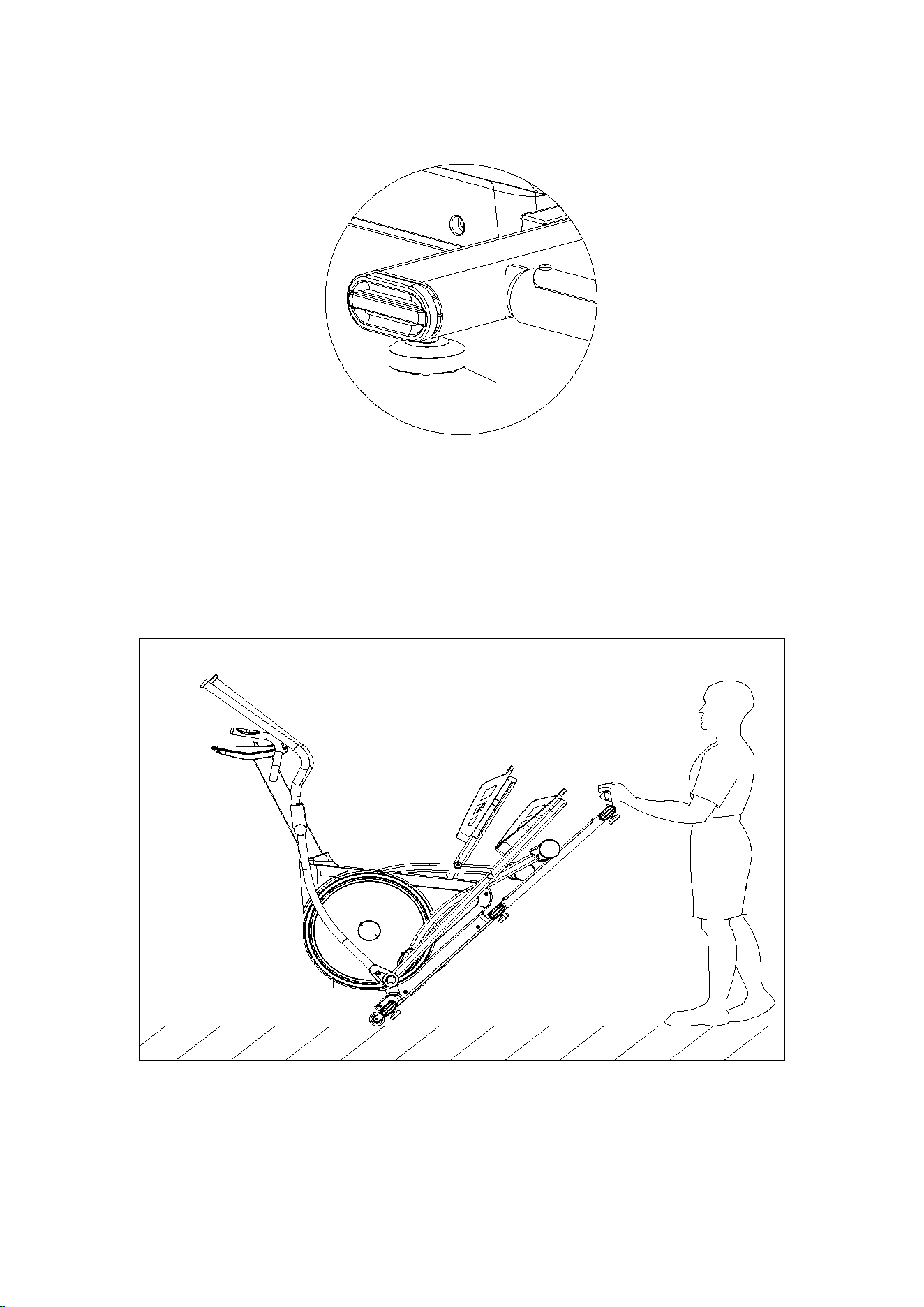

2.Frame movement instructions
43
88
The front bottom tube of this exercise bike (43) has installed
rollers, when you hand hold the main frame (88) at the handle
and make the rollers touch the ground, you can move the frame
to the position you want, as shown in the figure
3.Connecting power
88
95
When
in use, plug one end of the power adapter (95) into the
machine and connect the other end to the power supply; when you
stop using it, please put away the power adapter (95) for next
use.
4.Care and Maintenance
○
1
Regular cleaning
Platform: Wipe the body with a clean cloth and clean the sweat
stains on the surface in time
Aluminum rails: Please wipe and clean the track regularly, and
use the silicone oil that comes with the package to apply an
appropriate amount on the track for equipment maintenance.
○
2
Check regularly
Power cord: Check that the power cord is tightly plugged in.
Bolts and nuts: Check all the bolts and nuts before use, tighten
the loose parts to make sure there is nothing loose, and check
regularly.
Power hole
Control knob if it does not display properly: If you find that
the control knob does not display during use, please check to
make sure that the bicycle power cord is plugged in tightly and
the power switch is turned on.
Note!
1. After-sales time will be calculated from the day after
signing the receipt, after-sales time is not stacked, not
cumulative.
2. Product packaging boxes are retained for at least 15 days
after receipt, in order to be used in the return business for
the old machine packaging; if the user packaging boxes are lost
or damaged, the user is required to purchase the corresponding
product packaging box foam and other materials to ensure the
safety of the transport of goods.
Finally wish you a happy use for this machine! If you have
