SITFIT SMART ELECTRIC MOTORIZED
UNDER DESK ELLIPTICAL
(DARK GREY)
SF-E3959SMARTG
USER MANUAL
DO NOT STAND ON THE UNIT.
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
Thank you for purchasing the Sitfit Smart Electric Motorized Under Desk Elliptical. Please read
the operating instructions carefully before use. Safe and effective use can only be achieved if
the equipment is assembled, maintained, and used properly. It is your responsibility to ensure
that all users of the equipment are informed of all warnings and precautions.
When using an electrical appliance, basic precautions should always be followed, including the
following:
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before
cleaning.
WARNING
– To reduce the risk of burns, fire, electric shock, or injury to person(s):
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. The equipment is not suitable for therapeutic use.
4. Keep children and pet away from this machine. The equipment is designed for adult use
only.
5. Do not place fingers or objects into the moving parts of the equipment.
6. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space
all around it.
7. An appliance should never be left unattended when plugged in. Unplug from outlet when
not in use, cleaning and before putting on or taking off parts.
8. Do not stand on the elliptical, only use the elliptical while sitting.
9. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, damages or if you hear any unusual noises coming
from the equipment during exercise, discontinue use of the equipment immediately and do
not use until the problem has been rectified.
10.Never operate the appliance with the air openings blocked. Keep the air openings free of
lint, hair, and other objects.
11.Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
12.Keep the appliance dry. Do not expose appliance to wet, moisture and humid environment.
13.Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer. If a product is modified or altered, it
may void the warranty.
SAVE THESE INSTRUCTIONS
2

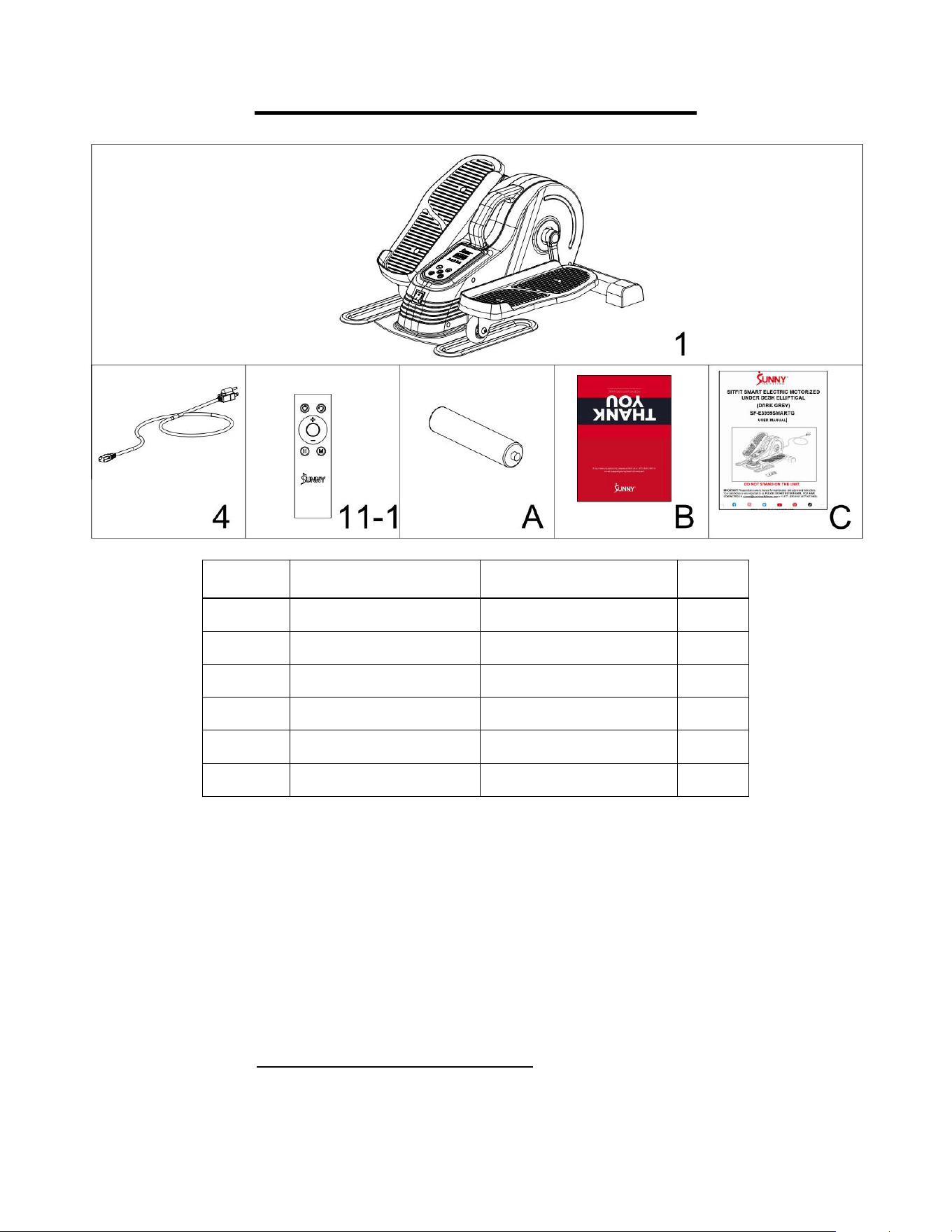

PRE-ASSEMBLY CHECK LIST
No.
Description
Spec.
Qty.
1
Main Frame
1
4
Power Cord
1
11-1
Remote Control
1
A
Battery
AAA
2
B
Thank You Card
1
C
User Manual
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

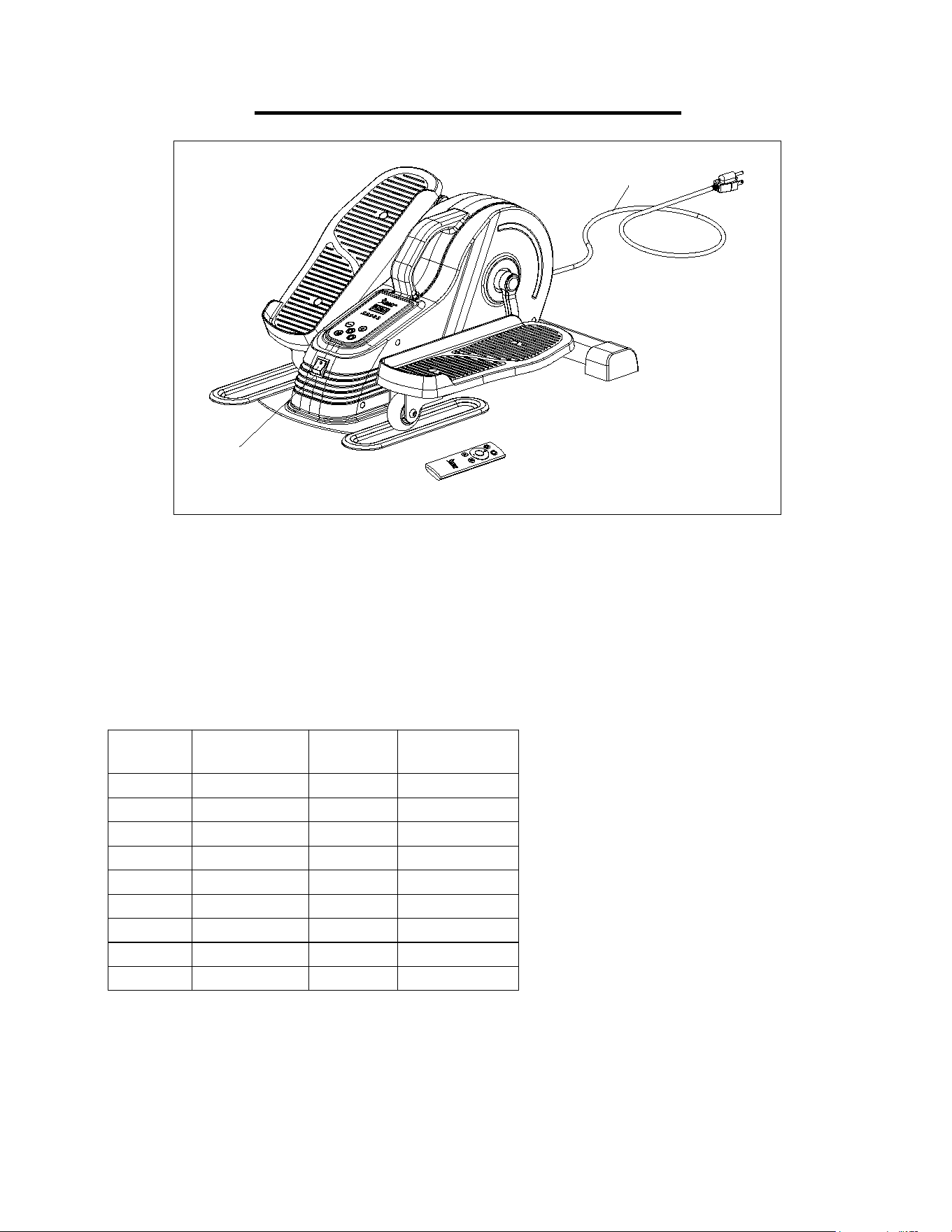

The part number found on the “EXPLODED DIAGRAM” (page 13) and “PARTS LIST”
(page 14).
3
IMPORTANT ELECTRICAL INFORMATION
WARNING:
This elliptical requires a power source of 120V in order to properly operate. For your safety as
well as the safety of others, please verify that the power source is correct before powering in
the equipment. Any power supply source above or below this level could cause significant
damage to the equipment and/or user.
GROUNDING METHODS:
This elliptical must be grounded. Should the elliptical malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a plug that has an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
This elliptical is for use on a nominal 120V circuit and has a grounding plug (Figure A). Ensure
that the elliptical is connected to an outlet with the same configuration as the plug. Do not use
an adaptor for this product.
CAUTION:
Improper connection of the equipment can result in risk of electric shock. Check with a
qualified electrician or serviceman if you are unsure whether the product has been properly
grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this elliptical.
2. NEVER operate the elliptical using a generator or UPS power supply.
3. NEVER remove any cover on this elliptical without first disconnecting the Power Cord (No. 4).
4. NEVER expose the elliptical to rain or moisture. This elliptical is not designed for outdoor
use or use in any high humidity environment.

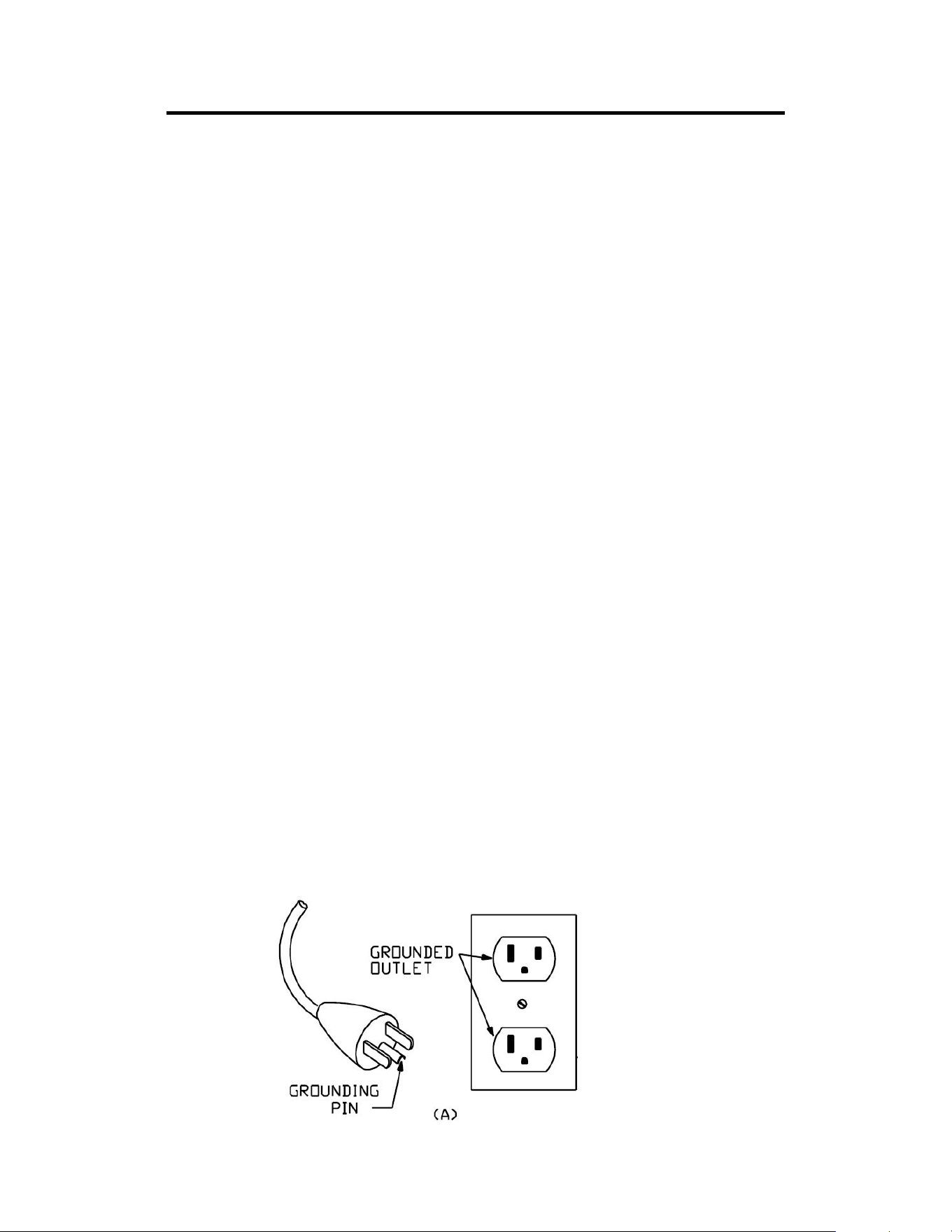

GROUNDING METHOD
4
BATTERY INSTALLATION & REPLACEMENT

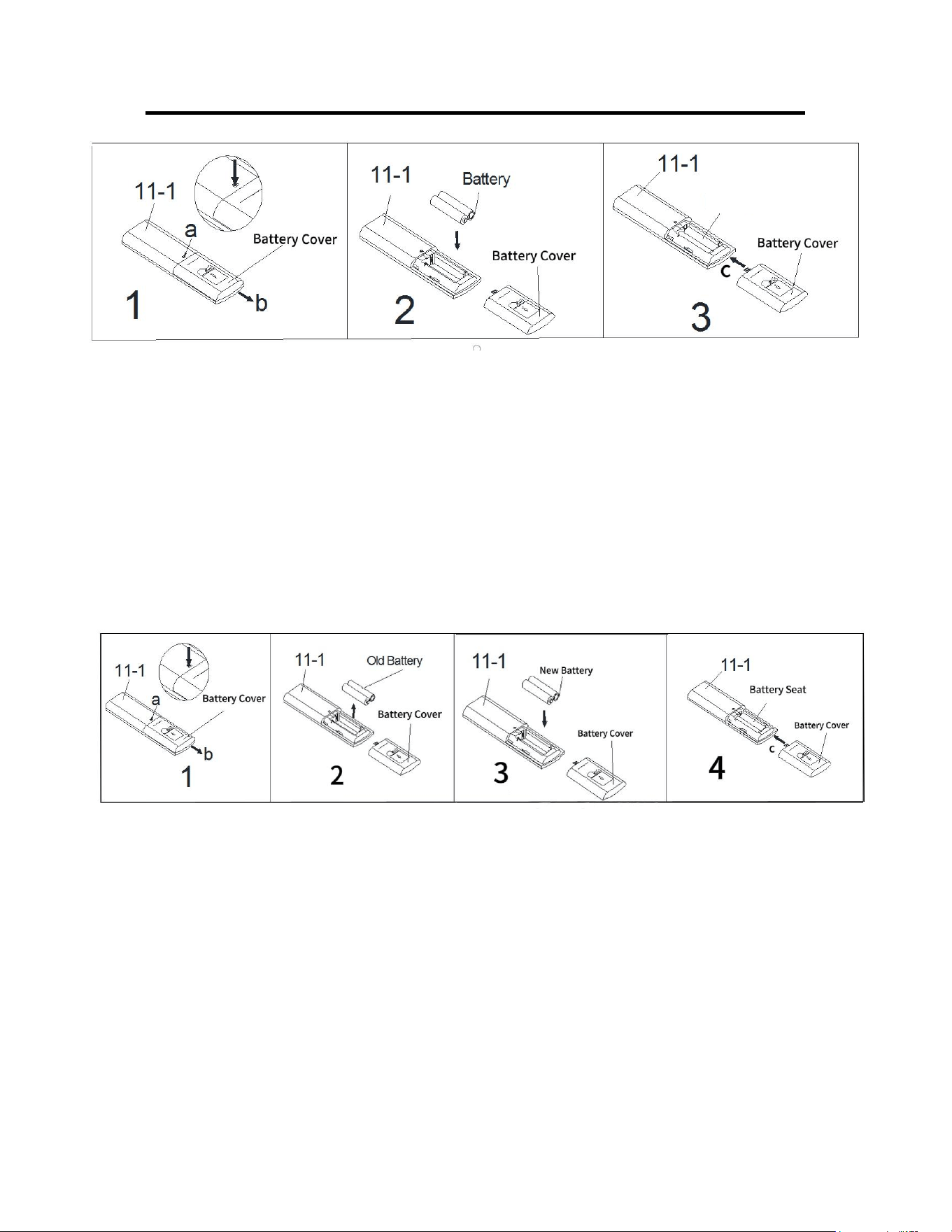

BATTERY INSTALLATION:
1. Press point a with a pen or other something sharp, then push down the battery cover on
the back of the Remote Control (No. 11-1) to remove the battery cover.(as shown by the
arrow b)
2. Take out 2 AAA batteries from the manual bag. Install 2 AAA batteries into the battery seat
on the back of the Remote Control (No. 11-1). Pay attention to the battery + and – ends
before installing.
3. Put the battery cover back to the Remote Control (No. 11-1) and push the cover up to
tighten it on the back of the Remote Control (No. 11-1) (as shown by the arrow c).
The installation is complete!
BATTERY REPLACEMENT:
1. Press point a with a pen or other something sharp, then push down the battery cover on
the back of the Remote Control (No. 11-1) to remove the battery cover. (as shown by the
arrow b).
2. Take out the old batteries from the battery seat.
3. Install 2 AAA batteries into the battery seat on the back of the Remote Control (No. 11-1).
Pay attention to the battery + and – ends before installing.
4. Put the battery cover back to the Remote Control (No. 11-1) and push the cover up to
tighten it on the back of the Remote Control (No. 11-1) (as shown by the arrow c).
The replacement is complete!
Dispose the old battery according to your regional guidelines.
Battery Seat
5
DISPLAY CONSOLE

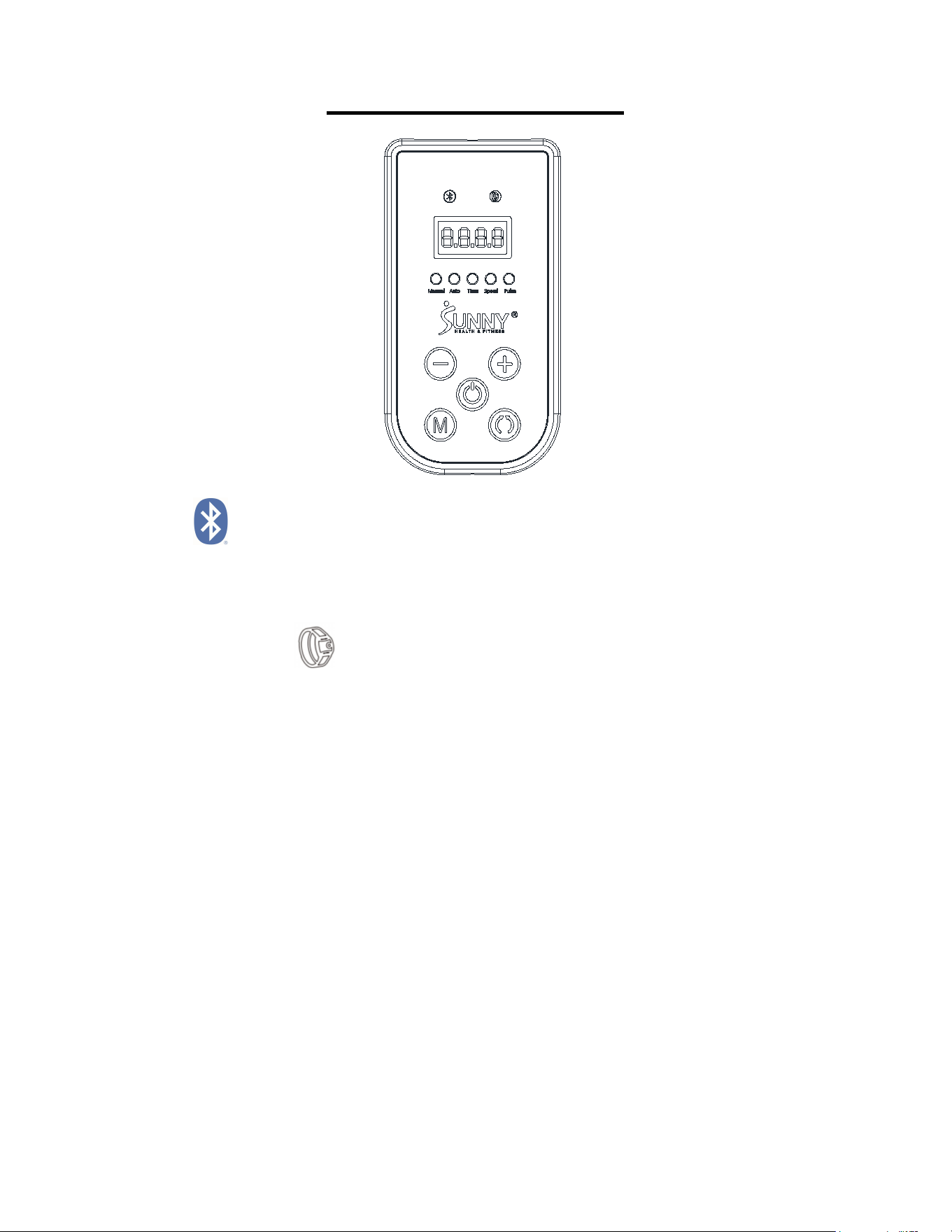

BLUETOOTH :
1. The Bluetooth icon will flash when the console is on. If no Bluetooth connection is
established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will always light up when the heart rate monitor is connected.
2. The wireless heart rate icon will flash when the console is on. If the heart rate monitor is not
connected within 3 minutes, the wireless heart rate icon will turn off. But the heart rate
monitor can also be connected.
3. The heart rate monitor will disconnect when the console power off. The heart rate icon will
turn off and the heart rate function will temporary failure.
4. The heart rate monitor will disconnect when press and hold the START/PAUSE button for 6
seconds or more. The heart rate icon will turn off and the heart rate function will temporary
failure.
NOTE: It needs to reawaken the heart rate icon to re-connect the heart rate monitor when the
heart rate function temporary failure.
Ways to wake up the heart rate icon: A. Press the START button when the console is in
paused or stopped state; B. The APP is successfully connected and the sports interface is
entered when the console is in suspended or stopped state; C. Press the MODE button or
switch the MODE in the APP when the console is in running state.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200.
6

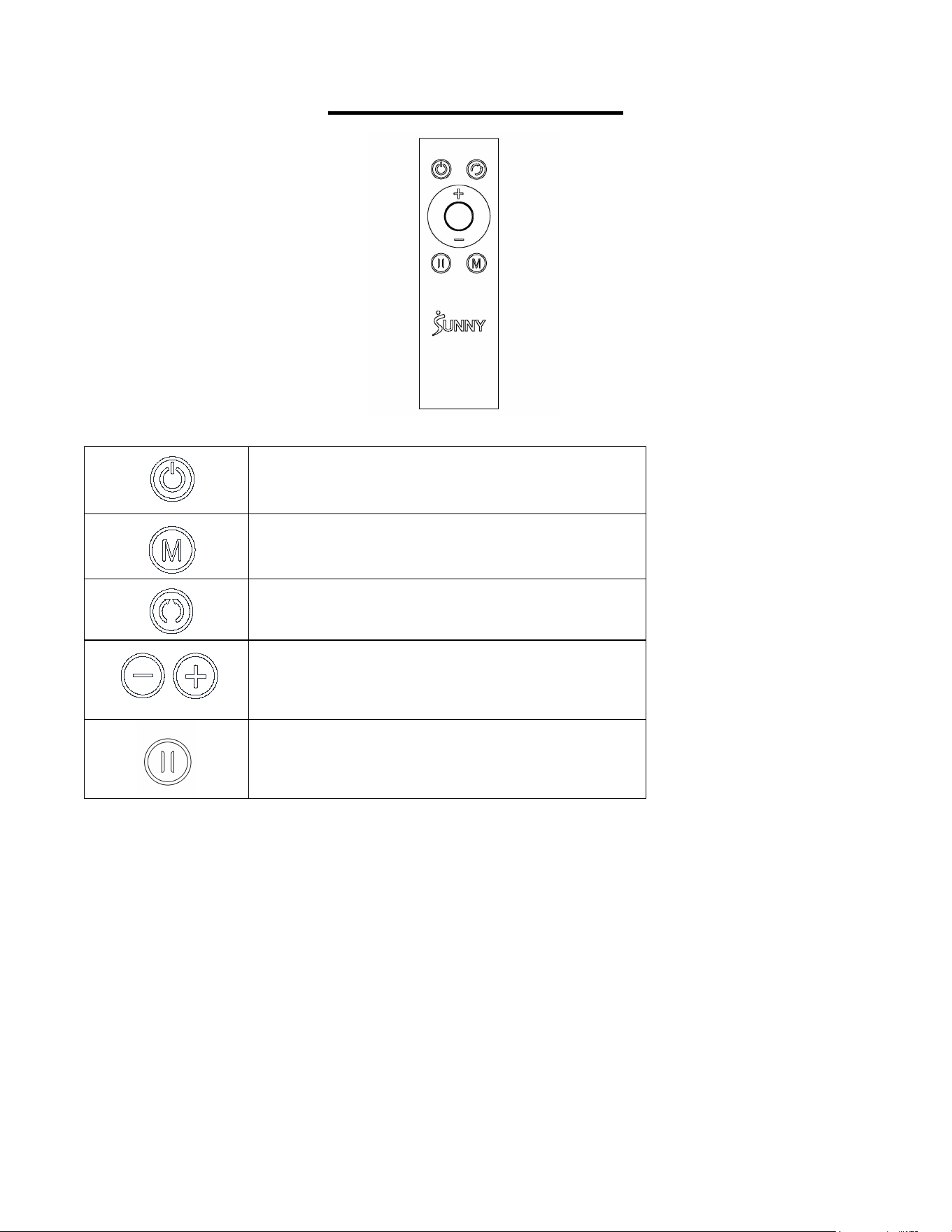

FUNCTION KEYS
Start/Pause: Start and pause elliptical
MODE: Changes between automatic and
manual
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – key
for decreasing speed (18 speed levels)
Note: Elliptical will auto stop and make alarm sound when tilted over 45 degrees or detects
problems during exercise.
When the display console shows “ERR”, press the Start/Pause button to reset automatically. If
the “ERR” no longer appears, continue to use normally. If the code continues to appear, please
contact customer service.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
7
OPERATING INSTRUCTIONS
5
4
1. Plug in the Power Cable (No. 4). Turn on the Power Switch (No. 5). The elliptical will
beep and LED display will show “OFF“. This is standby mode.
2. Press the Start/Pause button on the console or the remote control to start the elliptical, it
will begin in manual mode. Display will show L1. Press the Start/Pause button longer than
5 seconds, the elliptical will clear all the LED display information.
3. Under the manual mode, press the Speed “+” button to increase the speed from L1 to L18.
Or press the Speed “–” button to decrease the speed from L18 to L1.
Level
Speed
(MPH)
Level
Speed
(MPH)
L1
0.674
L10
1.412
L2
0.737
L11
1.496
L3
0.843
L12
1.559
L4
0.948
L13
1.622
L5
1.032
L14
1.685
L6
1.074
L15
1.749
L7
1.180
L16
1.791
L8
1.285
L17
1.854
L9
1.369
L18
1.896
4. Under the manual mode, press the Direction button to change the direction forward or
backward.
5. Under the manual mode, the LED display will alternate display between speed level, speed
and time.
6. Press the Mode button on the console or the remote control to change the mode from
8
manual mode to pre-program mode P1, press again from P1 to P2 mode, press again from
P2 to P3, and then press again from P3 back to the manual mode.
7. They are 3 pre-program modes, P1, P2 and P3. Different modes have different speeds and
working directions, see below details.
P1 MODE: The pedals would move forward or backward when in use. After each run of 13
times, the direction of movement will be changed. Repeat this process until it stops running
after 30 minutes.
P2 MODE: The pedals would move forward or backward when in use. There are 9 Levels
for this mode, the speed will increase from Level 1 to Level 9 gradually, then the speed will
decrease from Level 9 to Level 1. When the speed reaches Level 1, the direction of
movement will change. The machine will keep repeating this process until it stops running
after 30 minutes.
P3 MODE: The pedals would move forward or backward when in use. There are 18 Levels
for this mode, the speed will increase from Level 1 to Level 18 gradually, then the speed
will decrease from Level 18 to Level 1. When the speed reaches Level 1, the direction of
movement will change. The machine will keep repeating this process until it stops running
after 30 minutes.
The elliptical will stop automatically after working continuously for 30 minutes. At the stop
moment, the LED display will show “OFF” then show the exercise mode and data.
NOTE: After finish using, please turn off the switch and disconnect the power cable.
9
REMOTE CONTROL
FUNCTION KEYS
Start/Pause: Start and pause elliptical
MODE: Changes between automatic and
manual
Direction: Changes the direction forward or
backward
Speed: Select + key for increasing or – for
decreasing speed (18 speed levels)
Pause
REMOTE CONTROL PAIRING METHOD:
1. Restart the elliptical, press and hold down the Mode button and Direction button at the
same time, you will hear three “beep” sounds.
2. Press and hold down the Mode button on the Remote Control (No. 11-1) immediately for
about 3 seconds. Hearing a "Beep" indicates that the pairing is successful. During the
pairing, the Remote Control (No. 11-1) should be as close to the elliptical as possible.
10
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
11
USER-MAINTENANCE INSTRUCTION
Caution：There are no serviceable parts in the appliance, any servicing should be performed
by an authorized service person.
When the appliance is not in use, disconnect the power supply, store of the power cable and
the total appliance in a dry location where children cannot touch or in play area(s).
USE ONLY WHILE SITTING.
DO NOT STAND ON THE
ELLIPTICAL!
WARNING
The elliptical is intended to use in a
sitting position only, do not stand
on the elliptical.
Failure to follow all warnings and
instructions could result in serious
injury or death.
12
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register
for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session, and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
If you require additional support, please contact [email protected]
13
EXPLODED DIAGRAM
1
2L
2R
3
3
4
5
6
6
7L
7R
8L
8R
9
10-1
11-1
12
13
14
14
15
16
16
17
17
17
18
19
20
18
18
18
19
20
21
22
22
23
21
22
22
23
23
23
25
26
25
26
27
27
28
29
30
31
32
33
34
35
33
34
35
35
34
33
33
35
34
36
37
38
40
40
41
41
41
41
42
43
24
24
44
24
44
24
24
44
44
39
14
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
22
Bearing
608Z
4
2R
Pedal Tube
1
23
Nylon Nut
M8
6
2L
Pedal Tube
1
24
Screw
ST4.2*15
5
3
Crank
2
25
Flange Nut
M10*1.25
2
4
Power Cord
1
26
End Cap
2
5
Power Switch
1
27
Rubber Washer
Φ17*Φ21*0.4
2
6
Rubber Pad
Φ70*2.5
2
28
3P Data Line
1
7L
Left Pedal
1
29
Sensor
1
7R
Right Pedal
1
30
Screw
M3*8
2
8L
Left Belt Cover
1
31
Fixing Bolt
M3
4
8R
Right Belt Cover
1
32
6P Data Line
1
9
Motor
DC110V
1
33
Screw
M6*19
6
10-1
Console
1
34
Spring Washer
D6
6
11-1
Remote Control
1
35
Flat Washer
Φ6.4*Φ12*1.2
6
12
Controller
1
36
Screw
M4*10
1
13
Outlet
1
37
Spring Washer
D4
1
14
Slide Wheel
Φ64*24
2
38
Non-Slip Pad
D4
1
15
Silicone Pad
230*35*2
2
39
Screw
ST3.5*15
1
16
End Cap
2
40
Flat Washer
Φ16.2*Φ28*1.2
2
17
Bolt
M8*45*15
4
41
Sleeve
Φ10*Φ8.2*6
4
18
Alloy Wrap
Φ28*18
4
42
Screw
M3*5
4
19
Flat Washer
Φ8.2*Φ25*1.5
2
43
Washer
Φ70*1.0
1
20
Screw
M8*16
2
44
Screw
ST4.2*15
5
21
Hex Bolt
M8*45*15
2
Version: 1.4
СОNNECT
with
us
DOWNLOAD
Track
your
fitness
progress
&
join
FREE
workout
courses!
Download
☑
SUNNYFIT
today!
GET
IT
ON
Google
Play
Download
on
the
App
Store
FOLLOW
Find
us
on
social
media
@sunnyhealthfitness
@sunnyhealthfitness
f
@sunnyhealthandfitness
@sunnyhealthfit
/sunnyhealthfitness
/sunnyhealthfitness
/sunnyhealthandfitness
www.sunnyhealthfitness.com
