PINK SMART PORTABLE MAGNETIC
UNDER DESK ELLIPTICAL
P2420
USER MANUAL
DO NOT STAND ON THE UNIT!
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s warning signs. Incorrect or excessive exercise can be detrimental
to your health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, shortness of breath, lightheartedness, dizziness,
or feelings of nausea. If you do experience any of these conditions, you should consult your
physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage and/
or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The equipment is not suitable for therapeutic use.
10. To avoid bodily injury and/or damage to the product or property, proper lifting and moving
are required.
11. Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
12. This equipment is designed for indoor and home use only; it is not intended for commercial
use!
2

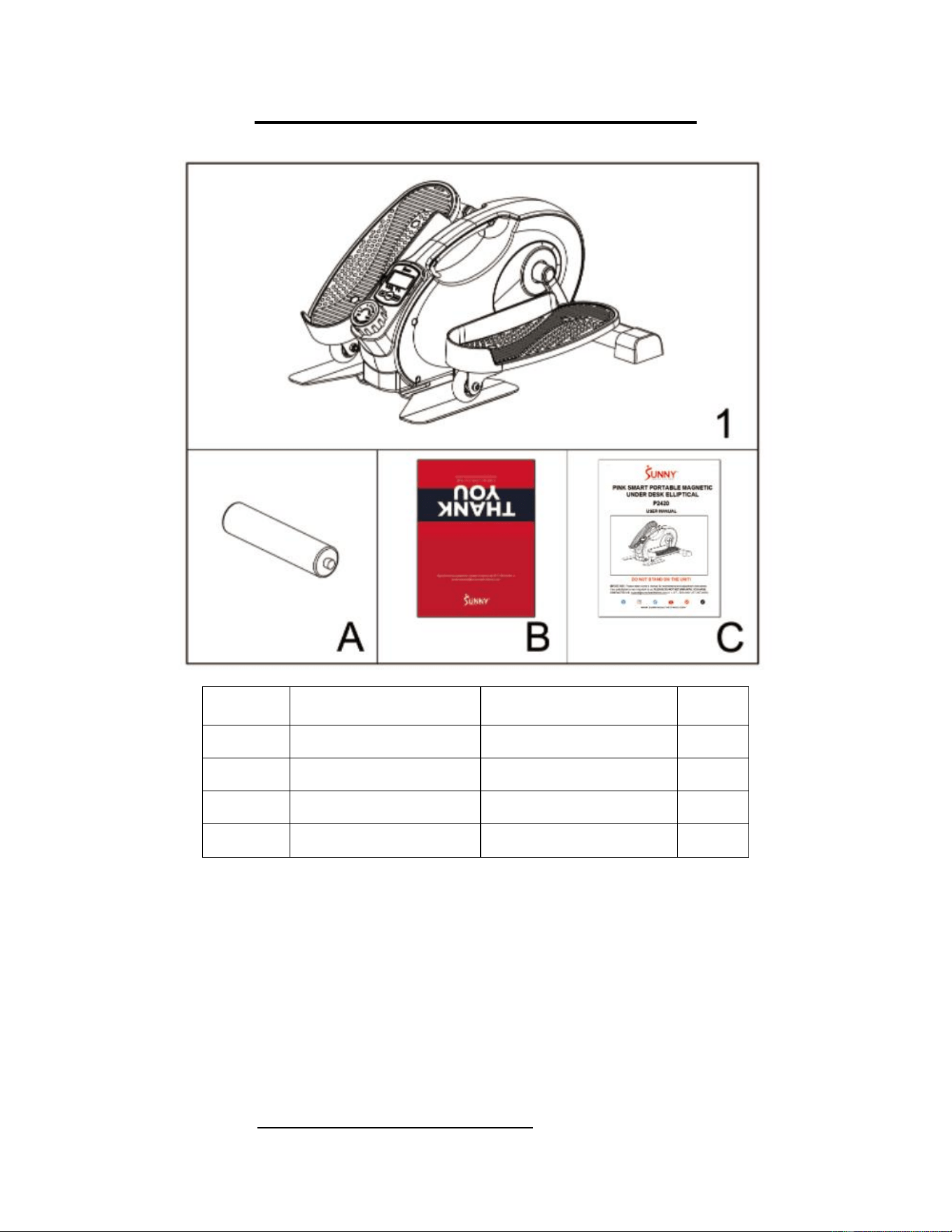

PRE-ASSEMBLY CHECK LIST
No.
Description
Spec.
Qty.
1
Main Frame
1
A
Battery
AAA
2
B
Thank You Card
1
C
User Manual
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” (page 8) and “PARTS LIST”
(page 9).
3

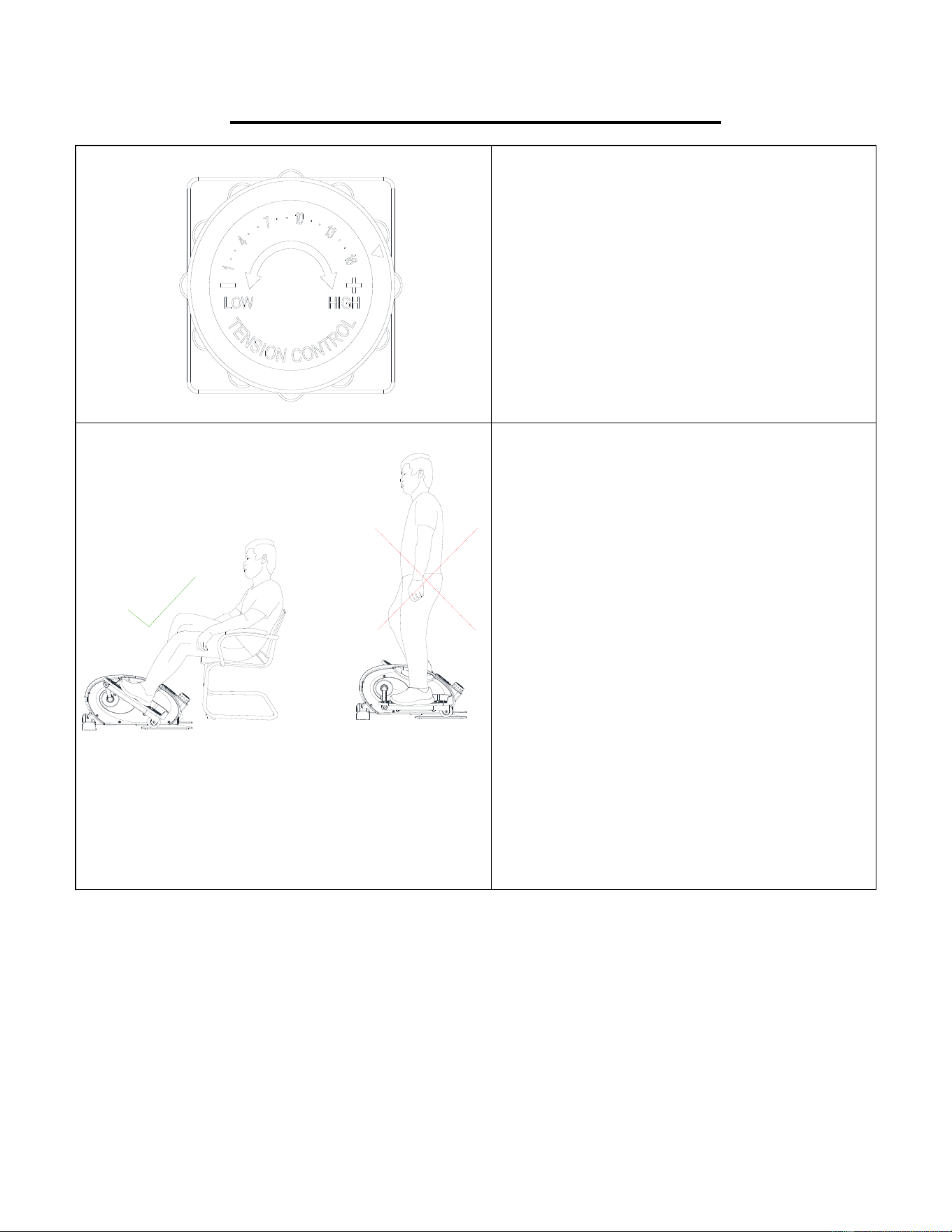

ADJUSTMENTS & USAGE GUIDE
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Control Knob (No. 8) clockwise to increase
the level of resistance. Rotate the Tension
Control Knob (No. 8) counter-clockwise to
decrease the level of resistance.
Tension levels are set at Level 1 being the
lowest and Level 16 being the highest.
USE ONLY WHILE SITTING.
DO NOT STAND ON THE
ELLIPTICAL!
WARNING!
The elliptical is intended to use in a sitting
position only, do not stand on the elliptical.
Failure to follow all warnings and
instructions could result in serious injury or
death.
4

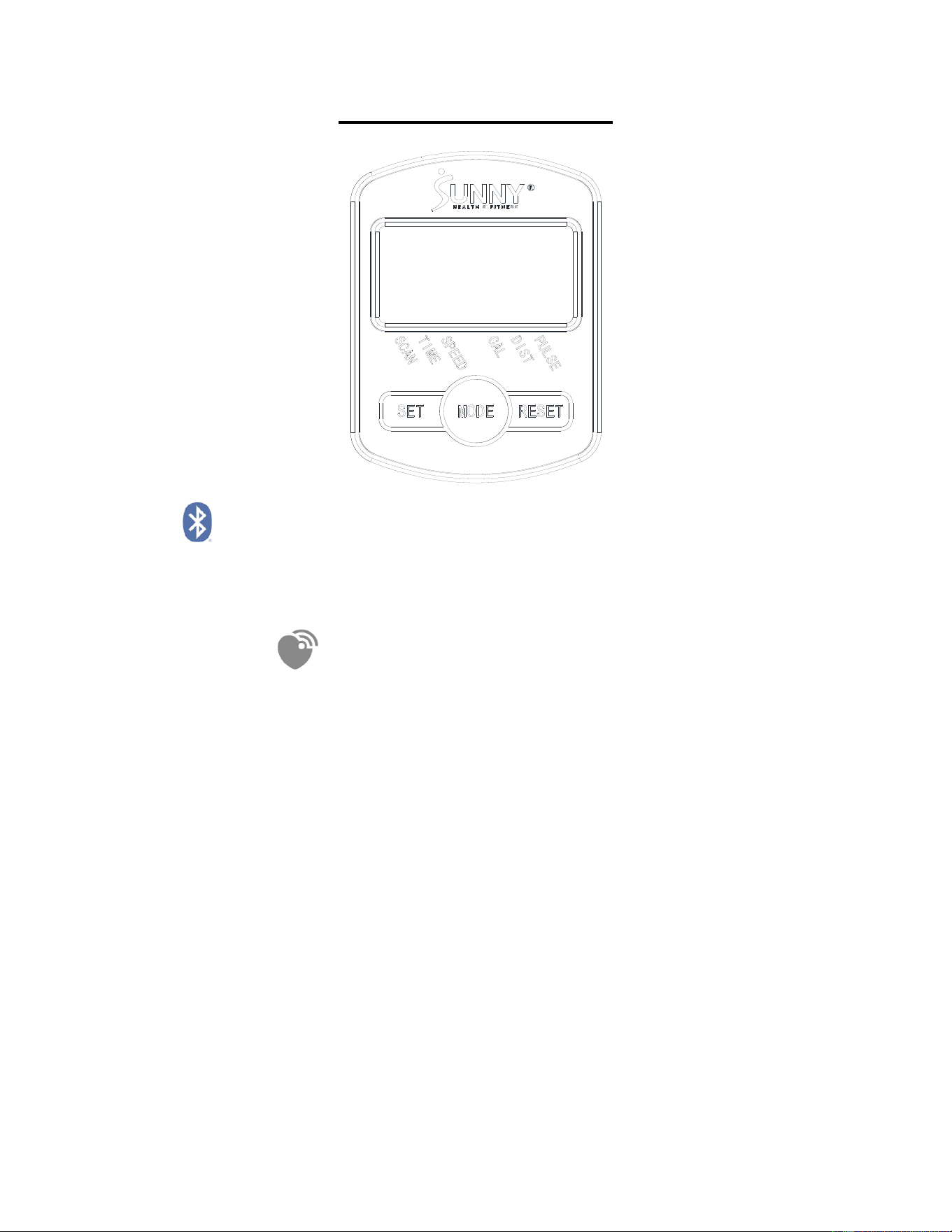

EXERCISE METER
BLUETOOTH :
1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no Bluetooth connection
is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will flash when the meter is on. If the heart rate monitor is not connected
within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not connected
within 1 minute, the wireless heart rate icon will turn off.
3. When the meter wakes from sleep mode, the wireless heart rate icon will flash. If the heart rate monitor is
not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit Heart Rate
Monitor HR200. HR200 can only connect to the computer when the wireless heart rate icon is flashing.
5
FUNCTIONAL BUTTONS:
MODE: To select functions. Press and hold the key for 3 seconds to reset the value to zero when the
Bluetooth is not connected.
Press and hold the MODE key for 6 seconds to disconnect from both the SunnyFit APP and the heart rate
monitor; then, the meter will enter sleep mode.
SET: To set the values of time, distance and calories when not in scan mode.
RESET: To reset time, distance, calories. Press and hold the key for 3 seconds to reset the value to zero.
FUNCTION AND OPERATIONS:
SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 4 functions: Time,
speed, distance, calorie. Each display will be hold 6 seconds.
TIME: Count the total time from exercise start to end. Press “MODE” button until “TIME” appears, press
“SET” button to set exercise time. When the “SET” is zero, the computer will stop 1 seconds after the start of
the time.
SPEED: Display current speed.
CAL: Count the total calories from exercise start to end. Press “MODE” button until “CAL” appears, Press
“SET” button to set exercise calories. When the “SET” is zero, the computer will stop about 1 seconds after
the start of the time.
DIST: Count the distance from exercise start to end. Press “MODE” button until “DIST” appears. Press
“SET” button to set exercise distance. When the “SET” is zero, the computer will stop about 1 seconds after
the start of the time.
PULSE: Display current heart rate value when pulse signal detected. The data comes from the matching
Bluetooth heart rate monitor.
NOTE:
1. If the display is faint or shows no figures, please replace the batteries.
2. The meter will shut off automatically and disconnect the heart rate monitor if there is no activity for 4
minutes when the Bluetooth is not connected.
3. The meter will be auto-powered on when starting to exercise push button signal in.
4. The meter will automatically start calculating when you start to exercise and will stop calculating when
you stop exercising for 4 seconds.
SPECIFICATIONS:
FUNCTION
AUTO SCAN
Every 4 seconds
TIME
00:00’~99:59’
CURRENT SPEED
0.00~9999ML(KM)/H
TRIP DISTANCE
0.00~9999ML(KM)/H
CALORIES
0.0~9999kCAL
PULSE
40-240
BATTERY TYPE
2pcs of SIZE –AAA or UM –4
OPERATING TEMPERATURE
0°C/32 Fahrenheit ~ +40°C/104 Fahrenheit
STORAGE TEMPERATURE
-10°C/14 Fahrenheit ~ +60°C/140 Fahrenheit
6

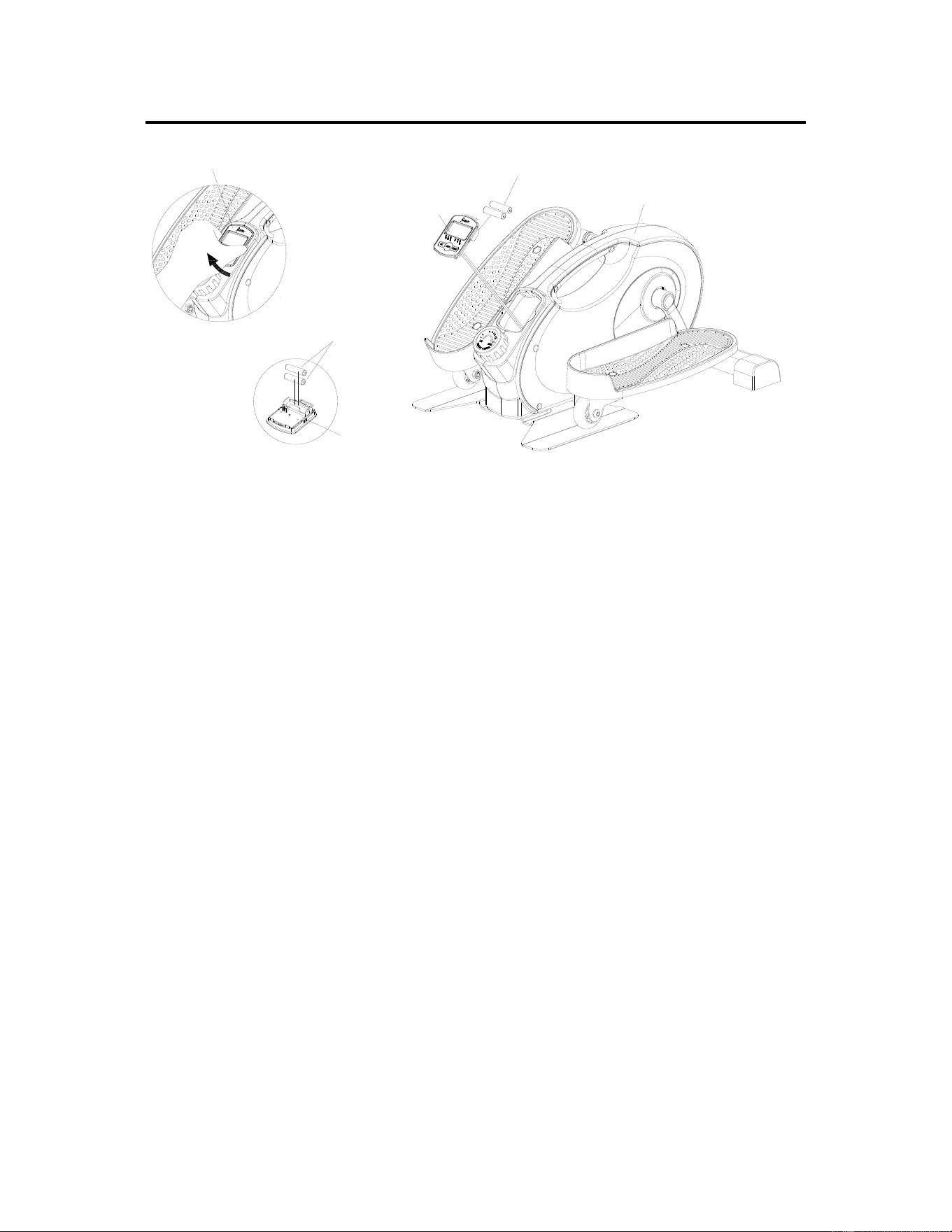

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Take out 2 AAA batteries from the manual bag.
2. Remove the Meter (No. 9) from Main Frame (No. 1).
3. Install 2 AAA batteries into the battery case on the back of the Meter (No .9). Pay attention
to the battery + and – poles before installing.
4. Attach the Meter (No. 9) onto Main Frame (No. 1).
The installation is complete!
BATTERY REPLACEMENT:
1. Remove the Meter (No. 9) from Main Frame (No. 1).
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 9). Pay attention to the battery + and – poles
before installing.
3. Attach the Meter (No. 9) onto Main Frame (No. 1).
The replacement is complete!
NOTE: Dispose battery according to your state and regional guidelines.
9
BATTERIES
1
9
BATTERIES
9
7
APP CONNECTION
Connect Smart Equipment to SunnyFit App:
1.
Scan to download SunnyFit from the app store:
2.
Ensure that the Bluetooth function is turned on from your mobile device.
3.
If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4.
Begin any workout activity that matches your smart equipment, then follow the onscreen prompts to
search for and connect to your smart equipment.
5.
When connected, your stats and records will be displayed at the end of your course/session, and
recorded in your account profile!
Troubleshooting:
•
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or scan the
QR code below:
•
If you require additional support, please contact [email protected].
8

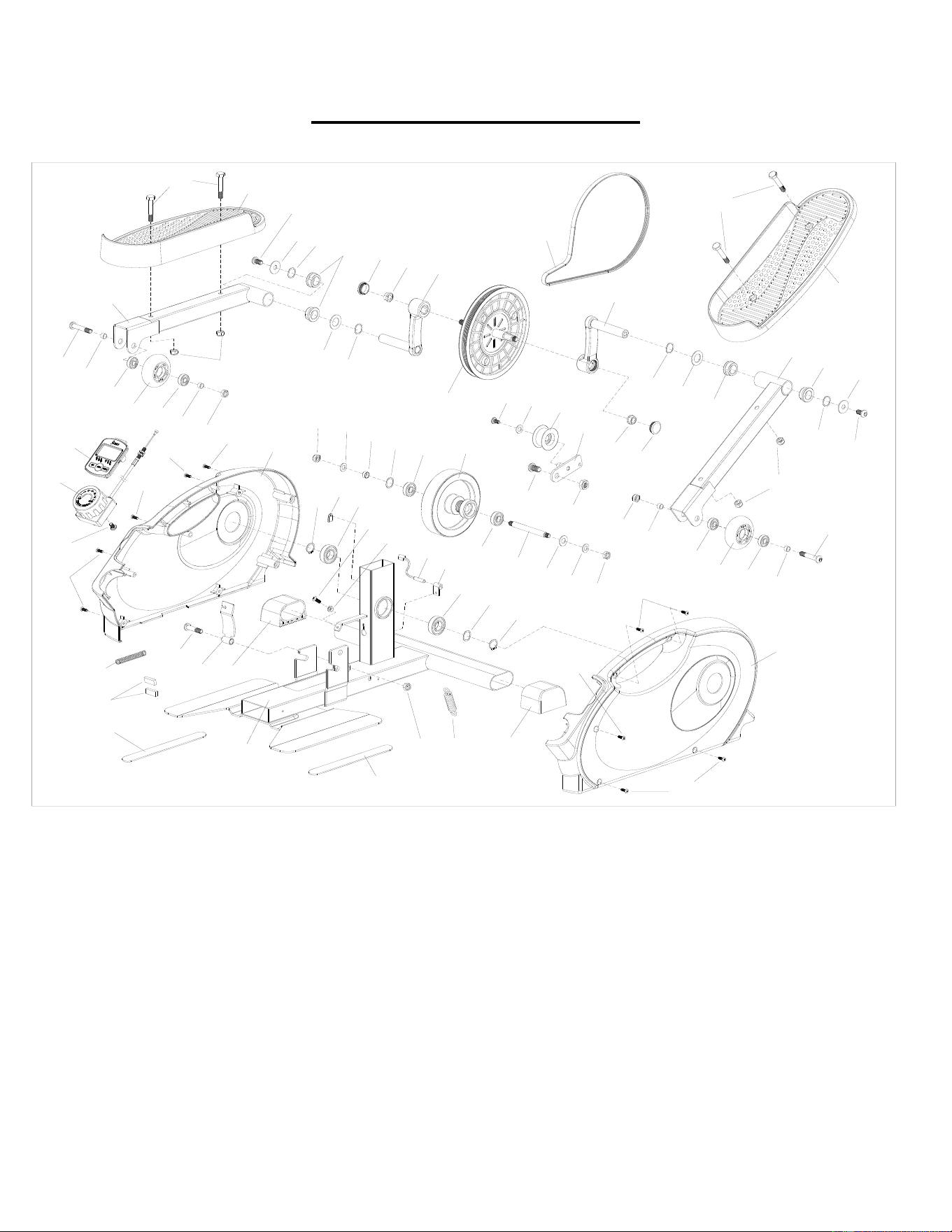

EXPLODED DIAGRAM
1
2L
2R
3
3
4
5
6L
6R
7L
7R
8
10
11
12
13
13
14
14
15
15
16
16
17
17
17
18
18
19
19
21
21
21
21
20
20
22
22
22
22
22
22
22
23
23
23
24
24
25
25
26
26
26
26
28
26
29
31
31
32
32
33
35
36
37
38
39
40
41
42
43
43
43
43
45
46
47
48
49
50
51
51
52
52
52
27
9
30
30
34
34
29
44
9
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
26
Rubber Washer
Φ17*Φ21*0.4
5
2L
Left Pedal Frame
1
27
Belt Wheel
Φ200*19.5*Φ17*147.4
1
2R
Right Pedal Frame
1
28
Belt
J300
1
3
Crank
2
29
C-clip
Φ17
2
4
Magnetic Board
1
30
Bearing
6000
2
5
Idler Wheel Shaft
1
31
Screw
M5*15
2
6L
Left Pedal
1
32
Flat Washer
Φ8.2*Φ16*1.5
2
6R
Right Pedal
1
33
Sleeve
Φ12*Φ10.2*6
1
7L
Left Belt Cover
1
34
Bearing
6003RS
2
7R
Right Belt Cover
1
35
Washer
Φ10.2*Φ20*1.5
1
8
Tension Control Knob
500mm
1
36
Screw
M10*20*12
1
9
Meter
1
37
Nylon Nut
M10
1
10
Inertial Wheel
Φ126
1
38
Spring
Φ14.5*Φ2.5*50.5
1
11
Wave Washer
Φ10.2*Φ15*0.4
1
39
Wire Clip
13.2 1/2’
1
12
Idler Wheel
Φ34*Φ10*24
1
40
Flat Washer
Φ6.4*Φ12*1.2
1
13
Slide Wheel
Φ64*24
2
41
Screw
M6*12
1
14
Silicone Pad
230*35*2
2
42
Nut
M5
1
15
End Cap
70*60*41.5
2
43
Sleeve
Φ10*Φ8.2*6
4
16
Bolt
M8*45*15
4
44
Magnet
9*20*5
2
17
Alloy Wrap
Φ28*Φ16*12
4
45
Bolt
M8*35*15
1
18
Flat Washer
Φ8.2*Φ25*1.5
2
46
Inductor
600mm
1
19
Screw
M8*16
2
47
Inductor Seat
1
20
Hex Bolt
M8*45*15
2
48
Spring
Φ0.8*70
1
21
Bearing
608ZZ
4
49
Spindle
Φ10*101
1
22
Nylon Nut
M8
9
50
Screw
ST3.5*15
1
23
Screw
ST4.2*16
5
51
Flat Washer
Φ16.2*Φ28*1.5
2
24
Flange Nut
M10
2
52
Screw
ST4.2*16
4
25
End Cap
M22
2
