User Manual
Smart Portable Magnetic Under Desk Elliptical
SF-E323017
EN
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is
very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US.
1
Important Safety Information
We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly.
It is important to read this entire manual before assembling and using the equipment. Safe and effective use
can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to
ensure that all users of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using the
equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart
rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if
you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness
of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions,
you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure
safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during exercise,
discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The equipment is not suitable for therapeutic use.
10. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
11. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold, hot or
damp areas as this may lead to corrosion and other related problems.
12. This equipment is designed for indoor and home use only; it is not intended for commercial use!
Statement of Purpose
The portable elliptical is designed to offer users a compact and convenient way to engage in low-impact
cardiovascular exercise. You can use it at home, at work, or while traveling. It helps you stay active, improve
circulation, and boost fitness. Its lightweight design makes it perfect for busy lifestyles.
Waste Disposal
Sunny Health & Fitness products are recyclable. At the end of its useful life please dispose of this article
correctly and safely (local refuse sites).
EU Declaration of Conformity
You can find the declaration of conformity at the following link:
https://sunnyhealthfitness.com/pages/declaration-of-conformity
Technical Data
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5 Mhz
Transmitting Power: 0 dBm
⚠
IMPORTANT NOTE: DO NOT STAND ON THE UNIT!
2
Pre-Assembly Checklist

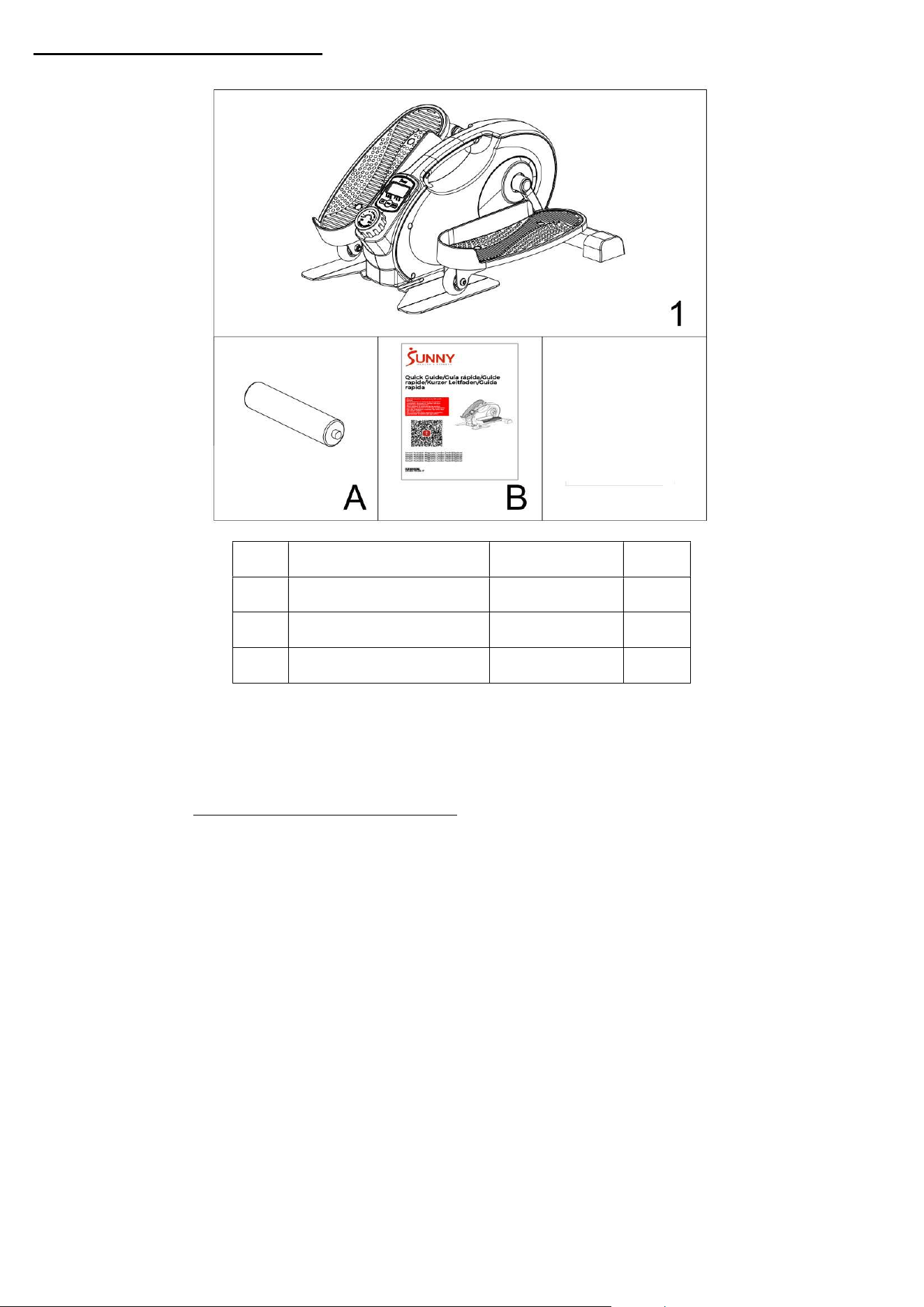

When you open the carton, you will find the following parts:
No. Description Spec. Qty.
1 Main Frame 1
A Battery AAA 2
B User Manual 1
Ordering Replacement Parts
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number
The product name
The part number
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
3
Warning Labels
4
Adjustment & Usage Guide

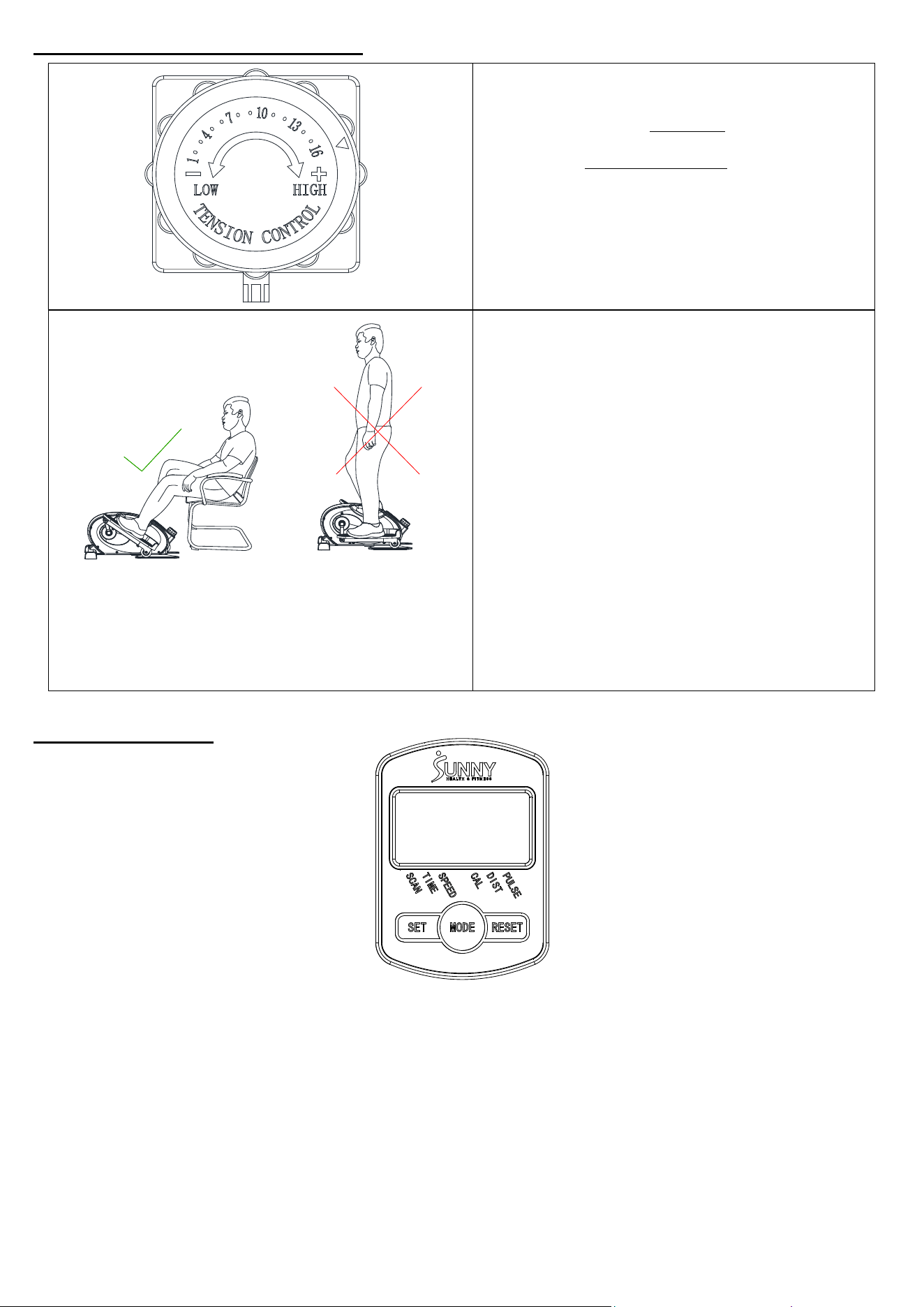

ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Control Knob (No. 9) clockwise to increase the
level of resistance. Rotate the Tension Control
Knob (No. 9) counter-clockwise to decrease the
level of resistance.
Tension levels are set at Level 1 being the lowest
and Level 16 being the highest.
USE ONLY WHILE SITTING.
DO NOT STAND ON THE
ELLIPTICAL!
WARNING!
The elliptical is intended to use in a sitting
position only, do not stand on the elliptical.
Failure to follow all warnings and instructions
could result in serious injury or death.
Exercise Meter
FUNCTION KEYS:
MODE:
1. Press the MODE key repeatedly to select the desired value (TIME/SPEED/CAL/DIST/PULSE/SCAN).
2. Hold the MODE key for 2 seconds to reset all values when the Bluetooth is not connected.
3. Press and hold the MODE key for 6 seconds to disconnect from both the SunnyFit APP and the heart rate
monitor; then, the meter will enter sleep mode.
SET: To set up the target value of TIME, DISTANCE and CALORIES when not in scan mode. You can hold the
button to increase the value fast.
RESET: Press the key to reset time, distance and calories when setting.
FUNCTIONS:
1. SCAN: Press “MODE” button until “SCAN” appears, monitor will rotate through all the 5 functions.
2. TIME: Accumulates the total time from 00:00 up to 99:59. The user may preset target time by pressing the
SET & MODE buttons. Each increase is 1 minute.
3. SPEED: Display current speed.
4. CALORIES: Accumulates calories burned during training from 0.0 to max. 999.9 calories. The user may also
preset the target calories before training by pressing the SET & MODE buttons, by increments of 1 cal.
5
5. DISTANCE: Accumulates total distance from 0.00 up to 999.9 (ML)KM. The user may preset target distance
data by pressing the SET & MODE buttons, by increments of 0.1 mile.
6. PULSE: Display current heart rate value when pulse signal detected. The data comes from the matching
Bluetooth heart rate monitor.
BLUETOOTH :
1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no Bluetooth connection is
established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will flash when the meter is on. If the heart rate monitor is not connected
within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not connected
within 1 minute, the wireless heart rate icon will turn off.
3. When the meter wakes from sleep mode, the wireless heart rate icon will flash. If the heart rate monitor is
not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit Heart Rate
Monitor HR200. HR200 can only connect to the computer when the wireless heart rate icon is flashing.
UNIT CONVERTIONS FROM IMPERIAL TO METRIC SYSTEM
Pressing the “SET” and “RESET” button together to convert Imperial/Metric System. The display will show “K”
or “M”. It's in Imperial System when “M” is displayed. It's in Metric System when “K” is displayed.
NOTE: If elliptical is converted to Metric System, speed and distance will be measured in Kilometers.
SPECIFICATIONS:
NOTE:
1. If the display is faint or shows no figures, please replace the batteries.
2. The meter will shut off automatically and disconnect the heart rate monitor if there is no activity for 4
minutes when the Bluetooth is not connected.
3. The meter will be automatically turned on when starting to exercise or push button signal in.
4. The meter will automatically start calculating when you start to exercise and will stop calculating when you
stop exercising for 4 seconds.
5. This device can be connected to a mobile app. Please refer to the app user manual for specific operation
steps. If the connection is successful, the Bluetooth icon will no longer flash.
FUNCTION
SCAN Every 6 seconds
TIME 00:00’~99:59’
SPEED 0.00~999.9 MPH or KM/H
CAL(CALORIES) 0.0~999.9 kCAL
DIST(DISTANCE) 0.00~999.9 (ML)KM
PULSE 40-240 BPM
BATTERY TYPE 2pcs of SIZE –AAA or UM –4
OPERATING TEMPERATURE 0°C ~ +40°C (+32
℉
~ +104
℉
)
STORAGE TEMPERATURE -10°C ~ +60°C (+14
℉
~ +140
℉
)
6

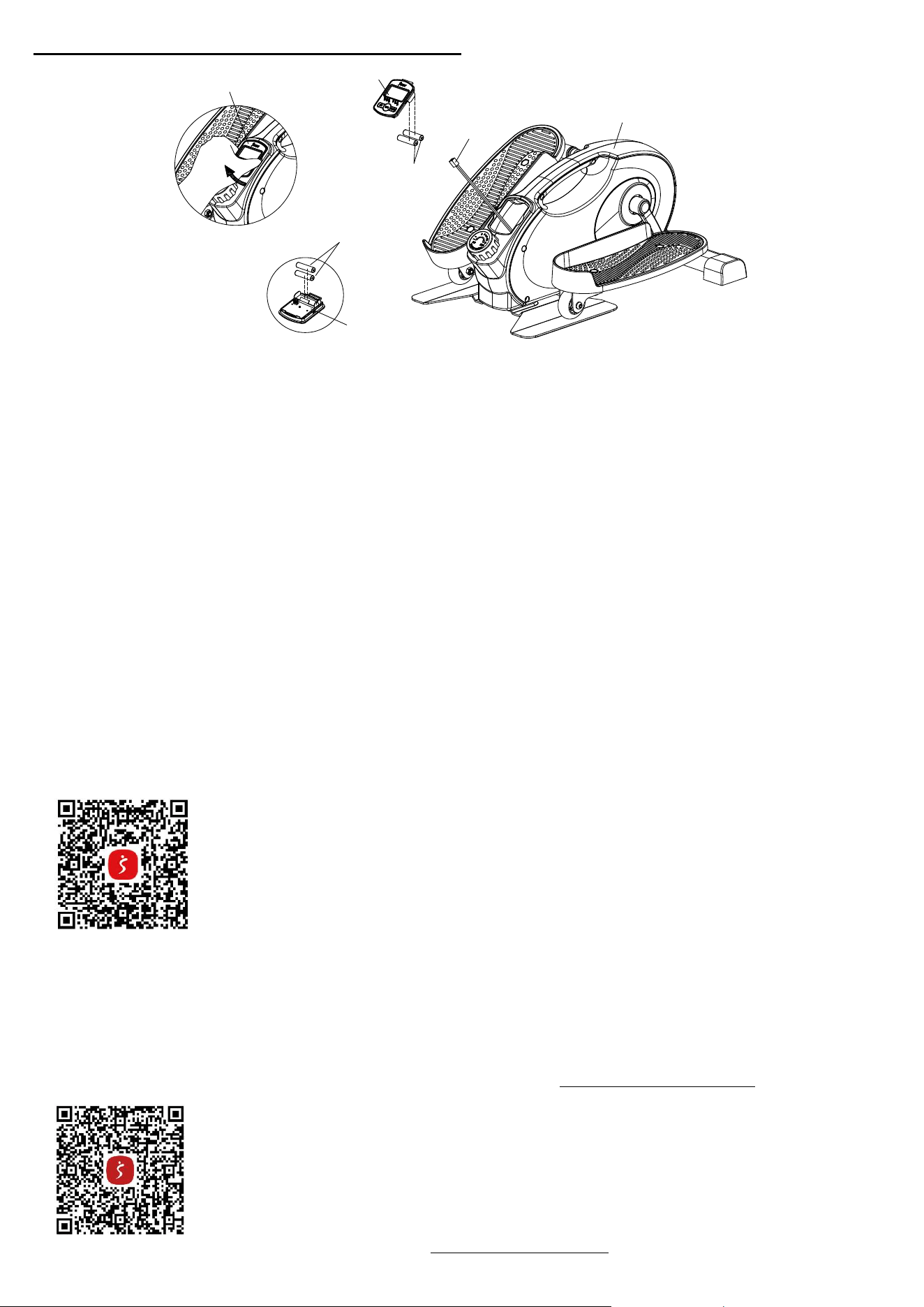

Battery Installation & Replacement
BATTERY INSTALLATION:
1. Take out 2 AAA batteries from the manual bag.
2. Remove the Meter (No. 10-2) from Main Frame (No. 1). Then disconnect the link wire of Inductor (No. 49)
with the Meter (No. 10-2).
3. Install 2 AAA batteries into the battery case on the back of the Meter (No .10-2). Pay attention to the battery
+ and – poles before installing.
4. Insert the link wire of Inductor (No. 49) into the hole on the back of Meter (No. 10-2).
5. Attach the Meter (No. 10-2) onto Main Frame (No. 1).
The installation is complete!
BATTERY REPLACEMENT:
1. Remove the Meter (No. 10-2) from Main Frame (No. 1). Then disconnect the link wire of Sensor (No. 49)
with the Meter (No. 10-2).
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the battery case on
the back of the Meter (No. 10-2). Pay attention to the battery + and – poles before installing.
3. Insert the link wire of Inductor (No. 49) into the hole on the back of Meter (No. 10-2).
4. Attach the Meter (No. 10-2) onto Main Frame (No. 1).
The replacement is complete!
NOTE: Dispose battery according to your state and regional guidelines.
APP CONNECTION
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free
SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen prompts to
search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session, and recorded
in your account profile!
TROUBLESHOOTING
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or scan the QR
code below:
If you require additional support, please contact support@sunnyfit.com.
10-2
49
BATTERIES
1
10-2
BATTERIES
10-2
7
Parts List
No. Description Spec. Qty.
No. Description Spec. Qty.
1 Main Frame 1 27 Rubber Washer Φ17*Φ21*0.4 5
2R Pedal Frame (R) 1 28 N/A N/A
2L Pedal Frame (L) 1 29 N/A N/A
3 Crank 2 30 Belt Wheel Φ200*19.5*Φ17*147.4 1
4 Magnetic Board 1 31 Belt J300 1
5 Idler Wheel Shaft 1 32 C-clip Φ17 2
6 N/A 33 Bearing 6000 2
7L Left Pedal 1 34 Screw M5*15 2
7R Right Pedal 1 35 Flat Washer Φ8.2*Φ16*1.5 2
8L Left Belt Cover 1 36 Sleeve Φ12*Φ10.2*6 1
8R Right Belt Cover 1 37 Bearing 6003RS 2
9 Tension Control Knob 500mm 1 38 Washer Φ10.2*Φ20*1.5 1
10-2
Meter 1 39 Screw M10*20*12 1
11 Inertial Wheel Φ126 1 40 Nylon Nut M10 1
12 Wave Washer Φ10.2*Φ15*0.4 1 41 Spring Φ14.5*Φ2.5*50.5 1
13 Idler Wheel Φ34*Φ10*24 1 42 Wire Clip 13.2 1/2’ 1
14 Slide Wheel Φ64*24 2 43 Flat Washer Φ6.4*Φ12*1.2 1
15 Silicone Pad 230*35*2 2 44 Screw M6*12 1
16 End Cap 70*60*41.5 2 45 Nut M5 1
17 Bolt M8*45*15 4 46 Sleeve Φ10*Φ8.2*6 4
18 Alloy Wrap Φ28*Φ16*12 4 47 Magnet 9*20*5 2
19 Flat Washer Φ8.2*Φ25*1.5 2 48 Bolt M8*35*15 1
20 Screw M8*16 2 49 Inductor 600mm 1
21 Hex Bolt M8*45*15 2 50 Inductor Seat 1
22 Bearing 608ZZ 4 51 Spring Φ0.8*70 1
23 Nylon Nut M8 9 52 Spindle Φ10*101 1
24 Screw ST4.2*16 5 53 Screw ST3.5*15 1
25 Flange Nut M10 2 54 Flat Washer Φ16.2*Φ28*1.5 2
26 End Cap M22 2 55 Screw ST4.2*16 4
8

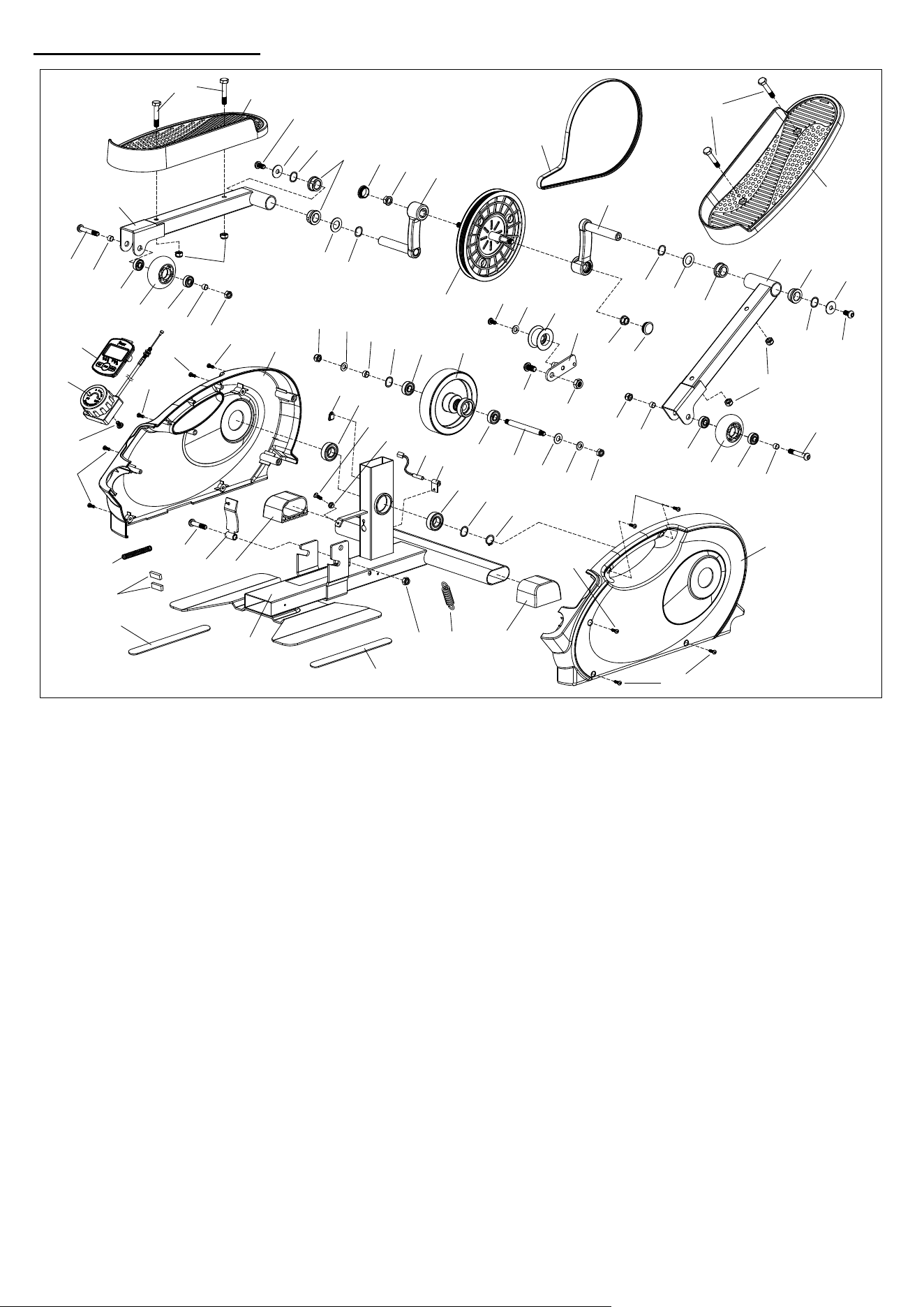

Exploded Diagram
Version 1.8
1
2L
2R
3
3
4
5
7L
7R
8L
8R
9
10-2
11
12
13
14
14
15
15
16
16
17
17
18
18
18
19
19
20
20
22
22
22
22
21
21
23
23
23
23
23
23
23
24
24
24
25
25
26
26
27
27
27
27
31
27
32
37
37
34
34
35
35
36
33
33
38
39
40
41
42
43
44
45
46
46
46
46
47
48
49
50
51
52
53
54
54
55
55
55
30
