User Manual
Handheld Steamer
Thank you for choosing Sundu 2-in-1 Handheld Steamer. We strive to achieve
the highest standards of quality and design. We hope you will be satisfied with
your new product. If you need any help, please contact our support team and
provide your product model and order number. Support and after-sales service:
PACKAGE CONTENTS
SPECIFICATIONS (US)
1x Sundu 2-in-1 Handheld Steamer
1x Heat Insulation Base
1x Heat-resistant Glove
1x Storage Bag
1x Measuring Cup
1x Instruction Manual
Model
Voltage
Power
Water Tank Capacity
Weight
LM-2401
AC120V/60Hz
1000W
100ml / 3.4oz
712g / 1.56lbs
- 01 -
PLEASE READ THE USER MANUAL CAREFULLY BEFORE
USING THE PRODUCT.
SPECIFICATIONS (UK)
Model
Voltage
Power
Water Tank Capacity
Weight
LM-2401
AC220-240V/50Hz
1200-1400W
100ml / 3.4oz
712g / 1.56lbs
English
- 02 -
GENERAL SAFETY INSTRUCTIONS
To ensure product quality, water test will be conducted before leaving the
factory. This test may result in residual water droplets in the water tank, which
is a normal occurrence, so please feel free to use it.
Before connecting to power, please carefully inspect the plug and power cord.
If the power cord is damaged, to avoid any danger, please contact
for a replacement.
Avoid using other high-power electrical appliances on the same socket to
prevent circuit overloading.
Do not disassemble the product yourself, as it may cause fire, electric shock,
or personal injury.
Do not wrap the power cord around the product handle during storage, as this
may lead to the power cord breaking or causing electric shock due to
short-circuiting.
Do not use the product while the power cord is tied up, as it may result in
electric shock or fire.
Do not immerse the product in water or other liquids to prevent damage.
This product should not be used by individuals with physical, mental
disabilities, lack of experience and knowledge (including children). There must
be a guardian supervising and guiding the use of this product, and they are
responsible for the user's safety. Keep an eye on children, ensuring they do
not play with the product, as this could lead to accidents or injuries.
Before filling with water, unplug the power plug, and ensure the power plug is
dry before using the product again.
When plugging or unplugging the plug, always hold the plug, and do not pull
the power cord or operate with wet hands.
During product operation, users should not leave. Once done, unplug the
power cord plug.
The base plate becomes very hot during product operation; do not touch to
avoid burns.
High-temperature steam is generated during product operation, which can
deform or discolor heat-sensitive clothing (such as leather jackets); therefore,
refrain from using such garments.
During product operation, exercise caution against the risk of steam splashing;
do not point the baseplate towards people to prevent burns.
During product operation, avoid the power cord coming into contact with the
product heated surfaces, like the baseplate.
Do not dismantle the water tank during product operation.
Refrain from touching the baseplate with your hands after use.
Place the product on a stable surface for use. If the product falls, shows visible
signs of damage, or leakage, discontinue use immediately.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
PRODUCT DETAILS
- 03 -
Display screen
Touch control button
Handle
Removable water tank
Ironing soleplate
Heat insulation base
Measuring cup
Storage bag
Heat-resistant glove
①
②
③
④
⑤
⑥
⑦
⑧
⑨
①
②
③
④
⑤
⑥
⑦
⑧
⑨
- 04 -
USER MANUAL

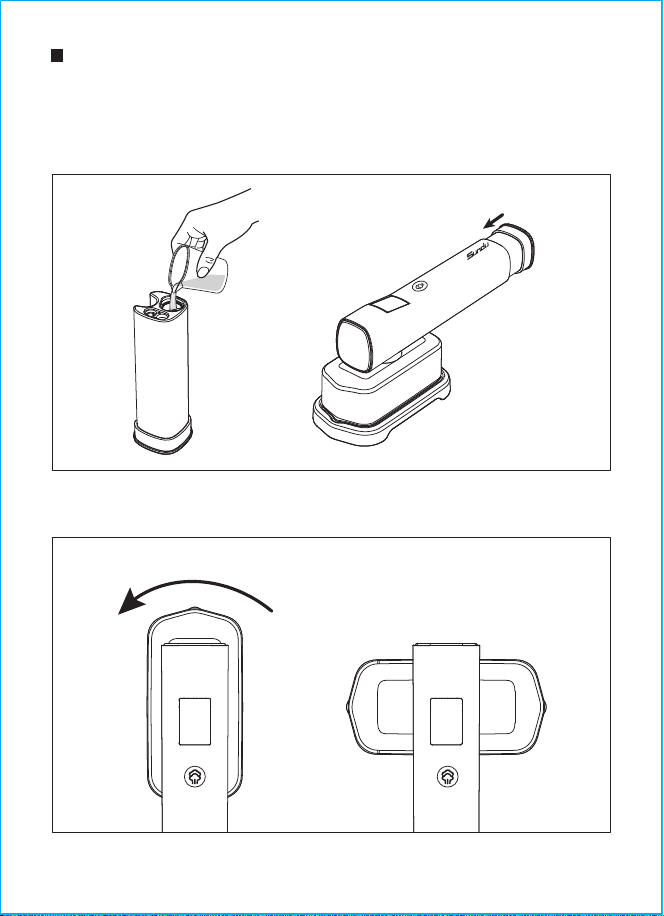

1. Fill the measuring cup with purified water, remove the water tank from the bottom,
open the water inlet cover, and pour the water from the measuring cup into the
water tank; close the water inlet cover and push the water tank back into the
device from the bottom up.
2. The top of the device can be rotated counterclockwise by 90°, please adjust
according to the needs of flat ironing or hanging ironing.
90°
- 05 -

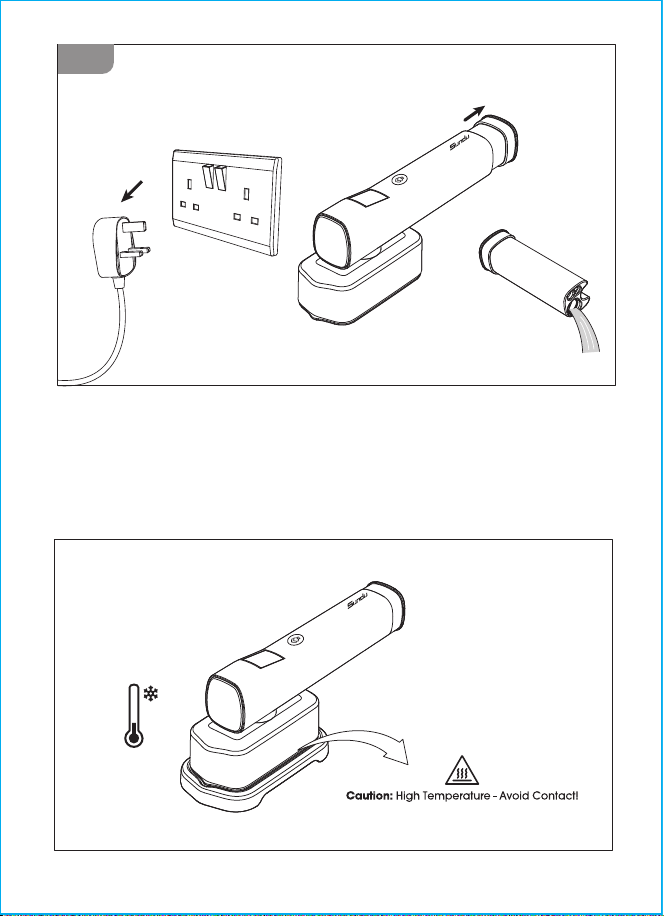

4. After use, unplug the power cord, remove the water tank, and pour out any
excess water from the tank.
3. Connect the plug to a household outlet, and the product will start to preheat
(the dry ironing icon on the display screen will blink), after preheating
is done (the dry ironing icon on the display screen changes from blinking
to steady), lightly touch the touch control button to start the steam function,
then touch again to adjust the steam level.
Dry ironing mode
level-2
Middle steam
level-1
Low steam
level-3
High steam
US
- 06 -
5. After use, the iron soleplate is still at high temperature, please do not touch it to
prevent burns, and place the device on the heat insulation base, let the ironing
soleplate cool down completely before storage.
UK
- 07 -
CLEANING AND STORAGE
DO NOT immerse the device in water or other solutions for cleaning.
DO NOT add chemicals such as vinegar, detergent, saltwater solution,
perfume, fabric softener, etc., to the water tank.
To prolong the product's lifespan, use distilled or purified water when filling the
water tank.
After ironing is complete, unplug the power cord, place the device on the heat
insulation base, and wait for it to cool down completely before storing.
Store the device in a cool, dry place to prevent children from accessing it.
WARRANTY & CUSTOMER SUPPORT
For questions, support, or warranty claims, please contact our Sundu support team
with your product model number and order number. Support and after-sale service:
Please note, we can only provide after sales service for products purchased directly
from. lf you have purchased from a different seller, please contact them directly for
service or warranty issues.
NOTE
The top part of the device is rotatable; please rotate it before connecting to
power and avoid rotating the device during heating to prevent burns.
Ensure there is water in the water tank before turning on the steam function to
prevent damage from long dry pumping by the water pump.
Only start the steam function after the device has completed preheating (the
dry ironing icon on the display screen changes from blinking to steady).
When initially using the steam function, there may be some water spraying; aim
the steam elsewhere for a few seconds before ironing.
Avoid leaving the device stationary on fabric for extended periods during
ironing to prevent damage to the clothes.
Before refilling the water tank during use, remember to disconnect the power
source.
●
●
●
●
●
●
●
●
●
●
●
