MANUAL 10058-SB REV 0 (05/22)
$21.00
ELECTRIC CABINET BASE
CONVECTION STEAMER
MANUAL SECTION CO
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #:
___________________________
Serial #:
___________________________
Date Purchased:
_____________________
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.
Model ECX-10S-24
Installation & Operation Manual
Electric
Cabinet Base Convection Steamer
ECX-2S-24, ECX-2S-36,
ECX-10S-24 & ECX-10S-36
SOUTHBEND STEAM
A Middleby Company
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
2
OF 16
Electric Cabinet Base Convection Steamer
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read
the installation, operating and maintenance instructions thoroughly before installing, operating or servicing this equipment.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Copyright © 2022 by Southbend Steam. All rights reserved. Published in the United States of America.
SPECIFICATIONS
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
CAUTION
Operating, testing, and servicing should only be performed by qualied personnel.
NOTICE
This manual should be retained for future reference.
It is recommended that this manual be read thoroughly and that all instructions be followed carefully.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
3
OF 16
Electric Cabinet Base Convection Steamer
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Important Notes For Installation and Operation .................................................................... 2
Service Connections ............................................................................................................. 4
Introduction ........................................................................................................................... 5
Installation ............................................................................................................................. 5
Operation .............................................................................................................................. 7
Periodic Maintenance ........................................................................................................... 10
Cleaning ................................................................................................................................ 12
Troubleshooting .................................................................................................................... 13
Cooking Chart ....................................................................................................................... 14
Table of Contents
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
4
OF 16
Electric Cabinet Base Convection Steamer

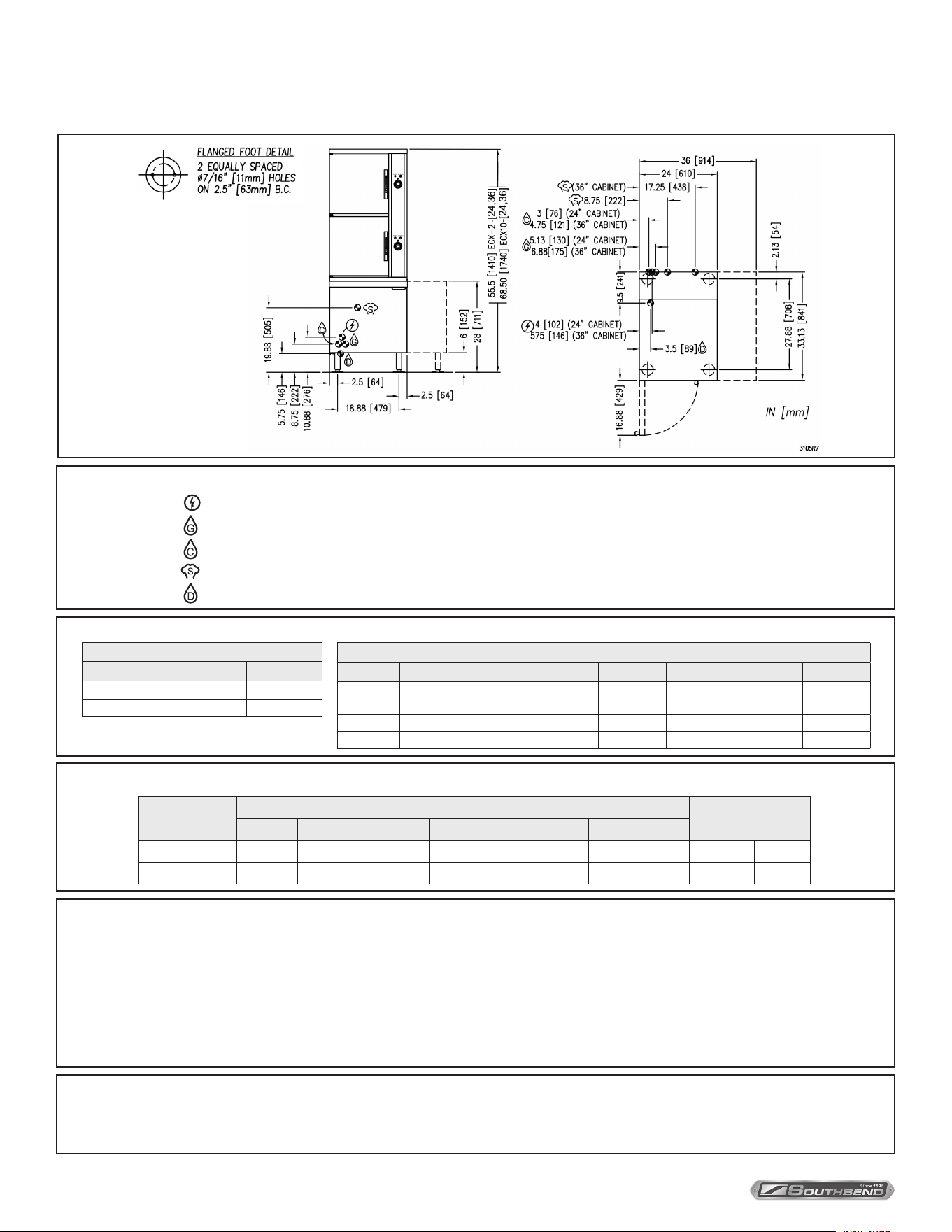

Service Connections
Service Connections
COMPARTMENT PAN CAPACITY, WEIGHT AND CLEARANCE
MODEL
Pan Depth SHIPPING WEIGHT
MINIMUM
CLEARANCE
1” 2-1/2” 4” 6” (24” Cabinet) (36” Cabinet)
ECX-2S-[24,36] 6 3 2 1 550 lbs. [249 kg] 650 lbs. [255 kg] SIDES 0
ECX-10S-[24,36] 10 5 3 2 575 lbs. [260 kg] 700 lbs. [317 kg] BACK 0
DISCLAIMER
As continued product improvement is a policy of Southbend Steam, specications are subject to changge without notice.
SERVICE CONNECTIONS
– ELECTRICAL CONNECTION: Field wiring electrical connection to be as specied on data plate.
– BOILER FEED WATER: 1/2” (13 mm) NPT at 25-50 PSI (170-345 kPa).
– CONDENSATE COLD WATER: 1/2” (13 mm) NPT at 25-50 PSI (170-345 kPa) (OPTIONAL)
– STEAM TAKE-OFF CONNECTION: 3/4” (19 mm) IPS optional to operate adjacent equipment.
– DRAIN: 2” (51 mm) IPS piped to open oor drain. No solid connection.
ELECTRICAL CHARACTERISTICS
Amps Per Line
kW Phase 208V 220V 240V 380V 415V 480V
24 3 66.6 63.0 57.8 36.5 33.4 28.9
36 3 99.9 94.5 86.6 54.7 50.1 43.3
42 3 116.6 110.2 101.0 63.8 58.4 50.5
48 3 N/A N/A 115.5 72.9 66.8 57.7
Available kW
Model Standard Optional
ECX-2S-[24,36] 24 36, 42, 48
ECX-10S-[24,36] 36 42, 48
Terry System Cartridge Changes / Installation – “2-3 gallons of water MUST be purged at each cartridge change or new installation prior to
water supply being fed to the steamer. Failure to do so can result in component damage within the steamer which is not covered under warranty.
For additional guidance on proper installation, refer to install documentation provided with each Terry System and Replacement Cartridge Set.”
WATER QUALITY STATEMENT
Water is the essential ingredient in steam equipment, water quality is the major factor aecting the performance of your appliance. Crown Steam Group oers a
Comprehensive Water Treatment System which exceeds our minimum water requirements. Proof of installation and proper cartridges replacement is required for
warranty coverage. Water supply to Crown Steam Group steamers must be within these guidelines.
Total dissolved solids.......................Less than 60 PPM Chlorine ............................Less than 1.5 PPM
Total alkalinity ........................................ Less than 20 PPM pH Factor .........................6.8 - 7.3
Silica ....................................................... Less than 13 PPM
Water which does not meet these standards should be treated with the installation of Middleby’s Water Treatment System. Call 919-762-1000 if you have questions
concerning your water meeting these parameters.
*Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
Reference www.crownsteamgroup.com for complete warranty details and instructions.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
5
OF 16
Electric Cabinet Base Convection Steamer
Introduction
Description
Models ECX-2S and ECX-10S convection steamers mounted on cabinet base electric boiler. ECX-2S steamer has a pan
capacity of 6 (2-1/2”) pans. ECX-10S steamer has a pan capacity of 10 (2-1/2”) pans.
Introduction and Installation
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking, check for possible shipping damage. If the appliance is found to be damaged, save the
packaging material and contact the carrier within 15 days of delivery.
We cannot assume responsibility for damage or loss incurred in transit.
Before installing, verify the electrical rating agrees with the specication on the rating plate.
Installation
General
The steam boiler is designed to ASME Code and approved as a steam heating boiler restricted to operation at pressure
not to exceed 15 psi.
Unpacking
Location
Position the appliance in its installation location. Check that there are sucient clearances to service the controls, door
swing, etc. Also adequate clearance must be left for making the required supply and drain connections.
Allow enough space between any other piece of equipment or wall for service access. Service to the controls may be
required on the left and/or right side panels of the cabinet.
Installation Codes and Standards
The appliance must be installed in accordance with:
In Canada: Provincial and local codes, or in the absence of local codes, with the Canadian Electric Code, CSA C22.1
(latest edition). Copies may be obtained from the Canadian Standard Association, 178 Rexdale Blvd., Etobicoke, Ontario,
Canada, M9W 1R3.
In the U.S.A.: State and local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA-
70 (latest edition). Copies may be obtained from The National Fire Protection Association, Batterymarch Park,
Quincy, MA, 02269.
Installation Instructions
Leveling And Anchoring The Cabinet
1. Place appliance in the installation position.
2. Place a carpenter’s level on top of the appliance and turn the adjustable feet to level side-to-side and front-to-back.
3. Mark hole locations on the oor through the anchoring holes provided in the rear anged adjustable feet.
4. Remove appliance from installation position and drill holes in locations marked on the oor. (See installation diagram
on page 4.) Insert proper anchoring devices (not supplied).
5. Place appliance back in the installation position.
6. Place carpenter’s level on top appliance and re-level side-to-side and front-to-back.
7. Bolt and anchor appliance securely to the oor.
8. Seal bolts and anged feet with silastic or equivalent compound.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
6
OF 16
Electric Cabinet Base Convection Steamer
Electrical Connections
WARNING
Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code and/or other local electrical codes.
WARNING
Disconnect electrical power supply and place a tag on the disconnect switch to indicate that
you are working on the circuit.
Installation
Exhaust Hood
An exhaust system should be located directly above the appliance to exhaust steam and heat generated by the appliance.
Plumbing Connections
IMPORTANT
Use copper wire suitable for at least 200 degrees Fahrenheit (90 degrees Celsius). The steamer must be
grounded. The wiring diagram is located on the inside right hand panel as you face the steamer.
WARNING
Plumbing connections must comply with applicable sanitary, safety, and plumbing codes.
Water Supply Connection
The incoming cold water supply connection, at the rear of the boiler cabinet, requires 3/8” tubing and water pressure of 25 - 50 psig.
A manual shut-o valve must be provided convenient to the boiler; this valve should be open when the boiler is in operation.
IMPORTANT
Failure or malfunction of this appliance due to poor water quality is not covered under warranty.
See Water Quality Statement (Page 4).
IMPORTANT
If your equipment was supplied with split water lines and a filter, connect the filter system to the connection
marked “BOILER FEED” only. Make a second connection to the “CONDENSER FEED” from a cold and
unfiltered water supply.
Drain Connection
The appliance drain (2” IPS) should be piped to a oor drain near the boiler (not directly under). There should be no
solid drain connection; an “open gap” between the drain pipe and the oor drain is required.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
7
OF 16
Electric Cabinet Base Convection Steamer Operation
OPERATION
Boiler Section
Electrically powered steam generators are available with standard boiler controls or ASME CSD-1 compliant controls.
In addition to the ON/OFF power switch and indicator pilot light or the standard controls, the CSD-1 controls have in
addition four more indicator pilot lights and a “Reset” switch. Follow the appropriate instructions for each.
Start-up Procedure, Standard Controls
1. Turn on water and power supply to appliance.
2. Close the manual blowdown valve if the units is not equipped with the optional automatic blowdown valve.
3. Open door of cabinet and turn on Power Switch. Pilot light will come ON and water will begin to enter boiler.
Once water level has reached the proper operating level as indicated on water gauge glass the heating elements
will be energized and heat the water. When steam pressure has reached 11 psi the elements will de-energize
and cycle on and o between 9 - 11 psi. The boiler is now ready for steam generation.
Start-up Procedure, CSD-1 Controls
1. Turn on water and power supply to appliance.
2. Close the manual blowdown valve if the units is not equipped with the optional automatic blowdown valve.
3. Open cabinet door and turn “ON” power switch.
The green pilot light will come “ON.” Water will begin to enter the boiler. When enough water has entered the
boiler the (red) “Low Water” pilot will come on for approximately 10 seconds and then the (amber)”Standby” pilot
light will come.
4. Press the “Reset” switch to begin boiler operation.
The “Standby” pilot light will go o and the boiler will begin operation. When steam pressure has reached 11 psi the
elements will de-energize and cycle on and o between 9 - 11 psi. The boiler is now ready for steam generation.
Normal Boiler Operating Cycle
Water Fill Cycle
On the initial filling of the boiler, units equipped with CSD-1 controls require that the “Reset” switch be pressed to
initialize the safety lockout circuit. Once the water in the boiler has reached proper level, the level control will stop
the flow of water to the boiler. As water is consumed in the production of steam, the level control will supply and
maintain safe water level in the boiler.
Firing Cycle
The elements are operated by pressure sensing devices. On initial operation, the boiler should reach 11 psi in
approximately 15 minutes. At this point the operating pressure switch will open, de-energizing the elements. When
the pressure drops to 9.0 psi, the pressure switch closes, energizing the elements.
Condensing Drain, (Optional)
A thermostat is located in the drain assembly and is activated by the temperature of steam. The thermostat
operates the cooling solenoid, supplying water to the drain to condense the steam.

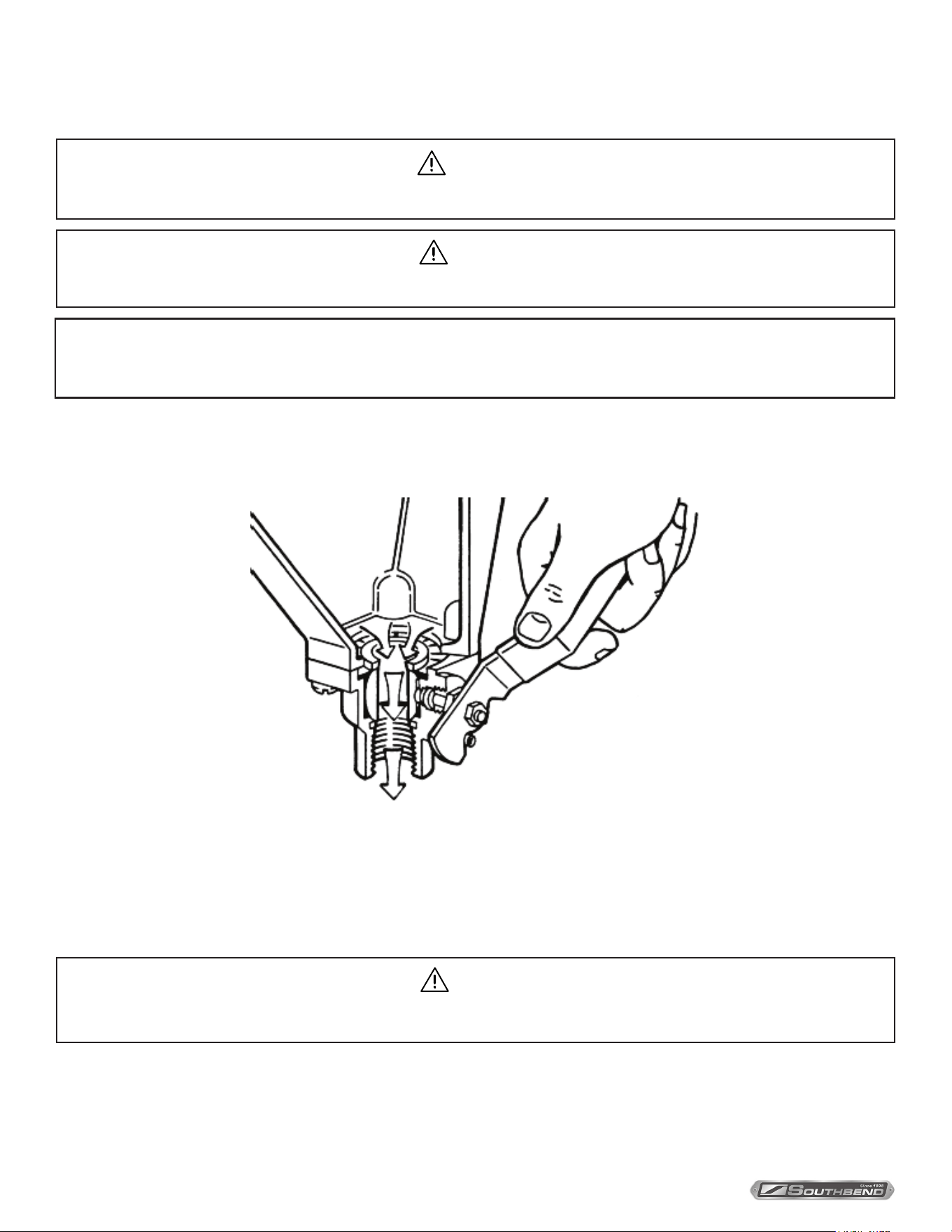

Automatic Blowdown Valve, (Optional)
If the unit has an automatic blowdown valve, it is activated when the main power switch is turned “ON”. The boiler
will drain when the main power switch is turned “OFF.”
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
8
OF 16
Electric Cabinet Base Convection SteamerOperation
Safety Lockout Conditions
High Temperature Condition, Standard Controls
A high temperature safety device is installed on the boiler. Should the temperature exceed the limit of this device, the
boiler will be shut down. As the temperature returns to a safe level, normal boiler operation will resume.
High Temperature Condition, CSD-1 Controls
A high temperature safety device is installed on the boiler. Should the temperature exceed the limit of this device, the
boiler will be shut down and switch to a state of lockout. The “Temperature” pilot light (red), and the “Standby” pilot
(amber), will come on.
High Pressure Condition, CSD-1 Controls
A high pressure safety switch is installed on the boiler. Should the pressure exceed the limit of this device, the boiler will
be shut down and switch to a state of lockout. The “Pressure” pilot light (red), and the “Standby” pilot (amber), will come
on. Should this device fail to operate, the safety relief valve will open.
Low Water Condition, Standard Controls
A low water safety cut o is supplied with the boiler. Should the water level fall below normal operating levels, the boiler
will shut down. If the water level is returned to a safe level, normal boiler operation will resume.
Low Water Condition, CSD-1 Controls
A second low water safety cut o is supplied with the boiler. Should the water level fall below normal operating levels, the
boiler will shut down and switch to a state of lockout. The “Low Water” pilot light (red), and the “Standby” pilot (amber) will
come on.
Shut Down
Turn o power switch, open manual drain valve. If unit is equipped with automatic blowdown valve, it will open and drain
the boiler.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
9
OF 16
Electric Cabinet Base Convection Steamer Operation
Cooker Section
CAUTION
An obstructed drain can cause personal injury or property damage.
CAUTION
Live steam and accumulated hot water in the compartment may be released when the door is opened.
IMPORTANT
Each compartment is equipped with a removable drain screen. Frequently check the drain screen for
accumulation of food particles. Should food particles accumulate against, or clog the drain screen, remove it,
clean it thoroughly and then replace it in its original position.
Start-up procedures for your steamer must be completed once daily prior to operation (see instruction plate or above for
boiler start up procedures).
With ready pilot light on, preheat steamer compartment for one minute when the steamer is to be rst used for the day or
whenever the compartment is cold.
1. Close compartment doors and set timer to “1 minute”.
2. When buzzer sounds, set timer to the “OFF” position.
3. Steamer is now ready for cooking.
4. With cooking compartment preheated and ready pilot light on, place pans of food to be cooked into compartment and
shut door.
5. Set timer to cooking time desired. Cooking cycle may be interrupted at any time by opening door and resumed again
by closing door.
6. When buzzer sounds, it indicates the end of the cooking cycle and that no more steam is entering the compartment.
Cooking pilot light will go o and ready pilot light will come on. Buzzer must be shut o by turning the timer to its o
position.
Frequently check that the compartment drain and plumbing is free of all obstructions. Never place food containers, food or
food portion bags in the cooking compartment in such a way that the compartment drain becomes obstructed.
Shut Down
1. To shut down cooking compartment, set timers to their OFF position and leave doors slightly open.
2. At the end of the day, the steam supply must be shut o. Open the door of cabinet base and turn o power switch.
Open manual drain valve. If unit is equipped with automatic blowdown valve, it will open and drain the boiler.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
10
OF 16
Electric Cabinet Base Convection SteamerPeriodic Maintenance
Periodic Maintenance
IMPORTANT INSTRUCTIONS
Be sure to flush your boiler water level control daily. Failure to follow this procedure can cause the control to
malfunction resulting in serious boiler damage.
CAUTION
SCALD HAZZARD. Protect yourself. When ushing control, hot water and steam will ow out of the drain.
The Boiler Water Level Control installed on your boiler requires periodic maintenance. As boiler water circulates
into the float chamber, sand, scale and other sediment may be deposited in the float chamber. While the chamber
has been designed with a large accumulation bowl, it is necessary to flush the sediment from the chamber by
blowing down the control so that the accumulation of sediment does not interfere with the movement of the float in
the control. Control must be flushed at least once a day.
Descaling Boiler
WARNING
Disconnect the unit from the power supply before cleaning or servicing appliance.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Refer to warranty terms.
It is recommended that the boiler be checked every 90 to 120 days for scale build up. Regular maintenance should be
carried out at this time.
1. With boiler empty, close manual blowdown valve. If appliance is equipped with automatic blowdown, turn water supply
OFF to appliance. Turn power switch ON. This will energize and close the blowdown valve.
2. Remove 3/4” pipe plug from tting on left front of boiler.
CAUTION
Take extra caution when blowing down water level control or tripping safety valve as extreme hot water and live
steam are present.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
11
OF 16
Electric Cabinet Base Convection Steamer Periodic Maintenance
3. Insert appropriate hose or tube through tting and pour in (1/2) half gallon (US) of CLR Descaling Solution or use the
Optional Deliming Assembly DPA-1 available from your dealer.
4. Replace 3/4” pipe plug securely.
5. Open water supply to appliance allowing water to ll boiler to required level.
6. Let appliance cycle. Allow two hours for descaling and cleaning. DO NOT TURN ON STEAM to the compartments.
7. Open both the blowdown and low water level control valves for complete drainage and then close both valves.
8. Turn appliance switch ON. When boiler is completely lled turn power switch OFF. This will rinse and drain boiler.
Appliance with manual blowdown valve must be opened to drain.
9. Complete Step 8 twice to assure boiler is completely rinsed.
10. Appliance is now ready for use.
Adjustments
NOTICE
Pressure switches are factory set. Calibration is only required if pressure switches are replaced or if adjustment is
required. Pressure switch range is from 1 to 15 psi.
Adjust all settings to maximum on high signal adjustment screw on pressure switches.
Adjust in the following sequence:
- High limit pressure switch.
- Override pressure switch.
- Operating pressure switch.
- Turning screw clockwise to increase, counterclockwise to decrease pressure.
- Use relief valve to release pressure from boiler for setting adjustments.
1. HIGH LIMIT PRESSURE SWITCHES
Allow pressure to build until unit shuts o. This should occur at 15 psi. Set the high signal to switch at 14.5 psi on the
gauge and the low signal to 13.0 psi.
2. OVERRIDE PRESSURE SWITCHES
Allow pressure to increase to 13 psi. Set the high signal to switch at 13 psi on the gauge and the low signal to 11 psi.
3. OPERATING PRESSURE SWITCHES
Set the high signal to switch at 11 psi on the gauge and the low signal to 9 psi.
4. Release pressure in boiler to below 9 psi. Elements will come on. Once pressure has reached 11 psi, elements will
shut o. Repeat this process several times to make sure elements come on at 9 psi and shut o at 11 psi.
Once completed, pressure switches have been calibrated.
Should your unit not have the High Limit pressure switch, start procedure at Override pressure switch.
Service
Contact your local authorized service oce for any repairs or adjustments needed on this equipment.
IMPORTANT
At least twice a year have an authorized service person clean and adjust the unit for maximum performance.
To Calibrate Pressure Switches
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
12
OF 16
Electric Cabinet Base Convection SteamerCleaning
Cleaning
CAUTION
Do not use cleaning agents that are corrosive.
1. Keep exposed cleanable areas of unit clean at all times.
2. Thoroughly wash oven cavities, door liners, and pan racks at the end of each day or as required with a mild detergent
and water to prevent bacterial growth and odours.
3. Remove drain screens from inside compartment drains. Using a plastic bottle brush and mild detergent, clean inside
the drain opening ensuring there is no food residue or blockage. Clean the drain screen and replace in its original
position.
4. Wash gasket sealing surface with mild detergent to remove harmful food acids and rinse.
5. Water level control should be opened daily to blow down sediment and scalant.
WARNING
Never spray water into electric controls.
CAUTION
Live steam and accumulated hot water in the compartment may be released when the door is opened.
WARNING
Disconnect the unit from the power supply before cleaning or servicing appliance.
CAUTION
Take extra caution when blowing down water level control or tripping safety valve as extreme hot water and live
steam are present.
6. Observe that the water in gauge glass is clean and clear. Extreme murkiness in water indicates inadequate water
quality.
7. Safety valve should be tripped during operation once a week to assure that it functions properly.
8. Keep all exposed cleanable areas of unit clean at all times. DO NOT GET WATER IN ELECTRICAL BOX OR ANY
ELECTRICAL COMPONENTS.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
13
OF 16
Electric Cabinet Base Convection Steamer
Troubleshooting
NOTICE
At least twice a year have an authorized service person clean and adjust the unit for maximum performance.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
Refer to warranty terms.
Door Leaks
1. Check for damage to door gasket.
Water Accumulates In The Compartment
1. Compartment drain screen clogged. Remove and clean thoroughly and then replace.
Water Not Being Supplied To Boiler
1. Water supply is “OFF”.
2. Defective water ll solenoid.
3. Water level control clogged or defective, unable to operate ll valve.
4. Check drain valve is closed. Also check that water level control valve is closed.
5. Supply water pressure too low.
Automatic Blowdown Valve Does Not Drain
1. Defective Blowdown valve.
2. Heat exchanger build up of scalant clogging drain lines and valve.
Boiler Achieves Pressure Slower Than Normal
1. Heavy build up of lime on elements.
2. Loose element connections.
Safety Valve Blows
1. Defective safety valve.
2. Pressure too high. Pressure switch requires adjustment (lower) or may be defective.
Troubleshooting
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
14
OF 16
Electric Cabinet Base Convection Steamer
PRODUCT TIMER SETTING (MINUTES) WEIGHT PER PAN
Eggs, Scrambled 10 - 12 8 Dozen
Rice, Long Grain
(Cover with 4 cups water per pound.)
25 2 lb.
Pasta (Place perforated pan inside solid
pan,cover pasta with cold water.)
Spaghetti, Regular/Vermicelli
Macaroni, Shells/Elbows
Noodles, 1/2” wide
Lasagna Noodles
12 - 15
15 - 18
12 - 15
15 - 18
Frozen Casseroles, Lasagna 35 Full Pan
Meat Loaf, 3 - 5 pounds each 40 15 lb.
Beef
Ground Chuck
Sliced as Purchased
20 - 25
35 - 40
10 lb.
10 lb.
Shrimp, Frozen, 10 per pound 5 4 lb.
Beans
Baked
Refried
9
9
10 lb. Can
10 lb. Can
Canned Vegetables 6 10 Lb Can
Prunes, Dried 12 to 15
Clams
Frozen
Fresh, Cherrystone
10 - 12
5 - 6
3 Doz.
3 Doz.
King Crab, Frozen
Claws
Legs
4
4 - 6
2-1/2 lb.
4-1/2 lb.
Lobster Tail, Frozen
Lobster, Live, 10 - 12”
6
5
10 lb.
4 Per Pan
Salmon Fillets, Frozen, 8 ounces each 5 7-1/2 lb.
Scallops, Fresh 4 3 lb.
Scrod Fillets, Fresh 3 - 5 4 lb.
Eggs
Hard Cooked
Soft Cooked
Soft Yolk for Caesar Salad
15
9 - 10
6 - 8
4 Doz.
4 Doz.
4 Doz.
Chicken - Breasts, Legs, Thighs 20 15 lb.
Turkey, Frozen
Breasts (2)
Cut Lengthwise
90
55
6 - 7 lb. Each
20 - 25 lb.
Corned Beef 40 - 75 6 - 8 lb.
COOKING CHART
The following table lists suggested cooking times and weights. These times, which will vary depending on initial product
temperature, size, shape, etc., are approximate and should be adjusted to suit your operation.
PRODUCTS TO BE COOKED IN SOLID PANS
Cooking Chart
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
15
OF 16
Electric Cabinet Base Convection Steamer Cooking Chart
PRODUCT TIMER SETTING (MINUTES) WEIGHT PER PAN
Hot Dogs or Wieners 3 80 - 100 Count
Asparagus Spears
Frozen
Fresh
10 - 12
5
3 Doz.
5 lb.
Beans
Green, 2” Cut, Frozen/Fresh
Lima, Frozen
Baby Lima, Frozen
6
8
5
5 lb.
5 lb.
5 lb.
Broccoli
Spears, Frozen
Spears, Fresh
Florets, Frozen
8
6
6
4 lb.
5 lb.
5 lb.
Brussel Sprouts, Frozen 6 5 lb.
Cabbage, Fresh, 1/6 Cut 8 5 lb.
Carrots
Baby Whole, Frozen
Crinkle Cut, Frozen
Sliced, Fresh
8
7 - 8
11
7 lb.
4 lb.
9 lb.
Cauliower, Flowerettes
Frozen
Fresh
6
7 - 8
4 lb.
5 lb.
Celery, 1” Diagonal Cut 7 5 lb.
Corn
Yellow Whole Kernel, Frozen
Cobbettes, Frozen
Corn-On-Cob, Fresh
5
8
16 - 18
10 - 12
16 - 18
5 lb.
27 Ears
80 Ears
18 Ears
54 Ears
Peas, Green 6 5 lb.
Potatoes, Whole Russet 55 10 lb.
Spinach
Chopped, Frozen
Defrosted
Fresh Cut
17
5
3
6 lb.
6 lb.
2 lb.
Squash, Acorn Halves 25 10 Halves
Zucchini, Slices 8 10 lb.
Frozen Mixed Vegetables 6 - 7 5 lb.
Fruit, Blanch for Peeling,
Grapefruit
Oranges
3
Pineapple, Whole for Cutting 4
Cooking Hints
Where possible, spread food out evenly in pans. Do not allow food to protrude above pans, since this will interfere with
steam circulation between pans in the compartment.
Always preheat compartments for satisfactory results. When time does not allow for defrosting of frozen vegetables, such
as loose-pack peas, corn, diced carrots, etc., they may be cooked at once provided just half of the suggested portions in
the cooking chart are used.
INSTALLATION & OPERATION MANUAL 10058-SB REV 0 (05/22)
PAGE
16
OF 16
Electric Cabinet Base Convection Steamer
ECX-2S-24, ECX-2S-36,
ECX-10S-24 & ECX-10S-36
Electric
Cabinet Base Convection Steamer
A product with the Southbend Steam name incorporates the best in durability and low maintenance. We all recognize,
however, that replacement parts and occasional professional service may be necessary to extend the useful life of this
appliance. When service is needed, contact a Southbend Steam Authorized Service Agency, or your dealer. To avoid
confusion, always refer to the model number, serial number, and type of your appliance.
SOUTHBEND STEAM
A Middleby Company
1100 Old Honeycutt Road Fuquay-Varina, North Carolina 27526 USA
www.southbendnc.com
