User Manual
Handheld Steamer
Thank you for choosing Sundu. We are committed to upholding the highest
standards of quality and design, and we hope you derive immense satisfaction
from your new product. If you require any assistance, please reach out to our
support team with your product model number and order number. We are here to
provide support and after-sales service. Contact us at
PACKAGE CONTENTS
SPECIFICATIONS
1x Sundu Upgraded 2-in-1 Steam Garment Steamer
1x Insulated Base
1x Heat-resistant Gloves
1x Storage Bag
1x Instruction Manual
US Model
UK Model
Voltage
Power
Water Tank Capacity
Weight
LDYD-1002(WA)
LDYD-1002(WB)
AC110V-240V 50Hz-60Hz
900W-1100W
80mL
896g
- 01 -
PLEASE READ THE USER MANUAL CAREFULLY BEFORE
USING THE PRODUCT.
English
- 02 -
GENERAL SAFETY INSTRUCTIONS
To ensure product quality, the machine undergoes a water test before leaving the
factory. This test may result in residual water droplets in the water tank, which is a
normal occurrence. Please feel confident in using the product.
Before connecting to the power supply, please carefully inspect the plug and
power cord. If the power cord is damaged, for your safety, please contact us at
for a replacement.
It is prohibited to use other high-power appliances on the same socket to prevent
circuit overload.
Do not attempt to disassemble the product by yourself, as it may result in fire,
electric shock, or personal injury.
It is strictly forbidden to wrap the power cord around the product handle when
storing it, as it may cause the power cord to disconnect, resulting in electric shock
or fire due to a short circuit.
Do not use the product while the power cord is tightly bound, as it may result in
electric shock or fire.
It is strictly prohibited to immerse the product in water or any other liquids to avoid
damaging the product.
This product should not be used by individuals with physical, sensory, or mental
disabilities, or by individuals lacking experience and knowledge (including
children). It must be used under the supervision and guidance of a responsible
adult who assumes responsibility for the user's safety. Children should be closely
supervised to ensure they do not play with the product, as it may result in
accidents or injuries.
Before filling the water tank, unplug the power plug and ensure it is dry before
using the product again.
When plugging or unplugging the power plug, always hold the plug itself and
avoid pulling the power cord or handling it with wet hands.
During operation, the user must not leave the product unattended. After use,
please unplug the power cord.
The base of the product becomes very hot during operation. Do not touch it to
avoid burns.
The high-temperature steam generated during operation may cause deformation
or discoloration of heat-sensitive clothing items (such as leather jackets). Do not
use the product on such items.
Take precautions to prevent the risk of steam splashing during operation. Do not
aim the base towards people to avoid scalding.
During operation, ensure that the power cord does not come into contact with hot
surfaces of the machine, such as the base.
Do not disassemble the water tank during operation.
Do not touch the base with your hands after use.
Place the product on a stable and flat surface for use. If the product falls, shows
visible signs of damage, or exhibits leakage, it should not be used further.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
PRODUCT STRUCTURE
- 03 -
Display Screen
Power On/Off Button
Mode Switch Button
Handle
Removable Water Tank
①
②
③
④
⑤
Ironing Plate
Heat-Resistant Storage and Dual-Use Base
Measuring Cup
Heat-Resistant Glove
Storage Bag
⑥
⑦
⑧
⑨
⑩
①
②
③
④
⑤
⑥
⑦
⑩
⑧
⑨
- 04 -
USER MANUAL

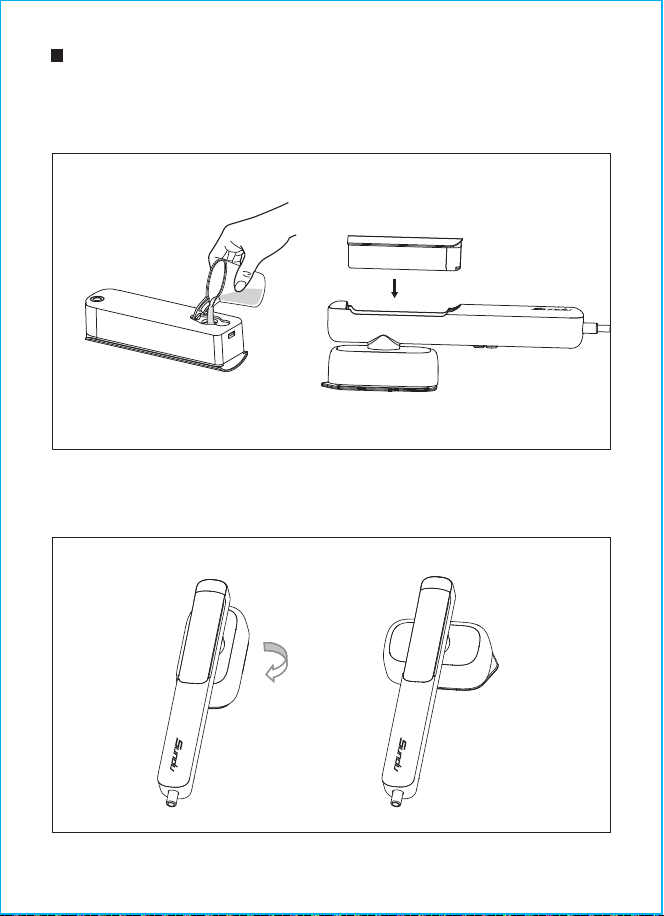

1. Use the measuring cup to fill 80ml of distilled water. Take out the water tank, open
the water inlet cover, and pour the water from the measuring cup into the water
tank. Close the water inlet cover and install the water tank into the device.
2. The head of the device can be rotated 90° clockwise. Adjust it according to your
needs for flat ironing or steaming before connecting to the power source.
90°
- 05 -

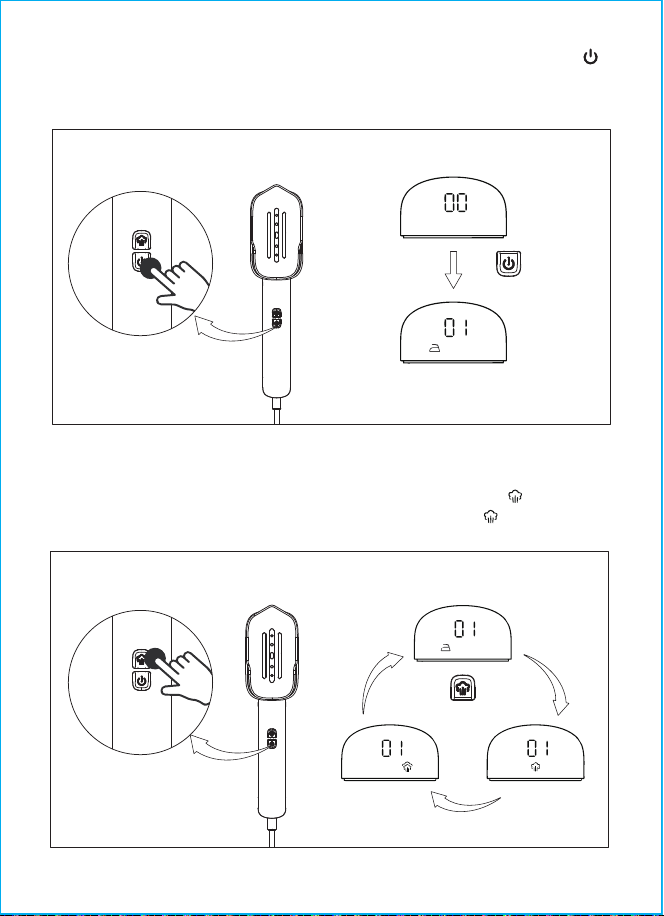

3. Plug the power cord into a household outlet. Press the power on/off button
briefly, and the product will start preheating (the dry iron temperature icon on
the display screen will blink).
4. After the preheating is complete (the 01 (320°F) icon on the display screen
changes from blinking to steady), press the mode switch button briefly to
activate low steam mode, and press the mode switch button again to switch
to high steam mode.
Short press
Short press
Standby
01(320°F)Dry Ironing Mode
- 06 -

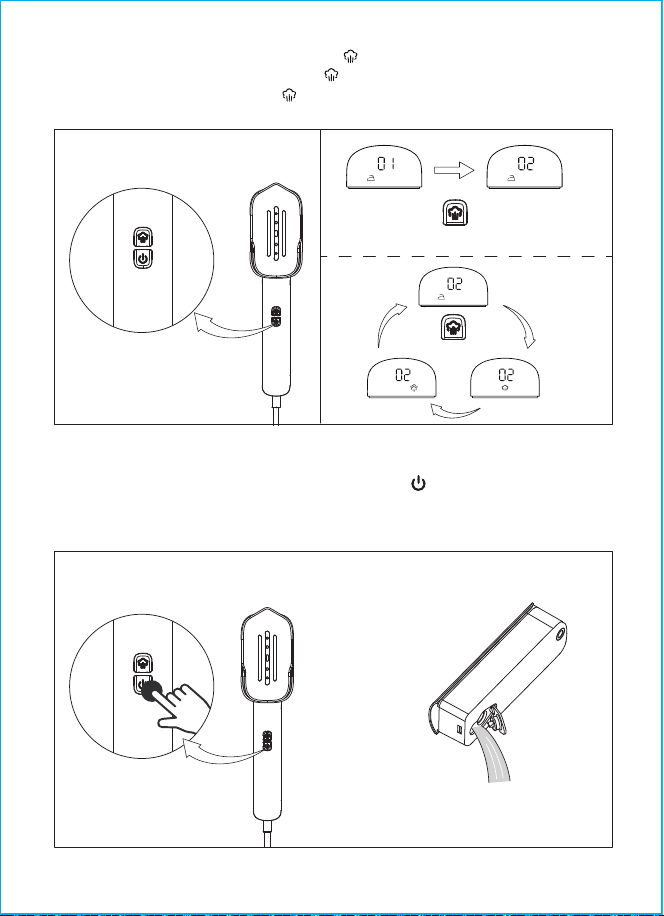

6. After use, press and hold the power on/off button , unplug the power cord,
and empty any remaining water from the water tank.
5. Press and hold the mode switch button to switch to 02 (356°F) temperature
level. Press the mode switch button briefly to activate low steam mode, and
press the mode switch button again to switch to high steam mode.
Long press
Short press
- 07 -
7. If no buttons are pressed for operation, the device will automatically shut
down after 20 minutes to prevent safety accidents.
8. Place the device on the heat-resistant base and wait for the ironing plate to
cool down before storing it.
NOTE
The head of the device is rotatable. Please perform the rotation operation before
connecting it to the power source. Do not rotate the device during the heating
process to avoid burns.
Before activating the steam function, ensure there is water in the water tank to
prevent damage to the water pump due to prolonged dry pumping.
Please activate the steam function after the device has finished preheating (the
temperature icon on the display screen changes from blinking to steady at 01).
When initially activating the steam function, there may be a small amount of water
spraying. Direct the steam away from the fabric for a few seconds before starting
the ironing process.
During the ironing process, do not leave the device placed on fabric for an
extended period without moving it to avoid damaging the clothes.
When adding water to the water tank during use, make sure to disconnect the
power source first.
●
●
●
●
●
●
- 08 -
CLEANING AND STORAGE
DO NOT immerse the device in water or any other liquid for cleaning.
DO NOT add vinegar, dishwashing detergent, saltwater solution, perfume,
fabric softener, or any other chemicals into the water tank.
To prolong the product's lifespan, use distilled water or purified water when
filling the water tank.
After ironing, unplug the power cord and place the device on a heat-resistant
base. Allow the device to cool down before storing it.
Store the device in a cool and dry place, out of reach of children.
WARRANTY & CUSTOMER SUPPORT
For questions, support, or warranty claims, please contact our Sundu support team
with your product model number and order number. Support and after-sale service:
Please note, we can only provide after sales service for products purchased directly
from. lf you have purchased from a different seller, please contact them directly for
service or warranty issues.
●
●
●
●
●
