DVER 1.1
RFE-YK5AC learning code remote control
The XYK-YK5AC learning code
remote control, designed based on the
RFE527D Manchester encoding chip and ASK
wireless transmission chip, is a radio
frequency remote control featuring high
stability, low cost, button triggering, and millions of
address code combinations. It boasts high stability and low
power consumption.

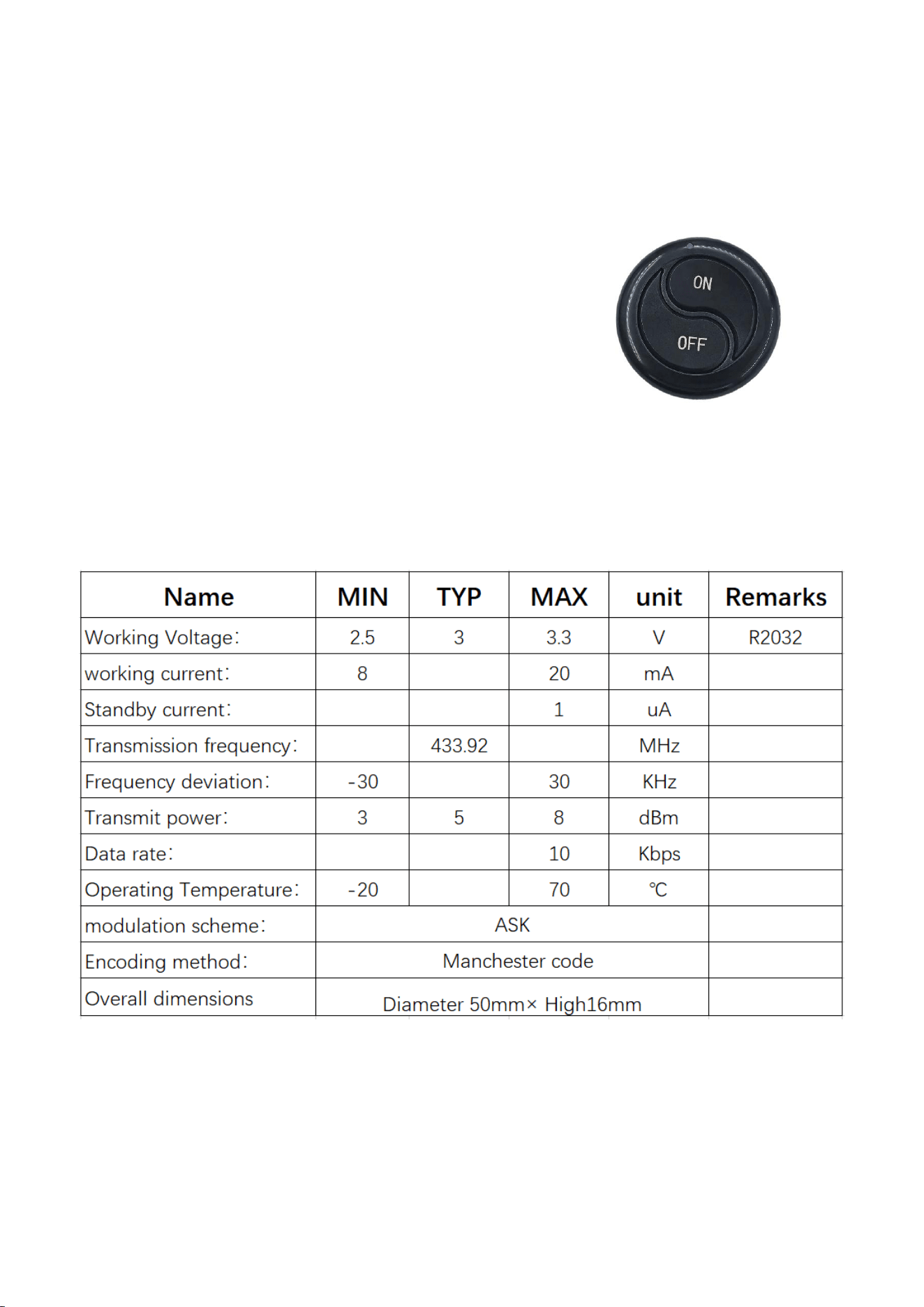

Main Parameters：
Key-value description：
ON KEY：08
OFF KEY：04
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference. (2) This device must
accept any interference received, including interference that
may cause undesired operation.
Note: The grantee is not responsible for any changes or
modifications not expressly approved by the party responsible
for compliance. Such modifications could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
