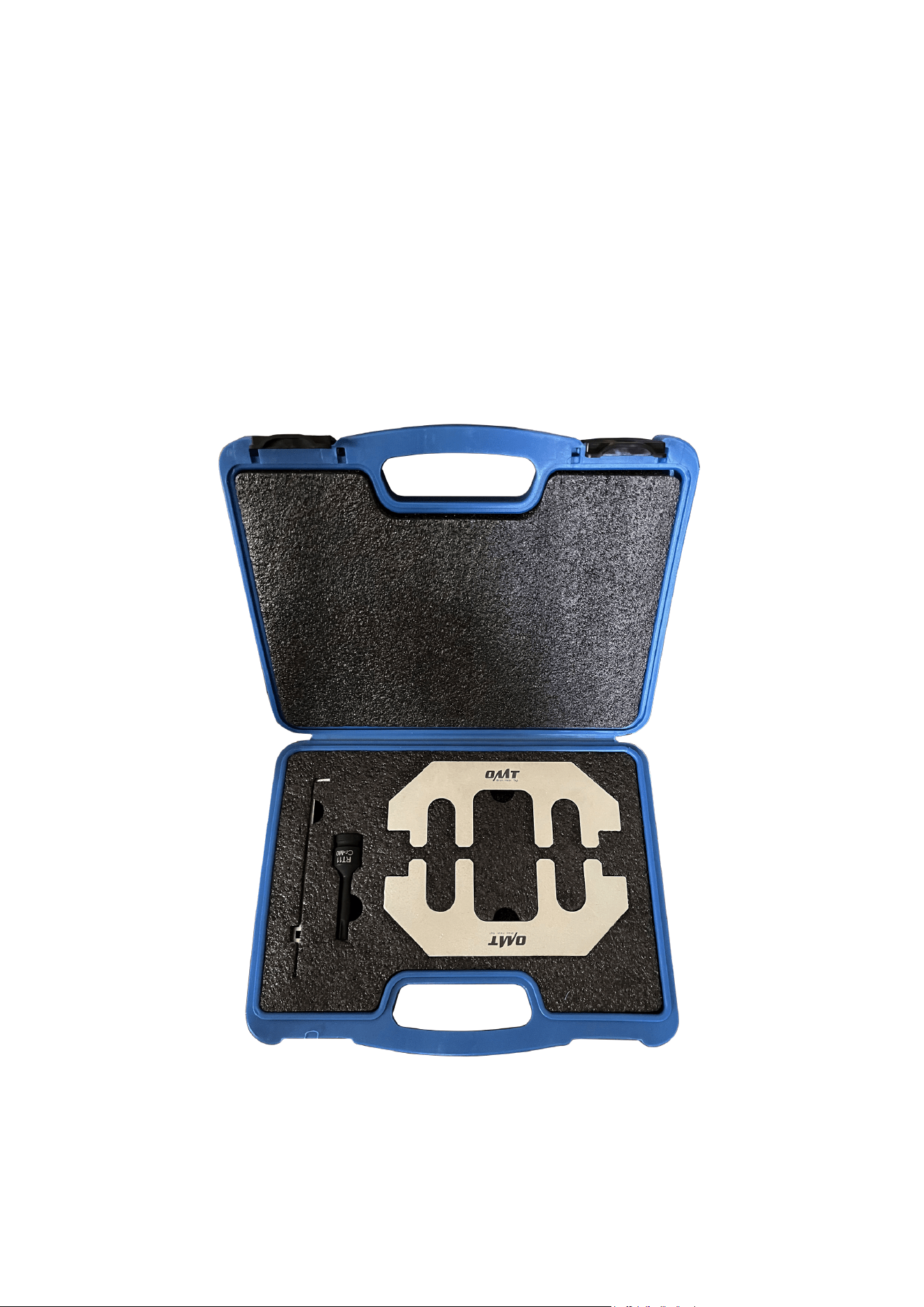

ENGINE CAM TOOL KIT
INSTRUCTIONS
Read Carefully Before Use
Keep for Future Reference
V20221209
1
SAFETY INFORMATION
• Use these tools ONLY in accordance with these instructions and for their intended purpose
of servicing engine camshafts.
• Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Keep children and bystanders away while using these tools.
• DO NOT use these tools while you are tired or under the inuence of drugs, alcohol, or
medication.
• Use the appropriate safety equipment for your job. Wear ANSI and OSHA-approved eye
protection and heavy-duty work gloves when using these tools.
• DO NOT wear loose clothing or jewelry while using these tools. Keep your hair, clothing,
and gloves away from any moving parts.
• Prior to servicing a vehicle, turn o its engine and refer to its manufacturer's service and
repair manual for instructions on how to safely secure the vehicle in place with chocks,
jacks, stands, etc.
• Keep careful track of the exact placement of each part during removal and replacement.
• DO NOT allow people unfamiliar with these tools or these instructions to operate it.
• DO NOT overreach. Keep proper footing and balance at all times.
• Maintain these tools. Check for misalignment or binding of parts, breakage of parts, and
any other condition that may aect these tools’ operation. If these tools become damaged,
have them repaired before further use.
Warning!
SPECIFICATIONS
Material 45# Steel, Chromoly Steel
Camshaft Holding Tools
Dimensions 7.4×2.8×0.5 in. 18.7×7.2×1.2 cm
Net Weight 1.5 lb. 0.7 kg
Chain Tensioner Holder Tool
Dimensions 5.9×0.6×0.1 in. 15×1.4×0.3 cm
Wrench Fitment ½ in. 12.7 mm
Net Weight 0.3 oz. 10 g
Camshaft Phaser Bolt
Removal Socket
Dimensions 3.1×1×1 in. 7.8×2.5×2.5 cm
Net Weight 3.9 oz. 110 g
Storage Box Dimensions 12.7×9.7×3.1 in. 32.3×24.7×8 cm
2

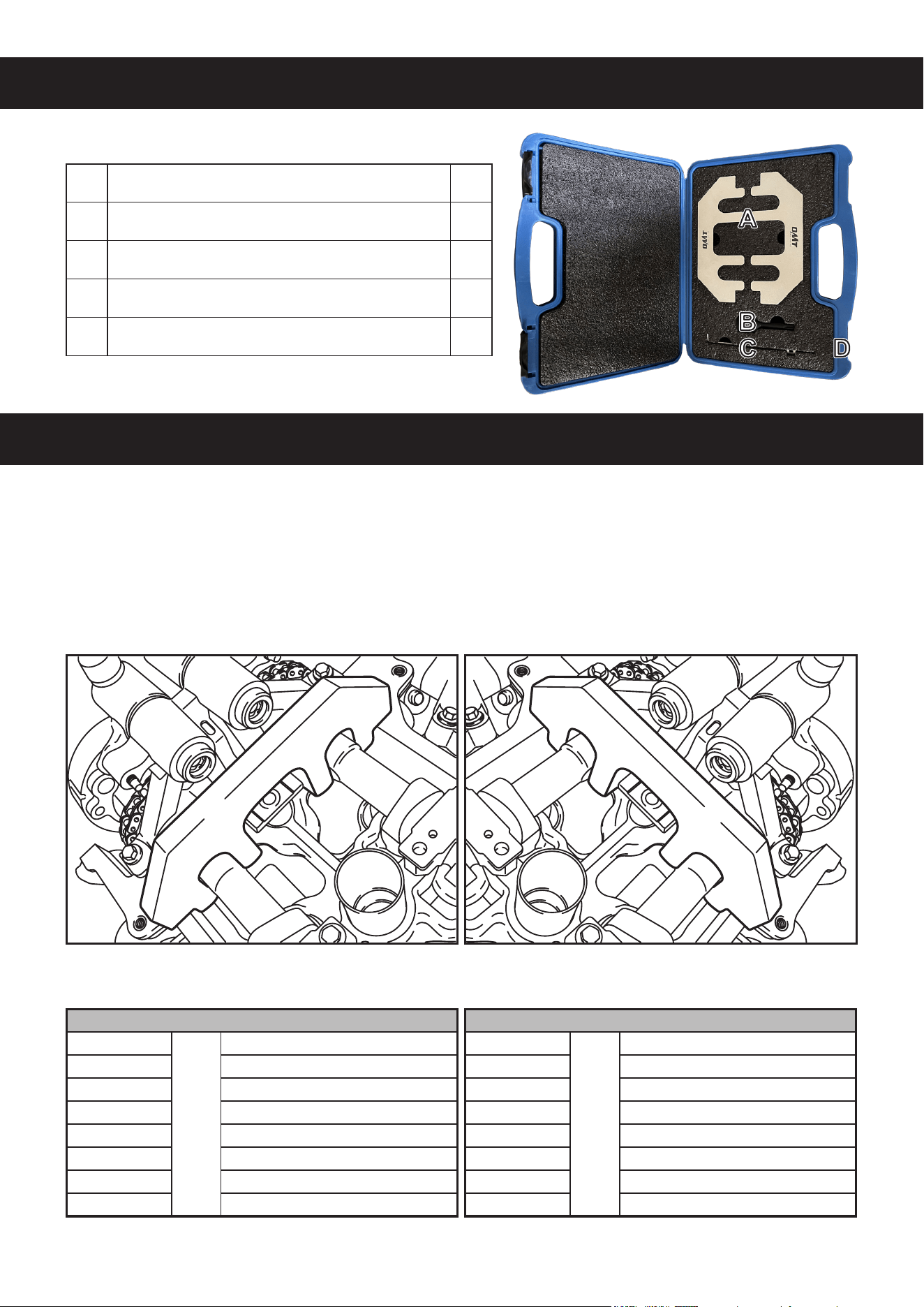

PARTS LIST
OPERATION
Fig. 1
Camshaft Holding Tools
1. Rotate the rst cylinder to top dead center.
2. Install the tools on the ats of the camshaft as shown in Fig. 1.
3. Service your camshaft as needed.
4. Refer to the vehicle service manual for the correct camshaft to crankshaft timing procedure.
Fitment
2010–2014
Ford
3.7L MKT
2011–2014 4.0L Edge
2011–2014 3.5L Explorer, F-150
2011–2014 3.7L F-150, MKX
2011–2012 4.0L F-150, MKX, Mustang
2011–2014 3.7L Mustang
2012–2014 3.5L Flex
2013–2014 3.7L MKZ
Fitment
2007–2014
Ford
3.5L Edge
2007–2011 3.5L Milan
2007–2012 3.5L MKX, MKZ
2008–2012 3.5L Sable
2008–2014 3.5L Taurus, Taurus X
2009–2014 3.7L MKS
2010–2012 3.5L Fusion Hybrid
2010 2014 3.5L MKS, MKT
No. Name Qty.
A Camshaft Holding Tools 2
B
Camshaft Phaser Bolt Removal Socket
1
C
Chain Tensioner Holder Tool
1
D
Storage Box
1
3

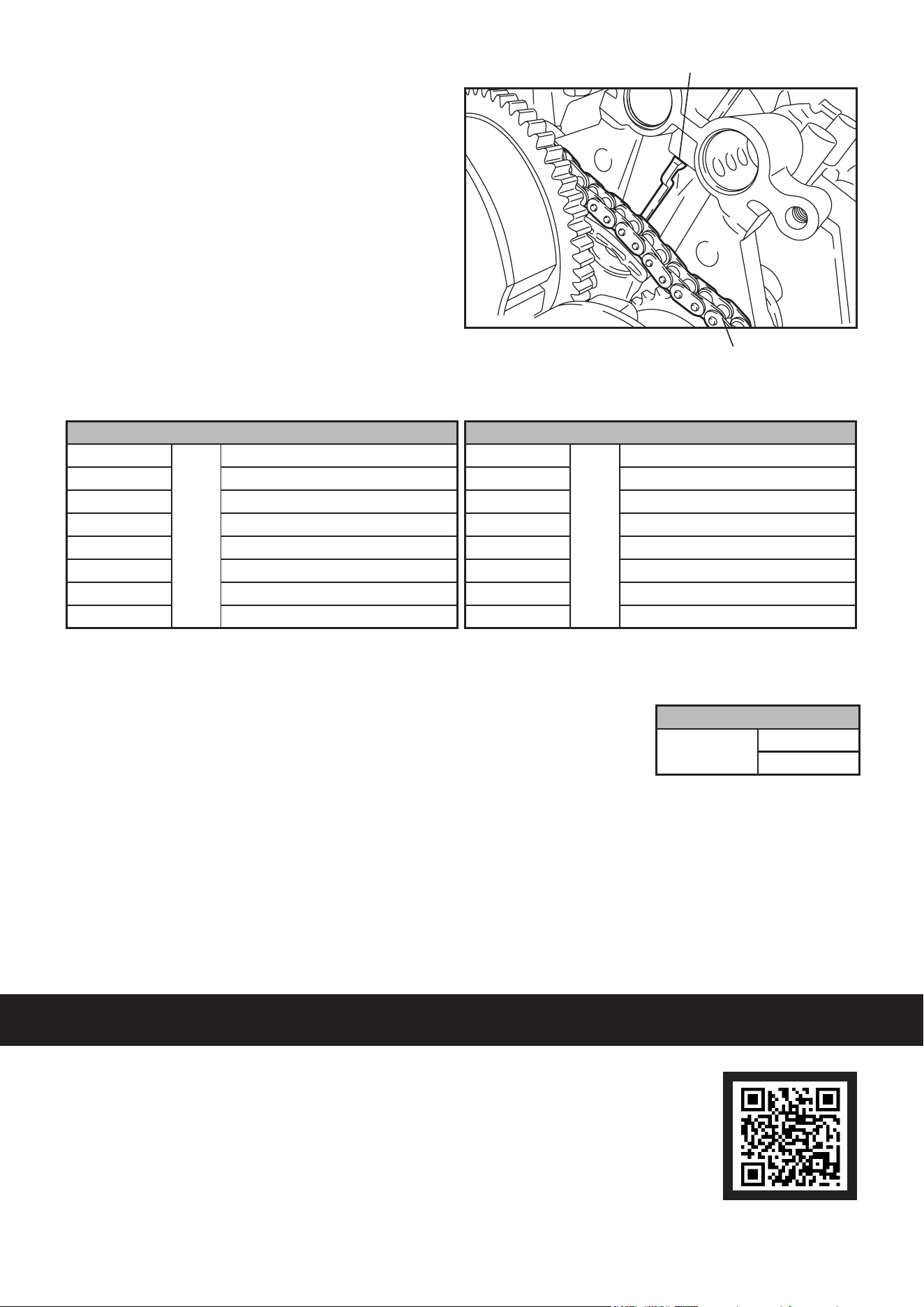

Chain Tensioner Holder Tool
1. Insert the tool through the hole in the top of
the mega cap as shown in Fig. 2.
2. Compress the secondary timing chain
tensioner and install the chain tensioner
holder tool in the hole on the rear of the
secondary timing chain tensioner guide.
Position it against the mega cap to retain
the tensioner in the compressed position.
3. Service the secondary timing chain as
required according to vehicle service
manual.
Camshaft Phaser Bolt Removal Socket
1. Attach the wide end of the socket to a ½″ ratchet wrench (not
included) and insert the narrow end into the phaser bolt.
2. Hold the camshaft in place with an adjustable wrench (not included)
or camshaft holding tool while you use the ratchet wrench to loosen
or fasten the phaser bolt.
Fitment
Ford
3.5L
3.7L
Fitment
2010–2014
Ford
3.7L MKT
2011–2012 4.0L F-150, MKX, Mustang
2011–2014 4.0L Edge
2011–2014 3.5L Explorer, F-150
2011–2014 3.7L F-150, MKX
2011–2014 3.7L Mustang
2012–2014 3.5L Flex
2013–2014 3.7L MKZ
Fitment
2007–2014
Ford
3.5L Edge
2007–2011 3.5L Milan
2007–2012 3.5L MKX, MKZ
2008–2012 3.5L Sable
2008–2014 3.5L Taurus, Taurus X
2009–2014 3.7L MKS
2010–2012 3.5L Fusion Hybrid
2010–2014 3.5L MKS, MKT
ETT-B001-00 ETT-B001-RD Rev. 9 Dec. 2022
CONTACT US
Thank you for choosing our products! If you have any questions or comments,
contact us at help@cs-supportpro.com and we'll resolve your issue ASAP!
For a .pdf copy of the latest version of these instructions, use the appropriate
app on your smartphone to scan the QR code to the right.
Mega Cap
Secondary Timing Chain Tensioner
Fig. 2
