29" OSCILLATING TOWER FAN
MODEL 1VAFT29
OWNER’S MANUAL
CONTENTS
INTENDED USE ....................................................................................4
IMPORTANT INSTRUCTIONS
..........................................................4
USAGE
..................................................................................................... 7
FAN ASSEMBLY
....................................................................................8
CARE AND MAINTENANCE
.............................................................9
FUSE REPLACEMENT
..................................................................... 10
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for
future reference. Illustrations in this manual are for explanatory
purposes only, your actual product may look slightly dierent.
4
SAFETY & PRECAUTIONS
CONTIN-CONTIN-
INTENDED USE
(Continued)
This product is intended for indoor residential and oce use
only, not for industrial or other commercial applications. Use only
with electrical wiring that is in good working order and that meets
applicable codes and ordinances. If you have any questions
whether your wiring is adequate, consult a qualied electrician.
While using your fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we
have used the word “WARNING” to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result in
injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety precautions should
always be followed to reduce the risk of electric shock, re, or
injury to persons, including the following precautions:
• Do not operate the fan with a damaged power cord or after
the fan malfunctions or has been dropped in any manner.
• Use of extreme caution is necessary when any fan is used by
or near children, disabled persons or pets and whenever the
fan is left operating unattended.
• Do not place the fan on a small, unlevel, uneven or any
surface which might allow fan to tip or fall.
• For proper operation, fan should be placed on a smooth,
non‑combustible, level surface.
• Always unplug fan when not in use, when moving from place
to place, when assembling or disassembling parts, and
before cleaning.
• The use of attachments, not recommended or sold by the
manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause electrical hazard
(for non‑window models).
• Do not operate the fan with blade guards or any safety device
removed.
5
INTENDED USE
(Continued)
• Avoid the use of extension cords due to risk of re.
• Do not run power cord under carpeting. Do not cover cord
with throw rugs, runners or the like. Arrange cord away from
trac area where it will not be tripped over.
• Do not insert or allow any object to enter any openings on the
fan. Doing so may cause electric shock and/or re hazard.
Avoid contact with moving parts.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play
with the appliance.
WARNING
Shock Hazard
Use your fan only in dry environments. This fan is not intended
for use in a bathroom, laundry area, or similar locations, or near
sinks, washing machines, swimming pools or other sources of
water. Never locate fan where it may fall into a bathtub or other
water receptacle. Do not use in damp environments such as
ooded basements.
WARNING
Hot Surfaces
Do not touch fan motor when in use. This motor is hot when in
use, to avoid burns, do not let bare skin touch hot surfaces.
6
SAFETY & PRECAUTIONS
CONTIN-CONTIN-
INTENDED USE
(Continued)
WARNING
Fire Hazard
Fans have arcing or sparking parts inside. Do not use near
combustible materials or ammable gases or sources of heat.
DO NOT USE in areas where gasoline, paint or ammable
materials are used or stored. To prevent a possible re, do not
block air intakes or exhaust in any manner. Do not insert or allow
foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock, re, or damage the fan.
WARNING
WARNING
Electrical Shock Hazard
Do not use with damaged cord or plug. Use with adequate
electrical system that is up to code.
to Reduce the Risk of Fire or Electric
Shock, do not use this product with any solid‑state speed control
device.
CAUTION
to Prevent Electric Shock, this
product has a polarized two prong plug (one blade is wider than
the other) that must be fully inserted in to a matching properly
grounded outlet. This plug is designed to t a polarized outlet
only one way. If the plug does not t fully into the outlet,
reverse the plug. If the plug still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature.
DO NOT operate any fan with a damaged cord or plug or after
fan malfunctions, has been dropped or damaged in any manner.
Do not operate fan with a broken blade, safety cage or any visual
imperfections. Disconnect power before servicing. For repairs
covered under warranty, see warranty statement. For all other
repairs contact VisionAir Customer Service by telephone or mail
for information and assistance.
7
USAGE
(Continued)
DO NOT run power cord under carpeting. DO NOT cover cord with
throw rugs, runners or the like. Arrange cord away from trac
area where it will not be tripped over. Avoid the use of extension
cords due to risk of re. Unplug the fan when not in use. Do not
operate fan with its ventilation obstructed.
USAGE
Fan Operation: Always operate the fan in the upright position
following all instructions and recommendations listed in this
manual.
Fan Location: Place the fan in the area of the room that will
provide proper fan cooling.
Fan Connection: Plug fan directly into 120 volt A.C., 60 Hz wall
outlet. Be sure plug ts tightly in outlet. A loose connection may
cause overheating and damage to the plug or fan.
NOTE: To prevent overloading a circuit, do not plug the fan
into a circuit that is servicing other electrical needs.

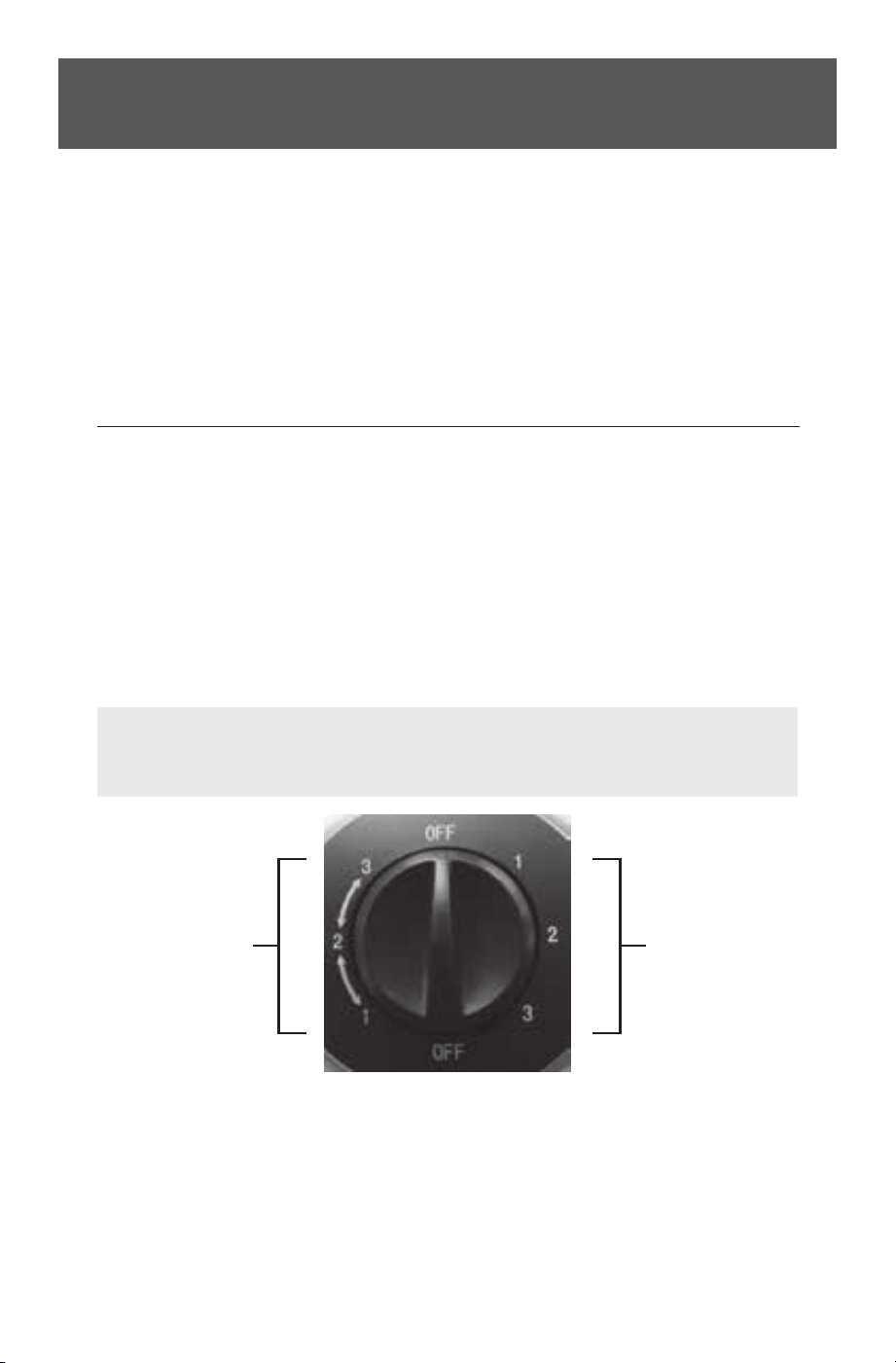

FAN Speeds
with
Oscillation
Stationary
Fan
Speeds
8
SAFETY & PRECAUTIONS
CONTIN-CONTIN-
FAN ASSEMBLY
(Continued)
Turning Fan On/O: Place fan on stable level surface. Plug fan
into properly grounded outlet. To start the fan, turn the control
dial clockwise to the desired speed level: 1‑LOW, 2‑MEDIUM,
3‑HIGH. Turn dial to 0‑OFF to discontinue use. Unplug fan when
not in use.
Oscillation: To start the fan with oscillation, turn the control
dial counter‑clockwise to the desired speed level with the
arrow above. 1-LOW, 2-MEDIUM, 3-HIGH. Turn dial to 0-O to
discontinue use. Unplug fan when not in use.
Place power cord in the
center opening of both
sections of the plastic fan
base. With the power cord
properly positioned, snap
both sections of the plastic
fan base together.

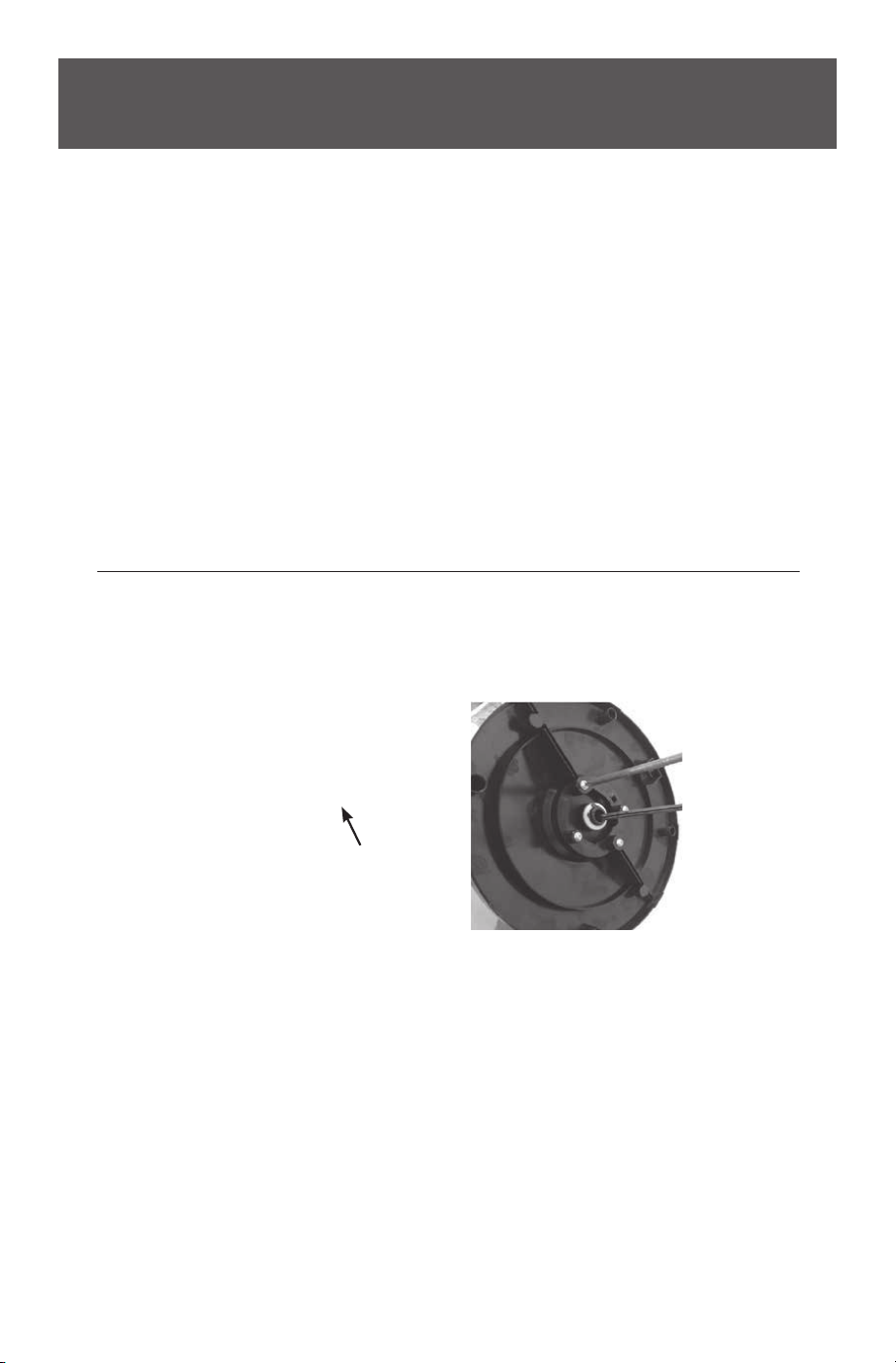

Line up four (4) recessed
areas on the fan base to four
(4) screw holes on the bottom
of the fan. Assemble using the
four screws and tighten by
screwdriver.
Run the power cord through the guides in the Base.
FAN ASSEMBLY
Assembly is required to use this fan.
Step 1 Step 2
Step 3
Power Cord
Fits in
Opening
9
CARE AND MAINTENANCE
(Continued)
Cleaning: CAUTION‑Before cleaning the fan be sure to
disconnect power cord from the plug. Clean the grille surface
with a clean damp cloth. Do not use harsh chemical or abrasive
cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN WATER.
Allow fan to dry completely before use. Periodic grille cleaning
with a vacuum will prevent dust build up. The motor is sealed
and does not require any interior maintenance, cleaning or
lubrication.
Maintenance: The Internal motor bearings are permanently
lubricated at the factory and do not require any additional
lubrication.
Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN
PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR
BECOME DAMAGED IN ANY WAY.
Storage: Keep original carton for storage of the fan. Coil and tie
the power cord to avoid damage during storage.
NOTE: This product employs overload protection (fuse). A
blown fuse indicates an overload or short‑circuit situation. If
the fuse blows, unplug the product from the outlet. Replace
the fuse as per the user servicing instructions (follow product
marking for proper fuse rating) and check the product. If the
replacement fuse blows, a short‑circuit may be present and
the product should be discarded or returned to an authorized
service facility for examination and/or repair.
10
SAFETY & PRECAUTIONS
CONTIN-CONTIN-
FUSE REPLACEMENT
(Continued)
FUSE REPLACEMENT
1. Grasp plug and remove from the receptacle or other outlet
device. Do not unplug by pulling on cord.
2. Open fuse cover by sliding open fuse access cover on top of
attachment plug towards blades. See Fig. 2.
3. Remove fuse carefully. Use a small tool to pry the end of the
fuse from holder cavity. Be careful not to break glass window.
4. Replace fuse. WARNING: Risk of fire. Replace fuse only with
identical 2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm). Be
sure fuse is properly seated within its cavity.
5. Close fuse cover by sliding it back to its original closed
position.
Fig.2Fig.1 Fig.3
Slide Cover to Open
833‑950‑1185 | support@visionairproducts.com
www.visionairproducts.com
4560 W. 160th Street
Cleveland, OH 44135
Printed in China | 0723_M079
For your records, staple your sales receipt
to this manual and record the following:
Date of Purchase:
____________________________________
Place of Purchase: ___________________________________
NOTE: Proof of purchase is required for all warranty claims.
NOTE: As a result of continual improvements, the design and
specications of the product within may dier slightly to the
unit illustrated on the packaging.
