24” TILTING DRUM FAN
INDUSTRIAL FLOOR FAN
MODEL 2VAFDRUM24
OWNER’S MANUAL
24_M095 VA Fan Manual 2VAFDRUM24.indd 124_M095 VA Fan Manual 2VAFDRUM24.indd 1 10/24/24 12:23 PM10/24/24 12:23 PM
2 3
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
CONTENTS
IMPORTANT NOTE:
Please read and save these instructions. Read through this owner’s manual carefully before using this prod-
uct. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to com-
ply with instructions could result in personal injury and/or damage to property. Illustrations in this manual
are for explanatory purposes only, your actual product may look slightly dierent. SAVE THIS MANUAL FOR
FUTURE REFERENCE.
Safety Guidelines .....................................................................................................................................................................4
Assembly Instructions ..............................................................................................................................................................5
Operation ..................................................................................................................................................................................5
Care and Storage ......................................................................................................................................................................5
Parts Diagram ...........................................................................................................................................................................6
Assembly Diagram ...................................................................................................................................................................6
Troubleshooting .......................................................................................................................................................................7
PRODUCT SPECIFICATIONS
• Model No: 2VAFDRUM24
• Item Name: Industrial Drum Floor Fan
• Rated Voltage: 120V (60Hz)
• Rated Power: 180W
• Mode Fan Speeds: Low / Medium / High
• Fan Blade Diameter: 24 Inch
CONSUMER PRODUCT INFORMATION
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store name/location and date
purchased below:
Store Name: _____________________________________________________________________________________________________
Location: ________________________________________________________________________________________________________
Date Purchased: _________________________________________________________________________________________________
24_M095 VA Fan Manual 2VAFDRUM24.indd 2-324_M095 VA Fan Manual 2VAFDRUM24.indd 2-3 10/24/24 12:23 PM10/24/24 12:23 PM
4 5
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT USED THIS FAN WITH ANY SOLD STATE
SPEED CONTROL DEVICE

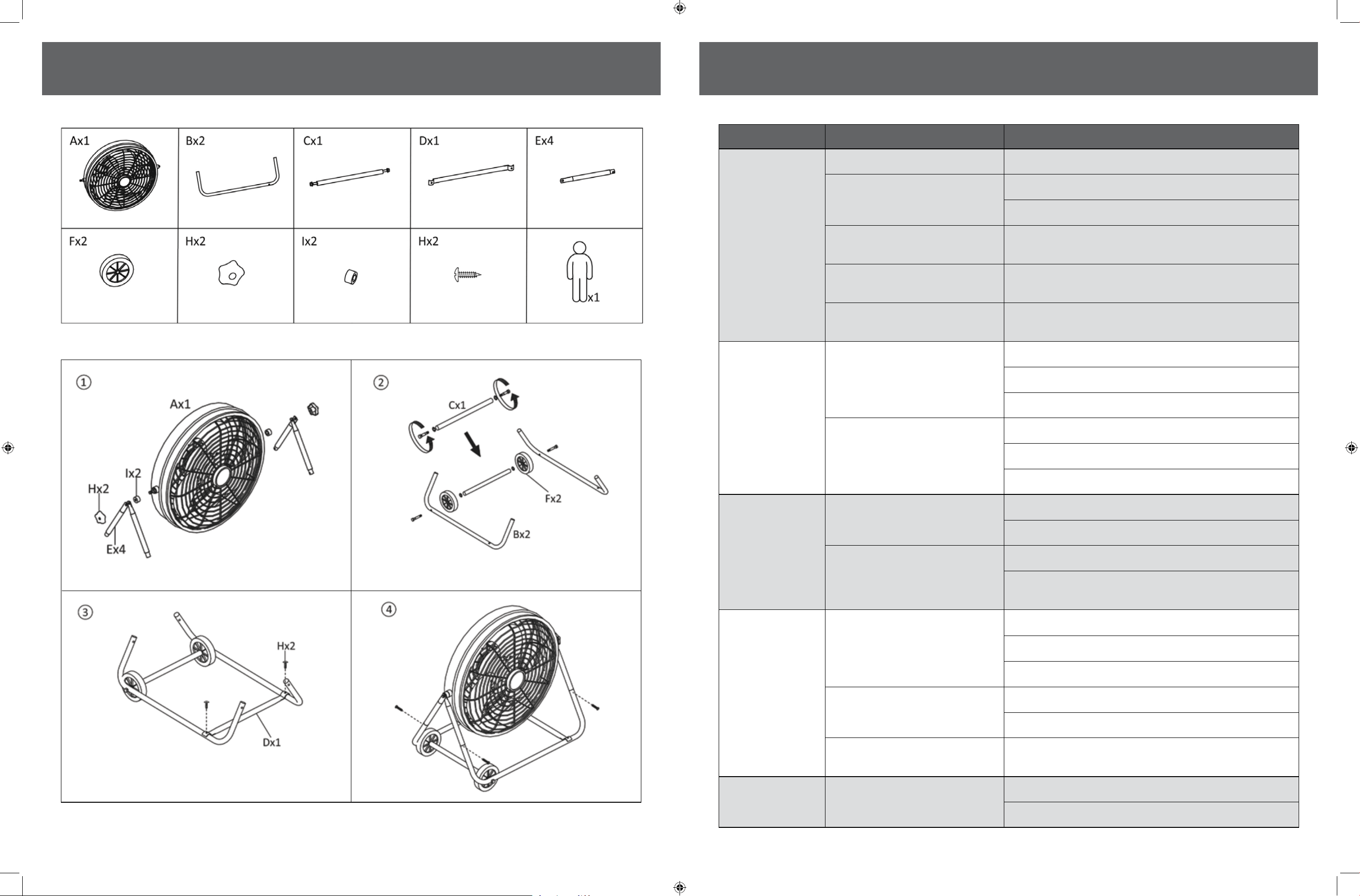

ASSEMBLY INSTRUCTIONS
• Remove the packaging material from the fan control box,
• Remove the screws from the two extremities of the base tube.
• Insert the tube into the fan body as shown in Figure I.
• Align the screws hole and tighten the holding screws onto the base.
OPERATION
• Plug the power cord into 120V volt AC wall outlet.
• The 3-speeds system is designed to give you maximum exibility and to meet all your air circulation needs.
• LOW or MED speed setting can be used for most of your requirements.
• High speed should only be necessary in exceptional circumstances.
• Select the desired speed by using the rotary control switch.
• Adjust to your desired air stream by tilting the fan assembly to the require position.
CARE AND STORAGE
• Turn the control to OFF and unplug the fan before cleaning.
• Use only a soft, damp cloth to clean the fan.
• Do not place the fan in water and never allow water to drip into the Motor Housing.
• Do not use gasoline, paint thinner or other chemicals to clean the fan.
• To clean the fan blade, remove the front grill and wipe the blade and grills.
• Reassemble the fan by snapping the front grill into place.
• Store the fan in its original box or cover the fan to protect it from dust.
• Store it in a cool, dry place.
OPERATION OF YOUR FANUSER INSTRUCTIONS
PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS
Please read these instructions carefully and familiarize yourself with your new fan before rst use.
POWER
120V~60Hz 180W
Ensure that voltage indicated on the identication plate corresponds with the power supply voltage.
FITTING OF 3 PIN PLUG
Important: the wires in this mains lead are colored in accordance with the following code:
Green and Yellow – Earth
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with colored markings identifying the terminals in
your plug, proceed as follows:
The wire which is colored green & yellow must be connected to the terminal in the plug which is marked with the letter “E” or the
earth symbol or colored green or green & yellow.
The wire which is colored blue must be connected to the terminal which is marked with the letter “N” or colored black.
The wire which is colored brown must be connected to the terminal which is marked with the letter “L” or colored red.
PLEASE READ CAREFULLY—ALWAYS MAINTAIN SAFETY WHEN WORKING WITH
ANY APPLIANCE
• Check that the power supply voltage corresponds with the rating of the appliance before operating.
• To protect against electric shock, do not immerse cords, plugs or appliances in water or any other liquid.
• Do not leave any appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children or inrm persons.
• Unplug from outlet when not in use or before cleaning. Allow to cool before putting on or taking o any parts.
• Do not operate the appliance with a damaged cord or plug, or after the appliance has been damaged in any manner. If the supply
cord or appliance is damaged, it must be replaced by the manufacturer or it is service agent or a similarly qualied person in
order to avoid a hazard.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces
• To disconnect, remove the plug from the outlet. Do not pull plug out by the cord.
• Do not use this product for anything other than it’s intended use. This appliance is for household use only.
• No liability can be accepted for any damage caused by noncompliance with these instructions or any other improper use or
mishandling.
• Do not use the appliance without the protective grills.
• Do not attempt to force the grill in order to make the fan turn or stop.
• Never put objects into the grills when the appliance is plugged in.
• It is not advisable to expose people (especially babies or
older people) to a continuous cold air stream for a long time.
NOTE: When installing the control box, make sure the
electrical wires are located on the outside of the base.
24_M095 VA Fan Manual 2VAFDRUM24.indd 4-524_M095 VA Fan Manual 2VAFDRUM24.indd 4-5 10/24/24 12:23 PM10/24/24 12:23 PM
6 7
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
(Continued)
TROUBLESHOOTINGPARTS & ASSEMBLY
PROBLEM CAUSE SOLUTION
Fan not turning on
Power cord not plugged in securely Ensure the power cord is fully inserted into a working outlet.
Circuit breaker has tripped or
fuse blown
1. Check your circuit breaker panel for a tripped breaker.
2. Reset the breaker, or replace the fuse if blown.
Fan switch not in the “On” position
Turn the fan speed control switch to the “On” position or
desired speed.
Faulty power outlet
Test the outlet with another device (e.g., a lamp) to ensure it’s
functioning. If the outlet is faulty, use another outlet.
Motor issue
If the fan doesn’t turn on after checking the power supply,
unplug the fan and contact customer service.
Unusual noise
during operation
Loose screws or parts
1. Turn o and unplug the fan.
2. Inspect all screws on the housing and blades.
3. Tighten any loose screws using a screwdriver.
Fan blades are unbalanced
1. Turn o and unplug the fan.
2. Inspect each blade for bends or damage.
3. Remove any objects or debris obstructing the blades.
Fan vibrating
excessively
Fan placed on an uneven surface
1. Ensure the fan is placed on a stable, level surface.
2. If necessary, move the fan to a dierent location.
Loose fan blade
1. Turn o and unplug the fan.
2. Check if the fan blades are securely attached and tighten
any loose screws.
Fan overheating
Dust or debris buildup in motor vents
1. Turn o and unplug the fan.
2. Clean the motor vents using a soft brush to remove dust.
3. Wipe down the fan blades and housing with a dry cloth.
Prolonged use in a poorly ventilated
space
1. Turn o the fan and allow it to cool down.
2. Ensure it is operating in a well-ventilated area.
Electrical issue
If the fan continues to overheat, unplug it and contact
customer service for further assistance.
Reduced airow Dirty or obstructed fan blades
1. Turn o and unplug the fan.
2. Clean the blades with a soft, dry cloth to remove dirt or debris.
