OWNER’S MANUAL
30" OSCILLATING HIGH VELOCITY
WALL MOUNT FAN
MODEL 1VAFWLHV30OS
2
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
CONTENTS
INTENDED USE ................................................................................................................................................................. 3
IMPORTANT INSTRUCTIONS ....................................................................................................................................... 3
PARTS ................................................................................................................................................................................... 4
ASSEMBLY .......................................................................................................................................................................... 5
INSTALLATION .................................................................................................................................................................. 5
OPERATING INSTRUCTIONS ....................................................................................................................................... 5
CLEANING .......................................................................................................................................................................... 6
MAINTENANCE ................................................................................................................................................................. 6
3
SAFETY INFORMATION
INTENDED USE
Use only with electrical wiring that is in good
working order and that meets applicable codes
and ordinances. If you have any questions whether
your wiring is adequate, consult a qualied
electrician.
While using your fan, you should follow the
IMPORTANT INSTRUCTIONS listed below. As
part of those instructions, we have used the
word “WARNING” to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided,
could result in injury or death.
IMPORTANT INSTRUCTIONS
As with all electrical appliances, basic safety
precautions should always be followed to reduce
the risk of electric shock, re, or injury to persons,
including the following precautions:
• Read all the instructions before using this fan.
• Use this fan only as described in this manual.
Any other use not recommended by the
manufacturer may cause electrical shock, re
or injury to persons.
• Do not operate the fan with a damaged power
cord or after the fan malfunctions or has been
dropped in any manner.
• Use of extreme caution is necessary when
any fan is used by or near children, disabled
persons or pets and whenever the fan is left
operating unattended.
• Do not place the fan on a small, unlevel,
uneven or any surface which might allow fan to
tip or fall.
• For proper operation, fan should be placed on
a smooth, non-combustible, level surface.
• Always unplug fan when not in use, when
moving from place to place, when assembling
or disassembling parts, and before cleaning.
• The use of attachments, not recommended or
sold by the manufacturer, may cause hazards.
• Do not use outdoors.
• Do not use fan in window. Rain may cause
electrical hazard (for non-window models).
• Do not operate the fan with blade guards or
any safety device removed.
• Avoid the use of extension cords due to risk
of re. If an extension cord must be used, the
cord must be minimum 14 AWG and rated not
less then 1875 watts.
• Do not run power cord under carpeting. Do not
cover cord with throw rugs, runners or the like.
Arrange cord away from trac area where it
will not be tripped over.
• Do not insert or allow any object to enter any
openings on the fan. Doing so may cause
electric shock and/or re hazard. Avoid contact
with moving parts.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure they
do not play with the appliance.
READ & SAVE THESE
INSTRUCTIONS!
WARNING SHOCK HAZARD
Use your fan only in dry environments. This fan
is not intended for use in a bathroom, laundry
area, or similar locations, or near sinks, washing
machines, swimming pools or other sources of
water. Never locate fan where it may fall into a
bathtub or other water receptacle. Do not use in
damp environments such as ooded basements.
WARNING HOT SURFACES
Do not touch fan motor when in use. This motor
is hot when in use, to avoid burns, do not let bare
skin touch hot surfaces.
WARNING FIRE HAZARD
4
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
(Continued)
SAFETY INFORMATION & PARTS
Fans have arcing or sparking parts inside. Do not
use near combustible materials or ammable
gases or sources of heat. Do not use in areas
where gasoline, paint or ammable materials are
used or stored. To prevent a possible re, do not
block air intakes or exhaust in any manner. Do
not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock, re, or damage the fan.
WARNING ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with
adequate electrical system that is up to code.
CAUTION TO PREVENT ELECTRIC
SHOCK, this product has a three prong grounded
plug that must be inserted into a matching
properly grounded outlet to reduce the risk of
electrical shock. Do not attempt to defeat this
safety feature.
WARNING TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, do not use this
product with any solid-state speed control device.

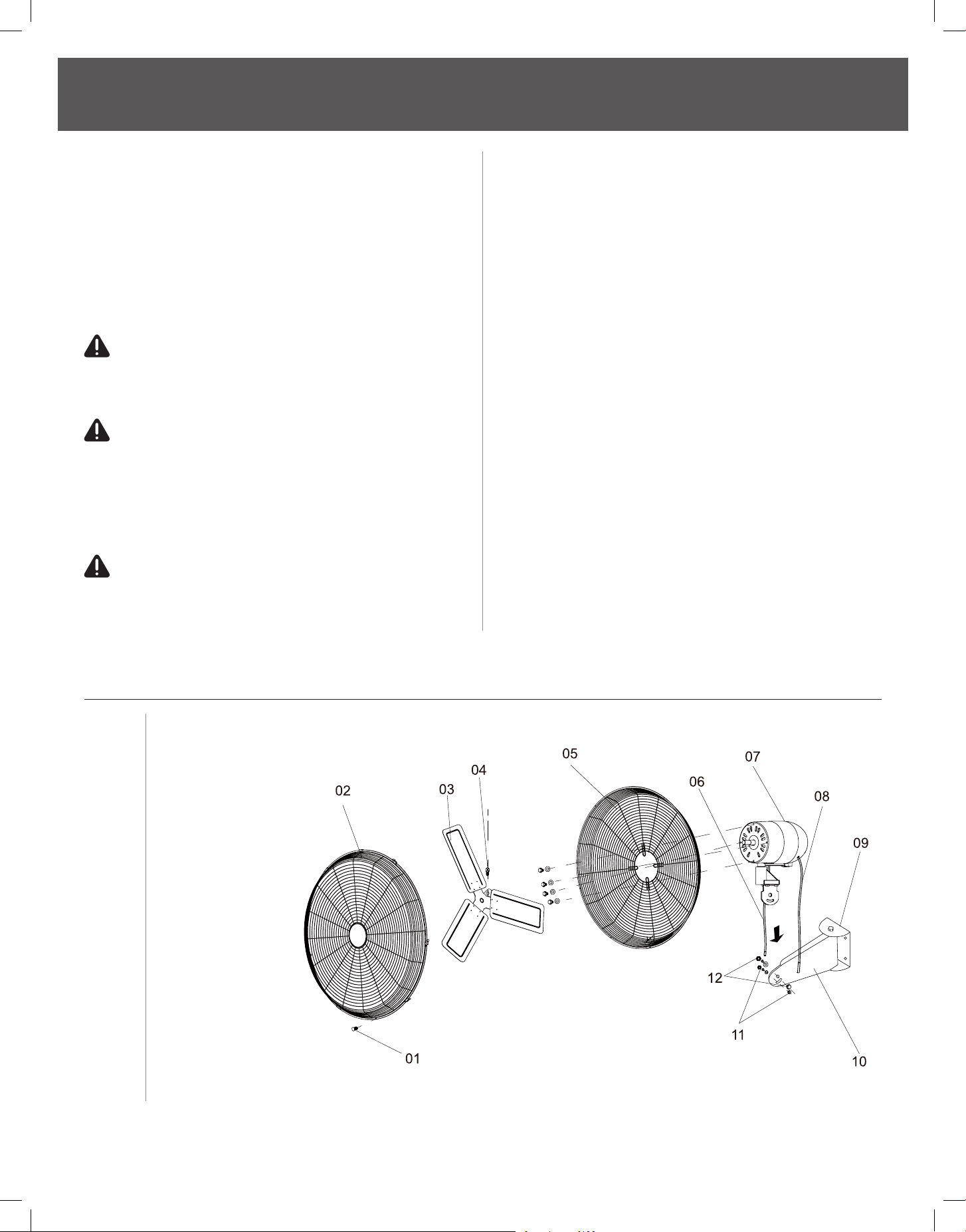

PARTS
ITEM # PART DESCRIPTION
1. Screw
2. Front Guard
3. Fan Blade
4. Set Screw
5. Back Guard
6. Oscillating Switch
7. Motor
8. Speed Switch
9. Wall Bracket
10. Angle
Support Bracket
11. Position
(Screw, Washer, Nut)
12. Pivot
(Bolt, Washer, Nut)
DO NOT operate any fan with a damaged cord or
plug or after fan malfunctions, has been dropped
or damaged in any manner. Do not operate fan
with a broken blade, safety cage or any visual
imperfections. Disconnect power before servicing.
For repairs covered under warranty, see warranty
statement. For all other repairs contact VisionAir
Customer Service by telephone or mail for
information and assistance.
DO NOT run power cord under carpeting. Do not
cover cord with throw rugs, runners or the like.
Arrange cord away from trac area where it will
not be tripped over. Avoid the use of extension
cords due to risk of re. If an extension cord must
be used, the cord must be minimum 14 AWG and
rated not less then 1875 watts. Do not use an
extension cord unless the plug can be completely
inserted into its receptacle. Unplug the fan when
not in use. Do not operate fan with its ventilation
obstructed.
5

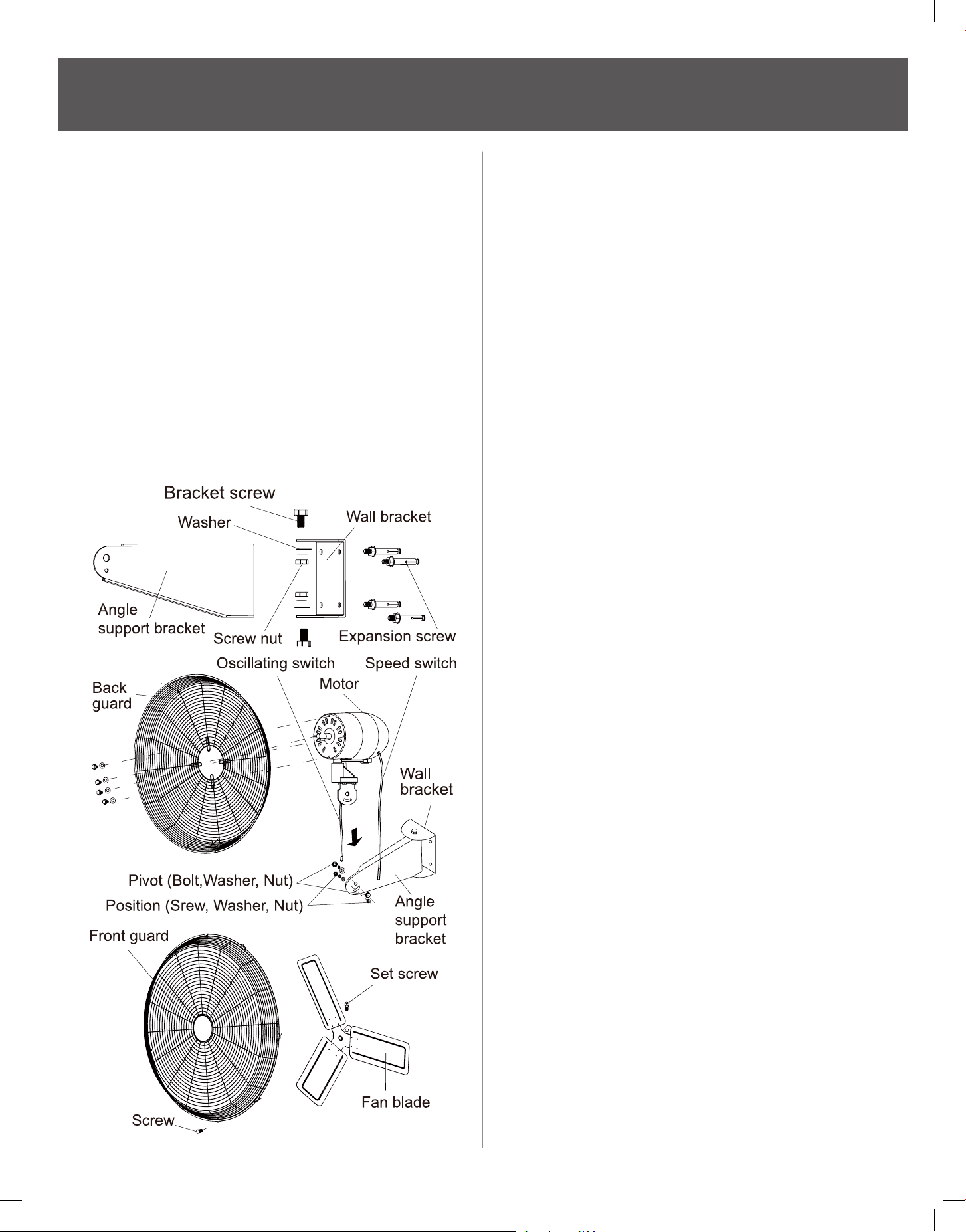

ASSEMBLY
1. Install the wall bracket to the wall per the
instructions above, making sure the installation
can support the fan.
2. Attach the angle support bracket to the wall
mount bracket, using the bolt, washer and nut
provided.
3. Attach the back guard to the fan motor, using
the four screws and washers provided.
4. Attach the fan blade to the motor shaft and
tighten the set screw securely to hold it in
place.
5. Attach the front guard to the back guard using
the screws provided.
INSTALLATION
WALL INSTALLATION
Use the following information as a guideline
only. It is the user’s responsibility to be sure the
location and the wall surface can handle the
weight of this fan.
Use wall bracket as a template for locating the
holes to be drilled.
After determining the hole locations, use an
appropriate sized drill bit and, drill holes through
mounting surface. It is recommended that a
minimum of grade 5 fasteners be used. The
following are acceptable surfaces for mounting
wall mount assembly.
STEEL SURFACE
When mounting to a steel surface, such as
vertical I-beam, drill through holes at pre-marked
locations, using a 9/32" drill bit. Attach wall mount
assembly to mounting surface using 1/4"- 20 hex
screw, in combination with 1/4" at washers,
1/4" lock washers, and 1/4"- 20 hex nuts.
MASONRY SURFACE
When mounting to a masonry surface use a
1/4" expansion type bolt or 1/4" masonry lag
with shield designed to handle the weight of this
fan. Drill holes at pre-marked locations using
appropriate sized drill bit as recommended for
the fastener.
OPERATING INSTRUCTIONS
1. After the fan has been mounted to the wall, be
sure that it is secure.
2. Select desired direction of air ow by tilting the
fan upward or downward.
3. Plug unit into electrical outlet.
4. Pull the chain on the motor assembly to set
desired setting (high and low)
5. Always turn o (0-OFF) and unplug fan after
ASSEBLY, INSTALLATION & USAGE
Step 5
Step 4
Step 3
Step 1
Step 2
6
SAFETY & PRECAUTIONS
CONTINUEDCONTINUED
CLEANING & MAINTENANCE
CLEANING
CAUTION Before cleaning the fan be
sure to disconnect power cord from the plug.
Clean the grille surface with a clean damp cloth.
Do not use harsh chemical or abrasive cleaners.
DO NOT IMMERSE THE FAN OR ANY WIRES IN
WATER. Allow fan to dry completely before use.
Periodic grille cleaning with a vacuum will prevent
dust build up. The motor is sealed and does not
require any interior maintenance, cleaning or
lubrication.
MAINTENANCE
The Internal motor bearings are permanently
lubricated at the factory and do not require any
additional lubrication.
REPAIR
DO NOT OPERATE THE FAN WITHOUT THE
GRILLE IN PLACE. DO NOT USE THE FAN IF IT
HAS MALFUNCTIONED OR BECOME DAMAGED
IN ANY WAY.
STORAGE
Keep original carton for storage of the fan. Coil
and tie the power cord to avoid damage during
storage.
CONSUMER PRODUCT INFORMATION
For your own records, please attach a copy of your sales receipt to this manual.
Also, write the store name/location and date purchased below:
Store Name: _______________________________________________________________
Location: __________________________________________________________________
Date Purchased: ____________________________________________________________
NOTE: As a result of continual improvements, the design and specications of the
product within may dier slightly to the unit illustrated on the packaging.
NOTE: Proof of purchase is required for all warranty claims.
